Lenovo IdeaPad 3389, IdeaPad 3389-26U, IdeaPad 3389-28U, IdeaPad 3389-29U, IdeaPad U450p Specification Sheet
Page 1

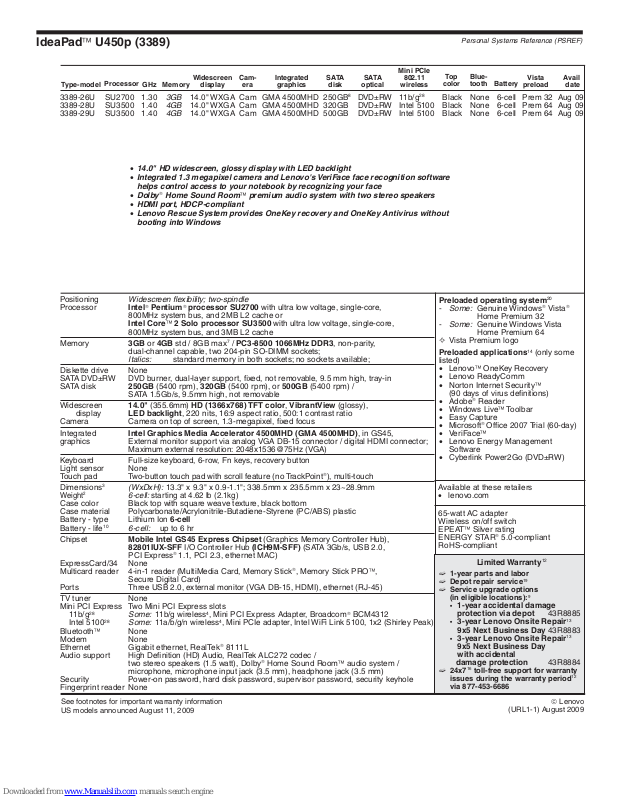

IdeaPad™ U450p (3389)
Personal Systems Reference (PSREF)
Type-model
Processor
GHz
Widescreen
displayMemory
Cam-
era
Integrated
graphics
SATA
disk
SATA
optical
Mini PCIe
802.11
wireless
Top
color
Bluetooth
Battery
Vista
preload
Avail
date
3389-26U SU2700 1.30 3GB 14.0" WXGA Cam GMA 4500MHD 250GB8 DVD±RW 11b/g28 Black None 6-cell Prem 32 Aug 09
3389-28U SU3500 1.40 4GB 14.0" WXGA Cam GMA 4500MHD 320GB DVD±RW Intel 5100 Black None 6-cell Prem 64 Aug 09
3389-29U SU3500 1.40 4GB 14.0" WXGA Cam GMA 4500MHD 500GB DVD±RW Intel 5100 Black None 6-cell Prem 64 Aug 09
• 14.0" HD widescreen, glossy display with LED backlight
• Integrated 1.3 megapixel camera and Lenovo's VeriFace face recognition software
helps control access to your notebook by recognizing your face
• Dolby® Home Sound Room™ premium audio system with two stereo speakers
• HDMI port, HDCP-compliant
• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without
booting into Windows
Positioning
Processor
Widescreen fl exibility; two-spindle
Intel® Pentium® processor SU2700 with ultra low voltage, single-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Solo processor SU3500 with ultra low voltage, single-core,
800MHz system bus, and 3MB L2 cache
Memory
3GB or 4GB std / 8GB max7 / PC3-8500 1066MHz DDR3, non-parity,
dual-channel capable, two 204-pin SO-DIMM sockets;
Italics: standard memory in both sockets; no sockets available;
Diskette drive
SATA DVD±RW
SATA disk
None
DVD burner, dual-layer support, fi xed, not removable, 9.5 mm high, tray-in
250GB (5400 rpm), 320GB (5400 rpm), or 500GB (5400 rpm) /
SATA 1.5Gb/s, 9.5mm high, not removable
Widescreen
display
Camera
Integrated
graphics
14.0" (355.6mm) HD (1366x768) TFT color, VibrantView (glossy),
LED backlight, 220 nits, 16:9 aspect ratio, 500:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus
Intel Graphics Media Accelerator 4500MHD (GMA 4500MHD), in GS45,
External monitor support via analog VGA DB-15 connector / digital HDMI connector;
Maximum external resolution: 2048x1536@75Hz (VGA)
Keyboard
Light sensor
Touch pad
Dimensions
2
Weight
Case color
Case material
Battery - type
Battery - life10
Chipset
Full-size keyboard, 6-row, Fn keys, recovery button
None
Two-button touch pad with scroll feature (no TrackPoint®), multi-touch
3
(WxDxH): 13.3" x 9.3" x 0.9-1.1"; 338.5mm x 235.5mm x 23~28.9mm
6-cell: starting at 4.62 lb (2.1kg)
Black top with square weave texture, black bottom
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion 6-cell
6-cell: up to 6 hr
Mobile Intel GS45 Express Chipset (Graphics Memory Controller Hub),
82801IUX-SFF I/O Controller Hub (ICH9M-SFF) (SATA 3Gb/s, USB 2.0,
ExpressCard/34
Multicard reader
Por ts
TV tuner
Mini PCI Express
28
11b/g
Intel 5100
Bluetooth™
Modem
Ethernet
Audio support
PCI Express® 1.1, PCI 2.3, ethernet MAC)
None
4-in-1 reader (MultiMedia Card, Memory Stick®, Memory Stick PRO™,
Secure Digital Card)
Three USB 2.0, external monitor (VGA DB-15, HDMI), ethernet (RJ-45)
None
Two Mini PCI Express slots
Some: 11b/g wireless4, Mini PCI Express Adapter, Broadcom® BCM4312
28
Some:
11a/b/g/n wireless4,
Mini PCIe adapter, Intel WiFi Link 5100, 1x2 (Shirley Peak)
None
None
Gigabit ethernet, RealTek® 8111L
High Defi nition (HD) Audio, RealTek ALC272 codec /
two stereo speakers (1.5 watt), Dolby® Home Sound Room™ audio system /
Security
Fingerprint reader
See footnotes for important warranty information
US models announced August 11, 2009
microphone, microphone input jack (3.5 mm), headphone jack (3.5 mm)
Power-on password, hard disk password, supervisor password, security keyhole
None
Preloaded operating system
- Some: Genuine Windows® Vista
Home Premium 32
- Some: Genuine Windows Vista
Home Premium 64
✧ Vista Premium logo
Preloaded applications14 (only some
listed)
• Lenovo™ OneKey Recovery
• Lenovo ReadyComm
• Norton Internet Security™
(90 days of virus defi nitions)
• Adobe® Reader
• Windows Live™ Toolbar
• Easy Capture
• Microsoft® Offi ce 2007 Trial (60-day)
• VeriFace™
• Lenovo Energy Management
Software
• Cyberlink Power2Go (DVD±RW)
Available at these retailers
• lenovo.com
65-watt AC adapter
Wireless on/off switch
EPEAT™ Silver rating
ENERGY STAR® 5.0-compliant
RoHS-compliant
Limited Warranty12
➫ 1-year parts and labor
➫ Depot repair service
➫ Service upgrade options
(in eligible locations):
• 1-year accidental damage
protection via depot 43R8885
• 3-year Lenovo Onsite Repair
9x5 Next Business Day 43R8883
• 3-year Lenovo Onsite Repair
9x5 Next Business Day
with accidental
damage protection 43R8884
16
➫ 24x7
issues during the warranty period
via 877-453-6686
toll-free support for warranty
(URL1-1) August 2009
20
®
19
9
13
13
12
© Lenovo
