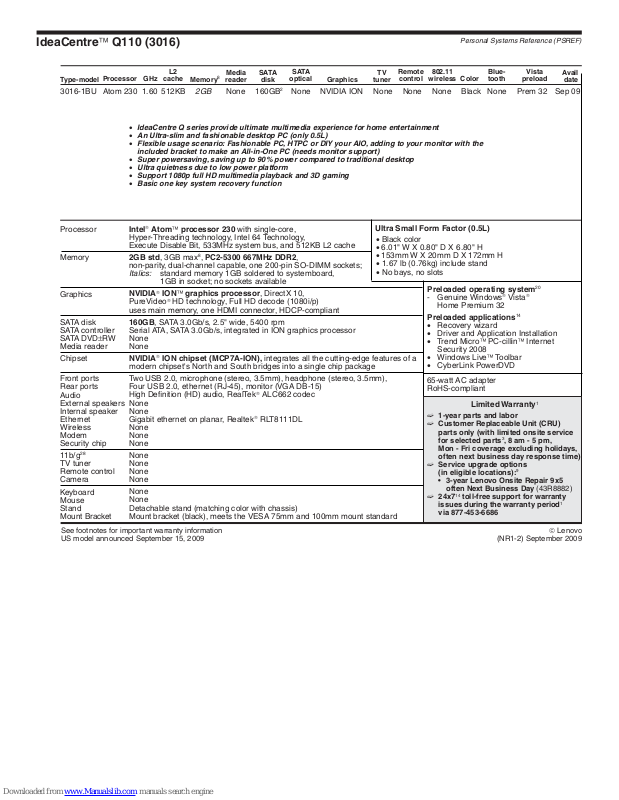

IdeaCentre™ Q110 (3016)
Personal Systems Reference (PSREF)
Type-model
Processor
GHz
L2
cache
Memory
8
Media
reader
SATA
disk
SATA
optical
Graphics
TV
tuner
Remote
control
802.11
wireless
BluetoothColor
Vista
preload
Avail
date
3016-1BU Atom 230 1.60 512KB 2GB None 160GB2 None NVIDIA ION None None None Black None Prem 32 Sep 09
• IdeaCentre Q series provide ultimate multimedia experience for home entertainment
• An Ultra-slim and fashionable desktop PC (only 0.5L)
• Flexible usage scenario: Fashionable PC, HTPC or DIY your AIO, adding to your monitor with the
included bracket to make an All-in-One PC (needs monitor support)
• Super powersaving, saving up to 90% power compared to traditional desktop
• Ultra quietness due to low power platform
• Support 1080p full HD multimedia playback and 3D gaming
• Basic one key system recovery function
®
Atom™ processor 230 with single-core,
Processor
Intel
Hyper-Threading technology, Intel 64 Technology,
Execute Disable Bit, 533MHz system bus, and 512KB L2 cache
Memory
2GB std, 3GB max8,
non-parity, dual-channel capable, one 200-pin SO-DIMM sockets;
PC2-5300 667MHz DDR2,
Italics: standard memory 1GB soldered to systemboard,
1GB in socket; no sockets available
Graphics
NVIDIA® ION™ graphics processor, DirectX 10,
PureVideo® HD technology, Full HD decode (1080i/p)
uses main memory, one HDMI connector, HDCP-compliant
SATA disk
SATA controller
S ATA DV D ±RW
Media reader
Chipset
Front ports
Rear ports
Audio
External speakers
Internal speaker
Ethernet
Wireless
Modem
Security chip
28
11b/g
TV tuner
Remote control
Camera
Keyboard
Mouse
Stand
Mount Bracket
See footnotes for important warranty information
US model announced September 15, 2009
160GB, SATA 3.0Gb/s, 2.5" wide, 5400 rpm
Serial ATA, SATA 3.0Gb/s, integrated in ION graphics processor
None
None
NVIDIA® ION chipset (MCP7A-ION), integrates all the cutting-edge features of a
modern chipset's North and South bridges into a single chip package
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm),
Four USB 2.0, ethernet (RJ-45), monitor (VGA DB-15)
High Defi nition (HD) audio, RealTek® ALC662 codec
None
None
Gigabit ethernet on planar, Realtek® RLT8111DL
None
None
None
None
None
None
None
None
None
Detachable stand (matching color with chassis)
Mount bracket (black), meets the VESA 75mm and 100mm mount standard
Ultra Small Form Factor (0.5L)
• Black color
• 6.01" W X 0.80" D X 6.80" H
• 153mm W X 20mm D X 172mm H
• 1.67 lb (0.76kg) include stand
• No bays, no slots
Preloaded operating system
- Genuine Windows® Vista
Home Premium 32
Preloaded applications14
• Recovery wizard
• Driver and Application Installation
• Trend Micro™ PC-cillin™ Internet
Security 2008
• Windows Live™ Toolbar
• CyberLink PowerDVD
65-watt AC adapter
RoHS-compliant
Limited Warranty1
➫ 1-year parts and labor
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
often next business day response time)
➫ Service upgrade options
(in eligible locations):
• 3-year Lenovo Onsite Repair 9x5
often Next Business Day (43R8882)
14
➫ 24x7
issues during the warranty period
via 877-453-6686
toll-free support for warranty
20
®
3
, 8 am - 5 pm,
9
1
(NR1-2) September 2009
