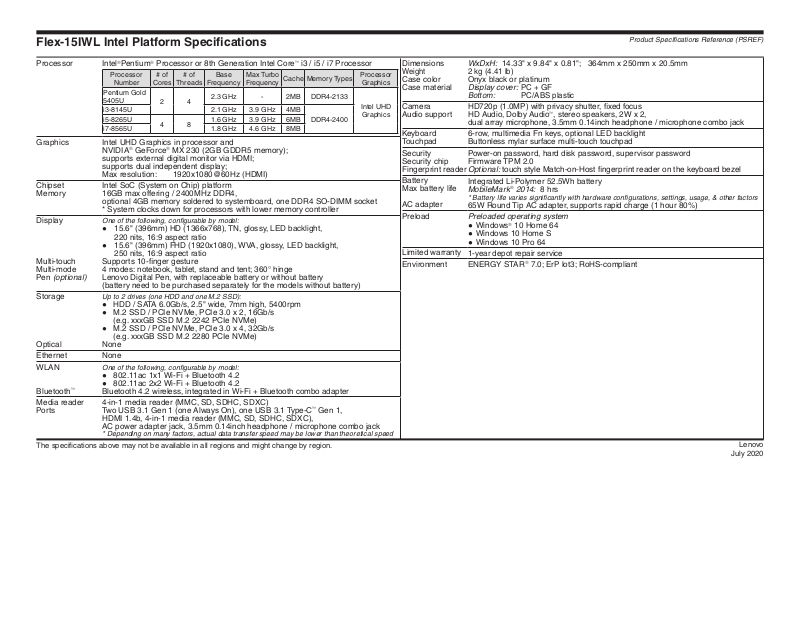

Lenovo Flex-15IWL Specifications
Flex-15IWL Intel Platform Specifications
Product Specifications Reference (PSREF)
Processor
Graphics
IntelPentium Processor or 8th Generation Intel Core i3 / i5 / i7 Processor
Processor
Number
Pentium Gold
5405U
i3-8145U 2.1 GHz 3.9 GHz 4MB
i7-8565U 1.8 GHz 4.6 GHz 8MB
# of
Cores
2 4
4 8
# of
Threads
Base
Frequency
2.3 GHz - 2MB DDR4-2133
1.6 GHz 3.9 GHz 6MB
Max Turbo
Frequency
Cache Memory Types
DDR4-2400i5-8265U
Intel UHD Graphics in processor and
NVIDIA GeForce MX 230 (2GB GDDR5 memory);
supports external digital monitor via HDMI;
supports dual independent display;
Max resolution: 1920x1080@60Hz (HDMI)
Chipset
Memory
Intel SoC (System on Chip) platform
16GB max offering / 2400MHz DDR4,
optional 4GB memory soldered to systemboard, one DDR4 SO-DIMM socket
* System clocks down for processors with lower memory controller
Display
One of the following, configurable by model:
● 15.6" (396mm) HD (1366x768), TN, glossy, LED backlight,
220 nits, 16:9 aspect ratio
● 15.6" (396mm) FHD (1920x1080), WVA, glossy, LED backlight,
250 nits, 16:9 aspect ratio
Multi-touch
Multi-mode
Pen (optional)
Supports 10-finger gesture
4 modes: notebook, tablet, stand and tent; 360° hinge
Lenovo Digital Pen, with replaceable battery or without battery
(battery need to be purchased separately for the models without battery)
Storage
Up to 2 drives (one HDD and one M.2 SSD):
● HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high, 5400rpm
● M.2 SSD / PCIe NVMe, PCIe 3.0 x 2, 16Gb/s
(e.g. xxxGB SSD M.2 2242 PCIe NVMe)
● M.2 SSD / PCIe NVMe, PCIe 3.0 x 4, 32Gb/s
(e.g. xxxGB SSD M.2 2280 PCIe NVMe)
Optical
None
Ethernet None
WLAN
One of the following, configurable by model:
● 802.11ac 1x1 Wi-Fi + Bluetooth 4.2
Bluetooth
Media reader
Ports
● 802.11ac 2x2 Wi-Fi + Bluetooth 4.2
Bluetooth 4.2 wireless, integrated in
Wi-Fi + Bluetooth combo adapter
4-in-1 media reader (MMC, SD, SDHC, SDXC)
Two USB 3.1 Gen 1 (one Always On), one USB 3.1 Type-C Gen 1,
HDMI 1.4b, 4-in-1 media reader (MMC, SD, SDHC, SDXC),
AC power adapter jack, 3.5mm 0.14inch headphone / microphone combo jack
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
The specifications above may not be available in all regions and might change by region.
Processor
Graphics
Intel UHD
Graphics
Dimensions
Weight
Case color
Case material
Camera
Audio support
Keyboard
Touchpad
Security
Security chip
Fingerprint reader
Battery
Max battery life
AC adapter
Preload
Limited warranty
Environment
WxDxH: 14.33" x 9.84" x 0.81"; 364mm x 250mm x 20.5mm
2 kg (4.41 lb)
Onyx black or platinum
Display cover:
Bottom:
PC +
GF
PC/ABS plastic
HD720p (1.0MP) with privacy shutter, fixed focus
HD Audio, Dolby Audio, stereo speakers, 2W x 2,
dual array microphone, 3.5mm 0.14inch headphone / microphone combo jack
6-row, multimedia Fn keys, optional LED backlight
Buttonless mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password
Firmware TPM 2.0
Optional: touch style Match-on-Host fingerprint reader on the keyboard bezel
Integrated Li-Polymer 52.5Wh battery
MobileMark 2014: 8 hrs
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
65W Round Tip AC adapter, supports rapid charge (1 hour 80%)
Preloaded operating system
● Windows 10 Home 64
● Windows 10 Home S
● Windows 10 Pro 64
1-year depot repair service
ENERGY STAR 7.0; ErP lot3; RoHS-compliant
Lenovo
July 2020
