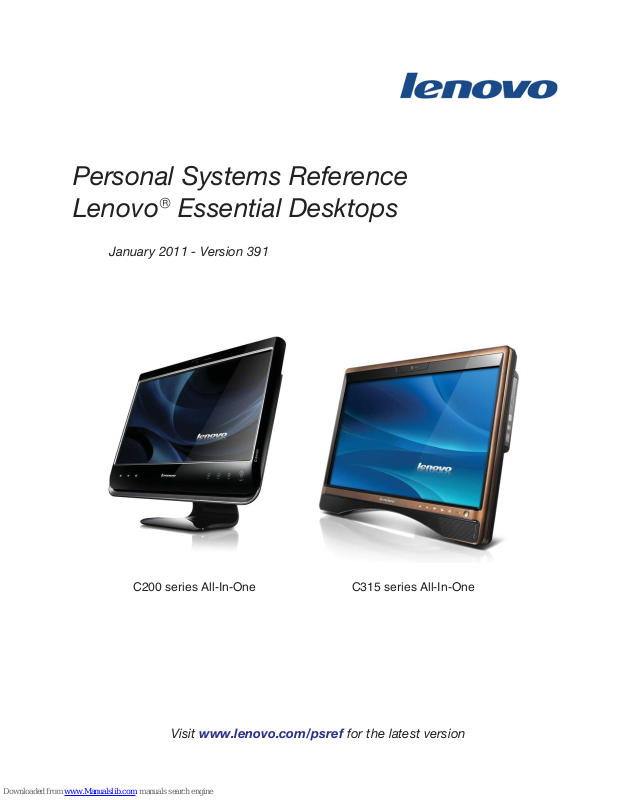

Personal Systems Reference Lenovo® Essential Desktops

January 2011 - Version 391

C200 series All-In-One C315 series All-In-One

Visit www.lenovo.com/psref for the latest version

Page 2

Lenovo C200

Black

Lenovo C200

Black

Lenovo C200

Black

Page 3

Lenovo® C200 (4025) - Windows 7

Personal Systems Reference (PSREF)

Wide-

Type-model

4025-1BU Atom D510 1.66 2GB 18.5" HD 0.3M NVIDIA ION 320GB 4025-1CU Atom D510 1.66 2GB 18.5" HD Touch 0.3M NVIDIA ION 320GB DVD ±RW Black None 11b/g/n None Prem 32 Apr 10

☞

4025-3GU Atom D510 1.66 1GB 18.5" HD 0.3M GMA 3150 250GB DVD ±RW Black None 11b/g/n None Prem 32 Aug 10

GHz

screen

displayMemory

Touch

screen

Camera

(mega-

pixel)

Graphics

SATA

disk

SATA

optical

DVD ±RW Black None 11b/g/n

ColorProcessor

tuner

PCIe Mini

Card

802.11

Bluetooth

Win7

preload

None Prem 32 Apr 10

• All-In-One design with 18.5" 16:9 wide screen

• Some: touchscreen supports one-ﬁ nger touch

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Easily adjustable stand (-5° to +25° viewing angle)

Processor

Memory

S ATA DV D±RW SATA disk

Widescreen display

Camera Controls

Graphics

Chipset Multicard reader

Intel® Atom™ Processor D510 with dual-core, DMI (Direct Media Interface), integrated DDR2 memory controller (up to 800MHz) Hyper-Threading Technology, and 1MB L2 cache

1GB or 2GB std / 4GB max

/ PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets; Non-Italics: standard memory in one socket; one socket available

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

250GB or 320G, SATA 3.0Gb/s, 2.5" wide, 5400 rpm

18.5" (470mm) HD (1366x768) TFT color, anti-glare, CCFL backlight, 250 nits,

16:9 aspect ratio, 1000:1 contrast ratio; Some: touchscreen supports one-ﬁ nger touch Camera on top of screen, 0.3-megapixel, ﬁ xed focus, with mono microphone Power button, brightness up, brightness down, and display on/off buttons

Some: Intel Graphics Media Accelerator 3150 (GMA 3150), in processor; Some: NVIDIA

PureVideo

ION™ graphics processor, DirectX 10,

HD technology, 256MB memory

Intel NM10 Express Chipset

6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™,

Preloaded operating system

- Genuine Windows® 7 Home Premium 32

Preloaded applications14 (only some listed)

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Corel® WinDVD

• Lenovo IdeaTouch (Touch models)

− Lenovo VeriTouch

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

Secure Digital Card, Secure Digital High Capacity, xD-Picture Card™)

Por ts

PCIe Mini Card 11b/g/n TV tuner

Bluetooth™ Modem Ethernet Audio support

Security Keyboard

Mouse Remote control

Dimensions

Weight

Chassis Stand

See footnotes for important warranty information ☞ US model announced August 25, 2010; previous models on April 28, 2010

Rear: Three USB 2.0, ethernet (RJ-45), keyboard (PS/2), Side: Two USB 2.0

One Mini PCI Express Mini Card slot 11b/g/n wireless None

, PCIe Mini Card, Broadcom® BCM4313

or Atheros AR9285

None None 10/100 ethernet on planar, Intel High Deﬁ nition (HD) Audio, RealTek two stereo speakers (3 watt x 2) / microphone, microphone input jack (3.5 mm),

82552V

ALC662 codec /

headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard, black USB Optical Wheel Mouse, black None

(WxHxD) including stand: 18.12" x 15.13" x 6.63"; 460.3mm x 384.3mm x 168.3mm Non-touchscreen model: 16.01 lb (7.26kg); Touchscreen model: 17.11 lb (7.76kg)

Front bezel: black color; back bezel: black color Easily adjustable stand (-5° to +25° viewing angle)

65-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage

excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo In-Home Repair

9x5 Next Business Day (78Y1552)

• 3-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(MAUI1-2) August 2010

Avail

date

Page 4

Lenovo® C200 (4025) - Windows 7 (web only models)

Personal Systems Reference (PSREF)

Wide-

Type-model

4025-3HU Atom D410 1.66 2GB 18.5" HD None 0.3M GMA 3150 320GB 4025-3JU Atom D510 1.66 2GBx2 18.5" HD None 0.3M GMA 3150 500GB DVD±RW Black None 11b/g/n None Prem 64 Sep 10 4025-3KU Atom D510 1.66 2GBx2 18.5" HD None 0.3M NVIDIA ION 500GB DVD±RW Black None 11b/g/n None Prem 64 Sep 10

GHz

screen

displayMemory

Touch

screen

Camera

(mega-

pixel)

Graphics

SATA

disk

SATA

optical

DVD ±RW Black None 11b/g/n

ColorProcessor

tuner

PCIe Mini

Card

802.11

Bluetooth

None Prem 32 Sep 10

Win7

preload

Avail

date

• All-In-One design with 18.5" 16:9 wide screen

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Easily adjustable stand (-5° to +25° viewing angle)

Processor

Memory

SATA optical SATA disk

Widescreen display Camera Controls

Graphics

Chipset Multicard reader

Intel® Atom™ Processor D410 with single-core, DMI (Direct Media Interface), integrated DDR2 memory controller (up to 800MHz), Hyper-Threading Technology, and 512KB L2 cache or Intel Atom Processor D510 with dual-core, DMI, integrated DDR2 memory controller (up to 800MHz). Hyper-Threading Technology, and 1MB L2 cache

2GB or 4GB std / 4GB max7 / PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

320GB or 500GB, SATA 3.0Gb/s, 2.5" wide, 5400 rpm

18.5" (470mm) HD (1366x768) TFT color, anti-glare, CCFL backlight, 250 nits,

16:9 aspect ratio, 1000:1 contrast ratio Camera on top of screen, 0.3-megapixel, ﬁ xed focus, with mono microphone Power button, brightness up, brightness down, and display on/off buttons

Some: Intel Graphics Media Accelerator 3150 (GMA 3150), in processor; Some: NVIDIA® ION™ graphics processor, DirectX® 10,

PureVideo® HD technology, 256MB memory Intel NM10 Express Chipset

6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™,

Preloaded operating system

- Some: Genuine Windows® 7 Home Premium 32

- Some: Genuine Windows 7 Home Premium 64

Preloaded applications14 (only some listed)

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Corel® WinDVD

• Lenovo IdeaTouch (Touch models)

− Lenovo VeriTouch

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

Secure Digital Card, Secure Digital High Capacity, xD-Picture Card™)

Por ts

PCIe Mini Card 11b/g/n TV tuner

Bluetooth™ Modem Ethernet Audio support

Security Keyboard

Mouse Remote control

Dimensions

Weight

Chassis Stand

See footnotes for important warranty information US models announced September 8, 2010

Rear: Three USB 2.0, ethernet (RJ-45), keyboard (PS/2) Side: Two USB 2.0

One Mini PCI Express Mini Card slot 11b/g/n wireless4, PCIe Mini Card, Broadcom® BCM4313

or Atheros® AR9285 None None None 10/100 ethernet on planar, Intel® 82552V High Deﬁ nition (HD) Audio, Realtek® ALC662 codec / two stereo speakers (3 watt x 2) / microphone, microphone input jack (3.5 mm), headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard, black USB Optical Wheel Mouse, black None

(WxHxD) including stand: 18.12" x 15.13" x 6.63"; 460.3mm x 384.3mm x 168.3mm Non-touchscreen model: 16.01 lb (7.26kg); Touchscreen model: 17.11 lb (7.76kg)

Front bezel: black color; back bezel: black color Easily adjustable stand (-5° to +25° viewing angle)

65-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(MAUI1-3) September 2010

Page 5

Lenovo C315

Page 6

Lenovo® C315 (4022) - Windows 7

Wide-

Type-model

4022-1AU

GHz

Athlon II X2 250u

1.60 2GB 20" HD+ Multi 0.3M HD 4530 320GB

• All-In-One design with 20" 16:9 multi-touch screen

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Advanced hinge design allows changing the screen angle with only one hand, and

resting the screen angle at any intermediate position between 12° and 40°

screen

displayMemory

MultiTouch

screen

Camera

(mega-

pixel)

Discrete graphics

SATA

disk

SATA

optical

DVD ±RW None None 11b/g

tunerProcessor

Personal Systems Reference (PSREF)

PCIe Mini

Remote

control

Card

802.11

Bluetooth

None Prem 32 Apr 10

Win7

preload

Avail

date

Processor

AMD® Athlon™ II X2 Processor 250u with dual-core,

3200MHz HyperTransport™ Bus, AMD Virtualization™ (AMD-V™) technology, AMD64 technology, int DDR2 memory controller, and 2MB L2 cache (1MB per core)

Memory

2GB std / 4GB max

/ PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets; Non-Italics: standard memory in one sockets; one socket available

S ATA DV D±RW SATA disk

Widescreen display Camera Controls

Discrete Graphics

Chipset Multicard reader

Por ts

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

320GB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm 20" (508mm) HD+ (1600x900) TFT color, anti-glare, CCFL backlight, 250 nits,

16:9 aspect ratio, 1000:1 contrast ratio, MultiTouch Camera on top of screen, 0.3-megapixel, ﬁ xed focus, with mono microphone Power button, touch-sensitive buttons for brightness +/-, volume +/-, and display on/off

ATI™ Mobility Radeon™ HD 4530, PCI Express® x16, 512MB memory,

DirectX

10, ATI Avivo™ HD

AMD 690M Chipset, SB600 south bridge 6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO Secure Digital Card, Secure Digital Elite Pro Card, xD-Picture Card Rear: Four USB 2.0, ethernet (RJ-45), keyboard (PS/2), IEEE 1394 FireWire 400 (4-pin connector; 1394a-2000 standard) Side: Two USB 2.0

PCIe Mini Card

11b/g TV tuner Bluetooth™ Modem Ethernet Audio support

Two Mini PCI Express Mini Card slots 11b/g wireless

, Mini PCIe adapter, Broadcom® BCM4312 None None None 10/100 ethernet on planar, Broadcom High Deﬁ nition (HD) Audio, RealTek

BCM5787

ALC262 codec /

two stereo speakers (2 watt) / microphone, microphone input jack (3.5 mm),

Security Keyboard

Mouse Remote control

Dimensions

Weight Chassis Stand

headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard, black USB Optical Wheel Mouse, black None

(WxHxD): 19.05" x 14.12" x 2.56"; 484mm x 359mm x 65mm

16.3 lb (7.4 kg) Front bezel: brown color; back bezel: black color Fold-away stand (adjustable between 12° and 40°)

See footnotes for important warranty information US model announced April 28, 2010

Preloaded operating system

- Genuine Windows® 7 Home Premium 32

Preloaded applications14 (only some listed)

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Lenovo IdeaTouch

− PowerCinema

− Lenovo VeriTouch

− AutoCollage Touch

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

™

)

120-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage

excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo In-Home Repair

9x5 Next Business Day (78Y1552)

• 3-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(BHM1-2) April 2010

Page 7

Lenovo® C315 (4022) - Windows 7 (web only models)

Multi-

Wide-

Type-model

4022-1FU 4022-1GU Athlon II X2 250u 1.60 4GB 20" HD+ Multi 0.3M HD 4530 500GB DVD±RW TV Remote 11b/g None Prem 64 Apr 10

Athlon II X2 250u

GHz

1.60 2GB 20" HD+ Multi 0.3M HD 4530 320GB

screen

displayMemory

Touch

screen

Camera

(mega-

pixel)

Discrete graphics

SATA

disk

SATA

optical

DVD ±RW TV Remote 11b/g

tunerProcessor

Personal Systems Reference (PSREF)

PCIe Mini

Remote

control

Card

802.11

Bluetooth

None Prem 32 Apr 10

preload

• All-In-One design with 20" 16:9 multi-touch screen

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Advanced hinge design allows changing the screen angle with only one hand, and

resting the screen angle at any intermediate position between 12° and 40°

Win7

Avail

date

Processor

AMD® Athlon™ II X2 Processor 250u with dual-core,

3200MHz HyperTransport™ Bus, AMD Virtualization™ (AMD-V™) technology, AMD64 technology, int DDR2 memory controller, and 2MB L2 cache (1MB per core)

Memory

2GB or 4GB std / 4GB max

/ PC2-5300 667MHz DDR2, non-parity,

dual-channel capable, two 200-pin SO-DIMM sockets;

Italics: standard memory in both sockets; no sockets available; Non-Italics: standard memory in one sockets; one socket available

S ATA DV D±RW SATA disk

Widescreen display Camera Controls

Discrete Graphics

Chipset Multicard reader

Por ts

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

320GB or 500GB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm 20" (508mm) HD+ (1600x900) TFT color, anti-glare, CCFL backlight, 250 nits,

ATI™ Mobility Radeon™ HD 4530, PCI Express DirectX® 10, ATI Avivo™ HD

AMD 690M Chipset, SB600 south bridge 6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™, Secure Digital Card, Secure Digital Elite Pro Card, xD-Picture Card Rear: Four USB 2.0, ethernet (RJ-45), keyboard (PS/2), TV antenna connector, IEEE 1394 FireWire 400 (4-pin connector; 1394a-2000 standard) Side: Two USB 2.0

PCIe Mini Card

11b/g TV tuner

Bluetooth™ Modem Ethernet Audio support

Two Mini PCI Express Mini Card slots 11b/g wireless AverMedia Hybrid TV MiniCard A317, PCIe Mini Card adapter,

, Mini PCIe adapter, Broadcom® BCM4312

supports analog (NTSC) and digital ( ATSC) signal None None 10/100 ethernet on planar, Broadcom® BCM5787 High Deﬁ nition (HD) Audio, RealTek

ALC262 codec /

two stereo speakers (2 watt) / microphone, microphone input jack (3.5 mm),

Security Keyboard

Mouse Remote control

Dimensions

Weight Chassis Stand

See footnotes for important warranty information US models announced April 28, 2010

headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard, black USB Optical Wheel Mouse, black Philips®Win7 MCE remote control (40-button)

(WxHxD): 19.05" x 14.12" x 2.56"; 484mm x 359mm x 65mm

16.3 lb (7.4 kg) Front bezel: brown color; back bezel: black color Fold-away stand (adjustable between 12° and 40°)

x16, 512MB memory,

™

Preloaded operating system

- Some: Genuine Windows® 7 Home Premium 32

- Some: Genuine Windows 7 Home Premium 64

Preloaded applications14 (only some listed)

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Lenovo IdeaTouch

− PowerCinema

− Lenovo VeriTouch

− AutoCollage Touch

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

)

120-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(BHM1-1) April 2010

Page 8

Lenovo® H215 (0893) - Windows 7

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

cache

Cores

Memory

Media

reader

SATA

disk

0893-1EU 4x4 Athlon II X2 240 2.80 2MB 2 2GBx1 16-in-1 320GB

SATA

optical

DVD ±RW Radeon 3000 None 180W Prem 32 Aug 10

Graphics

tuner

Power

supply

Win7

preload

Avail

date

0893-1FU 4x4 Athlon II X2 240 2.80 2MB 2 2GBx2 16-in-1 1TB DV D±RW Radeon 3000 None 180W Prem 64 Aug 10

• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

• These systems are Microsoft

AMD

Processor

Athlon™ II X2 Processor 240 with dual-core, 4000MHz HyperTransport™ Bus, AMD Virtualization™ (AMD-V™) technology, AMD64 technology, integrated DDR3 memory controller, and 2MB L2 cache (1MB per core)

Implementation

Memory

Graphics

Processor in Socket AM3

2GB or 4GB std, 4GB max8, dual-channel capable, PC3-8500 1066MHz DDR3, non-parity, two 240-pin DIMM sockets

ATI™ Radeon™ 3000, integrated graphics in 760G,

uses main memory, DirectX® 10, ATI Avivo™, one analog VGA DB-15 connector, one HDMI connector, HDCP

SATA disk SATA controller S ATA DV D±RW SATA cables EIDE controller EIDE cables Diskette drive Media reader

Chipset

Front ports Rear ports

Rear audio ports Audio External speakers Internal speaker Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

320GB or 1TB, SATA 3.0Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in SB710 Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None None 16-in-1 media reader

AMD 760G Chipset with HyperTransport 3.0 and PCI Express® 2.0 support; SB710 south bridge

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, HDMI) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, Realtek® ALC662 codec None None 10/100 ethernet on planar, Realtek 8103EL None None

None None

104-key standard keyboard (PS/2 connector) Optical Wheel Mouse (USB connector) 180 watts, universal, manual switch

Preloaded operating system

- Some: Genuine Windows® 7 Home Premium 32

- Some: Genuine Windows 7 Home Premium 64

Ofﬁ ce 2010 Product Key Ready (O10PKR)

Tower

• Black bezel with glossy ﬁ nish

• 6.9" W X 16.2" D X 14.2" H

• 175mm W X 412mm D X 360mm H

• 17.6 lb (8.0 kg), weight may vary by conﬁ guration

Bay ① 5.25", 1.6" high, access, standard optical Bay ② N/A, N/A, N/A, media reader* Bay ③ 3.5", 1" high, no access, standard disk Bay ④ 3.5", 1" high, no access, optional disk * Only for optional 16-in-1 media reader

Slot 1: half-length, full-height, PCI Express x16 Ver 2.0 Slot 2: half-length, full-height, PCI Express x1 Ver 2.0 Slot 3: half-length, full-height, PCI Express x1 Ver 2..0 Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

Preloaded applications

• Lenovo

• Driver and Application Installation

• McAfee

(60 days of virus deﬁ nitions)

Rescue System

VirusScan® Plus

• Windows Live™ Essential

• Microsoft Ofﬁ ce 2010 preloaded;

purchase product key to activate

• CyberLink Power2Go (DVD±RW)

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

, 8 am - 5 pm)

See footnotes for important warranty information US models announced August 25, 2010

(SCL4-1) August 2010

Page 9

Lenovo® H320 (4041) - Windows 7

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

Cache

4041-1BU 2x3 i3-540 3.06 4MB 4GB (2, 2) 8-in-1 500GB

Memory

DIMM

capacity

Media reader

SATA

disk

SATA

optical

DVD ±RW Intel HD 11b/g/n

Graphics

802.11

wireless

Power

Modem

supply

None 180W Prem 64 Jun 10

Win7

preload

4041-1CU 2x3 i3-540 3.06 4MB 6GB (2, 2, 2) 8-in-1 640GB DVD±RW Intel HD 11b/g/n None 180W Prem 64 Jun 10

☞

4041-1DU 2x3 i3-550 3.20 4MB 4GB (2, 2) 8-in-1 1TB DVD ±RW Intel HD 11b/g/n None 180W Prem 64 Aug 10

• Lenovo Rescue System provides OneKey recovery without booting into Windows

Intel

Processor

Core™ i3 Processor i3-540 or i3-550 with dual-core, Intel 64, Hyper-Threading Technology, integrated 1333MHz DDR3 memory controller, 4MB cache

Implementation

Memory

Graphics

Processor in LGA1156 socket

4GB or 6GB std, 8GB max8, dual-channel capable, four 240-pin DIMM sockets

Intel HD Graphics, integrated graphics in processor, uses main memory, DirectX® 10, one 15-pin analog VGA DB-15 connector, one HDMI connector, HDCP

SATA disk SATA controller S ATA DV D±RW SATA cables EIDE controller EIDE cables Diskette drive Media reader

Chipset

Front ports Rear ports

Rear audio ports Audio External speakers Internal speaker Wireless Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

500GB, 640GB or 1TB, SATA 3.0Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in chipset Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None None None 8-in-1 media reader

Intel H55 Express Chipset

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (DB-15, HDMI) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, ALC662 codec None None 11b/g/n wireless Gigabit ethernet on planar, intel 82578DC None None

None None

Full-size keyboard (PS/2 connector), Fn keys, black Optical Wheel Mouse (USB connector), black 180 watts, universal, manual switch

Preloaded operating system

- Genuine Windows® 7 Home Premium 64

, PCIe x1 adapter

PC3-8500 1066MHz DDR3,

non-parity,

Preloaded applications5

• Lenovo® OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Lenovo Dynamic Brightness System

• Lenovo Eye Distance System

• CyberLink Power2Go (DVD±RW)

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

Small Form Factor

• Black bezel with glossy ﬁ nish

• 3.9" W X 15.7" D X 11.5" H

• 100mm W X 400mm D X 293mm H

• 21.5 lb (9.75 kg) vary by conﬁ guration

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 3.3", 0.6" high, access, 8-in-1 media reader Bay ③ 3.5", 1" high, no access, standard disk

Slot 1: half-length, Low Proﬁ le, PCI Express x16 Ver 2.0 Slot 2: half-length, Low Proﬁ le, PCI Express x1 Ver 2.0*

* Wireless adapter in slot in some models

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

, 8 am - 5 pm,

Avail

date

See footnotes for important warranty information ☞ US model announced August 25, 2010; previous models on June 11, 2010

(RD1-1) August 2010

Page 10

Lenovo® H320 (4041) - Windows 7 (web only models)

Personal Systems Reference (PSREF)

Max

Type-model

Slot x

bay

Processor

GHz

turbo

(GHz)

4041-1EU 2x3 i3-540 3.06 4GB (2, 2) 8-in-1 500GB

Memory

DIMM

capacity

Media reader

SATA

disk

SATA

optical

DVD ±RW Intel HD None None 180W Prem 64 Sep 10

Graphics

802.11

wireless

Modem

Power supply

Win7

preload

Avail

date

4041-1FU 2x3 i5-650 3.20 3.46 6GB (2, 2, 2) 8-in-1 640GB Blu-ray GeForce 310 None None 250W Prem 64 Sep 10

• Lenovo Rescue System provides OneKey recovery without booting into Windows

Processor

Implementation

Memory

Graphics

Intel

Core™ i3 Processor i3-540 with dual-core, Intel 64, Hyper-Threading Technology, integrated 1333MHz DDR3 memory controller, 4MB cache or Intel Core i5 processor i5-650 with dual-core, intel 64, Hyper-Threading Technology, Turbo Boost Technology, TXT, integrated 1333MHz DDR3 memory controller, and 4MB cache Processor in LGA1156 socket

4GB or 6GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity,

dual-channel capable, four 240-pin DIMM sockets

Some: Intel HD Graphics, integrated graphics in processor, uses main memory, DirectX® 10, one 15-pin analog VGA DB-15 connector, one HDMI connector, HDCP Some: NVIDIA® GeForce® 310, PCI Express® x16, 512MB, DirectX 10.1, NVIDIA PureVideo®, NVIDIA CUDA™, one

Small Form Factor

• Black bezel with glossy ﬁ nish

• 3.9" W X 15.7" D X 11.5" H

• 100mm W X 400mm D X 293mm H

• 21.5 lb (9.75 kg) vary by conﬁ guration

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 3.3", 0.6" high, access, 8-in-1 media reader Bay ③ 3.5", 1" high, no access, standard disk

Slot 1: half-length, Low Proﬁ le, PCI Express x16 Ver 2.0** Slot 2: half-length, Low Proﬁ le, PCI Express x1 Ver 2.0*

* Wireless adapter in slot in some models ** Graphic adapter in slot in some models

analog VGA DB-15 connector, one HDMI connector, HDCP

SATA disk SATA controller SATA optical

500GB or 640GB, SATA 3.0Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in chipset

Some: Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Some: Blu-ray™ Disc reader (no Blu-ray media burning), BD-ROM,

DVD and CD recordable

SATA cables EIDE controller EIDE cables Diskette drive Media reader

Chipset

Front ports Rear ports

Rear audio ports Audio External speakers Internal speaker Wireless Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

Preloaded operating system

- Genuine Windows® 7 Home Premium 64

See footnotes for important warranty information US models announced September 8, 2010

Two SATA cables (each 1-drop to device), two SATA connectors None None None 8-in-1 media reader

Intel H55 Express Chipset

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, HDMI) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, ALC662 codec None None None Gigabit ethernet on planar, Intel 82578DC None None

None None

Full-size keyboard (PS/2 connector), Fn keys, black Optical Wheel Mouse (USB connector), black

Some: 180 watts, universal, manual switch Some: 250 watts, universal, auto-sensing

Preloaded applications5

• Lenovo® OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Lenovo Dynamic Brightness System

• Lenovo Eye Distance System

• CyberLink Power2Go (DVD±RW)

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

, 8 am - 5 pm,

(RD1-2) September 2010

Page 11

7723-1AU 4x4 Athlon II X2 255 3.10 2MB 2 2GBx1 6-in-1 500GB

DVD ±RW Radeon 3000 None 180W Prem 64 Jan 11 7723-1CU 4x4 Athlon II X4 645 3.10 2MB 4 2GBx2 6-in-1 1TB DVD ±RW Radeon 3000 None 280W Prem 64 Jan 11 7723-1DU 4x4 Athlon II X4 645 3.10 2MB 4 2+4GB 6-in-1 1TB DVD±RW Radeon 3000 None 280W Prem 64 Jan 11 7723-1EU 4x4 Athlon II X2 255 3.10 2MB 2 2GBx2 6-in-1 500GB DVD±RW Radeon 3000 None 180W Prem 64 Jan 11 7723-1FU 4x4 Athlon II X2 255 3.10 2MB 2 1+2GB 6-in-1 500GB DV D±RW Radeon 3000 None 180W Prem 64 Jan 11

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA cables EIDE controller EIDE cables Diskette drive Media reader

Chipset

Front ports Rear ports

Rear audio ports Audio External speakers Internal speaker Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

AMD

Athlon™ II X2 Processor 255 with dual-core, 4000MHz HyperTransport™ Bus, AMD Virtualization™ (AMD-V™) technology, AMD64 technology, integrated 1066MHz DDR3 memory controller, and 2MB L2 cache (1MB per core) AMD Athlon II X4 Processor 645 with quad-core, 4000MHz HyperTransport Bus, AMD Virtualization (AMD-V) technology, AMD64 technology, integrated 1333MHz DDR3 memory controller, and 2MB L2 cache (512kB per core) Processor in Socket AM3

2GB, 3GB, 4GB, or 6GB std, 8GB max8, dual-channel capable, PC3-10600 1333MHz DDR3, non-parity, two 240-pin DIMM sockets

* System automatically clocks down for processors with 1066MHz DDR3 memory controller

ATI™ Radeon™ 3000, integrated graphics in 760G, uses main memory, DirectX® 10, ATI Avivo™, one analog VGA DB-15 connector, one HDMI connector, HDCP-compliant

500GB or 1TB, SATA 3.0Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in SB710 Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None None 6-in-1 media reader

AMD 760G Chipset with HyperTransport 3.0 and PCI Express® 2.0 support; SB710 south bridge

None None

104-key standard keyboard (PS/2 connector), black Optical Wheel Mouse (USB connector), black

Some: 180 watts, universal, manual switch Some: 280 watts, universal, manual switch

Lenovo® H405 (7723) - Windows 7

GHz

Type-model

Processor

Memory

SATA

disk

SATA

optical

Graphics

Avail

date

Slot x

bay

Personal Systems Reference (PSREF)

Tower

cache

See footnotes for important warranty information US models announced January 12, 2011

(PGKR1-1) January 2011

tuner

Media reader

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts

, 8 am - 5 pm) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (78Y1553) ➫ 24x7

toll-free support for warranty

issues during the warranty period

via 877-453-6686

Cores

• Black bezel with glossy ﬁ nish

• 6.9" W X 16.9" D X 14.5" H

• 175mm W X 430mm D X 368mm H

• 17.6 lb (8.0 kg), weight may vary by conﬁ guration

Slot 1: half-length, full-height, PCI Express x16 Ver 2.0 Slot 2: half-length, full-height, PCI Express x1 Ver 2.0 Slot 3: half-length, full-height, PCI Express x1 Ver 2.0 Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

Power

supply

• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

• These systems are Microsoft

Ofﬁ ce 2010 Product Key Ready (O10PKR)

Win7

preload

Preloaded operating system

- Genuine Windows® 7 Home Premium 64

Preloaded applications5

• Lenovo® Rescue System

• Driver and Application Installation

• McAfee® VirusScan® Plus

(60 days of virus deﬁ nitions)

• Windows Live™ Essential

• Microsoft Ofﬁ ce 2010 preloaded;

purchase product key to activate

• CyberLink Power2Go (DVD±RW)

• Lenovo Dynamic Brightness System*

• Lenovo Eye Distance System*

* Only applicable for optional Lenovo L2362p monitors

Page 12

Lenovo® Essential Desktops - Lenovo CareSM Services

Partial list of Lenovo® Care Services22 for Lenovo Essential desktops

For more information see:

http://www.lenovo.com/services_warranty/us/en/index.html

Lenovo Care service upgrade options

Lenovo Essential desktops with 1-year Onsite warranty

2-year Lenovo Onsite Repair 3-year Lenovo Onsite Repair

warranty warranty

9x5 9x5

78Y1552 78Y1553

Personal Systems Reference (PSREF)

(S-VLD) March 2010

Page 13

Availability: All offers subject to

availability. Lenovo reserves the right to alter product offerings and speciﬁ cations at any time, without notice. Lenovo is not responsible for photographic or typographic errors.

Warranty: For a copy of applicable

product warranties, write to: Warranty Information, P.O. Box 12195, RTP, NC, 27709, Attn: Dept ZPYA/B676. Lenovo makes no representation or warranty regarding third party products or services.

Footnotes:

Power management, including Intel®

SpeedStep® Technology, reduces

processor speed when in battery mode.

Weight includes battery and standard optical drive; weight may vary due to vendor components, manufacturing process and options.

Thinness may vary at certain points on the system.

Wireless capability: Requires compatible wireless-enabled options sold separately.

Post-warranty annual maintenance agreement: Service begins at the end

of the base warranty or the end of any other applied warranty and maintenance option, whichever occurs last. Service delivery is not available the same day the maintenance agreement is purchased. Maintenance agreements must be purchased and the registration successfully completed prior to the service being available.

Public network download modem speeds are limited to 53Kbps. Upload

speeds are limited to 48Kbps for V.92 modems. Actual speeds depend on many factors and are often less than the maximum possible. V.92 functions and speeds require compatible phone line and server equipment. Check with your telephone and ISP service providers for availability.

Maximum memory capacity may require the replacement of standard component with largest supported

component available. On systems, even

though it is possible to physically install 4GB of memory, the actual amount of memory addressable by a 32-bit operating system will be limited to 3GB. This limitation does not exist with 64-bit operating systems.

Hard drive: GB = billion bytes,

TB = trillion bytes. Accessible capacity is

less; up to 4GB is service partition.

Service upgrade options: Service period begins with the equipment date of purchase. Service must be purchased during the original limited product warranty period. Service levels are response time objectives and are not guarantees.

Battery: These model numbers achieved the battery life based on MobileMark® 2007 during testing. Battery life (and recharge times) will vary based on many factors including screen brightness, applications, features, power management, battery conditioning, and other customer preferences.

Wireless: Based on IEEE 802.11a,

802.11b, and 802.11g respectively. An adapter with 11a/b, 11b/g, or 11a/b/g can communicate on either/any of these listed formats respectively, the actual connection will be based on the access point to which it connects.

Limited warranty: Support unrelated to a warranty issue may be subject to

additional charges.

Onsite Repair: If a machine is listed as having “On-site”, this means that on-site service is available for the replacement of parts for warranty repairs. Certain parts, referred to as Customer Replaceable Unit (“CRU”) parts, are easy to install and require little or no tools or technical knowledge. Some examples of CRU parts are mice, keyboards, hard disk drives, speakers, and memory. If your problem can be resolved with a CRU, the Support Center will offer to ship the part to you for you to install.

Included software may differ from its retail version (if available), and may not include user manuals or all program functionality. Software license agreements may apply.

Modem speeds: Public network download speeds are limited to 53Kbps. Upload speeds are limited to 48Kbps for V.92 modems. Actual speeds depend on many factors and are often less than the maximum possible. V.92 functions and speeds require compatible phone line

and server equipment. Check with your

telephone and ISP service providers for availability.

Response times may vary. May exclude

some holidays. Telephone support may be subject to additional charges.

International Warranty Service is available for most products in any country in which this product is sold and serviced. Service delivery methods and parts availability vary by country, may be different from that in the country of purchase, and are subject to change without notice. Fees and restrictions may apply in some countries.

Telephone support may be subject to additional charges, even during the limited warranty period. Response times may vary and may exclude some holidays.

Depot repair service: In the United

States call 1-877-453-6686. The customer may be asked certain diagnostic questions before a courier is sent. Your purchase includes this depot repair service, available in the U.S. during the limited warranty period.

Operating System: Level of support varies by operating system. Operating systems not preloaded on the system may not provide full feature functionality. Refer to lenovo.com/pc/support and enter your machine type and model number for more information.

For combination drives, maximum possible speeds only are given in the following order: CD write, CD rewrite, CD read, DVD read.

Lenovo Care Services: These services are available for machines normally used for business, professional, or trade purposes, rather than personal, family, or household purposes. Not all machine types and models are covered. Service period begins with the equipment date of purchase. Service must be purchased during the original limited product warranty period. Service levels are response time objectives and are not guarantees. If the machine problem turns out to be a Customer Replaceable Unit (CRU), a part can be express shipped to you for quick replacement. For notebooks requiring LCD or other component replacement, Lenovo may choose to perform service at the depot repair center. Calls must be received by 5 pm local time in order to qualify for Next Business Day service. P&L means parts and labor. P/U means pick-up. See terms and conditions for complete details and restrictions.

Page 14

Customer Replacement Units (CRUs)

are designed to be replaced by custom-

ers during the applicable warranty pe-

riod. Lenovo will send a technician onsite to perform a repair if remote telephone diagnosis does not isolate the problem, if customer replaceable parts are unable to resolve the problem, or at the request of the customer. For a list of customer replaceable parts, contact Lenovo. Sup-

port unrelated to a warranty issue may be subject to additional charges.

Wireless WAN Cards: Wireless data

service requires separate agreement with

Verizon Wireless. Verizon Wireless, not

Lenovo, is solely responsible for service.

Monthly and airtime charges may apply.

Service may not be available in all areas;

purchaser is responsible for verifying with

Verizon Wireless that service is available

for the intended location before the pur-

chase of the card. For complete details,

including service plans, additional re-

quired hardware or software, and service

coverage, visit www.verizonwireless.com.

The IEEE 802.11n speciﬁ cation

(MIMO) has been ﬁ nalized and is

currently in IEEE 802.11n-2009 release.

The maximum speed depends on the

access point device and the number of

integrated antenna used for connection.

An adapter with 11a/b, 11a/b/g, 11b/g/n, or

11a/b/g/n can communicate on any of its

supported formats.

This publication was developed for prod-

ucts and services offered in the United States. Lenovo may not offer the products, services or features discussed in this document in other countries. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area.

Lenovo reserves the right to change spec-

iﬁ cations and other product information at any time without prior notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions; therefore this disclaimer may not apply to you.

Trademarks: Lenovo, the Lenovo logo,

New World. New Thinking., Access Connections, Rescue and Recovery, ThinkVantage, and ThinkVision are trademarks of Lenovo. Microsoft, Windows, and Vista are registered trademarks of Microsoft Corporation. Intel, the Intel logo, Intel Inside logo, Intel Core and Core Inside are trademarks of Intel Corporation in the US and other countries. AMD, the AMD logo, AMD Athlon, AMD Sempron, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. PCI Express is a trademark of PCI-SIG. Other company, product, or service names may be trademarks or service marks of others.

Visit www.lenovo.com/safecomputing

iodically for the latest information on

per safe and effective computing.

Visit www.lenovo.com/psref

or the latest version of

f Personal Systems Reference.

Lenovo 1009 Think Place Morrisville, NC 27560 U.S. A .

January 2011 jbook.pdf
