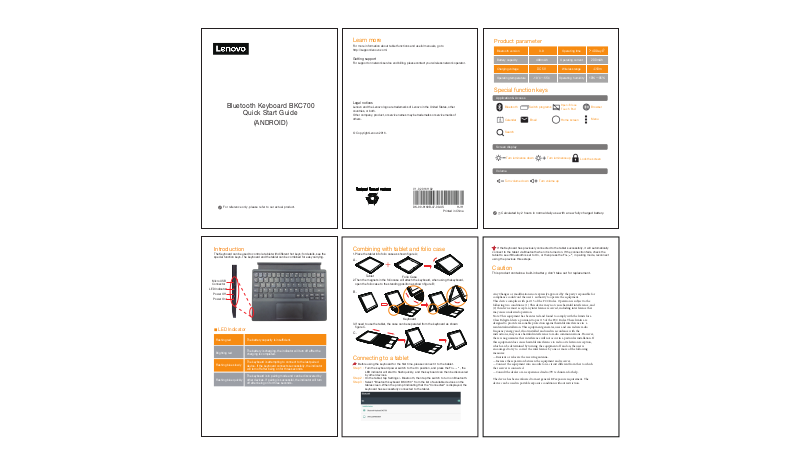

Lenovo BKC700 Users Manual

Bluetooth Keyboard BKC700

Quick Start Guide

(ANDROID)

Learn more

For more information about tablet f unctions and useful manuals, go to http://support.lenovo.com/

Getting support

For support on network service and billing, please contact your wireless network operator.

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.

Product parameter

Bluetooth version

Battery capacity

Charging voltage

Operating temperature

3.0

400mAh

DC 5V

-10℃～55℃

Special function keys

Application & Access

Bluetooth

Calendar

Screen display

Switch programs

Operating time

Operating current

Wireless range

Operating humidity

Open/Close Touch Pad

Home screen

Days

200mAh

≦10m

10%～85%

Browser

For reference only, please refer to our actual product.

Introduction

The Keyboard can be used to control a tablet with different hot keys; for details, see the special function keys. The keyboard and the tablet can be combined for easy carrying.

Micro USB Connector

LED Indicator

Power Off

Power On

■

LED Indicator

Flashing red

Brighting red

Flashing blue slowly

Flashing blue quickly

The battery capacity is insufcient.

The battery is charging, the indicator will turn off affter the charging is completed.

The keyboard is attempting to connect to the last paired device. If the keyboard connects successfully, the indicator will turn off after being on for three seconds.

The keyboard is in pairing mode and can be discovered by other devices. If pairing is successful, the indicator will turn off after being on for three seconds.

V1.0_20161102

DK-99-8169B-47-00-US

Combining with tablet and folio case

1.Place the tablet into folio case as shown gure A;

HJH

Printed in China

Tablet

2.Then the magnets in the folio case will attach the keyboard, when using thekeyboard, open the folio case to the standing position as shown gure B;

Folio Case

3.If need to use the tablet, the case can be separated from the keyboard as shown gure C.

Keyboard

Connecting to a tablet

★

Before using the keyboard for the rst time, please connect it to the bablet.

Step 1 :

Turn the keyboard power switch to the On position, and press the Fn+ , the LED indicator will start to ash quickly, and the keyboard can then be discovered by other devices.

Step 2 : On the tablet, tap Settings > Bluetooth, then tap the switch to turn on Bluetooth. Step 3 :

Select “Bluetooth keyboard BKC700 ” from the list of available devices on the tables creen. When the prompt indicating that the “Connected” is displayed, the keyboard has successfully connected to the tablet.

Turn luminance down

Volume

Turn volume down Turn volume up

Calculated by 2 hours in normal daily use with a new fully charged battery.

★ If the Keyboard has previously connected to the tablet successfully, it will automatically

connect to the tablet via Bluetooth when it is turned on. If the connection fails, check the tablet to see if Bluetooth is set to On, or then press the Fn+ in pairing mode, reconnect using the previous three steps.

Caution

This product contains a built-in battery, don’t take out for replacement.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Turn luminance up

Lock the screen
