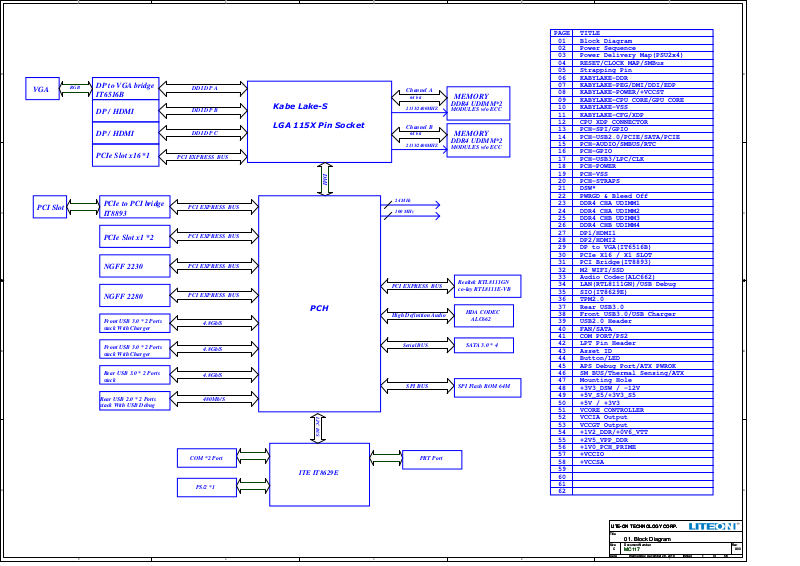

Lenovo B250 Schematic

5

D D

DP to VGA bridge

VGA

RGB

IT6516B

DP / HDMI

PCIe Slot x16 *1

C C

PCI Slot

PCIe to PCI bridge IT8893

PCIe Slot x1 *2

NGFF 2230

NGFF 2280

Front USB 3.0 * 2 Ports stack With Charger

B B

A A

Front USB 3.0 * 2 Ports stack With Charger

Rear USB 3.0 * 2 Ports stack

Rear USB 2.0 * 2 Ports stack With USB Debug

DDI DP A

DDI DP B

DDI DP C

PCI EXPRESS BUS

COM *2 Port

PS/2 *1

4.8Gb/S

480Mb/S

4

Kabe Lake-S

LGA 115X Pin Socket

DMI

PCH

LPC BUS

ITE IT8629E

3

24 MHz

100 MHz

PCI EXPRESS BUS

High Definition Audio

Channel A

64 bit

2133/2400MHZ

Channel B

64 bit

2133/2400MHZ

Serial BUS

SPI BUS

PRT Port

MEMORY

DDR4 UDIMM*2

MODULES w/o ECC

MEMORY

DDR4 UDIMM*2

MODULES w/o ECC

Realtek RTL8111GN co-lay RTL8111E-VB

HDA CODEC

ALC662

SATA 3.0 * 4

SPI Flash ROM 64M

2

TITLE

PAGE

01

Block Diagram

02

Power Sequence

03

Power Delivery Map(PSU2x4)

04

RESET/CLOCK MAP/SMBus

05

Strapping Pin

06

KABYLAKE-DDR

07

KABYLAKE-PEG/DMI/DDI/EDP

08

KABYLAKE-POWER/+VCCST

09

KABYLAKE-CPU CORE/GPU CORE

10

KABYLAKE-VSS

11

KABYLAKE-CFG/XDP

12

CPU XDP CONNECTOR

13

PCH-SPI/GPIO

14

PCH-USB2.0/PCIE/SATA/PCIE

15

PCH-AUDIO/SMBUS/RTC

16

PCH-GPIO

17

PCH-USB3/LPC/CLK

18

PCH-POWER

19

PCH-VSS

20

PCH-STRAPS

21

DSW*

22

PWRGD & Bleed Off

23

DDR4 CHA UDIMM1

24

DDR4 CHA UDIMM2

25

DDR4 CHB UDIMM3

26

DDR4 CHB UDIMM4

27

DP1/HDMI1

28

DP2/HDMI2

29

DP to VGA(IT6516B)

30

PCIe X16 / X1 SLOT

31

PCI Bridge(IT8893)

32

M2 WIFI/SSD

33

Audio Codec(ALC662)

34

LAN(RTL8111GN)/USB Debug

35

SIO(IT8629E)

36

TPM2.0

37

Rear USB3.0

38

Front USB3.0/USB Charger

39

USB2.0 Header

40

FAN/SATA

41

COM PORT/PS2

42

LPT Pin Header

43

Asset ID

44

Button/LED

45

APS Debug Port/ATX PWROK

46

SM BUS/Thermal Sensing/ATX

47

Mounting Hole

48

+3V3_DSW / -12V

49

+5V_S5/+3V3_S5

50

+5V / +3V3

51

VCORE CONTROLLER

52

VCCIA Output

53

VCCGT Output

54

+1V2_DDR/+0V6_VTT

55

+2V5_VPP_DDR

56

+1V0_PCH_PRIME

57

+VCCIO

58

+VCCSA 59 60 61 62

1

LITE-ON TECHNOLOGY CORP.

Title

01. Block Diagram

Size Document Number Rev

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

1 58Wednesday, December 28, 2016

X03

5

D D

C C

4

3

2

1

B B

A A

LITE-ON TECHNOLOGY CORP.

Title

02. Power Sequence

Size Document Number Rev

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

2 58Wednesday, December 28, 2016

X03

5

Vinafix.com

4

3

2

1

PSU CONN1

+12_S5_PSU

D D

+3V3_DSW

PWM RT8296AHZSP

+5V_S5/+3V3_S5

PWM RT6576DGQW

C C

+12V

P-MOSFET PZ0703EK

+3V3_DSW PCH

Imax:0.5A OCP:5.1A

+12V

Imax:15.4A

Imax:0.37A

+5V_S5

Imax: 17.28A OCP: 25.92A

+3V3_S5

Imax: 24.12A OCP: 36.18A

PCIE/PCI

Imax:7A

SATA*4

Imax:2.4A

COM*2/FAN*4

Imax:6A

+2V5_VPP

PWM RT8068A

AUDIO

Imax:0.04A

+5V_USB

Power Switch UP7549TMA5-25

PCH

Imax:0.9A

LAN

Imax:0.9A

+5V

N-MOSFET NTMFS4C10NT1G

+2V5_VPP_DDR_S3

Imax:2.4A OCP:4A

PSU CONN1

-12_S5_PSU

USB

Imax:6.1A

PCI

Imax:3A

SATA/COM/VGA/PS2

Imax:8.3A

-12V

N-MOSFET P8503BMG

-12V

Imax: 0.1A

PCIE

Imax:3.63A

+1V2_MEM

B B

NCP1589LMNTWG

+1V0_S5

PWM NCP1589LMNTWG

Imax:11.46APWM OCP:17.19A

+1V0_PCH_PRIME_S5

Imax:7.5A OCP:11.25A

PSU CONN2

+0V6_MEM+1V2_MEM_S3

LDO TPS51200

PCH

Imax:7.29A

+VCCST_VCCPLL_S3

N-MOSFET PM606BA

CPU

Imax:0.19A

+3V3

N-MOSFET NTMFS4C08NT1G

+12_S5_CPU

IMVP8

NCP81203MNTXG

A A

+VCCSA +VCCSA

PWM NCP5230MNTWG

5

+VCCIA

Imax:79A OCP:130A

+VCCGT

Imax:45A OCP:67.5A

Imax:11.1A OCP:16.65A

4

3

+VCCIO

PWM NCP3135MNTXG

PCH/AUDIO

Imax:0.01A

PCIE/PCI

Imax:11A

DP

Imax:0.8A

M2 2280

Imax:2.5A

+VCCIO

Imax:5.5A OCP:6.8A

2

CPU

Imax:5.5A

LITE-ON TECHN OLOGY CORP.

Title

03. Power Delivery Map(PSU2x4)

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

1

3 58Wednesday, December 28, 2016

X03

5

Vinafix.com

4

3

2

1

RESET MAP

Intel LGA 1151

D D

CPURST#

CLOCK DIAGRAM

Intel LGA 1151

CLKOUT_CPUBCLK

CLKOUT_CPUNSSC_24MHz

CLKOUT_CPUPCIBCLK

Asset ID

TPM

RTL8111GN

M.2 2230 Slot

Audio Codec

HDA_RST#

PCH

B250

PLTRST#

M.2 2280 Slot

XTAL24IN_OUT

Super IO

C C

IT8629E

PCIRST#

PCI

PCIe x16 PCIe x1 X 2

OSC

PCH

B250

CLKOUT_ITPXDP

CLKOUT_LPC[1]

SRCCLK2# SRC0

SRCCLK5# SRC5

SRCCLK6# SRC2

SRCCLK7# SRC7

SRCCLK8# SRC8

SRCCLK9# SRC1

SMBUS table

Signal

SMBCLK & SMBDATA

CLKOUT_LPC[0]_24MHz

Communication

PCIe x16, PCIe x1, PCI, M.2 WLAN, DDR4, Asset ID

SRC6

ITP/XDP

Clock Buffer TPM

PCIe x16

LEO

LAN

M.2 SSD

PCIe x1

M.2 WLAN

PCI

SML0CLK & SML0DATA LAN(reserve)

SML1CLK & SML1DATA Super IO

B B

Super IO

IT8629E

A A

LITE-ON TECHN OLOGY CORP.

Title

04. RESET/CLOCK MAP/SM Bus

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

5

4

3

2

Date: Sheet of

1

4 58Wednesday, December 28, 2016

X03

5

STRAPPING PIN

4

3

2

1

Signal

Usage When

Comment

Sampled

SPKR / GPP_B14

D D

GSPI0_MOSI / GPP_B18

SMBALERT# / GPP_C2

GSPI1_MOSI / GPP_B22

SML0ALERT# / GPP_C5

HDA_SDO

C C

DDPB_CTRLDATA / GPP_I6

DDPC_CTRLDATA / GPP_I8

DDPD_CTRLDATA / GPP_I10

Top Swap Override

No Reboot The signal has a weak internal pull-down. 0 = Disable(defaul t) No Reboot mode. 1 = Enab le No Reboot mode.

TLS Confidentiality

Boot BIOS Strap Bit BBS

eSPI or LPC Rising edge of

Flash Descriptor Security Override

Display Port B Detected

Display Port C Detected

Display Port D Detected

Rising edge of PCH_PWROK

Rising edge of RSMRST#

Rising edge of PCH_PWROK

RSMRST#

Rising edge of PCH_PWROK

The signal has a weak internal pull-down. 0 = Disable Top Swap mode. (Default) 1 = Enable Top Swap mode.

(PCH will disab le the TCO Time r system reboot feature). This function is us eful when runni ng ITP/XDP.

This signal has a weak interna l pull-down. 0 = Disable Int el ME Crypto Tr ansport Layer S ecurity (TLS) c ipher suite (no confidentialit y). 1 = Enable Inte l ME Crypto Tra nsport Layer Se curity (TLS) ci pher suite (wit h confidentiali ty).(default)

This Signal has a weak interna l pull-down. Bit 10 Boot B IOS Destination 0 SPI( default) 1 LPC

This signal has a weak interna l pull-down. 0 = LPC Is sele cted for EC.(de fault) 1 = eSPI Is sel ected for EC.

This signal has a weak interna l pull-down. 0 = Enable securi ty measures def ined in the Fla sh Descriptor. 1 = Disable Fla sh Descriptor S ecurity (overri de). This strap shou ld only be asse rted high using external pull- up in manufactu ring/debug envi ronments ONLY. (reserve pull h igh)

This signal has a weak interna l pull-down. 0 = Port B is n ot detected. 1 = Port B is d etected.

This signal has a weak interna l pull-down. 0 = Port C is n ot detected. 1 = Port C is d etected.

This signal has a weak interna l pull-down. 0 = Port D is n ot detected. 1 = Port D is d etected.



 

B B

A A

LITE-ON TECHNOLOGY CORP.

Title

05. Strapping Pin

Size Document Number Rev

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

5 58Wednesday, December 28, 2016

X03

5

I

D D

MEM_MA_DATA[0..63][23,24]

C C

B B

MEM_MA_DATA0 MEM_MA_DATA1 MEM_MA_DATA2 MEM_MA_DATA3 MEM_MA_DATA4 MEM_MA_DATA5 MEM_MA_DATA6 MEM_MA_DATA7 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA10 MEM_MA_DATA11 MEM_MA_DATA12 MEM_MA_DATA13 MEM_MA_DATA14 MEM_MA_DATA15 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA18 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA23 MEM_MA_DATA24 MEM_MA_DATA25 MEM_MA_DATA26 MEM_MA_DATA27 MEM_MA_DATA28 MEM_MA_DATA29 MEM_MA_DATA30 MEM_MA_DATA31 MEM_MA_DATA32 MEM_MA_DATA33 MEM_MA_DATA34 MEM_MA_DATA35 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA38 MEM_MA_DATA39 MEM_MA_DATA40 MEM_MA_DATA41 MEM_MA_DATA42 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA45 MEM_MA_DATA46 MEM_MA_DATA47 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA50 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA53 MEM_MA_DATA54 MEM_MA_DATA55 MEM_MA_DATA56 MEM_MA_DATA57 MEM_MA_DATA58 MEM_MA_DATA59 MEM_MA_DATA60 MEM_MA_DATA61 MEM_MA_DATA62 MEM_MA_DATA63

I

U46A

AE38

DDR0_DQ[0]

AE37

DDR0_DQ[1]

AG38

DDR0_DQ[2]

AG37

DDR0_DQ[3]

AE39

DDR0_DQ[4]

AE40

DDR0_DQ[5]

AG39

DDR0_DQ[6]

AG40

DDR0_DQ[7]

AJ38

DDR0_DQ[8]

AJ37

DDR0_DQ[9]

AL38

DDR0_DQ[10]

AL37

DDR0_DQ[11]

AJ40

DDR0_DQ[12]

AJ39

DDR0_DQ[13]

AL39

DDR0_DQ[14]

AL40

DDR0_DQ[15]

AN38

DDR0_DQ[16]/DDR0_DQ[32]

AN40

DDR0_DQ[17]/DDR0_DQ[33]

AR38

DDR0_DQ[18]/DDR0_DQ[34]

AR37

DDR0_DQ[19]/DDR0_DQ[35]

AN39

DDR0_DQ[20]/DDR0_DQ[36]

AN37

DDR0_DQ[21]/DDR0_DQ[37]

AR39

DDR0_DQ[22]/DDR0_DQ[38]

AR40

DDR0_DQ[23]/DDR0_DQ[39]

AW37

DDR0_DQ[24]/DDR0_DQ[40]

AU38

DDR0_DQ[25]/DDR0_DQ[41]

AV35

DDR0_DQ[26]/DDR0_DQ[42]

AW35

DDR0_DQ[27]/DDR0_DQ[43]

AU37

DDR0_DQ[28]/DDR0_DQ[44]

AV37

DDR0_DQ[29]/DDR0_DQ[45]

AT35

DDR0_DQ[30]/DDR0_DQ[46]

AU35

DDR0_DQ[31]/DDR0_DQ[47]

AY8

DDR0_DQ[32]/DDR1_DQ[0]

AW8

DDR0_DQ[33]/DDR1_DQ[1]

AV6

DDR0_DQ[34]/DDR1_DQ[2]

AU6

DDR0_DQ[35]/DDR1_DQ[3]

AU8

DDR0_DQ[36]/DDR1_DQ[4]

AV8

DDR0_DQ[37]/DDR1_DQ[5]

AW6

DDR0_DQ[38]/DDR1_DQ[6]

AY6

DDR0_DQ[39]/DDR1_DQ[7]

AY4

DDR0_DQ[40]/DDR1_DQ[8]

AV4

DDR0_DQ[41]/DDR1_DQ[9]

AT1

DDR0_DQ[42]/DDR1_DQ[10]

AT2

DDR0_DQ[43]/DDR1_DQ[11]

AV3

DDR0_DQ[44]/DDR1_DQ[12]

AW4

DDR0_DQ[45]/DDR1_DQ[13]

AT4

DDR0_DQ[46]/DDR1_DQ[14]

AT3

DDR0_DQ[47]/DDR1_DQ[15]

AP2

DDR0_DQ[48]/DDR1_DQ[32]

AM4

DDR0_DQ[49]/DDR1_DQ[33]

AP3

DDR0_DQ[50]/DDR1_DQ[34]

AM3

DDR0_DQ[51]/DDR1_DQ[35]

AP4

DDR0_DQ[52]/DDR1_DQ[36]

AM2

DDR0_DQ[53]/DDR1_DQ[37]

AP1

DDR0_DQ[54]/DDR1_DQ[38]

AM1

DDR0_DQ[55]/DDR1_DQ[39]

AK3

DDR0_DQ[56]/DDR1_DQ[40]

AH1

DDR0_DQ[57]/DDR1_DQ[41]

AK4

DDR0_DQ[58]/DDR1_DQ[42]

AH2

DDR0_DQ[59]/DDR1_DQ[43]

AH4

DDR0_DQ[60]/DDR1_DQ[44]

AK2

DDR0_DQ[61]/DDR1_DQ[45]

AH3

DDR0_DQ[62]/DDR1_DQ[46]

AK1

DDR0_DQ[63]/DDR1_DQ[47]

AU33

DDR0_ECC[0]

AT33

DDR0_ECC[1]

AW33

DDR0_ECC[2]

AV31

DDR0_ECC[3]

AU31

DDR0_ECC[4]

AV33

DDR0_ECC[5]

AW31

DDR0_ECC[6]

AY31

DDR0_ECC[7]

DDR CHANNEL A

PE115127-4041-01H

LGA1151

DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0] DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1] DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]

DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]

DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0] DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1] DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]

DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5] DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6] DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7] DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8]

DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9] DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10] DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11] DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12] DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]

DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]

DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT#

4

DDR0_CKP[0] DDR0_CKN[0] DDR0_CKP[1] DDR0_CKN[1] DDR0_CKP[2] DDR0_CKN[2] DDR0_CKP[3] DDR0_CKN[3]

DDR0_CKE[0] DDR0_CKE[1] DDR0_CKE[2] DDR0_CKE[3]

DDR0_CS#[0] DDR0_CS#[1] DDR0_CS#[2] DDR0_CS#[3]

DDR0_ODT[0] DDR0_ODT[1] DDR0_ODT[2] DDR0_ODT[3]

DDR0_MA[3] DDR0_MA[4]

DDR0_PAR

DDR0_ALERT#

DDR0_DQSN[0]

DDR0_DQSN[1] DDR0_DQSN[2]/DDR0_DQSN[4] DDR0_DQSN[3]/DDR0_DQSN[5] DDR0_DQSN[4]/DDR1_DQSN[0] DDR0_DQSN[5]/DDR1_DQSN[1] DDR0_DQSN[6]/DDR1_DQSN[4] DDR0_DQSN[7]/DDR1_DQSN[5]

DDR0_DQSP[0]

DDR0_DQSP[1] DDR0_DQSP[2]/DDR0_DQSP[4] DDR0_DQSP[3]/DDR0_DQSP[5] DDR0_DQSP[4]/DDR1_DQSP[0] DDR0_DQSP[5]/DDR1_DQSP[1] DDR0_DQSP[6]/DDR1_DQSP[4] DDR0_DQSP[7]/DDR1_DQSP[5]

DDR0_DQSP[8]

DDR0_DQSN[8]

3

I

U46B

AW18 AV18 AW17 AY17 AW16 AV16 AT16 AU16

AY24 AW24 AV24 AV25

AW12 AU11 AV13 AV10

AW11 AU14 AU12 AY10

AY13 AV15 AW23

AW13 AV14 AY11

AW15 AU18 AU17 AV19 AT19 AU20 AV20 AU21 AT20 AT22 AY14 AU22 AV22 AV12 AV23 AU24

AY15 AT23

AF39 AK39 AP39 AU36 AW7 AU3 AN3 AJ3

AF38 AK38 AP38 AV36 AV7 AU2 AN2 AJ2

AV32 AU32

MEM4_MA_ADD16 MEM4_MA_ADD14 MEM4_MA_ADD15

MEM_MA_ADD0 MEM_MA_ADD1 MEM_MA_ADD2 MEM_MA_ADD3 MEM_MA_ADD4 MEM_MA_ADD5 MEM_MA_ADD6 MEM_MA_ADD7 MEM_MA_ADD8 MEM_MA_ADD9 MEM_MA_ADD10 MEM_MA_ADD11 MEM_MA_ADD12 MEM_MA_ADD13

MEM_MA_CLK_H0 [23] MEM_MA_CLK_L0 [23] MEM_MA_CLK_H1 [23] MEM_MA_CLK_L1 [23] MEM_MA_CLK_H2 [24] MEM_MA_CLK_L2 [ 24] MEM_MA_CLK_H3 [24] MEM_MA_CLK_L3 [ 24]

MEM_MA_CKE0 [23] MEM_MA_CKE1 [23] MEM_MA_CKE2 [24] MEM_MA_CKE3 [24]

MEM_MA_CS_L0 [23] MEM_MA_CS_L1 [23] MEM_MA_CS_L2 [24] MEM_MA_CS_L3 [24]

MEM_MA_ODT0 [23] MEM_MA_ODT1 [23] MEM_MA_ODT2 [24] MEM_MA_ODT3 [24]

MEM_MA_BANK0 [23,24] MEM_MA_BANK1 [23,24] MEM_MA_BG0 [23,24]

MEM4_MA_ADD[14..16] [23,24]

MEM_MA_ADD[13..0] [23,24]

MEM_MA_BG1 [23,24] MEM_MA_ACT# [23,24]

MEM_MA_PAR [23,24] MEM_MA_ALERT# [23,24]

MEM_MA_DQS_L0 [ 23,24] MEM_MA_DQS_L1 [ 23,24] MEM_MA_DQS_L2 [ 23,24] MEM_MA_DQS_L3 [ 23,24] MEM_MA_DQS_L4 [ 23,24] MEM_MA_DQS_L5 [ 23,24] MEM_MA_DQS_L6 [ 23,24] MEM_MA_DQS_L7 [ 23,24]

MEM_MA_DQS_H0 [23,24] MEM_MA_DQS_H1 [23,24] MEM_MA_DQS_H2 [23,24] MEM_MA_DQS_H3 [23,24] MEM_MA_DQS_H4 [23,24] MEM_MA_DQS_H5 [23,24] MEM_MA_DQS_H6 [23,24] MEM_MA_DQS_H7 [23,24]

ECC ECC

MEM_MB_DATA[63..0][25,26]

MEM_MB_DATA0 MEM_MB_DATA1 MEM_MB_DATA2 MEM_MB_DATA3 MEM_MB_DATA4 MEM_MB_DATA5 MEM_MB_DATA6 MEM_MB_DATA7 MEM_MB_DATA8 MEM_MB_DATA9 MEM_MB_DATA10 MEM_MB_DATA11 MEM_MB_DATA12 MEM_MB_DATA13 MEM_MB_DATA14 MEM_MB_DATA15 MEM_MB_DATA16 MEM_MB_DATA17 MEM_MB_DATA18 MEM_MB_DATA19 MEM_MB_DATA20 MEM_MB_DATA21 MEM_MB_DATA22 MEM_MB_DATA23 MEM_MB_DATA24 MEM_MB_DATA25 MEM_MB_DATA26 MEM_MB_DATA27 MEM_MB_DATA28 MEM_MB_DATA29 MEM_MB_DATA30 MEM_MB_DATA31 MEM_MB_DATA32 MEM_MB_DATA33 MEM_MB_DATA34 MEM_MB_DATA35 MEM_MB_DATA36 MEM_MB_DATA37 MEM_MB_DATA38 MEM_MB_DATA39 MEM_MB_DATA40 MEM_MB_DATA41 MEM_MB_DATA42 MEM_MB_DATA43 MEM_MB_DATA44 MEM_MB_DATA45 MEM_MB_DATA46 MEM_MB_DATA47 MEM_MB_DATA48 MEM_MB_DATA49 MEM_MB_DATA50 MEM_MB_DATA51 MEM_MB_DATA52 MEM_MB_DATA53 MEM_MB_DATA54 MEM_MB_DATA55 MEM_MB_DATA56 MEM_MB_DATA57 MEM_MB_DATA58 MEM_MB_DATA59 MEM_MB_DATA60 MEM_MB_DATA61 MEM_MB_DATA62 MEM_MB_DATA63

U46B

AD34

DDR1_DQ[0]/DDR0_DQ[16]

AD35

DDR1_DQ[1]/DDR0_DQ[17]

AG35

DDR1_DQ[2]/DDR0_DQ[18]

AH35

DDR1_DQ[3]/DDR0_DQ[19]

AE35

DDR1_DQ[4]/DDR0_DQ[20]

AE34

DDR1_DQ[5]/DDR0_DQ[21]

AG34

DDR1_DQ[6]/DDR0_DQ[22]

AH34

DDR1_DQ[7]/DDR0_DQ[23]

AK35

DDR1_DQ[8]/DDR0_DQ[24]

AL35

DDR1_DQ[9]/DDR0_DQ[25]

AK32

DDR1_DQ[10]/DDR0_DQ[26]

AL32

DDR1_DQ[11]/DDR0_DQ[27]

AK34

DDR1_DQ[12]/DDR0_DQ[28]

AL34

DDR1_DQ[13]/DDR0_DQ[29]

AK31

DDR1_DQ[14]/DDR0_DQ[30]

AL31

DDR1_DQ[15]/DDR0_DQ[31]

AP35

DDR1_DQ[16]/DDR0_DQ[48]

AN35

DDR1_DQ[17]/DDR0_DQ[49]

AN32

DDR1_DQ[18]/DDR0_DQ[50]

AP32

DDR1_DQ[19]/DDR0_DQ[51]

AN34

DDR1_DQ[20]/DDR0_DQ[52]

AP34

DDR1_DQ[21]/DDR0_DQ[53]

AN31

DDR1_DQ[22]/DDR0_DQ[54]

AP31

DDR1_DQ[23]/DDR0_DQ[55]

AL29

DDR1_DQ[24]/DDR0_DQ[56]

AM29

DDR1_DQ[25]/DDR0_DQ[57]

AP29

DDR1_DQ[26]/DDR0_DQ[58]

AR29

DDR1_DQ[27]/DDR0_DQ[59]

AM28

DDR1_DQ[28]/DDR0_DQ[60]

AL28

DDR1_DQ[29]/DDR0_DQ[61]

AR28

DDR1_DQ[30]/DDR0_DQ[62]

AP28

DDR1_DQ[31]/DDR0_DQ[63]

AR12

DDR1_DQ[32]/DDR1_DQ[16]

AP12

DDR1_DQ[33]/DDR1_DQ[17]

AM13

DDR1_DQ[34]/DDR1_DQ[18]

AL13

DDR1_DQ[35]/DDR1_DQ[19]

AR13

DDR1_DQ[36]/DDR1_DQ[20]

AP13

DDR1_DQ[37]/DDR1_DQ[21]

AM12

DDR1_DQ[38]/DDR1_DQ[22]

AL12

DDR1_DQ[39]/DDR1_DQ[23]

AP10

DDR1_DQ[40]/DDR1_DQ[24]

AR10

DDR1_DQ[41]/DDR1_DQ[25]

AR7

DDR1_DQ[42]/DDR1_DQ[26]

AP7

DDR1_DQ[43]/DDR1_DQ[27]

AR9

DDR1_DQ[44]/DDR1_DQ[28]

AP9

DDR1_DQ[45]/DDR1_DQ[29]

AR6

DDR1_DQ[46]/DDR1_DQ[30]

AP6

DDR1_DQ[47]/DDR1_DQ[31]

AM10

DDR1_DQ[48]

AL10

DDR1_DQ[49]

AM7

DDR1_DQ[50]

AL7

DDR1_DQ[51]

AM9

DDR1_DQ[52]

AL9

DDR1_DQ[53]

AM6

DDR1_DQ[54]

AL6

DDR1_DQ[55]

AJ6

DDR1_DQ[56]

AJ7

DDR1_DQ[57]

AE6

DDR1_DQ[58]

AF7

DDR1_DQ[59]

AH7

DDR1_DQ[60]

AH6

DDR1_DQ[61]

AE7

DDR1_DQ[62]

AF6

DDR1_DQ[63]

AR25

DDR1_ECC[0]

AR26

DDR1_ECC[1]

AM26

DDR1_ECC[2]

AM25

DDR1_ECC[3]

AP26

DDR1_ECC[4]

AP25

DDR1_ECC[5]

AL25

DDR1_ECC[6]

AL26

DDR1_ECC[7]

PE115127-4041-01H

DDR CHANNEL B

2

LGA1151

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]

DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]

DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0] DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1] DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0]

DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0] DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1] DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]

DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5] DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6] DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7] DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8]

DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9] DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10] DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11] DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12] DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]

DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1] DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT#

DDR1_DQSN[0]/DDR0_DQSN[2] DDR1_DQSN[1]/DDR0_DQSN[3] DDR1_DQSN[2]/DDR0_DQSN[6] DDR1_DQSN[3]/DDR0_DQSN[7] DDR1_DQSN[4]/DDR1_DQSN[2] DDR1_DQSN[5]/DDR1_DQSN[3]

DDR1_DQSP[0]/DDR0_DQSP[2] DDR1_DQSP[1]/DDR0_DQSP[3] DDR1_DQSP[2]/DDR0_DQSP[6] DDR1_DQSP[3]/DDR0_DQSP[7] DDR1_DQSP[4]/DDR1_DQSP[2] DDR1_DQSP[5]/DDR1_DQSP[3]

DDR1_ALERT#

DDR1_DQSN[6] DDR1_DQSN[7]

DDR1_DQSP[6] DDR1_DQSP[7]

DDR1_DQSP[8] DDR1_DQSN[8]

DDR_VREF_CA DDR0_VREF_DQ DDR1_VREF_DQ

DDR1_CKP[0] DDR1_CKN[0] DDR1_CKP[1] DDR1_CKN[1] DDR1_CKP[2] DDR1_CKN[2] DDR1_CKP[3] DDR1_CKN[3]

DDR1_CKE[0] DDR1_CKE[1] DDR1_CKE[2] DDR1_CKE[3]

DDR1_CS#[0] DDR1_CS#[1] DDR1_CS#[2] DDR1_CS#[3]

DDR1_ODT[0] DDR1_ODT[1] DDR1_ODT[2] DDR1_ODT[3]

DDR1_MA[3] DDR1_MA[4]

DDR1_PAR

AM20 AM21 AP22 AP21 AN20 AN21 AP19 AP20

AY29 AV29 AW29 AU29

AP17 AN15 AN17 AM15

AM16 AL16 AP15 AL15

AN18 AL17 AP16

AL18 AM18 AW28

AL19 AL22 AM22 AM23 AP23 AL23 AW26 AY26 AU26 AW27 AP18 AU27 AV27 AR15 AY28 AU28

AL20 AY25

AF34 AK33 AN33 AN29 AN13 AR8 AM8 AG6

AF35 AL33 AP33 AN28 AN12 AP8 AL8 AG7

AN25 AN26

AB40 AC40 AC39

MEM4_MB_ADD16 MEM4_MB_ADD14 MEM4_MB_ADD15

MEM_MB_ADD0 MEM_MB_ADD1 MEM_MB_ADD2 MEM_MB_ADD3 MEM_MB_ADD4 MEM_MB_ADD5 MEM_MB_ADD6 MEM_MB_ADD7 MEM_MB_ADD8 MEM_MB_ADD9 MEM_MB_ADD10 MEM_MB_ADD11 MEM_MB_ADD12 MEM_MB_ADD13

1

MEM_MB_CLK_H0 [25] MEM_MB_CLK_L0 [ 25] MEM_MB_CLK_H1 [25] MEM_MB_CLK_L1 [ 25] MEM_MB_CLK_H2 [26] MEM_MB_CLK_L2 [ 26] MEM_MB_CLK_H3 [26] MEM_MB_CLK_L3 [ 26]

MEM_MB_CKE0 [25] MEM_MB_CKE1 [25] MEM_MB_CKE2 [26] MEM_MB_CKE3 [26]

MEM_MB_CS_L0 [25] MEM_MB_CS_L1 [25] MEM_MB_CS_L2 [26] MEM_MB_CS_L3 [26]

MEM_MB_ODT0 [25] MEM_MB_ODT1 [25] MEM_MB_ODT2 [26] MEM_MB_ODT3 [26]

MEM4_MB_ADD[14..16] [25,26]

MEM_MB_BANK0 [25,26] MEM_MB_BANK1 [25,26] MEM_MB_BG0 [25,26]

MEM_MB_ADD[13..0] [25,26]

MEM_MB_BG1 [25,26] MEM_MB_ACT# [25,26]

MEM_MB_PAR [25,26] MEM_MB_ALERT# [25,26]

MEM_MB_DQS_L0 [ 25,26] MEM_MB_DQS_L1 [ 25,26] MEM_MB_DQS_L2 [ 25,26] MEM_MB_DQS_L3 [ 25,26] MEM_MB_DQS_L4 [ 25,26] MEM_MB_DQS_L5 [ 25,26] MEM_MB_DQS_L6 [ 25,26] MEM_MB_DQS_L7 [ 25,26]

MEM_MB_DQS_H0 [25,26] MEM_MB_DQS_H1 [25,26] MEM_MB_DQS_H2 [25,26] MEM_MB_DQS_H3 [25,26] MEM_MB_DQS_H4 [25,26] MEM_MB_DQS_H5 [25,26] MEM_MB_DQS_H6 [25,26] MEM_MB_DQS_H7 [25,26]

MEM_VREF_CA [23]

MEM_VREF_CB [25]

A A

LITE-ON TECHNOLOGY CORP.

Title

06. KABYLAKE-DDR

Size Document Number Rev

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

6 58Wednesday, December 28, 2016

X03

5

I

U46C

D D

PEG_RXP0[30] PEG_RXN0[30]

PEG_RXP1[30] PEG_RXN1[30]

PEG_RXP2[30] PEG_RXN2[30]

PEG_RXP3[30] PEG_RXN3[30]

PEG_RXP4[30] PEG_RXN4[30]

PEG_RXP5[30] PEG_RXN5[30]

PEG_RXP6[30] PEG_RXN6[30]

C C

B B

+VCCIO

PEG_RXP7[30] PEG_RXN7[30]

PEG_RXP8[30] PEG_RXN8[30]

PEG_RXP9[30] PEG_RXN9[30]

PEG_RXP10[30] PEG_RXN10[30]

PEG_RXP11[30] PEG_RXN11[30]

PEG_RXP12[30] PEG_RXN12[30]

PEG_RXP13[30] PEG_RXN13[30]

PEG_RXP14[30] PEG_RXN14[30]

PEG_RXP15[30] PEG_RXN15[30]

R536 24.9 ohm+-1%IR536 24.9 ohm+-1%I

PEG_COMP

B8 B7

C7 C6

D6 D5

E5 E4

F6 F5

G5 G4

H6 H5

J5 J4

K6 K5

L5 L4

M6 M5

N5 N4

P6 P5

R5 R4

T6 T5

U5 U4

L7

PEG_RXP[0] PEG_RXN[0]

PEG_RXP[1] PEG_RXN[1]

PEG_RXP[2] PEG_RXN[2]

PEG_RXP[3] PEG_RXN[3]

PEG_RXP[4] PEG_RXN[4]

PEG_RXP[5] PEG_RXN[5]

PEG_RXP[6] PEG_RXN[6]

PEG_RXP[7] PEG_RXN[7]

PEG_RXP[8] PEG_RXN[8]

PEG_RXP[9] PEG_RXN[9]

PEG_RXP[10] PEG_RXN[10]

PEG_RXP[11] PEG_RXN[11]

PEG_RXP[12] PEG_RXN[12]

PEG_RXP[13] PEG_RXN[13]

PEG_RXP[14] PEG_RXN[14]

PEG_RXP[15] PEG_RXN[15]

PEG_RCOMP

LGA1151

4

PEG_TXP[0] PEG_TXN[0]

PEG_TXP[1] PEG_TXN[1]

PEG_TXP[2] PEG_TXN[2]

PEG_TXP[3] PEG_TXN[3]

PEG_TXP[4] PEG_TXN[4]

PEG_TXP[5] PEG_TXN[5]

PEG_TXP[6] PEG_TXN[6]

PEG_TXP[7] PEG_TXN[7]

PEG_TXP[8] PEG_TXN[8]

PEG_TXP[9] PEG_TXN[9]

PEG_TXP[10] PEG_TXN[10]

PEG_TXP[11] PEG_TXN[11]

PEG_TXP[12] PEG_TXN[12]

PEG_TXP[13] PEG_TXN[13]

PEG_TXP[14] PEG_TXN[14]

PEG_TXP[15] PEG_TXN[15]

3

I

U46D

DDI1_TX0_P[29]

A5 A6

B4 B5

C3 C4

D2 D3

E1 E2

F2 F3

G1 G2

H2 H3

J1 J2

K2 K3

L1 L2

M2 M3

N1 N2

P2 P3

R2 R1

T2 T3

PEG_TXP0 [30] PEG_TXN0 [30]

PEG_TXP1 [30] PEG_TXN1 [30]

PEG_TXP2 [30] PEG_TXN2 [30]

PEG_TXP3 [30] PEG_TXN3 [30]

PEG_TXP4 [30] PEG_TXN4 [30]

PEG_TXP5 [30] PEG_TXN5 [30]

PEG_TXP6 [30] PEG_TXN6 [30]

PEG_TXP7 [30] PEG_TXN7 [30]

PEG_TXP8 [30] PEG_TXN8 [30]

PEG_TXP9 [30] PEG_TXN9 [30]

PEG_TXP10 [30] PEG_TXN10 [30]

PEG_TXP11 [30] PEG_TXN11 [30]

PEG_TXP12 [30] PEG_TXN12 [30]

PEG_TXP13 [30] PEG_TXN13 [30]

PEG_TXP14 [30] PEG_TXN14 [30]

PEG_TXP15 [30] PEG_TXN15 [30]

DDI1_TX0_N[29] DDI1_TX1_P[29] DDI1_TX1_N[29]

DDI1_AUXP[29] DDI1_AUXN[29]

DDI2_TX0_P[27] DDI2_TX0_N[27] DDI2_TX1_P[27] DDI2_TX1_N[27] DDI2_TX2_P[27] DDI2_TX2_N[27] DDI2_TX3_P[27] DDI2_TX3_N[27]

DDI2_AUXP[27] DDI2_AUXN[27]

DDI3_TX0_P[28] DDI3_TX0_N[28] DDI3_TX1_P[28] DDI3_TX1_N[28] DDI3_TX2_P[28] DDI3_TX2_N[28] DDI3_TX3_P[28] DDI3_TX3_N[28]

DDI3_AUXP[28] DDI3_AUXN[28]

C21

DDI1_TXP[0]

D21

DDI1_TXN[0]

D22

DDI1_TXP[1]

E22

DDI1_TXN[1]

B23

DDI1_TXP[2]

A23

DDI1_TXN[2]

C23

DDI1_TXP[3]

D23

DDI1_TXN[3]

B13

DDI1_AUXP

C13

DDI1_AUXN

B18

DDI2_TXP[0]

A18

DDI2_TXN[0]

D18

DDI2_TXP[1]

E18

DDI2_TXN[1]

C19

DDI2_TXP[2]

D19

DDI2_TXN[2]

D20

DDI2_TXP[3]

E20

DDI2_TXN[3]

A12

DDI2_AUXP

B12

DDI2_AUXN

B14

DDI3_TXP[0]

A14

DDI3_TXN[0]

C15

DDI3_TXP[1]

B15

DDI3_TXN[1]

B16

DDI3_TXP[2]

A16

DDI3_TXN[2]

C17

DDI3_TXP[3]

B17

DDI3_TXN[3]

B11

DDI3_AUXP

C11

DDI3_AUXN

PE115127-4041-01H

LGA1151

DP to VGA

Display Port 1

Display Port 2

2

EDP_TXP[0] EDP_TXN[0] EDP_TXP[1] EDP_TXN[1] EDP_TXN[2] EDP_TXP[2] EDP_TXN[3] EDP_TXP[3]

EDP_AUXP EDP_AUXN

EDP_DISP_UTIL

EDP_RCOMP

PROC_AUDIO_CLK

PROC_AUDIO_SDI

PROC_AUDIO_SDO

E10 D10 D9 C9 H10 G10 G9 F9

D12 E12

D14

DP_RCOMP

M9

V3 V2

AUDIO_SDI_R

U1

R548 24.9 ohm+-1%IR548 24.9 ohm+-1%I

R551 33 ohmIR551 33 ohmI

1

+VCCIO

AUD_CPU_SCLK [15] AUD_CPU_SDI [15] AUD_CPU_SDO [15]

DMI_RXP0[14] DMI_RXN0[14]

DMI_RXP1[14] DMI_RXN1[14]

DMI_RXP2[14] DMI_RXN2[14]

DMI_RXP3[14] DMI_RXN3[14]

A A

5

Y3

DMI_RXP[0]

Y4

DMI_RXN[0]

AA4

DMI_RXP[1]

AA5

DMI_RXN[1]

AB4

DMI_RXP[2]

AB3

DMI_RXN[2]

AC4

DMI_RXP[3]

AC5

DMI_RXN[3]

PE115127-4041-01H

DMI_TXP[0] DMI_TXN[0]

DMI_TXP[1] DMI_TXN[1]

DMI_TXP[2] DMI_TXN[2]

DMI_TXP[3] DMI_TXN[3]

AC2 AC1

AD3 AD2

AE2 AE1

AF2 AF3

4

DMI_TXP0 [14] DMI_TXN0 [14]

DMI_TXP1 [14] DMI_TXN1 [14]

DMI_TXP2 [14] DMI_TXN2 [14]

DMI_TXP3 [14] DMI_TXN3 [14]

LITE-ON TECHNOLOGY CORP.

Title

07. KABYLAKE-PEG/DMI/DDI/EDP

ize Document Num ber Rev

Size Document Num ber Rev

S

B

MC117

Date: Sheet of

3

2

Date: Sheet of

7 58Wednesday, Decembe r 28, 2016

1

X03

5

Vinafix.com

C393

22 uF

X5R

0603

6.3 V

+VCCSA

+VCCSA +1V2_MEM_S3

(TOP) Socket Cavity Cap

C372

C376

22 uF

X5R

0603

6.3 V

C376

I

0603

I

0603

22 uF

X5R

6.3 V

X5R

6.3 V

I

D D

I

C392

I

0603

I

0603

I

22 uF

X5R

6.3 V

X5R

6.3 V

(TOP) Outside socket cap

+VCCSA

(BOTTOM) Socket Cavity Cap

SC101

SC102

SC103

SC104

22 uF

X5R

C358

22 uF

X5R

0603

6.3 V

NI

SC104

0603

22 uF

X5R

6.3 V

X5R

6.3 V

+VCCST_VCCPL L_S3

C364

I

0603

I

0603

22 uF

X5R

6.3 V

X5R

6.3 V

C350

22 uF

X5R

0603

6.3 V

I

NI

0603

NI

0603

NI

0603

NI

0603

NI

22 uF

X5R

6.3 V

X5R

6.3 V

X5R

6.3 V

X5R

6.3 V

C C

+VCCIO

(TOP) Socket Cavity Cap

C388

C398

22 uF

X5R

0603

6.3 V

C398

I

0603

I

0603

I

22 uF

X5R

6.3 V

X5R

6.3 V

I

B B

C380

22 uF

X5R

0805

6.3 V

+VCCIO

I

U46I

AA7

VCCSA

AB6

VCCSA

AB7

VCCSA

AB8

VCCSA

AC7

VCCSA

AC8

VCCSA

N7

VCCSA

P7

VCCSA

R7

VCCSA

T7

VCCSA

U7

VCCSA

Y6

VCCSA

Y7

VCCSA

Y8

VCCSA

W7

VCCSA

V7

VCCSA

AA6

VCCSA

AK11

VCCIO

AK14

VCCIO

AK24

VCCIO

AJ23

VCCIO

M8

VCCIO

P8

VCCIO

T8

VCCIO

U8

VCCIO

W8

VCCIO

V5

VCCST_V5

V6

VCCST_V6

V4

VCCPLL

PE115127-4041-01H

4

LGA1151

VCCOPC_AJ30 VCCOPC_AJ27 VCCOPC_AJ28 VCCOPC_AJ29

VCCOPC_AK27

VCC_OPC_1P8_AB3 7 VCC_OPC_1P8_AB3 8

VCCSA_SENSE

VCCIO_SENSE

VSS_SAIO_SENSE

VCCOPC_SENSE

VCCEOPIO_SENSE

VSSOPC_EOPIO_SENSE

VDDQ_AT18 VDDQ_AT21 VDDQ_AU13 VDDQ_AU15 VDDQ_AU19 VDDQ_AU23 VDDQ_AV11 VDDQ_AV17

VDDQ_AV21 VDDQ_AW10 VDDQ_AW14 VDDQ_AW25

VDDQ_AY12

VDDQ_AY16

VDDQ_AY18

VDDQ_AY23

VCCPLL_OC

VCCEOPIO

VCCEOPIO1

+1V2_MEM_S3

AT18 AT21 AU13 AU15 AU19 AU23 AV11 AV17 AV21 AW10 AW14 AW25 AY12 AY16 AY18 AY23

VCCPLL_OC

AJ9

VCCOPC

AJ30 AJ27 AJ28 AJ29 AK27

VCCEOPIO

AJ25 AJ26

VCCOPC1P8

AB37 AB38

AD5 AF4 AE4

U46_AK21

AK21

U46_AJ24

AJ24

U46_AK22

AK22

R356 0 ohmIR356 0 ohmI

3

(TOP) Outside socket cap

C501

C498

C499

22 uF

X5R

0603

6.3 V

C499

I

22 uF

X5R

R529 20 ohmIR529 20 ohmI

I

PCH2CPU_TR IGGER[17] CPU2PCH_TRIGGER[17]

SR460 0 ohmNISR460 0 ohmNI

SR461 0 ohmNISR461 0 ohmNI

SR462 0 ohmNISR462 0 ohmNI

1 1 1

22 uF

X5R

0603

TP14TP14 TP15TP15 TP16TP16

6.3 V

I

C500

0603

I

0603

I

0603

22 uF

6.3 V

X5R

+VCCSA +VCCIO

R668

I

+-1%

I

+-1%

100 ohm

R672

I

100 ohm

+-1%

6.3 V

CPU_TRIGOUT

R568

I

100 ohm

+-1%

VCCSA_SENSE_P [58] VCCIO_SENSE [57] VCCSA_SENSE_N [58]

2

I

U46J

J8

RSVD_TP_J8

J7

RSVD_TP_J7

L8

RSVD_TP_L8

K8

RSVD_TP_K8

AV1

RSVD_TP_AV1

AW2

RSVD_TP_AW 2

H8

RSVD_H8

K10

RSVD_K10

L10

RSVD_L10

J17

RSVD_J17

B39

RSVD_B39

J19

RSVD_J19

C40

RSVD_C40

G8

RSVD_G8

AY3

RSVD_AY3

D1

PROC_TRIGIN

B3

PROC_TRIGOUT

L12

RSVD_L12

K12

RSVD_K12

PE115127-4041-01H

LGA1151

RSVD_TP_H11 RSVD_TP_H12

RSVD_TP_AW 38

RSVD_TP_AV39

RSVD_AU39 RSVD_AU40

VSS_AT15

VSS_AR23 VSS_AR22

RSVD_J15 RSVD_J14

RSVD_AU9

RSVD_AU10

RSVD_J13

RSVD_K13

RSVD_J11

RSVD_D15 RSVD_K11

H11 H12

AW38 AV39

AU39 AU40

AT15

AR23 AR22

J15 J14

AU9 AU10

J13 K13 J11

D15 K11

1

VSS_AT15

SR101 0 ohmNISR101 0 ohmNI

TP_CPU_K13

NI

R544

560 ohm

+12V_S5_PSU

R582

I

10K ohm

G

60 V

G

1

C356

I

0.1 uF

16 V

3

Q59_G

D

I

23

Q55

Q55 2N7002ET1G

A A

5

SLP_S4#[15,22,34,35,37,38,39,44,45,54,55]

4

R580 I 10K ohmR580 I 10K ohm

NI

C341

0.1 uF

16 V

Q55_G

G

2N7002ET1G

0.31 A

1

2.5ohm@10V

S

R600

I

8.2K ohm

I

23

Q59_D

D

Q59

Q59 2N7002ET1G

2N7002ET1G

0.31 A

2.5ohm@10V

S

+1V0_PCH_PRIME_S5

60 V

I

C367

0.1 uF

16 V

D

2 3

S

I

Q53

1

PM606BA

G

30V 5 A

30V 5 A 17mohm@10V

17mohm@10V

I

C453

0.1 uF

16 V

2

+VCCST_VCCPL L_S3

C454

C452

I

0805

I

0603

4.7 uF

X5R

0805

22 uF

X5R

6.3 V

X5R

6.3 V

10 V

LITE-ON TECHNOLOGY CORP.

Title

Size Document Number Rev

Size Docum ent Number Rev

Date: Sheet of

I

C1798

C1798 15 pF

15 pF

I

I NPO

NPO 50 V

50 V

08. KABYLAKE-POWER/+VCCST

B

MC117

X03

8 58Wednesday, December 28, 2016

1

5

Vinafix.com

4

3

2

1

I

U46G

LGA1151

A25

VCC_A25

A26

VCC_A26

A27

VCC_A27

A28

VCC_A28

A29

D D

C C

B B

A A

VCC_A29

A30

VCC_A30

B25

VCC_B25

B27

VCC_B27

B29

VCC_B29

B31

VCC_B31

B32

VCC_B32

B33

VCC_B33

B34

VCC_B34

B35

VCC_B35

B36

VCC_B36

B37

VCC_B37

C25

VCC_C25

C26

VCC_C26

C27

VCC_C27

C28

VCC_C28

C29

VCC_C29

C30

VCC_C30

C32

VCC_C32

C34

VCC_C34

C36

VCC_C36

D25

VCC_D25

D27

VCC_D27

D29

VCC_D29

D31

VCC_D31

D32

VCC_D32

D33

VCC_D33

D34

VCC_D34

D35

VCC_D35

D36

VCC_D36

E24

VCC_E24

E25

VCC_E25

E26

VCC_E26

E27

VCC_E27

E28

VCC_E28

E29

VCC_E29

E30

VCC_E30

E32

VCC_E32

E34

VCC_E34

E36

VCC_E36

F23

VCC_F23

F24

VCC_F24

F25

VCC_F25

F27

VCC_F27

F29

VCC_F29

F31

VCC_F31

G30

VCC_G30

G32

VCC_G32

H22

VCC_H22

H23

VCC_H23

H25

VCC_H25

H27

VCC_H27

H29

VCC_H29

H31

VCC_H31

AJ11

VCC_AJ11

AJ13

VCC_AJ13

AJ15

VCC_AJ15

AJ17

VCC_AJ17

AJ19

VCC_AJ19

AJ21

VCC_AJ21

PE115127-4041-01H

5

VCC_H32

VCC_J 21 VCC_F 32 VCC_F 33 VCC_F 34 VCC_G 23 VCC_G 24 VCC_G 25 VCC_G 26 VCC_G 27 VCC_G 28 VCC_G 29

VCC_J 22

VCC_J 23

VCC_J 24

VCC_J 25

VCC_J 26

VCC_J 27

VCC_J 28

VCC_J 29

VCC_J 30

VCC_J 31 VCC_K16 VCC_K18 VCC_K20 VCC_K21 VCC_K23 VCC_K25 VCC_K27 VCC_K29 VCC_K31

VCC_L14

VCC_L15

VCC_L16

VCC_L17

VCC_L18

VCC_L19

VCC_L20

VCC_L21

VCC_L22

VCC_L23

VCC_L24

VCC_L25

VCC_L26

VCC_L27

VCC_L28

VCC_L29

VCC_L30 VCC_M1 3 VCC_M1 4 VCC_M1 6 VCC_M1 8 VCC_M2 0 VCC_M2 2 VCC_M2 4 VCC_M2 6 VCC_M2 8 VCC_M3 0

VCC_AJ12 VCC_AJ14 VCC_AJ16 VCC_AJ18 VCC_AJ20 VCC_AJ22

VCC_SENSE

VSS_SENSE

+VCCIA+VCCIA +VCCIA

H32 J21 F32 F33 F34 G23 G24 G25 G26 G27 G28 G29 J22 J23 J24 J25 J26 J27 J28 J29 J30 J31 K16 K18 K20 K21 K23 K25 K27 K29 K31 L14 L15 L16 L17 L18 L19 L20 L21 L22 L23 L24 L25 L26 L27 L28 L29 L30 M1 3 M1 4 M1 6 M1 8 M2 0 M2 2 M2 4 M2 6 M2 8 M3 0

AJ12 AJ14 AJ16 AJ18 AJ20 AJ22

C38 D38

+VCCIA

R485

I

100 ohm

R496

I

100 ohm

C1793 10 pF

10 pF

I

I NPO

NPO 50 V

50 V

+-1%

(TOP) Socket Cavity Cap

C362

C354

C342

I

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

+VCCIA

(TOP) Socket Cavity Cap

C355

C363

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

X5R

+VCCIA

(TOP) Socket Cavity Cap

C347

C348

I

+VCCIA

I

+VCCIA

NI

C348

0603

I

22 uF

X5R

6.3 V

X5R

6.3 V

X5R

(TOP) Outside Socket Cap

C270

C268

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

X5R

(BOTTOM) Socket Cavity Cap

SC3

SC2

0805

NI

22 uF

X5R

6.3 V

X5R

6.3 V

X5R

CPU VCC_SENSE [51] CPU VSS_SENSE [ 51]

CPU VCC_SENSE

CPU VSS_SENSE

4

0805

0603

0805

6.3 V

NI

6.3 V

R486

49.9 ohm

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C371

I

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C346

I

0603

I

0603

I

22 uF

X5R

6.3 V

X5R

6.3 V

C269

0805

I

0805

IC1793

I

22 uF

X5R

6.3 V

X5R

6.3 V

SC4

0805

NI

22 uF

X5R

6.3 V

X5R

6.3 V

+-1%NI

C370

22 uF

X5R

C378

22 uF

X5R

C345

22 uF

X5R

C278

22 uF

X5R

SC1

22 uF

X5R

0805

0603

0805

6.3 V

C377

C343

0805

I

0805

I

22 uF

X5R

C383

I

22 uF

X5R

C394

I

22 uF

X5R

C306

I

22 uF

X5R

0805

0603

0805

6.3 V

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C382

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C395

I

0603

I

0603

22 uF

X5R

6.3 V

X5R

6.3 V

+VCCGT

3

I

U46H

AA34

VCCGT

AA35

VCCGT

AA36

VCCGT

AA37

VCCGT

AA38

VCCGT

AB33

VCCGT

AB34

VCCGT

G36

VCCGT

G37

VCCGT

G38

VCCGT

G39

VCCGT

G40

VCCGT

H36

VCCGT

H38

VCCGT

H40

VCCGT

J36

VCCGT

J37

VCCGT

J38

VCCGT

J39

VCCGT

J40

VCCGT

K36

VCCGT

K38

VCCGT

K40

VCCGT

L34

VCCGT

L35

VCCGT

L36

VCCGT

L37

VCCGT

L38

VCCGT

L39

VCCGT

L40

VCCGT

M3 3

VCCGT

M3 4

VCCGT

M3 6

VCCGT

M3 8

VCCGT

M4 0

VCCGT

N34

VCCGT

N35

VCCGT

N36

VCCGT

N37

VCCGT

N38

VCCGT

N39

VCCGT

N40

VCCGT

P33

VCCGT

P34

VCCGT

P36

VCCGT

P38

VCCGT

P40

VCCGT

R34

VCCGT

R35

VCCGT

R36

VCCGT

R37

VCCGT

R38

VCCGT

R39

VCCGT

R40

VCCGT

T33

VCCGT

T34

VCCGT

T36

VCCGT

T38

VCCGT

T40

VCCGT

U34

VCCGT

U35

VCCGT

U36

VCCGT

U37

VCCGT

U38

VCCGT

U39

VCCGT

U40

VCCGT

V33

VCCGT

V34

VCCGT

V36

VCCGT

V38

VCCGT

V40

VCCGT

W34

VCCGT

W35

VCCGT

W36

VCCGT

W37

VCCGT

W38

VCCGT

Y3 3

VCCGT

Y3 4

VCCGT

Y3 6

VCCGT

Y3 8

VCCGT

PE115127-4041-01H

LGA1151

VCCGTX_F35 VCCGTX_G34 VCCGTX_G35 VCCGTX_H33 VCCGTX_H34

VCCGTX_J33

VCCGTX_J35 VCCGTX_K32 VCCGTX_K34

VCCGTX_L31

VCCGTX_L33 VCCGTX_M32

VCCGT_SENSE VSSGT_SENSE

VCCGTX_SENSE

VSSGTX_SENSE

F35 G34 G35 H33 H34 J33 J35 K32 K34 L31 L33 M3 2

F39 F38

F37 F36

VCCGTX

SR492 0 ohmNISR492 0 ohmNI

+VCCGT

(TOP) Socket Cavity Cap

C386

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

+VCCGT

(TOP) Outside Socket Cap

C403

NI

0805

NI

0805

NI

47 uF

X5R

6.3 V

X5R

6.3 V

+VCCGT

(BOTTOM) Socket Cavity Cap

SC5

0805

NI

0805

NI

22 uF

X5R

6.3 V

X5R

6.3 V

+VCCGT

C825

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C353

22 uF

X5R

C317

47 uF

X5R

SC6

22 uF

X5R

I

0805

C826

22 uF

X5R

6.3 V

0805

I

NI

6.3 V

C375

I

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C381

0805

I

47 uF

X5R

6.3 V

X5R

6.3 V

SC7

0805

NI

22 uF

X5R

6.3 V

X5R

6.3 V

C823

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C385

22 uF

X5R

C349

47 uF

X5R

SC8

22 uF

X5R

I

0805

C824

22 uF

X5R

6.3 V

0805

I

6.3 V

C387

I

22 uF

X5R

C368

47 uF

X5R

(TOP) Socket Cavity Cap_ SDV Phase Add

+VCCGT

R494

I

+-1%

I

+-1%

100 ohm

GT_VCC_SENSE [51] GT_VSS_SENSE [51 ]

R493

I

+-1%

I

+-1%

100 ohm

2

LITE-ON TECHNOLOGY CORP.

Title

09. KABYLAKE-CPU CORE/GPU CORE

Size Document Number Rev

Size Docum ent Number Rev

B

MC117

Date: Sheet of

0805

6.3 V

C384

C374

I

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C331

I

0805

I

0805

47 uF

X5R

6.3 V

X5R

6.3 V

22 uF

X5R

1

0805

6.3 V

C373

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

X03

9 58Wednesday, December 28, 2016

5

I

U46F

A11

VSS0

A13

VSS1

A15

VSS2

A17

VSS3

A24

VSS4

A7

D D

C C

B B

A A

5

VSS5

AA3

VSS6

AA33

VSS7

AA8

VSS8

AB39

VSS9

AB5

VSS10

AC3

VSS11

AC33

VSS12

AC34

VSS13

AC35

VSS14

AC6

VSS15

AD1

VSS16

AD33

VSS17

AD36

VSS18

AD37

VSS19

AD38

VSS20

AD39

VSS21

AD4

VSS22

AD40

VSS23

AD6

VSS24

AD7

VSS25

AD8

VSS26

AE3

VSS27

AE33

VSS28

AE36

VSS29

AE5

VSS30

AE8

VSS31

AF1

VSS32

AF33

VSS33

AF36

VSS34

AF37

VSS35

AF40

VSS36

AF5

VSS37

AF8

VSS38

AG1

VSS39

AG2

VSS40

AG3

VSS41

AG33

VSS42

AG36

VSS43

AG4

VSS44

AG5

VSS45

AG8

VSS46

AH33

VSS47

AH36

VSS48

AH37

VSS49

AH38

VSS50

AH39

VSS51

AH40

VSS52

AH5

VSS53

AH8

VSS54

AJ1

VSS55

AJ31

VSS56

AJ32

VSS57

AJ33

VSS58

AJ34

VSS59

AJ35

VSS60

AJ36

VSS61

AJ4

VSS62

AJ5

VSS64

AJ8

VSS63

AK10

VSS65

AK12

VSS66

AK13

VSS67

AK15

VSS68

AK16

VSS69

AK17

VSS70

AK18

VSS71

AK19

VSS72

AK20

VSS73

AK23

VSS74

AK25

VSS75

AK26

VSS76

AK28

VSS77

PE115127-4041-01H

LGA1151

VSS78 VSS79 VSS80 VSS81 VSS82 VSS83 VSS84 VSS85 VSS86 VSS87 VSS88 VSS89 VSS90 VSS91 VSS92 VSS93 VSS94 VSS95 VSS96 VSS97 VSS98

VSS99 VSS100 VSS101 VSS102 VSS103 VSS104 VSS105 VSS106 VSS107 VSS108 VSS109 VSS110 VSS111 VSS112 VSS113 VSS114 VSS115 VSS116 VSS117 VSS118 VSS119 VSS120 VSS121 VSS122 VSS123 VSS124 VSS125 VSS126 VSS127 VSS128 VSS129 VSS130 VSS131 VSS132 VSS133 VSS134 VSS135 VSS136 VSS137 VSS138 VSS139 VSS140 VSS141 VSS142 VSS143 VSS144 VSS145 VSS146 VSS147 VSS148 VSS149 VSS150 VSS151 VSS152 VSS153 VSS154

AK29 AK30 AK36 AK37 AK40 AK5 AK6 AK7 AK8 AK9 AL1 AL11 AL14 AL2 AL21 AL24 AL27 AL3 AL30 AL36 AL4 AL5 AM11 AM14 AM17 AM19 AM24 AM27 AM30 AM31 AM32 AM33 AM34 AM35 AM36 AM37 AM38 AM39 AM40 AM5 AN1 AN10 AN11 AN14 AN16 AN19 AN22 AN23 AN24 AN27 AN30 AN36 AN4 AN5 AN6 AN7 AN8 AN9 AP11 AP14 AP24 AP27 AP30 AP36 AP37 AP40 AP5 AR1 AR11 AR14 AR16 AR17 AR18 AR19 AR2 AR20 AR21

4

AR24 AR27

AR3 AR30 AR31 AR32 AR33 AR34 AR35 AR36

AR4

AR5 AT10 AT11 AT12 AT13 AT14 AT17 AT24 AT25 AT26 AT27 AT28 AT29 AT30 AT31 AT32 AT34 AT36 AT37 AT38 AT39 AT40

AT5

AT6

AT7

AT8

AT9

AU1 AU25 AU30 AU34

AU4

AU5

AU7

AV2 AV26 AV28 AV30 AV34 AV38

AV5

AV9

AW3 AW30 AW32 AW34 AW36

AW5

AW9

AY27 AY30

AY5 AY7 AY9

B24 B26 B28 B30

B6 C12 C14 C16 C18 C20 C22 C24 C31 C33 C35

4

3

I

U46K

VSS155 VSS156 VSS157 VSS158 VSS159

LGA1151

VSS160 VSS161 VSS162 VSS163 VSS164 VSS165 VSS166 VSS167 VSS168 VSS169 VSS170 VSS171 VSS172 VSS173 VSS174 VSS175 VSS176 VSS177 VSS178 VSS179 VSS180 VSS181 VSS182 VSS183 VSS184 VSS185 VSS186 VSS187 VSS188 VSS189 VSS190 VSS191 VSS192 VSS193 VSS194 VSS195 VSS196 VSS197 VSS198 VSS199 VSS200 VSS201 VSS202 VSS203 VSS204 VSS205 VSS206 VSS207 VSS208 VSS209 VSS210 VSS211 VSS212 VSS213 VSS214 VSS215 VSS216 VSS217 VSS218 VSS219 VSS220 VSS221 VSS222 VSS223 VSS224 VSS225 VSS226 VSS227 VSS228 VSS229 VSS230 VSS231 VSS232 VSS233 VSS234

PE115127-4041-01H

3

VSS235 VSS236 VSS237 VSS238 VSS239 VSS240 VSS241 VSS242 VSS243 VSS244 VSS245 VSS246 VSS247 VSS248 VSS249 VSS250 VSS251 VSS252 VSS253 VSS254 VSS255 VSS256 VSS257 VSS258 VSS259 VSS260 VSS261 VSS262 VSS263 VSS264 VSS265 VSS266 VSS267 VSS268 VSS269 VSS270 VSS271 VSS272 VSS273 VSS274 VSS275 VSS276 VSS277 VSS278 VSS279 VSS280 VSS281 VSS282 VSS283 VSS284 VSS285 VSS286 VSS287 VSS288 VSS289 VSS290 VSS291 VSS292 VSS293 VSS294 VSS295 VSS296 VSS297 VSS298 VSS299 VSS300 VSS301 VSS302 VSS303 VSS304 VSS305 VSS306 VSS307 VSS308 VSS309 VSS310 VSS311 VSS312 VSS313 VSS314

C37 C5 C8 C10 D24 D26 D28 D30 D37 D39 D4 D7 E11 E13 E15 E17 E19 E21 E23 E3 E31 E33 E35 E37 E6 E9 F1 F10 F22 F26 F28 F30 F4 F40 F7 G11 G13 G15 G17 G19 G22 G3 G31 G33 G6 H1 H21 H24 H26 H28 H30 H35 H37 H39 H4 H7 H9 J10 J12 L11 J16 J18 J20 J3 J32 J34 J6 K1 K14 K15 K17 K19 K22 K24 K26 K28 K30 K33 K35 K37

2

I

U46L

K39

VSS315

K4

VSS316

K7

VSS317

L13

VSS318

L3

VSS319

L32

L6 L9

M1 M10 M12 M15 M17 M19 M21 M23 M25 M27 M29 M35 M37 M39

M4

M7

N3

N33

N6 N8

P1 P35 P37 P39

P4

R3 R33

R6

R8

T1 T35 T37 T39

T4

U3 U33

U6

V1 V35 V37 V39

V8

W3

W33

W6 Y35 Y37

Y5

A4

B38

C2

D40

PE115127-4041-01H

2

LGA1151

VSS320 VSS321 VSS322 VSS323 VSS324 VSS325 VSS326 VSS327 VSS328 VSS329 VSS330 VSS331 VSS332 VSS333 VSS334 VSS335 VSS336 VSS337 VSS338 VSS339 VSS340 VSS341 VSS342 VSS343 VSS344 VSS345 VSS346 VSS347 VSS348 VSS349 VSS350 VSS351 VSS352 VSS353 VSS354 VSS355 VSS356 VSS357 VSS358 VSS359 VSS360 VSS361 VSS362 VSS363 VSS364 VSS365 VSS366 VSS367 VSS368 VSS369 VSS370

VSS_NCTF1 VSS_NCTF2 VSS_NCTF3 VSS_NCTF4

LITE-ON TECHNOLOGY CORP.

Title

10. KABYLAKE-VSS

Size Document Num ber Rev

B

MC117

Date: Sheet of

1

X03

10 58Wednesday, Decembe r 28, 2016

1

5

Vinafix.com

D D

CLK_CPU_100M_P[17] CLK_CPU_100M_N[17]

CLK_CPU_100M_PCIBCLK_P[17] CLK_CPU_100M_PCIBCLK_N[17]

R470

I

100 ohm

+-1%

CLK_CPU_24M_P[17] CLK_CPU_24M_N[17]

R495

I

1K ohm

R487 I 220 ohm+-1%R487 I 220 ohm+-1%

DDR_VTT_CNTL[54]

VCCST_PWR GD[12,22]

R549 20 ohmIR549 20 ohmI

H_PECI[14] H_THERMTRIP#[14]

H_SKTOCC#[16,22,35,46] H_PROC_SELECT #[35]

TP10TP10

+VCCST_VCCPL L_S3

R488

I

+-1%

I

C C

H_VIDALERT#[51] H_VIDSCLK[51] H_VIDSDIO[51] H_PROCHOT#[51]

B B

+-1%

56 ohm

H_PM_SYNC[14] H_PM_DOWN[14]

4

VIDALERT_N

PWRGD_CPU _R CPURST#_R

H_PM_DOWN_R

H_THERMTRIP#

H_PROC_SELECT #

CATERR#

1

I

U46E

W5

BCLKP

W4

BCLKN

W1

PCI_BCLKP

W2

PCI_BCLKN

K9

CLK24P

J9

CLK24N

E39

VIDALERT#

E38

VIDSCK

E40

VIDSOUT

C39

PROCHOT#

AC36

DDR_VTT_CNTL

AC38

ZVM#

AC37

RSVD_AC37

U2

VCCST_PWR GD

F8

PROCPWRGD

E7

RESET#

E8

PM_SYNC

D8

PM_DOW N

G7

PECI

D11

THERMTRIP#

AB35

SKTOCC#

AB36

PROC_SELECT#

D13

CATERR#

PE115127-4041-01H

LGA1151

3

CFG[0] CFG[1] CFG[2] CFG[3] CFG[4] CFG[5] CFG[6] CFG[7] CFG[8]

CFG[9] CFG[10] CFG[11] CFG[12] CFG[13] CFG[14] CFG[15]

CFG[17] CFG[16] CFG[19] CFG[18]

BPM#[0] BPM#[1] BPM#[2] BPM#[3]

PROC_TDO

PROC_TDI PROC_TMS PROC_TCK

PROC_TRST # PROC_PREQ# PROC_PRDY#

CFG_RCOMP

H15 F15 F16 H16 F19 H18 G21 H20 G16 E16 F17 H17 G20 F20 F21 H19

F14 E14 F18 G18

D16 D17 G14 H14

H13 G12 F13 F11

F12 B9 B10

M1 1

CFG_RCOMP

CPU_CFG0 [12] CPU_CFG1 [12] CPU_CFG2 [12] CPU_CFG3 [12] CPU_CFG4 [12] CPU_CFG5 [12] CPU_CFG6 [12] CPU_CFG7 [12] CPU_CFG8 [12] CPU_CFG9 [12] CPU_CFG10 [12] CPU_CFG11 [12] CPU_CFG12 [12] CPU_CFG13 [12] CPU_CFG14 [12] CPU_CFG15 [12]

CPU_CFG17 [12] CPU_CFG16 [12] CPU_CFG19 [12] CPU_CFG18 [12]

H_XDP_BPM0 [12] H_XDP_BPM1 [12]

H_TDO [12] H_TDI [12] H_TMS [12] H_TCK [12]

H_TRST# [12] H_PREQ# [12] H_PRDY# [12]

R543

+-1%I

49.9 ohm

2

CFG4: DP PRESENCE

CFG7: DEFER TRANSING

H_PREQ#

H_TDO

H_TDI H_TMS H_TCK H_TRST#

CPU_CFG0 CPU_CFG1 CPU_CFG2 CPU_CFG3 CPU_CFG4 CPU_CFG5 CPU_CFG6 CPU_CFG7 CPU_CFG8 CPU_CFG9 CPU_CFG10 CPU_CFG11 CPU_CFG12 CPU_CFG13 CPU_CFG14 CPU_CFG15

CPU_CFG3

CPU_CFG9

R336 1K ohmNIR336 1K ohmNI R335 1K ohmNIR335 1K ohmNI R334 1K ohmNIR334 1K ohmNI R333 1K ohmNIR333 1K ohmNI R332 1K ohmNIR332 1K ohmNI R331 1K ohmNIR331 1K ohmNI R330 1K ohmNIR330 1K ohmNI R329 1K ohmNIR329 1K ohmNI R400 1K ohmNIR400 1K ohmNI R434 1K ohmNIR434 1K ohmNI R433 1K ohmNIR433 1K ohmNI R432 1K ohmNIR432 1K ohmNI R431 1K ohmNIR431 1K ohmNI R430 1K ohmNIR430 1K ohmNI R429 1K ohmNIR429 1K ohmNI R428 1K ohmNIR428 1K ohmNI

R315 1K ohm

R456 1K ohmNIR456 1K ohmNI

R466 51 ohmNIR466 51 ohmNI

Close to XDP Conn

R449 I 100 ohmR449 I 100 ohm

Close to CPU

R448 51 ohmNIR448 51 ohmNIR543 R447 51 ohmNIR447 51 ohmNI R533 51 ohmIR533 51 ohmI R515 51 ohmNIR515 51 ohmNI

PR OT O

1

XDP_PCUDEBUG3 [1 2]

+VCCIO

+VCCST_VCCPL L_S3

C808

C808 47 pF

47 pF

NPO

NPO 50 V

50 V

NI

PWRGD_CPU _RPWRGD_CPU

C816

C816 22 pF

22 pF

NPO

NPO 50 V

50 V I

I

LITE-ON TECHNOLOGY CORP.

Title

11. KABYLAKE-CFG/XDP

Size Document Number Rev

Size Docum ent Number Rev

B

MC117

Date: Sheet of

3

2

Date: Sheet of

11 58Wednesday, December 28, 2016

1

X03

PWRGD_CPU[12,15] CPURST#[12,14]

A A

5

CPURST# CPURST#_R

R376 0 ohmIR376 0 ohmI R401 0 ohmIR401 0 ohmI

4

5

Vinafix.com

4

3

2

1

Intel XDP Debugging Connector

PROT O

XDP1

D D

CLK_PCH_XDP_N[17] CLK_PCH_XDP_P[17]

SMB_CLK_MAIN[23,24,25,26,43,46] SMB_DATA_MAIN[23,24,25,26,43,46]

H_TDO[11] H_TDI[11] H_TMS[11] H_TCK[11] H_TRST#[11]

PR OT O

R420 0 ohm

PR OT O

R427 0 ohm

XDP_FP_RST# XDP_ITPCLK# XDP_ITPCLK XDP_RSMRST# XDP_ITP_PMODE

XDP_PWRBTN _OUT#

XDP_PCUDEBUG3[11]

C C

PR OT O

R446 1K ohm

PCH_SPI_IO2[13,20]

R446 1K ohm

XDP_PRESENT#_R

R421

NI

0 ohm

+3V3

R425

B B

DEBUG_PLTRST #[15]

PCH_RSMRST#[15,21] PWRGD_CPU[11,15] VCCST_PWR GD[11,22]

R450 0 ohmIR450 0 ohmI

PR OT O

R349 1K ohm

R349 1K ohm R327 1K ohmNIR327 1K ohmNI R320 1K ohmNIR320 1K ohmNI

R425

I

1K ohm

XDP_FP_RST#

XDP_RSMRST#

+1V0_PCH_PRIME_S5

R451

I

2.2K ohm

3.3K ohmR314

3.3K ohm

NI

XDP_ITP_PMODE

XDP_PWRBTN _OUT#

C198

0.1 uF

16 V

X7R

16 V

X7R

R463 0 ohm

I

IT P _ P M O D E[15] CPURST#[11,14]

A A

PWRBTN#[15,35,45]

5

R426 1K ohmNIR426 1K ohmNI

R314

I

PROTO

48 42 40 39 46 53 51 41

52 56 58 57 54

1 2 7

8 13 14 19 20 25 26 31 32 37 38 49 50 59 60

4

XDP1

DBR IT P _ C L KN IT P _ C L KP PWRGOOD RESET# SCL SDA TESTIN#

TDO TDI TMS TCK TRST#

VSS0 VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8 VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17

XDP

H_TDI

H_TDO

H_TMS

H_TCK

H_TRST#

BPM5# BPM4# BPM3# BPM2# BPM1# BPM0#

NC10

NOA_PILOTCLK

NOA_PILOTCLK#

NOA_PILOT0 NOA_PILOT1 NOA_PILOT2 NOA_PILOT3 NOA_PILOT4 NOA_PILOT5 NOA_PILOT6 NOA_PILOT7

VTT1

X262X1

61

XDP_PREQ_N

XDP_PRDY_N

NC0 NC1 NC2 NC3 NC4 NC5 NC6 NC7 NC8 NC9

VTT

3 5 9 11 15 17

21 22 23 24 27 29 33 35 45 47 55

4 6 10 12 16 18 28 30 34 36

43 44

XDP_PREQ_N XDP_PRDY_N

XDP_HOOK2 XDP_SPI_MOSI H_TCK1

CPU_XDP_VCC

R419 0 ohmIR419 0 ohmI

R424 0 ohmIR424 0 ohmI

R422 0 ohmIR422 0 ohmI

R342 0 ohmIR342 0 ohmI

R423 0 ohmIR423 0 ohmI

I

R350 0 ohm

R322 0 ohmIR322 0 ohmI

I

R319 0 ohm

R346 0 ohmIR346 0 ohmI

PR OT O

R316 0 ohm

PR OT O

R474 0 ohm

PCH_JTAG_T DI [15]

PCH_JTAG_T DO [1 5]

PCH_JTAG_T MS [15]

PCH_JTAGX [15 ]

PCH_XDP_TRST # [17]

H_PREQ# [11]

PCH_XDP_PREQ# [17]

H_PRDY# [11]

PCH_XDP_PRDY# [17]

3

CPU_CFG0 [11] CPU_CFG1 [11] CPU_CFG2 [11] CPU_CFG3 [11]

H_XDP_BPM0 [11] CPU_CFG19 [11] H_XDP_BPM1 [11] CPU_CFG18 [11] CPU_CFG4 [11] CPU_CFG5 [11] CPU_CFG6 [11] CPU_CFG7 [11]

PCH_JTAG_T CK [15]

CPU_CFG17 [11] CPU_CFG16 [11] CPU_CFG8 [11] CPU_CFG9 [11] CPU_CFG10 [11] CPU_CFG11 [11] CPU_CFG12 [11] CPU_CFG13 [11] CPU_CFG14 [11] CPU_CFG15 [11]

+1V0_PCH_PRIME_S5

+3V3

R340

PR OT O

150 ohm

PR OT O

R313 1K ohm

CPU_CFG0[11]

R313 1K ohm

150 ohm

XDP_HOOK2

+3V3_S5

R339

PROT O

2.2K ohm

PCH_SYSPWROK[15,35,46]

PCH_SPI_MOSI[13,20]

R312 0 ohmNIR312 0 ohmNI

PR OT O

R311 1K ohm

XDP_SPI_MOSI

C197

NI

0.1 uF

X7R

16 V

+VCCST_VCCPL L_S3

R321

NI

51 ohm

H_PREQ# XDP_PCUDEBUG3

LITE-ON TECHNOLOGY CORP.

Title

12. CPU XDP CONNECTOR

Size Docum ent Number Rev

B

MC117

Date: Sheet of

2

Date: Sheet of

51 ohm

R344

NI

0 ohm

X03

12 58Wednesday, December 28, 2016

1

5

D D

C C

SIO_PME#[35]

PCH_SPI_MOSI[12,20] PCH_SPI_MISO[20]

PCH_SPI_IO2[12,20] PCH_SPI_IO3[20] PCH_SPI_CS2#[36]

4

R837

I

10K ohm

+3V3_S5

R754

I

4.7K ohm

PCH_SPI_MOSI PCH_SPI_MISO PCH_SPI_CS0# PCH_SPI_CLK PCH_SPI_CS1#

PD_PCH_GPP_D_3 PD_PCH_GPP_D_2

R836

I

10K ohm

BF15

AH16 AH14 AG17

AF17

AU19 AP17

BF27

BE27

BF28 BE29 BA27

BF26 BD27

AY27

AY39 AV41 AV43 BB44 AM42 AM44

U56A

N

Kabylake

Kabylake A

A QL0K

QL0K Pre-QS B250

Pre-QS B250 I

I

GPP_A11/PME#

RSVD_18 RSVD_19 RSVD_20 RSVD_21

TP2 TP1

SPI0_MOSI SPI0_MISO SPI0_CS0# SPI0_CLK SPI0_CS1#

SPI0_IO2 SPI0_IO3 SPI0_CS2#

GPP_D1/SPI1_CLK GPP_D0/SPI1_CS# GPP_D3/SPI1_MOSI GPP_D2/SPI1_MISO GPP_D22/SPI1_IO3 GPP_D21/SPI1_IO2

B/SB

0

3

1 OF 13

GPP_B13/PLTRST#

GPP_G16/GSXCLK

GPP_G12/GSXDOUT

GPP_G13/GSXSLOAD

GPP_G14/GSXDIN

GPP_G15/GSXSRESET#

GPP_E3/CPU_GP0 GPP_E7/CPU_GP1 GPP_B3/CPU_GP2 GPP_B4/CPU_GP3

GPP_H18/SML4ALERT#

GPP_H17/SML4DATA

GPP_H16/SML4CLK

GPP_H15/SML3ALERT#

GPP_H14/SML3DATA

GPP_H13/SML3CLK

GPP_H12/SML2ALERT#

GPP_H11/SML2DATA

GPP_H10/SML2CLK

INTRUDER#

PLTRST#

BD24

T43 AC39 Y36 Y43 U44

AP41 AK43 BF21 BF22

BF34 BF32 BD36 BD33 AV31

SEL#

BE33 BF33 AU31 BE32

INTRUDER#

BF9

CI

HDR_NO BOX_1X2

1 2

NI

+3V3_S5

R764

I

10K ohm

1 2

2

R784 I 3 3 ohmR784 I 33 ohm R788 I 3 3 ohmR788 I 33 ohm

C503

I

100 pF

NPO50 V

LPT_DET# [42]

SEL# [30] GPP_H12 [20] WIRELESS_EN1 [32]

R749 1M ohm+-1%IR749 1M ohm+-1%IR836

WIRELESS_EN2 [32]

+3V_BATT

PCH_PLT_RST# [32,33,34,36,43] PCH_PLT_RST#_SIO [35]

SEL#

+3V3_S5

R791

I

10K ohm

1

PCH_SPI_CLK SPI_CLK

PCH_SPI_MISO

B B

A A

PCH_SPI_IO2

SPI_CLK SPI_MOSI SPI_MISO

5

Close to PCH

R792 I 2 2 ohm+-1%R792 I 2 2 ohm+-1% R790 I 22 ohm+-1%R790 I 22 ohm+-1% R787 I 3 3 ohmR787 I 33 ohm R783 I 3 3 ohmR783 I 33 ohm R776 I 3 3 ohmR776 I 33 ohm

+3V3_S5

R1033 1K ohmNIR1033 1K ohmNI R1022 1K ohmNIR1022 1K ohmNI R1038 I 10K ohmR1038 I 10K ohm R990 NI 10K ohmR990 NI 10K ohm

R1027 0 ohmIR1027 0 ohmI R1020 0 ohmIR1020 0 ohmI R1031 0 ohmIR1031 0 ohmI

SPI_MOSIPCH_SPI_MOSI SPI_MISO SPI_WP# SPI_HOLD#PCH_SPI_IO3

SPI_HOLD# SPI_WP# PCH_SPI_CS0# PCH_SPI_CS1#

SPI_CLK_TPM [36] SPI_MOSI_TPM [36 ] SPI_MISO_TPM [36 ]

C481 close to U65

SPI_WP#

4

R976 0 ohmNIR976 0 ohmNI R982 0 ohmNIR982 0 ohmNI

PCH_SPI_CS1#

C848

I 100 pF

NPO

C488 close to U63

50 V

PCH_SPI_CS0#

C841I

C841I 100 pF

100 pF

NPO

NPO 50 V

50 V

SPI SOCKET

PCH_SPI_CS0# SPI_MISO SPI_WP#

SPI_MISO SPI_WP#

PCH_SPI_CS1# U23_DOSPI_MISO U23_WP#

1 2 3 4

I

@U65

1

CS#

2

SO/SIO1

3

SIO2

4

GND

IC_EEPROM_8P_MX25L6473F

8M*8

NI

U63

1

CS#

2

SO/SIO1

3

SIO2

4

GND

IC_EEPROM_8P_MX25L6473F

8M*8

PROTO

U65

CE#

VDD

SO

HOLD#

WP#

SCK

VSS

SPI SOCKET

ROM1

SCLK

SI/SIO0

ROM2

3

SI

VCC

SIO3

VCC SIO3

SCLK

SI/SIO0

8

SPI_HOLD#

7

SPI_CLK

6

SPI_MOSI

5

+3V3_S5

8

SPI_HOLD#

7

SPI_CLK

6

SPI_MOSI

5

+3V3_S5

8

U23_HOLD#

7

U23_SCK

6

U23_SI SPI_MOSI

5

C793

I

0603

I

0603

10 uF

X5R

R981 0 ohmNIR981 0 ohmNI R988 0 ohmNIR988 0 ohmNI R997 0 ohmNIR997 0 ohmNI

6.3 V

+3V3_S5

C647

I

0.1 uF

X7R

16 V

SPI_HOLD# SPI_CLK

SPI DEBUG

I

SPI_DEBUG

PCH_SPI_CS0# PCH_SPI_CS1# SPI_MISO SPI_WP#

LITE-ON TECHNOLOGY CORP.

Title

13. PCH-SPI/GPIO

ize Document Num ber Rev

Size Document Num ber Rev

S

B

MC117

Date: Sheet of

2

Date: Sheet of

SPI_DEBUG

1 3 4 5 6 7 8 9 10

AU GF

2*5 2 mm

+3V3_S5

2

SPI_HOLD# SPI_CLK SPI_MOSI

VBLK

X03

13 58Wednesday, Decembe r 28, 2016

1

5

teknisi indonesia

DMI_TXN0[7] DMI_TXP0[7] DMI_RXN0[7] DMI_RXP0[7] DMI_TXN1[7] DMI_TXP1[7] DMI_RXN1[7] DMI_RXP1[7] DMI_TXN2[7] DMI_TXP2[7] DMI_RXN2[7] DMI_RXP2[7] DMI_TXN3[7]

R864

10K ohm

R858

10K ohm

I

NI

DMI_TXP3[7] DMI_RXN3[7] DMI_RXP3[7]

PCIE5_RXN[34] PCIE5_RXP[34] PCIE5_TXN[34] PCIE5_TXP[ 34] PCIE6_RXN[31] PCIE6_RXP[31] PCIE6_TXN[31] PCIE6_TXP[ 31] PCIE7_RXN[30] PCIE7_RXP[30] PCIE7_TXN[30] PCIE7_TXP[ 30] PCIE8_RXN[30] PCIE8_RXP[30] PCIE8_TXN[30] PCIE8_TXP[ 30]

PCH_CONFIG_JUMPER PCH_RSVD GP39_GFX_CRB_DETECT SV_ADVANCE_GP48

GP39_GFX_CRB_DETECT SV_ADVANCE_GP48

R852

R861

I

10K ohm

R834

R835

NI

10K ohm

5

R862

10K ohm

BRD_ID0 BRD_ID1 BRD_ID2 BRD_ID3 BRD_ID4 BRD_ID5

R856

10K ohm

R746 100 ohm+-1%IR746 100 ohm+-1%I

CLINK_CLK[32] CLINK_DAT[32] CLINK_RST#[32]

PCIE11_TXP[32] PCIE11_TXN[32] PCIE11_RXP[32] PCIE11_RXN[32]

SATA1_TXN[40] SATA1_TXP[40] SATA1_RXN[40] SATA1_RXP[40]

SATA0_TXN[40] SATA0_TXP[40] SATA0_RXN[40] SATA0_RXP[40]

PCIE_RCOMPN PCIE_RCOMPP

BRD_ID0 BRD_ID1 BRD_ID2 BRD_ID3 BRD_ID4 BRD_ID5

PCH_CONFIG_JUMPER PCH_RSVD GP39_GFX_CRB_DETECT SV_ADVANCE_GP48

D D

LAN PHY

PCI

PCIE1X_1

I

NI

+3V3_S5

PCIE1X_2

R811 10K ohmIR811 10K ohmI R812 10K ohmIR812 10K ohmI R806 10K ohmNIR806 10K ohmNI R807 10K ohmIR807 10K ohmI

R810 10K ohmIR810 10K ohmI R804 10K ohmNIR804 10K ohmNI

R863

I

10K ohm

R857

NI

10K ohm

R851

10K ohm

R833

10K ohm

+3V3 +3V3 +3V3+3V3 +3V3+3V3

NI

I

C C

B B

A A

4

U56B

L27

DMI_RXN0

N27

DMI_RXP0

D27

DMI_TXN0

C27

DMI_TXP0

E24

DMI_RXN1

G24

DMI_RXP1

B27

DMI_TXN1

A28

DMI_TXP1

G27

DMI_RXN2

E26

DMI_RXP2

B28

DMI_TXN2

C28

DMI_TXP2

L29

DMI_RXN3

K29

DMI_RXP3

C29

DMI_TXN3

B29

DMI_TXP3

B10

PCIE_RCOMPN

C10

PCIE_RCOMPP

G15

PCIE1_RXN/USB3_7_RXN

E15

PCIE1_RXP/USB3_7_RXP

A18

PCIE1_TXN/USB3_7_TXN

B18

PCIE1_TXP/USB3_7_TXP

B19

PCIE2_TXN/USB3_8_TXN

C19

PCIE2_TXP/USB3_8_TXP

E17

PCIE2_RXN/USB3_8_RXN

G17

PCIE2_RXP/USB3_8_RXP

L17

PCIE3_RXN/USB3_9_RXN

K17

PCIE3_RXP/USB3_9_RXP

B20

PCIE3_TXN/USB3_9_TXN

C20

PCIE3_TXP/USB3_9_TXP

E19

PCIE4_RXN/USB3_10_RXN

G19

PCIE4_RXP/USB3_10_RXP

B21

PCIE4_TXN/USB3_10_TXN

A21

PCIE4_TXP/USB3_10_TXP

K19

PCIE5_RXN

L19

PCIE5_RXP

D22

PCIE5_TXN

C22

PCIE5_TXP

G22

PCIE6_RXN

E22

PCIE6_RXP

B22

PCIE6_TXN

A23

PCIE6_TXP

L22

PCIE7_RXN

K22

PCIE7_RXP

C23

PCIE7_TXN

B23

PCIE7_TXP

K24

PCIE8_RXN

L24

PCIE8_RXP

C24

PCIE8_TXN

B24

PCIE8_TXP

NB/

SB

Kabylake A0

K Pre-QS B250

QL0

4

I

U56C

AU2

CL_CLK

AU4

CL_DATA

AW2

CL_RST#

W44

GPP_G8/FAN_PWM_0

Y44

GPP_G9/FAN_PWM_1

AC35

GPP_G10/FAN_PWM_2

AC41

GPP_G11/FAN_PWM_3

AA43

GPP_G0/FAN_TACH_0

AB44

GPP_G1/FAN_TACH_1

AC36

GPP_G2/FAN_TACH_2

T44

GPP_G3/FAN_TACH_3

AC33

GPP_G4/FAN_TACH_4

V43

GPP_G5/FAN_TACH_5

Y42

GPP_G6/FAN_TACH_6

AA44

GPP_G7/FAN_TACH_7

B32

PCIE11_TXP

C32

PCIE11_TXN

K31

PCIE11_RXP

L31

PCIE11_RXN

AE30

GPP_F10/SCLOCK

AH35

GPP_F11/SLOAD

AE43

GPP_F13/SDATAOUT0

AE44

GPP_F12/SDATAOUT1

A37

PCIE14_TXN/SATA1B_TXN

B37

PCIE14_TXP/SATA1B_TXP

E37

PCIE14_RXN/SATA1B_RXN

G37

PCIE14_RXP/SATA1B_RXP

C36

PCIE13_TXN/SATA0B_TXN

B36

PCIE13_TXP/SATA0B_TXP

G35

PCIE13_RXN/SATA0B_RXN

E35

PCIE13_RXP/SATA0B_RXP

B33

PCIE12_TXP

C33

PCIE12_TXN

G33

PCIE12_RXP

E33

PCIE12_RXN

J44

PCIE20_TXP/SATA7_TXP

J43

PCIE20_TXN/SATA7_TXN

P36

PCIE20_RXP/SATA7_RXP

P38

PCIE20_RXN/SATA7_RXN

H45

PCIE19_TXP/SATA6_TXP

H44

PCIE19_TXN/SATA6_TXN

P41

PCIE19_RXP/SATA6_RXP

P39

PCIE19_RXN/SATA6_RXN

NB/

SB

Kabylake A0

K Pre-QS B250

QL0

2 OF 13

I

U56M

PCIE_21_RXN PCIE_21_RXP PCIE_21_TXN PCIE_21_TXP PCIE_22_RXN PCIE_22_RXP PCIE_22_TXN PCIE_22_TXP PCIE_23_RXN PCIE_23_RXP PCIE_23_TXN PCIE_23_TXP PCIE_24_RXN PCIE_24_RXP PCIE_24_TXN PCIE_24_TXP

13 OF 13

NB/SB

A0

Kabylake

Kabylake QL0K Pre-QS B250

QL0K Pre-QS B250

GPP_E9/USB2_OC0# GPP_E10/USB2_OC1# GPP_E11/USB2_OC2# GPP_E12/USB2_OC3#

GPP_F15/USB2_OCB_4 GPP_F16/USB2_OCB_5 GPP_F17/USB2_OCB_6 GPP_F18/USB2_OCB_7

USB2_VBUSSENSE

3 OF 13

I

USB2N_1 USB2P_1 USB2N_2 USB2P_2 USB2N_3 USB2P_3 USB2N_4 USB2P_4 USB2N_5 USB2P_5 USB2N_6 USB2P_6 USB2N_7 USB2P_7 USB2N_8 USB2P_8 USB2N_9

USB2P_9 USB2N_10 USB2P_10 USB2N_11 USB2P_11 USB2N_12 USB2P_12 USB2N_13 USB2P_13 USB2N_14 USB2P_14

USB2_COMP

RSVD_3

USB2_ID

GPD7/RSVD

T39 T41 K43 K44 V35 V36 L43 L44 V39 V41 N44 N45 Y39 Y41 P43 P44

3

AH5 AH7 AE5 AE7 AH8 AH10 AE2 AE3 AC2 AC3 AF2 AF1 AB2 AB1 AM8 AM7 Y3 Y2 AK8 AK7 W2 W1 AD3 AD2 V3 V2 AK11 AK13

USB2_OC0#

AJ43 AH44 AM39 AK42 AD43 AC44 AH42 AC43

AG3 AE10 AC13 AG2

BG11

PCIE9_RXN/SATA0A_RXN PCIE9_RXP/SATA0A_RXP PCIE9_TXN/SATA0A_TXN

PCIE9_TXP/SATA0A_TXP

PCIE10_RXN/SATA1A_RXN

PCIE10_RXP/SATA1A_RXP PCIE10_TXN/SATA1A_TXN PCIE10_TXP/SATA1A_TXP

PCIE15_RXN/SATA2_RXN

PCIE15_RXP/SATA2_RXP PCIE15_TXN/SATA2_TXN PCIE15_TXP/SATA2_TXP

PCIE16_RXN/SATA3_RXN

PCIE16_RXP/SATA3_RXP PCIE16_TXN/SATA3_TXN PCIE16_TXP/SATA3_TXP

PCIE17_RXN/SATA4_RXN

PCIE17_RXP/SATA4_RXP PCIE17_TXN/SATA4_TXN PCIE17_TXP/SATA4_TXP

PCIE18_RXN/SATA5_RXN

PCIE18_RXP/SATA5_RXP PCIE18_TXN/SATA5_TXN PCIE18_TXP/SATA5_TXP

GPP_E0/SATAXPCIE0/SATAGP0 GPP_E1/SATAXPCIE1/SATAGP1 GPP_E2/SATAXPCIE2/SATAGP2 GPP_F0/SATAXPCIE3/SATAGP3 GPP_F1/SATAXPCIE4/SATAGP4 GPP_F2/SATAXPCIE5/SATAGP5 GPP_F3/SATAXPCIE6/SATAGP6 GPP_F4/SATAXPCIE7/SATAGP7

GPP_F21/EDP_BKLTCTL

R831 0 ohmIR 831 0 ohmI

USB2_OC1#

R832 0 ohmIR 832 0 ohmI

USB2_OC2#

R830 0 ohmIR 830 0 ohmI

USB2_OCB4

R828 0 ohmIR 828 0 ohmI

USB2_OCB5

R808 0 ohmIR808 0 ohmI

USB2_OCB6

R1172 0 ohmIR1172 0 ohmI

USB2_OCB7

USB2_COMP USB2_VBUSSENSE

USB2_ID

R714

1K ohm

ME_DIS

GPP_E8/SATALED#

GPP_F20/EDP_BKLTEN

GPP_F19/EDP_VDDEN

THRMTRIP#

PM_SYNC

PLTRST_PROC#

PM_DOWN

3

+-1%I

ME_DIS [16]

G31 H31 D31 C31

G29 E29 B31 A32

E41 C42 C38 B38

D42 E43 B39 A39

J41 K39 E45 F45

M39 M41 G45 G44

AJ44

AM36 AM35 AM38 AK36 AK33 AK38 AH43 AE42

AE36 AE35 AC42

AH4 AK4

PECI

AH3 AK3 AH2

R683

I

10K ohm

PCH_THERMTRIP# PCH_PECI H_PM_SYNC_R

R715

+-1%I

113 ohm

PCIE21_RXN [32] PCIE21_RXP [ 32] PCIE21_TXN [32] PCIE21_TXP [32] PCIE22_RXN [32] PCIE22_RXP [ 32] PCIE22_TXN [32] PCIE22_TXP [32] PCIE23_RXN [32] PCIE23_RXP [ 32] PCIE23_TXN [32] PCIE23_TXP [32] PCIE24_RXN [32] PCIE24_RXP [ 32] PCIE24_TXN [32] PCIE24_TXP [32]

USB_P1_DN [37] USB_P1_DP [37] USB_P2_DN [37] USB_P2_DP [37] USB_P3_DN [38] USB_P3_DP [38] USB_P4_DN [38] USB_P4_DP [38] USB_P5_DN [38] USB_P5_DP [38] USB_P6_DN [38] USB_P6_DP [38] USB_P7_DN [32] USB_P7_DP [32] USB_P8_DN [34] USB_P8_DP [34] USB_P9_DN [34] USB_P9_DP [34] USB_P10_DN [39] USB_P10_DP [39] USB_P11_DN [39] USB_P11_DP [39] USB_P12_DN [39] USB_P12_DP [39]

USB_OC1# [ 37] USB_OC2# [ 38] USB_OC3# [ 38] VISACH2_D3 [20] USB_OC4# [ 38] USB_OC5# [ 34] USB_OC6# [ 41]

CPURST# [11,12] H_PM_DOWN [11]

2

Rear USB 3.0

Front USB 3.0

M2 BLUE TOOTH

Rear USB 2.0

USB 2.0 Header

USB_OC1# USB_OC2# USB_OC3# USB_OC4# USB_OC5# USB_OC6# USB2_OCB7

R848 10K ohmIR848 10K ohmI R849 10K ohmIR849 10K ohmI R847 10K ohmIR847 10K ohmI R850 10K ohmIR850 10K ohmI R803 10K ohmIR803 10K ohmI R853 10K ohmIR853 10K ohmI R809 10K ohmIR809 10K ohmI

+3V3_S5

USB 2.0 Header

SATA2_RXN [40] SATA2_RXP [40] SATA2_TXN [40] SATA2_TXP [ 40]

SATA3_RXN [40] SATA3_RXP [40] SATA3_TXN [40]

[40]

SATA3_TXP

SATA_LED# [44]

+VCCST_VCCPLL_S3

R701

I

1K ohm

PCH_THERMTRIP#

SIO_PECI[35] H_PECI [11]

H_PM_SYNC_R

PCH_PECI

2

R716 I 560 ohmR716 I 560 ohm

R700 30 ohmIR700 30 ohmI

R685

I

1K ohm

R673 I 43 ohmR673 I 43 ohm

R686 0 ohmNIR686 0 ohmN I

C459

C459 47 pF

47 pF

NPO

NPO 50 V

50 V

NI

1K ohm

H_THERMTRIP# [11]

H_PM_SYNC [11]

LITE-ON TECHNOLOGY CORP.

Title

14. PCH-USB2.0/PCIE/SATA/PCIE

e Document Number Rev

Size Document Number Rev

Siz

C

MC117

Date: Sheet of

1

X03

14 58Wednesday, December 28, 2016

1

14 58Wednesday, December 28, 2016

X03

5

Vinafix.com

Near to PCH

75 V 0.15 A

1

2

R710 33 ohmIR710 33 ohmI R692 33 ohmIR692 33 ohmI

R676 33 ohmIR676 33 ohmI R713 33 ohmIR713 33 ohmI

R696 33 ohmIR696 33 ohmI

R711 33 ohmIR711 33 ohmI

PCH_VRMPWRGD[22]

PCH_DPWROK[21] TLS_STRAP[20] SMBCLK[30,31,32,46] SMBDATA[30,31,32,46] ESPI_LPC_STRAP[20] SML0_CLK[34] SML0_DATA[34] EXI_STRAP[20] SML1_CLK[35] SML1_DATA[35]

+3V_BATT

R731

+-1%I

30.1K ohm

PCH_SRTCR ST#

C480

I

0603

I

0603

1 uF

X7R

I

D74

BAT54C

30 V 0.2 A

10 V

+3V_BATT

R730 30.1K ohm+-1%IR730 30.1K ohm+-1%I

3

C462

I 0603

1 uF

X7R 10 V

PCH_HDA_BCLK[33] PCH_HDA_RST#[33] PCH_HDA_SDI0[33]

HDA_SDO[16]

D D

C C

+3V3_S5

R823 I 2.2K ohmR823 I 2.2K ohm R842 I 2.2K ohmR842 I 2.2K ohm R826 I 2.2K ohmR826 I 2.2K ohm R793 I 2.2K ohmR793 I 2.2K ohm R843 I 2.2K ohmR843 I 2.2K ohm R825 I 2.2K ohmR825 I 2.2K ohm

B B

+3V3_DSW

R728

I

+-1%

I

+-1%

1.5K ohm

BATT_IN_a

R727

C478

+-1%

45.3K ohm

I

C478

0.1 uF

16 V

I

A A

PCH_HDA_SDO[33] PCH_HDA_SYNC[33]

AUD_CPU_SDI[7] AUD_CPU_SDO[7] AUD_CPU_SCLK[ 7]

SMBCLK SMBDATA SML0_CLK SML0_DATA SML1_CLK SML1_DATA

RTCRST#

D75I1N4148W

R722 0 ohmIR722 0 ohmI

R718 1K ohmIR718 1K ohmI C477

BATT_1

12

BAT1

BAT1 AAA-BAT-029-K01

AAA-BAT-029-K01

BatteryIH

5

BATT_IN

BATT_2

I

VBAT-S1

KTS

LITHIUM BATT

CR2032

BBBCR2032B

Li-MnO2

Li-MnO2 CR2032

CR2032

4

HDA_BCLK HDA_RST#

HDA_SDO HDA_SYNC

DISPA_SDO

DISPA_BCLK

RTCRST# PCH_SRTCR ST#

PCH_RSMRST#_R

PCH_DPWRO K

4

C477

I 0603

1 uF

X7R 10 V

U56D

BB3

HDA_BCLK

BC1

HDA_RST#

BA2

HDA_SDI0

BB1

HDA_SDI1

BC3

HDA_SDO

BG6

HDA_SYNC

BF1

RSVD_2

BG2

RSVD_1

AM3

DISPA_SDO

AN2

DISPA_SDI

AM2

DISPA_BCLK

AU42

GPP_D8/I2S0_SCLK

AV44

GPP_D7/I2S0_RXD

AU43

GPP_D6/I2S0_TXD

AP36

GPP_D5/I2S0_SFRM

AM43

GPP_D20/DMIC_DATA0

AP38

GPP_D19/DMIC_CLK0

AN43

GPP_D18/DMIC_DATA1

AP42

GPP_D17/DMIC_CLK1

BE8

RTCRST#

BF8

SRTCRST#

BE4

PCH_PWROK

BG5

RSMRST#

BD4

DSW_PWROK

BE41

GPP_C2/SMBALERT#

BE38

GPP_C0/SMBCLK

BC42

GPP_C1/SMBDATA

BC35

GPP_C5/SML0ALERT#

BE37

GPP_C3/SML0CLK

BC33

GPP_C4/SML0DATA

BA22

GPP_B23/SML1ALERT#/PCHHOT#

BC43

GPP_C6/SML1CLK

BF38

GPP_C7/SML1DATA

NB/SB

Kabylake A0

Kabylake A0 QL0K Pre-QS B250

QL0K Pre-QS B250

SIO_DPWROK[35]

R1192 0 ohmIR1192 0 ohmI

RTC_RST_R

R733

I

1K ohm

WLAN_WAKE#[32,35]

PCIE_WAKE#[30,31,35]

PCH_RSMRST#[12,21]

RTCRST#

I

1 2 3

+3V3_DSW

I

RTC_RST

1 2 3

AU GF

1*3

BLK

1*3

BLK

2 mm V

4 OF 13

R1220 0 ohmIR1220 0 ohmI

R734 0 ohmIR734 0 ohmI

R677 0 ohmIR677 0 ohmI

R678

1K ohm

R698 0 ohmNIR698 0 ohmNI

APS_RTCRST# [4 5]

I

@RTC_RST(1-2)

Open

MINI JUMPE R_HK

2 mm BLK

2 mm BLK AU GF

AU GF

3

GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLD OFF#

GPP_A13/SUSWARN #/SUSPWRDNACK

WAKE#

PCH_RSMRST#_R

R707

C461

10K ohm

R708

NI

100K ohm

3

C461 1000 pF

1000 pF

NP0

NP0 0402

0402

50.0 V

50.0 V I

I

PCH_DPWROK

I

GPP_A8/CLKRUN#

GPD11/LANPHYPC

GPD9/SLP_WLAN #

DRAM_RESET#

GPP_B2/VRALERT#

GPP_B1

GPP_G17/ADR_CO MPLETE

GPP_B0

GPP_B11

SYS_PWROK

WAKE#

GPD6/SLP_A#

SLP_LAN#

GPP_B12/SLP_S0#

GPD4/SLP_S3# GPD5/SLP_S4#

GPD10/SLP_S5#

GPD8/SUSCLK

GPD0/BATLOW #

GPP_A15/SUSACK#

GPD2/LAN_WAKE# GPD1/ACPRESENT

SLP_SUS#

GPD3/PWRBTN #

SYS_RESET#

GPP_B14/SPKR

PROCPWRGD

IT P _ P M O D E

JTAGX

JTAG_TMS

JTAG_TDO

JTAG_TDI

JTAG_TCK

H_PWRGD_R

SUS_CLK

FP_RST#

BD15 BA15

BC11

BA9

BD10 BG21 AV19 AY22 V42 AR17 AW3

BE9 BE13 AV11 BE24 BA11 BF13 BB7

AV13 BF11 BD17 BF17

BE10 BD13 BF10 BC5 AV3 AU24 AL2

AR2 AP3 AP4 AN3 AP2 AN1

PWRBTN#

I

R747 30 ohmIR747 30 ohmI

R744 33 ohmIR744 33 ohmI

R695 0 ohm

C471

NI

0.1 uF

16 V

2

BMBUSY#

DRAM_RST# VR_ALERT# FUSB_G2 FUSB_G1

WAKE#

SLP_S0#

SUS_CLK PCH_BATLOW # PCH_SUSACK# PCH_SUSWARN #

LAN_WAKE#_R ACPRESENT

FP_RST#

H_PWRGD_R

C698

33 pF

NPO50 V

I

2

TPM_CLKRUN [36]

LAN_DISABLE# [34]

SLP_WLAN# [ 32]

FUSB_G2 [39 ] FUSB_G1 [39 ]

PCH_SYSPWROK [12,35,46]

SLP_A# [45] SLP_LAN# [34 ]

1

TP21TP21

SLP_S3# [22,30,35,45,46,54] SLP_S4# [8,22,34,35,37,38,39,44,45,54,55] SLP_S5# [45]

PCH_SUSACK# [35] PCH_SUSWARN# [35]

R743 0 ohmNIR743 0 ohmNI

SLP_SUS# [21,22,3 5,49,56] PWRBTN# [12,35,45] FP_RST# [44,45] SPKR [20,33]

ITP_PMODE [12 ] PCH_JTAGX [12 ] PCH_JTAG_T MS [12] PCH_JTAG_TDO [ 12] PCH_JTAG_TDI [12] PCH_JTAG_TCK [12]

DRAM_RST#

PWRGD_CPU [11,12]

M2_WLAN_SUSCL K [32]

DEBUG_PLTRST# [1 2]

LAN_WAKE# [3 4,35]

+1V2_MEM_S3

I

LITE-ON TECHNOLOGY CORP.

Title

15. PCH-AUDIO/SMBUS/RTC

Size Document Number Rev

Size Docum ent Number Rev

B

MC117

Date: Sheet of

R735

470 ohm

470 ohm R737 0 ohmIR737 0 ohmI

BMBUSY# VR_ALERT# FUSB_G1 FUSB_G2 PCH_SUSACK# PCH_SUSWARN #

WAKE# PCH_BATLOW # LAN_WAKE#_R ACPRESENT PWRBTN#

+VCCST_VCCPLL_S3

PCH_JTAG_TDI PCH_JTAG_TDO PCH_JTAG_TMS PCH_JTAG_TCK

C483

I

C483

I

47 pF

NPO

NPO 50 V

50 V

PCH_SYSPWROK

1

R756 10K ohmNIR756 10K ohmNI R769 10K ohmIR769 10K ohmI R772 10K ohmIR772 10K ohmI R775 10K ohmIR775 10K ohmI R758 10K ohmNIR758 10K ohmNI R762 10K ohmNIR762 10K ohmNI

R736 10K ohmIR736 10K ohmI R738 10K ohmIR738 10K ohmI R745 10K ohmIR745 10K ohmI R751 10K ohmIR751 10K ohmI R717 10K ohmIR717 10K ohmI

PCH_SUSACK#

R759

I

0 ohm

I

R679

1K ohm

R693

R693 100K ohm

100K ohm

I

R682

100 ohm

NI

15 58Wednesday, December 28, 2016

0 ohm

R697

I

51 ohm

R709

51 ohm

PCH_SUSWARN #

R681

I

51 ohm

MEM_DRAMRST# [23,24,25,26]

+3V3

I

1

+3V3_S5

+3V3_DSW

C472

C472 22 pF

22 pF

NPO

NPO 50 V

50 V I

I

X03

5

VGA_HPD[29] DP1_HPD[27]

D D

C C

B B

A A

DP2_HPD[28]

+3V3_S5+3V3_S5+3V3_S5+3V3_S5

R967

R570

R269

I

10K ohm

+3V3_S5 +3V3_S5+3V3_S5

R845

I

TP25TP25

I

10K ohm

R269

10K ohm

R768

4.7K ohm

5

I

1

I

10K ohm

LPSS_GSPI1_MOSI[20] OE#[30] SMI#[17,35]

LPSS_GSPI0_MOSI[20] USB_UART_SEL [34]

M2_SSD_DET#[32] TPM_PRESENT#[36] SSD_SATA_DEVSLP[32] TPM_DISABLE[36]

R766

10K ohm

R680 I 1 0K ohmR680 I 10K ohm

R712 I 1 0K ohmR712 I 10K ohm

+3V3_S5

R748

R827

I

10K ohm

OE# TPM_PRESENT# TPM_GPIO TPM_DISABLE M2_SSD_DET#

M2_SSD_DET# TPM_PRESENT# SSD_SATA_DEVSLP TPM_DISABLE

UART2_TXD

+3V3_S5

R860

I

SPI_TPM_PIRQ

CLR_CMOS

GPP_D14

GPP_A20

GPP_I3

GPP_I4

U56K

AR24

GPP_B22/GSPI1_MOSI

AP24

GPP_B21/GSPI1_MISO

BF24

GPP_B20/GSPI1_CLK

BF25

GPP_B19/GSPI1_CS#

BE26

GPP_B18/GSPI0_MOSI

BG25

GPP_B17/GSPI0_MISO

AY24

GPP_B16/GSPI0_CLK

AV22

GPP_B15/GSPI0_CS#

BG39

GPP_C9/UART0_TXD

BA39

GPP_C8/UART0_RXD

BC45

GPP_C11/UART0_CTS#

BF39

GPP_C10/UART0_RTS#

BA35

GPP_C15/UART1_CTS#/ISH_UART 1_CTS#

BA45

GPP_C14/UART1_RTS#/ISH_UART 1_RTS#

BA44

GPP_C13/UART1_TXD/ISH_UART 1_TXD

BB45

GPP_C12/UART1_RXD/ISH_UART 1_RXD

AW42

GPP_C23/UART2_CTS#

AW43

GPP_C22/UART2_RTS#

BA33

GPP_C21/UART2_TXD

AY44

GPP_C20/UART2_RXD

AW44

GPP_C19/I2C1_SCL

AY35

GPP_C18/I2C1_SDA

AY33

GPP_C17/I2C0_SCL

AY45

GPP_C16/I2C0_SDA

AU44

GPP_D4/ISH_I2C2_SDA/ISH_I2C3_SDA

AN44

GPP_D23/ISH_I2C2_SCL/ISH_I2C3_SCL

N

Kabylake A0

Kabylake A0 Q

Q

4

U56E

AP7

GPP_I0/DDPB_HPD0

AT8

GPP_I1/DDPC_HPD1

AP8

GPP_I2/DDPD_HPD2

AT7

GPP_I3/DDPE_HPD3

BA1

GPP_I4/EDP_HPD

N

B/SB

Kabylake A0

B/SB

I

L0K Pre-QS B250

4

3

2

1

CLEAR CMOS

GPP_I7/DDPC_CTRLCLK

GPP_I8/DDPC_CTRLDATA

GPP_I5/DDPB_CTRLCLK

GPP_I6/DDPB_CTRLDATA

GPP_I9/DDPD_CTRLCLK

GPP_I10/DDPD_CTRLDATA

5 OF 13

I

L0KPre-QS B250

Q

GPP_D16/ISH_UART0_CTS#

GPP_D14/ISH_UART0_TXD/SML0BCLK/I2C2_SCL

GPP_D13/ISH_UART0_RXD/SML0BDATA/I2C2_SDA

11 OF 13

GPP_D15/ISH_UART0_RTS#

GPP_H20/ISH_I2C0_SCL GPP_H19/ISH_I2C0_SDA

GPP_H22/ISH_I2C1_SCL GPP_H21/ISH_I2C1_SDA

ME_DIS[14]

ME_DIS_SIO[35]

AT5 BA6 AW5 AV7 AY1 AY2

AD44

GPP_F14

AE39

GPP_F23

AB45

GPP_F22

R44

GPP_G23

R45

GPP_G22

AC30

GPP_G21

Y35

GPP_G20

BG34

GPP_H23

GPP_D9 GPP_D10 GPP_D11 GPP_D12

GPP_A23/ISH_GP5 GPP_A22/ISH_GP4 GPP_A21/ISH_GP3 GPP_A20/ISH_GP2 GPP_A19/ISH_GP1 GPP_A18/ISH_GP0 GPP_A17/ISH_GP7

HDA_SDO[15]

GPP_I5 GPP_I6

SKTOCC#_C

GPP_G23 GPP_G22

PCH_VGA_HOT_PLUG# CLR_CMOS

R789 I 1 K ohm+-1%R789 I 1K ohm+-1%

3

R691 NI 10K ohmR691 NI 10K ohm R675 I 2 .2K ohmR675 I 2.2K ohm

R829 0 ohmIR829 0 ohmI

R855 I 1 0K ohmR855 I 10K ohm R854 I 1 0K ohmR854 I 10K ohm

AT45 AV39 AT38 AT41

GPP_D16

AT39 AT44

GPP_D14

AP43 AP44

CHASSIS_ID1

BE36 AY31

BF36

CHASSIS_ID2

BF37

GPP_A23

BE19 BG16 BF18

GPP_A20

BF19 BE18 BD19 BE17

R721 I 33 ohmR721 I 33 ohm

+3V3_DSW

PCH_VGA_HOT_PLUG#

R844 0 ohmIR844 0 ohmI

CHASSIS_ID1 [46]

CHASSIS_ID2 [46]

R765 0 ohmIR765 0 ohmI

R760 0 ohmIR760 0 ohmI

R915

I

10K ohm

ME_DIS_R

SDOUT_CNT ME_STRAP

B

1

+3V3_S5

E

23

NI

C

R824

NI

1K ohm

Q532_C

DP1_DDC_SCL [27] DP1_DDC_SDA [27]

DP2_DDC_SCL [28] DP2_DDC_SDA [28]

H_SKTOCC# [11,22,35,46]

PCH_GPIO_F22 [30]

SPI_TPM_PIRQ [36]

+3V3_S5

R1212

R1212 10K ohm

10K ohm

I

D

23

Q145

Q145 NX7002AK

1

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

S

I

TPM_EN [36 ]

TPM_GPIO [36]

I

ME_DIS

21

AU GF

1*2 2.54 mm

VBLK

2

G

Q78

Q78 MMBT3906LT1G

MMBT3906LT1G

+-1%

CLR_CMOS

E1_R_GND

VGA_DOS_HOT_PLUG# [29]

+3V3_S5

R729

I

+-1%

I

+-1%

LITE-ON TECHNOLOGY CORP.

Title

1K ohm

Title

16. PCH-GPIO

ize Document Num ber Rev

Size Document Num ber Rev

S

B

MC117

Date: Sheet of

Jumper Type

1-2 Default

R796

I

10K ohm

R797

10K ohm

CLR_CMOS

I

@CLR_CMOS(1-2)

AU GF

2.54 mm

R799

I

10K ohm

R800

NI

10K ohm

HL

1

2-3

I

CLR_CMOS

1 2 3

AU GF

1*3

2.54 mm

Chassis Type CHASSIS_ID1 CHASSIS_ID2

8.5L 15L 18L TBD(Default)

FOR SPI BOOT BLOCK JMP

1 2 3

ED

R

V

+3V3_S5

CHASSIS_ID1 CHASSIS_ID2

NI

L L L H L

H H H

Open

RED

CHASSIS_ID3

16 58Wednesday, Decembe r 28, 2016

L L

X03

5

USB30_TX1_DN[37] USB30_TX1_DP[37] USB30_RX1_DN[37] USB30_RX1_DP[37]

USB30_TX2_DN[37] USB30_TX2_DP[37] USB30_RX2_DN[37] USB30_RX2_DP[37]

USB30_TX6_DN[38] USB30_TX6_DP[38]

D D

C C

+3V3_S5+3V3_S5+3V3_S5+3V3_S5+3V3_S5 +3V3_S5+3V3_S5

R1169

R1168

I

10K ohm

X1

GND1

GND

24 MHz

18 pF

25 ppm

1 4

0.032768 MHz

12.5 pF

12.5 pF 10 ppm

10 ppm I

I EP00012161CI-R

EP00012161CI-R

R1168

I

10K ohm

Y4

X2

I

Y3

32

R1199

I

10K ohm

B B

Y4_3

3

2

R725 1M ohm+-1%IR725 1M ohm+-1%I

C476

I

27 pF

NPO 50 V

R719 0 ohmIR719 0 ohmI

Y3_1

A A

R706 10M ohm+-1%IR706 10M ohm+-1%I

C466

C466 15 pF

15 pF

NP0

NP0 0402

0402 50 V

50 V I

I

R1166

R1165

R1198

R1167

I

10K ohm

I

R726 0 ohm

4

I

1

R770 0 ohm

C475

I

27 pF

NPO 50 V

CLK_PCH_32K_X1

CLK_PCH_32K_X2

C465

C465 15 pF

15 pF

NP0

NP0 0402

0402 50 V

50 V I

I

5

R1198

I

10K ohm

PCIEX16_PRSNT CLKREQ_LAN# CLKREQ_SSD# PCIE1_PRSNT# PCIE2_PRSNT# CLKREQ_WLAN# COM_GPIO1

CLK_PCH_24M_IN

CLK_PCH_24M_OUTY4_1

2016/6/15:Follow vendor's suggestion , Change C465&C466 from 18pF to 15pF 2016/07/11:Change Y3 from DIP to SMD (0707)

2016/09/05: change Y3 to EP00011701CI-R

USB30_RX6_DN[38] USB30_RX6_DP[38]

USB30_TX5_DN[38] USB30_TX5_DP[38] USB30_RX5_DN[38] USB30_RX5_DP[38]

USB30_TX3_DP[38] USB30_TX3_DN[38] USB30_RX3_DP[38] USB30_RX3_DN[38]

USB30_TX4_DP[38] USB30_TX4_DN[38] USB30_RX4_DP[38] USB30_RX4_DN[38]

CLK_LEO_24M[ 36]

CLK_CPU_24M_P[11] CLK_CPU_24M_N[ 11]

CLK_CPU_100M_P[11] CLK_CPU_100M_N[11]

+1V0_PCH_PRIME_S5

R720 I 2.7K ohm+-1%R720 I 2.7K ohm+-1%

COM_GPIO1[41] CLKREQ_WLAN#[32] PCIEX16_PRSNT[30]

CLKREQ_LAN#[34] CLKREQ_SSD#[32] PCIE1_PRSNT#[ 30] PCIE2_PRSNT#[ 30]

CHARGE_EN[38]

PCI_PRSNT#

R1218

R1218 0 ohm

0 ohm

I

2016/6/22 R1218 is for solved PCI didn't work issue

CLKREQ_WLAN# PCIEX16_PRSNT PCI_PRSNT#

CLKREQ_LAN# CLKREQ_SSD# PCIE1_PRSNT# PCIE2_PRSNT#

4

CLK_PCI_24M

4

R740 47 ohm+ -1%NIR 740 47 ohm+-1%NI R741 NI 33 ohmR741 NI 33 ohm R739 NI 33 ohmR739 NI 33 ohm

CLK_PCH_24M_OUT CLK_PCH_24M_IN

XCLK_RBIAS

CLK_PCH_32K_X1 CLK_PCH_32K_X2

U56F

D13

USB3_1_TXN

C13

USB3_1_TXP

B7

USB3_1_RXN

A7

USB3_1_RXP

B13

USB3_2_SSIC_1_TXN

A14

USB3_2_SSIC_1_TXP

C8

USB3_2_SSIC_1_RXN

B8

USB3_2_SSIC_1_RXP

C17

USB3_6_TXN

D17

USB3_6_TXP

H15

USB3_6_RXN

K15

USB3_6_RXP

A16

USB3_5_TXN

B16

USB3_5_TXP

E13

USB3_5_RXN

G13

USB3_5_RXP

C14

USB3_3_SSIC_2_TXP

B14

USB3_3_SSIC_2_TXN

A9

USB3_3_SSIC_2_RXP

B9

USB3_3_SSIC_2_RXN

C15

USB3_4_TXP

B15

USB3_4_TXN

G11

USB3_4_RXP

E11

USB3_4_RXN

N

B/SB

I

Kabylake A0

L0K Pre-QS B250

Q

CLK Buffer

U55 pin8 internal pull high => R705 NI

CLK_PCI_24M_R CLK_TPM_24M_RCLK_TPM_24M CLK_LEO_24M_R

R752 0 ohmNIR752 0 ohmN I R753 33 ohmIR753 33 ohmI

U56G

BC17

GPP_A16/CLKOUT_48

G2

CLKOUT_CPUNSSC_P

G1

CLKOUT_CPUNSSC

H1

CLKOUT_CPUBCLK_P

H2

CLKOUT_CPUBCLK

A5

XTAL24_OUT

E1

XTAL24_IN

F1

XCLK_BIASREF

BF7

RTCX1

BG7

RTCX2

BE22

GPP_B5/SRCCLKREQ0#

BA24

GPP_B6/SRCCLKREQ1#

BA19

GPP_B7/SRCCLKREQ2#

BE23

GPP_B8/SRCCLKREQ3#

BD22

GPP_B9/SRCCLKREQ4#

BF23

GPP_B10/SRCCLKREQ5#

AR29

GPP_H0/SRCCLKREQ6#

AU27

GPP_H1/SRCCLKREQ7#

BG30

GPP_H2/SRCCLKREQ8#

BF30

GPP_H3/SRCCLKREQ9#

BD29

GPP_H4/SRCCLKREQ10#

BE31

GPP_H5/SRCCLKREQ11#

AY29

GPP_H6/SRCCLKREQ12#

AV29

GPP_H7/SRCCLKREQ13#

BD31

GPP_H8/SRCCLKREQ14#

BF31

GPP_H9/SRCCLKREQ15#

T13

CLKOUT_SRC_N15

T11

CLKOUT_SRC_P15

R3

CLKOUT_SRC_N14

R2

CLKOUT_SRC_P14

Y7

CLKOUT_SRC_N13

AA5

CLKOUT_SRC_P13

U1

CLKOUT_SRC_N12

U2

CLKOUT_SRC_P12

NB/SB

Kabylake A0

L0K Pre-QS B250

Q

M11

L42

L35 L15 L13

K8 K45 K38 K36 K35 K33

K3 K27 K13 K11

T33 T35

L4

CLK_TPM_24MCLK_PCI_24M CLK_LEO_24M

I

U56J

VSS_47 VSS_44 VSS_41 VSS_38 VSS_35 VSS_32 VSS_29 VSS_26 VSS_23 VSS_20 VSS_17 VSS_14 VSS_11 VSS_8 VSS_5 VSS_2

RSVD_17 RSVD_16

NB/SB

Kabylake A0

Kabylake A0 QL0K Pre-QS B250

QL0K Pre-QS B250

1 2 3

I

GPP_A5/LFRAME#/ESPI_CS0#

GPP_A7/PIRQA#/ESPI_ALERT0#

GPP_A0/RCIN#/ESPI_ALERT1#

GPP_A14/SUS_STAT#/ESPI_RESET#

GPP_A9/CLKOUT_LPC0/ESPI_CLK

6 OF 13

NI

U55

ICLK

OE

Q1

VDD

Q2

GND

Q34Q4

551MILFT

CLKOUT_CPUPCIBCLK_P

7 OF 13

10 OF 13

3

GPP_A1/LAD0/ESPI_IO0 GPP_A2/LAD1/ESPI_IO1 GPP_A3/LAD2/ESPI_IO2 GPP_A4/LAD3/ESPI_IO3

GPP_A6/SERIRQ/ESPI_CS1#

GPP_A10/CLKOUT_LPC1

GPP_G19/SMI# GPP_G18/NMI#

GPP_E6/DEVSLP2 GPP_E5/DEVSLP1 GPP_E4/DEVSLP0

GPP_F9/DEVSLP7 GPP_F8/DEVSLP6 GPP_F7/DEVSLP5 GPP_F6/DEVSLP4

GPP_F5/DEVSLP3

OE_R

R705 10K ohmNIR705 10K ohmNI

8

U55_7

R704 N I 0 ohmR704 NI 0 ohm

7 6 5

C470

NI

0.01 uF

X7R 50 V

CLKOUT_ITPXDP

CLKOUT_ITPXDP_P

CLKOUT_CPUPCIBCLK

CLKOUT_SRC_N0 CLKOUT_SRC_P0

CLKOUT_SRC_N1 CLKOUT_SRC_P1

CLKOUT_SRC_N2 CLKOUT_SRC_P2

CLKOUT_SRC_N3 CLKOUT_SRC_P3

CLKOUT_SRC_N4 CLKOUT_SRC_P4

CLKOUT_SRC_N5 CLKOUT_SRC_P5

CLKOUT_SRC_N6 CLKOUT_SRC_P6

CLKOUT_SRC_N7 CLKOUT_SRC_P7

CLKOUT_SRC_N8 CLKOUT_SRC_P8

CLKOUT_SRC_N9 CLKOUT_SRC_P9

CLKOUT_SRC_N10

CLKOUT_SRC_P10

CLKOUT_SRC_N11

CLKOUT_SRC_P11

AU22

RSVD_11

V11

RSVD_15

V13

RSVD_14

M33

RSVD_13

N33

RSVD_12

P27

RSVD_10

T27

RSVD_9

N29

RSVD_8

P29

RSVD_7

AP29

RSVD_4

T24

RSVD_6

P24

RSVD_5

AU3

PREQ#

AR1

PRDY#

AV2

CPU_TRST#

PCH_TRIGIN

AL1 AJ2

3

PCH_TRIGOUT

AR15 AY15 AV17 BE14

BF14 BC13 AY13 AU15 BF16

BE15 AY17

R43 U45

AK44 AL45 AL44 AF45 AH36 AH39 AG41 AF44

L2 L3

J3 J2

P5 P7

M7 M5

H7 G7

K7 K5

E3 E4

C5 C6

T8 T7

V5 V7

Y10 Y11

M2 M1

P3 P2

T2 T3

U56_AP29

PCH_TRIGOUTGGER

LPC_AD0_R1 LPC_AD1_R1 LPC_AD2_R1 LPC_AD3_R1

LPC_R1_FRAME#

CLK_PCI_24M

GPP_G19

+3V3 +3V3

R2 0 ohmNIR2 0 ohmNI

R688 I 30 ohmR688 I 30 ohm

CAD NOTE: please place close to Super IO and LEO_CHIP (R1252, R1253, R1254, R1255, R1256)

R822 0 ohmIR 822 0 ohmI

R1252 I 33 ohmR1252 I 33 ohm R1253 I 33 ohmR1253 I 33 ohm R1254 I 33 ohmR1254 I 33 ohm R1255 I 33 ohmR1255 I 33 ohm

R1256 I 33 ohmR1256 I 33 ohm

LPC_AD0 [35,36] LPC_AD1 [35,36] LPC_AD2 [35,36] LPC_AD3 [35,36]

LPC_FRAME# [35,36] LPC_SERIRQ [35,36] LPC_DRQ#0 [35] KBRST# [35]

CLK_LPC_24M [35]

SMI# [16,35]

KBRST#

C485

I

100 pF

NPO 50 V

CLK_PCH_XDP_N [12] CLK_PCH_XDP_P [12]

CLK_CPU_100M_PCIBCLK_N [11] CLK_CPU_100M_PCIBCLK_P [ 11]

CLK_100M_0N [30] CLK_100M_0P [30]

CLK_100M_1N [32] CLK_100M_1P [32]

CLK_100M_2N [32] CLK_100M_2P [32]

CLK_100M_5N [34] CLK_100M_5P [34]

CLK_100M_6N [31] CLK_100M_6P [31]

CLK_100M_7N [30] CLK_100M_7P [30]

CLK_100M_8N [30] CLK_100M_8P [30]

PCH_XDP_PREQ# [12] PCH_XDP_PRDY# [12] PCH_XDP_TRST# [12] PCH2CPU_TRIGGER [8] CPU2PCH_TRIGGER [8]

2

PCIE x16

M2 WIFI

M2 SSD

LAN PHY

PCI Bridge

PCIE x1

2

1

LITE-ON TECHNOLOGY CORP.

Title

17. PCH-USB3/LPC/CLK

ize Document Number Rev

Size Document Number Rev

S

C

MC117

Date: Sheet of

1

17 58Wednesday, December 28, 2016

X03

5

Vinafix.com

D D

+1V0_PCH_PRIME_S5

C550

C556

0805

NI

0805

NI

C C

B B

+1V0_PCH_PRIME_S5

R1183 I 0 ohm0603R 1183 I 0 ohm0603

R1184 I 0 ohm0603R 1184 I 0 ohm0603

R687 0 ohmIR687 0 ohmI

NI

I

22 uF

X5R

6.3 V

X5R

6.3 V

P1V0A_VCCCLK

C460

0805

NI

22 uF

X5R

6.3 V

X5R

6.3 V

SC105

NI

1 uF

X5R 6.3 V

P1V0A_VCCAMPPCIE

C505

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

P1V0A_VCCUSBHDA

C464

0805

NI

22 uF

X5R

6.3 V

X5R

6.3 V

1 uF

X5R 6.3 V

C469

0805

22 uF

X5R

6.3 V

X5R

6.3 V

SC106

1 uF

X5R 6.3 V

C780

1 uF

X5R 6.3 V

C473

0805

22 uF

X5R

6.3 V

X5R

6.3 V

I

NI

I

+3V3_DSW

C474

1 uF

X5R 6.3 V

SC107

1 uF

X5R 6.3 V

C504

1 uF

X5R 6.3 V

+3V3_S5

4

+1V0_PCH_PRIME_S5

SC108

NI

1 uF

X5R 6.3 V

C764

I

0.1 uF

NI

16VX7 R

AA23 AA25 AB23 AB26 AB28 AD23 AD26 AD28 AK23 AK25

AF23

AF26 AK20 AK21

W17

W28

AD17

AM5

AR19

BC15

C490

1 uF

X5R 6.3 V

U56H

VCCPRIM_1P0_4 VCCPRIM_1P0_5 VCCPRIM_1P0_6 VCCPRIM_1P0_7 VCCPRIM_1P0_8 VCCPRIM_1P0_9 VCCPRIM_1P0_10 VCCPRIM_1P0_11 VCCPRIM_1P0_16 VCCPRIM_1P0_17 VCCPRIM_1P0_12 VCCPRIM_1P0_13 VCCPRIM_1P0_14 VCCPRIM_1P0_15

N17

VCCCLK1

T19

VCCCLK3

V20

VCCCLK4 VCCCLK2_2

T17

VCCCLK2_1

K1

VCCCLK5_1

K2

VCCCLK5_2

V21

VCCMPHY_1P0_1

V23

VCCMPHY_1P0_2

V25

VCCMPHY_1P0_3

V26

VCCMPHY_1P0_4

V28

VCCMPHY_1P0_5

V29

VCCMPHY_1P0

A43

VCCAMPHYPLL_1P0_2

B43

VCCAMPHYPLL_1P0_1

VCCAPLLEBB_1P0 VCCPRIM_1P0_2

AK5

VCCUSB2PLL_1P0_ 1 VCCUSB2PLL_1P0_ 2 VCCHDAPLL_1P0

VCCHDA

Y1 6

VCCDSW_3P3

NB/SB

Kabylake A0

Kabylake A0 QL0K Pr e-QS B250

QL0K Pr e-QS B250

3

+1V0_PCH_PRIME_S5 +3V3_DSW +3V3_S5

R763

I

0 ohm

U3_AM22

VCCATS

VCCRTC

DCPRTC

AM22

BC24

BC31 BE40 BF42

AK41 AM41

AE41

+1V0_PCH_PRIME_S5

AP5

AE16

AE13

BC20 BC22

BC27

BC29

BG41 BG43 BG42

BE44 BE45 BD45

BF3 BG3 BG4

C44 C45

+3V_BATT

DCPRTC DCPRTC

VCCSPI

VCCPGPPCD

VCCPRIM

P1V0A_VCCAMPPCIE

R801 0 ohmIR801 0 ohmI

R802 0 ohmIR802 0 ohmI

R723 0 ohmIR723 0 ohmI

VCCPRIM_1P0_3

VCCPDSW_3P3

VCCPGPPA VCCPGPPBCH_1 VCCPGPPBCH_2

VCCPGPPEF_1 VCCPGPPEF_2

VCCPGPPG

VCCPRIM_3P3_4

VCCPRIM_1P0_1

VCCRTCPRIM_3P3

DCPDSW_1P0

8 OF 13

I

VCCSPI_1 VCCSPI_3 VCCSPI_2

VCCPGPPD_1 VCCPGPPD_3 VCCPGPPD_2

VCCPRIM_3P3_1 VCCPRIM_3P3_3 VCCPRIM_3P3_2

VCCPCIE3PLL_1P0_1 VCCPCIE3PLL_1P0_2

2

+3V3 +3V3_S5 +3V_BATT

C494

I

1 uF

X5R 6.3 V

I

+1V_PCH_VCCD SW

+3V3_S5

I

+3V3_S5

C493

1 uF

X5R 6.3 V

C495

1 uF

X5R 6.3 V

I

C489

0.1 uF

C492

I

1 uF

16VX7R

1 uF

X5R 6.3 V

C491

I

0.1 uF

X7R 16V

C496

0.1 uF

16 V

16 V I

I X7R

X7R

1

A A

LITE-ON TECHNOLOGY CORP.

Title

18. PCH-POWER

Size Docum ent Number Rev

B

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

18 58Wednesday, December 28, 2016

1

X03

5

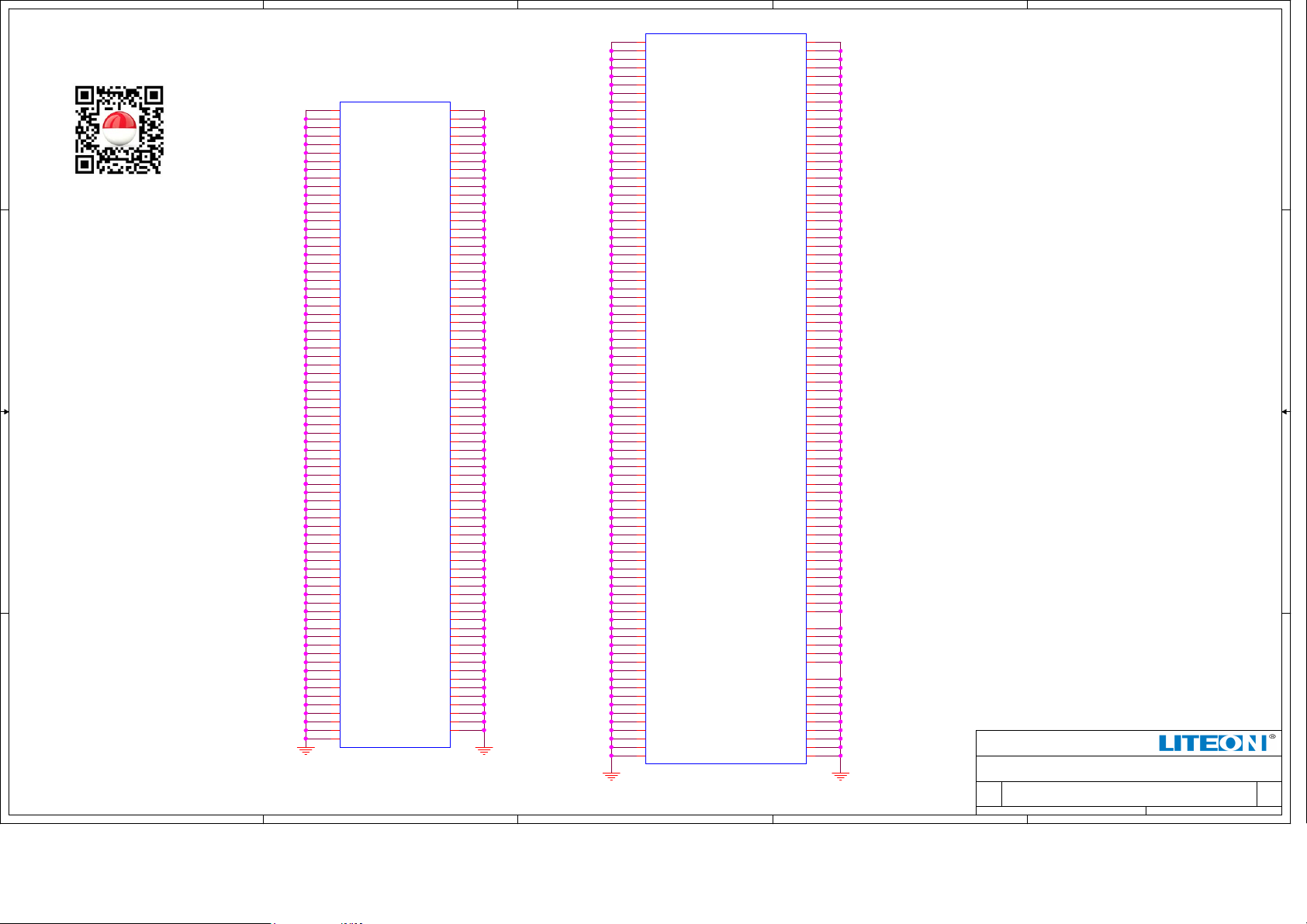

U56I

A25

D D

C C

B B

A A

5

A30

P22 AV38 AV45

AV8 AY11 AY19 AY37

AY4 AY42

AY8

B25

B30

B35

B41 BA13 BA17 BA29 BA31 BA37

BA4 BA42 BB40

BC38 BC40

BC9

BD11 BD16

BD2

BD21 BD25

E31

F39

F43

G40

G42

H11

H13

H17

H19

H22

H24

H27

H29

H33

H35

H38

H42

M36

M38

N13

N15

N19

N22

N24

N31

N42

P10

P12 AV35

B3

B4

F2

E6

E8

G4

F6

G9

H4

H9

J4

M4 M8 M9

VSS_1 VSS_4 VSS_297 VSS_157 VSS_159 VSS_161 VSS_163 VSS_165 VSS_167 VSS_169 VSS_171 VSS_173 VSS_175 VSS_177 VSS_179 VSS_180 VSS_182 VSS_184 VSS_186 VSS_188 VSS_190 VSS_192 VSS_194 VSS_196 VSS_198 VSS_200 VSS_202 VSS_204 VSS_206 VSS_208 VSS_210 VSS_212 VSS_214 VSS_216 VSS_218 VSS_220 VSS_222 VSS_224 VSS_226 VSS_228 VSS_230 VSS_232 VSS_234 VSS_236 VSS_238 VSS_240 VSS_242 VSS_244 VSS_246 VSS_248 VSS_250 VSS_252 VSS_254 VSS_256 VSS_258 VSS_260 VSS_262 VSS_264 VSS_266 VSS_268 VSS_270 VSS_272 VSS_274 VSS_276 VSS_278 VSS_280 VSS_282 VSS_284 VSS_286 VSS_288 VSS_289 VSS_291 VSS_293 VSS_295 VSS_155

NB

Kabylake A0

Kabylake A0 QL

QL

4

9 OF 13

/SB

0K Pre-QS B250

4

I

VSS_299 VSS_300 VSS_301 VSS_302 VSS_303 VSS_304 VSS_305

VSS_7 VSS_10 VSS_13 VSS_16 VSS_19 VSS_22 VSS_25 VSS_28 VSS_31 VSS_34 VSS_37 VSS_40 VSS_43 VSS_46 VSS_49 VSS_51 VSS_53 VSS_55 VSS_57 VSS_59 VSS_61 VSS_63 VSS_65 VSS_67 VSS_69 VSS_71 VSS_73 VSS_75 VSS_77 VSS_79 VSS_81 VSS_83 VSS_85 VSS_87 VSS_89 VSS_91 VSS_93 VSS_95 VSS_97 VSS_99

VSS_101 VSS_103 VSS_105 VSS_107 VSS_109 VSS_111 VSS_113 VSS_115 VSS_117 VSS_119 VSS_121 VSS_123 VSS_125 VSS_127 VSS_129 VSS_131 VSS_133 VSS_135 VSS_137 VSS_139 VSS_141 VSS_143 VSS_145 VSS_147 VSS_149 VSS_151 VSS_153

A42 D45 BG44 BF44 BF45 BF2 W29 A35 A40 A41 AA17 AA18 AA20 AA21 AA26 AA28 AA29 AB17 AC32 AE4 AE8 AF18 AF20 AF21 AF25 AF28 AF29 AF4 AF42 AG18 AG20 AG21 AG23 AG25 AG26 AG28 AG29 AH11 AH13 AH30 AH32 AH33 AH38 AJ1 AJ17 AJ18 AJ20 AJ21 AJ23 AJ25 AJ26 AJ28 AJ29 AJ45 AK10 AK14 AK16 AK17 AK18 AK26 AK28 AM14 AN14 AP19 AR22 AR27 AU29 AU33 AV1 AV10 AV15 AV24 AV27 AV33

BD34 BD39

BD7 BE2

BF43

BF5 BG18 BG23 BG28 BG32 BG37 BG40

BG9

A12

C37

D10

D12

D15

D16

B12

D19

D21

D24

D25

D29

D30

D33

D35

D36

D39

D44

P13

P15

P17 P19 P31 P33 P35

P42

R32 T10

T14 T22 T29 T32 T36 T38 Y38

T42

U42 V10 V14

AR13 AR31 AR33

AR4 AT10 AT13 AT35 AT37 AT42

AU11 AU17 BD30

W45

Y13 Y14 Y30 Y32

Y33

BG14

C1

C2

A6 C9 D1

D7

P4

P8 R1

Y4 Y8

T5 U4

W3

3

U56L

VSS_156 VSS_158 VSS_160 VSS_162 VSS_164 VSS_166 VSS_168 VSS_170 VSS_172 VSS_174 VSS_176 VSS_178 VSS_181 VSS_183 VSS_185 VSS_187 VSS_189 VSS_191 VSS_193 VSS_195 VSS_197 VSS_199 VSS_201 VSS_203 VSS_205 VSS_207 VSS_209 VSS_211 VSS_213 VSS_215 VSS_217 VSS_219 VSS_221 VSS_223 VSS_225 VSS_227 VSS_229 VSS_231 VSS_233 VSS_235 VSS_237 VSS_239 VSS_241 VSS_243 VSS_245 VSS_247 VSS_249 VSS_251 VSS_253 VSS_255 VSS_257 VSS_259 VSS_261 VSS_263 VSS_265 VSS_267 VSS_324 VSS_325 VSS_326 VSS_327 VSS_328 VSS_329 VSS_330 VSS_331 VSS_332 VSS_317 VSS_132 VSS_134 VSS_136 VSS_138 VSS_140 VSS_142 VSS_144 VSS_146 VSS_148 VSS_150 VSS_152 VSS_154 VSS_318 VSS_319 VSS_320 VSS_321 VSS_322 VSS_323 VSS_333

NB

/SB

Kabylake A0

0K Pre- QS B250

QL

3

12 OF 13

I

VSS_3 VSS_6

VSS_9 VSS_12 VSS_15 VSS_18 VSS_21 VSS_24 VSS_27 VSS_30 VSS_33 VSS_36 VSS_39 VSS_42 VSS_45 VSS_48 VSS_50 VSS_52 VSS_54 VSS_56 VSS_58 VSS_60 VSS_62 VSS_64 VSS_66 VSS_68 VSS_70 VSS_72 VSS_74 VSS_76 VSS_78 VSS_80 VSS_82 VSS_84 VSS_86 VSS_88 VSS_90 VSS_92 VSS_94 VSS_96 VSS_98

VSS_100 VSS_102 VSS_104 VSS_106 VSS_108 VSS_110 VSS_112 VSS_114 VSS_116 VSS_118 VSS_120 VSS_122 VSS_124 VSS_126 VSS_128 VSS_130 VSS_269 VSS_316 VSS_271 VSS_273 VSS_275 VSS_277 VSS_279 VSS_281 VSS_283 VSS_285 VSS_287

VSS_290 VSS_292 VSS_294 VSS_296 VSS_298

VSS_306 VSS_307 VSS_308 VSS_309 VSS_310 VSS_311 VSS_312 VSS_313 VSS_314 VSS_315

AB18 AB20 AB21 AB25 AB29 AB4 AB42 AC10 AC11 AC14 AC16 AC38 AC4 AC5 AC7 AC8 AD1 AD18 AD20 AD21 AD25 AD29 AD45 AE11 AE14 AE32 AE33 AE38 AK29 AK30 AK32 AK35 AK39 AL4 AL42 AM10 AM11 AM13 AM17 AM19 AM24 AM27 AM29 AM32 AM33 AM4 AN45 AP10 AP11 AP13 AP15 AP22 AP27 AP31 AP33 AP34 AP39 T4 W26 V16 V17 V18 V30 V32 V33 V38 V4 V8

W18 W20 W21 W23 W25

A44 BE1 BD1 B1 A2 B2 A3 A4 B44 B45

2

LITE-ON TECHNOLOGY CORP.

Title

19. PCH-VSS

Size Document Num ber Rev

B

MC117

Date: Sheet of

2

Date: Sheet of

1

X03

19 58Wednesday, Decembe r 28, 2016

1

5

4

3

2

1

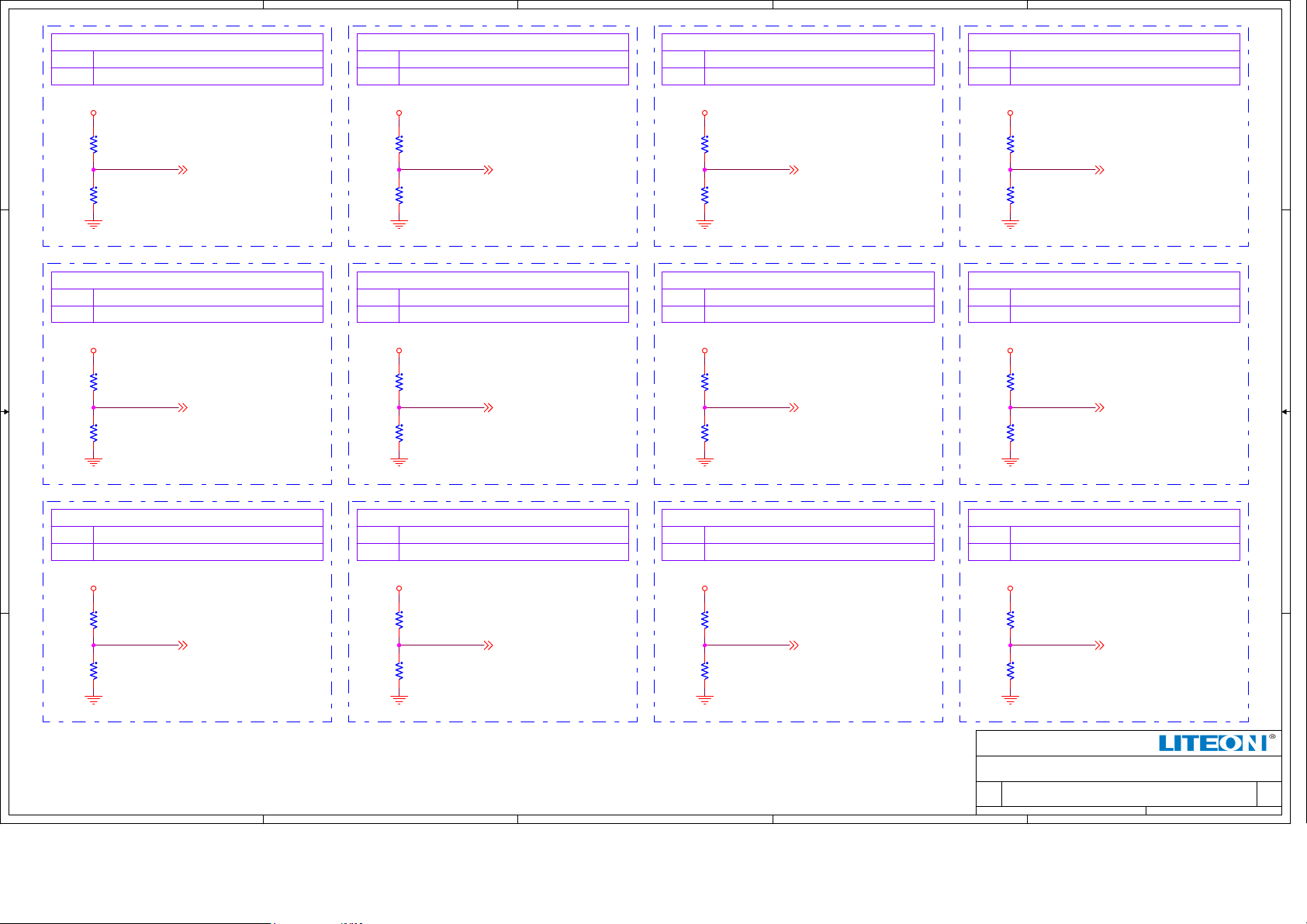

TOP SWAP OVERRIDE STRAP (INTERNAL PD)

HIGH

ENABLED

LOW

DISABLED (DEFAUL)

NI

+3V3

R866

4.7K ohm

R865

I

20K ohm

SPKR [15,33]

D D

JTAG ODT (INTERNAL PU)

HIGH

ENABLED (DEFAUL)

DISABLED

C C

LOW

+3V3_S5

R774

NI

20K ohm

R773

NI

4.7K ohm

PCH_SPI_MISO [13]

CONSENT STRAP (INTERNAL PU)

HIGH

DISABLED (DEFAUL)

ENABLED

LOW

+3V3_S5

R781

NI

20K ohm

NI

20K ohm

R782

4.7K ohm

PCH_SPI_IO3 [13]

BOOT HALT (INTERNAL PU)

DISABLED (DEFAUL)

HIGH

LOW

ENABLED

+3V3_S5

R777

I

1K ohm

NI

1K ohm

R778

4.7K ohm

PCH_SPI_MOSI [12,13]

CONSENT STRAP (INTERNAL PU)

HIGH

DISABLED (DEFAUL)

LOW

ENABLED

+3V3_S5

R888

NI

20K ohm

NI

20K ohm

R889

4.7K ohm

PCH_SPI_IO2 [12,13]

ESPI FLASH SHARING MODE (INTERNAL PD)

HIGH

SLAVE ATTACHED FLASH SHARING

MASTER ATTACHED FLASH SHARING

LOW

+3V3_S5

R795

NI

4.7K ohm

NI

4.7K ohm

R794

20K ohm

GPP_H12 [13]

EXI BOOT STALL BYPASS (INTERNAL PD)

HIGH

ENABLE

LOW

DISABLE (DEFAUL)

+3V3_S5

R786

I

150K ohm

NI

150K ohm

R785

20K ohm

EXI_STRAP [15 ]

ESPI/LPC SELECT (INTERNAL PD)

HIGH

ESPI

LOW

LPC

+3V3_S5

R815

NI

4.7K ohm

R816

I

20K ohm

ESPI_LPC_STRAP [15]

B B

A A

BOOT SELECT (INTERNAL PD)

HIGH

LPC

LOW

SPI(DEFAUL)

+3V3_S5

R879

NI

4.7K ohm

R878

I

20K ohm

5

LPSS_GSPI1_MOSI [16]

TLS CONFIDENTIALITY (INTERNAL PD)

HIGH

ENABLED (DEFAUL)

DISABLED

LOW

+3V3_S5

R840

I

4.7K ohm

NI

4.7K ohm

R839

20K ohm

4

TLS_STRAP [15 ]

REBOOT (INTERNAL PD)

HIGH

NO REBOOT

LOW

REBOOT (DEFAUL)

+3V3

R885

NI

4.7K ohm

R884

I

20K ohm

3

LPSS_GSPI0_MOSI [16]

DFX TEST MODE (INTERNAL PD)

HIGH

XTAL INPUT IS DIFFERENTIAL

XTAL INPUT IS SINGLE END

LOW

+3V3_S5

R846

NI

10K ohm

R838

NI

10K ohm

LITE-ON TECHNOLOGY CORP.

Title

20. PCH-STRAPS

Size Document Num ber Rev

B

MC117

Date: Sheet of

2

Date: Sheet of

VISACH2_D3 [14]

1

X03

20 58Wednesday, Decembe r 28, 2016

5

Vinafix.com

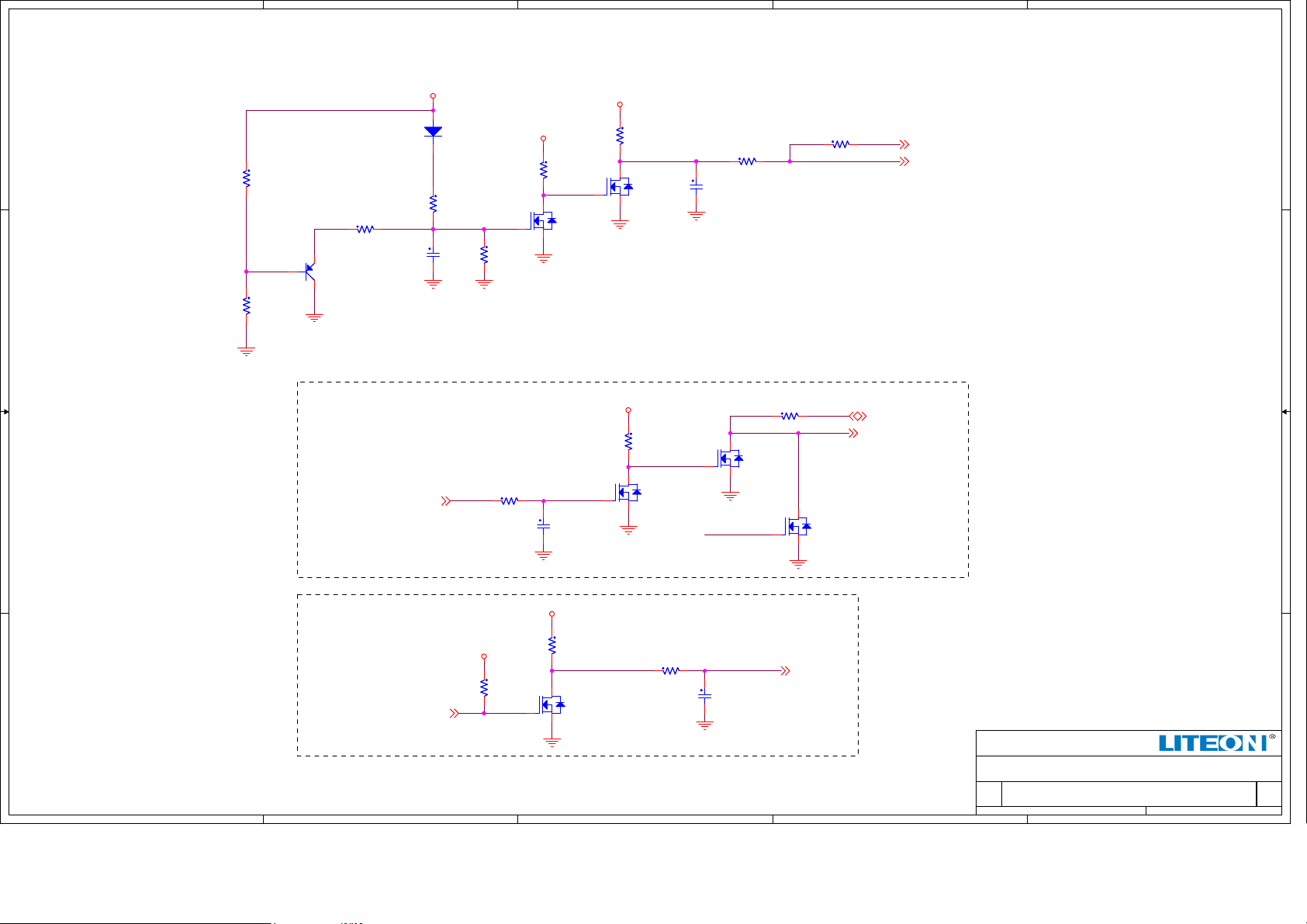

05/20: Change R1030 power source from +5V_S5 to +12V_S5_PSU (Start to modify from X03) 05/20: Rework R1030.1 from +5V_S5 to +12V_S5_PSU (Jump wire)

4

3

2

1

PCH_DPWROK

D D

R1008

267K ohm

NI

+-1%

R992 1K ohm

NI

Q152_2

E

+-1%

E

23

I

1

B

C

Q152_1

R1002

I

C C

I

100K ohm

NI

Q152

Q152 MMBT3906LT1G

MMBT3906LT1G

PCH_RSMRST

B B

+1V0_PCH_PWRGD[56]

+12V_S5_PSU

D116

D116 1N4148W

1N4148W

I

I 75 V

75 V

0.15 A

D116_2

R1014

I

100K ohm

Q111_G

C667

4.7 uF

X5R

X5R 0402

0402

6.3 V

6.3 V I

I

R1061 10K ohmIR1061 10K ohmI

G

R1013

49.9K ohm

I

I +-1%

+-1%

+12V_S5_PSU

R1030

I

100K ohm

23

1

C692

NI

1 uF

X5R 6.3 V

Q112_G

D

I

Q111

Q111 NX7002AK

NX7002AK

60 V-0.3 A

60 V-0.3 A [email protected]

[email protected]

S

Q20_G

G

1

G

+3V3_DSW

R1015

I

10K ohm

23

+3V3_DSW

I

1

Q36_D

D

I

Q112

Q112 NX7002AK

NX7002AK

60 V-0.3 A

60 V-0.3 A [email protected]

[email protected]

S

R1035

100K ohm

S5_PWRGD#

D

I

23

Q118

Q118 NX7002AK

NX7002AK

60 V-0.3 A

60 V-0.3 A [email protected]

[email protected]

S

R1007 0 ohmIR1007 0 ohmI

C1804

0.22 uF

I

I X7R

X7R 10 V

10 V

G

1

SLP_SUS_FET

D

23

S

R1059 0 ohmIR1059 0 ohmI

I

Q122

Q122 NX7002AK

NX7002AK

60 V-0.3 A

60 V-0.3 A [email protected]

[email protected]

G

1

R1003 0 ohmNIR1003 0 ohmNI

PCH_DPWROK

D

I

23

Q121

Q121 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

S

PCH_RSMRST# [12,15]

PCH_DPWROK [ 15]

SIO_RSMRST# [35]

PCH_RSMRST# [12,15]

DSW CONTROL SIGNAL

+3V3_DSW

R985

NI

10K ohm

A A

5

SLP_SUS#[15,22,35,49,56]

4

10K ohm

+3V3_DSW

G

1

R986

I

100K ohm

23

D

Q97

Q97 NX7002AK

NX7002AK

I

S

60 V

-0.3 A

-0.3 A [email protected]

[email protected]

R978 0 ohmIR978 0 ohmI

SLP_SUS_FETSLP_SUS_FET_C

C644

NI

1 uF

X5R 6.3 V

3

SLP_SUS_FET [22]

LITE-ON TECHNOLOGY CORP.

Title

21. DSW*

Size Docum ent Number Rev

B

MC117

Date: Sheet of

2

Date: Sheet of

21 58Wednesday, December 28, 2016

1

X03

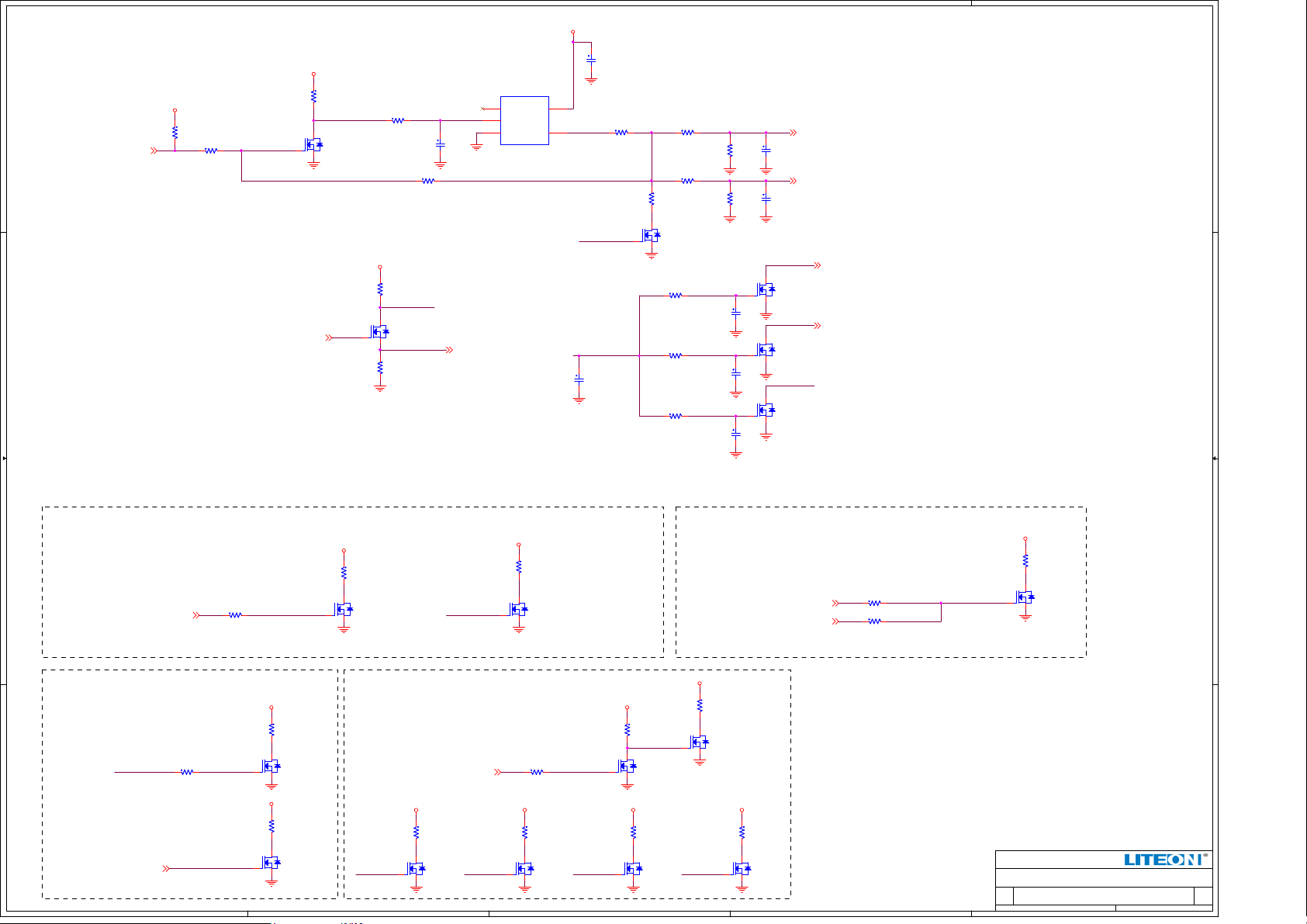

5

+3V3_S5

R1001

I

D D

VR_RDY[51]

C C

+3V3

R989

I

10K ohm

R1016 1K ohmIR1016 1K ohmI

DEFENSIVE DESIGN

VR_RDY_SQ73_G

I

10K ohm

VR_RDY_SQ73_D

D

23

G

1

S

SLP_S3#[15,30,35,45,46,54]

I

Q105

Q105 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

4

PCH_VRMPWRGD

R984 330K ohmIR984 330K ohmI

I

R980 0 ohmNIR980 0 ohmN I

+3V3_DSW

R996

I

10K ohm

SLP_S3#_CTRL

D

I

23

Q110

Q110 NX7002AK

NX7002AK

G

60 V -0.3 A

1

[email protected]

S

R1009

PROTO

0 ohm

VR_RDY_SU19_LG

C653

0.22 uF

X7R 10 V

H_SKTOCC# [11,16,35,46]

I

U61

1

NC

2

A

GND3Y

SN74AHC1G14DBV

+3V3

5

VCC

U66_4

4

SLP_S3#_CTRL

C845

0.1 uF

NI

0.1 uF

NI

X7R

X7R 16 V

16 V

2016/07/11 Place C845 close to R292

3

C646

0.1 uF

16 VIX7R

R972 0 ohmIR 972 0 ohmI

ALL_SYS_PWRGD

R977 6.04K ohm+-1%IR977 6.04K ohm+-1%I

R974 330 ohm+-1%IR974 330 ohm+-1%I

R979

I

0 ohm

VRMPWRGD_CTRL

D

I

23

Q100

Q100 NX7002AK

NX7002AK

G

60 V -0.3 A

1

[email protected]

S

R389 0 ohmIR389 0 ohmI

R292 0 ohmIR292 0 ohmI

R386 1K ohmIR386 1K ohmI

2016/07/13 Change R386,C217 value for sequence fine tuning

Q42_G

Q33_G

Q41_G

I

NI

R987

+-1%I

2.8K ohm

R975

10K ohm

C218

0.1 uF

C180

0.1 uF

G

C217

C217 220 pF

220 pF

NPO

NPO 50 V

50 V

C650

0.1 uF

C645

0.1 uF

16 VNIX7R

7R

16 VIX

2

VCCST_PWRGD [11,12]

PCH_VRMPWRGD [15]

1

VR_EN

D

I

23

Q42

Q42 NX7002AK

NX7002AK

60 V -0.3 A

1

[email protected]

S

16 VNIX7R

D

I

23

Q33

Q33 NX7002AK

NX7002AK

60 V -0.3 A

1

[email protected]

S

VR_RDY

16 VNIX7R

D

I

23

Q41

Q41 NX7002AK

NX7002AK

60 V -0.3 A

1

[email protected]

S

VCCIO_PG [51,57]

VCCIO_EN

+VCCIO_CTL2_R [57]

VR_RDY

USB_BLEED2

I

Q14

Q14 2N7002ET1G

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

1206

USB_BLEED4

D

I

Q131

Q131 2N7002ET1G

2N7002ET1G

60 V

2.5ohm@10V

S

+1V2_DDR Bleed off circuit

R897 0 ohmNIR897 0 ohmN I

R892 0 ohmIR 892 0 ohmI

2

0.31 A

+5V_USB_PF

G

1

R674

I

120 ohm

USB_BLEED

23

1206

D

I

Q69

Q69 2N7002ET1G

2N7002ET1G

60 V

2.5ohm@10V

S

G

1

0.31 A

R1080

I

1206

I

1206

120 ohm

USB_BLEED5

D

23

S

PS_ON#[35, 46,48,50]

+2V5_VPP_EN_G1_D[ 55]

I

Q130

Q130 2N7002ET1G

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

VTTDDR_BLEED_1

+1V2_MEM_S3

R893

+-1%I

+-1%I 1206

1206

20 ohm

VTTDDR_BLEEDOFF

D

I

23

Q72

Q72 2N7002ET1G

2N7002ET1G

G

60 V

0.31 A

60 V

0.31 A

1

2.5ohm@10V

S

LITE-ON TECHNOLOGY CORP.

Title

22. PWRGD & Bleed Off

Size Document Number Rev

C

MC117

Date: Sheet of

1

22 58Wednesday, December 28, 2016

X03

5V_S5 Bleed off circuit

USB_BLEED2

G

+5V_S5

1

R201 1K ohmIR201 1K ohmI

G

1

R1077

I

1206

I

1206

120 ohm

5V_S5_BLEEDOFF

D

I

23

Q126

Q126 2N7002ET1G

2N7002ET1G

60 V

2.5ohm@10V

S

R216

I

1206

I

1206

120 ohm

D

I

23

Q20

Q20 2N7002ET1G

2N7002ET1G

60 V

2.5ohm@10V

S

0.31 A

+3V3_S5

R631

I

10K ohm

D

23

G

USB_BLEED1

1

S

R1096

I

120 ohm

23

G

USB_BLEED2 USB_BLEED2

0.31 A

1

3

+3V3_S5

R1012

I 1206R1012

0.31 A

I 1206

120 ohm

3V_S5_BLEEDOFF

D

I

23

Q104

Q104 2N7002ET1G

2N7002ET1G

G

60 V

0.31 A

60 V

0.31 A

1

2.5ohm@10V

S

5V_USB Bleed off circuit

SLP_S4#[8,15,34,35,37,38,39,44,45,54,55]

+5V_USB20 +5V_USB30_1 +5V_USB30_2 +5V_USB30_3

R225

I

1206

I

1206

120 ohm

USB_BLEED6 USB_BLEED3

D

I

23

Q13

Q13 2N7002ET1G

2N7002ET1G

G

USB_BLEED2

4

60 V

0.31 A

60 V

0.31 A

1

2.5ohm@10V

S

B B

SLP_SUS_FET[21]

R1228 0 ohmIR1228 0 ohmI

SLP_SUS#_G1 SLP_SUS#_G1

5V & 3.3V Bleed off circuit

+3V3

R949

I

1206

I

1206

120 ohm

3V3_BLEEDOFF

D

I

23

Q89

Q89 2N7002ET1G

2N7002ET1G

G

SLP_S3#_CTRL

R936 1K ohmIR936 1K ohmI

A A

PS_ON#[35,46,48,50]

5

3V3_BLEED

60 V

1

2.5ohm@10V

S

+5V

R1051

I

1206

I

1206

120 ohm

5V_BLEEDOFF

D

I

23

Q125

Q125 2N7002ET1G

2N7002ET1G

G

60 V

1

2.5ohm@10V

S

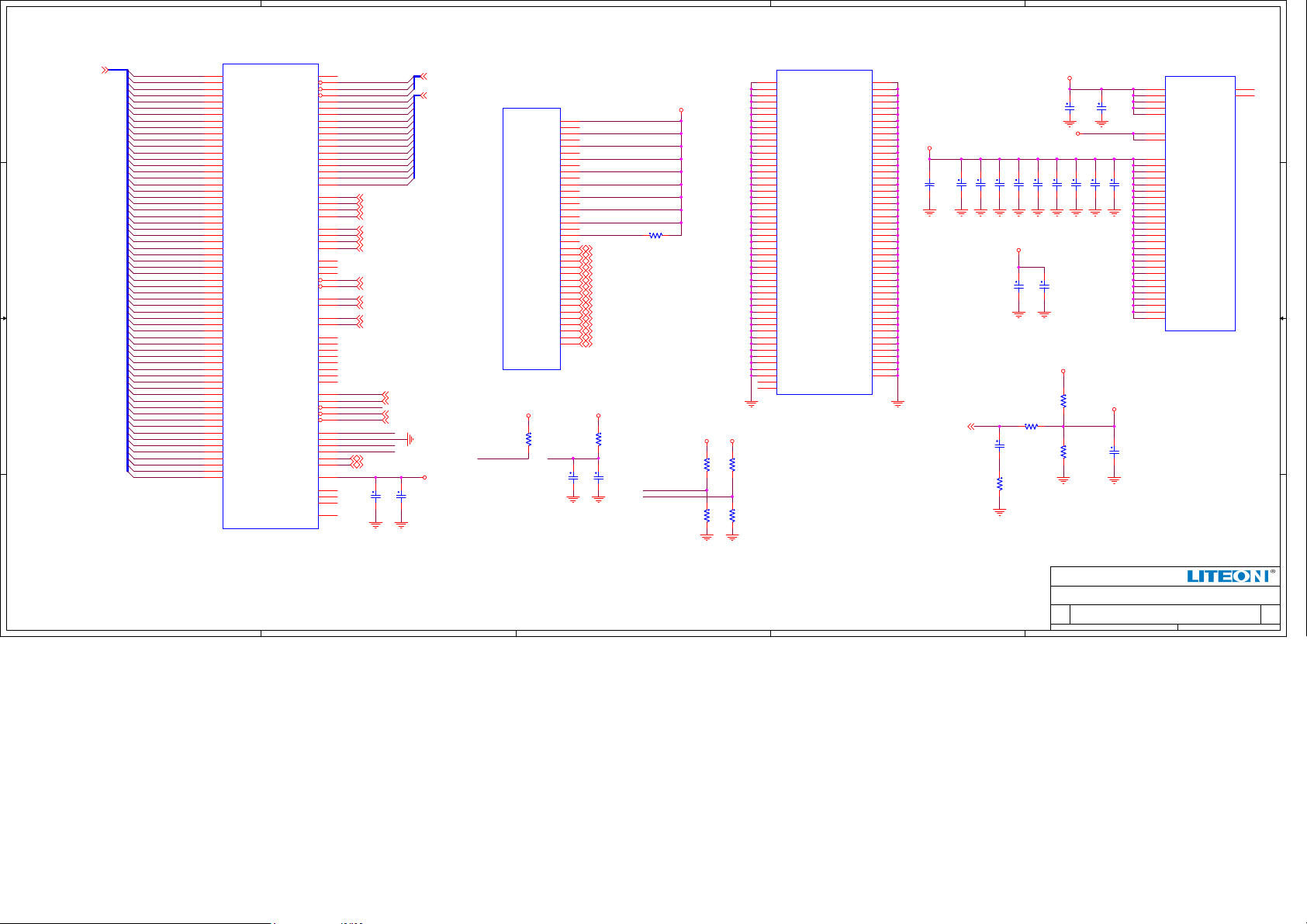

5

4

3

2

1

1/4

DIMM1A

A16_RAS_N A15_CAS_N

A14_WE_N

CK1P CK1N CK0P CK0N

S3_N_C1 S2_N_C0

S1_N S0_N

CKE1 CKE0

ODT1 ODT0

RESET_N EVENT_N ALERT_N

ACT_N

VDDSPD

VREFCA

RFU2 RFU1 RFU0

SAVE_N_NC

DIMM1C

234

A17

MEM4_MA_ADD16

82

MEM4_MA_ADD15

86

MEM4_MA_ADD14

228

MEM_MA_ADD13

232

A13 A12 A11 A10

BA1

BA0 BG1 BG0

CB7

CB6

CB5

CB4

CB3

CB2

CB1

CB0

PAR

SA2

SA1

SA0 SDA

SCL

MEM_MA_ADD12

65

MEM_MA_ADD11

210

MEM_MA_ADD10

225

MEM_MA_ADD9

66

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

C2

MEM_MA_ADD8

68

MEM_MA_ADD7

211

MEM_MA_ADD6

69

MEM_MA_ADD5

213

MEM_MA_ADD4

214

MEM_MA_ADD3

71

MEM_MA_ADD2

216

MEM_MA_ADD1

72

MEM_MA_ADD0

79

224 81 207 63

218 219 74 75

235 237 93 89 84

203 60

91 87

199 54 192 47 201 56 194 49

222 58

D1_EVENT#

78 208 62

D1_VDDSPD

284

DIMM1_SA2

238

DIMM1_SA1

140

DIMM1_SA0

139 285

SMB_DATA_MAIN [12,24,25,26 ,43,46]

141

SMB_CLK_MAIN [12,24,2 5,26,43,46]

146

144 227 205

230

MEM_MA_BANK1 [6,24] MEM_MA_BANK0 [6,24] MEM_MA_BG1 [6,24] MEM_MA_BG0 [6,24]

MEM_MA_CLK_H 1 [6] MEM_MA_CLK_L1 [6] MEM_MA_CLK_H 0 [6] MEM_MA_CLK_L0 [6]

MEM_MA_CS_L1 [6] MEM_MA_CS_L0 [6]

MEM_MA_CKE1 [6] MEM_MA_CKE0 [6]

MEM_MA_ODT1 [6] MEM_MA_ODT0 [6]

C548

NI

0.1 uF

16 V

MEM4_MA_ADD[14..16 ] [6,24]

MEM_MA_ADD[13..0] [6,24]

MEM_MA_PAR [6,24] MEM_DRAMRST# [15,24,25,26]

MEM_MA_ALERT# [6,24] MEM_MA_ACT# [6,24 ]

+VREF_CA

C507

NI

2.2 uF

X5R 16 V

4

DIMM1B

MEMORY SOCKET_H F

DDR4

+1V2_MEM_S3

D1_EVENT#

2/4

NI

DQS17P DQS17N DQS16P DQS16N DQS15P DQS15N DQS14P DQS14N DQS13P DQS13N DQS12P DQS12N DQS11P DQS11N DQS10P DQS10N

DQS9P DQS9N DQS8P DQS8N DQS7P DQS7N DQS6P DQS6N DQS5P DQS5N DQS4P DQS4N DQS3P DQS3N DQS2P DQS2N DQS1P DQS1N DQS0P DQS0N

R871

240 ohm

NI

51 52 132 133 121 122 110 111 99 100 40 41 29 30 18 19 7 8 197 196 278 277 267 266 256 255 245 244 186 185 175 174 164 163 153 152

D1_VDDSPD

C522

NI

0.1 uF

16 V

DIMM1_DQS8

R867 0 ohmNIR867 0 ohmNI

MEM_MA_DQS_H7 [6,24] MEM_MA_DQS_L7 [6,24] MEM_MA_DQS_H6 [6,24] MEM_MA_DQS_L6 [6,24] MEM_MA_DQS_H5 [6,24] MEM_MA_DQS_L5 [6,24] MEM_MA_DQS_H4 [6,24] MEM_MA_DQS_L4 [6,24] MEM_MA_DQS_H3 [6,24] MEM_MA_DQS_L3 [6,24] MEM_MA_DQS_H2 [6,24] MEM_MA_DQS_L2 [6,24] MEM_MA_DQS_H1 [6,24] MEM_MA_DQS_L1 [6,24] MEM_MA_DQS_H0 [6,24] MEM_MA_DQS_L0 [6,24]

+3V3

R798

NI

0603

NI

0603

0 ohm

C506

NI

0.1 uF

16 V

+1V2_MEM_S3

DIMM1_SA1 DIMM1_SA0

3

+3V3 +3V3

R779

NI

0 ohm

R780

NI

0 ohm

NI

DIMM1C

2

VSS93

4

VSS92

6

VSS91

9

VSS90

11

VSS89

13

VSS88

15

VSS87

17

VSS86

20

VSS85

22

VSS84

24

VSS83

26

VSS82

28

VSS81

31

VSS80

33

VSS79

35

VSS78

37

VSS77

39

VSS76

42

VSS75

44

VSS74

46

VSS73

48

VSS72

50

VSS71

53

VSS70

55

VSS69

57

VSS68

94

VSS67

96

VSS66

98

VSS65

101

VSS64

103

VSS63

105

VSS62

107

VSS61

109

VSS60

112

VSS59

114

VSS58

116

VSS57

118

VSS56

120

VSS55

123

VSS54

125

VSS53

127

VSS52

129

VSS51

131

VSS50

134

VSS49

136

VSS48

138

VSS47

X2

X3

MEMORY SOCKET_H F

DDR4

R814

0 ohm

DIMM1(CHANNEL-A) ADDRESS = 0:0:0 [SA2:SA1:SA0] A0h

R813

0 ohm

3/4

VSS46 VSS45 VSS44 VSS43 VSS42 VSS41 VSS40 VSS39 VSS38 VSS37 VSS36 VSS35 VSS34 VSS33 VSS32 VSS31 VSS30 VSS29 VSS28 VSS27 VSS26 VSS25 VSS24 VSS23 VSS22 VSS21 VSS20 VSS19 VSS18 VSS17 VSS16 VSS15 VSS14 VSS13 VSS12 VSS11 VSS10

VSS9 VSS8 VSS7 VSS6 VSS5 VSS4 VSS3 VSS2 VSS1 VSS0

NI

147 149 151 154 156 158 160 162 165 167

+1V2_MEM_S3

169 171 173 176 178 180 182 184 187 189 191 193 195 198 200 202 239 241 243 246 248 250 252 254 257 259 261 263 265 268 270 272 274 276 279 281 283

2

C536

EC51

+

I

560 uF

0.008 ohm

0.008 ohm 00 mA

00 mA

50

6.3 V

EE NOTE: Need insert the EC51 for all SKU

C513

C511

NI

1 uF

X5R

1 uF

X5R

V

10

X5R 10 V

10

Clsoe to DIMM1

MEM_VREF_CA[6 ]

R881 2 ohm+-1%IR881 2 ohm+-1%I

C549

I

0.022 uF

X7R 25 V

R883

I

24.9 ohm

+-1%

NI

+0V6_MEM

NI

C549_2

+2V5_VPP_DDR_ S3

C524

C497

NI

0.1 uF

16 V

+0V6_MEM

C535

C516

NI

0.1 uF

16 V

C508

C530

NI

0603

NI

0603

0.1 uF

4.7 uF

16 V

X5R

+1V2_MEM_S3

LITE-ON TECHNOLOGY CORP.

Title

Size Document Number Rev

Date: Sheet of

16 V

C521

C520

C546

C515

NI

0.1 uF

16 V

10 V

R880

I

+VREF_CA

1K ohm

+-1%

C547

R817

I

1K ohm

+-1%

Custom

C547

I

0.1 uF

16 V

23. DDR4 CHA UDIMM1

MC117

DIMM1D

142

VPP4

143

VPP3

288

VPP2

286

VPP1

287

VPP0

77

VTT1

221

VTT0

59

VDD25

61

VDD24

64

VDD23

67

VDD22

70

VDD21

73

VDD20

76

VDD19

80

VDD18

83

VDD17

85

VDD16

88

VDD15

90

VDD14

92

VDD13

204

VDD12

206

VDD11

209

VDD10

212

VDD9

215

VDD8

217

VDD7

220

VDD6

223

VDD5

226

VDD4

229

VDD3

231

VDD2

233

VDD1

236

VDD0

MEMORY SOCKET_H F

DDR4

1

NI

1

12V1

145

12V0

4/4

X03

23 58Wednesday, December 28, 2 016

X03

NI

MEM_MA_DATA[0..63][6,24]

D D

C C

B B

A A

MEM_MA_DATA57 MEM_MA_DATA59 MEM_MA_DATA56 MEM_MA_DATA61 MEM_MA_DATA60 MEM_MA_DATA62 MEM_MA_DATA58 MEM_MA_DATA63 MEM_MA_DATA55 MEM_MA_DATA53 MEM_MA_DATA50 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA54 MEM_MA_DATA42 MEM_MA_DATA46 MEM_MA_DATA45 MEM_MA_DATA41 MEM_MA_DATA47 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA40 MEM_MA_DATA34 MEM_MA_DATA38 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA35 MEM_MA_DATA39 MEM_MA_DATA33 MEM_MA_DATA32 MEM_MA_DATA27 MEM_MA_DATA30 MEM_MA_DATA25 MEM_MA_DATA28 MEM_MA_DATA31 MEM_MA_DATA26 MEM_MA_DATA24 MEM_MA_DATA29 MEM_MA_DATA23 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA18 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA15 MEM_MA_DATA11 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA14 MEM_MA_DATA10 MEM_MA_DATA13 MEM_MA_DATA12 MEM_MA_DATA7 MEM_MA_DATA3 MEM_MA_DATA1 MEM_MA_DATA4 MEM_MA_DATA6 MEM_MA_DATA2 MEM_MA_DATA5 MEM_MA_DATA0

5

NI

280

DQ63

135

DQ62

273

DQ61

128

DQ60

282

DQ59

137

DQ58

275

DQ57

130

DQ56

269

DQ55

124

DQ54

262

DQ53

117

DQ52

271

DQ51

126

DQ50

264

DQ49

119

DQ48

258

DQ47

113

DQ46

251

DQ45

106

DQ44

260

DQ43

115

DQ42

253

DQ41

108

DQ40

247

DQ39

102

DQ38

240

DQ37

95

DQ36

249

DQ35

104

DQ34

242

DQ33

97

DQ32

188

DQ31

43

DQ30

181

DQ29

36

DQ28

190

DQ27

45

DQ26

183

DQ25

38

DQ24

177

DQ23

32

DQ22

170

DQ21

25

DQ20

179

DQ19

34

DQ18

172

DQ17

27

DQ16

166

DQ15

21

DQ14

159

DQ13

14

DQ12

168

DQ11

23

DQ10

161

DQ9

16

DQ8

155

DQ7

10

DQ6

148

DQ5

3

DQ4

157

DQ3

12

DQ2

150

DQ1

5

DQ0

MEMORY SOCKET_H F

DDR4

5

4

3

2

1

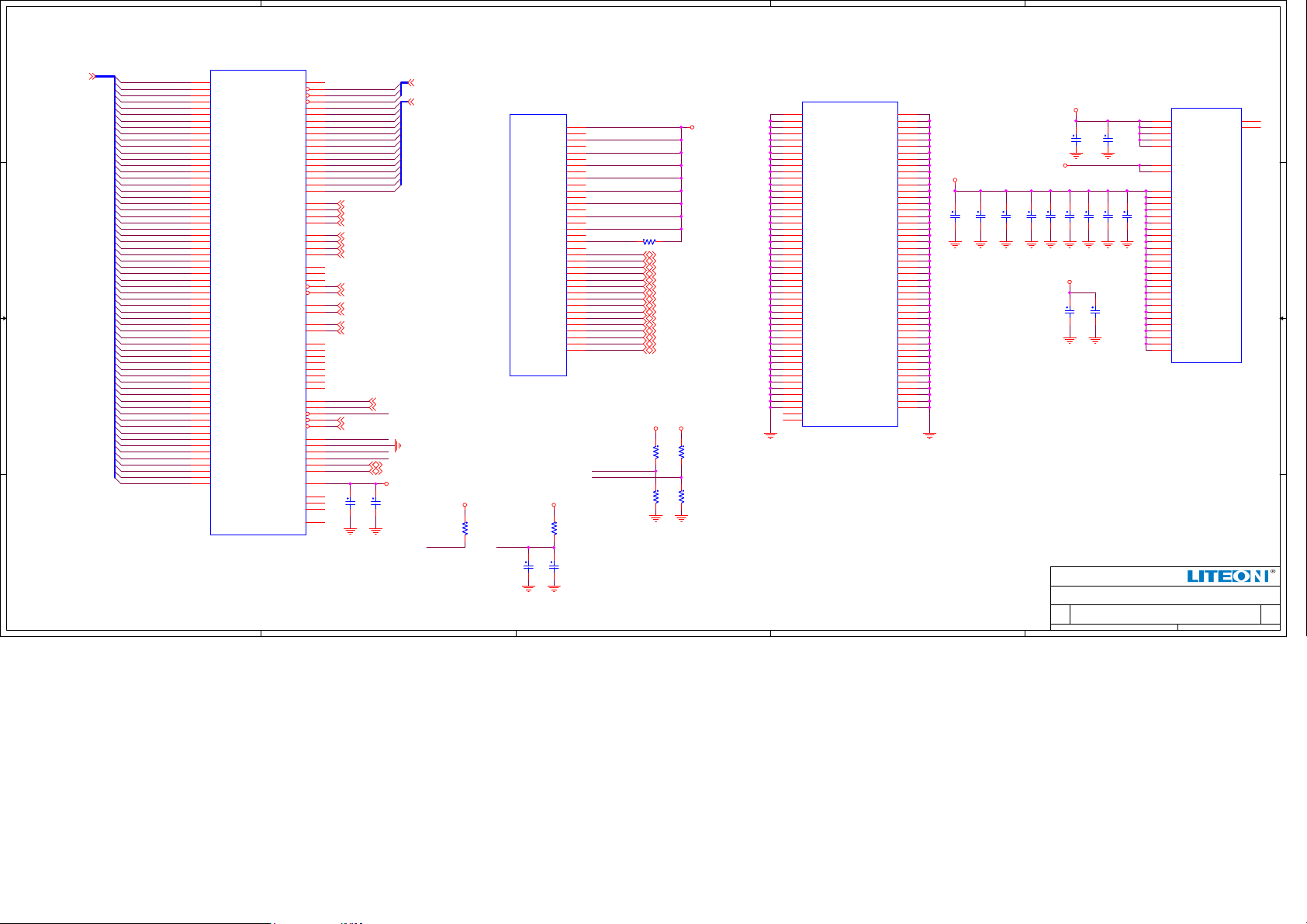

DIMM2A

MEM_MA_DATA[0..63][6 ,23]

D D

C C

B B

A A

MEM_MA_DATA57 MEM_MA_DATA59 MEM_MA_DATA56 MEM_MA_DATA61 MEM_MA_DATA60 MEM_MA_DATA62 MEM_MA_DATA58 MEM_MA_DATA63 MEM_MA_DATA55 MEM_MA_DATA53 MEM_MA_DATA50 MEM_MA_DATA48 MEM_MA_DATA49 MEM_MA_DATA51 MEM_MA_DATA52 MEM_MA_DATA54 MEM_MA_DATA42 MEM_MA_DATA46 MEM_MA_DATA45 MEM_MA_DATA41 MEM_MA_DATA47 MEM_MA_DATA43 MEM_MA_DATA44 MEM_MA_DATA40 MEM_MA_DATA34 MEM_MA_DATA38 MEM_MA_DATA36 MEM_MA_DATA37 MEM_MA_DATA35 MEM_MA_DATA39 MEM_MA_DATA33 MEM_MA_DATA32 MEM_MA_DATA27 MEM_MA_DATA30 MEM_MA_DATA25 MEM_MA_DATA28 MEM_MA_DATA31 MEM_MA_DATA26 MEM_MA_DATA24 MEM_MA_DATA29 MEM_MA_DATA23 MEM_MA_DATA19 MEM_MA_DATA20 MEM_MA_DATA21 MEM_MA_DATA22 MEM_MA_DATA18 MEM_MA_DATA16 MEM_MA_DATA17 MEM_MA_DATA15 MEM_MA_DATA11 MEM_MA_DATA8 MEM_MA_DATA9 MEM_MA_DATA14 MEM_MA_DATA10 MEM_MA_DATA13 MEM_MA_DATA12 MEM_MA_DATA7 MEM_MA_DATA3 MEM_MA_DATA1 MEM_MA_DATA4 MEM_MA_DATA6 MEM_MA_DATA2 MEM_MA_DATA5 MEM_MA_DATA0

5

DIMM2A

280

DQ63

135

DQ62

273

DQ61

128

DQ60

282

DQ59

137

DQ58

275

DQ57

130

DQ56

269

DQ55

124

DQ54

262

DQ53

117

DQ52

271

DQ51

126

DQ50

264

DQ49

119

DQ48

258

DQ47

113

DQ46

251

DQ45

106

DQ44

260

DQ43

115

DQ42

253

DQ41

108

DQ40

247

DQ39

102

DQ38

240

DQ37

95

DQ36

249

DQ35

104

DQ34

242

DQ33

97

DQ32

188

DQ31

43

DQ30

181

DQ29

36

DQ28

190

DQ27

45

DQ26

183

DQ25

38

DQ24

177

DQ23

32

DQ22

170

DQ21

25

DQ20

179

DQ19

34

DQ18

172

DQ17

27

DQ16

166

DQ15

21

DQ14

159

DQ13

14

DQ12

168

DQ11

23

DQ10

161

DQ9

16

DQ8

155

DQ7

10

DQ6

148

DQ5

3

DQ4

157

DQ3

12

DQ2

150

DQ1

5

DQ0

MEMORY SOCKET_H F

1/4

SAVE_N_NC

DDR4

A16_RAS_N A15_CAS_N

A14_WE_N

CK1P CK1N CK0P CK0N

S3_N_C1 S2_N_C0

S1_N S0_N

CKE1 CKE0

ODT1 ODT0

PAR RESET_N EVENT_N ALERT_N

ACT_N

VDDSPD

SDA

VREFCA

RFU2 RFU1 RFU0

I

234

A17

MEM4_MA_ADD16

82

MEM4_MA_ADD15

86

MEM4_MA_ADD14

228

MEM_MA_ADD13

232

A13

MEM_MA_ADD12

65

A12

MEM_MA_ADD11

210

A11

MEM_MA_ADD10

225

A10

MEM_MA_ADD9

66

A9

MEM_MA_ADD8

68

A8

MEM_MA_ADD7

211

A7

MEM_MA_ADD6

69

A6

MEM_MA_ADD5

213

A5

MEM_MA_ADD4

214

A4

MEM_MA_ADD3

71

A3

MEM_MA_ADD2

216

A2

MEM_MA_ADD1

72

A1

MEM_MA_ADD0

79

A0

224 81 207 63

218 219 74 75

235 237 93 89 84

203 60

91 87

199 54 192 47 201 56 194 49

222 58 78 208 62

284 238 140 139 285 141

146

144 227 205

230

MEM_MA_BANK1 [6,23] MEM_MA_BANK0 [6,23] MEM_MA_BG1 [6,23] MEM_MA_BG0 [6,23]

MEM_MA_CLK_H 3 [6] MEM_MA_CLK_L3 [6] MEM_MA_CLK_H 2 [6] MEM_MA_CLK_L2 [6]

MEM_MA_CS_L3 [6] MEM_MA_CS_L2 [6]

MEM_MA_CKE3 [6] MEM_MA_CKE2 [6]

MEM_MA_ODT3 [6] MEM_MA_ODT2 [6]

D2_EVENT#

MEM_MA_ALERT# [6,23] MEM_MA_ACT# [6,23 ]

D2_VDDSPD DIMM2_SA2 DIMM2_SA1 DIMM2_SA0

C795

I

NI

0.1 uF

16 V

BA1 BA0 BG1 BG0

C2

CB7 CB6 CB5 CB4 CB3 CB2 CB1 CB0

SA2 SA1 SA0

SCL

MEM4_MA_ADD[14..16 ] [6,23]

MEM_MA_ADD[13..0] [6,23]

MEM_MA_PAR [6,2 3] MEM_DRAMRST# [15,23,25,26]

SMB_DATA_MAIN [12,23,25,26 ,43,46] SMB_CLK_MAIN [12,23,2 5,26,43,46]

+VREF_CA

C796

2.2 uF

X5R 16 V

4

+1V2_MEM_S3

D2_EVENT#

I

R1189

240 ohm

DIMM2B

2/4

MEMORY SOCKET_H F

DDR4

D2_VDDSPD

C792

I

0.1 uF

16 V

DQS17P DQS17N DQS16P DQS16N DQS15P DQS15N DQS14P DQS14N DQS13P DQS13N DQS12P DQS12N DQS11P DQS11N DQS10P DQS10N

DQS9P DQS9N DQS8P DQS8N DQS7P DQS7N DQS6P DQS6N DQS5P DQS5N DQS4P DQS4N DQS3P DQS3N DQS2P DQS2N DQS1P DQS1N DQS0P DQS0N

+3V3

I

R1193

0 ohm

C787

0.1 uF

16 V

I

0603

51 52 132 133 121 122 110 111 99 100 40 41 29 30 18 19 7 8 197 196 278 277 267 266 256 255 245 244 186 185 175 174 164 163 153 152

DIMM2_DQS8

DIMM2_SA1 DIMM2_SA0

NI

R1194 0 ohm

MEM_MA_DQS_H7 [6,23] MEM_MA_DQS_L7 [6,23] MEM_MA_DQS_H6 [6,23] MEM_MA_DQS_L6 [6,23] MEM_MA_DQS_H5 [6,23] MEM_MA_DQS_L5 [6,23] MEM_MA_DQS_H4 [6,23] MEM_MA_DQS_L4 [6,23] MEM_MA_DQS_H3 [6,23] MEM_MA_DQS_L3 [6,23] MEM_MA_DQS_H2 [6,23] MEM_MA_DQS_L2 [6,23] MEM_MA_DQS_H1 [6,23] MEM_MA_DQS_L1 [6,23] MEM_MA_DQS_H0 [6,23] MEM_MA_DQS_L0 [6,23]

+3V3 +3V3

R1187

NI

0 ohm

R1174

I

0 ohm

3

+1V2_MEM_S3

R1185

I

DIMM2(CHANNEL-A)

0 ohm

ADDRESS = 0:0:1 [SA2:SA1:SA0] A2h

R1186

NI

0 ohm

DIMM2C

2

VSS93

4

VSS92

6

VSS91

9

VSS90

11

VSS89

13

VSS88

15

VSS87

17

VSS86

20

VSS85

22

VSS84

24

VSS83

26

VSS82

28

VSS81

31

VSS80

33

VSS79

35

VSS78

37

VSS77

39

VSS76

42

VSS75

44

VSS74

46

VSS73

48

VSS72

50

VSS71

53

VSS70

55

VSS69

57

VSS68

94

VSS67

96

VSS66

98

VSS65

101

VSS64

103

VSS63

105

VSS62

107

VSS61

109

VSS60

112

VSS59

114

VSS58

116

VSS57

118

VSS56

120

VSS55

123

VSS54

125

VSS53

127

VSS52

129

VSS51

131

VSS50

134

VSS49

136

VSS48

138

VSS47

X2

X3

MEMORY SOCKET_H F

DDR4

I

147

VSS46

149

VSS45

151

VSS44

154

VSS43

156

VSS42

158

VSS41

160

VSS40

162

VSS39

165

VSS38

167

VSS37 VSS36 VSS35 VSS34 VSS33 VSS32 VSS31 VSS30 VSS29 VSS28 VSS27 VSS26 VSS25 VSS24 VSS23 VSS22 VSS21 VSS20 VSS19 VSS18 VSS17 VSS16 VSS15 VSS14 VSS13 VSS12 VSS11 VSS10

VSS9 VSS8 VSS7 VSS6 VSS5 VSS4 VSS3 VSS2 VSS1 VSS0

3/4

+1V2_MEM_S3

169 171 173 176 178 180 182 184 187 189 191 193 195 198 200 202 239 241 243 246 248 250 252 254 257 259 261 263 265 268 270 272 274 276 279 281 283

2

I

C782

1 uF

X5R 10 V

I

C519

1 uF

X5R 10 V

I

+2V5_VPP_DDR_ S3

I

C794

I

C794

I

0.1 uF

16 V

I

C766

0.1 uF

16 V

+0V6_MEM

16 V

C757

C781

C783

I

0.1 uF

16 V

C788

C790

I

0603

I

0603

0.1 uF

4.7 uF

16 V

X5R

10 V

X5R

10 V

C784

1 uF

X5R 10 V

C785

I

0.1 uF

16 V

+0V6_MEM

Clsoe to DIMM2

LITE-ON TECHNOLOGY CORP.

Title

24. DDR4 CHA UDIMM2

Size Document Number Rev

Custom

MC117

Date: Sheet of

C789

0.1 uF

16 V

142 143 288 286 287

77

221

59 61 64

C786

67

I

70 73

0.1 uF

76

16 V

80 83 85 88 90

92 204 206 209 212 215 217 220 223 226 229 231 233 236

1

DIMM2D

VPP4 VPP3 VPP2 VPP1 VPP0

VTT1 VTT0

VDD25 VDD24 VDD23 VDD22 VDD21 VDD20 VDD19 VDD18 VDD17 VDD16 VDD15 VDD14 VDD13 VDD12 VDD11 VDD10 VDD9 VDD8 VDD7 VDD6 VDD5 VDD4 VDD3 VDD2 VDD1 VDD0

4/4

MEMORY SOCKET_H F

DDR4

24 58Wednesday, December 28, 2 016

12V1 12V0

I

1 145

X03

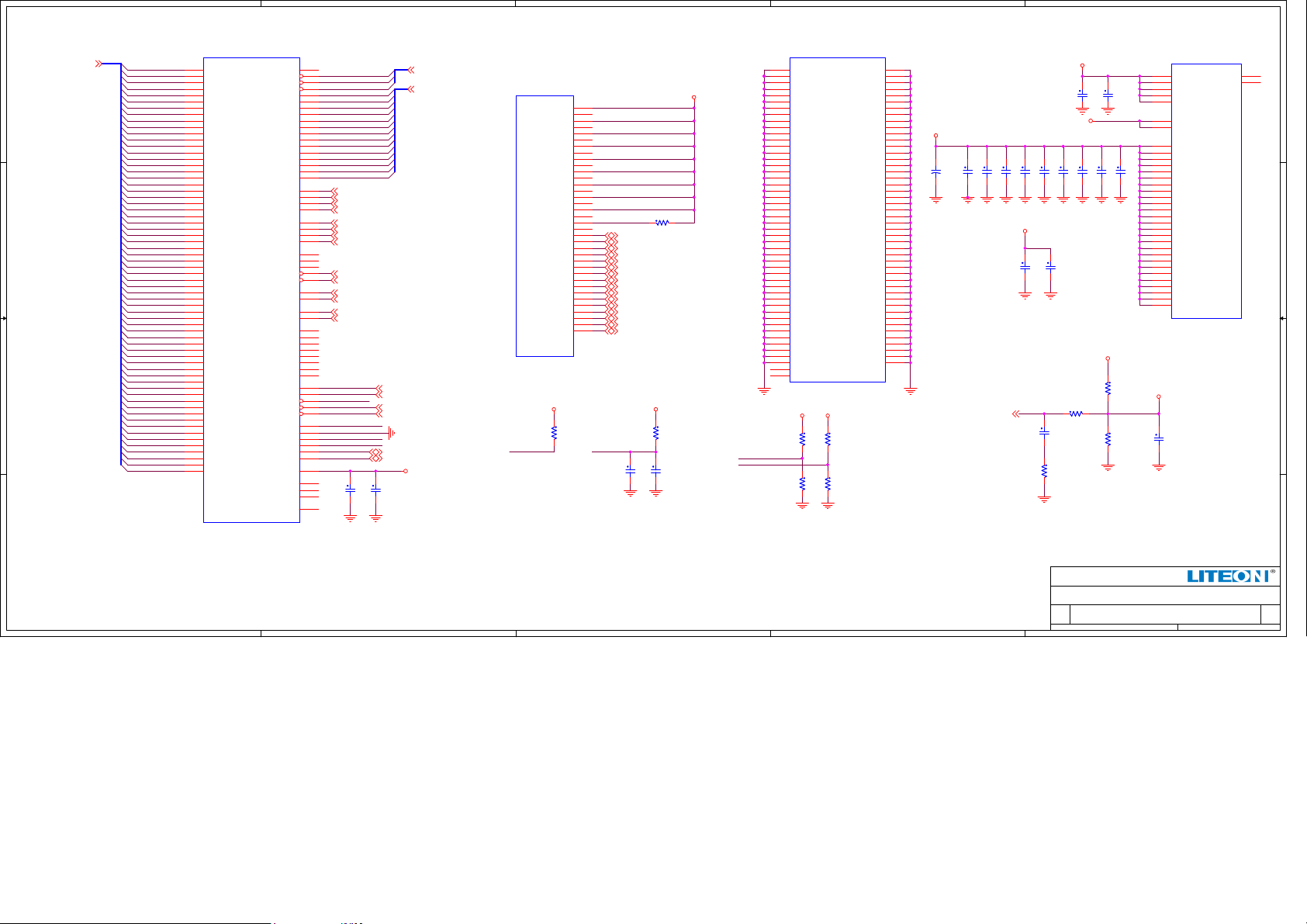

5

Vinafix.com

4

3

2

1

DIMM3C

2

VSS93

4

VSS92

6

VSS91

9

VSS90

11

VSS89

13

VSS88

15

VSS87

17

VSS86

20

VSS85

22

VSS84

24

VSS83

26

VSS82

28

VSS81

31

VSS80

33

VSS79

35

VSS78

37

VSS77

39

VSS76

42

VSS75

44

VSS74

46

VSS73

48

VSS72

50

VSS71

53

VSS70

55

VSS69

57

VSS68

94

VSS67

96

VSS66

98

VSS65

101

VSS64

103

VSS63

105

VSS62

107

VSS61

109

VSS60

112

VSS59

114

VSS58

116

VSS57

118

VSS56

120

VSS55

123

VSS54

125

VSS53

127

VSS52

129

VSS51

131

VSS50

134

VSS49

136

VSS48

138

VSS47

X2

X3

MEMORY SOCKET_HF

DDR4

+3V3 +3V3

R819

NI

0 ohm

R820

NI

0 ohm

3/4

R873

NI

0 ohm

R872

NI

0 ohm

1/4

DIMM3A

A16_RAS_N A15_CAS_N

A14_WE_N

CK1 P CK1 N CK0 P CK0 N

S3_N_C1 S2_N_C0

S1_N S0_N

CKE1 CKE0

ODT1 ODT0

RESET_N EVENT_N ALERT_N

ACT_N

VDDSPD

VREFCA

RFU2 RFU1 RFU0

SAVE_N_NC

234

A17

MEM4_MB_ADD16

82

MEM4_MB_ADD15

86

MEM4_MB_ADD14

228

MEM_MB_ADD13

232

A13

MEM_MB_ADD12

65

A12

MEM_MB_ADD11

210

A11

MEM_MB_ADD10

225

A10

MEM_MB_ADD9

66

A9

MEM_MB_ADD8

68

A8

MEM_MB_ADD7

211

A7

MEM_MB_ADD6

69

A6

MEM_MB_ADD5

213

A5

MEM_MB_ADD4

214

A4

MEM_MB_ADD3

71

A3

MEM_MB_ADD2

216

A2

MEM_MB_ADD1

72

A1

MEM_MB_ADD0

79

A0

224 81 207 63

218 219 74 75

235 237 93 89 84

203 60

91 87

199 54 192 47 201 56 194 49

222 58 78 208 62

284 238 140 139 285 141

146

144 227 205

230

MEM_MB_BANK1 [6,26] MEM_MB_BANK0 [6,26] MEM_MB_BG1 [6,26] MEM_MB_BG0 [6,26]

MEM_MB_CLK_H1 [6] MEM_MB_CLK_L1 [6] MEM_MB_CLK_H0 [6] MEM_MB_CLK_L0 [6]

MEM_MB_CS_L1 [6] MEM_MB_CS_L0 [6]

MEM_MB_CKE1 [6] MEM_MB_CKE0 [6]

MEM_MB_ODT1 [6] MEM_MB_ODT0 [6]

D3_EVENT#

D3_VDDSPD DIMM3_SA2 DIMM3_SA1 DIMM3_SA0

C538

NI

0.1 uF

16 V

NI

BA1 BA0 BG1 BG0

C2

CB7 CB6 CB5 CB4 CB3 CB2 CB1 CB0

PAR

SA2 SA1 SA0 SDA SCL

MEM4_MB_ADD[14..16] [6,26]

MEM_MB_ADD[13..0] [6,26]

MEM_MB_PAR [6,26] MEM_DRAMRST# [15,23,24,26]

MEM_MB_ALERT# [6,26] MEM_MB_ACT# [6,26]

SMB_DATA_MAIN [12,23,24,26,43,46] SMB_CLK_MAIN [12,23,24,26,43,46]

+VREF_CB

C541

2.2 uF

X5R 16 V

4

DIMM3B

DQS17P DQS17N DQS16P DQS16N DQS15P DQS15N DQS14P DQS14N DQS13P DQS13N DQS12P DQS12N DQS11P DQS11N DQS10P DQS10N

DQS 9P DQS 9N DQS 8P DQS 8N DQS 7P DQS 7N DQS 6P DQS 6N DQS 5P DQS 5N DQS 4P DQS 4N DQS 3P DQS 3N DQS 2P DQS 2N DQS 1P DQS 1N DQS 0P DQS 0N

2/4

MEMORY SOCKET_HF

DDR4

+1V2_MEM_S3

R870

NI

240 ohm

D3_EVENT#

R805 0 ohmNIR805 0 ohmNI

C523

0.1 uF

16 V

+1V2_MEM_S3

+3V3

R821

NI

0603

NI

0603

0 ohm

C509

NI

0.1 uF

16 V

3

DIMM3_SA1 C542_2 DIMM3_SA0

NI

51 52 132 133 121 122 110 111 99 100 40 41 29 30 18 19 7 8

DIMM3_DQS8

197 196 278

MEM_MB_DQS_H7 [6,26]

277

MEM_MB_DQS_L7 [6,26]

267

MEM_MB_DQS_H6 [6,26]

266

MEM_MB_DQS_L6 [6,26]

256

MEM_MB_DQS_H5 [6,26]

255

MEM_MB_DQS_L5 [6,26]

245

MEM_MB_DQS_H4 [6,26]

244

MEM_MB_DQS_L4 [6,26]

186

MEM_MB_DQS_H3 [6,26]

185

MEM_MB_DQS_L3 [6,26]

175

MEM_MB_DQS_H2 [6,26]

174

MEM_MB_DQS_L2 [6,26]

164

MEM_MB_DQS_H1 [6,26]

163

MEM_MB_DQS_L1 [6,26]

153

MEM_MB_DQS_H0 [6,26]

152

MEM_MB_DQS_L0 [6,26]

D3_VDDSPD

NI

MEM_MB_DATA[63..0][6,26]

D D

C C

B B

A A

MEM_MB_DATA63 MEM_MB_DATA58 MEM_MB_DATA61 MEM_MB_DATA57 MEM_MB_DATA59 MEM_MB_DATA62 MEM_MB_DATA60 MEM_MB_DATA56 MEM_MB_DATA50 MEM_MB_DATA54 MEM_MB_DATA53 MEM_MB_DATA52 MEM_MB_DATA51 MEM_MB_DATA55 MEM_MB_DATA49 MEM_MB_DATA48 MEM_MB_DATA42 MEM_MB_DATA46 MEM_MB_DATA44 MEM_MB_DATA40 MEM_MB_DATA43 MEM_MB_DATA47 MEM_MB_DATA45 MEM_MB_DATA41 MEM_MB_DATA34 MEM_MB_DATA38 MEM_MB_DATA37 MEM_MB_DATA36 MEM_MB_DATA35 MEM_MB_DATA39 MEM_MB_DATA33 MEM_MB_DATA32 MEM_MB_DATA31 MEM_MB_DATA26 MEM_MB_DATA29 MEM_MB_DATA25 MEM_MB_DATA27 MEM_MB_DATA30 MEM_MB_DATA28 MEM_MB_DATA24 MEM_MB_DATA23 MEM_MB_DATA22 MEM_MB_DATA20 MEM_MB_DATA17 MEM_MB_DATA19 MEM_MB_DATA18 MEM_MB_DATA21 MEM_MB_DATA16 MEM_MB_DATA15 MEM_MB_DATA10 MEM_MB_DATA13 MEM_MB_DATA12 MEM_MB_DATA11 MEM_MB_DATA14

MEM_MB_DATA9 MEM_MB_DATA8 MEM_MB_DATA7 MEM_MB_DATA6 MEM_MB_DATA5 MEM_MB_DATA0 MEM_MB_DATA3 MEM_MB_DATA2 MEM_MB_DATA1 MEM_MB_DATA4

5

NI

280

DQ6 3

135

DQ6 2

273

DQ6 1

128

DQ6 0

282

DQ5 9

137

DQ5 8

275

DQ5 7

130

DQ5 6

269

DQ5 5

124

DQ5 4

262

DQ5 3

117

DQ5 2

271

DQ5 1

126

DQ5 0

264

DQ4 9

119

DQ4 8

258

DQ4 7

113

DQ4 6

251

DQ4 5

106

DQ4 4

260

DQ4 3

115

DQ4 2

253

DQ4 1

108

DQ4 0

247

DQ3 9

102

DQ3 8

240

DQ3 7

95

DQ3 6

249

DQ3 5

104

DQ3 4

242

DQ3 3

97

DQ3 2

188

DQ3 1

43

DQ3 0

181

DQ2 9

36

DQ2 8

190

DQ2 7

45

DQ2 6

183

DQ2 5

38

DQ2 4

177

DQ2 3

32

DQ2 2

170

DQ2 1

25

DQ2 0

179

DQ1 9

34

DQ1 8

172

DQ1 7

27

DQ1 6

166

DQ1 5

21

DQ1 4

159

DQ1 3

14

DQ1 2

168

DQ1 1

23

DQ1 0

161

DQ9

16

DQ8

155

DQ7

10

DQ6

148

DQ5

3

DQ4

157

DQ3

12

DQ2

150

DQ1

5

DQ0

MEMORY SOCKET_HF

DDR4

NI

147

VSS46

149

VSS45

151

VSS44

154

VSS43

156

VSS42

158

VSS41

160

VSS40

162

VSS39

165

VSS38

167

VSS37 VSS36 VSS35 VSS34 VSS33 VSS32 VSS31 VSS30 VSS29 VSS28 VSS27 VSS26 VSS25 VSS24 VSS23 VSS22 VSS21 VSS20 VSS19 VSS18 VSS17 VSS16 VSS15 VSS14 VSS13 VSS12 VSS11 VSS10

VSS9 VSS8 VSS7 VSS6 VSS5 VSS4 VSS3 VSS2 VSS1 VSS0

DIMM3(CHANNEL-B) ADDRESS = 0:1:0 [SA2:SA1:SA0] A4h

+1V2_MEM_S3

169 171 173 176 178 180

NI

182 184 187 189 191 193 195 198 200 202 239 241 243 246 248 250 252 254 257 259 261 263 265 268 270 272 274 276 279 281 283

2

EC52

+

560 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA

6.3 V

C534

C533

C532

NI

1 uF

X5R

10 V

+0V6_MEM

Clsoe to DIMM3

MEM_VREF_CB[6]

+2V5_VPP_DDR_S3

C510

C502

NI

0.1 uF

16 V

+0V6_MEM

C517

C545

NI

0.1 uF

16 V

C525

C531

NI

0603

NI

0603

0.1 uF

4.7 uF

16 V

X5R

R874 2 ohm+-1%IR874 2 ohm+-1%I

C542

I

0.022 uF

X7R 25 V

R876

I

24.9 ohm

+-1%

LITE-ON TECHNOLOGY CORP.

Title

Size Docu ment Number Rev

Size Document Number Rev

Custom

Date: Sheet of

16 V

C544

C518

C512

C543

NI

0.1 uF

16 V

10 V

+1V2_MEM_S3

R882

I

1K ohm

+-1%

R875

I

1K ohm

+-1%

25. DDR4 CHB UDIMM3

MC117

142 143 288 286 287

77

221

59 61 64 67 70 73 76 80 83 85 88 90

92 204 206 209 212 215 217 220 223 226 229 231 233 236

+VREF_CB

C540

I

0.1 uF

16 V

1

DIMM3D

VPP4 VPP3 VPP2 VPP1 VPP0

VTT1 VTT0

VDD25 VDD24 VDD23 VDD22 VDD21 VDD20 VDD19 VDD18 VDD17 VDD16 VDD15 VDD14 VDD13 VDD12 VDD11 VDD10 VDD9 VDD8 VDD7 VDD6 VDD5 VDD4 VDD3 VDD2 VDD1 VDD0

MEMORY SOCKET_HF

DDR4

NI

1

12V1

145

12V0

4/4

X03

25 58Wednesday, December 28, 2016

X03

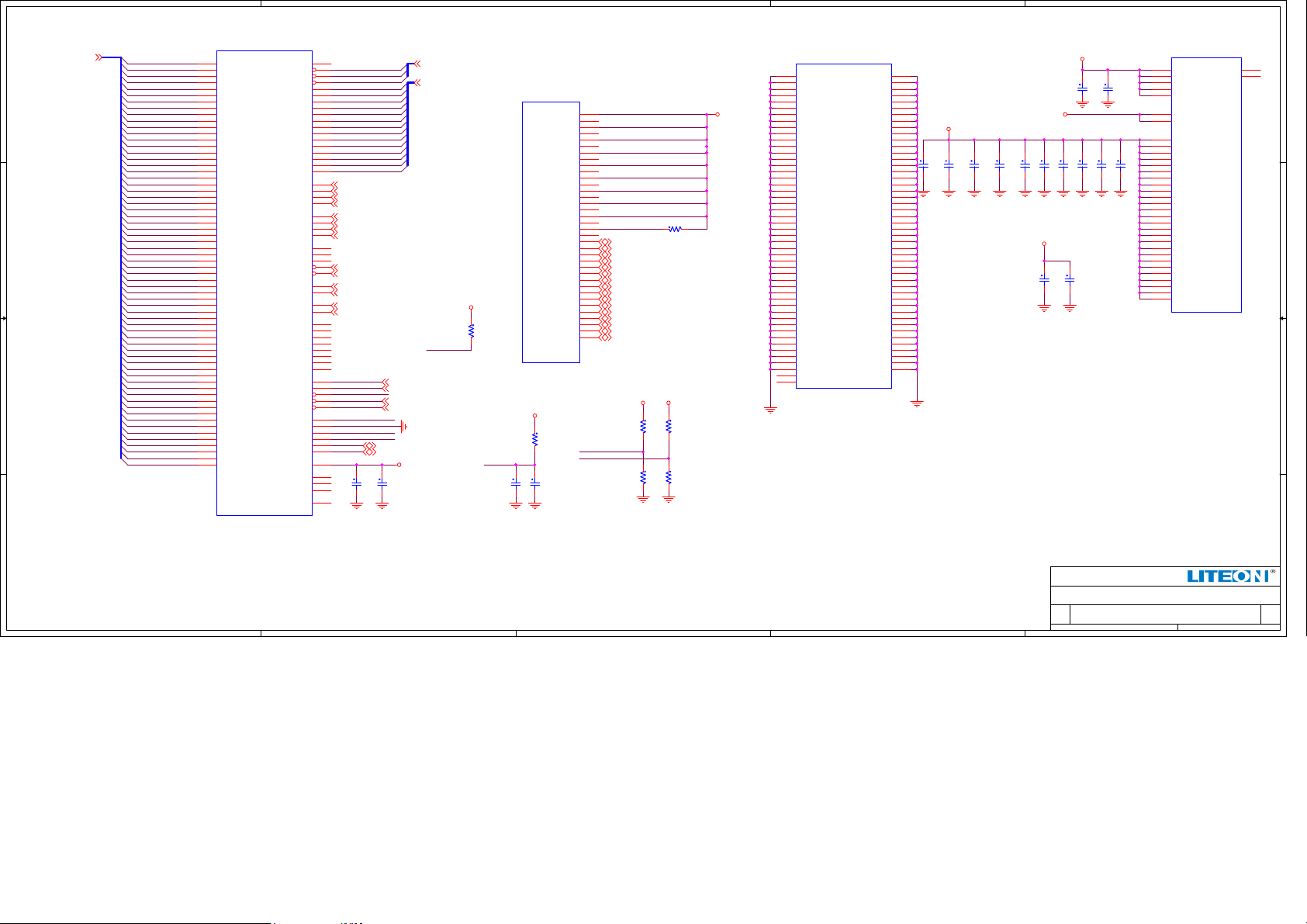

5

4

3

2

1

DIMM4A

MEM_MB_DATA[63..0][6 ,25]

D D

C C

B B

MEM_MB_DATA63 MEM_MB_DATA58 MEM_MB_DATA61 MEM_MB_DATA57 MEM_MB_DATA59 MEM_MB_DATA62 MEM_MB_DATA60 MEM_MB_DATA56 MEM_MB_DATA50 MEM_MB_DATA54 MEM_MB_DATA53 MEM_MB_DATA52 MEM_MB_DATA51 MEM_MB_DATA55 MEM_MB_DATA49 MEM_MB_DATA48 MEM_MB_DATA42 MEM_MB_DATA46 MEM_MB_DATA44 MEM_MB_DATA40 MEM_MB_DATA43 MEM_MB_DATA47 MEM_MB_DATA45 MEM_MB_DATA41 MEM_MB_DATA34 MEM_MB_DATA38 MEM_MB_DATA37 MEM_MB_DATA36 MEM_MB_DATA35 MEM_MB_DATA39 MEM_MB_DATA33 MEM_MB_DATA32 MEM_MB_DATA31 MEM_MB_DATA26 MEM_MB_DATA29 MEM_MB_DATA25 MEM_MB_DATA27 MEM_MB_DATA30 MEM_MB_DATA28 MEM_MB_DATA24 MEM_MB_DATA23 MEM_MB_DATA22 MEM_MB_DATA20 MEM_MB_DATA17 MEM_MB_DATA19 MEM_MB_DATA18 MEM_MB_DATA21 MEM_MB_DATA16 MEM_MB_DATA15 MEM_MB_DATA10 MEM_MB_DATA13 MEM_MB_DATA12 MEM_MB_DATA11 MEM_MB_DATA14 MEM_MB_DATA9 MEM_MB_DATA8 MEM_MB_DATA7 MEM_MB_DATA6 MEM_MB_DATA5 MEM_MB_DATA0 MEM_MB_DATA3 MEM_MB_DATA2 MEM_MB_DATA1 MEM_MB_DATA4

DIMM4A

280

DQ63

135

DQ62

273

DQ61

128

DQ60

282

DQ59

137

DQ58

275

DQ57

130

DQ56

269

DQ55

124

DQ54

262

DQ53

117

DQ52

271

DQ51

126

DQ50

264

DQ49

119

DQ48

258

DQ47

113

DQ46

251

DQ45

106

DQ44

260

DQ43

115

DQ42

253

DQ41

108

DQ40

247

DQ39

102

DQ38

240

DQ37

95

DQ36

249

DQ35

104

DQ34

242

DQ33

97

DQ32

188

DQ31

43

DQ30

181

DQ29

36

DQ28

190

DQ27

45

DQ26

183

DQ25

38

DQ24

177

DQ23

32

DQ22

170

DQ21

25

DQ20

179

DQ19

34

DQ18

172

DQ17

27

DQ16

166

DQ15

21

DQ14

159

DQ13

14

DQ12

168

DQ11

23

DQ10

161

DQ9

16

DQ8

155

DQ7

10

DQ6

148

DQ5

3

DQ4

157

DQ3

12

DQ2

150

DQ1

5

DQ0

MEMORY SOCKET_H F

DDR4

1/4

A16_RAS_N A15_CAS_N

A14_WE_N

CK1P CK1N CK0P CK0N

S3_N_C1 S2_N_C0

S1_N S0_N

CKE1 CKE0

ODT1 ODT0

RESET_N EVENT_N

ALERT_N

ACT_N

VDDSPD

VREFCA

RFU2 RFU1 RFU0

SAVE_N_NC

I

234

A17

MEM4_MB_ADD1 6

82

MEM4_MB_ADD1 5

86

MEM4_MB_ADD1 4

228

MEM_MB_ADD13

232

A13 A12 A11 A10

BA1 BA0 BG1 BG0

CB7 CB6 CB5 CB4 CB3 CB2 CB1 CB0

PAR

SA2 SA1 SA0 SDA SCL

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

C2

65 210 225 66 68 211 69 213 214 71 216 72 79

224 81 207 63

218 219 74 75

235 237 93 89 84

203 60

91 87

199 54 192 47 201 56 194 49

222 58

D4_EVENT#

78 208 62

D4_VDDSPD

284

DIMM4_SA2

238

DIMM4_SA1

140

DIMM4_SA0

139 285 141

146

144 227 205

230

MEM_MB_ADD12 MEM_MB_ADD11 MEM_MB_ADD10

MEM_MB_ADD9 MEM_MB_ADD8 MEM_MB_ADD7 MEM_MB_ADD6 MEM_MB_ADD5 MEM_MB_ADD4 MEM_MB_ADD3 MEM_MB_ADD2 MEM_MB_ADD1 MEM_MB_ADD0

MEM_MB_BANK1 [6,25] MEM_MB_BANK0 [6,25] MEM_MB_BG1 [6,25 ] MEM_MB_BG0 [6,25 ]

MEM_MB_CLK_ H3 [6] MEM_MB_CLK_ L3 [6] MEM_MB_CLK_ H2 [6] MEM_MB_CLK_ L2 [6]

MEM_MB_CS_L 3 [6] MEM_MB_CS_L 2 [6]

MEM_MB_CKE3 [6] MEM_MB_CKE2 [6]

MEM_MB_ODT3 [6] MEM_MB_ODT2 [6]

C804

I

NI

0.1 uF

16 V

MEM4_MB_ADD[14 ..16] [6,25]

MEM_MB_ADD[13..0 ] [6,25]

+1V2_MEM_S3

I

D4_EVENT#

MEM_MB_PAR [6,25] MEM_DRAMRST# [15,23,24,25]

MEM_MB_ALERT # [6,25] MEM_MB_ACT# [6,25 ]

SMB_DATA_MAIN [12,23,24 ,25,43,46] SMB_CLK_MAIN [12,23,2 4,25,43,46]

+VREF_CB

C815

2.2 uF

X5R 16 V

R1204

240 ohm

D4_VDDSPD

I

DIMM4B

DQS17P DQS17N DQS16P DQS16N DQS15P DQS15N DQS14P DQS14N DQS13P DQS13N DQS12P DQS12N DQS11P DQS11N DQS10P DQS10N

2/4

MEMORY SOCKET_H F

DDR4

+3V3

R1202

I

0603

I

0603

0 ohm

C802

C810

I

0.1 uF

16 V

DQS9P DQS9N DQS8P DQS8N DQS7P DQS7N DQS6P DQS6N DQS5P DQS5N DQS4P DQS4N DQS3P DQS3N DQS2P DQS2N DQS1P DQS1N DQS0P DQS0N

I

51 52 132 133 121 122 110 111 99 100 40 41 29 30 18 19 7 8 197 196 278 277 267 266 256 255 245 244 186 185 175 174 164 163 153 152

DIMM4_SA1 DIMM4_SA0

DIMM4_DQS8

MEM_MB_DQS_H 7 [6,25] MEM_MB_DQS_L 7 [6,25] MEM_MB_DQS_H 6 [6,25] MEM_MB_DQS_L 6 [6,25] MEM_MB_DQS_H 5 [6,25] MEM_MB_DQS_L 5 [6,25] MEM_MB_DQS_H 4 [6,25] MEM_MB_DQS_L 4 [6,25] MEM_MB_DQS_H 3 [6,25] MEM_MB_DQS_L 3 [6,25] MEM_MB_DQS_H 2 [6,25] MEM_MB_DQS_L 2 [6,25] MEM_MB_DQS_H 1 [6,25] MEM_MB_DQS_L 1 [6,25] MEM_MB_DQS_H 0 [6,25] MEM_MB_DQS_L 0 [6,25]

+3V3 +3V3

I

NI

R1197 0 ohmNIR 1197 0 ohmN I

R1200

0 ohm

R1203

NI

0 ohm

R1206

I

0 ohm

DIMM4(CHANNEL-B) ADDRESS = 0:1:1 [SA2:SA1:SA0] A6h

R1196

0 ohm

+1V2_MEM_S3

DIMM4C

2

VSS93

4

VSS92

6

VSS91

9

VSS90

11

VSS89

13

VSS88

15

VSS87

17

VSS86

20

VSS85

22

VSS84

24

VSS83

26

VSS82

28

VSS81

31

VSS80

33

VSS79

35

VSS78

37

VSS77

39

VSS76

42

VSS75

44

VSS74

46

VSS73

48

VSS72

50

VSS71

53

VSS70

55

VSS69

57

VSS68

94

VSS67

96

VSS66

98

VSS65

101

VSS64

103

VSS63

105

VSS62

107

VSS61

109

VSS60

112

VSS59

114

VSS58

116

VSS57

118

VSS56

120

VSS55

123

VSS54

125

VSS53

127

VSS52

129

VSS51

131

VSS50

134

VSS49

136

VSS48

138

VSS47

X2

X3

MEMORY SOCKET_H F

DDR4

I

147

VSS46

149

VSS45

151

VSS44

154

VSS43

156

VSS42

158

VSS41

160

VSS40

162

VSS39 VSS38 VSS37 VSS36 VSS35 VSS34 VSS33 VSS32 VSS31 VSS30 VSS29 VSS28 VSS27 VSS26 VSS25 VSS24 VSS23 VSS22 VSS21 VSS20 VSS19 VSS18 VSS17 VSS16 VSS15 VSS14 VSS13 VSS12 VSS11 VSS10

VSS9 VSS8 VSS7 VSS6 VSS5 VSS4 VSS3 VSS2 VSS1 VSS0

3/4

+1V2_MEM_S3

165 167 169 171 173 176 178 180 182 184 187 189 191 193 195 198 200 202 239 241 243 246 248 250 252 254 257 259 261 263 265 268 270 272 274 276 279 281 283

C1794

I

10 pF

NPO

NPO 50 V

50 V

I

C799

1 uF

X5R 10 V

I

C814

1 uF

X5R 10 V

C813

I

1 uF

X5R 10 V

+2V5_VPP_DDR_ S3

C806

I

0.1 uF

16 V

C798

C805

I

0.1 uF

16 V

C803

I

0.1 uF

16 V

C798

C811

C812

I

0.1 uF

16 V

C797

I

0603

I

0603

4.7 uF

X5R

10 V

X5R

10 V

C809

I

0.1 uF

16 V

+0V6_MEM

Clsoe to DIMM4

C807

0.1 uF

16 V

DIMM4D

142

VPP4

143

VPP3

288

VPP2

286

VPP1

287

VPP0

77

VTT1

221

VTT0

59

VDD25

61

VDD24

64

C801

I

0.1 uF

16 V

VDD23

67

VDD22

70

VDD21

73

VDD20

76

VDD19

80

VDD18

83

VDD17

85

VDD16

88

VDD15

90

VDD14

92

VDD13

204

VDD12

206

VDD11

209

VDD10

212

VDD9

215

VDD8

217

VDD7

220

VDD6

223

VDD5

226

VDD4

229

VDD3

231

VDD2

233

VDD1

236

VDD0

MEMORY SOCKET_H F

DDR4

I

1

12V1

145

12V0

4/4

A A

LITE-ON TECHNOLOGY CORP.

Title

26. DDR4 CHB UDIMM4

Size Document Number Rev

Custom

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

26 58Wednesday, December 28, 2 016

X03

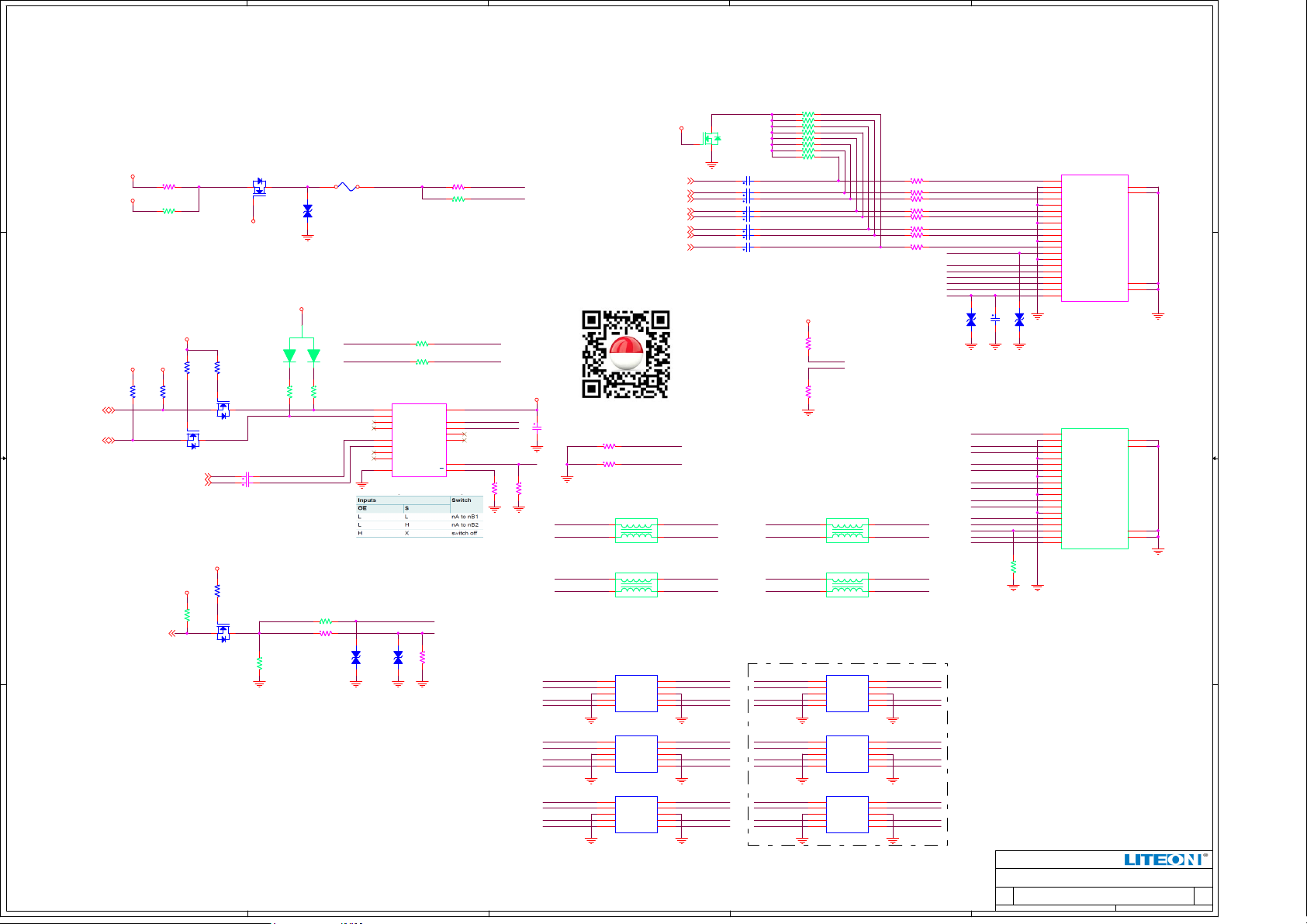

5

Vinafix.com

4

3

2

1

D D

A:DP

B:HDMI

+3V3

R180 0 ohmNIR180 0 ohmNI

+5V

C C

R252

NI

2.2K ohm

DP1_DDC_SCL[16]

DP1_DDC_SDA[16]

B B

A A

2.2K ohm

DDI2_AUXP[7] DDI2_AUXN[7]

DP1_HPD[16]

5

DDI1_PWR F2_2

+3V3

R262

R260

+3V3+3V3

NI

R240

2.2K ohm

NI

0 ohm

Q19_G Q18_G

G

NI

1

Q19

S

MOSFET-N

25 V 0.5 A

25 V 0.5 A [email protected]

[email protected]

+3V3

R119

I

1M ohm

NI

0 ohm

G

NI

1

Q18

S

MOSFET-N

25 V 0.5 A

25 V 0.5 A [email protected]

[email protected]

23

D

C149 NI 0.1 uF X7R 16 VC149 NI 0.1 uF X7R 16 V C148 NI 0.1 uF X7R 16 VC148 NI 0.1 uF X7R 16 V

+5V

R120

I

10K ohm

Q5_G

G

1

I

S

Q5

Q5 MOSFET-N

MOSFET-N

25 V 0.5 A

25 V 0.5 A [email protected]

[email protected]

D

S

D

S

Q6

F_DP1_PWR

23

NI

1

G

PM606BA

30V 5 A

30V 5 A 17mohm@10V

17mohm@10V

+12V

NI

23

D

23

D

R71

NI

20K ohm

+5V

1

D47_1

R261

2.2K ohm

R50 0 ohmNIR50 0 ohmNI

R58 0 ohmNIR58 0 ohmNI

F2

D3

AZ5725-01F.R7G

3

NI

D47

D47 BAT54A

BAT54A

30 V

0.2 A

2

D47_2

R250

NI

2.2K ohm

Q_DP1_DDC_SCL Q_DP1_DDC_SDA

DDI2_AUXP_C DDI2_AUXN_C

NI

1 2

NI

5 V 0.001 A

1.1 A6 VF2NI

1.1 A6 V

MF-NSMF110-2

Q_DP1_DDC_SCL

Q_DP1_DDC_SDA

D11

NI

AZ5725-01F.R7G

5 V 0.001 A

ESD Near to DP1

4

3

6 10 13

2

5 11 14

8

NI

R77 0 ohmNIR77 0 ohmNI

R89 0 ohmNIR89 0 ohmNI

NI

U31

1B2 2B2 3B2 4B2

1B1 2B1 3B1 4B1

GND

CBT3257ADS

HDMI1_HPDG_DP1_HPD

R_DP1_HPD

D16

AZ5725-01F.R7G

NI

5 V 0.001 A

R43 0 ohmNIR43 0 ohmNI

R48 0 ohmNIR48 0 ohmNI

VCC

R57

100K ohm

16

4

1A

7

2A

9

3A

12

4A

1

S

15

E

S_DP1_AUXP

R_DP1_DDC_SDA

S_DP1_AUXP S_DP1_AUXN

DP1_DETEC DP1_E#

DP1_PWR

R_DP1_HPD

R251

NI

2.2K ohm

NI

R101

1M ohm

+5V

C146

NI

0.1 uF

X7R 16 V

DDI2_TX0_N_C_R

DDI2_TX1_N_C_R

DDI2_TX2_N_C_R

DDI2_TX3_N_C_R

S_DP1_AUXN S_DP1_AUXP

R_DP1_DDC_SDA DP1_DETEC

R40 0 ohmNIR40 0 ohmNI

R90 0 ohmNIR90 0 ohmNI

DDI2_TX0_P_C

DDI2_TX0_N_C

DDI2_TX1_P_C

DDI2_TX1_N_C

DDI2_TX0_P[7]

DDI2_TX0_N[7] DDI2_TX1_P[7]

DDI2_TX1_N[7] DDI2_TX2_P[7]

DDI2_TX2_N[7] DDI2_TX3_P[7]

DDI2_TX3_N[7]

HDMI1_HPD

R_DP1_DDC_SDA

NI

L6

0.3 ohm 0.4 A

L6

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

NI

L4

0.3 ohm 0.4 A

L4

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

NI

U7

1

I/ O 1

NC1

2

I/ O 2

NC2

3

GND

GND1

4

I/ O 3

NC3

I/ O 45NC4

5.5 V

NI

U6

1

I/ O 1

NC1

2

I/ O 2

NC2

3

GND

GND1

4

I/ O 3

NC3

I/ O 45NC4

5.5 V

NI

U8

1

I/ O 1

NC1

2

I/ O 2

NC2

3

GND

GND1

4

I/ O 3

NC3

I/ O 45NC4

5.5 V

3

43

10 9 8 7 6

+5V

G

1

DDI2_TX0_P_C_R

DDI2_TX0_N_C_R

DDI2_TX1_P_C_R

DDI2_TX0_P_C_RDDI2_TX0_P_C_R DDI2_TX0_N_C_R

DDI2_TX1_P_C_RDDI2_TX1_P_C_R DDI2_TX1_N_C_R

DDI2_TX2_P_C_RDDI2_TX2_P_C_R DDI2_TX2_N_C_R

DDI2_TX3_P_C_RDDI2_TX3_P_C_R DDI2_TX3_N_C_R

S_DP1_AUXN S_DP1_AUXP

R_DP1_DDC_SDA DP1_DETEC

P0V0S_HDMI1

D

NI

23

Q24

Q24 NX7002AK

NX7002AK

60 V

-0.3 A

S

[email protected]

C133 NI 0.1 uF X7R 16 VC133 NI 0.1 uF X7R 16 V

C134 NI 0.1 uF X7R 16 VC134 NI 0.1 uF X7R 16 V C106 NI 0.1 uF X7R 16 VC106 NI 0.1 uF X7R 16 V

C107 NI 0.1 uF X7R 16 VC107 NI 0.1 uF X7R 16 VR178 0 ohmNIR178 0 ohmNI C128 NI 0.1 uF X7R 16 VC128 NI 0.1 uF X7R 16 V

C129 NI 0.1 uF X7R 16 VC129 NI 0.1 uF X7R 16 V C102 NI 0.1 uF X7R 16 VC102 NI 0.1 uF X7R 16 V

C103 NI 0.1 uF X7R 16 VC103 NI 0.1 uF X7R 16 V

R169 NI 470 ohmR169 NI 470 ohm R168 NI 470 ohmR168 NI 470 ohm R210 NI 470 ohmR210 NI 470 ohm R211 NI 470 ohmR211 NI 470 ohm R182 NI 470 ohmR182 NI 470 ohm R181 NI 470 ohmR181 NI 470 ohm R220 NI 470 ohmR220 NI 470 ohm R219 NI 470 ohmR219 NI 470 ohm

DDI2_TX0_P_C

DDI2_TX0_N_C DDI2_TX1_P_C

DDI2_TX1_N_C DDI2_TX2_P_C

DDI2_TX2_N_C DDI2_TX3_P_C

DDI2_TX3_N_C

+3V3

R53

NI

100K ohm

S_DP1_AUXN S_DP1_AUXP

R78

NI

100K ohm

NI

L7

DDI2_TX2_P_C

DDI2_TX2_N_C

DDI2_TX3_P_C

DDI2_TX3_N_C

ESD for back up used

DDI2_TX0_N_C_R

DDI2_TX1_N_C_R

DDI2_TX2_N_C_R

DDI2_TX3_N_C_R

S_DP1_AUXN S_DP1_AUXP

R_DP1_DDC_SDA DP1_DETEC

L7

1 2

90OHM@100 MHz

NI

L5

1 2

90OHM@100 MHz

NI

U11

1

I/ O 1

2

I/ O 2

3

GND

4

I/ O 3 I/ O 45NC4

5.5 V

NI

U12

1

I/ O 1

2

I/ O 2

3

GND

4

I/ O 3 I/ O 45NC4

5.5 V

NI

U10

1

I/ O 1

2

I/ O 2

3

GND

4

I/ O 3 I/ O 45NC4

5.5 V

0.3 ohm 0.4 A

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

2

R110 0 ohmNIR110 0 ohmNI

R111 0 ohmNIR111 0 ohmNI R116 0 ohmNIR116 0 ohmNI

R117 0 ohmNIR117 0 ohmNI R114 0 ohmNIR114 0 ohmNI

R115 0 ohmNIR115 0 ohmNI R112 0 ohmNIR112 0 ohmNI

R113 0 ohmNIR113 0 ohmNI

DDI2_TX2_P_C_R

DDI2_TX2_N_C_R

43

DDI2_TX3_P_C_R

DDI2_TX3_N_C_RDDI2_TX1_N_C_R

43

10 9 8 7 6

DDI2_TX0_P_C_RDDI2_TX0_P_C_R DDI2_TX0_N_C_R

DDI2_TX1_P_C_RDDI2_TX1_P_C_R DDI2_TX1_N_C_R

DDI2_TX2_P_C_RDDI2_TX2_P_C_R DDI2_TX2_N_C_R

DDI2_TX3_P_C_RDDI2_TX3_P_C_R DDI2_TX3_N_C_R

S_DP1_AUXN S_DP1_AUXP

R_DP1_DDC_SDA DP1_DETEC

DDI2_TX0_P_C_R

DDI2_TX0_N_C_R DDI2_TX1_P_C_R

DDI2_TX1_N_C_R DDI2_TX2_P_C_R

DDI2_TX2_N_C_R DDI2_TX3_P_C_R

DDI2_TX3_N_C_R DP1_DETEC

S_DP1_AUXP R_DP1_DDC_SDA S_DP1_AUXN R_DP1_HPD HDMI1_HPD DP1_PWR

D10

NI

DDI2_TX0_P_C_R

DDI2_TX0_N_C_R DDI2_TX1_P_C_R

DDI2_TX1_N_C_R DDI2_TX2_P_C_R

DDI2_TX2_N_C_R DDI2_TX3_P_C_R

DDI2_TX3_N_C_R DP1_DETEC

S_DP1_AUXP R_DP1_DDC_SDA S_DP1_AUXN R_DP1_HPD HDMI1_HPD

NI

DP1

1

ML_LANE0P

2

GND

3

ML_LANE0N

4

ML_LANE1P

5

GND

6

ML_LANE1N

7

ML_LANE2P

8

GND

9

ML_LANE2N

10

ML_LANE3P

11

GND

12

ML_LANE3N

13

GND

14

GND

15

AUX_CH P

16

GND

17

AUX_CH N

18

HP DETECT

19

RETURN

20

DP_PWR

3VD51203-H7JJ-7H

C37

NI

0.1 uF

X7R 16 V

AZ5725-01F.R7G

5 V 0.001 A

R52

NI

0 ohm

LITE-ON TECHN OLOGY CORP.

Title

Size Document Number Rev

Size Document Num ber Rev

C

Date: Sheet of

3VD51203-H7JJ-7H

D31

AZ5725-01F.R7G

5 V 0.001 A

NI

HDMI1

1

D2+

2

D2 SHIELD

3

D2-

4

D1+

5

D1 SHIELD

6

D1-

7

D0+

8

D0 SHIELD

9

D0-

10

CK+

11

CK SHIELD

12

CK-

13

CE REMOTE

14

RESERVED/NC

15

SCL

16

SDA

17

DDC/CEC GND

18

+5V

19

HP DET

AHDM0042-P001A11

AU 15uin R

27. DP1/HDMI1

MC 11 7

X1

SHELL1

X2

SHELL2

X3

SHELL3

X4

SHELL4

X1

SHELL1

X2

SHELL2

X3

SHELL3

X4

SHELL4

27 58Wednesday, December 28, 2016

1

27 58Wednesday, December 28, 2016

X03

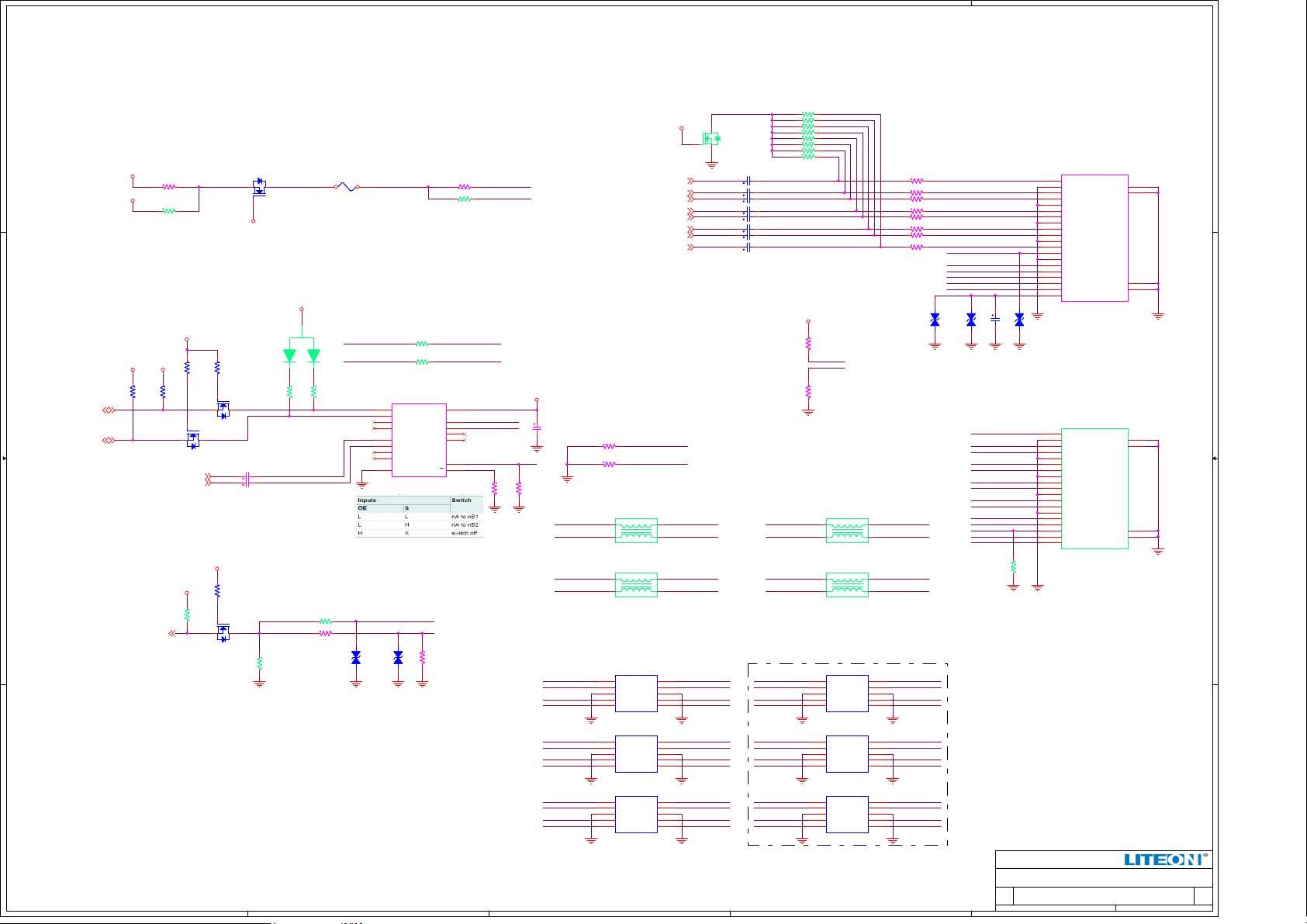

5

4

3

2

1

D D

A:DP

B:HDMI

+3V3

R206 0 ohmNIR206 0 ohmN I

+5V

R23 0 ohmIR23 0 ohmI

C C

+3V3 +3V3

R236

I

2.2K ohm

DP2_DDC_SCL[16]

DP2_DDC_SDA[16]

B B

A A

2.2K ohm

DP2_HPD[16]

5

+3V3

R241

R213

I

0 ohm

Q23_G Q10_G

R232

I

2.2K ohm

DDI3_AUXP[7] DDI3_AUXN[7]

S

MOSFET-N

25 V 0.5 A

25 V 0.5 A [email protected]

[email protected]

+3V3

I

G

I

1

Q23

R221

1M ohm

G

I

1

Q10

S

MOSFET-N

25 V 0.5 A

25 V 0.5 A [email protected]

[email protected]

23

D

C139 NI 0.1 uF X7R 16 VC139 NI 0.1 uF X7R 16 V C138 NI 0.1 uF X7R 16 VC138 NI 0.1 uF X7R 16 V

+5V

R222

I

10K ohm

Q9_G

G

1

I

S

Q9

Q9 MOSFET-N

MOSFET-N

25 V 0.5 A

25 V 0.5 A [email protected]

[email protected]

D

S

D

S

Q1

F_DP2_PWRDDI2_PWR F1_2

23

I

1

G

PM606BA

30V 5 A

mohm@10V

17

+12V

I

23

D

23

D

R165

I

20K ohm

+5V

1

D46_1

R249

2.2K ohm

R86 0 ohmIR86 0 ohmI

R47 0 ohmN IR47 0 ohmNI

3

I

D46

D46 BAT54A

BAT54A

30 V

0.2 A

2

D46_2

R243

I

2.2K ohm

Q_DP2_DDC_SCL Q_DP2_DDC_SDA

DDI3_AUXP_C DDI3_AUXN_C

I

1.1 A6 VF1I

1.1 A6 V

1 2

Q_DP2_DDC_SCL

Q_DP2_DDC_SDA

I

MF-NSMF110-2

3

6 10 13

2

5 11 14

8

D17

I

AZ5725-01F.R7G

5 V 0.001 A

ESD Near to DP2

4

R131 0 ohmIR 131 0 ohmI

R91 0 ohmIR91 0 ohmI

NI

U32

1B2 2B2 3B2 4B2

1B1 2B1 3B1 4B1

GND

CBT3257ADS

HDMI2_HPDG_DP2_HPD

R_DP2_HPD

D14

NI

AZ5725-01F.R7G

5 V 0.001 A

VCC

R49

100K ohm

R75 0 ohmNIR75 0 ohmNIF1

R41 0 ohmIR41 0 ohmI

1A 2A 3A 4A

S E

S_DP2_AUXP

R_DP2_DDC_SDA

16

S_DP2_AUXP

4

S_DP2_AUXN

7 9 12

DP2_DETEC

1

DP2_E#

15

NI

DP2_PWR

R_DP2_HPD

R237

NI

2.2K ohm

DDI3_TX0_P[7]

DDI3_TX0_N[7] DDI3_TX1_P[7]

DDI3_TX1_N[7] DDI3_TX2_P[7]

DDI3_TX2_N[7] DDI3_TX3_P[7]

DDI3_TX3_N[7]

+5V

C140

NI

0.1 uF

X7R 16 V

R80 0 ohmN IR80 0 ohmNI

R92 0 ohmN IR92 0 ohmNI

R162

1M ohm

DDI3_TX0_P_C

DDI3_TX0_N_C

DDI3_TX1_P_C

DDI3_TX1_N_C

DDI3_TX0_P_C_R DDI3_TX0_P_C_R DDI3_TX0_N_C_R

DDI3_TX1_P_C_R DDI3_TX1_P_C_R DDI3_TX1_N_C_R

DDI3_TX2_P_C_R DDI3_TX2_P_C_R

DDI3_TX3_P_C_R DDI3_TX3_N_C_R

S_DP2_AUXN S_DP2_AUXP

R_DP2_DDC_SDA DP2_DETEC DP2_DETEC

HDMI2_HPD

R_DP2_DDC_SDA

I

L10

0.3 ohm 0.4 A

L10

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

I

L8

0.3 ohm 0.4 A

L8

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

I

U5

1

I/O1

NC1

2

I/O2

NC2

3

GND

GND1

4

I/O3

NC3

I/O45NC4

5.5 V

I

U4

1

I/O1

NC1

2

I/O2

NC2

3

GND

GND1

4

I/O3

NC3

I/O45NC4

5.5 V

I

U25

1

I/O1

NC1

2

I/O2

NC2

3

GND

GND1

4

I/O3

NC3

I/O45NC4

5.5 V

3

43

10 9 8 7 6

+5V

G

1

DDI3_TX0_P_C_R

DDI3_TX0_N_C_R

DDI3_TX1_P_C_R

DDI3_TX0_N_C_R

DDI3_TX1_N_C_R

DDI3_TX2_N_C_RDDI3_T X2_N_C_R

DDI3_TX3_P_C_R DDI3_TX3_N_C_R

S_DP2_AUXN S_DP2_AUXP

P0V0S_HDMI2

D

I

23

Q22

Q22 NX7002AK

NX7002AK

60 V

-0.3 A

S

[email protected]

C141 I 0.1 uF X7R 16 VC 141 I 0.1 uF X7R 16 V

C142 I 0.1 uF X7R 16 VC 142 I 0.1 uF X7R 16 V C115 I 0.1 uF X7R 16 VC 115 I 0.1 uF X7R 16 V

C116 I 0.1 uF X7R 16 VC 116 I 0.1 uF X7R 16 V C135 I 0.1 uF X7R 16 VC 135 I 0.1 uF X7R 16 V

C136 I 0.1 uF X7R 16 VC 136 I 0.1 uF X7R 16 V C108 I 0.1 uF X7R 16 VC 108 I 0.1 uF X7R 16 V

C109 I 0.1 uF X7R 16 VC109 I 0.1 uF X7R 16 V

R184 I 470 ohmR184 I 470 ohm R183 I 470 ohmR183 I 470 ohm R223 I 470 ohmR223 I 470 ohm R224 I 470 ohmR224 I 470 ohm R193 I 470 ohmR193 I 470 ohm R192 I 470 ohmR192 I 470 ohm R227 I 470 ohmR227 I 470 ohm R226 I 470 ohmR226 I 470 ohm

DDI3_TX0_P_C

DDI3_TX0_N_C DDI3_TX1_P_C

DDI3_TX1_N_C DDI3_TX2_P_C

DDI3_TX2_N_C DDI3_TX3_P_C

DDI3_TX3_N_C

+3V3

R103

NI

100K ohm

S_DP2_AUXN S_DP2_AUXP

R132

NI

100K ohm

I

L11

0.3 ohm 0.4 A

L11

DDI3_TX2_P_C

DDI3_TX2_N_C

DDI3_TX3_P_C

DDI3_TX3_N_C

ESD for back up used

DDI3_TX0_P_C_R DDI3_TX0_P_C_R DDI3_TX0_N_C_R

DDI3_TX1_P_C_R DDI3_TX1_N_C_R

DDI3_TX2_P_C_R DDI3_TX2_P_C_R

DDI3_TX3_P_C_R DDI3_TX3_N_C_R

S_DP2_AUXN S_DP2_AUXP

R_DP2_DDC_SDA DP2_DETEC DP2_DETEC

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

I

L9

0.3 ohm 0.4 A

L9

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

NI

U14

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

NI

U13

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

NI

U9

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

GND1

2

NC1 NC2

NC3

NC1 NC2

NC3

NC1 NC2

NC3

R122 0 ohmNIR122 0 ohmNI

R123 0 ohmNIR123 0 ohmNI R128 0 ohmNIR128 0 ohmNI

R129 0 ohmNIR129 0 ohmNI R126 0 ohmNIR126 0 ohmNI

R127 0 ohmNIR127 0 ohmNI R124 0 ohmNIR124 0 ohmNI

R125 0 ohmNIR125 0 ohmNI

DDI3_TX2_P_C_R

DDI3_TX2_N_C_R

43

DDI3_TX3_P_C_R

DDI3_TX3_N_C_RDDI3_TX1_N_C_R

43

10 9 8 7 6

DDI3_TX0_N_C_R

DDI3_TX1_P_C_R DDI3_TX1_N_C_R

DDI3_TX2_N_C_RDDI3_T X2_N_C_R

DDI3_TX3_P_C_R DDI3_TX3_N_C_R

S_DP2_AUXN S_DP2_AUXP

R_DP2_DDC_SDAR_DP2_DDC_SDA

DDI3_TX0_P_C_R

DDI3_TX0_N_C_R DDI3_TX1_P_C_R

DDI3_TX1_N_C_R DDI3_TX2_P_C_R

DDI3_TX2_N_C_R DDI3_TX3_P_C_R

DDI3_TX3_N_C_R DP2_DETEC

S_DP2_AUXP R_DP2_DDC_SDA S_DP2_AUXN R_DP2_HPD HDMI2_HPD DP2_PWR

D131

D18

I

I 5 V

5 V

0.001 A

AZ5725-01F.R7G

DDI3_TX0_P_C_R

DDI3_TX0_N_C_R DDI3_TX1_P_C_R

DDI3_TX1_N_C_R DDI3_TX2_P_C_R

DDI3_TX2_N_C_R DDI3_TX3_P_C_R

DDI3_TX3_N_C_R DP2_DETEC

S_DP2_AUXP R_DP2_DDC_SDA S_DP2_AUXN R_DP2_HPD HDMI2_HPD

NI

DP2

1

ML_LANE0P

2

GND

3

ML_LANE0N

4

ML_LANE1P

5

GND

6

ML_LANE1N

7

ML_LANE2P

8

GND

9

ML_LANE2N

10

ML_LANE3P

11

GND

12

ML_LANE3N

13

GND

14

GND

15

AUX_CHP

16

GND

17

AUX_CHN

18

HP DETECT

19

RETURN

20

DP_PWR

3VD51203-H7JJ-7H

D36

C53

I

0.1 uF

X7R 16 V

AZ5725-01F.R7G

5 V 0.001 A

I

HDMI2

1

D2+

2

D2 SHIELD

3

D2-

4

D1+

5

D1 SHIELD

6

D1-

7

D0+

8

D0 SHIELD

9

D0-

10

CK+

11

CK SHIELD

12

CK-

13

CE REMOTE

14

RESERVED/NC

15

SCL

16

SDA

17

DDC/CEC GND

18

+5V

19

HP DET

AHDM0042-P001A11

AU 15uin R

R96

I

0 ohm

LITE-ON TECHNOLOGY CORP.

Title

Size Document Number Rev

C

Date: Sheet of

AU 15uin R

28. DP2/HDMI2

MC117

X1

SHELL1

X2

SHELL2

X3

SHELL3

X4

SHELL4

X1

SHELL1

X2

SHELL2

X3

SHELL3

X4

SHELL4

28 58Wednesday, December 28, 2016

1

28 58Wednesday, December 28, 2016

X03

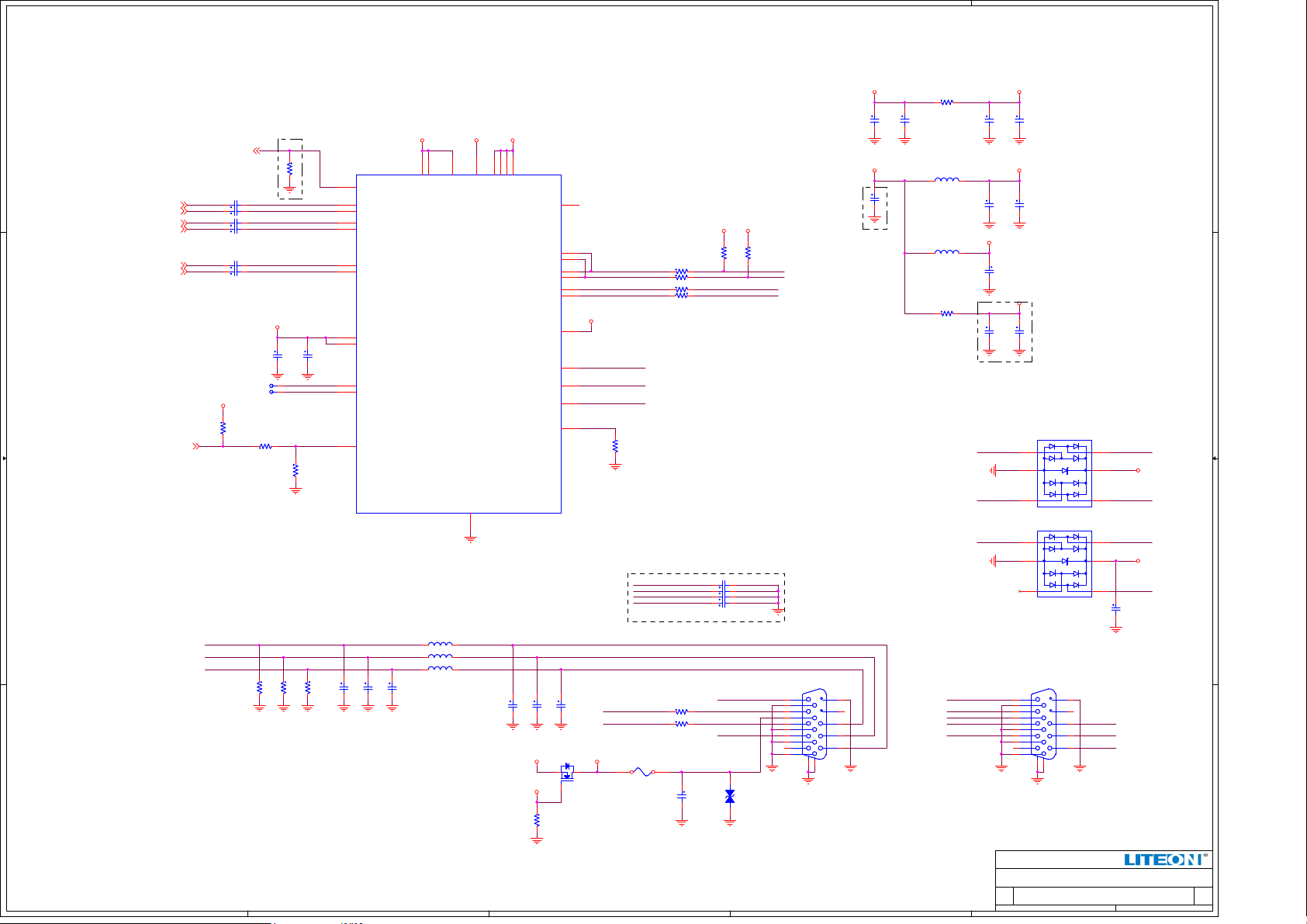

5

4

DP to VGA - Bridge IT6516B

3

2

1

+3V3 +3V3_VGA

C97

I

0603

I

D D

VGA_HPD[16]

DDI1_TX0_P[7] DDI1_TX0_N[7]

DDI1_TX1_P[7] DDI1_TX1_N[7]

DDI1_AUXP[7] DDI1_AUXN[7]

C C

VGA_DOS_HOT_PLUG#[16]

B B

C152 0.1 uF 16 VI X7RC152 0.1 uF 16 VI X7R C153 0.1 uF 16 VI X7RC153 0.1 uF 16 VI X7R

C154 0.1 uF 16 VI X7RC154 0.1 uF 16 VI X7R C155 0.1 uF 16 VI X7RC155 0.1 uF 16 VI X7R

C137 0.1 uF 16 VI X7RC137 0.1 uF 16 VI X7R C126 0.1 uF 16 VI X7RC126 0.1 uF 16 VI X7R

+3V3_VGA

I

R245

10K ohm

R242 I 22 ohm+-1%R242 I 22 ohm+-1%

Near to U42 PIN.26

RX_AVCC

NI

TP8 NITP8 N I TP9 NITP9 N I

R215

I

4.7K ohm

DPD_D_TX0_DP DPD_D_TX0_DN

DPD_D_TX1_DP DPD_D_TX1_DN

DDSP_B_AUX_DP_C DDSP_B_AUX_DN_C

C150

NI

0.1 uF

X5R 16 V

VGA_PCSDA

1

VGA_PCSCL

1

R244

NI

+-1%

NI

+-1%

100K ohm

C151

0.1 uF

X5R 16 V

URDBG

I

U35

26

HPD

18

RX0P

19

RX0N

20

RX1P

21

RX1N

15

RXAUXP

14

RXAUXN

17

AVCC

22

ASPVCC

29

PCSDA

28

PCSCL

24

URDBG

IT6516BFN 0.91

+3V3_VGA

8

32

OVDD_8

OVDD_32

IT6516

IVDDO

RX_IVDD

25

31

30

9

23

IVDD_9

IVDD_1616IVDD_31

IVDD_30

IVDDO_25

IVDD33_23

GND

33

ISPSCL ISPSDA

VGADDCCLK

VGADDCSDA

VSYNC HSYNC

VDDAC

RSET

IORP

IOGP

IOBP

27

NC

+VGA_D+VGA_D

R189

R205

+-1%I

10 11

13 12

1 2

4

7

6

5

3

VSYNC HSYNC

DAC_VDDC

VGA_RED_P

VGA_GREEN_P

VGA_BLUE_P

RSET_V

VGA_DDC_CLK_R VGA_DDC_DATA_R

R157

I

+-1%

I

+-1%

200 ohm

R204 33 ohmIR204 33 ohmI R190 33 ohmIR190 33 ohmI

R258 0 ohmIR 258 0 ohmI R234 0 ohmIR 234 0 ohmI

VGA_VSYNC_R VGA_HSYNC_R VGA_SDA VGA_SCL

+-1%I

2.2K ohm

VGA_SCL VGA_SDA

VGA_VSYNC VGA_HSYNC

C86 NI 100 pF NPO 50 VC 86 NI 100 pF NPO 50 V C85 NI 100 pF NPO 50 VC 85 NI 100 pF NPO 50 V C84 NI 100 pF NPO 50 VC 84 NI 100 pF NPO 50 V C87 NI 100 pF NPO 50 VC 87 NI 100 pF NPO 50 V

0603

10 uF

X5R

6.3 V

X5R

6.3 V

IVDDO

C143

603

I

0

I

0

10 uF

6.3 V

X5R

Near to U42 PIN.25

EMC

0603

I

C83

2.2 pF

NP0 50 V

I

C94

2.2 pF

NP0 50 V

0603 FB2

FB2 0603

0603 FB3

FB3 0603

0603 FB7

FB7

VGA_RED_P

VGA_GREEN_P

VGA_BLUE_P

A A

R93

75 ohm

R102

+-1%I

75 ohm

R164

75 ohm

C60

I

+-1%I

2.2 pF

NP0 50 V

1 2

+-25%0.2 ohm0.6 AI

+-25%0.2 ohm0.6 AI 22ohm@100MHz

22ohm@100MHz +-25%0.2 ohm0.6 AI

+-25%0.2 ohm0.6 AI 22ohm@100MHz

22ohm@100MHz +-25%0.2 ohm0.6 AI

+-25%0.2 ohm0.6 AI 22ohm@100MHz

22ohm@100MHz

I

C61

2.2 pF

NP0 50 V

I

+5V

+12V

I

C81

2.2 pF

NP0 50 V

R235

100K ohm

S

I

C95

2.2 pF

NP0 50 V

I

1

G

RED

GREEN

BLUE

VGA_VSYNC VGA_VSYNC_R

VGA_HSYNC VGA_HSYNC_R

+VGA_D

D

23

Q21

Q21 PM606BA

PM606BA

17mohm@10V

30V5 A

20mil

F3

1 2

MF-NSMF110-2

R228 I 33 ohm+-1%R228 I 33 ohm+-1%

R229 I 33 ohm+-1%R229 I 33 ohm+-1%

1.1 A6 VI

+VGA_FUSE

C56

I

0.1 uF

X7R

X7R 16 V

16 V

VGA_SCL

VGA_SDA

D22

I

AZ5725-01F.R7G

0.001 A

NI

VGA

SCL

GND

SCL

GND

15

GND

10

VSYNC

14

NC

9

HSYNC

13

GND

8

SDA

12

GND

7

ID1

11

GND

6

5

ID0

4

B

3

G

2

R

1

D-SUB_HD

16

17

VGA

R156 0 ohm

C96

I

0.1 uF

X5R 16 V

FB15

60ohm@100MHz +-25%P

FB16

60ohm@100MHz +-25%P

R186 0 ohm

0603

IR156 0 ohm

I

I0603

0603

IR186 0 ohm

I

C98

C100

I

0603

I

0603

I

10 uF

0.1 uF

X5R

6.3 V

X5R

6.3 V

X5R 16 V

0.2 ohm1 A

VGA_SCL

VGA_VSYNC_R +VGA_FUSE VGA_HSYNC_R BLUE

DAC_VDDC

12

C101

C99

I

0603

I

0603

I

4.7 uF

0.1 uF

X5R

10 V

X5R

10 V

X5R 16 V

RX_AVCC

12

C156

I

0.1 uF

X5R 16 V

RX_IVDD

C123

C144

I

NI

0.1 uF

X5R 16 V

Near to U42 PIN.9,16,30,31

1

2

VGA_SDA

3 4

AZC199-04S.R7G 5 V

CK00066501W0-R

1

2

3 4

AZC199-04S.R7G 5 V

CK00066501W0-R

I

VGA_COM1B

VGA

SCL

L15

GND

L10

VSYNC

L14

NC

L9

HSYNC

L13

GND

L8

SDA

L12

GND

L7

ID1

L11

GND

L6

I

U86

0.015 A

I

U66

.015 A

0

GND

ID0

B

G

R

CONN_COM-VGA_24P

VGA 15P+ 9P COM/M

X3

X4

VGA_SCLVGA_HSYNC_R

6

5

+VGA_D

VGA_VSYNC_R

GREENBLUE

6

5

+VGA_D

RED

C758

NI

0.1 uF

X5R 16 V

L5

L4

L3

GREENVGA_SDA

L2

RED

L1

LITE-ON TECHNOLOGY CORP.

Title

29. DP to VGA(IT6516B)

ize Document Number Rev

Size Document Number Rev

S

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

29 58Wednesday, December 28, 2016

X03

5

teknisi indonesia

4

3

2

1

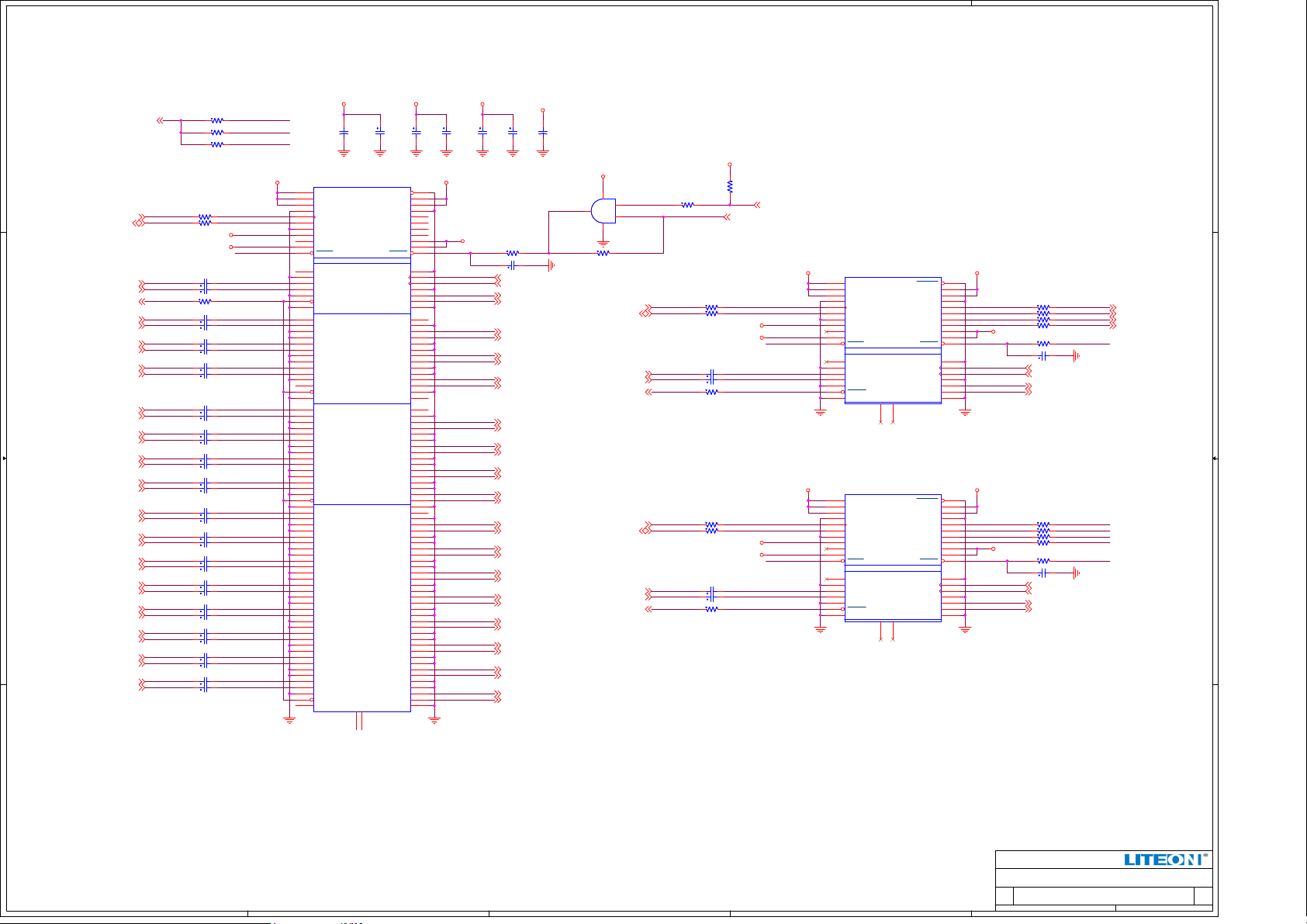

PCIE X16

+12V +3V3 +3V3_S5

+3V3_S5

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

X7R 10 V X7R 10 V

X7R 10 V

+3V3

PCIEX16_WAKE#

PCIE1_WAKE#

PCIE2_WAKE#

+12V +12V

SMBCLK_PCIEX16 SMBDATA_PCIEX16

PCIEX16_WAKE#

PEG_TXP_0_C PEG_TXN_0_C

PCIEX16_PRSNT_R

PEG_TXP_1_C PEG_TXN_1_C

PEG_TXP_2_C PEG_TXN_2_C

PEG_TXP_3_C PEG_TXN_3_C

PEG_TXP_4_C PEG_TXN_4_C

PEG_TXP_5_C PEG_TXN_5_C

PEG_TXP_6_C PEG_TXN_6_C

PEG_TXP_7_C PEG_TXN_7_C

PEG_TXP_8_C PEG_TXN_8_C

PEG_TXP_9_C PEG_TXN_9_C

PEG_TXP_10_C PEG_TXN_10_C

PEG_TXP_11_C PEG_TXN_11_C

PEG_TXP_12_C PEG_TXN_12_C

PEG_TXP_13_C PEG_TXN_13_C

PEG_TXP_14_C PEG_TXN_14_C

PEG_TXP_15_C PEG_TXN_15_C

B10 B11

B12 B13 B14 B15 B16 B17 B18

B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 B82

B1 B2 B3 B4 B5 B6 B7 B8 B9

PCIE16X

+12V_1 +12V_2 +12V_3 GND1 SMCLK SMDAT GND2 +3.3V_1 TRST#

3.3VAUX WAKE

RSVD2 GND3 PETp0 PETn0 GND4 PRSNT2#_1 GND5

PETp1 PETn1 GND6 GND7 PETp2 PETn2 GND8 GND9 PETp3 PETn3 GND10 RSVD3 PRSNT2#_2 GND11

PETp4 PETn4 GND12 GND13 PETp5 PETn5 GND14 GND15 PETp6 PETn6 GND16 GND17 PETp7 PETn7 GND18 PRSNT2#_3 GND19 PETp8 PETn8 GND20 GND21 PETp9 PETn9 GND22 GND23 PETp10 PETn10 GND24 GND25 PETp11 PETn11 GND26 GND27 PETp12 PETn12 GND28 GND29 PETp13 PETn13 GND30 GND31 PETp14 PETn14 GND32 GND33 PETp15 PETn15 GND34 PRSNT2#_4 RSVD4

EC7

+

I

470 uF

375 mA16 V

GKAMC47710TEC-R

MECH. KEY

0.5 ohm

HOLD1X1HOLD2

X2

C456

0.1 uF

16 VIX7R

PRSNT1#

+12V_4 +12V_5 GND35

TCK

TDI TDO TMS

+3.3V_2 +3.3V_3

PERST

GND36 REFCLK+ REFCLK-

GND37

PERp0 PERn0

GND38

RSVD5

GND39

PERp1

PERn1 GND40 GND41

PERp2

PERn2 GND42 GND43

PERp3

PERn3 GND44 RSVD6

RSVD7 GND45

PERp4

PERn4 GND46 GND47

PERp5

PERn5 GND48 GND49

PERp6

PERn6 GND50 GND51

PERp7

PERn7 GND52 RSVD8 GND53

PERp8

PERn8 GND54 GND55

PERp9

PERn9 GND56 GND57

PERp10 PERn10

GND58 GND59

PERp11 PERn11

GND60 GND61

PERp12 PERn12

GND62 GND63

PERp13 PERn13

GND64 GND65

PERp14 PERn14

GND66 GND67

PERp15 PERn15

GND68

CARD EDGE_HE

PCI

PCI I

I

C467

C458

C224

0.1 uF

16 VIX7R

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11

A12 A13 A14 A15 A16 A17 A18

A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32

A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 A69 A70 A71 A72 A73 A74 A75 A76 A77 A78 A79 A80 A81 A82

PCIERST#_R

+3V3

R459 33 ohmIR459 33 ohmI

C247 I 10 pF

D D

C C

B B

PCIE_WAKE#[15,31,35]

SMBCLK[15,31,32,46] SMBDATA[15,31, 32,46]

PEG_TXP0[7] PEG_TXN0[7]

PCIEX16_PRSNT[17]

PEG_TXP1[7] PEG_TXN1[7]

PEG_TXP2[7] PEG_TXN2[7]

PEG_TXP3[7] PEG_TXN3[7]

PEG_TXP4[7] PEG_TXN4[7]

PEG_TXP5[7] PEG_TXN5[7]

PEG_TXP6[7] PEG_TXN6[7]

PEG_TXP7[7] PEG_TXN7[7]

PEG_TXP8[7] PEG_TXN8[7]

PEG_TXP9[7] PEG_TXN9[7]

PEG_TXP10[7] PEG_TXN10[7]

PEG_TXP11[7] PEG_TXN11[7]

PEG_TXP12[7] PEG_TXN12[7]

PEG_TXP13[7] PEG_TXN13[7]

PEG_TXP14[7] PEG_TXN14[7]

PEG_TXP15[7] PEG_TXN15[7]

R416 0 ohmIR416 0 ohmI

R413 0 ohmIR413 0 ohmI

R407 0 ohmIR407 0 ohmI

R361 0 ohmIR361 0 ohmI R365 0 ohmIR365 0 ohmI

C245 I 0.22 uF

C245 I 0.22 uF C240 I 0.22 uF

C240 I 0.22 uF

R757 0 ohmIR757 0 ohmI

C254 I 0.22 uF

C254 I 0.22 uF C260 I 0.22 uF

C260 I 0.22 uF

C267 I 0.22 uF

C267 I 0.22 uF C272 I 0.22 uF

C272 I 0.22 uF

C285 I 0.22 uF

C285 I 0.22 uF C294 I 0.22 uF

C294 I 0.22 uF

C305 I 0.22 uF

C305 I 0.22 uF C309 I 0.22 uF

C309 I 0.22 uF

C316 I 0.22 uF

C316 I 0.22 uF C320 I 0.22 uF

C320 I 0.22 uF

C329 I 0.22 uF

C329 I 0.22 uF C333 I 0.22 uF

C333 I 0.22 uF

C344 I 0.22 uF

C344 I 0.22 uF C352 I 0.22 uF

C352 I 0.22 uF

C365 I 0.22 uF

C365 I 0.22 uF C369 I 0.22 uF

C369 I 0.22 uF

C389 I 0.22 uF

C389 I 0.22 uF C397 I 0.22 uF

C397 I 0.22 uF

C405 I 0.22 uF

C405 I 0.22 uF C406 I 0.22 uF

C406 I 0.22 uF

C408 I 0.22 uF

C408 I 0.22 uF C409 I 0.22 uF

C409 I 0.22 uF

C413 I 0.22 uF

C413 I 0.22 uF C417 I 0.22 uF

C417 I 0.22 uF

C422 I 0.22 uF

C422 I 0.22 uF C428 I 0.22 uF

C428 I 0.22 uF

C435 I 0.22 uF

C435 I 0.22 uF C437 I 0.22 uF

C437 I 0.22 uF

C445 I 0.22 uF

C445 I 0.22 uF C451 I 0.22 uF

C451 I 0.22 uF

C457

0.1 uF

16 VIX7R

CLK_100M_0P [17] CLK_100M_0N [17]

PEG_RXP0 [7] PEG_RXN0 [7]

PEG_RXP1 [7] PEG_RXN1 [7]

PEG_RXP2 [7] PEG_RXN2 [7]

PEG_RXP3 [7] PEG_RXN3 [7]

PEG_RXP4 [7] PEG_RXN4 [7]

PEG_RXP5 [7] PEG_RXN5 [7]

PEG_RXP6 [7] PEG_RXN6 [7]

PEG_RXP7 [7] PEG_RXN7 [7]

PEG_RXP8 [7] PEG_RXN8 [7]

PEG_RXP9 [7] PEG_RXN9 [7]

PEG_RXP10 [7] PEG_RXN10 [7]

PEG_RXP11 [7] PEG_RXN11 [7]

PEG_RXP12 [7] PEG_RXN12 [7]

PEG_RXP13 [7] PEG_RXN13 [7]

PEG_RXP14 [7] PEG_RXN14 [7]

PEG_RXP15 [7] PEG_RXN15 [7]

16 VIX7R

NPO 50 V

+3V3

EC10

+

I

470 uF

950 mA16 V

0.056 ohm

PCIERST#_C

4

R483 0 ohmNIR483 0 ohmN I

+3V3

U43

53

I 74LVC1G08

1

2

SMBCLK[15,31,32,46] SMBDATA[15,31, 32,46]

PCIE7_TXP[ 14] PCIE7_TXN[14]

PCIE1_PRSNT#[ 17]

SMBCLK[15,31,32,46] SMBDATA[15,31, 32,46]

PCIE8_TXP[14] PCIE8_TXN[14]

PCIE2_PRSNT#[17]

U77_1

R491 0 ohmIR 491 0 ohmI

R379 0 ohmIR379 0 ohmI R370 0 ohmIR370 0 ohmI

C232 0.22 uF X5R 6.3 VIC232 0.22 uF X5R 6.3 VI C235 0.22 uF X5R 6.3 VIC235 0.22 uF X5R 6.3 VI

R457 0 ohmIR457 0 ohmI

R368 0 ohmIR368 0 ohmI R373 0 ohmIR373 0 ohmI

C237 0.22 uF X5R 6.3 VIC237 0.22 uF X5R 6.3 VI C243 0.22 uF X5R 6.3 VIC243 0.22 uF X5R 6.3 VI

R458 0 ohmIR458 0 ohmI

+3V3_S5

I

R475

10K ohm

PCH_GPIO_F22 [16]

PCIERST# [31,35]

SMBCLK_PCIEX1 SMBDATA_PCIEX1

+3V3

+3V3_S5

PCIE1_WAKE#

PE7_TX_C PE7_TX#_C

PCIE1_PRSNT_R

SMBCLK_PCIEX2 SMBDATA_PCIEX2

+3V3

+3V3_S5

PCIE2_WAKE#

PE8_TX_C PE8_TX#_C

PCIE2_PRSNT_R

+12V +12V

PCIE X1

I

PCIE1X_2

B1

+12V_1

B2

+12V_2

B3

+12V_3

B4

GND1

B5

SMCLK

B6

SMDAT

B7

GND2

B8

+3.3V_1

B9

TRST#

B10

3.3VAUX

B11

WAKE

B12

RSVD2

B13

GND3

B14

PETp0

B15

PETn0

B16

GND4

B17

PRSNT2

B18

GND5

PCIE X1

I

PCIE1X_1

B1

+12V_1

B2

+12V_2

B3

+12V_3

B4

GND1

B5

SMCLK

B6

SMDAT

B7

GND2

B8

+3.3V_1

B9

TRST#

B10

3.3VAUX

B11

WAKE

B12

RSVD2

B13

GND3

B14

PETp0

B15

PETn0

B16

GND4

B17

PRSNT2

B18

GND5

MECH. KEY

HOLD1X1HOLD2

MECH. KEY

HOLD1X1HOLD2

PRSNT1

+12V_4 +12V_5

GND6

+3.3V_2 +3.3V_3

PERST

GND7

REFCLK+

REFCLK-

GND8 PERp0 PERn0

GND9

2EG01817-72D-DF

X2

PCIe x1

PRSNT1

+12V_4 +12V_5

GND6

+3.3V_2 +3.3V_3

PERST

GND7

REFCLK+

REFCLK-

GND8 PERp0 PERn0

GND9

2EG01817-72D-DF

PCIe x1

X2

A1 A2 A3 A4 A5

TCK

A6

TDI

A7

TDO

A8

TMS

A9 A10 A11

A12 A13 A14 A15 A16 A17 A18

A1 A2 A3 A4 A5

TCK

A6

TDI

A7

TDO

A8

TMS

A9 A10 A11

A12 A13 A14 A15 A16 A17 A18

PCIE1_PSIN#

R393 NI 0 ohmR 393 NI 0 ohm

PCIE1_DET#

R387 NI 0 ohmR 387 NI 0 ohm

PCIE1_SEL#

R406 NI 0 ohmR 406 NI 0 ohm

PCIE1_SLP_S3#

R399 NI 0 ohmR 399 NI 0 ohm

+3V3

R408 33 ohmIR408 33 ohmI

C223 I 10 pF

PCIE2_PSIN# PSIN#

R388 NI 0 ohmR 388 NI 0 ohm

PCIE2_DET# OE#

R380 NI 0 ohmR 380 NI 0 ohm

PCIE2_SEL#

R398 NI 0 ohmR 398 NI 0 ohm

PCIE2_SLP_S3# SLP_S3#

R394 NI 0 ohmR 394 NI 0 ohm

+3V3

R444 33 ohmIR444 33 ohmI

C244 I 10 pF

PCIERST#_CPCIERST#_1

NPO 50 V

CLK_100M_7P [17] CLK_100M_7N [17]

PCIE7_RXP [14] PCIE7_RXN [14]

PCIERST#_CPCIERST#_2

NPO 50 V

CLK_100M_8P [17] CLK_100M_8N [17]

PCIE8_RXP [14] PCIE8_RXN [14]

PSIN# OE# SEL# SLP_S3#

SEL#

PSIN# [35,41,44] OE# [16] SEL# [13] SLP_S3# [15,22,35,45,46,54]

A A

LITE-ON TECHNOLOGY CORP.

Title

30. PCIe X16 / X1 SLOT

ze Document Number Rev

Size Document Number Rev

Si

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

30 58Wednesday, December 28, 2016

X03

5

Vinafix.com

4

3

2

1

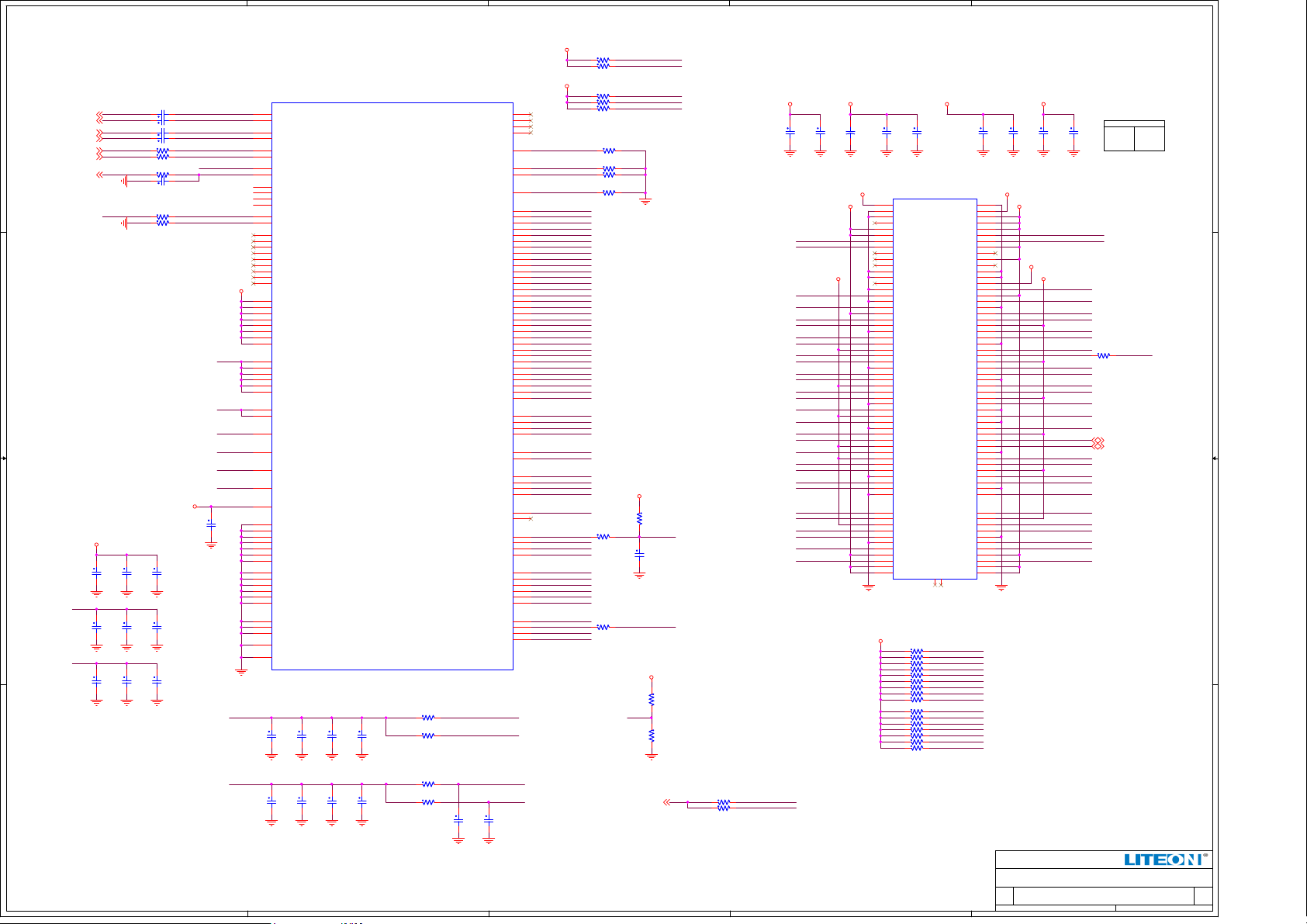

+3V3_S5

R583 10K ohmNIR583 10K ohmNI R597 10K ohmNIR597 10K ohmNI

+3V3

I

U44

+3V3

LDO_1_8V

LDO_AUX_1_8V

117

104 126

118 119 120 121 127 128

110 123

112 125

111 124

113

21 20

17 18

10

9

1

27 26 29 28

32 24 25

35 47 57 72 84 94

23 41 78 96

11 12

19

7

5

59

4

36 48 58 73 95

22 42 60 79 97

13 14 15

6

3

I 0603

U44

DOP DON

DIP DIN

CLKP CLKN

WAKE# PERST#

EECLK EECS# EERDDATA EEWRDATA

PCICLK0 PCICLK_SEL

SEG_A SEG_B SEG_C SEG_D SEG_E/GP0 SEG_F/GP1 SEG_G SEG_EN1/GP3 SEG_EN2/GP4

VCCP_1 VCCP_2 VCCP_3 VCCP_4 VCCP_5 VCCP_6 VCCP_7 VCCP_8

VCCK_1 VCCK_2 VCCK_3 VCCK_4 VCCK_5 VCCK_6

VCC18A_1 VCC18A_2

VCC18A_AUX

VCCK_AUX

LDOAUX_18V

LDO_18V

VCCP_AUX

GNDP_1 GNDP_2 GNDP_3 GNDP_7 GNDP_5 GNDP_4 GNDP_6

VSS_1 VSS_2 VSS VSS_3 VSS_4 VSS_5

GNDA_1 GNDA_2 GNDA_3

VSS_AUX

GNDP_AUX

IT8893E

F

C284

10 uF

X5R 6.3 V

C338

10 uF

X5R 6.3 V

I

C286

1 uF

X5R 6.3 V

C336

1 uF

X5R 6.3 V

C323

0.1 uF

C335

0.1 uF

8

NC

93

NC2

106

NC3

114

NC4

90

TEST_EN

91

RST_SEL

16

RREF

92

EXT_ARB

30

AD0

31

AD1

33

AD2

34

AD3

37

AD4

38

AD5

39

AD6

40

AD7

43

AD8

44

AD9

45

AD10

50

AD11

51

AD12

52

AD13

53

AD14

54

AD15

74

AD16

75

AD17

76

AD18

77

AD19

80

AD20

81

AD21

82

AD22

83

AD23

85

AD24

86

AD25

88

AD26

89

AD27

98

AD28

99

AD29

100

AD30

101

AD31

46

CBE0#

49

CBE1#

69

CBE2#

87

CBE3#

62

LOCK#

70

IR D Y#

65

IN T A #

63

IN T B #

64

INTC#

116

INTD#

108

GNT0#

103

GNT1#

115

PCIRST#

68

TRDY#

67

STOP#

56

SERR#

105

TP1

109

TP2

107

REQ0#

102

REQ1#

55

PERR#

61

PAR

122

M6 6 E N

2

PME#

71

FRAME#

66

DEVSEL#

0603

R563 I0 ohm

C293

I

0.01 uF

X7R 50 V

16 VIX7R

C337

I

0.01 uF

X7R 50 V

16 VIX7R

4

0603

R562 I0 ohm

0603

R571 I0 ohm

0603

R578 I0 ohm

C332

0.1 uF

1_8VA

1_8VD

1_8V_AUX

1_8V_AUXA

C311

0.1 uF

16 VIX7R

C290

0.1 uF

C321

0.1 uF

C359

0.1 uF

NPO50 V

+3V3_S5

16 VIX7R

PCIE6_RXP_C PCIE6_RXN_C

PCIE6_TXP_C PCIE6_TXN_C

CLK_100M_6P_R CLK_100M_6N_R

PCI_WAKE#_R PCI_PERST#

PCI_CLK0_RPCI_CLK0 PCICLK_SEL

1_8VD

1_8VA

1_8V_AUXA

1_8V_AUX

LDO_AUX_1_8V

LDO_1_8V

C361

0.1 uF

16 VIX7R

+3V3

C287

I 0603

10 uF

X5R 6.3 V

C319

I 0603

10 uF

X5R 6.3 V

C291

I 0603

10 uF

X5R 6.3 V

C308 0.1 uFI X7RC308 0.1 uFI X7R C310 0.1 uFI X7RC310 0.1 uFI X7R

C314 0.1 uFI X7RC314 0.1 uFI X7R C313 0.1 uFI X7RC313 0.1 uFI X7R

R567 0 ohmIR567 0 ohmI

R565 0 ohmIR565 0 ohmI C327 I10 pF

C327 I10 pF

R587 33 ohmIR587 33 ohmI R598 10K ohmIR598 10K ohmI

C289

I

1 uF

X5R 6.3 V

C322

I

1 uF

X5R 6.3 V

C307

I

1 uF

X5R 6.3 V

5

PCIE6_RXP[14] PCIE6_RXN[14]

D D

PCIE6_TXP[14] PCIE6_TXN[ 14]

CLK_100M_6P[17] CLK_100M_6N[17]

PCIERST#[30,35]

C C

B B

1_8VA

1_8VD

A A

R588 8.2K ohmIR588 8.2K ohmI R591 8.2K ohmIR591 8.2K ohmI R586 8.2K ohmIR586 8.2K ohmI

PCI_TEST_EN

R569 10K ohmIR569 10K ohmI

PCI_RST_SEL

R573 10K ohmIR573 10K ohmI

PCI_RREF

R561 12K ohm+-1%IR561 12K ohm+-1%I

PCI_EXT_ARB

R575 10K ohmIR575 10K ohmI

AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD10 AD11 AD12 AD13 AD14 AD15 AD16 AD17 AD18 AD19 AD20 AD21 AD22 AD23 AD24 AD25 AD26 AD27 AD28 AD29 AD30 AD31

C_BE#0 C_BE#1 C_BE#2 C_BE#3

LOCK# IRDY#

PIRQ#A PIRQ#B PIRQ#C PIRQ#D

PGNT#0

PCI_RST# PCIRST#

R592 33 ohmIR592 33 ohmI

TRDY# STOP# SERR#

PCI_TP1 PCI_TP2 PREQ#0 PREQ#1 PERR# PAR

M66EN PCI_PME#_R PCI_PME#

R584 0 ohmIR584 0 ohmI

FRAME# DEVSEL#

PCI_PME#_R PCI_WAKE#_R

PCI_TP1 PCI_TP2 PREQ#1

+3V3

R585

I

8.2K ohm

C366

NI

22 pF

NPO50 V

+3V3

R595

NI

10K ohm

M66EN

R594

I

0 ohm

PCIE_WAKE#[15,30,35]

3

R599 0 ohmNIR599 0 ohmNI R596 0 ohmIR596 0 ohmI

+12V +3V3

C193

0.1 uF

PIRQ#B PIRQ#D

PCI_CLK0

PREQ#0

AD31 AD29

AD27 AD25

C_BE#3 AD23

AD21 AD19

C_BE#2

IRDY#

DEVSEL#

LOCK# PERR#

SERR#

C_BE#1 AD14

AD12 AD10

AD8 AD7

AD5 AD3

AD1

ACK#64

PCI_WAKE#_R

PCI_PME#

+5V

C418

C416

EC8

+

I

470 uF

950 mA16 V

+5V

2

0.056 ohm

-12V

+3V3

C416

0.1 uF

16 VIX7R

PCI Slot

I

PCI

B1

-12V

B2

TCK

B3

GND1

B4

TDO

B5

+5V1

B6

+5V2

B7

IN T B -

B8

INTD-

B9

PRSNT 1-

B10

RSV_1

B11

PRSNT 2-

B12

GND2

B13

GND3

B14

RSV_2

B15

GND4

B16

CLK

B17

GND5

B18

REQ-

B19

+5V3

B20

AD(31 )

B21

AD(29 )

B22

GND6

B23

AD(27 )

B24

AD(25 )

B25

+3.3V1

B26

C/BE-(3)

B27

AD(23 )

B28

GND7

B29

AD(21 )

B30

AD(19 )

B31

+3.3V2

B32

AD(17 )

B33

C/BE-(2)

B34

GND8

B35

IR D Y-

B36

+3.3V3

B37

DEVSEL-

B38

GND9

B39

LOCK-

B40

PERR-

B41

+3.3V4

B42

SERR-

B43

+3.3V5

B44

C/BE-(1)

B45

AD(14 )

B46

GND10

B47

AD(12 )

B48

AD(10 )

B49

GND11

B50

AD(8)

B51

AD(7)

B52

+3.3V6

B53

AD(5)

B54

AD(3)

B55

GND12

B56

AD(1)

B57

+5V4

B58

ACK64-

B59

+5V5

B60

+5V6

EH06007-7AW-DF

PCI

IDSEL = AD16 MASTER = PREQ#0 PIRQ#A

R522 8.2K ohmIR522 8.2K ohmI R593 8.2K ohmIR593 8.2K ohmI R589 8.2K ohmIR589 8.2K ohmI R558 8.2K ohmIR558 8.2K ohmI R552 8.2K ohmIR552 8.2K ohmI R523 8.2K ohmIR523 8.2K ohmI R525 8.2K ohmIR525 8.2K ohmI R524 8.2K ohmIR524 8.2K ohmI R633 8.2K ohmIR633 8.2K ohmI

R550 8.2K ohmIR550 8.2K ohmI R521 8.2K ohmIR521 8.2K ohmI R590 8.2K ohmIR590 8.2K ohmI R560 8.2K ohmIR560 8.2K ohmI R557 8.2K ohmIR557 8.2K ohmI R554 8.2K ohmIR554 8.2K ohmI R637 8.2K ohmIR637 8.2K ohmI

16 VIX7R

C186

0.1 uF

16 VIX7R

+3V3

C339

0.1 uF

A1

TRST-

A2

+12V

A3

TMS

A4

TDI

A5

+5V7

A6

IN T A -

A7

INTC-

A8

+5V8

A9

RSV_3

A10

+5V9

A11

RSV

A12

GND13

A13

GND14

A14

RSV_4

A15

RESET-

A16

+5V10

A17

GNT-

A18

GND15

A19

RSV_5

A20

AD(30 )

A21

+3.3V7

A22

AD(28 )

A23

AD(26 )

A24

GND16

A25

AD(24 )

A26

ID SE L

A27

+3.3V8

A28

AD(22 )

A29

AD(20 )

A30

GND17

A31

AD(18 )

A32

AD(16 )

A33

+3.3V9

A34

FRAME-

A35

GND18

A36

TRDY-

A37

GND19

A38

STOP-

A39

+3.3V10

A40

SDONE

A41

SBO-

A42

GND20

A43

PAR

A44

AD(15 )

A45

+3.3V11

A46

AD(13 )

A47

AD(11 )

A48

GND21

A49

AD(09 )

A50

C/BE-(0)

A51

+3.3V12

A52

AD(06 )

A53

AD(04 )

A54

GND22

A55

AD(02 )

A56

AD(00 )

A57

+5V11

A58

REQ64-

A59

+5V12

A60

+5V13

X1X1X2

X2

PIRQ#B PIRQ#D PREQ#0 IRDY# DEVSEL# LOCK# PERR# SERR# ACK#64

PIRQ#A PIRQ#C PGNT#0 FRAME# TRDY# STOP# REQ#64

+3V3_S5

+3V3_S5 375mA +3.3V 7.6A +5V 5A +12V 0.5A

16 VIX7R

SMBCLK [15,30,32,46] SMBDATA [15,30,32,46]

1

PCI slot

AD16

31 58Wednesday, December 28, 2016

C351

C325

0.1 uF

16 VIX7R

+12V

+5V

+3V3_S5

LITE-ON TECHN OLOGY CORP.

Title

31. PCI Bridge(IT8893)

Size Document Number Rev

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

C351

C360

0.1 uF

16 VIX7R

16 VIX7RR566 0 ohmIR566 0 ohmI

PIRQ#A PIRQ#C

+3V3

PCIRST#

PGNT#0

PCI_PME# AD30

AD28 AD26

AD24 ID1

R581 22 ohmIR581 22 ohmI

AD22 AD20

AD18 AD16AD17

FRAME#

TRDY#

STOP#

PAR AD15

AD13 AD11

AD9

C_BE#0

AD6 AD4

AD2 AD0

REQ#64

X03

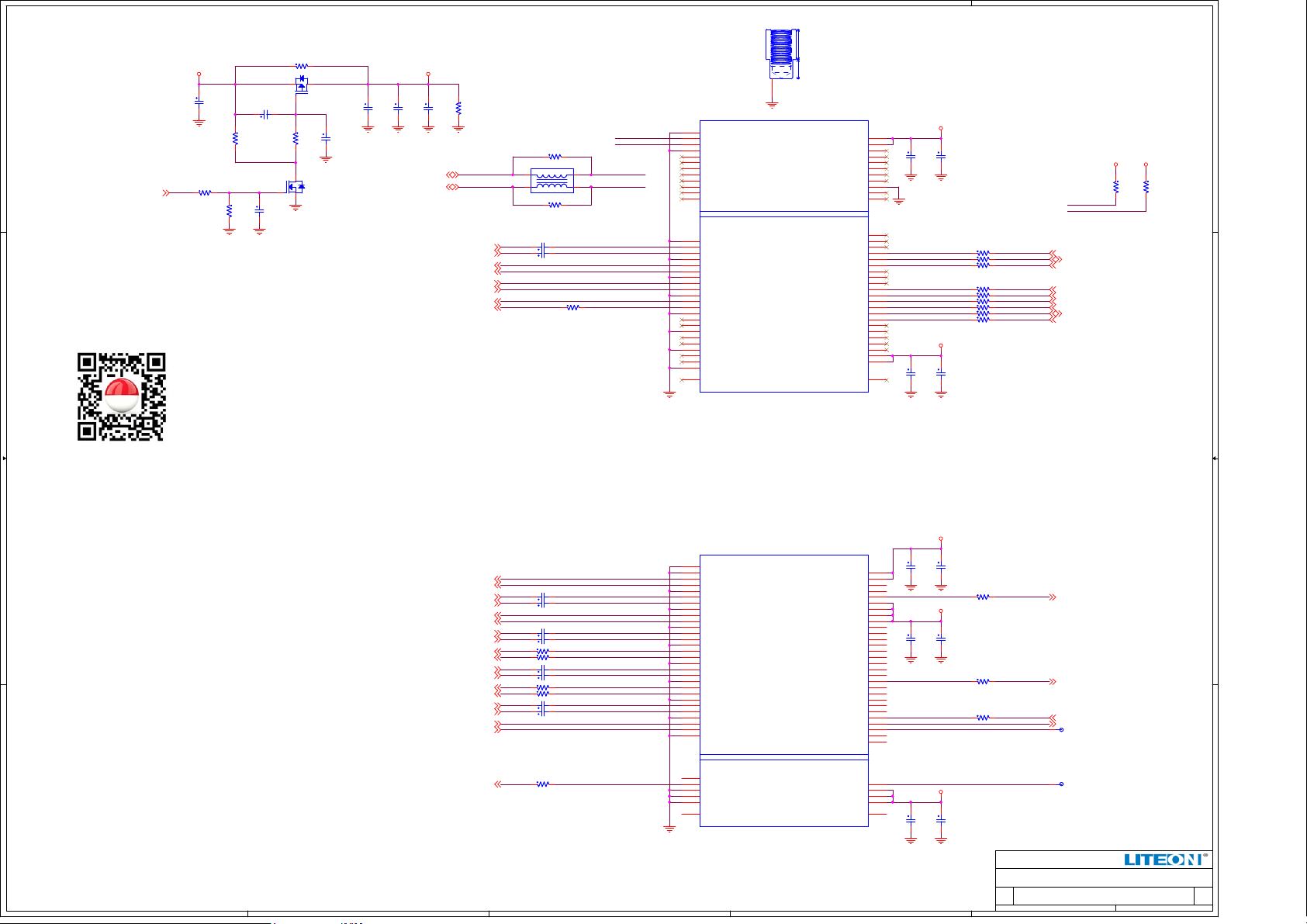

5

4

3

I

H5

2

1

WLAN

0805

R480 NI 0 ohm

D

I

S

23

Q46

Q46 NTR4101PT1G

0.022 uF

I

I X7R

X7R 25 V

25 V

G

1

16 VNIX7R

I

1

G

R452

47K ohm

Q45_D

23

Q46_G

D

S

NTR4101PT1G

-20 V -3.2 A

-20 V -3.2 A 70mohm@(-4.5V)

70mohm@(-4.5V)

NI

Q45

Q45 2N7002ET1G

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

C251

0.022 uF

X7R

X7R 25 V

25 V

C273

I

0.1 uF

C246

X7R 16 V

R454 0 ohmIR454 0 ohmI

X7R 16 V

R441

I

20K ohm

Q45_G

C252

R462

NI

0.1 uF

10K ohm

D D

SLP_WLAN#[15]

C C

I

C324

0.1 uF

X7R 16 V

I

USB_P7_DN[14]

USB_P7_DP[14]

+3V3_M2_WLAN+3V3_S5

C318

0.1 uF

X7R 16 V

C255

I

0805

I

0805

R1239I

1K ohm

22 uF

X5R

6.3 V

X5R

6.3 V

R502 0 ohmIR502 0 ohmI

NI

L22

0.3 ohm 0.4 A

L22

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R503 0 ohmIR503 0 ohmI

PCIE11_TXP[14] PCIE11_TXN[14]

PCIE11_RXP[14] PCIE11_RXN[14]

CLK_100M_1P[17] CLK_100M_1N[17]

CLKREQ_WLAN#[17] WLAN_WAKE#[15,35]

C276 I 0.1 uF X5R 16 VC 276 I 0.1 uF X5R 16 V C277 I 0.1 uF X5R 16 VC 277 I 0.1 uF X5R 16 V

R511 0 ohmIR511 0 ohmI

M.2 2230 Key-E

USB_P7_DP_R USB_P7_DN_R

USB_P7_DN_R

USB_P7_DP_R

43

PCIE_M.2_WLAN_TXP5_C PCIE_M.2_WLAN_TXN5_C

WLAN_WAKE#_R

I

M2_WIFI

1

GND_1

3

USB_D+

5

USB_D-

7

GND_7

9

SDIO_CLK

11

SDIO_CMD

13

SDIO_DATA0

15

SDIO_DATA1

17

SDIO_DATA2

19

SDIO_DATA3

21

SDIO_WAKE#

23

SDIO_RESET#

33

GND_33

35

PETP0

37

PETN0

39

GND_39

41

PERP0

43

PERN0

45

GND_45

47

REFCLKP0

49

REFCLKN0

51

GND_51

53

CLKREQ0#

55

PEWAKE0#

57

GND_57

59

RESERVED_2ND_PETP1

61

RESERVED_2ND_PETN1

63

GND_63

65

RESERVED_2ND_PERP1

67

RESERVED_2ND_PERN1

69

GND_69

71

RESERVED/REFCLKN1

73

RESERVED/REFCLKP1

75

GND_75

X1

AS0BC23-S40BE-LH

M.2

1

STANDOFF_RQ

M/M

M2.0

M/M

M2.0

ROUND

ROUND Brass Lead Free

Brass Lead Free

PCM_CLK/I2S_SCK

PCM_SYNC/I2S_WS

PCM_IN/I2S_SD_IN

PCM_OUT/I2S_SD_OUT

UART_WAKE#

MECH. KEY-E

RESERVED_38 RESERVED_40 RESERVED_42

RESERVED_W_DISABLE2#

W_DISABLE1#

RESERVED_64

UIM_SWP/PERST1#

UIM_PWR_SNK/CLREQ1#

UIM_PWR_SRC/GPIO1/PEWAKE1#

3-3V_2 3-3V_4 LED1#

LED2#

GND_18

UART_RX

UART_TX UART_CTS UART_RTS

COEX3 COEX2 COEX1 SSCLK

PERST0#

I2C_DATA

I2C_CLK

ALERT

3-3V_72 3-3V_74

X2

2 4 6 8 10 12 14 16 18 20 22

32 34 36

CLINKRST#

38

CLINKDAT

40

CLINKCLK

42 44 46 48

M2_WLAN_SUSCLK_R

50

M2_RST#

52

M2_BT_DISABLE#

54

M2_WLAN_OFF

56

M2_WLAN_I2C_DATA

58

M2_WLAN_I2C_CLK

60 62 64 66 68 70 72 74

X2

+3V3_M2_WLAN

C315

0.1 uF

16 VIX7R

+3V3_M2_WLAN

C312

0.1 uF

16 VIX7R

C266

0805

I

0805

I

10 uF

X5R

10 V

X5R

10 V

R504 0 ohmIR 504 0 ohmI R505 0 ohmIR 505 0 ohmI R506 0 ohmIR 506 0 ohmI

R507 0 ohmIR 507 0 ohmI R510 0 ohmIR 510 0 ohmI R508 0 ohmIR 508 0 ohmI R509 0 ohmIR 509 0 ohmI R553 0 ohmNIR553 0 ohmN I R556 0 ohmNIR556 0 ohmN I

C261

0805

I

0805

I

10 uF

X5R

10 V

X5R

10 V

+3V3_S5 +3V3_S5

R1207

I

10K ohm

M2_BT_DISABLE# M2_WLAN_OFF

CLINK_RST# [14] CLINK_DAT [14] CLINK_CLK [14]

M2_WLAN_SUSCLK [15] PCH_PLT_RST# [13,33,34,36,43] WIRELESS_EN2 [13] WIRELESS_EN1 [13] SMBDATA [15,30,31,46] SMBCLK [15,30,31,46]

10K ohm

I

R1208

10K ohm

Optane M.2 2280 (PCIE SSD Only)

I

M2_SSD

1

GND_1

B B

A A

5

4

PCIE24_RXN[14] PCIE24_RXP[14]

PCIE24_TXN[14] PCIE24_TXP[14]

PCIE23_RXN[14] PCIE23_RXP[14]

PCIE23_TXN[14] PCIE23_TXP[14]

PCIE22_RXN[14] PCIE22_RXP[14]

PCIE22_TXN[14] PCIE22_TXP[14]

PCIE21_RXN[14] PCIE21_RXP[14]

PCIE21_TXN[14] PCIE21_TXP[14]

CLK_100M_2N[17] CLKREQ_SSD# [17] CLK_100M_2P[17]

M2_SSD_DET#[16]

C583 I 0.22 uF X5R 10 VC583 I 0.22 uF X5R 10 V C580 I 0.22 uF X5R 10 VC580 I 0.22 uF X5R 10 V

C592 I 0.22 uF X5R 10 VC592 I 0.22 uF X5R 10 V C587 I 0.22 uF X5R 10 VC587 I 0.22 uF X5R 10 V

R1177 I 0 ohmR1177 I 0 ohm R1178 I 0 ohmR1178 I 0 ohm

C596 I 0.22 uF X5R 10 VC596 I 0.22 uF X5R 10 V C594 I 0.22 uF X5R 10 VC594 I 0.22 uF X5R 10 V

R1181 I 0 ohmR1181 I 0 ohm R1182 I 0 ohmR1182 I 0 ohm

C611 I 0.22 uF X5R 10 VC611 I 0.22 uF X5R 10 V C602 I 0.22 uF X5R 10 VC602 I 0.22 uF X5R 10 V

R964 0 ohmIR964 0 ohmI

PCIE24_TXN_C PCIE24_TXP_C

PCIE23_TXN_C PCIE23_TXP_C

PCIE22_RXN_R PCIE22_RXP_R

PCIE22_TXN_C PCIE22_TXP_C

PCIE21_RXN_R PCIE21_RXP_R

PCIE21_TXN_C PCIE21_TXP_C

3

GND_3

5

PERN3

7

PERP3

9

GND_9

11

PETN3

13

PETP3

15

GND_15

17

PERN2

19

PERP2

21

GND_21

23

PETN2

25

PETP2

27

GND_27

29

PERN1

31

PERP1

33

GND_33

35

PETN1

37

PETP1

39

GND_39

41

PERN0/SATA_B+

43

PERP0/SATA_B-

45

GND_45

47

PETN0/SATA_A-

49

PETP0/SATA_A+

51

GND_51

53

REFCLKN

55

REFCLKP

57

GND_57

67

NC_67

69

PEDET

71

GND_71

73

GND_73

75

GND_75

X1

CARD EDGE_HE

Mini PCI

MECH. KEY-M

3-3V_2 3-3V_4

NC_6 NC_8

DAS/DSS#

3-3V_12 3-3V_14 3-3V_16 3-3V_18

NC_20 NC_22 NC_24 NC_26 NC_28 NC_30 NC_32 NC_34 NC_36

DEVSLP

NC_40 NC_42 NC_44 NC_46 NC_48

PERST#/NC CLKREQ#/NC PEWAKE#/NC

NC_56 NC_58

SUSCLK 3-3V_70 3-3V_72 3-3V_74

2

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58

68 70 72 74

X2

+3V3

C551

I

0.1 uF

16 VIX7R

SSD_SATA_LED#

+3V3

C555

I

0.1 uF

16 VIX7R

SSD_SATA_DEVSLP_R

SSD_RST#

TP_SSD_WAKE#

TP_SSD_SUSCLKM2_SSD_DET#_R

+3V3

C566

I

0.1 uF

16 VIX7R

C539

10 uF

X5R

C537

10 uF

X5R

C557

10 uF

X5R

08

0805

05

10 V

R841 0 ohmIR841 0 ohmI

10 V

R958 0 ohmIR958 0 ohmI

R960 0 ohmIR960 0 ohmI

10 V

LITE-ON TECHNOLOGY CORP.

Title

Size Document Number Rev

C

Date: Sheet of

SSD_LED# [ 44]

SSD_SATA_DEVSLP [16]

PCH_PLT_RST# [13,33,34,36,43]

1

TP17TP17

1

TP18TP18

32. M2 WIFI/SSD

MC117

1

X03

32 58Wednesday, December 28, 2016

X03

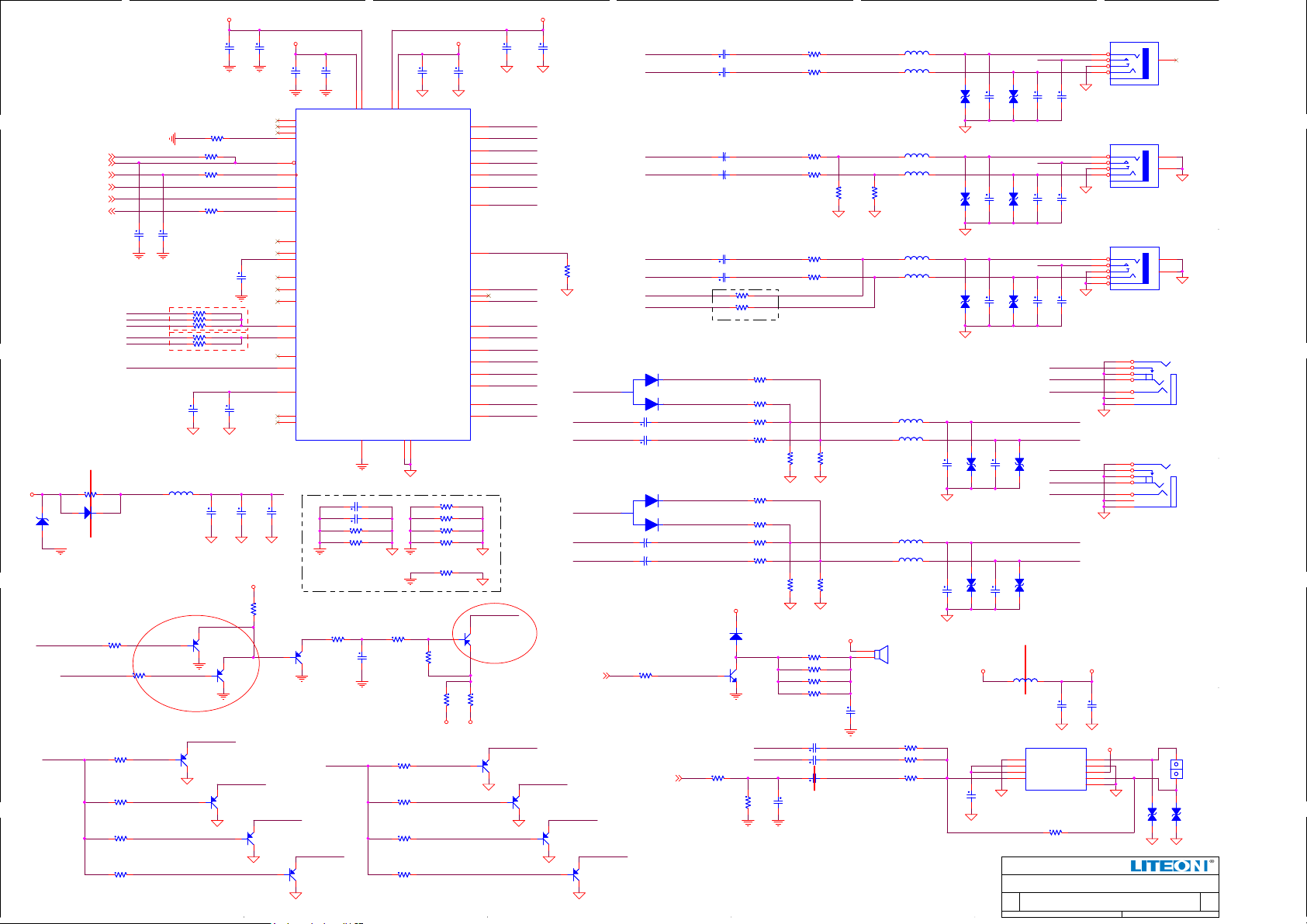

5

D D

PCH_PLT_RST#[13,32,34,36,43] PCH_HDA_RST#[15]

PCH_HDA_BCLK[ 15]

PCH_HDA_SYNC[15]

PCH_HDA_SDO[15]

PCH_HDA_SDI0[15]

C C

DIGITAL ANALOG

0805

R1097 0 ohmI

+5V_S5

R1097 0 ohmI

D87 NI SS12

D86

D86 AZ2015-01H.R7G

AZ2015-01H.R7G

5 VI0.015 A

20 V 1 A

Near to PCH

C729

I

22 pF

NPO 50 V

SEN_LIN SEN_LOUT SEN_MIC

LINE2_SENSE

DE-POP_EAPD

FB37_1

C722

I

22 pF

NPO 50 V

Near to PIN13

R1136 10K ohm+-1%IR1136 10K ohm+-1%I R1132 5. 1K ohm+-1%IR1132 5.1K ohm+-1%I R1129 20K ohm+-1%IR1129 20K ohm+-1%I

R1161 20K ohm+-1%IR1161 20K ohm+-1%I R1160 39. 2K ohm+-1%IR1160 39.2K ohm+-1%I

Near to PIN34

I 0603

FB37

1 2

120ohm@100MHz

AUDIO_GND

B B

R1128 1K ohmIR1128 1K ohmI

A_Z_RST#_B

B

Q27_B

B

DE-POP_R

E

I

1

C

AUDIO_GND

PCH_HDA_RST#

R1125 1K ohmIR1125 1K ohmI

R266 1K ohmIR266 1K ohmI

R307 1K ohmIR307 1K ohmI

A A

R246 1K ohmIR246 1K ohmI

R218 1K ohmIR218 1K ohmI

Q17_B

Q11_B

R1092 0 ohmNIR1092 0 ohmNI

R1124 0 ohmNIR1124 0 ohmNI

R1095 0 ohmIR1095 0 ohmI

R1093 33 ohmIR1093 33 ohmI

C754

I

0805

I

0805

10 uF

X5R

+-25%0.15 ohm 0.6 A

AUDIO_GND

E

23

I

1

C

B

LOUT_R_C_CON

23

Q26

Q26 MMBT3906LT1G

MMBT3906LT1G

1

B

AUDIO_GND

+3V3

C725

I

10 uF

X5R

C755

0.1 uF

6.3 V

AUDIO_GND

C846

I 47 uF

X5R

6.3 V

6.3 V 0805

0805

AUDIO_GND

Q133

Q133 MMBT3906LT1G

MMBT3906LT1G

E

23

Q132

I

Q132

I

MMBT3906LT1G

1

C

LINE_R_C_CON

E

23

Q27

I

Q27

I

MMBT3906LT1G

C

B

Near to PIN9

0805

6.3 V

A_GPIO1

HDA_BCLK_R

A_SDIN0

REGREF_3

C723

I

0805

I

0805

10 uF

X5R

6.3 V

X5R

6.3 V

SENSE_A

SENSE_BMIC2_SENSE

AUDIO_VREF

16 VIX7R

LDO_IN

C752

I 47 uF

X5R

6.3 V

6.3 V 0805

0805

+3V3

R1122

10K ohm

LINE_L_C_CON

E

23

I

1

C

AUDIO_GND

+3V3

C724

Near to PIN1

0.1 uF

16 VIX7R

C726

I

0805

I

0805

10 uF

X5R

6.3 V

X5R

6.3 V

I

U85

43

CENTER(PORT-G-L)

44

LFE(PORT-G-R)

2

GPIO0

4

GPIO1

11

RESET#

6

BCLK

10

SYNC

5

SDATA-OUT

8

SDATA-IN

12

PCBEEP

37

PIN37-VREF

3

REGREF

18

CD-L

19

CD-GND

20

CD-R

13

SENSE A

34

SENSE B

48

SPDIFO

47

EAPD

27

VREF

45

DMIC-DATA

46

DMIC-CLK

ALC662-VD

NEAR AUDIO CHIP

C753

I

C753

I

4.7 uF

X5R

6.3 V

6.3 V 0603

0603

AUDIO_GND

+-1%I

De-Pop noise circuit

Q134_E

E

R1134 0 ohm

23

Q134

I

Q134

I

Q134_B

MMBT3906LT1G

1

B

C

Q17

Q17 MMBT3906LT1G

MMBT3906LT1G

LOUT_L_C_CON

E

23

Q11

I

Q11

I

MMBT3906LT1G

1

B

C

AUDIO_GND

4

C727

0.1 uF

16 VIX7R

1

9

DVDD1

DVDD-IO

DVSS2

7

C756 680 pF X7R 50 VIC756 680 pF X7R 50 VI

C731 680 pF X7R 50 VIC731 680 pF X7R 50 VI

R270 0 ohmIR270 0 ohmI

R1162 0 ohmIR1162 0 ohmI

Q134_E_a Q135_B

I

C728

I

0805

I

0805

22 uF

X5R

ALC662_DET_R

AUDIO_VCC

Near to PIN38

C739

C742

I

0805

I

0805

10 uF

0.1 uF

X5R

6.3 V

X5R

6.3 V

16 VIX7R

AUDIO_GND

MIC1-VREFO-R

MIC1-VREFO-L

LDO-IN

JDREF

MIC2-VREFO LINE1-VREFO LINE2-VREFO

C

B

1

R1127

E

220K ohm

+-1%

I

Q135_EDE-POP_EAPD

R1123

I

NI

0 ohm

+3V3_DSW +3V3_S5

Q136_B

B

Q137_B

Q29_B

Q32_B

16 VIX7R

36

35

32

28

41

39

29

40

30 33 31

24

23

15

14

22

21

17

16

AUDIO_GND

ALC662_DET_R

Q135

Q135 MMBT3906LT1G

MMBT3906LT1G

2 3

I

R1126

0 ohm

1

AUDIO_GND

38

FRONT-R(PORT-D-R)

LDO-OUT125LDO-OUT2

FRONT-L(PORT-D-L)

SURR-R(PORT-A-R)

SURR-L(PORT-A-L)

LINE1-R(PORT-C-R)

LINE1-L(PORT-C-L)

LINE2-R(PORT-E-R)

LINE2-L(PORT-E-L)

MIC1-R(PORT-B-R)

MIC1-L(PORT-B-L)

MIC2-R(PORT-F-R)

MIC2-L(PORT-F-L)

AVSS126AVSS2

42

AUDIO_GND

R19 0 ohmIR19 0 ohmI

R22 0 ohmIR22 0 ohmI

R31 0 ohmIR31 0 ohmI

R1131 0 ohmIR1131 0 ohmI

AUDIO_GND AUDIO_GND

R21 0 ohmIR21 0 ohmI

+-1%I

R1133 10K ohm

6.3 V

R1137 1K ohmIR1137 1K ohmI

R1138 1K ohmIR1138 1K ohmI

R285 1K ohmIR285 1K ohmI

R310 1K ohmIR310 1K ohmI

AUDIO_GND

LOUT_R

LOUT_L

MIC1_VREFO_R

MIC1_VREFO_L

SURR_R

SURR_L

LDO_IN

AUDIO_JDREF

MIC2_VREFO

LINE2_VREFO

LIN_R

LIN_L

HP_OUT_R

HP_OUT_L

MIC_R

MIC_L

F_MIC_R

F_MIC_L

HP_OUT_L_C_HDR

E

23

Q136

I

Q136

I

MMBT3906LT1G

C

B

AUDIO_VCC

Near to PIN25

C746

I

0805

I

0805

10 uF

X5R

6.3 V

X5R

6.3 V

AUDIO_GND

HP_OUT_R_C_HDR

E

23

Q137

I

Q137

I

MMBT3906LT1G

1

C

AUDIO_GND

B

C741

0.1 uF

E

I

1

C

AUDIO_GND

16 VIX7R

R1141

+-1%I

20K ohm

AUDIO_GND

MIC_R_C_CON

23

Q29

Q29 MMBT3906LT1G

MMBT3906LT1G

E

I

1

B

C

AUDIO_GND

MIC2_VREFO

F_MIC_R

F_MIC_L

LINE2_VREFO

HP_OUT_R

HP_OUT_L

SPKR[15,20]

MIC_L_C_CON

23

Q32

Q32 MMBT3906LT1G

MMBT3906LT1G

3

D90

D90 BAT54A

BAT54A

30 V 0.2 A

I

3

0603

C747 4.7 uF

I

C747 4.7 uF

I

0603

C745 4.7 uF

I

C745 4.7 uF

I

D89

D89 BAT54A

BAT54A

30 V 0.2 A

I

3

EC50 100 uF

I

EC50 100 uF

I

+

0 ohm 90 mA

EC49 100 uF

I

EC49 100 uF

I

+

0 ohm 90 mA

R965 1K ohmIR965 1K ohmI

LIN_R

LIN_L

LOUT_R

LOUT_L

MIC_R

MIC_L

MIC1_VREFO_R

MIC1_VREFO_L

2

1

X5R 6.3 V

2

1

16 V

S_SPKR_OUT_R

SPKR[15,20]

C158 4.7 uF

C127 4.7 uF

EC6 100 uF

EC9 100 uF

C88 4.7 uF

C91 4.7 uF

MIC2_L_BEAD_DR

MIC2_R_BEAD_DR

F_MIC_R_S

F_MIC_L_S

LINE2_L_BEAD_DR

LINE2_R_BEAD_DR

HP_OUT_L_S

R1130 47K ohmNIR1130 47K ohmNI

X5R 16 V

0805

X5R 16 V

0805

LIN_R_S

I

X5R 16 V

0805

X5R 16 V

0805

LIN_L_S LINE_L_C

I

16 V

75 mA

16 V

75 mA

LOUT_R_S

I

+

16 V

75 mA

16 V

75 mA

LOUT_L_S

I

+

X5R 16 V

0805

X5R 16 V

0805

MIC_R_S

I

X5R 16 V

0805

X5R 16 V

0805

MIC_L_S

I

R139 2.2K ohmIR139 2.2K ohmI

R118 2.2K ohmIR118 2.2K ohmI

NEAR AUDIO CHIP

R1148 4.7K ohmIR1148 4.7K ohmI

R1147 4.7K ohmIR1147 4.7K ohmI

R1156 1K ohmIR1156 1K ohmI

R1155 1K ohmIR1155 1K ohmI

NI

AUDIO_GND

R1145 4.7K ohmNIR1145 4.7K ohmNI

R1146 4.7K ohmNIR1146 4.7K ohmNI

R1149 39 ohmIR1149 39 ohmI

R1143 39 ohmIR1143 39 ohmI

+5V

1

AUDIO_GND

D82I

D82I PMLL4148L

PMLL4148L

75 V 0.2 A

SPKR_R

I

Q95

Q95 MMBT2222A

MMBT2222A

SOT23

2 3

SURR_R

SURR_L

SPKR_AMP1 SPKR_AMP2

DIGITAL ANALOG

R1135

C733

NI

4.7K ohm

0.01 uF

X7R 50 V

2

0603

LINE_R_C

FB8

LOUT_L_C

R136

22K ohm

AUDIO_GND

+5V

C642

I

0.1 uF

X7R 50 V

SURR_R_AMP

SURR_L_AMP

FB8

1000ohm@100MHz

0603

0603 FB9

FB9

1000ohm@100MHz

0603

0603 FB5

FB5

1000ohm@100MHz

0603

0603 FB4

FB4

1000ohm@100MHz

R152

I

22K ohm

0603

0603 FB6

FB6

1000ohm@100MHz

0603

0603 FB1

FB1

1000ohm@100MHz

FB36

600ohm@100MHz +-25%

FB35

600ohm@100MHz +-25%

FB34

600ohm@100MHz +-25%

FB33

600ohm@100MHz +-25%

I

BZ1

+

1 2

AC-1205G-N1LF

R1140 66.5K ohm+-1%NIR1140 66.5K ohm+-1%NI

R1144 66.5K ohm+-1%NIR1144 66.5K ohm+-1%NI

R1139 20K ohm+-1%NI

R179 1K ohmIR179 1K ohmI

R176 1K ohmIR176 1K ohmI

R135 75 ohmIR135 75 ohmI

R177 75 ohmIR177 75 ohmI

I

AUDIO_GND

R130 1K ohmIR130 1K ohmI

R97 1K ohmIR97 1K ohmI

MIC_R_C

MIC_L_C

F_MIC_R_C F _MIC_R_C_HDR

F_MIC_L_C F_MIC_L_C_HD R

R1150

R1151

NI

22K ohm

AUDIO_GND

HP_OUT_R_CHP_OUT_R_S

HP_OUT_L_C

R1152

R1153

I

22K ohm

AUDIO_GND

R966 150 ohm+-1%IR966 150 ohm+-1%I

R959 150 ohm+-1%IR959 150 ohm+-1%I

R961 150 ohm+-1%IR961 150 ohm+-1%I

R968 150 ohm+-1%IR968 150 ohm+-1%I

C737 1 uF

NIC 737 1 uF

NI

X5R0603 16 V

C740 1 uF

NIC 740 1 uF

NI

X5R0603 16 V

C735 0.1 uF

NIC 735 0.1 uF

NI

X7R 16 V

0.45 ohm

1 2

0.45 ohm

1 2

0.45 ohm

1 2

0.45 ohm

1 2

0.45 ohm

1 2

0.45 ohm

1 2

I0603

0.2 ohm 1 A

I0603

0.2 ohm 1 A

1 2

I0603

0.2 ohm 1 A

I0603

0.2 ohm 1 A

1 2

I0603

0.2 ohm 1 A

I0603

0.2 ohm 1 A

1 2

I0603

0.2 ohm 1 A

I0603

0.2 ohm 1 A

1 2

0603

0.3 AI

0.3 AI +-25%

+-25%

0.3 AI

0.3 AI +-25%

+-25%

AUDIO_GND

0.3 AI

0.3 AI +-25%

+-25%

0.3 AI

0.3 AI +-25%

+-25%

AUDIO_GND

0.3 AI

0.3 AI +-25%

+-25%

0.3 AI

0.3 AI +-25%

+-25%

AUDIO_GND

C751

C751 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

AUDIO_GND

C748

C748 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

AUDIO_GND

D33

I

D32

I

D35

I

NI 0603

AUDIO_GND

1

LINE-IN

I

AUDIO1C

R

16 VIX7R

AUDIO_GNDAUDIO_GND

AUDIO_GND

SPKR_VP

I

8 7 6 5 9

C736

10 uF

X5R

R

35

35 3434X5

33

32

L

ABA-JAK-028-K12

Phone 3R1C

LINE-OUT

I

AUDIO1B

R

25

24

23

22

L

ABA-JAK-028-K12

Phone 3R1C

MIC IN

I

AUDIO1A

R

5

4

3

2

1

L

1

ABA-JAK-028-K12

Phone 3R1C

I

MIC_IN

Earth

1

Break

5

Transfer

4

Tip

2

Ring

3

AGND

6

AGND

7

JACK_HA

Phone 1Port

I

LINE_OUT

Earth

1

Break

5

Transfer

4

Tip

2

Ring

3

AGND

6

AGND

7

JACK_HA

Phone 1Port

0805

6.3 V

MONO OUT

SPKR_VP

W=30

OUT+Q26_BALC662_DET_R

OUT-U84_4

W=30

AUDIO_GND

AUDIO_GNDAUDIO_GND

LINE_R_C_CON SEN_LIN

LINE_L_C_CON

D34

C66

I

100 pF

I

0.001 A

NPO

NPO 50 V

50 V

AZ5725-01F.R7G

5 V

D20

I

C78

C78 100 pF

100 pF

I

0.001 A

NPO

NPO 50 V

50 V

AZ5725-01F.R7G

5 V

D15

C67

I

100 pF

I

0.001 A

NPO

NPO 50 V

50 V

AZ5725-01F.R7G

5 V

D97

D94

BYPASS

C730

1 uF

X7R 10 V

D96

C750

I

470 pF

I

0.001 A

NP0

NP0 50 V

50 V

AZ5725-01F.R7G

5 V

D95

I

C749

C749 470 pF

470 pF

I

0.001 A

0.001 A NP0

NP0

AZ5725-01F.R7G

5 V

50 V

DIGITAL ANALOG

+5V

I0603

0.15 ohm 0.6 A

I0603

0.15 ohm 0.6 A

FB32

1 2

120ohm@100MHz +-25%

1 2 3 4

AUDIO_GND

LITE-ON TECHNOLOGY CORP.

Title

ize Document Number Rev

Size Document Number Rev

S

C

Date: Sheet of

AUDIO_GND

C80

C68

100 pF

I

0.001 A

NPO

50 V

AZ5725-01F.R7G

5 V

LOUT_R_C_CONLOUT_R_C SEN_LOUT

LOUT_L_C_CON

AUDIO_GND

C62

C70

100 pF

I

0.001 A

NPO

50 V

AZ5725-01F.R7G

5 V

MIC_R_C_CON SEN_MIC

MIC_L_C_CON

AUDIO_GND

C49

C69

100 pF

I

0.001 A

NPO

50 V

AZ5725-01F.R7G

5 V

MIC2_SENSE

F_MIC_L_C_HDR

F_MIC_R_C_HDR

LINE2_SENSE

HP_OUT_L_C_HDR

0.001 A

HP_OUT_R_C_HDR

AZ5725-01F.R7G

5 V

HP_OUT_R_C_HDR

HP_OUT_L_C_HDR

0.001 A

5 V

AZ5725-01F.R7G

C738

0.1 uF

NI

U84

ENABLE

OUT-

BIAS

VEE

IN+

VCC

IN-

OUT+

GNDPAD

NCS2211

R1142 33K ohm+-1%IR1142 33K ohm+-1%I

33. Audio Codec(ALC662)

MC117

X5

X4

X3

AUDIO_GND

X1

X2

AUDIO_GND

21

NI

MONO_OUT

MONO_OUT Sn 1*2

Sn 1*2

VWHT

2.54 mm

D88

D92

NI

0.001 A

5 V

AZ5725-01F.R7G

X03

33 58Wednesday, December 28, 2016

X03

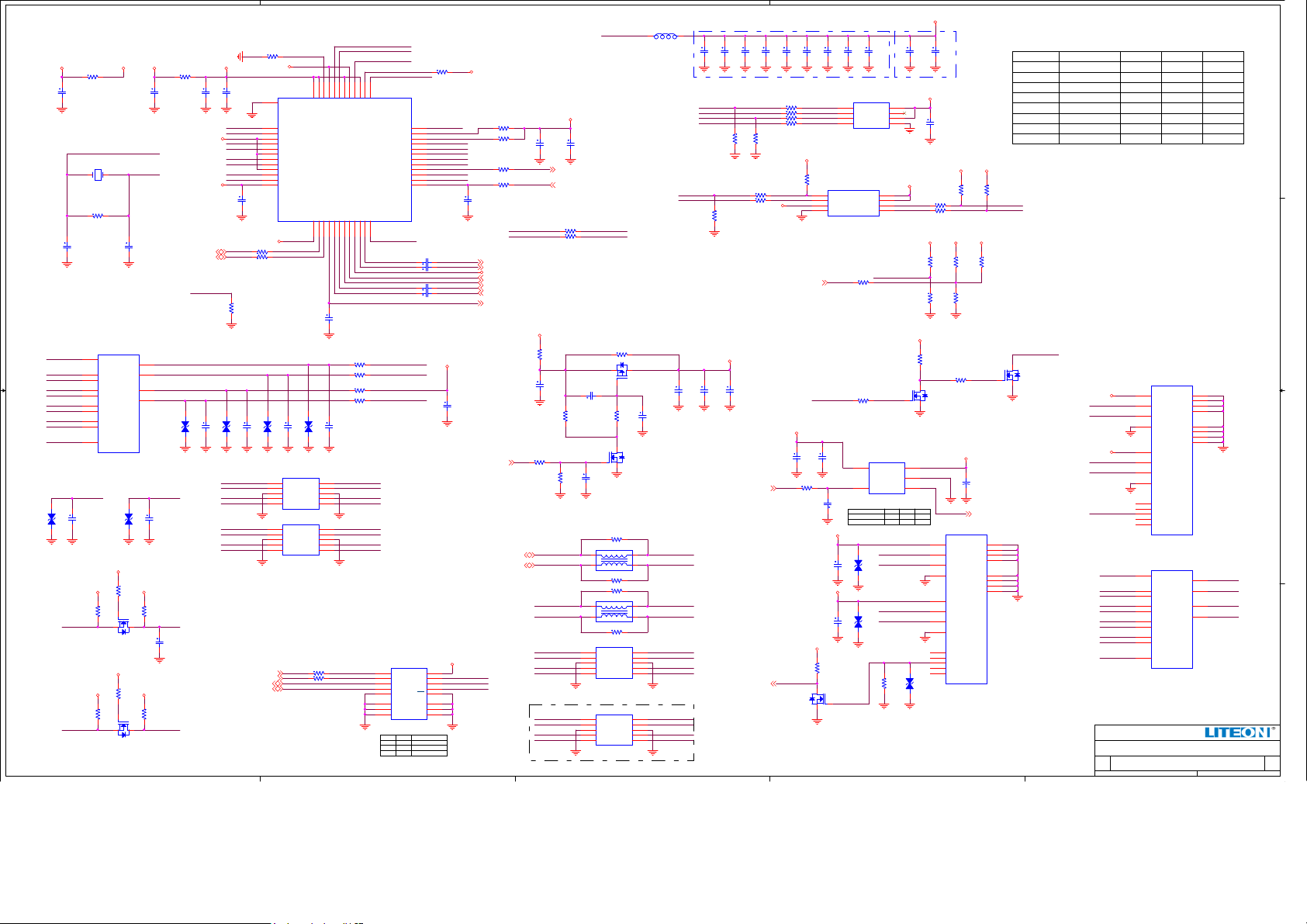

5

AVDD33_REG+3V3_LAN

Y1

25 MHz

12 pF

12 pF 30 ppm

30 ppm I

I

USB_LANB

VCC

Y-LED-

Y-LED+

TD0+ TD0-

TD1+

NC_31

TD1-

NC_32 TD2+ TD2-

TD3+ TD3-

GND

JFM38U1S-B3V9-4F

HC00052600FB-R

NI

+3V3

R153

I

10K ohm

Q7_G

R109

I

1

Q7

10K ohm

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

+3V3

R59

I

10K ohm

Q4_G

R100

I

1

Q4

10K ohm

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

LAN_XTALO

LAN_XTALI

C50

C50 12 pF

12 pF

I

I NPO

NPO

50 V

D39

23

DGS

23

DGS

5

AZ4212-01F.R7G

I

+3V3

I

+3V3_LAN

I

30

29

31

32

C121

0.1 uF

12.0 V 0.0 A

R188

10K ohm

R51

10K ohm

R81 0 ohmIR81 0 ohmI

C58

0.1 uF

X7R 16 V

G_LED-

O_LED-

Y_LED+

Y_LED-

LAN_RCT_GND

16 VIX7R

SOUT1SOUT1_DEBUG

SIN1

I

REGOUT_1.0V

SML0_CLK[15] SML0_DATA[15]

For 93C46 without ASF function

SML0_DATA_LAN

D45

NI

I

12.0 V 0.0 A

AZ4212-01F.R7G

C836

C836 150 pF

150 pF

I

I NPO

NPO 50 V

50 V

R33 0 ohmIR33 0 ohmI

C30

0.1 uF

D D

0.1 uF

16 VIX7R

1 2

R62 10M ohm

NI

C52

C52 12 pF

12 pF

I

I NPO

NPO

50 V

C C

LAN_TCT

19

MDI0+

20

MDI0-

21

MDI1+

22

MDI1-

23

MDI2+

24

MDI2-

25

MDI3+

26

MDI3-

27

LAN_RCT_GND

28

Single LED for surge SKU

B B

A A

LAN_TCT

D37

C117

NI

0.1 uF

16 VIX7R

12.0 V 0.0 A

AZ4212-01F.R7G

+5V +3V3

NI

+5V

NI

SIN1_DEBUG

R56 I 2.49K ohm+-1%R56 I 2.49K ohm+-1%

VDD33

C40

C44

I

0.1 uF

X7R 16 V

MDI0+ LAN_REGOUT MDI0-

MDI1+ MDI1-

MDI2+ MDI2-

MDI3+ MDI3-

VDD33

C15

I

0.1 uF

X7R 16 V

REGOUT_1.0V

R10 0 ohmNIR10 0 ohmNI R9 0 ohmNIR9 0 ohmNI

R8

I

10K ohm

D44

C119

C118

I

NI

470 pF

X7R 50 V

12.0 V 0.0 A

AZ4212-01F.R7G

MDI0MDI0+

MDI1MDI1+

MDI2+ MDI2- MDI2-

MDI3+ MDI3- MDI3-

SOUT1[35,41]

SIN1[35,41] USB_P8_DP[14] USB_P8_DN[14]

REGOUT_1.0V

49

1 2 3 4 5 6 7 8

9 10 11 12

D43

NI

I

U3

1.0IU3

1.0

GND_1

MDIP0 MDIN0 AVDD10 MDIP1 MDIN1 AVDD10_6 MDIP2 MDIN2 AVDD10_9 MDIP3 MDIN3 AVDD33_12

RTL8111GN-CG

SML0_CLK_LAN SML0_DATA_LAN

C120

I

470 pF

X7R 50 V

12.0 V 0.0 A

AZ4212-01F.R7G

I

U34

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

5.5 V I

I

U30

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

R158 0 ohmIR158 0 ohmI R88 0 ohmIR88 0 ohmI

LAN_RSET

NI

GND1

AVDD33_4848AVDD33_47

DVDD10_13

13

D42

NC1 NC2

NC3

NC1 NC2

NC3

43

46

47

45

RSET

CKXTAL244CKXTAL1

AVDD10_45

HSIP17HSIN18REFCLK_P19REFCLK_N20EVDD1021HSOP22HSON

NC_1414SMBDATA15CLKREQB

16

C8

NI

0.1 uF

X7R 16 V

Typical LED configuration

R203 I 249 ohm+-1%R203 I 249 ohm+-1%

R202 I 249 ohm+-1%R202 I 249 ohm+-1%

R199 I 75 ohmR199 I 75 ohm

R200 I 510 ohmR200 I 510 ohm

C122

I

470 pF

X7R 50 V

12.0 V 0.0 A

AZ4212-01F.R7G

10 9 8 7 6

41

39

40

42

LED0

AVDD33_42

DVDD10_41

DVDD33_39

MDI0MDI0+

MDI1MDI1+

MDI2+

MDI3+

SOUT1_DEBUG SIN1_DEBUG

LAN_XTALI LAN_XTALO

LED0_LINK100#

SMB_ALRT LAN_EESK

37

38

GPO

LED1/EESK

LED2/EEDO

DVDD10_29 LANWAKEB DVDD33_27

GND

24

23

GND/SPICSB

PCIE5_RXN_C PCIE5_RXP_C

PCIE5_TXN_C PCIE5_TXP_C

14 15 16

4

VDDREG1

ENSWREG

EEDI/SDA

EECS/SCL

ISOLATEB

1 2 3 4

OE# S

L H H X

4

R72 1K ohmNIR72 1K ohmNI

36

REGOUT

LAN_VDDREG

35

LAN_VDDREG

34

VDDREG

EN_SWREG

33

LAN_EEDI

32

LAN_EEDO

31

LAN_EECS

30

VDD10/SPISI

29

LANWAKE#

28

VDD33/SPISK

27

PCIE_ISOLATEB#

26

PERSTB#

25

PERSTB

C11 I 0.1 uF X7R 16 VC11 I 0.1 uF X7R 16 V C12 I 0.1 uF X7R 16 VC12 I 0.1 uF X7R 16 V

C7 I 0.1 uF X7R 16 VC7 I 0.1 uF X7R 16 V C13 I 0.1 uF X7R 16 VC13 I 0.1 uF X7R 16 V

LED0_LINK100#

LED_LINK1000#

LAN_ACT_LED3

I

U20

10

1D+

VCC

9

1D-

S

8

2D+

D+

7

2D-

D-

6

GND5OE

11

EPAD1

EPAD4

12

EPAD2

EPAD5

13

EPAD3

EPAD6

TS3USB221DRCR

IC\SWITCHING

FUNCTION

LL

D = D1 D = D2 Disconnect

3

Close U14 (Pin 3,6,9,13,29,41,45)

L49

0603

NIR38 0 ohm

NI

I

23

1

G

Q3_G

R26

I

47K ohm

Q2_D

D

23

Q2

Q2 2N7002ET1G

2N7002ET1G

0.31 A

2.5ohm@10V

S

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

L49

2.90*2.54*2.0

[email protected]

[email protected] +-10%

+-10%

0.9 ohm

0.9 ohm I

I

D

Q3

Q3 NTR4101PT1G

NTR4101PT1G

-20 V -3.2 A

-20 V -3.2 A 70mohm@(-4.5V)

70mohm@(-4.5V)

C18

I C18

I

1 uF

X5R

6.3 V

60 V

USB_P9_DN_R

43

USB_P9_DP_R

USBP8_SW_R

43

10 9 8 7 6

3

I

USBN8_SW_R

USB_P9_DP_RUSB_P9_DP_R

USBN8_SW_R USBP8_SW_RUSBP8_SW_R

USB_P9_DP_RUSB_P9_DP_R USB_P9_DN_RUSB_P9_DN_R

21

GND/SPICSB LAN_EECS

C20

0.1 uF

X7R 16 V

C35

I 0805

4.7 uF

X5R 6.3 V

LAN_EECS LAN_EESK LAN_EEDI LAN_EEDO

C21

I

0.1 uF

X7R 16 V

I

R268

0 ohm

+3V3_LAN

SLP_S4#[8,15,22,35,37,38,39,44,45,54,55]

USB_UART_SEL[16]

C9

0.1 uF

X7R 16 V

NI

C34

I

22 uF

X5R

I

R16

10K ohm

R254 0 ohmNIR254 0 ohmNI R272 0 ohmNIR272 0 ohmNI

0805

6.3 V

C42

0.1 uF

X7R 16 V

I

IC29

I

R25

10K ohm

C25

0.1 uF

X7R 16 V

R14 0 ohmNIR14 0 ohmNI R61 0 ohmNIR61 0 ohmNI R24 0 ohmNIR24 0 ohmNI R20 0 ohmNIR20 0 ohmNI

VDD33

C45

C10

I

0.1 uF

X7R 16 V

VDD33

R263

NI

10K ohm

SPICSB SPISO

LAN_DISABLE#[15]

+5V_S5

C131

I 0603

10 uF

X5R 6.3 V

R231 I 33 ohmR231 I 33 ohm

+3V3_S5

USB_UART_SEL

D

S

C19

C46

I

0.1 uF

X7R 16 V

NI

U1

LAN_CS

1

CS

LAN_SK

2

SK

LAN_DI

3

DI

LAN_DO

DO4GND

AT93C66B-SSHM-T

512*8

NI

U87

1

CS#

2

SO/SIO1

3

WP#

4

GND

MX25L8006EM2I-12G

8M*1

H : ENABLE REGULATOR L : DISABLE REGULATOR

R6 0 ohmNIR6 0 ohmNI

LAN_DISABLE#

R1233 0 ohmNIR1233 0 ohmNI

C124

0.1 uF

16 VIX7R

U37_4

C820

C820 47 pF

47 pF

NPO

NPO 50 V

50 V

Short Circuit

I

Over Current

+5V_USB20

C759

D98

0.1 uF

AZ5725-01F.R7G

16 VIX7R

5 VI0.001 A

+5V_USB20

D99

C760

AZ5725-01F.R7G

0.1 uF

5 VI0.001 A

16 VIX7R

R255

I

10K ohm

I

23

Q15

Q15 2N7002ET1G

2N7002ET1G

G

1

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

C28

I

0.1 uF

X7R 16 V

VCC

ORG

VCC

HOLD#

SCLK

SI/SIO0

I

U37

5

VIN

4

EN

SWITCHING IC_BR

UP7549TMA5-25

LAN_REGOUT

+3V3_LAN

R414 0 ohmIR414 0 ohmI

R460 0 ohmIR460 0 ohmI

R13 0 ohmIR13 0 ohmI

R5 0 ohmIR5 0 ohmI R306

C6

NI

0.1 uF

X7R 16 V

LAN_EESK LED_LINK1000#

PCIE5_RXN [14] PCIE5_RXP [14]

REGOUT_1.0V

CLK_100M_5N [17] CLK_100M_5P [17] PCIE5_TXN [14] PCIE5_TXP [14]

CLKREQ_LAN# [ 17]

+3V3_LAN

C130

0.1 uF

16 VIX7R

16 VIX7RC120

SLP_LAN#[15]

USB_P9_DN[14]

USB_P9_DP[14]

+3V3_S5

USB_UART_SEL USBP8_SW USBN8_SW

AVDD33_REG

C29

C31

I 0603

0.1 uF

4.7 uF

16 VIX7R

X5R 6.3 V

LAN_WAKE# [15,35]

PCH_PLT_RST# [13,32,33,36,43]

R60 0 ohmIR60 0 ohmI R17 0 ohmIR17 0 ohmI

+3V3_S5

R34

0603I

0 ohm

C26

I

0.1 uF

X7R 16 V

R4 0 oh mIR4 0 ohmI

USBN8_SW USBN8_SW_R

USBP8_SW

USBN8_SW_R USBP8_SW_R USBP8_SW_R

USB_P9_DN_R USB_P9_DN_R

ESD for back up used

USBN8_SW_R

NI

C23 I 1 uF

R36

I

20K ohm

SLP_LAN#_R

R3

10K ohm

LAN_ACT_LED3LAN_EEDO

R38 0 ohm

S

Q3_S

X5R 6.3 V

I

G

1

C5

0.1 uF

16 VNIX7R

R104 0 ohmNIR104 0 ohmNI

I

L3

0.3 ohm 0.4 A

L3

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R98 0 ohmNIR98 0 ohmNI

R87 0 ohmNIR87 0 ohmNI

I

L2

0.3 ohm 0.4 A

L2

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R84 0 ohmNIR84 0 ohmNI

I

U18

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

NI

U19

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

Close U14 (Pin 21)

8 7

NC

6 5

8 7 6 5

EN_SWREG PCIE_ISOLATEB#

Q148_G

VOUT

GND

OC#

Min

3.1 5.03.3

USB_P9_DN_R

USB_P9_DP_R

USBN8_SW_R

USBP8_SW_R

UARTA_P80_EN

R198

I

100K ohm

2

SPISK SPISI

G

2

I

VDD33

1

Typ Max 2

REGOUT_1.0V

C16

0.1 uF

X7R 16 V

VDD33

R290 0 ohmNIR290 0 ohmNI R318 0 ohmNIR318 0 ohmNI

+3V3_LAN

R1234

R1234 10K ohm

10K ohm

NI

D

NI

23

S

1

2

3

D40

AZ5725-01F.R7G

5 VI0.001 A

Typical = 300mA

C38

0603

I

0603

I

1 uF

X5R

16 V

X5R

16 V

C41

0.1 uF

16 VNIX7R

VDD33 REGOUT_1.0V

I

+3V3_LAN

R28

R28 0 ohm

0 ohm

I

R29

R29 15K ohm

15K ohm

NI

R1235 0 ohmNIR1235 0 ohmNI

Q148

Q148 2N7002ET1G

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

+5V_USB20

I

USB_LANA

10

VBUS2

11

2D-

12

2D+

GND_1313X5

1

VBUS1

2

1D-

3

1D+

4

GND_4

5

CLK

6

MI

7

DET

8

MO

9

CS

JFM38U1S-B3V9-4F

HC00052600FB-R

Don't Care

R324

R306

I

0 ohm

VDD33/SPISK VDD10/SPISI

+3V3

R1

R1232

1K ohm

NI

I

2016/07/13 R1232&R7 for WOL function.

R7

R7 15K ohm

15K ohm

I

PCIE_ISOLATEB#

D

NI

23

G

Q149_GQ148_D

1

S

EC2

+

I

0.6 ohm

I

0.6 ohm

470 uF

250 mA10 V

USB_OC5# [14]

X1

X2

X3

X4

X5 X6

X6

X7

X8

WOL

Off

ON

Q149

Q149 2N7002ET1G

2N7002ET1G

0.31 A

2.5ohm@10V

60 V

1

Status

No Link

S3/S4/S5

10Mb Inactive

10Mb Active

100Mb Inactive

100Mb Active

1Gb Inactive

1Gb Active

Yellow Green

OffOnOff Off

Off

Off Off

On

10

11

12

1

2

3

4

5 6 7 8 9

19

20 21

22 23

24 25

26 27

28

Off Off

On

Off

NI

USB_LAN2A

VBUS2

2D-

2D+

GND_1313X5

VBUS1

1D-

1D+

GND_4

CLK MI DET MO CS

JFM38U1B-B320-4F

HC00052000FB-R

NI

USB_LAN2B

VCC

Y-LED-

Y-LED+

TD0+ TD0-

TD1+

NC_31

TD1-

NC_32 TD2+ TD2-

TD3+ TD3-

GND

JFM38U1B-B320-4F

HC00052000FB-R

1

X1

X2

X3

X4

X5 X6

X6

X7

X8

30

29

31

32

Blinking

+5V_USB20

USB_P9_DN_R

USB_P9_DP_R

+5V_USB20

USBN8_SW_R

USBP8_SW_R

UARTA_P80_EN

LAN_TCT

MDI0+ MDI0-

MDI1+ MDI1-

MDI2+ MDI2-

MDI3+ MDI3-

LAN_RCT_GND

Twin LED for no n surge SKU

LITE-ON TECHNOLOGY CORP.

Title

34. LAN(RTL8111GN)/USB Debug

Size Document Numb er Rev

Custom

MC117

Date: Sheet of

Orange

Off

On

G_LED-

O_LED-

Y_LED+

Y_LED-

34 58Wednesday, December 28, 2016

X03

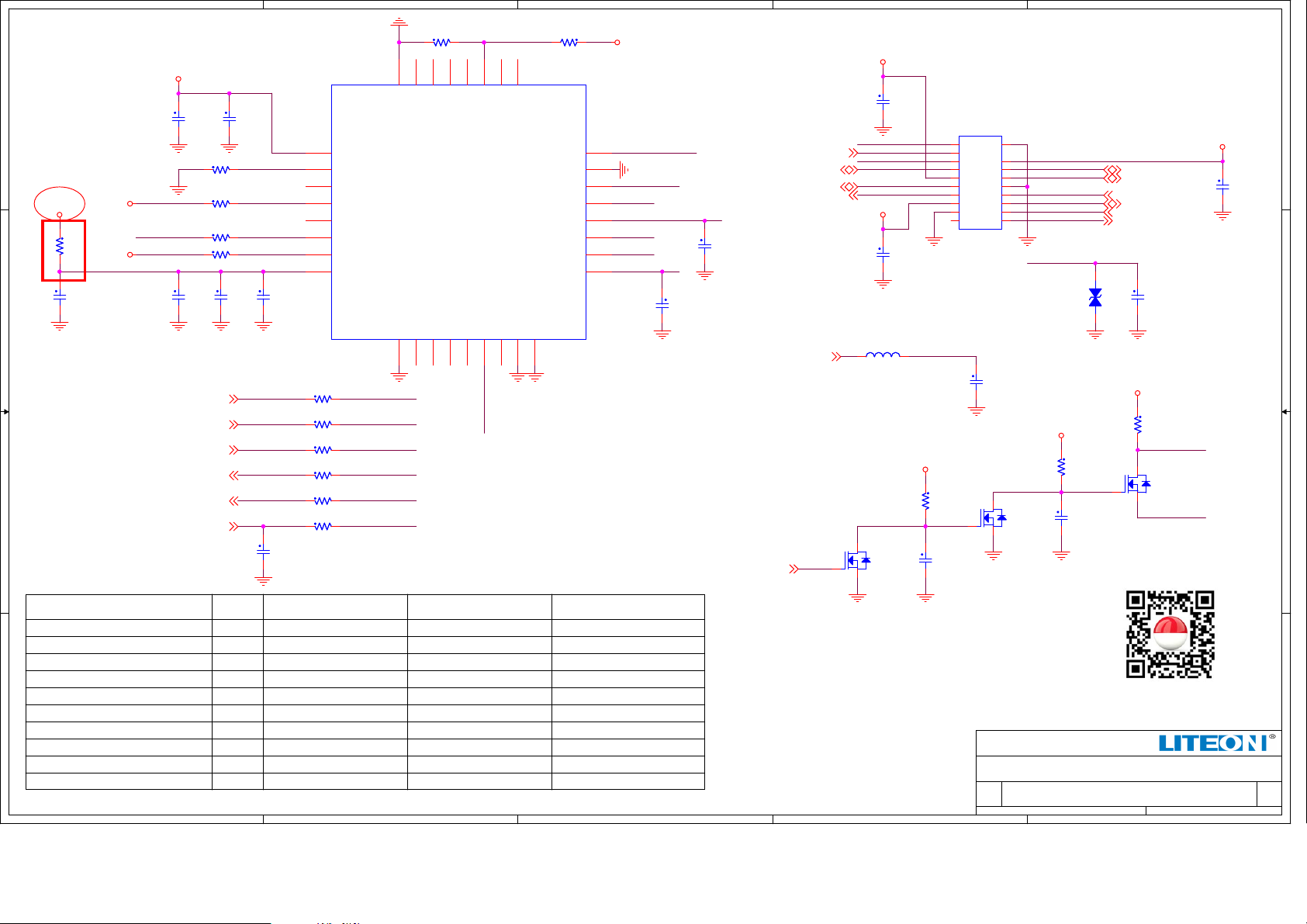

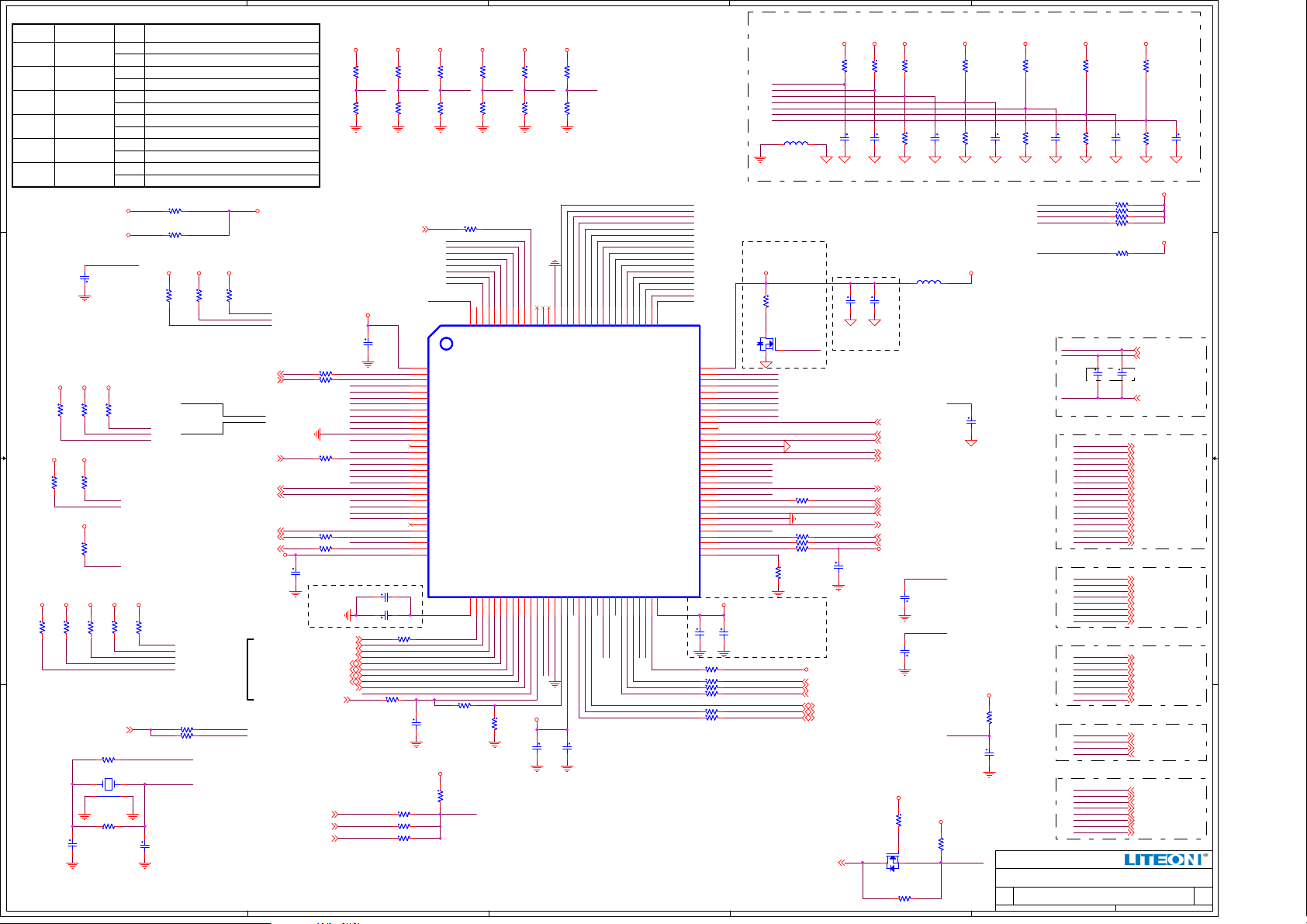

Power-On Strapping

Vinafix.com

D D

C C

B B

A A

Symbol Value Description

JP1

DSW_EUP_SEL 1

Pin-45

JP2

WDT_EN

Pin-119

JP3

FAN_CTL_SEL

Pin-121

JP4

K8PWR_EN

Pin-123

JP5

Pin-26 OV/UV

JP6

Vih/Vil_SEL

Pin-46

C847 need close to SIO

+3V3_S5 +3V3

R68

I

10K ohm

+3V3

I

R281

R281 10K ohm

10K ohm

+3V3_S5

+3V3+3V3

R343

R338

NI

10K ohm

PCH_SYSPWROK[12,15,46]

R238 0 ohmIR238 0 ohmI

Y2_1 CLK_SIO_32K_X2

R239 NI 10M ohmR239 NI 10M ohm

C145

NI

15 pF

NPO50 V

5

EUP

0

DSW

1

Disable WDT to reset PWROK

0

Enable WDT to reset PWROK

1

EC Index 63h/6Bh/73h/7B/A3/ABh=80h

0

EC Index 63h/6Bh/73h/7B/A3/ABh=00h

1

Disable K8 Power Sequence

0

Enable K8 Power Sequence

1

Notice Mode (Default)UOVMODE_SEL

0

Force Mode

10Bay-Trail Platform (Default)

Not Bay-Trail Platform

+3V3_S5

+3V3

R369

I

10K ohm

SIO_PCIRSTIN# RSTCONOUT RSTCONIN

R107

NI

10K ohm

R1214 I 0 ohm 0603R1214 I 0 ohm 0603

R1215 NI 0 ohm 0603R 1215 NI 0 ohm 0603

I

+3V3+3V3+3V3

R79

NI

10K ohm

PCIRST2# GA20 KBRST# LPC_DRQ#0 LPC_SERIRQ

R65 33 ohmNIR65 33 ohmNI R64 33 ohmIR64 33 ohmI

CLK_SIO_32K_X1

32

C159

NI

15 pF

NPO50 V

5

R1211

10K ohm

SLP_SUS#

SYS5VSB_OFF#

+3V3_DSW

+3V3_DSW+3V3_DSW

R1210

R67

I

10K ohm

2.2K ohm

SYS5VSB_OFF# PS2_PWR_ON 3VSBSW

ME_DIS_SIO[16]

SLP_SUS#[15,21,22,49,56]

ATX_PWROK[45,57]

SIO_DPWROK[15] PS2_PWR_ON[49]

SMI#[16,17] PCH_SUSACK#[15]

PCIERST#[30,31]

+3V3_SIO_DSW

LPC I/F

PWRGD2 PWRGD3

+3V3_DSW +3V3_SIO_DSW

SLP_SUS#_R

C847

C847 47 pF

47 pF

NPO

NPO 50 V

50 V I

I

R69

10K ohm

NI

R73

R73 10K ohm

10K ohm

PCIRST#1 SMI#

I

R44

R44 10K ohm

10K ohm

SUSWARN#

R108

I

10K ohm

NI

Y2

1 4

32.768 KHz

12.5 pF 5 ppm

For RTC function

R271 0 ohmNIR271 0 ohmNI R70 33 ohmIR70 33 ohmI

R63 0 ohmIR63 0 ohmI

R76 0 ohmNIR76 0 ohmNI

R54 33 ohmIR54 33 ohmI

C51

0.1 uF

16 VIX7R

Note: Place close to SIO (C13 reserve)

PCH_PLT_RST#_SIO[13] LPC_DRQ#0[17] LPC_SERIRQ[17,36] LPC_FRAME#[17,36] LPC_AD0[17, 36] LPC_AD1[17, 36] LPC_AD2[17, 36] LPC_AD3[17, 36] KBRST#[17]

CLK_LPC_24M[17]

PCIE_WAKE#[15,30,31]

WLAN_WAKE#[15,32]

LAN_WAKE#[15,34]

4

+3V3 +3V3 +3V3 +3V3 +3V3_DSW

R155

R133

R167

I

1K ohm

RTS1# SOUT1 DTR1# DTR2# GPO50/JP1 GPOA0/JP6

R166

NI

680 ohm

Note:

If 75232 is connected, please use 680 ohm to be the pull down resistor value. Since powered by 12V, 75232 has a very strong internal pull-up. It is hard to be pulled low. (Please see specification for detail of power on strapping setting)

PCH_SUSWARN#[15]

+3V3_SIO_DSW

C55

0.1 uF

16 VIX7R

ME_DIS_SIO_R SLP_SUS#_R SIO_VIN1 CPU_TACH CPU_PWM SYS_TACH SYS_PWM AUX1_TACH AUX1_PWM RSTCONOUT RSTCONIN

SYS5VSB_OFF#

PWRGD2 ATX_PWROK_R SIN2 SOUT2 DSR2# RTS2#

DCD2# CTS2# RI2# DTR2#

SUSACK# PCIRST#1 SIO_WAKE# PCIRST2#

C65 0.1 uF

X5R 6.3 V

C64 1 uF

NIC64 1 uF

NI

R99 0 ohmIR99 0 ohmI

GA20

R1236 I 33 ohmR1236 I 33 ohm

Place R1236&C835 Close to SIO

R45 0 ohmNIR45 0 ohmNI

R512 0 ohmNIR512 0 ohmNI

R55 0 ohmIR55 0 ohmI

4

I

1K ohm

R154

NI

680 ohm

SIO_PCIRSTIN#

I

U33

1

3VSB_1

2

GP64

3

SLP_SUS#/GP63

4

FAN_TAC1

5

FAN_CTL1

6

FAN_TAC2/GP52

7

FAN_CTL2/GP51

8

FAN_TAC3/GP37

9

FAN_CTL3/GP36

10

RSTCONOUT/GP35

11

RSTCONIN/GP34

12

GNDD_12

13

SLP_SUS_FET/5VSB_CT RL#/GP13

14

SUS_WARN_5VDU AL/5VAUX_SW

15

PWRGD2

16

ATXPG/GP30

17

SIN2/G P27

18

SOUT2/GP26

19

DSR2#/GP25

20

RTS2#/GP24

21

DPWROK/GP23

22

PCH_D0B/GP22

23

DCD2#/GP21

24

CTS2#/GP20

25

RI2#/GP17

26

DTR2#/JP5

27

CIRTX1

28

CHARGP14/GP14

29

SUSACK#/PWRGD 1

30

PCH_C0A/PCIRST1#/GP12

31

PCIRST2#/GP11

32

3VSB_32

16 VIX7R

IT8629E/DX

U33_33

SIO_LRESET#

CLK_LPC_24M_R

R173 0 ohmNIR173 0 ohmNI

C835

I C835

I

22 pF

NPO

NPO 50 V

50 V

+3V3_DSW

I

R133

R74

I

1K ohm

R82

R134

NI

680 ohm

R187 0 ohmNIR187 0 ohmNI

RTS1# DSR1# SOUT1 SIN1

DTR1#

DCD1# RI1# CTS1#

R42

10K ohm

RI2#

SUSWARN#

125

123

122

126

124

128

127

DTR1#JP4

RI1#/GP32

CTS1#/GP31/FAN_TAC5

DCD1#/GP33/FAN_CTL5

CIRRX2/GP16/FAN_TAC4

PCIRSTIN#/CIRTX2/GP15/FAN_C TL4

VCORE33LRESET#34LDRQ#35SERIRQ36LFRAME#37LAD038LAD139LAD240LAD341KRST#/GP6242GA2043PCICLK44GPO50/JP145GPOA0/JP646GNDD_4747CLKIN48VCCBT49GPA150SST/AMDTSI_D/PCH_D1/GP4351PCH_C1/GPA252PECI/AMDTSI_C1/GP4453AMDTSI_C2/GPA354FAN_CTL6/GP9055FAN_TAC6/GP9156GP9257GP9358GP9459GP9560CK32KE61CK32K62SYS_3VSB_63633VSB_64

CLKIN

R172

I

1K ohm

+3V3_DSW

R138

NI

1K ohm

R137

I

8.2K ohm

121

119

116

115

114

120

117

118

RTS1#JP2

SIN1/GP41

GP66/SCL1

SOUT1/JP3

GP67/SDA1

VLDT_EN/GP65

DSR1#/GP45/PCH_D0A

VCORE_EN/GP42/PCH_C0B/SUSWARN#

IT8629E

IT8629E 128-LQFP

128-LQFP

GPO50/JP1

GPOA0/JP6

+3V3

C110

I

1 uF

X5R 6.3 V

I

113

GNDD_114

R159

1K ohm

R161

8.2K ohm

112

PD6/GP76

DOG0/PD7/GP77

C43

0.1 uF

111

110

PD5/GP75

16 VIX7R

109

108

PD4/GP74

PD3/GP73

IO_SMBCLK IO_SMBDATA

107

106

105

PD2/GP72

PD1/GP71

PD0/GP70

AUX2_PWM

AUX2_TACH

3

103

100

104

102

101

ERR#/DIG1

VIN1/VDIMM_STR(1.2V)

SMBD_R1/SLIN#GP84

SMBC_R1/AFD#/GP86

SMBD_M1/INIT#/GP85

SMBC_M1/STB #/GP87

VIN4/VLDT_12/5VSB_SEN

PCIRST3#/GP10/CIRRX1

CPU_PG/PWRGD3/SDA0

CLK_SIO_32K_X1

3

PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0 STB# AFD# ERR# INT# SLIN# ACK# BUSY PE SLCT

99

98

97

PE/GP81

SLCT/GP80

AVCC3

ACK#/DIG2/GP83

BUSY/DIG3/GP82

VIN0/VCORE(0.8V)

VIN2(+12V_SEN)

VIN3(+5V_SEN)

VIN5/5VDUAL

VREF TMPIN1 TMPIN2 TMPIN3

TSD-

GNDA

RSMRST#/GP55

GP56/MCLK

GP57/MDAT

KCLK/GP60

KDAT/GP61

3VSBSW#/GP40/SC L0

SUSC#/GP53

PSON#

PANSWH#

GNDD_71

PME#/GP54

PWR ON#

SUSB#

GP47

VBAT

COPEN#

64

CLK_SIO_32K_X2

SIO_3VSB

R264 100 ohmIR264 100 ohmI

PS2_DET#_BR

R230 1K ohmIR230 1K ohmI

SELECT#_SIO

R217 0 ohmIR217 0 ohmI

SKTOCCT#_SIO

R207 0 ohmIR207 0 ohmI

R208 0 ohmIR208 0 ohmI

R197 0 ohmIR197 0 ohmI

VIN6

96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

+3V3_SIO_DSW

C48

0.1 uF

16 VIX7R

Voltage Monitor

SIO_VIN0 SIO_VIN1 SIO_VIN2 SIO_VIN3 SIO_VIN4 SIO_5VDUAL SIO_VIN6

0603

0.15 ohm0.6 AI

0603

0.15 ohm0.6 AI

FB18

1 2

120ohm@100MHz+-25%

Note:The division voltage of VIN2 and VIN3 must be around 2.0V

SIO_AVCC3 Bleed-OFF circuit

SIO_VIN0

SIO_VIN2 SIO_VIN3 SIO_VIN4 SIO_5VDUAL SIO_VIN6 VREF

AGND SIO_RSMRST#

MCLK MDAT KCLK KDAT

PWRGD3 SIO_SUSC# PS_ON#

PWRBTN#_R SIO_SUSB#

SIO_VBAT COPEN#

Note: *Place close to SIO

C164

*Recommended net "VCCH"

0805

I

0805

I

minimum trace width 12mils.

22 uF

X5R

6.3 V

X5R

6.3 V

H_PROC_SELECT# H_SKTOCC#

SIO_AVCC3

R257

113 ohm

Q25_D

D

23

S

AGND

+-1%NI

Q25

NINX7002AK

[email protected]

[email protected] 60 V -0.3 A

60 V -0.3 A

G

1

AGND

R304 33 ohmIR304 33 ohmI

R280 33 ohmIR280 33 ohmI R279 0 ohmNIR279 0 ohmNI R278 1K ohmIR278 1K ohmI

R277

I

1K ohm

Reserve

PS_ON#

+3V3_S5

PS2_DET# [41] H_PROC_SELECT# [11] H_SKTOCC# [11,16,22, 46]

SIO_PECI [14] SML1_CLK [15] SML1_DATA [15]

PWRBTN#[12,15,45]

2

+1V2_MEM_S3+VCCIA

R302

R301

+-1%I

1K ohm

C174

C175

0.1 uF

16 VIX7R

AGND AGND A GND AGND AGND AGN DAGND

C184

C162

I

1 uF

22 uF

X5R 6.3 V

X5R

AGNDAGND

Note: Place close to SIO

LAN_WAKE#

C183

I

1 uF

X5R 6.3 V

[email protected]

R299 33 ohmIR299 33 ohmI

2

+12V +5V

R300

+-1%I

I

+-1%

I

+-1%

10K ohm

R276

+-1%I

2K ohm

16 VIX7R

0603

0603 FB17

FB17

1 2

120ohm@100MHz +-25%

0805

6.3 V

EXT_SYS_TEMP [46]

VR_TEMP_DA [46] TS_D- [46]

SIO_RSMRST# [21] PWR_LED [44]

3VSBSW [41]

SLP_S4# [8,15,22,34,37,38,39,44,45,54,55] PS_ON# [22,46,48,50] PSIN# [30,41,44]

SIO_PME# [13]

SLP_S3# [15,22,30,45,46,54] LAN_WAKE# [15,34]

+3V_BATT

SIO_SUSB#

C843

C843 47 pF

47 pF

NPO

NPO 50 V

50 V I

I

SIO_SUSC#

C844

C844 47 pF

47 pF

NPO

NPO 50 V

50 V I

I

+3V3_S5

R303

NI

4.7K ohm

Q28_G

NI

1

Q28

2 3

DGS

NX7002AK

60 V-0.3 A

+3V3_S5

NI

C176

0.1 uF

0.15 ohm0.6 AI

R308

4.7K ohm

I

16 VIX7R

VREF

C843 need close to SIO

C844 need close to SIO

SIO_LRESET#

PWRBTN#_R

1

+5V_S5 +3V3+12V_S5_PSU

R294

R275

+-1%

15K ohm

R297

+-1%

10K ohm

+3V3

C173

0.1 uF

16 VIX7R

I

R294

+-1%

10K ohm

R274

+-1%I

2K ohm

LAN_WAKE# SIO_RSMRST# H_PROC_SELECT# H_SKTOCC#

PS2_DET#

C182

0.1 uF

R273

I

5.1K ohm

R296

I

10K ohm

16 VIX7R

+-1%

C172

+-1%

0.1 uF

R298 10K ohmNIR298 10K ohmNI R287 I 1K ohmR287 I 1K ohm R39 10K ohmNIR39 10K ohmNI R46 10K ohmIR46 10K ohmI

R1240 I 10K ohmR1240 I 10K ohm

Thermal Sensor

EXT_SYS_TEMP

I

AGND

C169

1 uF

X5R 6.3 V

VR_TEMP_DA

TS_D-

LPT

PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0 STB# AFD# ERR# INT# SLIN# ACK# BUSY

SLCT

C167

C168

I

2.2 nF

X7R 50 V

PE

COM1

SIN1 SOUT1 RTS1# CTS1# DCD1# DTR1# DSR1# RI1#

COM2

SIN2 SOUT2 RTS2# CTS2# DCD2#

+3V3

R95

NI

4.7K ohm

C82

I

100 pF

NPO50 V

LITE-ON TECHN OLOGY CORP.

Title

35. SIO(IT8629E)

Size Document Number Rev

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

DTR2# DSR2# RI2#

PS/2

MCLK MDAT KCLK KDAT

FAN

CPU_TACH CPU_PWM SYS_TACH SYS_PWM AUX1_TACH AUX1_PWM AUX2_TACH AUX2_PWM

1

R293

NI

+-1%

NI

+-1%

6.49K ohm

R295

NI

+-1%

NI

+-1%

10K ohm

16 VIX7R

AGND

+3V3_S5

+3V3

EXT_SYS_TEMP [46] VR_TEMP_DA [46]

Near to SIO side

TS_D- [46]

PD7 [42] PD6 [42] PD5 [42] PD4 [42] PD3 [42] PD2 [42] PD1 [42] PD0 [42] STB# [42] AFD# [42] ERR# [42] INT# [42] SLIN# [42] ACK# [42] BUSY [42] PE [42] SLCT [42]

SIN1 [34,41] SOUT1 [34,41] RTS1# [41] CTS1# [41] DCD1# [41] DTR1# [41] DSR1# [41] RI1# [41]

SIN2 [41] SOUT2 [41] RTS2# [41] CTS2# [41] DCD2# [41] DTR2# [41] DSR2# [41] RI2# [41]

MCLK [41] MDAT [41] KCLK [41] KDAT [41]

CPU_TACH [40] CPU_PWM [40] SYS_TACH [40] SYS_PWM [40] AUX1_TACH [40] AUX1_PWM [40] AUX2_TACH [40] AUX2_PWM [40]

35 58Wednesday, December 28, 2016

C171

0.1 uF

16 VNIX7R

AGNDAGNDAGNDAGNDAGND

X03

5

4

3

2

1

R1237 0 ohmNIR1237 0 ohmNI

+3V3_S5

C443

D D

+3V3_S5

C C

+3V3_S5

R658

NI

+3V3_S5

0 ohm

C441

NI

0603

NI

0603

10 uF

X5R

6.3 V

X5R

6.3 V

C443

NI

10 uF

X5R

R662 0 ohmNIR662 0 ohmNI

R1188 0 ohmNIR1188 0 ohmNI

TPM_GPIO TPM_PIN6

R1163 0 ohmNIR1163 0 ohmNI

R1173 0 ohmNIR1173 0 ohmNI

C414

NI

0.1 uF

X7R 16 V

0603

6.3 V

NI

C440

NI

0.1 uF

X7R 16 V

C442

0.1 uF

X7R 16 V

TPM_PIN2

TPM_PIN4

TPM_PIN7

C426

NI

0.1 uF

X7R 16 V

05/20: Change R658 power

1

2

3

4

5

6

7

8

NI

U50

NCI/VDD

GND_2

NCI_3

NCI_4

NCI_5

GPIO

PP

VDD_8

31

32

30

NCI_31

GND_32

GND_99NCI_1010NCI_1111NCI_1212NCI_1313NCI/VDD_1414NCI_1515NCI/GND_16

source from +3V3 to +3V3_S5 (Start to modify from X03)

PCH_SPI_CS2#[13]

PCH_PLT_RST#[13,32,33,34,43]

SPI_CLK_TPM[13]

SPI_TPM_PIRQ[16]

B B

BOM

GND

SPI_MOSI_TPM[13]

SPI_MISO_TPM[13]

2

R616 0 ohmNIR616 0 ohmNI

R629 0 ohmNIR629 0 ohmNI

R618 0 ohmNIR618 0 ohmNI

R1164 0 ohmNIR1164 0 ohmNI

R617 0 ohmNIR617 0 ohmNI

R615 0 ohmNIR615 0 ohmNI

C411

NI12 pF

NPO50 V

NCT650LBAYX(SPI)

NI

4 NINCI_4

6

NIGPIO

PP

IRQ#(R1164)/AD2(R628)

A A

CS#(R616)/LPC Frame#(R625)

MOSI(R617)/AD1(R626)

MISO(R615)/AD0(R624)

7 NI

18

19

20

21

24

R1164 R1164 R1164

R618CLK

R616 R616 R616

R617 R617 R617

R615 R615 R615

27NCI_27 R1227

TPM_P20

TPM_P17_RST

TPM_P19

TPM_P18

TPM_P21

TPM_P24

BT00012901IB-R SLB9670(SPI)

R662 R662

NI NI

R1163

NI NI

R618 R618

NI NI

For Nuvoton TPM , Can remove R1164 and R860 if IRQ function was no used.

5

4

NCI_27

R1227NI10K ohmR12 27NI10K ohm

28

NC_2929NC_30

NCI_2525NCI_2626NCI_2727NCI_28

MISO

GND_23

VDD_23

MOSI

CS#

SCLK

PIRQ#

RST#

EPAD

SLB 9670VQ2.0 FW7.60

16

33

1.6

TPM_VDD3V3

24

23

22

21

20

19

18

17

+3V3_S5

TPM_P24

TPM_VDD3V3

TPM_P21

TPM_P20

TPM_P19

TPM_P18

TPM_P17_RSTTPM_VDD3V3

NI

C842NI

C842NI 100 pF

100 pF

NPO

NPO 50 V

50 V

C415

C842 close to U50

0.1 uF

X7R 16 V

Clsoe to LEO_CHIP connector

TPM_EN[16]

+3V3

C303

NI

0.1 uF

X7R 16 V

LPC_FRAME#[17 ,35]

LPC_AD3[17,35] LPC_AD2 [17,35]

LPC_AD0[17,35] TPM_PRESENT#[16]

CLK_LEO_24M[17]

CLK_LEO_24M_C

TPM_P17_RST

TPM_PRESENT#

1 2

0402 60ohm@100MHZ

+-25% 0.25 ohm 0 .3 A

23

G

1

+3V3_S5

C300

NI

0.1 uF

X7R 16 V

FB38

D

NI

Q47

Q47 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

S

NI

+3V3_S5

NI

LEO_CHIP

112

3

3 556 778 9910 111112 131314 151516 171718 191920

AU GF

2*10

2.

2. V

V BLK

BLK

CLK_LEO_24M_C

R530

NI

10K ohm

G

Q48_G

1

C292

NI

0.1 uF

X7R 16 V

54 mm

C828

NI

22 pF

NPO

NPO 50 V

50 V

D

23

S

2

6 8 10 12 14 16 18 20

TPM_PRESENT#

NI

Q48

Q48 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

+12V

R490

NI

10K ohm

C264

NI

0.1 uF

X7R 16 V

NI

Q50_G

LPC_AD1 [17,35]

TPM_DISABLE [16] LPC_SERIRQ [17,35] TPM_CLKRUN [15] TPM_GPIO [16]

D70

NI

12.0 V 0.0 A

AZ4212-01F.R7G

+3V3_S5

NI

G

1

C328

0.1 uF

X7R 16 V

R538

10K ohm

TPM_P20

D

NI

23

Q50

Q50 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

S

PCH_SPI_CS2#

+5V

C304

NI

0.1 uF

X7R 16 V

ST33HTPH2E32AAE8(SPI)

NI

C415 for power on sequence fine tuning (Nuvoton:That RESET# is asserted for at least 5 msec following the VSB power up and at least 1ms following the VDD power up)

3

2

LITE-ON TECHNOLOGY CORP.

Title

36. TPM2.0

ze Documen t Number Rev

Size D ocument Number R ev

Si

B

MC117

Date: Sheet of

36 58Wednesday, Decembe r 28, 2016

1

X03

5

Vinafix.com

Rear USB 3.0

D D

SLP_S4#[8,15,22,34,35,38,39,44,45,54,55]

USB_P1_DN[14]

USB_P1_DP[14]

C C

USB30_TX1_DN[17]

USB30_TX1_DP[17]

USB30_RX1_DN[17]

USB30_RX1_DP[17]

B B

USB_P2_DN[14]

USB_P2_DP[14]

USB30_TX2_DN[17]

USB30_TX2_DP[17]

A A

USB30_RX2_DN[17]

USB30_RX2_DP[17]

5

+5V_S5

I 0603

R233 I 33 ohmR233 I 33 ohm

C112 0.1 uFI

C113 0.1 uFI

C114 0.1 uFI

C111 0.1 uFI

C125

10 uF

X5R 6.3 V

X7R 16 V

I

USB30_TX1_DN_C

USB30_TX1_DP_C

USB30_TX2_DN_C

USB30_TX2_DP_C

4

C132

0.1 uF

16 V

X7R

16 V

X7R

U36_4

C819

C819 47 pF

47 pF

NPO

NPO 50 V

50 V

Short Circuit

I

Over Current

R149 0 ohmNIR149 0 ohmNI

I

L16

0.3 ohm 0.4 A

L16

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R148 0 ohmNIR148 0 ohmNI

R144 0 ohmIR144 0 ohmI

NI

L15

0.3 ohm 0.4 A

L15

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R145 0 ohmIR145 0 ohmI

R142 0 ohmIR142 0 ohmI

NI

L12

0.3 ohm 0.4 A

L12

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R143 0 ohmIR143 0 ohmI

R151 0 ohmNIR151 0 ohmNI

I

L17

0.3 ohm 0.4 A

L17

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R150 0 ohmNIR150 0 ohmNI

R146 0 ohmIR146 0 ohmI

NI

L14

0.3 ohm 0.4 A

L14

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R147 0 ohmIR147 0 ohmI

R140 0 ohmIR140 0 ohmI

NI

L13

0.3 ohm 0.4 A

L13

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R141 0 ohmIR141 0 ohmI

4

I

U36

5

VOUT

VIN

4

EN

SWITCHING IC_BR

UP7549TMA5-25

43

12

43

12

1

2

GND

3

OC#

Typ Max

Min

2

3.3 5.03.1

USB_P1_DN_R

USB_P1_DP_R

USB30_TX1_DN_C_R

USB30_TX1_DP_C_R

USB30_RX1_DN_R

USB30_RX1_DP_R

USB_P2_DN_R

USB_P2_DP_R

USB30_TX2_DN_C_R

USB30_TX2_DP_C_R

USB30_RX2_DN_R

USB30_RX2_DP_R

3

+5V_USB30_1

EC1

+

I

0.6 ohm

I

0.6 ohm

470 uF

250 mA10 V

USB_OC1# [14]

+5V_USB30_1

I

U17

USB30_RX1_DN_R USB30_RX1_DP_R

USB30_RX2_DN_R USB30_RX2_DP_R

USB_P2_DP_R USB_P2_DP_R USB_P2_DN_R USB_P2_DN_R

USB_P1_DP_R USB_P1_DN_R

USB30_TX2_DN_C_R USB30_TX2_DP_C_R

USB30_TX1_DN_C_R USB30_TX1_DP_C_R

3

U17

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

I

U16

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

I

U15

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

C54

I

0.1 uF

X7R

C57

I

0.1 uF

X7R

10 9 8 7 6

D101

ESD9B5.0ST5G

5 VI0.001 A

16 V

D100

ESD9B5.0ST5G

5 VI0.001 A

16 V

USB30_RX1_DN_R USB30_RX1_DP_R

USB30_RX2_DN_R USB30_RX2_DP_R

USB_P1_DP_R USB_P1_DN_R

USB30_TX2_DN_C_R USB30_TX2_DP_C_R

USB30_TX1_DN_C_R USB30_TX1_DP_C_R

2

USB CONN_HC

USB30A

A 2R1C I

USB30A

A 2R1C I

A1

USB_P1_DN_R USB_P1_DP_R

USB30_RX1_DN_R USB30_RX1_DP_R

USB30_TX1_DN_C_R USB30_TX1_DP_C_R

USB_P2_DN_R USB_P2_DP_R

USB30_RX2_DN_R USB30_RX2_DP_R

USB30_TX2_DN_C_R USB30_TX2_DP_C_R

VBUS

A2

D-3

A3

D+3

A4

GND

A5

STDA_SSRX-1

A6

STDA_SSRX+1

A7

GND_DRAIN

A8

STDA_SSTX-1

A9

STDA_SSTX+1

X1

SHLD_1

X2

SHLD_2

HC00054300LP-R

USB CONN_HC

USB30B

B1

VBUS

B2

D-4

B3

D+4

B4

GND

B5

STDA_SSRX-2

B6

STDA_SSRX+2

B7

GND_DRAIN

B8

STDA_SSTX-2

B9

STDA_SSTX+2

X3

SHLD_3

X4

SHLD_4

HC00054300LP-R

A 2R1C I

ESD for back up used

NI

U28

USB30_RX1_DN_R USB30_RX1_DP_R

USB30_RX2_DN_R USB30_RX2_DP_R

USB_P2_DP_R USB_P2_DP_ R USB_P2_DN_R USB_P2_DN_R

USB_P1_DP_R USB_P1_DN_R

USB30_TX2_DN_C_R USB30_TX2_DP_C_R

USB30_TX1_DN_C_R USB30_TX1_DP_C_R USB30_TX1_DP_C_R

LITE-ON TECHNOLOGY CORP.

Title

Size Document Number Rev

Size Docum ent Number Rev

B

Date: Sheet of

2

Date: Sheet of

U28

1

I/ O1 I/ O2 GND

GND1 I/ O3 I/ O45NC4

5.5 V

NI

U26

I/ O1 I/ O2 GND

GND1 I/ O3 I/ O45NC4

5.5 V

NI

U27

I/ O1 I/ O2 GND

GND1 I/ O3 I/ O45NC4

5.5 V

NC1 NC2

NC3

NC1 NC2

NC3

NC1 NC2

NC3

2 3 4

1 2 3 4

37. Rear USB3.0

MC117

10 9 8 7 6

1

USB30_RX1_DN_R USB30_RX1_DP_R

USB30_RX2_DN_R USB30_RX2_DP_R

USB_P1_DP_R USB_P1_DN_R

USB30_TX2_DN_C_R USB30_TX2_DP_C_R

USB30_TX1_DN_C_R

37 58Wednesday, December 28, 2016

1

X03

5

Front USB 3.0

CHARGER_ILIM_HI

CHARGER_ILIM_LO

+5V_S5

C710

C712

NI 0603

10 uF

0.1 uF

+5V_S5

USB_P3_DN[14]

USB_P3_DP[14]

X5R 6.3 V

R1079

R1079 10K ohm

10K ohm

NI

R1231

R1231 0 ohm

0 ohm

NI

SLP_S4#[8,15,22,34,35,37,39,44,45,54,55]

I

U82

1 2 3 4

5.5 V

0.1 uF

16 VNIX7R

USB_P3_DN USB_P3_DP ILIM_SEL

I/O1 I/O2 GND

GND1 I/O3 I/O45NC4

1 2 3 4

CHARGE_EN[17]

R1084 0 ohmIR1084 0 ohmI

R1082 0 ohmIR1082 0 ohmI

10

NC1

9

NC2

8 7

NC3

6

D D

+5V

R1230

R1230 10K ohm

10K ohm

NI

Mount these parts when USB Charger was NI

C C

USB_P3_DN_R USB_P3_DP_R

USB_P4_DN_R USB_P4_DP_R

USB_OCP#4_R

NI

13

16

14

17

15

U70

GND

EPAD

ILIM_HI

ILIM_LO

IN DM_OUT DP_OUT ILIM_SEL

STATUS

EN5CLT16CLT27CLT3

TPS2546RTET

8

+5V_S5

C706

C711

I 0603

10 uF

0.1 uF

X5R 6.3 V

R1089 I 33 ohmR1089 I 33 ohm

USB_P3_DN_R USB_P3_DP_R

USB_P4_DN_R USB_P4_DP_R

S0 : CDP 1.5A S3 : CDP 1.5A S4&S5 : DCP 2.3A

R1088 21. 5K ohm +-1%NIR1088 21.5K ohm +-1%NI

R1086 33. 2K ohm +-1%NIR1086 33.2K ohm +-1%NI

R1087 0 ohmNIR1087 0 ohmNI

FAULT

12

OUT

USB_P3_DN_CHa

11

DM_IN

USB_P3_DP_CHa

10

DP_IN

9

+5V_USB30_2

+5V_S5

R1073

NI

10K ohm

16 VIX7R

C821

C821 47 pF

47 pF

NPO

NPO 50 V

50 V I

I

U71_4

10K ohm

R1085 0 ohmIR1085 0 ohmI

R1081 0 ohmIR1081 0 ohmI

I

U71

5

VIN

4

EN

SWITCHING IC_BR

UP7549TMA5-25

Short Circuit Over Current

CTL3 CTL2 CTL1

USB_P3_DN_CH

USB_P3_DP_CH

ESD for back up used

USB_P3_DN_R USB_P3_DP_R

USB_P4_DN_R USB_P4_DP_R

NI

R1074

10K ohm

VOUT

GND

OC#

Min

+5V

R1075

NI

10K ohm

USB_P3_DN_CHa

USB_P3_DP_CHa

1

2

3

Typ Max 2

3.3 5.03.1

NI

U76

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

4

R1226 N I

10K ohm

USB_OC4# [ 14]

USB_OCP#4_R

R1226 close to U70

+5VUSB_CHARGE

C707

EC46

+

NI

0.6 ohm

NI

0.6 ohm

470 uF

250 mA10 V

2016/06/30 CTL1 shoud be connect to +5V CTL2 shoud be connect to +5V_USB30 CTL3 shoud be connect to +5V_S5

+5V_USB30_2

10

NC1

9

NC2

8

GND1

7

NC3

6

0.1 uF

EC48

+

I

470 uF

16 VNIX7R

0.6 ohm

250 mA10 V

USB_OC2# [ 14]

USB_P3_DN_R USB_P3_DP_R

USB_P4_DN_R USB_P4_DP_R

C708

0.1 uF

C709

0.1 uF

16 VNIX7R

USB30_TX3_DN[17]

USB30_TX3_DP[17]

USB30_RX3_DN[17]

USB30_RX3_DP[17]

3

+5V_S5

D85

ESD9B5.0ST5G

5 VNI0.001 A

R1100 0 ohmNIR1100 0 ohmNI

I

L42

0.3 ohm 0.4 A

L42

USB_P3_DN_CHa USB_P3_DN_R

USB_P3_DP_CHa U SB_P3_DP_R

C714 0.1 uFI

X7R 16 V

C716 0.1 uFI

X7R 16 V

USB30_RX3_DN_R USB30_RX3_DP_R

USB30_RX4_DN_R USB30_RX4_DP_R

USB30_TX3_DP_C_R USB30_TX3_DN_C_R

USB30_TX4_DP_C_R USB30_TX4_DP_C_R USB30_TX4_DN_C_R USB30_TX4_DN_C_R

0.3 ohm 0.4 A

I/O1 I/O2 GND

GND1 I/O3 I/O45NC4

I/O1 I/O2 GND

GND1 I/O3 I/O45NC4

43

USB30_TX3_DN_C_R

USB30_TX3_DP_C_R

12

USB30_RX3_DN_R USB30_RX4_DN_R

USB30_RX3_DP_R

12

10

NC1

9

NC2

8 7

NC3

6

10

NC1

9

NC2

8 7

NC3

6

1 2

90OHM@100 MHz

R1101 0 ohmNIR1101 0 ohmNI

USB30_TX3_DN_C

R1104 0 ohmIR1104 0 ohmI

NI

L38

4 3

90OHM@100 MHz

USB30_TX3_DP_C

R1108 0 ohmIR1108 0 ohmI R1107 0 ohmIR1107 0 ohmI

R1098 0 ohmIR1098 0 ohmI

NI

L37

4 3

90OHM@100 MHz

R1099 0 ohmIR1099 0 ohmI

I

U81

1 2 3 4

5.5 V

I

U83

1 2 3 4

5.5 V

USB30_RX3_DN_R USB30_RX3_DP_R

USB30_RX4_DN_R USB30_RX4_DP_R

USB30_TX3_DP_C_R USB30_TX3_DN_C_R

2

+5V_USB30_2

R1241 I 0 ohm

R1094 0 ohm

+5VUSB_CHARGE

R1090 0 ohm

R1242 NI 0 ohm

C713

0.1 uF

+5V_USB30_2

C744

0.1 uF

R1242 NI 0 ohm

D102

ESD9B5.0ST5G

5 VI0.001 A

16 VIX7R

D103

ESD9B5.0ST5G

16 VIX7R

5 VI0.001 A

R1109 0 ohmNIR1109 0 ohmNI

I

L41

0.3 ohm 0.4 A

L41

USB_P4_DN[14]

USB_P4_DP[14]

C717 0.1 uFI

USB30_TX4_DN[17]

USB30_TX4_DP[17]

USB30_RX4_DN[17]

USB30_RX4_DP[17]

C717 0.1 uFI

C715 0.1 uFI

X7R 16 V

ESD for back up used

USB30_RX3_DN_R USB30_RX3_DP_R

USB30_RX4_DN_R USB30_RX4_DN_R USB30_RX4_DP_R

USB30_TX3_DP_C_R USB30_TX3_DN_C_R

USB30_TX4_DP_C_R USB30_TX4_DP_C_R USB30_TX4_DN_C_R USB30_TX4_DN_C_R

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R1105 0 ohmNIR1105 0 ohmNI

USB30_TX4_DN_C

R1103 0 ohmIR1103 0 ohmI

NI

L39

0.3 ohm 0.4 A

L39

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

USB30_TX4_DP_C

R1102 0 ohmIR1102 0 ohmI

NI

L40

0.3 ohm 0.4 A

L40

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R1106 0 ohmIR1106 0 ohmI

NI

U75

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

NI

U77

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

GND1

NC1 NC2

NC3

NC1 NC2

NC3

43

USB30_TX4_DN_C_R

USB30_TX4_DP_C_R

12

10 9 8 7 6

USB_P4_DN_R

USB_P4_DP_R

USB30_RX4_DP_R

USB30_RX3_DN_R USB30_RX3_DP_R

USB30_RX4_DP_R

USB30_TX3_DP_C_R USB30_TX3_DN_C_R

+5V_USB30_CHARGER

1206

IR1094 0 ohm

I

1206

NIR 1090 0 ohm

NI

1206

USB_P3_DN_R USB_P3_DP_R

USB30_RX3_DN_R USB30_RX3_DP_R

USB30_TX3_DN_C_R USB30_TX3_DP_C_R

USB_P4_DN_R USB_P4_DP_R

USB30_RX4_DN_R USB30_RX4_DP_R

USB30_TX4_DN_C_R USB30_TX4_DP_C_R

1

+5V_USB30_CHARGER

F_USB30_1A

A1

A2 A3

A4

A5 A6

A7

A8 A9

X1 X2

HC00054300LP-R

F_USB30_1B

B1

B2 B3

B4

B5 B6

B7

B8 B9

X3 X4

HC00054300LP-R

USB CONN_HC

A 2R1C I

VBUS

D-3 D+3

GND

STDA_SSRX-1 STDA_SSRX+1

GND_DRAIN

STDA_SSTX-1 STDA_SSTX+1

SHLD_1 SHLD_2

USB CONN_HC

A 2R1C I

VBUS

D-4 D+4

GND

STDA_SSRX-2 STDA_SSRX+2

GND_DRAIN

STDA_SSTX-2 STDA_SSTX+2

SHLD_3 SHLD_4

B B

+5V_S5

C704

C705

I 0603

0.1 uF

10 uF

X5R 6.3 V

R1070 I 33 ohmR1070 I 33 ohm

SLP_S4#[8,15,22,34,35,37,39,44,45,54,55]

A A

I

U80

USB_P5_DN_R USB_P5_DP_R

USB_P6_DN_R USB_P6_DP_R

U80

1 2 3 4

5

I/O1 I/O2 GND I/O3 I/O45NC4

5.5 V

GND1

10

NC1

9

NC2

8 7

NC3

6

16 VIX7R

U69_4

C822

C822 47 pF

47 pF

NPO

NPO 50 V

50 V I

I

USB_P5_DN_R USB_P5_DP_R

USB_P6_DN_R USB_P6_DP_R

I

U69

5

VIN

4

EN

SWITCHING IC_BR

UP7549TMA5-25

Short Circuit Over Current

1

VOUT

2

GND

3

OC#

Typ Max

Min

2

3.3 5.03.1

ESD for back up used

USB_P5_DN_R

USB_P6_DN_R USB_P6_DP_R

+5V_USB30_3

EC47

+

I

470 uF

NI

U73

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

4

0.6 ohm

250 mA10 V

USB_OC3# [ 14]

10

NC1

9

NC2

8

GND1

7

NC3

6

USB_P5_DN[14]

USB_P5_DP[14]

USB30_TX5_DN[17]

USB30_TX5_DP[17]

USB30_RX5_DN[17]

USB30_RX5_DP[17]

USB_P5_DN_R USB_P5_DP_RUSB_P5_DP_R

USB_P6_DN_R USB_P6_DP_R

C721 0.1 uFI

C720 0.1 uFI

USB30_RX6_DP_R USB30_RX6_DN_R

USB30_RX5_DP_R USB30_RX5_DN_R

USB30_TX5_DP_C_R USB30_TX5_DP_C_R USB30_TX5_DN_C_R USB30_TX5_DN_C_R

USB30_TX6_DP_C_R USB30_TX6_DN_C_R

X7R 16 V

R1117 0 ohmNIR1117 0 ohmNI

I

L45

0.3 ohm 0.4 A

L45

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R1110 0 ohmNIR1110 0 ohmNI

USB30_TX5_DN_C

R1116 0 ohmIR1116 0 ohmI

NI

L43

0.3 ohm 0.4 A

L43

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

USB30_TX5_DP_C

R1112 0 ohmIR1112 0 ohmI

R1118 0 ohmIR1118 0 ohmI

NI

L46

0.3 ohm 0.4 A

L46

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R1121 0 ohmIR1121 0 ohmI

I

U79

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

I

U78

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

USB_P5_DN_R

43

USB_P5_DP_R

USB30_TX5_DN_C_R

USB30_TX5_DP_C_R

12

USB30_RX5_DN_R

USB30_RX5_DP_R USB30_RX6_DP_R

12

USB_P6_DN[14]

USB_P6_DP[14]

C719 0.1 uFI

USB30_TX6_DN[17]

USB30_TX6_DP[17]

USB30_RX6_DN[17]

USB30_RX6_DP[17]

C719 0.1 uFI

C718 0.1 uFI

ESD for back up used

GND1

USB30_RX6_DP_R

10

NC1

USB30_RX6_DN_R

9

NC2

8

USB30_RX5_DP_R

7

NC3

USB30_RX5_DN_R

6

10

NC1

9

NC2

8

USB30_TX6_DP_C_R

7

NC3

USB30_TX6_DN_C_R

6

3

USB30_RX6_DP_R USB30_RX6_DN_R

USB30_RX5_DP_R USB30_RX5_DN_R

USB30_TX5_DP_C_R USB30_TX5_DN_C_R

USB30_TX6_DP_C_R USB30_TX6_DN_C_R

X7R 16 V

R1115 0 ohmNIR1115 0 ohmNI

I

L48

0.3 ohm 0.4 A

L48

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R1111 0 ohmNIR1111 0 ohmNI

USB30_TX6_DN_C

R1114 0 ohmIR1114 0 ohmI

NI

L44

0.3 ohm 0.4 A

L44

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

USB30_TX6_DP_C

R1113 0 ohmIR1113 0 ohmI

R1120 0 ohmIR1120 0 ohmI

NI

L47

0.3 ohm 0.4 A

L47

0.3 ohm 0.4 A

4 3

90OHM@100 MHz

R1119 0 ohmIR1119 0 ohmI

NI

U74

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

NI

U72

1

I/O1

2

I/O2

3

GND

4

I/O3 I/O45NC4

5.5 V

2

GND1

USB_P6_DN_R

43

USB_P6_DP_R

USB30_TX6_DN_C_R

USB30_TX6_DP_C_R

12

USB30_RX6_DN_R

12

USB30_RX6_DP_R

10

NC1 NC2

NC3

NC1 NC2

NC3

9 8 7 6

10 9 8 7 6

USB30_RX6_DN_R

USB30_RX5_DP_R USB30_RX5_DN_R

USB30_TX5_DP_C_R USB30_TX5_DN_C_R

USB30_TX6_DP_C_R USB30_TX6_DN_C_R

+5V_USB30_3

USB_P5_DN_R

C734

0.1 uF

+5V_USB30_3

C732

0.1 uF

LITE-ON TECHNOLOGY CORP.

Title

Size Document Number Rev

C

Date: Sheet of

USB_P5_DP_R

D104

ESD9B5.0ST5G

USB30_RX5_DN_R

16 VIX7R

5 VI0.001 A

USB30_RX5_DP_R

USB30_TX5_DN_C_R USB30_TX5_DP_C_R

USB_P6_DN_R USB_P6_DP_R

D105

ESD9B5.0ST5G

USB30_RX6_DN_R

5 VI0.001 A

16 VIX7R

USB30_RX6_DP_R

USB30_TX6_DN_C_R USB30_TX6_DP_C_R

38. Front USB3.0/USB Charger

MC117

1

F_USB30_2A

A1

A2 A3

A4

A5 A6

A7

A8 A9

X1 X2

HC00054300LP-R

F_USB30_2B

B1

B2 B3

B4

B5 B6

B7

B8 B9

X3 X4

HC00054300LP-R

38 58Wednesday, December 28, 2016

USB CONN_HC

A 2R1C I

VBUS

D-3 D+3

GND

STDA_SSRX-1 STDA_SSRX+1

GND_DRAIN

STDA_SSTX-1 STDA_SSTX+1

SHLD_1 SHLD_2

USB CONN_HC

A 2R1C I

VBUS

D-4 D+4

GND

STDA_SSRX-2 STDA_SSRX+2

GND_DRAIN

STDA_SSTX-2 STDA_SSTX+2

SHLD_3 SHLD_4

X03

5

Vinafix.com

4

3

2

1

Front USB2.0

+12V_S5_PSU

R623

I

D D

SLP_S4#[8,15,22,34,35,37,38,44,45,54,55]

C C

B B

R639 I 33 ohmR639 I 33 ohm

USB_P10_DN[14]

USB_P10_DP[14]

USB_P11_DN[14]

USB_P11_DP[14]

USB_P12_DN[14]

USB_P12_DP[14]

Q63_G

C423

C423 100 pF

100 pF

I

I NPO

NPO 50 V

50 V

I

G

1

100K ohm

Q62_G

D

I

23

Q63

Q63 NX7002AK

NX7002AK

60 V-0.3 A

60 V-0.3 A [email protected]

[email protected]

S

R611 0 ohmNIR611 0 ohmNI

L26

0.3 ohm 0.4 A

L26

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

I

R612 0 ohmNIR612 0 ohmNI

R614 0 ohmNIR614 0 ohmNI

L29

0.3 ohm 0.4 A

L29

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

I

R621 0 ohmNIR621 0 ohmNI

R689 0 ohmNIR689 0 ohmNI

I

L30

0.3 ohm 0.4 A

L30

0.3 ohm 0.4 A

1 2

90OHM@100 MHz

R702 0 ohmNIR702 0 ohmNI

R630

I

47K ohm

Q62_D

D

I

23

Q62

Q62 NX7002AK

1

43

NX7002AK

60 V-0.3 A

60 V-0.3 A [email protected]

[email protected]

S

USB_P10_DN_R

USB_P10_DP_R

USB_P11_DN_R

USB_P11_DP_R

USB_P12_DN_R

USB_P12_DP_R

G

+5V_S5

I

Q58

D

5

NTMFS4C10NT1G

7.3mohm@10V

7.3mohm@10V 30 V40 A

30 V40 A

R638 I 1K ohmR638 I 1K ohm

EC28

+

I

0.6 ohm

I

0.6 ohm

470 uF

250 mA10 V

+5V_USB_F

C401

I

0.1 uF

X7R

+5V_USB_F

C402

I

0.1 uF

X7R

16 V

+5V_USB_F+5V_USB_PF

C400

I

0.1 uF

16 V

X7R

16 V

X7R

D106

I

0.001 A

ESD9B5.0ST5G

5 V

D107

I

0.001 A

ESD9B5.0ST5G

5 V

+5V_USB_PF+12V_S5_PSU

S

16

S

2

S

3

N

G

4

FUSB_G1[15]

FUSB_G2[15]

Q58_G

C424

I

0.1 uF

X7R

16 V

C450

0805

I

0805

I

22 uF

X5R

6.3 V

X5R

6.3 V

C449

22 uF

X5R

0805

I

6.3 V

C379

0.1 uF

X7R

C427

0.1 uF

X7R

I

16 V

C463

22 uF

X5R

0805

I

6.3 V

D71

D72

C448

C447

I

0.1 uF

X7R

0.001 A

ESD9B5.0ST5G

5 V

0.001 A

ESD9B5.0ST5G

5 V

16 V

X7R

16 V

X7R

16 V

I

F_USB1

112

3

USB_P10_DP_R USB_P11_DP_R

USB_P12_DN_R USB_P12_DP_R

556 778 9910

AU GF 2*6 P11

2.54 mm

I

F_USB2

112

3

3 556 778 9910

AU GF 2*6 P11

2.54 mm

I

VYE L

C455

0.1 uF

X7R

4

12

4

12

VWHT

I

F7

1 2

MF-MSMF2 60-2

16 V

2 4 6 8 10 12

2.6 A

2.6 A 6 V

6 V

USB_P11_DN_RUSB_P10_DN_R

ESD for back up used

NI

I

U49

USB_P10_DN_R USB_P10_DP_R

USB_P11_DN_R USB_P11_DN_R USB_P11_DP_R USB_P11_DP_R

A A

USB_P12_DN_R USB_P12_DN_R USB_P12_DP_R USB_P12_DP_R

5

4

U49

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

I

U53

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

10 9 8 7 6

USB_P10_DN_R USB_P10_DP_R

USB_P11_DN_R USB_P11_DP_R USB_P11_DP_R

USB_P12_DN_R USB_P12_DN_R USB_P12_DP_R USB_P12_DP_R

3

NI

U48

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

NI

U54

1

I/ O1

2

I/ O2

3

GND

4

I/ O3 I/ O45NC4

5.5 V

NC1 NC2

GND1

NC3

NC1 NC2

GND1

NC3

10 9 8 7 6

USB_P10_DN_R USB_P10_DP_R

USB_P11_DN_R

2

LITE-ON TECHNOLOGY CORP.

Title

39. USB2.0 Header

Size Document Number Rev

Size Docum ent Number Rev

B

MC117

Date: Sheet of

39 58Wednesday, December 28, 2016

1

X03

5

D D

CPU_FAN

NI

CPU_PWM[35] CPU_TACH[ 35]

NI

SYS_FAN

NI

C C

SYS_PWM[ 35] SYS_TACH[35]

NI

AUX1_FAN

NI

AUX1_PWM[35] AUX1_TACH[35]

NI

B B

NI

AUX2_FAN

NI

AUX2_PWM[35] AUX2_TACH[35]

NI

A A

+3V3

3

I

+3V3

R690

1K ohm

D115

+3V3

R248

1K ohm

D108

+3V3

R1083

1K ohm

D111

+3V3

R994

1K ohm

D113

I

D73

D73 BAT54C

BAT54C

30 V 0.2 A

2

1

R703 150 ohmI 0603R703 150 ohmI 0603 R724 15K ohmIR724 15K ohmI

R699

D114

+-1%I

NI

7.5K ohm

0.001 A

AZ5725-01F.R7G

5 V

+3V3

3

I

D50

D50 BAT54C

BAT54C

30 V 0.2 A

2

1

R259 150 ohmI 0603R259 150 ohmI 0603 R291 15K ohmIR291 15K ohmI

R283

+-1%I

D109

NI

7.5K ohm

0.001 A

AZ5725-01F.R7G

5 V

+3V3

3

I

D84

D84 BAT54C

BAT54C

30 V 0.2 A

2

1

R1068 150 ohmI 0603R1068 150 ohmI 0603 R1067 15K ohmIR1067 15K ohmI

R1078

D110

+-1%I

NI

7.5K ohm

0.001 A

AZ5725-01F.R7G

5 V

+3V3

3

I

D83

D83 BAT54C

BAT54C

30 V 0.2 A

2

1

R1005 150 ohmI 0603R1005 150 ohmI 0603 R1024 15K ohmIR1024 15K ohmI

R993

+-1%I

D112

NI

7.5K ohm

0.001 A

AZ5725-01F.R7G

5 V

4

+12V

R732

I

+12V

I

+12V

I

+12V

I

R732

4.7K ohm

C479

0603

100 pF

NPO

R288

4.7K ohm

C181

0603

100 pF

NPO

R1071

4.7K ohm

C699

0603

100 pF

NPO

R1037

4.7K ohm

C677

0603

100 pF

NPO

+12V

CPU_PWM_R

C468

I

100 pF

50 V

NPO

C170

I

100 pF

50 V

NPO

C702

I

100 pF

50 V

NPO

C660

I

100 pF

50 V

NPO

CPU_TACH_R

0603

EC29

C488

+

0 ohm

I

0 ohm

I

I 0603

100 uF

90 mA 16.0 V

+12V

EC3

+

0 ohm

I

0 ohm

I

100 uF

90 mA 16.0 V

+12V

EC44

+

0 ohm

I

0 ohm

I

100 uF

90 mA 16.0 V

+12V

EC45

+

0 ohm

I

0 ohm

I

100 uF

90 mA 16.0 V

I 0603

0.01 uF

X7R 50 V

SYS_PWM_R SYS_TACH_R

C157

I 0603

0.01 uF

X7R 50 V

AUX1_PWM_R AUX1_TACH_R

C693

I 0603

0.01 uF

X7R 50 V

AUX2_PWM_R AUX2_TACH_R

C687

I 0603

0.01 uF

X7R 50 V

50 V

0603

50 V

0603

50 V

0603

50 V

I

CPU_FAN

4

3

2

1

Sn

1*4 2.54 mm

I

SYS_FAN

4

3

2

1

1*4 2.54 mm

I

AUX1_FAN

4

3

2

1

1*4 2.54 mm

I

AUX2_FAN

4

3

2

1

1*4 2.54 mm

VBRN

VWHT

3

SATA0_TXP[14] SATA0_TXN[14]

SATA0_RXN[14] SATA0_RXP[14]

SATA1_TXP[14] SATA1_TXN[14]

SATA1_RXN[14] SATA1_RXP[14]

SATA2_TXP[14] SATA2_TXN[14]

SATA2_RXN[14] SATA2_RXP[14]

SATA3_TXP[14] SATA3_TXN[14]

SATA3_RXN[14] SATA3_RXP[14]

2

SATA1

SATA2

SATA3

SATA4

C685 0.01 uF X7R 50 VIC685 0.01 uFX7R 50 VI C682 0.01 uF X7R 50 VIC682 0.01 uFX7R 50 VI

C675 0.01 uF X7R 50 VIC675 0.01 uFX7R 50 VI C673 0.01 uF X7R 50 VIC673 0.01 uFX7R 50 VI

C672 0.01 uF X7R 50 VIC672 0.01 uFX7R 50 VI C674 0.01 uF X7R 50 VIC674 0.01 uFX7R 50 VI

C681 0.01 uF X7R 50 VIC681 0.01 uFX7R 50 VI C683 0.01 uF X7R 50 VIC683 0.01 uFX7R 50 VI

C625 0.01 uF X7R 50 VIC625 0.01 uFX7R 50 VI C620 0.01 uF X7R 50 VIC620 0.01 uFX7R 50 VI

C613 0.01 uF X7R 50 VIC613 0.01 uFX7R 50 VI C606 0.01 uF X7R 50 VIC606 0.01 uFX7R 50 VI

C603 0.01 uF X7R 50 VNIC603 0.01 uF X7R 50 VNI C612 0.01 uF X7R 50 VNIC612 0.01 uF X7R 50 VNI

C619 0.01 uF X7R 50 VNIC619 0.01 uF X7R 50 VNI C624 0.01 uF X7R 50 VNIC624 0.01 uF X7R 50 VNI

SATA0_TXP_C SATA0_TXN_C

SATA0_RXN_C SATA0_RXP_C

SATA1_TXP_C SATA1_TXN_C

SATA1_RXN_C SATA1_RXP_C

SATA2_TXP_C SATA2_TXN_C

SATA2_RXN_C SATA2_RXP_C

SATA3_TXP_C SATA3_TXN_C

SATA3_RXN_C SATA3_RXP_C

I

SATA1

X1

1

GND1

2

A+

3

A-

4

GND2

5

B-

6

B+

7

GND3

X2

ABA-SAT-054-F22

AU 15uin

AU 15uin RED DIP

RED DIP HH00154400LP-R

HH00154400LP-R

I

SATA2

X1

1

GND1

2

A+

3

A-

4

GND2

5

B-

6

B+

7

GND3

X2

ABA-SAT-054-F22

AU 15uin

AU 15uin RED DIP

RED DIP HH00154400LP-R

HH00154400LP-R

I

SATA3

X1

1

GND1

2

A+

3

A-

4

GND2

5

B-

6

B+

7

GND3

X2

ABA-SAT-054-F22

AU 15uin

AU 15uin RED DIP

RED DIP HH00154400LP-R

HH00154400LP-R

NI

SATA4

X1

1

GND1

2

A+

3

A-

4

GND2

5

B-

6

B+

7

GND3

X2

ABA-SAT-054-F22

AU 15uin

D DIP

RE

RE HH00154400LP-R

HH00154400LP-R

1

HDD_PWR1 HDD_PWR2

+5V

3

5V

4

C665

C1796

I

10 pF

0.01 uF

I

X7R 50 V

NPO

NPO 50 V

50 V

+12V

I

C600

0.01 uF

X7R 50 V

SATA_PWR1

1

2

Sn

2*2

3.0 mm

3.0 mm V

V BLK

BLK I

I

GND1

12V

3

5V

4

GND

+5V

C599

I

0.01 uF

X7R 50 V

HH00188000HMT-R (Black) HH00188100HMT-R (Red)

C1795

C1795 10 pF

10 pF

I

I NPO

NPO 50 V

50 V

+12V

I

C688

0.01 uF

X7R 50 V

SATA_PWR2

1

GND1

2

12V

Sn

2*2

3.0 mm

3.0 mm V

V BLK

BLK I

I

GND

LITE-ON TECHNOLOGY CORP.

Title

40. FAN/SATA

Size Document Number Rev

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

40 58Wednesday, December 28, 2016

X03

5

Vinafix.com

R191

R196

FB10 For PS/2 Normal SKU

+5V_USB20

D D

3VSBSW[35]

C C

RI1#[35] CTS1#[35] DSR1#[35] RTS1#[35] DTR1#[35] SIN1[34,35] SOUT1[ 34,35] DCD1#[35]

B B

A A

0.015 ohm

FB10

1 2

30ohm@100MHz

C147

I

0.1 uF

X5R 16 V

R284 0 ohm

NI

+5V

C791

I 0603

0.1 uF

X7R 50 V

Near to COM1

A_DCD# A_TXD A_DTR#

D30

NI

D26

NI

PS2_PWR

4 AI

+-25%

I

Q151

Q151 NX7002AK

NX7002AK

NI

NI 60 V

60 V

-0.3 A

-0.3 A [email protected]

[email protected]

G

3VSBSW_R

1

C818

NI

0.1 uF

X5R 16 V

D41

R209

NI

0603

NI

0603

PMLL4148L

0 ohm

75 VI0.2 A

R185 NI 0 ohmR185 NI 0 ohm

A_DCD#

A_RXD

A_TXD

A_DTR#

A_RXD

C77

C77 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

12.0 V 0.0 A

AZ4212-01F.R7G

A_RTS#

C75

C75 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

12.0 V 0.0 A

AZ4212-01F.R7G

5

C105

0.1 uF

X5R 16 V

+12V_S5_PSU

NI

KDAT[35]

KCLK[35]

MDAT[35]

MCLK[35]

+5V_S5

C769

C773

NI 0603

R1245

100K ohm

10 uF

0.1 uF

Q151_D

R1250NI

100K ohm

X5R 6.3 V

3VSBSW

0.1 uF

G

1

R1248 NI0 ohmR1248 NI0 ohm

NI

D

23

S

COM PORT A

I

U29

U29_20

20

VDD

VCC

U29_19

19

RA1

RY1

18

RA2

RY2

17

RA3

RY3

16

DY1

DA1

15

DY2

DA2

14

RA4

RY4

13

DY3

DA3

12

RA5

RY5

11

VSS

GND

GD65232PWR

I

VGA_COM1A

U1

DCD

DSR

U2

SIN

RTS

U3

SOUT

CTS

U4

DTR

U5

D29

12.0 V 0.0 A

AZ4212-01F.R7G

D28

12.0 V 0.0 A

AZ4212-01F.R7G

RI

GND

H1

H2

X1

X2

CONN_COM-VGA_24P

VGA 15P+ 9P COM/M

C76

NI

470 pF

I

I NP0

NP0 50 V

50 V

A_CTS#A_DSR# A_RI

C74

NI

470 pF

I

I NP0

NP0 50 V

50 V

R196

I

2.7K ohm

FOR NEC SKU only

R265

NI

10K ohm

16 VNIX7R

D

23

S

1 2 3 4 5 6 7 8 9 10

U6

U7

U8

U9

D25

12.0 V 0.0 A

AZ4212-01F.R7G

D24

12.0 V 0.0 A

AZ4212-01F.R7G

NI

U88

5

VIN

PS2_EN

4

EN

NI

SWITCHING IC_BR

Q140

UP7549TMA5-25

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

+12V_COM1 A_RIL A_RI

R163 NI 0 ohmR163 NI 0 ohm

A_CTS# A_DSR# A_RTS# A_DTR# A_RXD A_TXD A_DCD#

-12V_COM1

A_DSR#

A_RTS#

A_CTS#

A_RI

D23

C72

NI

470 pF

I

I NP0

NP0 50 V

50 V

D21

C73

NI

470 pF

I

I NP0

NP0 50 V

50 V

AZ4212-01F.R7G

VOUT

12.0 V 0.0 A

GND

OC#

I

R195

2.7K ohm

C71

C71 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

C63

C63 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

PS2_PWRPS2_PWRPS2_PWRPS2_PW R

1

2

3

4

R194

I

2.7K ohm

R175 33 ohmIR175 33 ohmI

R170 33 ohmIR170 33 ohmI

R174 33 ohmIR174 33 ohmI

R171 33 ohmIR171 33 ohmI

Short Circuit Over Current

0402

0402 FB14

FB14

300 ohm@100MHz

0402

KB_CK_R

FB11

300 ohm@100MHz

0402

MS_DT_R

FB13

300 ohm@100MHz

0402

MS_CK_R

FB12

300 ohm@100MHz

KB_DT KB_CK MS_DT MS_CK

PS2_PWR

C775

C774

NI 0603

NI

10 uF

0.1 uF

X5R 6.3 V

X5R 16 V

USB_OC6# [14]

Typ Max

Min

2

3.3 5.03.1

1 2

D126

D126 AZ5725-01F.R7G

AZ5725-01F.R7G

I

I 5 V

5 V

0.001 A

0.3 AI 0.5 ohm +-25%

MS_CK MS_DT

KB_CK KB_DT

C90

C90 180 pF

180 pF

I

I NPO

NPO 50 V

50 V

D127

D127 AZ5725-01F.R7G

AZ5725-01F.R7G

NI

5 V

0.001 A

NI

U89

1

I/ O 1

2

I/ O 2

3

GND

4

I/ O 3 I/ O 45NC4

5.5 V

KB_DTKB_DT_R

KB_CK

MS_DT

MS_CK

C92

C92 180 pF

180 pF

I

I NPO

NPO 50 V

50 V

GND1

NC1 NC2

NC3

3

C89

C89 180 pF

180 pF

I

I NPO

NPO 50 V

50 V

D128

D128 AZ5725-01F.R7G

AZ5725-01F.R7G

I

I 5 V

5 V

0.001 A

10 9 8 7 6

C93

C93 180 pF

180 pF

I

I NPO

NPO 50 V

50 V

MS_CK MS_DT

KB_CK KB_DT

C837

0.1 uF

16 V

16 V X5R

X5R

I

PS2_PWR

D122I

D129

D129 AZ5725-01F.R7G

AZ5725-01F.R7G

I

I 5 V

5 V

0.001 A

I

KB_MS

1 2 3 4 5 6

7 8 9

10 11 12

MiniDIN

1Port

5 V0.001 A

C837 close to R158

AZ5725-01F.R7G

MS_CK MS_DT

KB_CK KB_DT

KEYBOARD PS2 MOUSE

13 14 15 16 17

D130

D130 AZ5725-01F.R7G

AZ5725-01F.R7G

I

I 5 V

5 V

0.001 A

Near to PS2 headerNear to PS2 connector

NI

U90

1 2 3 4

5.5 V

PS2_PWR

NI

I/ O 1 I/ O 2 GND

GND1 I/ O 3 I/ O 45NC4

KB_DT MS_DT

C160

D123

NI

0.1 uF

X5R 16 V

5 V0.001 A

AZ5725-01F.R7G

MS_CK

10

NC1

MS_DT

9

NC2

8

KB_CK

7

NC3

KB_DT

6

COM PORT B

+5V

+12V

75 VI 0.2 A

D38 PMLL4148L

C104

0603

0.1 uF

50 VIX7R

D19 PMLL4148L

C59

I 0603

0.1 uF

X7R 50 V

4

-12V

75 VI 0.2 A

75 VI 0.2 A C39

Near to COM2

A_RI A_RI_R

R85 0 ohmIR85 0 ohmI

EXT_B_RI

R83 0 ohmIR83 0 ohmI

B_RI B_RI_R

R105 0 ohmNIR105 0 ohmNI

RI2#[35]

CTS2#[35] DSR2#[35] RTS2#[35] DTR2#[35] SIN2[35] SOUT2[35] DCD2#[35]

+12V_COM2 B_DCD# B_RXD B_TXD B_DTR#

EXT_B_RI

B_RXD

C36

C36 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

B_RTS# B_CTS#

C22

C22 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

3

COM2

ICOM2

I

-12V_COM2

2

112 334 556 778 9910

11

13

AU GF

2*8 P15

2.0 mm

2.0 mm V

V GRN

GRN

RI2#

R12 0 ohmNIR12 0 ohmNI

B_CTS# B_DSR# B_RTS# B_DTR# B_RXD B_TXD B_DCD#

B_TXD B_ DTR#B_DCD#

C32

C32 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

C24

C24 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

I

D27

30 V 0.2 AD27

30 V 0.2 A

1

2

BAT54C

B_DSR#

4

B_RTS#

6

B_CTS#

8

B_RI

10

COM_GPIO1

12

+5V_COM2

141413

16

C27

C33

470 pF

I

NP0

50 V

B_RIB_ DSR#

C17

C14

470 pF

I

NP0

50 V

COMA_RI COMA_RI_R

R94 4.7K ohmIR94 4.7K ohmI

3

R348

I

0603

I

0603

0 ohm

I 0603

B_RI

+12V_COM2

+5V_COM2 COM_GPIO1

C302

C302 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

-12V_COM2 EXT_B_RI

C765

C765 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

R121

I

2.2K ohm

C47

0.1 uF

X7R 50 V

COM_GPIO1 [17]

C768

C768 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

C767

C767 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

+3V3_DSW

1

C79

I

0.01 uF

X7R 50 V

I

NI

R106

10K ohm

Q8_3

I

Q8

Q8 MMBT3904

MMBT3904

SOT23

2 3

2

NI

2

D125

D121

R160 0 ohmIR160 0 ohmI

AZ4212-01F.R7G

+5V_S5

1 3 5 7 9

2

5 V0.001 A

AZ5725-01F.R7G

12.0 V 0.0 A

NI

KB_MS1

2

1 3

4 6

5 7

10

9

AU GF

2*5 P82.54 mm

VBLU

1

3

D52_3

R286NI33 ohmR286NI33 ohm

C178

NI

0.1 uF

X5R 16 V

+12V_COM2

-12V_COM2

C817

C817 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

PS2_DET#_R PS2_DET#_R MS_CKKB_CK

PS2_PWR_R

D124

NI

5 V0.001 A

AZ5725-01F.R7G

SW_ON_PS2_N

75 VI 0.2 A

D2 PMLL4148L

0603

50 VIX7R

75 VI 0.2 A

D12 PMLL4148L

RI1# [35]

R247 NI 1K ohmR247 NI 1K ohm

R253 NI 2.7K ohmR253 NI 2.7K ohm

PS2_PWR

R256

NI

10K ohm

G

1

+12V

-12V

LITE-ON TECHN OLOGY CORP.

Title

Size Document Number Rev

Size Document Num ber Rev

C

Date: Sheet of

PS2_DET# [35]

+5V_USB20

R214

NI

10K ohm

Q12_G

D

NI

23

Q16

Q16 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

S

C1801

0.1 uF

I

I X5R

X5R 25 V

25 V

C1802

0.1 uF

I

I X5R

X5R 25 V

25 V

41. COM PORT/PS2

MC 11 7

G

R212

NI

20K ohm

2 4 6

10

NI

D52

D52 BAV99

BAV99

75 V 0.15 A

C4

0.1 uF

C39

I 0603

0.1 uF

X7R 50 V

1

D48

NI

5 V0.001 A

AZ5725-01F.R7G

PSIN# [30,35,44]

D

NI

23

Q12

Q12 NX7002AK

NX7002AK

60 V -0.3 A

1

[email protected]

S

X03

41 58Wednesday, December 28, 2016

1

41 58Wednesday, December 28, 2016

X03

5

4

3

2

1

I 040 2

L50

C177

I

470 pF

I

I NP0

NP0 50 V

50 V

I

C163

C163 470 pF

470 pF

I

0

NP

NP 50 V

50 V

L50

L51

L52

L53

L54

L55

L56

L57

L58

L63

L64

L65

L66

L59

L60

L61

L62

D54

D49

TVL5VB1-DFN1006-2L

I 040 2

5 V0.000001

STB#[35 ]

PARALLEL PORT

D D

C C

B B

+5V +5V_LPT

75 VI 0 .2 A

D68 PMLL4148L

+5V_LPT

I

R267 2.7K ohm

I

RN1

1 2 3 4 5 6 7 8

2.7K ohm

I

RN2

1 2 3 4 5 6 7 8

2.7K ohm

I

RN3

1 2 3 4 5 6 7 8

2.7K ohm

I

RN4

1 2 3 4 5 6 7 8

2.7K ohm

STB#

PD0 PD1 PD2 PD3

PD4 PD5 PD6 PD7

AFD# ERR# INT# SLIN#

ACK# BUSY PE SLCT_R1

C228

I

0.1 uF

X5R 25 V

R1244

68 ohm

I

I +-1%

+-1%

C1799

0.1 uF

NI

X5R

V

25

SLCT [35]

PD0[35]

PD1[35]

PD2[35]

PD3[35]

PD4[35]

PD5[35]

PD6[35]

PD7[35]

AFD#[35]

ERR#[35]

INT#[35]

SLIN#[35]

ACK#[35]

BUSY[35]

PE[35]

SLCT_R1

STB#_R PD0_R PD1_ R PD2_R PD3_R PD4_R PD5_R PD6_R PD7_R

D51

I

C165

C165 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

5 V0.000001

TVL5VB1-DFN1006-2L

1.2 A

I

C185

C185 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

I

C166

C166 470 pF

470 pF

I

0

NP

NP 50 V

50 V

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

+-25%

120ohm@100MHZ

21

D56

5 V0.000001

TVL5VB1-DFN1006-2L

D53

5 V0.000001

TVL5VB1-DFN1006-2L

I

C192

C192 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

I

C179

C179 470 pF

470 pF

I

0

NP

NP 50 V

50 V

0.09 ohm

D58

D55

STB#_R

PD0_R

PD1_R

PD2_R

PD3_R

C200

I

470 pF

I

I NP0

NP0 50 V

50 V

I

C211

C211 470 pF

470 pF

I

0

NP

NP 50 V

50 V

D60

D64

STB#_R PD0_R PD1_R PD2_R PD3_R PD4_R PD5_R PD6_R PD7_R ACK#_R BUSY_R PE_R SLCT_R

5 V0.000001

TVL5VB1-DFN1006-2L

5 V0.000001

TVL5VB1-DFN1006-2L

PD4_R

PD5_R

PD6_R

PD7_R

AFD#_R

ERR#_R

INT#_R

SLIN#_R

ACK#_R

BUSY_R

PE_R

SLCT_R

D59

I

C194

C194 470 pF

470 pF

I

I NP0

NP0

5 V0.000001

50 V

TVL5VB1-DFN1006-2L

C187

C187 470 pF

470 pF

I

I NP

NP

5 V0.000001

50 V

TVL5VB1-DFN1006-2L

5 V0.000001

TVL5VB1-DFN1006-2L

ACK#_R BUSY_R PE_R SLCT_RAFD#_R ERR#_R INT#_R SLIN#_R

D57

I

0

5 V0.000001

TVL5VB1-DFN1006-2L

I

LPT

1 2 3 4 5 6 7 8 9 10 11 12 13 15 16 17 18 19 21 22 23 24 25

AU GF

2*13 P26 2 mm

LK

I

C202

C202 470 pF

470 pF

I

I NP0

NP0 50 V

50 V

I

C216

C216 470 pF

470 pF

I

0

NP

NP 50 V

50 V

D61

D65

AFD#_R ERR#_R INT#_R SLIN#_R

14

20

VB

5 V0.000001

TVL5VB1-DFN1006-2L

5 V0.000001

TVL5VB1-DFN1006-2L

C204

I

470 pF

I

I NP0

NP0 50 V

50 V

C221

I

470 pF

I

0

NP

NP 50 V

50 V

LPT_DET#_R

D69

I

D62

5 V0.000001

TVL5VB1-DFN1006-2L

D66

5 V0.000001

TVL5VB1-DFN1006-2L

R443 0 ohmIR443 0 ohmI

C241

I

0.1 uF

16 V

X7R

16 V

X7R

0.000001

5 V

TVL5VB1-DFN1006-2L

D63

C208

I

470 pF

I

I NP0

NP0 50 V

50 V

C227

C227 470 pF

470 pF

I

I NP

NP 50 V

50 V

5 V0.000001

TVL5VB1-DFN1006-2L

D67

I

0

5 V0.000001

TVL5VB1-DFN1006-2L

LPT_DET# [13]

A A

LITE-ON TECHNOLOGY CORP.

Title

42. LPT Pin Header

ze Documen t Number Rev

Size D ocument Number R ev

Si

B

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

42 58Wednesday, Decembe r 28, 2016

1

X03

5

Vinafix.com

D D

4

3

2

1

Asset ID

C689

NI 33 pF

NPO

NPO 50 V

50 V

+3V3_S5

R1042

+-1%NI

+-1%NI U68

1K ohm

ASSID_PROT#

R1039

R1039 1K ohm

1K ohm

+-1%

NI

U68

1

NC1

2

NC2

3

PROT

4

VSS

PCA24S08AD

1K*8

VDD

WP SCL SDA

8 7 6 5

C C

PCH_PLT_RST #[13,32,33,34,36] SMB_CLK_MAIN [12,23,24,25,26,46]

B B

R1047 0 ohmNIR1047 0 ohmNI

NI

ASSID_WP

+3V3

C691

0.1 uF

16 V

X7R

16 V

X7R

SMB_DATA_MAIN [12,23,24,25,26,46]

+3V3

R1050

+-1%NI

1K ohm

R1045

+-1%NI

1K ohm

A A

LITE-ON TECHNOLOGY CORP.

Title

43. Asset ID

Size Docum ent Number Rev

B

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

43 58Wednesday, December 28, 2016

1

X03

5

4

CONTROL PANEL / LED CIRCUITRY

3

2

1

Power Button

D D

PSIN#[30,35,41]

C C

PWR_LED[35]

SLP_S4#[8,15,22,34,35,37,38,39,45,54,55]

F_PANEL_DET# F_PANEL_DET#_R

B B

R1170

R1171

I

10K ohm

I

D91

SATA_LED#[14]

A A

SSD_LED#[32]

5

1

2

BAT54A

30 V 0.2 A

+3V3_DSW

2

+3V3_DSW

R877

I

10K ohm

C553

I

0.01 uF

X7R 50 V

R869 100 ohmIR869 100 ohmI

1

BAV99

75 V 0.15 A

Power LED

+3V3_S5

R767

NI

10K ohm

I

R771 0 ohm

I

R742 1K ohm

NI

R1219 0 ohm

HDD LED

+3V3

R1158

I

10K ohm

SATA_LED#_a

3

I

D79

PWR_LED_EN

G

1

3

D40_Z

G

1

G

1

+3V3+3V3 +3V3

R1159

I

10K ohm

SATA_LED#_b

D

23

I

Q138

Q138 NX7002AK

NX7002AK

60 V -0.3 A

S

[email protected]

F_PANEL_DET#

4

R868 75 ohmIR868 75 ohmI

EMI solution

D

23

S

Q41_D

D

23

S

PWRLED_G

NI

Q71

Q71 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

I

Q70

Q70 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

G

1

G

1

+5V

I

R1157

0603

330 ohm

SATA_LED#_c

HDD_LED

HDD_LED GRN

GRN

0.06 AI5 V

3 4

Q139_DQ139_D

D

23

I

Q139

Q139 NX7002AK

NX7002AK

60 V -0.3 A

S

[email protected]

Q141_D

D

23

NI

Q141

Q141 NX7002AK

NX7002AK

60 V -0.3 A

S

[email protected]

PWRSW+

CK00086000LA-R

FP_RST#[15,45]

+3V3

D78I

2

3

1

BAV99

75 V0.15 A

PWRSW+

R1154 0 ohmNIR11 54 0 ohmNI

D93

C743

NI

0.01 uF

X7R 50 V

PWR_LED_EN

R1221

R1221 0 ohm

0 ohm

0603

0603 I

I

2016/6/30 Follow spec Q70 , Q71 , Q141, R742 , R1219 , R1191 always NI R1221 always I

SATA_LED#_b

3

D93

NI

5 V 0.001 A

AZ5725-01F.R7G

PWRLED_GND

23

G

1

23

G

1

Front Panel header

R761

I 0603

F_PANEL

1

2 3 4 5 6 7 8 9

AU GF

2*5 P=10

mm

2

2 V

V BLK

AB

L1L2

X1X2

PWRSW-

PWRLED+

2

BLK I

I

SLP_S4#

+5V

R1091

NI

0603

NI

0603

330 ohm

5 V 0.001 A

C527

I

4.7 nF

X7R 50 V

PWRSW_R

PWRLED_G

D

I

Q147

Q147 NX7002AK

NX7002AK

60 V -0.3 A

S

[email protected]

F_HDD-

D

I

Q143

Q143 NX7002AK

NX7002AK

60 V -0.3 A

S

[email protected]

C526

I

0.1 uF

X7R 50 V

330 ohm

SLED# F_HDD-

D77

I

AZ5725-01F.R7G

NI

PWR_SW

Amber

SWITCH_HJ

Tact

+5V_S5+5V

R859

I 0603

330 ohm

PWRLED+ PWRLED_GND PWRSW+ PWRSW-

R886 0 ohm IR886 0 ohm I

F_PANEL_DET#

+5V_S5

R1191

R1191 10K ohm

10K ohm

NI

Power LED

S0

S1 / S3

S4 / S5

RED DOT LED

R1216

YLED HEADER

YLED_+

LITE-ON TECHNOLOGY CORP.

Title

44. Button/LED

Size D ocument Number R ev

B

MC117

Date: Sheet of

LED is on steady green

LED Blinks (1Hz/s)

LED OFF

+5V_USB_F

FunctoinColor

G

SLP_S4_DOTLED#

1K ohmNI

NI

YLED

2

112

4

334

6

556

AU GF

2*3 2.54 mm

VBLK

G

1

NI

R1217

0603

330 ohm

NI

DOT_LED

D

Q146

Q146 NX7002AK

NX7002AK

NI

S

60 V

-0.3 A

-0.3 A [email protected]

[email protected]

DOT_LED

3

112 3

AU 15uin

2*2 P=4

2.54 mm

2.54 mm V

V BLK

BLK

DOTLED+ DOTLED-

23

FunctoinColor

G PWR LED

44 58Wednesday, Decembe r 28, 2016

1

2

X03

5

4

3

2

1

D D

+12V

+3V3

R956

I

10K ohm

R946 0 ohmIR946 0 ohmI

C C

VCC3V&5V_PG_G

C607

NI

0.1 uF

X7R

VCC3V_PWRGD

16 V

G

1

R945 0 ohmNIR945 0 ohmNI

R962

I

10K ohm

VCC3V&5V_PG_G2

D

I

23

Q93

Q93 2N7002ET1G

2N7002ET1G

60 V 0.31 A

2.5ohm@10V

S

R963

I

4.7K ohm

NI

G

C626

0.1 uF

X7R

1

16 V

+5V

R942

I

51K ohm

+-1%

VCC3V&5V_PG_CTR

R940 0 ohmIR940 0 ohmI

D

I

23

Q92

Q92 2N7002ET1G

2N7002ET1G

60 V

2.5ohm@10V

S

0.31 A

R1257

100K ohm

I

ATX_PWROK [35,57]

C604

0.1 uF

NI

X7R

X7R 16 V

16 V

For APS test

NI

DEBUG

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

SMD

X1 X2

B B

SLP_S3#[15,22,30,35,46,54]

SLP_S5#[15] SLP_S4#[8,15,22,34,35,37,38,39,44,54,55 ] SLP_A#[15]

APS_RTCRST#[15]

PWRBTN#[12,15,35]

FP_RST#[15,44]

+3V3_DSW

TP23TP23

TP22TP22

+3V3_S5

RESERVE1

1

RESERVE2

1

A A

LITE-ON TECHNOLOGY CORP.

Title

45. APS Debug Port/ATX PWROK

Size D ocument Number R ev

B

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

45 58Wednesday, Decembe r 28, 2016

1

X03

5

SM Bus

D D

+3V3_S5 +3V3

R1028

R1041

I

1K ohm

SMBCLK[15,30,31,32]

SMBDATA[15,30,31,32]

C C

1K ohm

DGS

2 3

Q113

2.5ohm@10V

2N7002ET1G

1

60 V

0.31 A

0.31 A I

I

Q123

DGS

2 3

1

D

23

S

2.5ohm@10V

2N7002ET1G

0 V

6

0.31 A

0.31 A I

I

R1055I1K ohmR1055I1K ohm

SMB_CTRL_3

I

Q115

Q115 2N7002ET1G

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

G

SMB_CTRL_2

1

4

R1036

R1054

I

1K ohm

+12V

+5V_S5

I

D

S

R1043

10K ohm

23

1K ohm

I

Q124

Q124 2N7002ET1G

2N7002ET1G

60 V

2.5ohm@10V

G

1

0.31 A

SMB_CTRL_1

SMB_CLK_MAIN [12,23,24,25,26,43]

SMB_DATA_MAIN [12,23,24,25,26,43]

R1058

PCH_SYSPWROK [12,15,35]

33K ohm

I

I +-1%

+-1%

3

R1065 0 ohmNIR1065 0 ohmNI

+3V3_DSW

R1066

I

10K ohm

Q127_G

23

G

PS_ON#[22, 35,48,50]

PS_ON#[22,35,48,50]

1

R1209 I 100 ohmR1209 I 100 ohm

G

1

D

I

Q128

Q128 FDV301N

FDV301N

25 V 0.5 A

S

[email protected]

[email protected] CA00079901FG-R

CA00079901FG-R

+3V3_DSW

I

2

D

23

S

R1190

10K ohm

D118_1

C800

0603

0603 0

0

0.1 uF

X7R

PSU_FAN_ON

C697

0603

NI

0603

NI

0

0.1 uF

X7R

I

Q127

Q127 2N7002ET1G

2N7002ET1G

60 V 0.31 A

2.5ohm@10V

D118

PMLL4148L

75 VNI0.2 A

25 V

1

-12V_DSW

I

ATX_POWER

5

PS_ON

4

GND4

3

GND3

25 V

2

GND2

1

GND1

AU GF

+ATX_12V

C763

0603

I

0603

I

0

0.1 uF

X7R

2*54.2 mm

VNTR

I

ATX_12V

X2

3

12V1

4

12V2

Sn 2*2 4.2 mm

25 V

+12V3

+12V2

+12V1

PWR_METER

GND1

GND2

VNTR

-12V

+12V_S5_PSU

10

9

8

7

6

C761

C762

0603

I

0603

I

1

2

0.1 uF

X7R

0603

I

0603

I

C1797

0.1 uF

X7R

C1797

0

10 pF

I

25 V

NPO

NPO 50 V

50 V

0

25 V

+12V_S5_PSU

X7R 060325.0 V

C772 1 uF

I

R385 I

20K ohm

B B

Temperature Sensing

Current Mode

CLOSE TO VR MOSFET

C220

I

220 pF

Q44

2 3

NPO 50 V

MMBT3904

SOT23

CAD NOTE : Place MLCC Close to Thermal Diode CLOSE TO VR MOSFET

Acceptable Transistor Component

A A

ST Micro: MMBT3904 ON Semiconsuctor: MMBT3904LT1 Fairchild Semiconductor: MMBT3904FSCT

5

VR_TEMP_DA [35]

1

TS_D- [35]

EXT_SYS_TEMP[35]

SYS THERMAL SENSOR

C481 220 pF

X7RI50 V

I

THER_HD

2

SENSOR_HDR_GND CHASSIS_ID1 CHASSIS_ID2

4

112

3

6

556

D76

AU GF

2.54 mm

I

2*3 P4 RBLK

EXT_SYS_TEMP SENSOR_HDR_GND

5 V 0.001 A

CHASSIS_ID1

AZ5725-01F.R7G

CHASSIS_ID2

C482

0.1 uF

TS_D- [35]

CHASSIS_ID2 [16]CHASSIS_ID1[ 16]

16 VNIX7R

C486

0.1 uF

TS_D-

R1258

C1805

0.1 uF

0 ohm

NI

I

16 VNIX7R

X7R

X7R 16 V

16 V

C487

C1800

C1800 100 pF

100 pF

I

50 VINPO

NPO

NPO 50 V

50 V

3

SLP_S3#[15,22,30,35,45,54]

R363 0 ohmIR 363 0 ohmI

SLP_S3#[15,22,30,35,45,54]

H_SKTOCC#[11,16,22,35]

STITCHING CAP

Q142_D

+12V_COMP_G1

C770

0.1 uF

R941 0 ohmIR 941 0 ohmI

2

16 VNIX7R

200K ohm

G

R948 0 ohmNIR948 0 ohmNI

R396

+-1%

I

1

I

Q144_G

23

D

S

C601

0.1 uF

16 VNIX7R

1 6

2

3

4 5

C771

0.1 uF

Q142

Q142 2N7002ET1G

2N7002ET1G

60 V

0.31 A

60 V

0.31 A

2.5ohm@10V

SLP_S3#_B

I

Q144

S

G

PZ0703EK

30 V 70 A

0.0038ohm

16 VNIX7R

G

D

EC88

+

I

D

270 uF

P

+3V3_DSW

1

270 uF

D

5000 mA 16 V

0.008 ohm

R955

I

4.7K ohm

4.7K ohm R939 0 ohmIR 939 0 ohmI

D

23

I

Q91

Q91 2N7002ET1G

2N7002ET1G

60 V 0.31 A

S

2.5ohm@10V

H_SKTOCC#_E

R957

I

0 ohm

LITE-ON TECHNOLOGY CORP.

Title

46. SM BUS/Thermal Sensing/ATX

ize Document Number Rev

Size Document Number Rev

S

C

MC117

Date: Sheet of

Imax: 14A

+12V

C1792

C1791

I

0805

I

0805

I

0805

I

0805

10 uF

X5R

16 V

X5R

16 V

X5R

16 V

X5R

16 V

PS_ON#PSON#_R

C615

0.1 uF

16 VIX7R

X03

46 58Wednesday, December 28, 2016

1

46 58Wednesday, December 28, 2016

X03

5

Vinafix.com

4

3

2

1

5

6

H3

4

7

3

8

2

9

MHOLE

1

NI

D D

5

6

H6

4

7

3

8

2

9

MHOLE

1

NI

5

6

H10

4

7

3

8

2

9

MHOLE

1

NI

5

6

H2

4

7

3

8

2

9

MHOLE

C C

1

NI

5

6

H16

4

7

3

8

2

9

MHOLE

1

NI

6

H11

4

7

3

8

2

9

MHOLE

1

NI

5

6

H8

4

7

3

8

2

9

MHOLE

1

NI

5

6

H4

4

7

3

8

2

9

MHOLE

1

NI

5

6

H7

4

7

3

8

2

9

MHOLE

1

NI

BAR CODE Label

I

LB1

35.56*7.62MM LABEL

LABEL 40*6 mm

FRU Label

NI

LB4

25*5MM LABEL

LABEL 26*11 mm

LAN Label

I

LB2

17*7MM LABEL

LABEL 40*6 mm

AMI Label

I

LB3

LABEL 10*10mm

H9

FMARK

NI

H12

FMARK

NI

H14

1

FMARK

NI

H13

1

FMARK

NI

1

H15

1

FMARK

NI

H1

1

FMARK

NI

1

CPU metal

I

@XU1

PCB

PT44P19-6401

CPU SOCKET-LGA-1151Plate

PCH HS

NI

HS3

X3 X4

HEATSINK_2PAIR

PCB

PCB1

PCB

MC117

A01

A01 244 * 267*1.6mm

244 * 267*1.6mm OSP

OSP I

I

X1 X2

PCH HS DUCT

NI

U3_X1_2

1

3

AU GH

1*3 P2 2.54 mm

VBLK

NI

U3_X1_1

1

3

AU GH

1*3 P2 2.54 mm

VBLK

B B

A A

LITE-ON TECHN OLOGY CORP.

Title

47. Mounting Hole

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

5

4

3

2

Date: Sheet of

1

47 58Wednesday, December 28, 2016

X03

5

4

3

2

1

+3V3_DSW_POL

Vin:+12V_S5_PSU

D D

+12V_S5_PSU

R970

100K ohm

I

I +-1%

+-1% 0603

0603

R973

35.7K ohm

I

I +-1%

+-1% 0603

0603

C C

+3V3_DSW_VIN

NI C648

NI

C623

C623 10 uF

10 uF

I

I X5R

X5R 0805

0805 25 V

25 V

C648

0.01 uF

X7R

X7R 50 V

50 V

+12V_S5_PSU

C635

0.1 uF

I

I X7R

X7R 0603

0603 25 V

25 V

+3V3_DSW_EN

+3V3_DSW_SS

C637

0.022 uF

I

I X7R

X7R 25 V

25 V

12

FB24

FB24 0603

0603

I

I 120ohm@100MHz

120ohm@100MHz +-25%

+-25%

0.03 ohm

0.03 ohm 3 A

3 A

2

7

8

L= 10uH DCR= 68m ohm Irms= 4A Isat= 5.5A

U62

IU62

I

VIN

EN

SS

GND

G9G111G212G313G4

4

BOOT

SW

FB

COMP

RT8296AHZSP

10

+3V3_DSW_BOOT

1

+3V3_DSW_SW

3

+3V3_DSW_FB

5

+3V3_DSW_COMP

6

C636 0.1 uF

16 V

X7R

16 V

X7R

I

C656 47 nF

X7R 25 V

I

IC637

+3V3_DSW_COMP_RC

C652

C652 10 pF

10 pF

I

I NPO

NPO 50 V

50 V

Size: 7.6*6.8*3

L34

7.6*6.8*3

10 uH @100Khz

10 uH @100Khz +-20%

+-20%

0.068 ohm

0.068 ohm I

I

R995 6.34K ohm

+-1% I

21

R999

R999 75K ohm

75K ohm

R1

+-1%

+-1% I

I

R998

R998 24K ohm

24K ohm

R2

+-1%

VO=VFB(1+(R1/R2))

I

VFB=0.8 VO=3.3V

Max Load: 0.37A IC OCP: 5.1A IC EN ON > 2.7V IC EN OFF < 0.4V

+3V3_DSW_POL

C654

C655

22 uF

47 uF

X5R

0805

6.3 V

I

-12V

Q96_D1

D

23

Q96

NTR4101PT1G

G

PS_ON#[22,35,46,50]

B B

A A

5

G

+3V3_DSW

NTR4101PT1G

1

-20 V

-3.2 A

-3.2 A 70mohm@(-4.5V)

70mohm@(-4.5V) I

I

S

Q96_SR

R1004

0 ohm

I

I 0805

0805

4

Q102_GR

C651

C651 1 uF

1 uF

I

X5R

6 V

1

1 0603

0603

R983

2.2K ohm

I

I +-1%

+-1%

R1000

4.7K ohm

I

I +-1%

+-1%

D

I

23

Q102

Q102 P8503BMG

P8503BMG

G

1

S

-12V_DSW

-12V

Vin:-12V_DSW Max Load: 0.1A

3

LITE-ON TECHNOLOGY CORP.

Title

48. +3V3_DSW / -12V

ize Document Number Rev

Size Document Number Rev

S

C

MC117

Date: Sheet of

2

Date: Sheet of

1

48 58Wednesday, December 28, 2016

X03

5

4

3

2

1

+5V3V_VIN_FILTER

+5V_S5

Vin:12V_5V3V_FILTER Vout:+5V_S5 Max Load: 17.28A

D D

OCP Min: 25.92A Fsw:300KHz(typ) IC EN1 ON > 1.6 V IC EN1 OFF < 0.4 V

+5V_S5_VBST1_R

+5V_S5_D2

I

Q107

Q107 NX7002AK

NX7002AK

60 V -0.3 A

60 V -0.3 A [email protected]

[email protected]

I

+12V_5V3V_FILTER

R1006

R1006 0 ohm

0 ohm

0805

0805 I

I

C664

0.1 uF

I

I X7R

X7R 0603

0603 25 V

25 V 0

0

R1025 0 ohm

0805 I

R1011 1 ohm

0805 I

RLIM RLIM

R1044 52. 3K ohm

+-1% I

R1040

200 ohm

+-1%

+-1% I

I

R1064

10K ohm

+-1%

+-1% I

I

R1046

0 ohm

I

C838

NI C838

NI

1 uF

X5R

6.3 V

+3V3_S5+3V3_PWR+3V3_DSW+3V3_PWR

+12V_5V3V_FILTER

+5V_S5

I

C829

0.1 uF

X5R 16 V

I

C830

0.1 uF

X5R 16 V

I

C831

0.1 uF

X5R 16 V

I

C832

0.1 uF

X5R 16 V

I

C833

0.1 uF

X5R 16 V

I

C834

0.1 uF

X5R 16 V

C633

C633 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

For EMC request

C C

+5V_S5 +3V3_PWR

+

EC42

EC42 560 uF

560 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA

6.3 V

6.3 V I

I

B B

RT6576C OCP Equation : Rlimit= (Ilimit-ΔIL /2)*Rds(on)*8/Ics

+5V_S5 Rds(on)= 3.4~4.25mohm Ics= 9~11uA ΔIL/2= 4.86/2= 2.43 A If Set Rlimit= 64.9Kohm OCP Ilimit= 26.29A

MLCC Ripple current= 1.5A

+12V_5V3V_FILTER: Cin= 600uF(EC+MLCC) Ripple current= 19A

+5V_S5: Cout= 582uF(EC+MLCC) Ripple current= 6.5A

A A

+3V3_S5: Cout= 1164uF(EC+MLCC) Ripple current= 13A

+5V_S5 LIR = ΔIL/Imax = 4.86/17.28 = 0.281

C639

0.1 uF

X7R

X7R 16 V

16 V

L=2.0uH DCR=3.3m ohm Irms=20A Isat=26A Size:11.7*11.7*10

L35

2 uH@100kHz

0.0033 ohm

0.0033 ohm 20 A

20 A

C640

11.7*11.7*3.5

22 uF

I

X5R

X5R 0805

0805

6.3 V

6.3 V I

I

+3V3_S5 LIR = ΔIL/Imax = 6.13/24.12 = 0.254

21

R1049

2.2 ohm

I

I 1206

1206

+5V_S5_SUNN

C690

C690 1000 pF

1000 pF

NP0

NP0 0402

0402

50.0 V

50.0 V I

I

FOR NEC SKU only: NI R1247

PS2_PWR_ON_Function DSM=OFF and KB power ON=ON S3-S5, S0, S3, S4, S5:HIGH

DSM=ON and KB power ON=ON S3-S5, S0, S3, S4, S5:HIGH

DSM=ON and KB power ON=OFF S3-S5, S0, S3, S4: HIGH

PS2_PWR_ON[35]

SLP_SUS#

Other SKU: NI R1249 FOR NEC SKU only (backup plan)

5

Q117

Q117 NTMFS4C08NT1G

NTMFS4C08NT1G

NTMFS4C08NT1G 30 V

30 V

5.8mohm@10V

5.8mohm@10V I

I 47 A

47 A

使使使使使使使使

1. FB28-->NI

2. FB29,FB30,R1062-->NI

3. FB31,R1060-->ADD

4. R947,Q99,C649-->ADD

使使使使使使使使

1. FB28-->Add

2. FB29,FB30,R1062-->Add

3. FB31,R1060->NI

4. R947,Q99,C649-->NI

C631

C632

10 uF

X7R

1206

25 V

I

D

SSS

1 6

ON NTMFS4C08NT1G Rds(on)=5.8mohm@10V

R1249 NI 0 ohmR1249 NI 0 ohm

R1247

IR1247

I

0 ohm

D

N

SSS

234

1 6

5

D

N

G

234

SLP_SUS#_PS2 PS2_PWR_ON_R

R1238

100K ohm

G

SSS

234

1 6

+12V_S5_PSU

I

1

23

N

D

I

Q150

Q150 NX7002AK

NX7002AK

60 V -0.3 A

S

[email protected]

RT6576(+3V3_DSW)

RT8296A (+3V3_DSW)--------Default

FB31

NI

FB31

NI

1 2

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

5

Q106

D

NTMFS4C08NT1G

NTMFS4C08NT1G 30 V

30 V

5.8mohm@10V

5.8mohm@10V I

I

G

47 A

ON NTMFS4C08NT1G Rds(on)=5.8mohm@10V NTMFS4C10NT1G

+5V_S5_DRVH1_R

5

D

G

C676I0.1 uF

X7R0603

25 V

R1018I10K ohm

0

+-1%

Q116

Q116 NTMFS4C08NT1G

NTMFS4C08NT1G

NTMFS4C08NT1G 30 V

30 V

5.8mohm@10V

5.8mohm@10V I

I 47 A

47 A

4

C666

0.1 uF

X7R

16 V

I

R1056 15K ohm

+-1% I

C694 10 pF

NP0

50 V

NP0

50 V

0603

I

0603

I

+3V3_DSW

R1195

R1195 10K ohm

10K ohm

D

23

G

1

S

R1251NI

100K ohm

+3V3_DSW_POL +3V3_DSW

S

FB28

1 2

0603

I

I 120ohm@100MHz

120ohm@100MHz +-25%

+-25%

0.03 ohm

0.03 ohm 3 A

3 A

FB30

1 2

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

FB29

1 2

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

+12V_5V3V_FILTER

C662

0.1 uF

X7R

X7R 0603

0603 25 V

25 V

I

I 0

0

U67

I

I 0

0

+5V_S5_EN1

VREG5

12

17

16

18

15

14

19

20

13

21 22

U67

2

1

RT6576DGQW

I

I NA

NA

R1246

10K ohm

NI

VIN

BOOT1

UGATE1

PHASE1

LGATE1

BYP1

FB1

CS1

VCLK

EN1

LDO5

GPAD GPAD1 GPAD223GPAD3

VREG3

+5V_3V3_S5_VIN

+5V_S5_VBST1

+5V_S5_DRVH1

+5V_S5_SW1

+5V_S5_DRVL1

+5V_S5_VFB1

+5V_S5_VCLK

+5V_S5_EN1

C663

1 uF

X7R

0603

6.3 V

+3V3_S5

+3V3_S5 @Imax 7 .43A

Soft start:2.519ms Inrush current:166.6mA

Please Check IC EN ON > 1.6V IC EN OFF < 0.4V

R947 10K ohm

SLP_SUS#

[15,21,22,35,56]

R947 10K ohm

3

+

C661

EC40

0.1 uF

270 uF

X7R

I

0603

0.008 ohm

25 V

5000 mA

5000 mA 16 V

16 V I

I 0

0

+3V3_S5_VBST2

9

BOOT2

+3V3_S5_DRVH2

10

UGATE2

+3V3_S5_SW2

8

PHASE2

+3V3_S5_DRVL2

11

LGATE2

+3V3_S5_VFB2

4

FB2

+3V3_S5_CS2+5V_S5_CS1

5

CS2

7

PGOOD

+3V3_S5_EN2

6

EN2

VREG3VREG5

3

LDO3

26

GPAD5

25

GPAD4

24

R1060 10K ohm

NI

G

+3V3_DSW_G0

NI

C598

0.1 uF

X7R

X7R 16 V

16 V

NI

1

+

EC37

EC37 270 uF

270 uF

I

0.008 ohm

0.008 ohm 5000 mA

5000 mA 16 V

16 V

C686

C686 1 uF

1 uF

X7R

X7R 0603

0603

6.3 V

I

I 0

0

+12V_S5_PSU

23

1 2

R1032 0 ohm

0805 I

R1021 1 ohm

0805 I

R1052 80.6K ohm

+-1% I

R1062 10K ohm

C684

0.1 uF

X7R

X7R 16 V

16 V

NI

R971

R971 100K ohm

100K ohm

+-1%

NI

+3V3_DSW_G1

D

Q90

Q90 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

NI

FB27

I

FB27

I

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

FB26

I

FB26

I

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

FB25

I

FB25

I

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

FB39

I

FB39

I

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

I

+12V_S5_PSU

R969

R969 100K ohm

100K ohm

+-1%

NI

C643

0.1 uF

16 V

NI

X7R

C634

0.1 uF

X7R

X7R 16 V

16 V

NI

+12V_S5_PSU

NTMFS4C10NT1G

7.3mohm@10V

Rds(on)=7.3mohm@10V

+3V3_S5_VBST2_R

C679I0.1 uF

X7R0603

25 V 0

R1029I10K ohm

+-1%

Q119

Q119 NTMFS4C08NT1G

NTMFS4C08NT1G

NTMFS4C08NT1G 30 V

30 V

5.8mohm@10V

5.8mohm@10V 47 A

47 A I

I

R1063 13K ohm

+-1% I

C695 10 pF

NP0

50 V

NP0

50 V

0603

I

0603

G

+3V3_PWR

1

I

R1053 10K ohm

D

5

D

23

Q94

Q94 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

NI

2

R1048

20K ohm

+-1%

+-1% 50V

50V I

I

SLP_SUS#

+3V3_DSW_G2

5

D

Q108

N

30 V

30 V 40 A

40 A

G

I

+3V3_S5_DRVH2_R

5

D

N

G

I

R1010 0 ohm

0603 NI

S

N

G

5

D

N

G

SSS

234

1 6

5

D

N

SSS

G

234

1 6

NTMFS4C08NT1G

5.8mohm@10V

ON NTMFS4C08NT1G Rds(on)=5.8mohm@10V

+3V3_PWR

5V3V_S5_PG

+3V3_S5

16

2

3

4

Q99

NTMFS4C10NT1G

30 V

30 V 40 A

40 A

7.3mohm@10V

NI

+3V3_PWR

Vin:12V_5V3V_FILTER Vout:+3V3_S5 Max Load:24.12A OCP Min:36.18A Fsw:355KHz(typ) IC EN2 ON > 1.6 V IC EN2 OFF < 0.4 V

+12V_5V3V_FILTER

C629

C630

C630 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

D

Q109

NTMFS4C10NT1G

30 V

30 V 40 A

40 A

7.3mohm@10V

SSS

NI

234

1 6

234

1 6

5V3V_S5_PG [56]

C649

22 uF

X5R

X5R 0603

0603

6.3 V

NI

L=1.1uH DCR=2m ohm Irms=25A Isat=37A Size:11.7*11.7*10

L36

1.1uH @100kHz

R1057

Q120

D

30 V

30 V 47 A

47 A

SSS

0.002 ohm

2.2 ohm

11.7*11.7*10

I

I 1206

1206

I

+3V3_S5_SUNN

C696

C696 1000 pF

1000 pF

NP0

NP0 0402

0402

50.0 V

50.0 V I

I

RT6576C OCP Equation : Rlimit= (Ilimit-ΔIL /2)*Rds(on)*8/Ics

+3V3_S5 Rds(on)= 3.4~4.25mohm Ics= 9~11uA ΔIL/2= 6.13/2= 3.065 A If Set Rlimit= 90.9Kohm OCP Ilimit= 36.48A

LITE-ON TECHNOLOGY CORP.

Title

49. +5V_S5/+3V3_S5

Size Document Number Rev

C

MC117

Date: Sheet of

C629

C628

10 uF

X7R

1206

25 V

I

25 A

IL36

25 A

I

21

C627

C638

10 uF

0.1 uF

X5R

X7R

0805

16 V

10 V

10 V I

I

1

+

EC43

EC43 560 uF

560 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA

6.3 V

6.3 V I

I

49 58Wednesday, December 28, 2016

+

EC36

EC36 560 uF

560 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA

6.3 V

6.3 V I

I

X03

5

Vinafix.com

4

3

2

1

D D

+12V

R1026

100K ohm

+-1%

+-1% I

I

D

23

Q114

G

MOSFET-N

G

C678

0.1 uF

I

I X7R

X7R 0603

0603 25 V

25 V 0

0

MOSFET-N

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

R1019

R1019 20K ohm

20K ohm

0603

NI

R1034 10K ohm

PS_ON#[22,35,46,48]

R1034 10K ohm

+5V_Gate_G1

I

Please Check EN ON < 2.5 V EN OFF > 1 V

C C

+5V

Soft start= 5.835 ms

NTMFS4C10NT1G Rds(on)=7.3mohm@10V

+5V_Gate

C669

0.1 uF

16 V

16 V I

I X7R

X7R

NTMFS4C10NT1G

7.3mohm@10V

C658 0.1 uF

X7R

Q101

30 V

30 V 40 A

40 A

5

D

N

G

I

16 V

NI

C659

C659 10 uF

10 uF

I

I X5R

X5R 0805

0805 10 V

10 V

+5V_S5

D

SSS

234

1 6

C657

0.1 uF

16 V

C641

C641 10 uF

10 uF

I

I X5R

X5R 0805

0805 10 V

10 V

+5V

+

EC39

470 uF

0.6 ohm

0.6 ohm 250 mA

250 mA 10 V

10 V

X7R

0

0 I

I

+5V @Imax 7.8A

B B

+12V

R1076

100K ohm

+-1%

+-1% I

I

D

23

Q129

G

MOSFET-N

G

C703

0.1 uF

I

I X7R

X7R 0603

0603 25 V

25 V 0

0

MOSFET-N

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

R1072

R1072 20K ohm

20K ohm

0603

NI

PS_ON#[22,35,46,48]

R1069 10K ohm

+3V3_Gate_G1

I

Please Check EN ON < 2.5 V EN OFF > 1 V

A A

5

4

+3V3

Soft start= 3.449 ms

NTMFS4C08NT1G Rds(on)=5.8mohm@10V

+3V3_Gate

C701

0.1 uF

16 V

16 V I

I X7R

X7R

3

Q98

NTMFS4C08NT1G

30 V

5.8mohm@10V

5.8mohm@10V 47 A

47 A I

I

C700 I 0.22 uF

X7R 16 V

X7R 16 VR1069 10K ohm

5

D

N

G

C618

C618 10 uF

10 uF

I

I X5R

X5R 0805

0805 10 V

10 V

+3V3_PWR

D

SSS

234

1 6

C622

0.1 uF

16 V

X7R

X7R I

C617

C617 10 uF

10 uF

NI

X5R

X5R 0805

0805 10 V

10 V

+3V3

+

EC38

470 uF

0.6 ohm

0.6 ohm 250 mA

250 mA 10 V

10 V

I

0

0 I

I

2

+3V3 @Imax 15.9A

LITE-ON TECHN OLOGY CORP.

Title

50. +5V / +3V3

Size Document Number Rev

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

1

X03

50 58Wednesday, December 28, 2016

X03

5

R465 0 ohm

VCCIO_PG[22,57]

IC EN ON > 0.8 V IC EN OFF < 0.3 V

D D

VR_RDY[22]

R410 47 ohm

+-1% I

CPU VCC_SENSE[9]

CPU VSS_SENSE[ 9]

C C

R527 47 ohm

+-1% I

GT_VCC_SENSE[9]

GT_VSS_SENSE[9]

B B

H_PROCHOT#[11]

IA_VDDC_COMP_RC1

R409 1K ohm

+-1% I

C236

C236 1000 pF

1000 pF

X7R

X7R 50 V

50 V I

I

GT_VDDCA_COMP_RC1

R528 1K ohm

+-1% I

C297

C297 1000 pF

1000 pF

X7R

X7R 50 V

50 V I

I

R465 0 ohm

C230 470 pF

X7R 50 V

I

R453 0 ohm

I

DVID

Riout

I-out

C299 470 pF

X7R 50 V

I

R526 0 ohm

I

DVID

RioutA

I-out

R440 4.02K ohm

+-1% I

R412

560K ohm

+-1%

NI

R417 3.32K ohm

+-1% I

R461

30.9K ohm

+-1%

+-1% I

I

R542 4.02K ohm

+-1% I

R532

560K ohm

+-1%

NI

R519 3.9K ohm

+-1% I

R546

30.9K ohm

+-1%

+-1% I

I

100K ohm

4250 K

RT2

+-1%

+-1% SMD

SMD

4

C253

0.1 uF

16 V

NI

NI X7R

X7R

IA_VDDC_COMP_RC

C239 47 pF

C250

C250 470 pF

470 pF

X7R

X7R 50 V

50 V I

I

GT_VDDC_COMPA_RC

C288 47 pF

C295

C295 470 pF

470 pF

X7R

X7R 50 V

50 V I

I

VR_TSENSE_RR

I

1 2

VR_EN [58]

C234 2.2 nF

X7R 50 V

INPO 50 V

C238

2.2 nF

I

I X7R

X7R 50 V

50 V

C301 2.2 nF

X7R 50 V

I

INPO 50 V

C279

2.2 nF

I

I X7R

X7R 50 V

50 V

R464

4.12K ohm

+-1%

+-1% I

I

R467

7.15K ohm

+-1%

+-1% I

I

VR_EN

VR_DIFF

VR_COMP

I

VR_FB

CPU_VCC_SENSE_R+

CPU_VCC_SENSE_R-

VR_IOUT

VR_PROG VR_VBOOT_ADDR VR_IMAX

VR_DIFFA

VR_COMPA

VR_FBA

CPU_GT_SENSE_R+

CPU_GT_SENSE_R-

VR_IOUTA

VR_VBOOT_ADDRA VR_IMAXA

VR_TSENSE

+5V

R498 2.2 ohm

0603 I

C256

0.1 uF

I

I X7R

X7R 16V

16V

C265

2.2 uF

X5R

X5R 0603

0603 10 V

10 V I

I

U42

2

EN

6

VRDY

50

DIFF

48

COMP

49

FB

51

VSP

52

VSN

1

IOUT

10

PH/FDm/FDa/SR/DDR

28

VBOOT/ADDR

36

ICCMAX

16

DIFFA

18

COMPA

17

FBA

15

VSPA

14

VSNA

13

IOUTA

27

VBOOTA/ADDRA

29

ICCMAXA

12

VRHOT

37

TSENSE

ROSC

8

VR_ROSC

R500

24.9K ohm

I

I +-1%

+-1%

3

+ATX_12V

R514

1K ohm

I

VR_VCC VR_VIN

9

7

NCP81203MNTXG

I

VCC

VRMP

VCORE PORTION

CSCOMPA

GT PORTION

TSENSEA

EPAD

EPAD154EPAD255EPAD356EPAD457EPAD558EPAD659EPAD760EPAD861EPAD962EPAD1063EPAD1164EPAD1265EPAD1366EPAD1467EPAD15

53

FREQ 400KHZ

SDIO SCLK

ALERT#

DRVON

PWM1

CSN1

CSP1

PWM2

CSN2

CSP2

PWM3

CSN3

CSP3

CSSUM

CSCOMP

CSREF

PWM1A

CSN1A CSP1A

PWM2A

CSN2A CSP2A

CSSUMA

ILIMA

CSREFA

ILIM

C271

0.01 uF

I

I X7R

X7R 50 V

50 V

68

3 5 4

35 34 38 39

33 40 41

32 42 43

45

47

46

44

30 26 25

31 24 23

21

19

20

22

11

+VCCST_VCCPLL_S3

VR_SDIO_R

R468 10 ohm

VR_SCLK_R

+-1% I

VR_ALERT#_R_PWM

VR_DRVON VR_PWM1 VR_CSN1 VR_CSP1_R

VR_PWM2 VR_CSN2 VR_CSP2_R

VR_PWM3 VR_CSN3 VR_CSP3_R

VR_CSCOMP

VR_ILIM

VR_CSREF

VR_PWM1A VR_CSN1A VR_CSP1A_R

VR_PWM2A VR_CSN2A VR_CSP2A_R

VR_CSCOMPA

VR_ILIMA

VR_CSREFA

R442I24.9K ohm

+-1%

R499I22.1K ohm

+-1%

R455I5.1K ohm

VR_CSP1[52]

+-1%

R439I5.1K ohm

VR_CSP2[52]

+-1%

R435I5.1K ohm

VR_CSP3[52]

+-1%

Rlim

Put RT1 close to +VCCIA Phase1 Choke

R517I5.1K ohm

VR_CSP1A[53]

+-1%

R516I5.1K ohm

VR_CSP2A[53]

+-1%

RlimA

Put RT4 close to +VCCGT Phase1 Choke

VR_TSENSEA

C281

0.1 uF

I

I X7R

X7R 16V

16V

2

R481

RCS1

1 2

R481

45.3 ohm

+-1%

I

R472 0 ohm

C249 0.1 uF

X5R 25 V

C242 0.1 uF

X5R 25 V

C231 0.1 uF

X5R 25 V

VR_CSCOMP_RR1

100K ohm

I

C229

C229 1000 pF

1000 pF

X7R

X7R 50 V

50 V I

I

C275 0.1 uF

X5R 25 V

C274 0.1 uF

X5R 25 V

VR_CSCOMPA_RR1

100K ohm

I

C296

C296 1000 pF

1000 pF

X7R

X7R 50 V

50 V I

I

RT3

RT3 100K ohm

100K ohm

I

I +-1%

+-1% SMD

SMD 4250 K

4250 K

R469

100 ohm

+-1%

+-1% I

I

R479 51 ohm

+-1% I

R415I100K ohm

+-1%

RT1

+-1% SMD 4250 K

RCS1A RCS2A

R535I100K ohm

+-1%

RT4

+-1% SMD 4250 K

R531

4.12K ohm

+-1%

+-1% I

I

VR_TSENSEA_RR

R545

8.66K ohm

I

I +-1%

+-1%

56 ohm

+-1%

NI

I

R418 221K ohm

+-1% I

C222 1000 pF

50.0 V I

C226 820 pF

I

R520 220K ohm

+-1% I

C282I680 pF

C283I1.2 nF

R473

RCS2

NP0

X7R50 V I

R436 10 ohm

+-1% I

R437 10 ohm

+-1% I

R438 10 ohm

+-1% I

X7R50 V

R537 10 ohm

+-1% I

R518 10 ohm

+-1% I

C259

C259 1 uF

1 uF

I

I X5R

X5R 10 V

10 V

Load line

0402

Load line

H_VIDSDIO [11] H_VIDSCLK [11] H_VIDALERT# [11]

VR_DRVON [52,53] VR_PWM1 [52] VR_CSN1 [52]

VR_PWM2 [52] VR_CSN2 [52]

VR_PWM3 [52] VR_CSN3 [52]

VR_CSSUM

Dynamic I-out

VR_CSN1

VR_CSN2

VR_CSN3

VR_CSSUMA

VR_CSN1A

VR_CSN2A

1

Rph

R403 75K ohm +-1%

I

R404 75K ohm +-1%

I

R405 75K ohm +-1%

I

SDV 0402 package

VR_PWM1A [53] VR_CSN1A [53]

VR_PWM2A [53] VR_CSN2A [53]

RphA

R540 51.1K ohm +-1%

I

R534 51.1K ohm +-1%

I

SDV 0402 package

VR_CSP1 [52]

VR_CSP2 [52]

VR_CSP3 [52]

VR_CSP1A [ 53]

VR_CSP2A [ 53]

Put RT2 close to +VCCIA Phase1 Choke (L20) Put RT3 close to +VCCGT Phase1 Choke (L25)

A A

5

VR_PROG

R501

10K ohm

+-1%

+-1% I

I

3+2 CONFIGURATION

4

VR_VBOOT_ADDR

R489

15K ohm

I

I +-1%

+-1%

SET VCCIA VBOOT = 0 V

VR_IMAX

R471

62K ohm

I

I +-1%

+-1%

VCCGT IMAX SET 79A

3

VR_VBOOT_ADDRA

R497

10K ohm

+-1%

+-1% I

I

SET VCCGT VBOOT = 0 V

VR_IMAXA

R478

37.4K ohm

I

I +-1%

+-1%

VCCGT IMAX SET 48A

LITE-ON TECHNOLOGY CORP.

Title

51. VCORE CONTROLLER

ize Document Number Rev

Size Document Number Rev

S

C

MC117

Date: Sheet of

2

Date: Sheet of

1

51 58Wednesday, December 28, 2016

X03

5

Vinafix.com

R358I2.2 ohm

+ATX_12V

R364

2.2 ohm

0603

D D

VR_PWM1[51]

R374 51.1 ohm

VR_DRVON[51, 53]

+-1% I

0603 I

I

NCP81161_VCC1

VR_PWM1 VR_DRVON_R1 VR_LGATE1

NCP81161MNTBG

C210

C210 1 uF

1 uF

I

I X5R

X5R 0603

0603 16 V

16 V

NCP81161MNTBG

I

R358I2.2 ohm

0805

VR_BOOT1

1

U39

4

2 3

VCC

PWM EN

DRVH

BST

DRVL

GND

GNDPAD

6

9

BOTTOM PAD CONNECT TO GND Through 4 VIAs

SW

8

7

5

4

VR_BOOT1_RC

C209

0.1 uF

X7R

X7R 0603

0603 25 V

25 V

I

VR_UGATE1

VR_PHASE1

R353 1 ohm

0805 I

R337

R337 0 ohm

0 ohm

0805

0805 I

I

NTMFS4C10NT1G

R345 10K ohm

+-1% I

NTMFS4C08NT1G

VR_LGATE1_R

7.3mohm@10V

VR_UGATE1_R

5.8mohm@10V

3

+ATX_12V

L18

+VCCIA_VIN

C190

D

SSS

1 6

D

NTMFS4C08NT1G

SSS

5.8mohm@10V

1 6

C190 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

Q39

30 V

30 V 47 A

47 A

5

D

Q34

N

30 V

30 V 40 A

40 A

G

I

234

5

D

Q40

N

30 V

30 V 47 A

47 A

G

I

234

+

C191

EC5

10 uF

270 uF

X7R

0.008 ohm

1206

5000 mA

25 V

16 V

I

5

D

N

SSS

G

SSS

G

I

234

1 6

L18

0.7uH@100Khz

I

0.0075 ohm

0.0075 ohm 16 A

16 A 8*7

8*7

R362

2.2 ohm

I

I 1206

1206

+VCCIA_SUNN_RC1

C196

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

21

VR_CSP1[ 51]

VR_CSN1[51]

L=0.3uH DCR=0.6m ohm Idc=33A Isat=45A Size:10.7*6.7*9.9

SP3

Short pad

NI

L20

300nH @100kHz

0.0006 ohm

0.0006 ohm 33 A

33 A

10.7*6.7*9.9

10.7*6.7*9.9 I

I

2

1

+VCCIA

Vin:+12V_CPU Vout:+VCCIA

+VCCIA

21

+

EC14

EC13

820 uF

0.007 ohm

5600 mA

SP4

SP4 Short pad

Short pad

NI

5600 mA

2.5 V

I

DC Loadline: 2.1mohm ITDC:61A Imax:79A

Q31

30 V

30 V 40 A

40 A

VR_UGATE2_R

Q36

30 V

30 V 47 A

47 A

Q49

30 V

30 V 40 A

40 A

VR_UGATE3_RNCP81161_VCC3

Q51

30 V

30 V 47 A

47 A

I

+VCCIA_VIN

5

D

N

G

5

D

N

G

+VCCIA_VIN

5

D

N

G

5

D

N

G

D

SSS

234

1 6

D

NTMFS4C08NT1G

SSS

234

1 6

D

SSS

234

1 6

D

NTMFS4C08NT1G

SSS

234

1 6

5.8mohm@10V

C189

C189 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

+

EC4

C188

270 uF

10 uF

0.008 ohm

X7R

5000 mA

1206

16 V

25 V

I

5

D

Q30

N

30 V

30 V 47 A

47 A

G

I

234

C298

C280

10 uF

X7R

1206

25 V

I

5

D

Q52

N

30 V

30 V 47 A

47 A

G

I

234

+

SSS

1 6

D

SSS

1 6

EC15

EC15 270 uF

270 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA 16 V

16 V I

I

R378

2.2 ohm

I

I 1206

1206

+VCCIA_SUNN_RC2

C213

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

R559

2.2 ohm

I

I 1206

1206

+VCCIA_SUNN_RC3

C326

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

VR_CSP2[ 51]

VR_CSN2[51]

VR_CSP3[ 51]

VR_CSN3[51]

Short pad

SP1

NI

SP5

NI

L=0.3uH DCR=0.6m ohm Idc=33A Isat=45A Size:10.7*6.7*9.9

L19

21

300nH @100kHz

0.0006 ohm

0.0006 ohm 33 A

33 A

10.7*6.7*9.9

10.7*6.7*9.9 I

I

L=0.3uH DCR=0.6m ohm Idc=33A Isat=45A Size:10.7*6.7*9.9

L24

21

300nH @100kHz

0.0006 ohm

0.0006 ohm 33 A

33 A

10.7*6.7*9.9

10.7*6.7*9.9 I

I

SP2

SP2 Short pad

Short pad

NI

SP6

SP6 Short pad

Short pad

NI

+

EC12

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

EC11

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

NI

+

EC16

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

EC17

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

R381I2.2 ohm

+ATX_12V

C C

VR_PWM2[51]

R382 51.1 ohm

VR_DRVON[51, 53]

+-1% I

B B

VR_PWM3[51]

R576 51.1 ohm

VR_DRVON[51, 53]

+-1% I

R357

2.2 ohm

0603

0603 I

I

NCP81161_VCC2

VR_PWM2 VR_DRVON_R2

C212

C212 1 uF

1 uF

I

I X5R

X5R 0603

0603 16 V

16 V

+ATX_12V

R579

2.2 ohm

0603

0603 I

I

VR_PWM3 VR_DRVON_R3

C340

C340 1 uF

1 uF

I

I X5R

X5R 0603

0603 16 V

16 V

NCP81161MNTBG

I

NCP81161MNTBG

I

R381I2.2 ohm

0805

VR_BOOT2

1

U40

4

VCC

BST

2

PWM

3

EN

GND

GNDPAD

6

9

BOTTOM PAD CONNECT TO GND Through 4 VIAs

R572I2.2 ohm

0805

VR_BOOT3

1

U45

4

VCC

BST

2

PWM

3

EN

GND

GNDPAD

6

9

BOTTOM PAD CONNECT TO GND Through 4 VIAs

DRVH

DRVL

DRVH

DRVL

VR_BOOT2_RC

C207

0.1 uF

X7R

X7R 0603

0603 25 V

25 V

I

VR_UGATE2

R351 1 ohm

VR_PHASE2

VR_LGATE2

VR_BOOT3_RC

C334

0.1 uF

X7R

X7R 0603

0603 25 V

25 V

I

VR_UGATE3

VR_PHASE3

VR_LGATE3

R351 1 ohm

0805 I

R341

R341 0 ohm

0 ohm

0805

0805 I

I

R555 1 ohm

0805 I

R577

R577 0 ohm

0 ohm

0805

0805 I

I

8

7

SW

5

8

7

SW

5

NTMFS4C10NT1G

7.3mohm@10V

R352 10K ohm

+-1% I

NTMFS4C08NT1G

5.8mohm@10V

VR_LGATE2_R

NTMFS4C10NT1G

7.3mohm@10V

R574 10K ohm

+-1% I

NTMFS4C08NT1G

5.8mohm@10V

VR_LGATE3_R

A A

LITE-ON TECHN OLOGY CORP.

Title

52. VCCIA Output

Size Document Number Rev

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

5

4

3

2

Date: Sheet of

1

52 58Wednesday, December 28, 2016

X03

5

4

3

2

1

+ATX_12V

L23

D D

+ATX_12V

R610

2.2 ohm

0805

0805 I

I

NCP81161_VCC_GT1 VR_UGATE_GT1

VR_PWM1A[51] VR_DRVON[51,52]

C C

B B

R608 51.1 ohm

+-1% I

VR_PWM2A[51] VR_DRVON[51,52]

R664 51.1 ohm

+-1% I

VGT_DRVON_R1 VR_LGATE_GT1

C407

C407 1 uF

1 uF

X5R

X5R 0603

0603 16 V

16 V

I

+ATX_12V

NCP81161_VCC_GT2

VGT_DRVON_R2

R671

2.2 ohm

0805

0805 I

I

C446

C446 1 uF

1 uF

X5R

X5R 0603

0603 16 V

16 V

I

NCP81161MNTBG

I

NCP81161MNTBG

I

R606 2.2 ohm

0805 I

VR_BOOT_GT1

1

U47

4

VCC

BST

2

PWM

3

EN

GND

GNDPAD

6

9

BOTTOM PAD CONNECT TO GND Through 4 VIAs

R650 2.2 ohm

0805 I

VR_BOOT_GT2

1

U52

4

VCC

BST

2

PWM

3

EN

GND

GNDPAD

6

9

BOTTOM PAD CONNECT TO GND Through 4 VIAs

DRVH

DRVL

DRVH

DRVL

VR_BOOT_GT1_RC

C404

0.1 uF

X7R

X7R 0805

0805 25 V

25 V I

I

R604 1 ohm

VR_PHASE_GT1

VR_BOOT_GT2_RC

C439

0.1 uF

X7R

X7R 0805

0805 25 V

25 V I

I

VR_UGATE_GT2

VR_PHASE_GT2

VR_LGATE_GT2

R604 1 ohm

0805 I

R653 1 ohm

0805 I

8

7

SW

5

8

7

SW

5

R609

R609 0 ohm

0 ohm

0805

0805 I

I

R667

R667 0 ohm

0 ohm

0805

0805 I

I

NTMFS4C10NT1G

7.3mohm@10V

VR_UGATE_GT1_R

R607 10K ohm

+-1% I

NTMFS4C08NT1G

5.8mohm@10V

VR_LGATE_GT1_R

NTMFS4C10NT1G

7.3mohm@10V

VR_UGATE_GT2_R

R659 10K ohm

+-1% I

NTMFS4C08NT1G

5.8mohm@10V

VR_LGATE_GT2_R

+VCCGT_VIN

C357

C357 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

5

D

N

G

5

D

N

G

+VCCGT_VIN

5

D

N

G

5

D

N

G

D

SSS

234

1 6

D

SSS

234

1 6

D

SSS

234

1 6

D

SSS

234

1 6

NTMFS4C08NT1G

5.8mohm@10V

NTMFS4C08NT1G

5.8mohm@10V

Q57

30 V

30 V 47 A

47 A

I

C410

C410 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

Q64

30 V

30 V 47 A

47 A

I

Q60

30 V

30 V 40 A

40 A

I

Q56

30 V

30 V 47 A

47 A

I

Q66

30 V

30 V 40 A

40 A

I

Q65

30 V

30 V 47 A

47 A

I

+

C412

EC19

10 uF

270 uF

X7R

0.008 ohm

1206

5000 mA

25 V

16 V

I

5

D

R603

2.2 ohm

N

G

C438

C438 10 uF

10 uF

X7R

X7R 1206

1206 25 V

25 V I

I

5

D

N

G

2.2 ohm

1206

1206 I

I

SSS

VGT_SNAB1

234

1 6

C396

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

VR_CSP1A[51]

VR_CSN1A[51]

+

EC23

270 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA 16 V

16 V I

I

D

R640

2.2 ohm

1206

1206 I

I

SSS

VGT_SNAB2

234

1 6

C434

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

L23

21

0.7uH@100Khz

I

0.0075 ohm

0.0075 ohm 16 A

16 A 8*7

8*7

L=0.3uH DCR=0.6m ohm Idc=33A Isat=45A Size:10.7*6.7*9.9

L25

21

300nH @100kHz

0.0006 ohm

0.0006 ohm 33 A

33 A

10.7*6.7*9.9

10.7*6.7*9.9 I

I

SP7

Short pad

NI

L=0.3uH DCR=0.6m ohm Idc=33A Isat=45A Size:10.7*6.7*9.9

L28

21

300nH @100kHz

0.0006 ohm

0.0006 ohm A

A

33

10.7*6.7*9.9

I

SP10

Short pad

NI

SP8

Short pad

NI

SP9

Short pad

NI

+

EC18

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

EC27

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

NI

+

EC21

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

EC22

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

+VCCGT

+

EC25

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

+VCCGT

Vin:+12V_CPU Vout:+VCCGT DC Loadline: 3.1mohm ITDC: 30A Imax:48A

VR_CSP2A[51]

VR_CSN2A[51]

A A

LITE-ON TECHNOLOGY CORP.

Title

53. VCCGT Output

ze Document Number Rev

Size Document Number Rev

Si

C

MC117

Date: Sheet of

5

4

3

2

Date: Sheet of

1

53 58Wednesday, December 28, 2016

X03

5

Vinafix.com

4

3

2

1

+5V_S5

R920

2.2 ohm

0603

I

D D

C C

C567

0.1 uF

X7R

X7R 0603

0603 25 V

25 V

I

+1V2_MEM_S3

R891

R891 10K ohm

10K ohm

I

+1V2_MEM_S3_PWRGD +1V2_MEM_S3_COMP_EN

R917

6.19K ohm

+-1%

+-1% I

I

+1V2_MEM_S3_FB_RC1

C584

0.015 uF

X7R

X7R 25 V

25 V I

I

C575

C575 1000 pF

1000 pF

X7R

X7R 50 V

50 V I

I

R2

+1V2_MEM_S3_VCC

U58

10

PGOOD

7

COMP/DIS

8

FB

+1V2_MEM_S3_FB

R904

5.9K ohm

I

I +-1%

+-1%

C582

C582 1 uF

1 uF

X7R

X7R 0603

0603

6.3 V

6.3 V 0

0 I

I

6

BOOT

VCC

UG

LG

GND

GND_EP

VORPM

5

9

11

R895

13K ohm

+-1%

NI

C577 0.015 uF

X7R 25 V

+1V2_MEM_S3_BOOT

1

+1V2_MEM_S3_UGATE

3

+1V2_MEM_S3_PHASE

2

LX

+1V2_MEM_S3_LGATE

4

NCP1589LMNTWG

Rev.1

Rev.1 I

I

R914I3.01K ohm

+-1%

+1V2_MEM_S3_RC2

I

C568

2.2 nF

50 V

NI

X7R

X7R 0603

0603

R1

+5V_S5

R890

2.2 ohm

0805

0805 I

I

Rocset

+1V2_MEM_S3_VORPM

R907 75 ohm

+-1% I

+1V2_MEM_S3_BOOT_R

D80

D80 SS0530

SS0530

I

I 30 V

30 V

0.5 A

C571

0.1 uF

X7R

X7R 0603

0603 25 V

25 V 0

0 I

I

R916

13K ohm

+-1%

R927 1 ohm

0805 I

R913 0 ohm

0805 I

R896 0 ohm

R908 10K ohm

I

+1V2_MEM_S3_UGATE_R

I

+1V2_MEM_S3_LGATE_R

NTMFS4C08NT1G

5.8mohm@10V

I

Q73

30 V

30 V 47 A

47 A

I

+1V2_MEM_S3_FILTER

5

D

N

SSS

G

SSS

G

234

1 6

5

D

N

SSS

G

SSS

G

234

1 6

Q86

Q86 NTMFS4C10NT1G

NTMFS4C10NT1G

30 V

30 V 40 A

40 A

7.3mohm@10V

5

D

N

G

+

EC35

EC35 270 uF

270 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA 16 V

16 V I

I

D

Q74

Q74 NTMFS4C08NT1G

NTMFS4C08NT1G

30 V

30 V 47 A

47 A

SSS

5.8mohm@10V

NI

234

1 6

+1V2_MEM_S3_RR

C608

C608 10 uF

10 uF

I

I X5R

X5R 0805

0805 25 V

25 V

1 2

C609

C609 10 uF

10 uF

NI

X5R

X5R 0805

0805 25 V

25 V

R887

2.2 ohm

I

I 1206

1206

+1V2_MEM_S3_SUNN

C529

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

+12V_S5_PSU

FB23

I

FB23

I

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

L= 1.1uH DCR= 1.45m ohm Irms= 25A Isat= 27A Size: 10*10*9.6

L33

21

1.1uH@200KHz

I

0.00145 ohm

0.00145 ohm 25 A

25 A 10*10*9.6

10*10*9.6

+

EC34

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

+

EC31

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

+1V2_MEM_S3

C514

C514 22 uF

22 uF

X5R

X5R 0805

0805

6.3 V

6.3 V I

I

+1V2_MEM_S3

Vin:12V Vout:+1V2_MEM_S3 Max Load: 15A OCP Min: 22.5A Fsw:320KHz(typ) IC EN ON > 1.3 V IC EN OFF < 0.7 V

+12V_S5_PSU: Cin= 280uF (MLCC + EC CAP) CAP Ripple current= 6A

+1V2_MEM_S3: Cout= 2222uF(EC+MLCC)

R901

Short pad

NI

Vout=(1+R1/R2)* 0.8=1.2V

OCP =9.5uA*Rocset/L-S Rds(on)

CAP Ripple current= 19.2A

+1V2_MEM_S3 LIR

= ΔIL/Imax = 3.07/15 = 0.204

=(9.5uA*20K)/8.5m =22.3A

+0V6_MEM

+3V3_S5

B B

+2V5_VPP_DDR_S3

R933 3.3K ohm

SLP_S4#[8,15,22,34,35,37,38, 39,44,45,55]

A A

+1_2V_MEM_COMP_EN_G1

I

R934 0 ohm

5

I

VTTDDR_BLEED_2_G

C593

0.1 uF

X7R

X7R 16 V

16 V

NI

G

1

G

1

+3V3_DSW

R932

100K ohm

I

+1_2V_MEM_COMP_EN_G2

D

23

Q80

Q80 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

+1_2V_MEM_COMP_EN_S

D

23

Q81

Q81 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

23

G

1

+1V2_MEM_S3_COMP_EN

D

Q83

Q83 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

4

+1V2_MEM_S3

R909

10K ohm

+-1%

+-1% I

I

R919

10K ohm

+-1%

+-1% I

I

C570

C570 10 uF

10 uF

X5R

X5R 0603

0603

6.3 V

6.3 V I

I

C573

C573 10 uF

10 uF

X5R

X5R 0603

0603

6.3 V

6.3 V I

I

C581

0.1 uF

I

I X7R

X7R 16 V

16 V

R928

100K ohm

I

+0V6_MEM_PG

+0V6_MEM_REFIN

U59

9

2

1

4

3

PGOOD

PVCC

VRI

PGND

10

VCC

EAPD111EAPD212EAPD313EAPD414EAPD515EAPD6

C589

4.7 uF

X5R

X5R 0603

0603

6.3 V

6.3 V I

I

8

GND

3

VTT

5

VTT S

7

EN

6

VRO

NCP51200MNTWG

16

I

I Fixed

Fixed

+0V6_MEM_VOSNS

+0V6_MEM_EN

+0V6_MEM_REFOUT

R899I10 ohmR899I10 ohm

C578 10 pF

INPO

50 V

C586

0.1 uF

X7R

X7R 16 V

16 V I

I

C564

C565

10 uF

X5R

0603

6.3 V

6.3 V I

I

Q82

C591

0.01 uF

NI

0.01 uF

NI

X7R

X7R 50 V

50 V

Q82

MOSFET-N

60 V

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

2

C563

C563 10 uF

10 uF

X5R

X5R 0603

0603

6.3 V

6.3 V I

I

D

23

S

C562

C562 10 uF

10 uF

X5R

X5R 0603

0603

6.3 V

6.3 V I

I

R918 10K ohm

G

+0V6_MEM_EN_GC

1

MMBT3904WT1G

+0V6_MEM

Vin:+1_2V_MEM_S3 Imax: 1.5A OCP: 3A

C552

0.1 uF

IC EN ON > 1.7 V

I

I X7R

X7R

IC EN OFF < 0.3 V

16 V

I

R921 10K ohm

+0V6_MEM_EN_B

R931 1K ohm

Q85

I

SOT323

Title

Size Document Num ber Rev

Date: Sheet of

R931 1K ohm

1

R935 1K ohm

2 3

LITE-ON TECHN OLOGY CORP.

54. +1V2_DDR/+0V6_VTT

C

MC 11 7

+3V3

+3V3_S5

I

IR919

DDR_VTT_CNTL [11]

I

SLP_S3# [15,22,30,35,45,46]

NI

54 58Wednesday, December 28, 2016

1

54 58Wednesday, December 28, 2016

X03

5

Vinafix.com

D D

4

3

2

1

+2V5_VPP_DDR_S3

Temp. Max. DC: 2.4A

+5V_S5

12

FB20

FB20 0603

0603

120ohm@100MHz

120ohm@100MHz +-25%

+-25%

0.03 ohm

0.03 ohm 3 A

3 A I

I

R894 100K ohm

I

C554

C554 10 uF

C C

10 uF

X5R

X5R 0805

0805 10 V

10 V I

I

C569

C569 1 uF

1 uF

X7R

X7R 0603

0603 10 V

10 V 0

0 I

I

+2V5_VPP_PVIN

+2V5_VPP_PG

+2V5_VPP_EN

10

9

8

4

5

U57

PVIN_3

PVIN_2

SVIN_1

PGOOD

EN

RT8068A

I

GNDPAD GNDPAD1 GNDPAD2 GNDPAD3

LX_1

LX_2

LX_3

+2V5_VPP_LX

1

2

3

+2V5_VPP_FB

6

FB

7

NC

11 12 13 14

L=2.2uH DCR=5.23m ohm Irms=10A Isat=15A Size:8*8*9.5

L32

21

2.2uH@100KHz

I

0.00523 ohm

0.00523 ohm 10 A

10 A 8*8*9.5

8*8*9.5

RFB1

RFB2

R906

R906 162Kohm

162Kohm

+-1%

+-1% I

I

R905

51.1K ohm

+-1%

+-1% I

I

C579

CFF

22 pF

NPO

NPO 50 V

50 V I

I

VO=VFB(1+(R1/R2)) VFB=0.6 VO=2.505V

+2V5_VPP_DDR_S3

C560

C561

22 uF

X5R

0805

6.3 V

I

OCP: 4A(typ) IC EN ON > 1.6 V IC EN OFF < 0.4 V Fsw:1MHz

2016/07/11 Change to +3V3_DSW

+3V3_DSW

B B

R898 1K ohm

SLP_S4#[8,15,22,34,35,37,38, 39,44,45,54]

A A

5

+2V5_VPP_EN_G1

I

+2V5_VPP_EN_G1_D

G

1

C576

C576 1 uF

1 uF

X5R

6.3 V

6.3 V I

I

R900 0 ohm

R922

R922 10K ohm

10K ohm

I

+2V5_VPP_EN_G1_D

D

23

Q77

Q77 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

+2V5_VPP_EN_G2

I

4

+2V5_VPP_EN_G1_D [22]

+3V3_DSW

23

G

1

C1803

C1803 1 uF

1 uF

I

I X5R

X5R

6.3 V

R912

R912 47K ohm

47K ohm

I

Q79_D

R1243 I 33K ohm

D

Q79

Q79 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

R910

R910 10K ohm

10K ohm

NI

NIR900 0 ohm

+2V5_VPP_EN

C574

C574 1 uF

1 uF

X5R

6.3 V

6.3 V I

I

3

LITE-ON TECHN OLOGY CORP.

Title

55. +2V5_VPP_DDR

Size Document Number Rev

Size Document Num ber Rev

C

MC 11 7

Date: Sheet of

2

Date: Sheet of

1

55 58Wednesday, December 28, 2016

X03

+-1%

5

4

3

2

1

D D

FB22

+1V0_PCH_VIN

+

EC33

Q76

Q76 NTMFS4C10NT1G

NTMFS4C10NT1G

30 V

30 V 40 A

40 A

7.3mohm@10V

7.3mohm@10V I

I

Q75

Q75 NTMFS4C08NT1G

NTMFS4C08NT1G

30 V

30 V 47 A

47 A

5.8mohm@10V

5.8mohm@10V I

I

EC33

270 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA 16 V

16 V I

I

R902

2.2 ohm

I

I 1206

1206

+1V0_PCH_SUNN

C585

2.2 nF

X7R

X7R 0402

0402 50 V

50 V I

I

R930

2.2 ohm

0805

0805 I

I

Rocset

+1V0_PCH_VORPM

R950 75 ohm

+-1% I

+5V_S5

+1V0_PCH_BOOT_R

R929

6.8K ohm

+-1%

+-1% I

I

D81

D81 SS0530

SS0530

I

I 30 V

30 V

0.5 A

C588

0.1 uF

I

I X7R

X7R 0603

0603 25 V

25 V

R951 0 ohm

R924 1 ohm

0805 I

R923 0 ohm

0805 I

I

+1V0_PCH_UGATE_R

R925 10K ohm IR925 10K ohm I

+1V0_PCH_LGATE_R

+1V0_PCH_FB_RR

5

D

N

SSS

G

SSS

G

234

1 6

5

D

N

SSS

G

SSS

G

234

1 6

+3V3_S5

R953

R953 10K ohm

10K ohm

I

+1V0_PCH_PWRGD

C597

0.1 uF

X7R

X7R 0603

0603 25 V

25 V I

I

+1V0_PCH_PWRGD[21]

C C

B B

+1V0_PCH_EN

R944

8.25K ohm

+-1%

+-1% I

I

+1V0_PCH_FB_RC1

C610

0.015 uF

X7R

X7R 25 V

25 V I

I

C605

C605 82 pF

82 pF

I

I NPO

NPO 50 V

50 V

+1V0_PCH_FB

+5V_S5

R937

2.2 ohm

0603

0603 I

I

+1V0_PCH_VCC

C595

C595 1 uF

1 uF

I

I X7R

X7R 0603

0603

6.3 V

6

U60

10

PGOOD

7

COMP/DIS

8

FB

GND

VORPM

5

9

R952

13K ohm

+-1%

NI

C616 6.8 nF

50 V

R954

R2

11.8K ohm

I

I +-1%

+-1%

11

BOOT

VCC

GND_EP

UG

1 3 2

LX

4

LG

NCP1589LMNTWG

Rev.1

Rev.1 I

I

IX7R

+1V0_PCH_BOOT +1V0_PCH_UGATE +1V0_PCH_PHASE

+1V0_PCH_LGATE

C614

2.2 nF

50 V

NI

X7R

X7R 0603

0603

R943I3.01K ohm

+-1%

R1

+1V0_PCH_RC2

C558

C558 10 uF

10 uF

I

I X5R

X5R 0805

0805 25 V

25 V

C559

C559 10 uF

10 uF

NI

X5R

05

08

08 25 V

25 V

L= 1.1uH DCR= 1.45m ohm Irms= 25A Isat= 27A Size: 10*10*9.6

L31

1.1uH@200KHz

I

0.00145 ohm

0.00145 ohm 25 A

25 A 10*10*9.6

10*10*9.6

FB22

1 2

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

21

+12V_S5_PSU

I

+1V0_PCH

Imax: 7.5A OCP Min: 11.25A IC EN ON > 1.3 V IC EN OFF < 0.7 V Fsw:320KHz

+1V0_PCH_PRIME_S5

+

EC30

560 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA

6.3 V

6.3 V I

I

EC32

560 uF

0.008 ohm

0.008 ohm 5000 mA

5000 mA

6.3 V

6.3 V I

I

C528

C528 22 uF

22 uF

X5R

X5R 0805

0805

6.3 V

6.3 V I

I

+12V_S5_PSU: Cin= 280uF (MLCC + EC CAP) CAP Ripple current= 6A

+1V0_PCH:

R903

R903 Short pad

Short pad

NI

Cout= 1142uF(EC+MLCC) CAP Ripple current= 11A

+1V0_PCH_PRIME_S5 LIR = ΔIL / Imax = 2.6 / 7.5 = 0.34

Vout =(1+R1/R2)* 0.8= 1.004V OCP =9.5uA*Rocset/L-S Rds(on) =(9.5uA*11.8K)/8.5m =13.18A

EE Check Enable

Please Check IC EN ON > 1.3 V IC EN OFF < 0.7 V

R926 1K ohmIR926 1K ohmI

SLP_SUS#[15,21,22,35,49]

A A

5V3V_S5_PG[ 49]

R1213 0 ohmNIR1213 0 ohmN I

2016/09/01

If change to new design Mount R926 , NI R1213

5

+1V0_PCH_EN_G1

C590

0.1 uF

16 V

+3V3_DSW

R938

10K ohm

I

+1V0_PCH_EN_G2

D

23

Q88

G

MOSFET-N

G

MOSFET-N

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

X7R

NI

G

1

G

1

+1V0_PCH_EN

D

23

Q87

Q87 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

+1V0_PCH_PWRGD

D

23

Q84

Q84 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

4

LITE-ON TECHNOLOGY CORP.

Title

56. +1V0_PCH_PRIME

Size Document Number Rev

C

MC117

Date: Sheet of

3

2

Date: Sheet of

1

56 58Wednesday, December 28, 2016

X03

5

D D

VCCIO_PG[22,51]

VCCIO_FB_RC

C214 1000 pF

4.7K ohm

C214 1000 pF

X7R 50 V

I

R371

+-1%

R371

+-1%

20 ohm

I

20 ohm

I

R377

+-1% I

C C

4

+3V3

R392I10K ohm

+-1%

R390

7.87K ohm

I

I +-1%

+-1%

R372

R372 1K ohm

1K ohm

0603

NI

+3V3

R383

R383 10K ohm

10K ohm

0603

0603 I

I

VCCIO_COMP_RC

C215 100 pF

X7R50 V

X7R50 V I

I

C219 2.2 nF

X7R50 V

X7R50 V I

I

VCCIO_PG VCCIO_EN

VCCIO_FB

VCCIO_PS

R397

10K ohm

NI

VCCIO_COMP

+3V3

1 ohm

I

I 0603

0603

VCCIO_VDD

R360

C206

C206 1 uF

1 uF

X7R

X7R 0603

0603

6.3 V

I

U41

3 1

9

10

8

NCP3135MNTXG

I

PGD EN

COMP

FB

PS

3

+3V3

12

F5

F5 0603

0603

I

I 120ohm@100MHz

120ohm@100MHz +-25%

+-25%

0.03 ohm

0.03 ohm 3 A

3 A

VCCIO_VIN

C203

C199

C201

C205

22 uF

1 uF

I

X7R

X5R

0603

0805

6.3 V

6.3 V I

I

13

14

12

VIN

VDD

VIN1

NC_2

AGND

PGND2

2

11

17

VBST

SW1 SW2 SW3

PGND

PGND1

4

5 6 7

15 16

VCCIO_VBST

VCCIO_SW

C199

22 uF

I

X5R

0805

6.3 V

R391 2.2 ohm

0805 I

VCCIO_VBST_RC

C225

0.22 uF

X7R

X7R 0603

0603 16 V

16 V I

I

R411

2.2 ohm

I

I 1206

1206

VCCIO_SW_RC

C233

1000 pF

NP0

NP0 0402

0402

50.0 V

50.0 V I

I

2

L=0.47uH DCR=2m ohm Irms=21A Isat=22A Size:8.2*8.2*7.5

L21

470nH @100kHz

0.002 ohm

0.002 ohm 21 A

21 A

8.2*8.2*7.5

8.2*8.2*7.5 I

I

1

VCCIO

Imax: 5.5A OCP: 6.8A IC EN ON > 1.1V IC EN OFF < 0.18V Fsw:1.1MHz

+VCCIO

21

C248

C263

C258

22 uF

I

I X5R

X5R 0805

0805

6.3 V

22 uF

I

I X5R

X5R 0805

0805

6.3 V

C258 22 uF

22 uF

I

I X5R

X5R 0805

0805

6.3 V

C257

C257 22 uF

22 uF

I

I X5R

X5R 0805

0805

6.3 V

C262

C262 22 uF

22 uF

I

I X5R

X5R 0805

0805

6.3 V

VCCIO_FB_R

R366 10 ohm

+-1%0603

+-1%0603 I

I

R445

Short pad

NI

VCCIO_SENSE [ 8]

EE Check Enable

B B

+5V_S5

R326

R326 1K ohm

1K ohm

I

4

G

1

G

1

I

R328 1K ohm

D

+VCCIO_CTL2_R_D

23

Q37

Q37 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

+1_2V_MEM_PWRGD_VCCIO

D

23

Q35

Q35 MOSFET-N

MOSFET-N

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

VCCIO_EN_G

I

+VCCIO_CTL2_R[22]

+3V3

R325 10K ohmR325 10K ohm

C195

0.1 uF

16 V

16 V X7R

X7R

NI

A A

5

ATX_PWROK[35,45]

VCCIO_EN

D

23

Q38

G

MOSFET-N

G

MOSFET-N

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

VCCIO_PG

D

23

Q43

G

MOSFET-N

G

MOSFET-N

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

LITE-ON TECHNOLOGY CORP.

Title

57. +VCCIO

ize Document Number Rev

Size Document Number Rev

S

C

MC117

Date: Sheet of

3

2

Date: Sheet of

1

57 58Wednesday, December 28, 2016

X03

5

teknisi indonesia

+5V +5V

R634

ROSC

R1

IX7R

C436

C436 100 pF

100 pF

I

I NPO

NPO 50 V

50 V

R634 0 ohm

0 ohm

0805

0805 I

I

+VCCSA_VCCP

C420

C420 1 uF

1 uF

I

I X7R

X7R 0603

0603

6.3 V

6

7

14

16

17

8

NCP5230MNTWG

I

R660NI1K ohm

+-1%

+VCCSA_FBG_RC

D D

FREQ 300KHZ

C C

B B

C421

0.1 uF

X7R

X7R 06

06 25 V

25 V

I

03

R643

R643 1K ohm

1K ohm

I

I +-1%

+-1%

C432

470 pF

+VCCSA

R632

R632 10K ohm

10K ohm

I

+VCCSA_PWRGD

+VCCSA_SYNC

+VCCSA_ROSC_EN

R646

124K ohm

I

I +-1%

+-1%

+VCCSA_COMP

R648

4.99K ohm

NI

I

C431

0.022 uF

I

X7R

25 V

R2

I +-1%

+-1%

+VCCSA_FB_RC1

+VCCSA_FB

R654I1K ohm

+-1%

C430 1.5 nF

50 V

R655

3.16K ohm

+-1%

+-1% I

I

NP0

50 V

1

U51

PGOOD

SYNC

ROSC/EN

GND

EPAD

COMP

FB9VSEN10FBG

R656I0 ohmR656I0 ohm

+VCCSA_FBG_RR+

4

+VCCSA_VCC

15

VCC

VCCP

+VCCSA_VSEN

R657NI1K ohm

+-1%

R647 100 ohm

R641

2.2 ohm

0603

0603 I

I

C425

C425 1 uF

1 uF

I

I X7R

X7R 0603

0603

6.3 V

+VCCSA_BOOT

4

BOOT

+VCCSA_UGATE

5

UG

+VCCSA_PHASE

3

LX

+VCCSA_LGATE

2

LG

13

CSP

12

CSN/VO

11

+VCCSA_FBG +VCCSA_CSP-

I+-1%

9.09K ohm

+-1%

+-1% I

I

RCS2

C419

0.1 uF

I

I X7R

X7R

R602 1 ohm

0805 I

0805 I 0603

0603 25 V

25 V

R622 0 ohm

0805 I

C433

R652

0.22 uF

I

I X7R

X7R 16 V

16 V

+VCCSA_CSP_+

R661I10 ohm

+-1%

R666I10 ohm

+-1%

Close to CPU

R669

R669 Short pad

Short pad

NI

R670

R670 Short pad

Short pad

NI

3

R601I10K ohm

+-1%

R651I5.76K ohm

+-1%

RCS1

VCCSA_SENSE_N [8]

VCCSA_SENSE_P [8]

Swap net from X03

NTMFS4C10NT1G

7.3mohm@10V

+VCCSA_UGATE_R

NTMFS4C08NT1G

5.8mohm@10V

+VCCSA_LGATE_R

2

+ATX_12V

FB19

I

FB19

+VCCSA_VIN

+

C330

EC20

10 uF

270 uF

I

0.008 ohm

X5R

5000 mA

0805

16 V

25 V

I

5

D

Q54

30 V

30 V 40 A

40 A

I

Q61

30 V

30 V 47 A

47 A

I

D

N

SSS

G

SSS

G

234

1 6

5

D

R367

2.2 ohm

N

G

234

2.2 ohm

I

I 1206

1206

SSS

1 6

+VCCSA_SNN

C399

C399 1000 pF

1000 pF

NP0

NP0 0402

0402

50.0 V

50.0 V I

I

+VCCSA_CSP_R+

L=1.1uH DCR=1.45m ohm Irms=25A Isat=27A Size:10*10*9.6

R613

Short pad

NI

1 2

L27

1.1uH@200KHz

I

0.00145 ohm

0.00145 ohm 25 A

25 A 10*10*9.6

10*10*9.6

I

0805

60 ohm @100MHz

60 ohm @100MHz +-25%

+-25%

0.02 ohm

0.02 ohm 6 A

6 A EA00004501TP-R

EA00004501TP-R

21

+

R620

Short pad

NI

Vout = 0.8 *(1+R1/R2)=1.053V OCP = (20/DCR)*[(RCS1+RCS2)/RCS2] = 20/1.45*(5.76+26.7)/26.7 = 16.76A

EC24

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

Imax: 11.1 A M IC EN ON > 0.75 V Fsw:300KHz

+

EC26

820 uF

0.007 ohm

0.007 ohm 5600 mA

5600 mA

2.5 V

2.5 V I

I

1

+VCCSA

in OCP: 16.65 A

+VCCSA

C390

C390 22 uF

22 uF

X5R

X5R 0805

0805

6.3 V

6.3 V I

I

+12V_ATX: Cin= 280uF (MLCC + EC CAP) CAP Ripple current= 6A

+VCCSA: Cout= 1684uF(EC+MLCC) CAP Ripple current= 13.2A

+VCCSA LIR = ΔIL / Imax = 2.9 / 11.1 = 0.26

C391

C391 22 uF

22 uF

X5R

X5R 0805

0805

6.3 V

6.3 V I

I

EE Check Enable

+5V_S5

R665

10K ohm

I

+VCCSA_ROSC_G2

D

C444

0.1 uF

16 V

23

Q68

G

MOSFET-N

G

MOSFET-N

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

X7R

NI

R663

VR_EN[51]

A A

5

1K ohm

I

+VCCSA_ROSC_G1

+VCCSA_ROSC_EN

D

23

Q67

Q67 MOSFET-N

MOSFET-N

G

1

60 V

S

0.31 A

2.5ohm@10V

2.5ohm@10V I

I

4

C429

0.1 uF

16 V

NI

X7R

LITE-ON TECHNOLOGY CORP.

Title

58. +VCCSA

ze Document Number Rev

Size Document Number Rev

Si

C

MC117

Date: Sheet of

3

2

Date: Sheet of

1

58 58Wednesday, December 28, 2016

X03
