ThinkCentre
Hardware Installation and Replacement Guide
Machine Types 6177, 7065, 7096, 9351, 9358, 9438, 9481, 9489, 9703,
9784, 9788, 9792, 9853, 9949
Page 2
Page 3
ThinkCentre
Hardw are Installation an d Replacement
Guid e
Page 4
Note
Before using this information and the product it supports, be sure to read and understand the Safety and Warranty Guide for
this product and “Notices,” on page 39.
First Edition (February 2008)
© Copyright Lenovo 2005, 2008.
Portions © Copyright International Business Machines Corporation 2005.
All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration ″GSA″ contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
Page 5
Contents
Figures . . . . . . . . . . . . . . .v
Chapter 1. Important safety information 1
Chapter 2. Overview . . . . . . . . .3
Additional information resources . . . . . . .3
Handling static-sensitive devices . . . . . . . .3
Locations . . . . . . . . . . . . . . .4
Locating controls and connectors on the front of
your computer . . . . . . . . . . . . .4
Locating connectors on the rear of your computer 5
Locating components . . . . . . . . . .7
Locating parts on the system board . . . . . .8
Chapter 3. Installing options and
replacing hardware . . . . . . . . . .9
Tools required . . . . . . . . . . . . . .9
Installing external options . . . . . . . . . .9
Removing the cover . . . . . . . . . . . .9
Accessing system board components and drives . .10
Installing internal options . . . . . . . . .12
Installing memory . . . . . . . . . . .12
Installing PCI adapters . . . . . . . . .13
Installing internal drives . . . . . . . . .15
Replacing the battery . . . . . . . . . . .20
Replacing the hard disk drive . . . . . . . .21
Replacing the diskette drive . . . . . . . . .23
Replacing an optical drive . . . . . . . . .24
Replacing the heat sink and fan assembly . . . .25
Replacing the system fan assembly . . . . . .27
Replacing a memory module . . . . . . . .28
Replacing a PCI adapter . . . . . . . . . .29
Replacing a keyboard . . . . . . . . . . .30
Replacing a mouse . . . . . . . . . . . .30
Chapter 4. Completing the parts
replacement . . . . . . . . . . . .33
Obtaining device drivers . . . . . . . . . .34
Chapter 5. Security features . . . . .35
Integrated cable lock . . . . . . . . . . .35
Padlock . . . . . . . . . . . . . . . .36
Password protection . . . . . . . . . . .36
Erasing a lost or forgotten password (clearing
CMOS) . . . . . . . . . . . . . . . .36
Appendix. Notices . . . . . . . . . .39
Television output notice . . . . . . . . . .40
Trademarks . . . . . . . . . . . . . .40
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. iii
Page 6
iv Hardware Installation and Replacement Guide
Page 7
Figures
1. Controls and connectors . . . . . . . . .4
2. Connector locations . . . . . . . . . .5
3. Component locations . . . . . . . . . .7
4. System board parts locations . . . . . . .8
5. Removing the cover . . . . . . . . . .10
6. Removing the bezel . . . . . . . . . .10
7. Removing the PCI adapter . . . . . . .11
8. Removing the drive bay assembly . . . . .11
9. Retaining clips . . . . . . . . . . .12
10. Positioning the memory module . . . . .13
11. Opening the adapter latch . . . . . . .14
12. Securing the adapter . . . . . . . . .14
13. Drive bays . . . . . . . . . . . . .16
14. Retaining bracket . . . . . . . . . .17
15. Installing the drive . . . . . . . . . .17
16. Connecting a parallel ATA drive . . . . .18
17. Connecting a serial ATA drive . . . . . .18
18. Retaining bracket . . . . . . . . . .19
19. Installing the diskette drive . . . . . . .19
20. Battery removal . . . . . . . . . . .20
21. Battery installation . . . . . . . . . .20
22. Removing the hard disk drive . . . . . .21
23. Aligning the pins with the holes in the hard
disk drive . . . . . . . . . . . . .22
24. Removing the diskette drive . . . . . . .23
25. Retaining bracket for diskette drive . . . .23
26. Installing the new diskette drive . . . . .23
27. Removing the optical drive . . . . . . .24
28. Retaining bracket for optical drive . . . . .24
29. Installing the new optical drive . . . . . .24
30. Removing the heat sink and fan assembly 25
31. Replacing the screws to the heat sink and fan
assembly . . . . . . . . . . . . .26
32. Removing the system fan assembly . . . .27
33. Removing the memory module . . . . . .28
34. Installing the memory module . . . . . .28
35. Removing the adapter . . . . . . . . .29
36. Installing the new adapter . . . . . . .29
37. Keyboard connectors . . . . . . . . .30
38. Mouse connectors . . . . . . . . . .31
39. Replacing the cover . . . . . . . . . .33
40. Kensington lock location . . . . . . . .35
41. Padlock loop . . . . . . . . . . . .36
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. v
Page 8
vi Hardware Installation and Replacement Guide
Page 9
Chapter 1. Important safety information
CAUTION:
Before using this manual, it is important that you read and understand all the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading
and understanding the safety information reduces the risk of personal injury
and damage to your product.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 1
Page 10
2 Hardware Installation and Replacement Guide
Page 11
Chapter 2. Overview
This guide is intended to be used by customers who are installing optional features
or replacing Customer Replaceable Units (CRUs).
Note: Use only the parts provided by Lenovo®.
This guide contains instructions for installing or replacing the following parts:
v Battery
v Hard disk drive
v Diskette drive
v Optical drive
v Heat sink and fan assembly
v System fan assembly
v Memory module
v PCI adapter card
v Keyboard
v Mouse
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find:
v CRU removal and installation instructions
v CRU removal and installation videos
v Publications
v Troubleshooting information
v Parts information
v Downloads and drivers
v Links to other useful sources of information
v Support phone list
access this information, go to:
To
http://www.lenovo.com/support
Handling static-sensitive devices
Do not open the static-protective package containing the new part until the
defective part has been removed from the computer and you are ready to install
the new part. Static electricity, although harmless to you, can seriously damage
computer components and parts.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
v Limit your movement. Movement can cause static electricity to build up around
you.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 3
Page 12
Locations
Locating controls and connectors on the front of your computer
v Always handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
v Prevent others from touching the parts and other computer components.
v Before you replace a new part, touch the static-protective package containing the
part to a metal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
v When possible, remove the new part from the static-protective packaging, and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
v Do not place the part on the computer cover or other metal surface.
This chapter provides illustrations to help locate the various connectors, controls
and components of the computer. To remove the computer cover, see “Removing
the cover” on page 9.
Figure 1 shows the location of connectors on the front of the computer.
Figure 1. Controls and connectors
1 USB connector 3 Microphone connector
2 Headphone connector 4 USB connector
4 Hardware Installation and Replacement Guide
Page 13
Locating connectors on the rear of your computer
Figure 2 shows the location of connectors on the rear of the computer.
Figure 2. Connector locations
1 Standard mouse connector 9 PCI Express x16 graphics adapter
2 Parallel connector 10 Audio line out connector
3 Ethernet connector 11 Microphone connector
4 Audio line in connector 12 USB connectors (2)
5 Power cord connector 13 USB connectors (2)
6 Voltage-selection switch (some
7 PCI adapter connectors (2) 15 Serial connector
8 PCI Express 1x adapter connector 16 Standard keyboard connector
connector
14 VGA monitor connector
models)
Chapter 2. Overview 5
Page 14
Connector Description
Standard mouse connector Used to attach a mouse, trackball, or other pointing device that
uses a standard mouse connector.
Parallel connector Used to attach a parallel printer, parallel scanner, or other
devices that use a 25-pin parallel connector.
Ethernet connector Used to attach an Ethernet cable for a local area network
(LAN).
Note: To operate the computer within FCC Class B limits, use
a Category 5 Ethernet cable.
Audio-line-in connector Used to receive audio signals from an external audio device,
such as a stereo system. When you attach an external audio
device, a cable is connected between the audio line out
connector of the device and the audio line in connector of the
computer.
Audio-line-out connector Used to send audio signals from the computer to external
devices, such as powered stereo speakers (speakers with
built-in amplifiers), headphones, multimedia keyboards, or the
audio line in connector on a stereo system or other external
recording device.
USB connectors Used to attach a device that requires a Universal Serial Bus
(USB) connection, such as a USB keyboard, USB mouse, USB
scanner or USB printer. If you have more than six USB devices,
you can purchase a USB hub, which you can use to connect
additional USB devices.
Serial connector Used to attach an external modem, serial printer, or other
devices that use a 9-pin serial connector.
Standard keyboard
connector
Used to attach a keyboard that uses a standard keyboard
connector.
6 Hardware Installation and Replacement Guide
Page 15
Locating components
Figure 3 will help you locate the various components in your computer.
Figure 3. Component locations
1 Fan plenum, fan, and heat sink 7 Battery
2 Microprocessor 8 Power supply
3 Optical drive 9 PCI adapter connector
4 Hard disk drive 10 PCI Express x1 adapter connector
5 Diskette drive 11 PCI Express x16 graphics adapter
connector
6 Memory modules (2) 12 Cover presence (Intrusion) switch
Chapter 2. Overview 7
Page 16
Locating parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices.
Figure 4 shows the locations of parts on the system board.
Figure 4. System board parts locations
1 Microprocessor and heat sink 13 Front USB connector
2 Microprocessor fan connector 14 TCM header connector
3 Memory connector 1 15 Serial (COM) connector
4 Memory connector 2 16 Internal speaker connector
5 Power connector 17 Front audio connector
6 Diskette drive connector 18 CD_IN connector
7 IDE connector 19 PCI adapter connectors (2)
8 Power fan connector 20 PCI Express x1 adapter connector
9 Serial ATA connectors (4) 21 Battery
10 Clear CMOS/Recovery jumper 22 PCI Express x16 graphics adapter
11 Front panel connector 23 12 V power connector
12 Front USB connector 24 System fan connector
connector
8 Hardware Installation and Replacement Guide
Page 17
Chapter 3. Installing options and replacing hardware
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
Note: Use only the parts provided by Lenovo.
Tools required
To install some options in your computer, you might need a flat-blade or Phillips
screwdriver. Additional tools might be needed for certain options. See the
instructions that come with the option.
Installing external options
External speakers, a printer, or a scanner can be connected to your computer. For
some external options, you must install additional software in addition to making
the physical connection. When adding an external option, see “Locating controls
and connectors on the front of your computer” on page 4 and “Locating connectors
on the rear of your computer” on page 5 to identify the required connector, and
then use the instructions that come with the option to help you make the
connection and install any software or device drivers that are required for the
option.
Removing the cover
Important
Turn off your computer and wait 3 to 5 minutes to let the computer cool
before removing the computer cover.
This section provides instructions on how to remove the computer cover.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
4. Remove any locking devices such as a padlock that secure the computer cover.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 9
Page 18
5. Press the cover-release button on the top of the computer cover, slide the cover
to the rear, and remove it. If your computer has screws to secure the computer
cover, remove the screws, and then remove the cover.
Figure 5. Removing the cover
Accessing system board components and drives
You might need to remove the drive bay assembly to access system board
components such as memory, the battery, and CMOS.
To access system board components and the drives:
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Remove the front bezel by releasing the three tabs and pivoting the bezel
Figure 6. Removing the bezel
outward from the top.
10 Hardware Installation and Replacement Guide
Page 19
3. In some models, you might have to remove the PCI adapters to gain access to
system board components.
Figure 7. Removing the PCI adapter
4. Using the blue handle1, lift and slide the drive bay assembly forward until
the locating studs in the drive bay assembly are aligned with the slots on the
sides of the chassis. Pull upward on the handle to remove the drive bay
assembly completely from the chassis. Depending on what component of the
computer you want to remove, you can either disconnect the cables from the
rear of the drives or leave them connected.

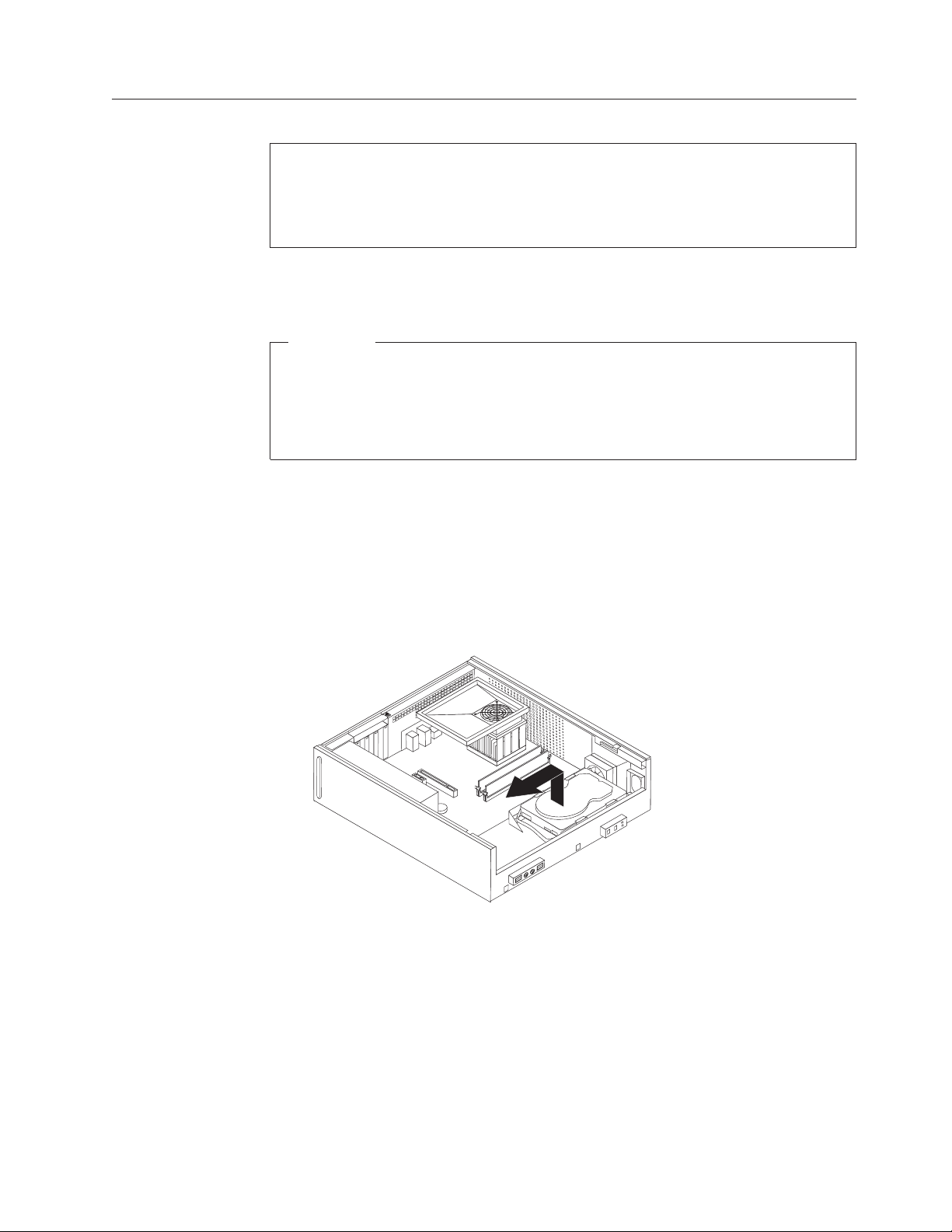

Figure 8. Removing the drive bay assembly
Chapter 3. Installing options and replacing hardware 11
Page 20
Installing internal options
Important
Read “Handling static-sensitive devices” on page 3 before opening the
computer cover.
Installing memory
Your computer has two connectors for installing double data rate 2 dual inline
memory modules (DDR2 DIMMs) that provide up to a maximum of 4.0 GB of
system memory.
When installing memory modules, the following rules apply:
v Use 1.8 V, 240-pin, double data rate 2 synchronous dynamic random access
memory (DDR2 SDRAM).
v Use 512 MB, 1 GB, or 2 GB memory modules in any combination up to a
maximum of 4.0 GB.
Figure 9. Retaining clips
Only DDR2 SDRAM DIMMs can be used.
Note:
To install a memory module:
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Yo u might have to remove the drive bay assembly to access the memory
connectors. See “Accessing system board components and drives” on page 10.
3. Remove any parts that might prevent access to the memory connectors.
4. Locate the memory connectors. See Figure 4 on page 8.
5. Open the retaining clips.
12 Hardware Installation and Replacement Guide
Page 21
6. Position the memory module over the memory connector. Make sure that the
notch 1 on the memory module aligns correctly with the connector key2 on
the system board. Push the memory module straight down into the connector
until the retaining clips close.

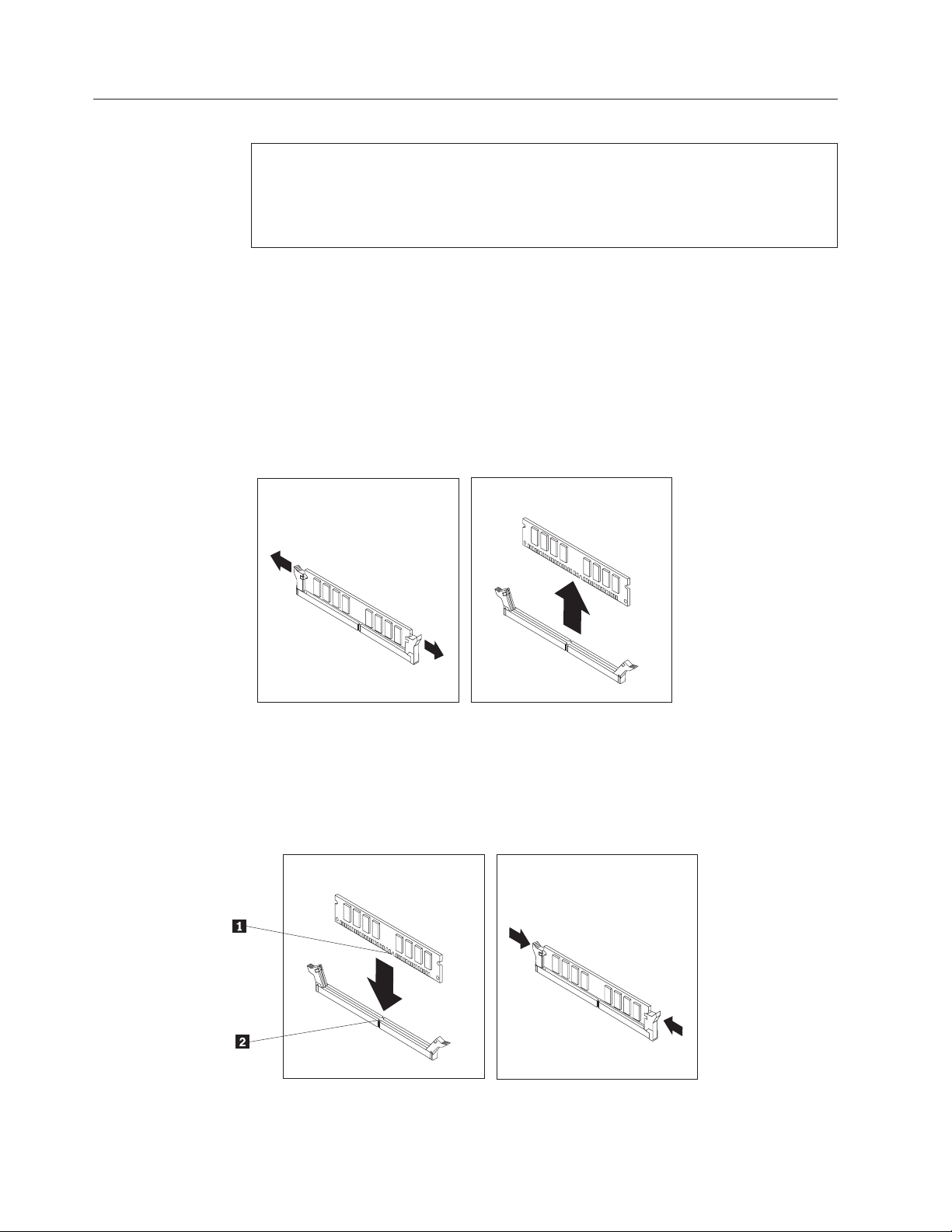

Figure 10. Positioning the memory module
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to Chapter 4, “Completing the parts
replacement,” on page 33.
Installing PCI adapters
This section provides information and instructions for installing PCI adapters. Your
computer has four expansion connectors. There are two connectors for PCI
adapters, one PCI Express x1 adapter connector, and one for a PCI Express x16
graphics adapter connector.
To install a PCI adapter:
1. Remove the computer cover. See “Removing the cover” on page 9.
Chapter 3. Installing options and replacing hardware 13
Page 22
2. Open the adapter latch and remove the connector cover for the appropriate
expansion connector.
Figure 11. Opening the adapter latch
3. Remove the adapter from its static-protective package.
4. Install the adapter into the appropriate connector on the system board.
5. Close the adapter latch to secure the adapter.
Figure 12. Securing the adapter
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to Chapter 4, “Completing the parts
replacement,” on page 33.
14 Hardware Installation and Replacement Guide
Page 23
Installing internal drives
This section provides information and instructions for installing and removing
internal drives.
Internal drives are devices that your computer uses to read and store data. You can
add drives to your computer to increase storage capacity and to enable your
computer to read other types of media. Some of the different drives that are
available for your computer are:
v Serial Advanced Technology Attachment ( S ATA ) hard disk drives
v Parallel ATA hard disk drives
v Optical drives, such as CD drives or DVD drives
v Removable media drives
These different drives are also referred to as integrated drive electronics
Note:
(IDE) drives.
Internal drives are installed in bays. In this book, the bays are referred to as bay 1,
bay 2, and so on.
When you install an internal drive, it is important to note what type and size of
drive that you can install in each bay. Also, it is important to correctly connect the
internal drive cables to the installed drive.
Drive specifications
Your computer comes with the following factory-installed drives:
v An optical drive in bay 1 (some models)
v A 3.5-inch hard disk drive in bay 2
v A 3.5-inch diskette drive in bay 3 (some models)
bay that does not have a drive installed has a static shield and bay panel
Any
installed.
Chapter 3. Installing options and replacing hardware 15
Page 24
Figure 13. Drive bays
The following illustration shows the locations of the drive bays.
The following list describes the types and size of drives you can install in each
bay:
1 Bay 1 - Maximum height: 43.0 mm (1.7 in.) Optical drives, such as CD drive or
DVD drive (preinstalled in some
models)
3.5-inch hard disk drive (requires a
Universal Adapter Bracket, 5.25 to
3.5-inch) *
5.25-inch hard disk drive
2 Bay 2 - Maximum height: 26.1 mm (1.0 in.) 3.5-inch hard disk drive (preinstalled)
3 Bay 3 - Maximum height: 12.7 mm (0.5 in.) 3.5-inch diskette drive (preinstalled in
some models)
* You can obtain a Universal Adapter Bracket, 5.25 to 3.5-inch, from a local computer retailer
or by contacting the Customer Support Center.
16 Hardware Installation and Replacement Guide
Page 25
Installing a drive in bay 1
To install an optical drive or an additional hard disk drive in bay 1, do the
following:
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Access the system board. See “Accessing system board components and drives”
on page 10.
3. If you are installing a drive with accessible media, such as an optical drive,
remove the plastic panel in the bezel by squeezing the plastic tabs that secure
the panel on the inside of the bezel.
4. Remove the metal shield from the drive bay.
5. For a 5.25-inch drive, install a retainer bracket on the side of the drive.
Note: If you are installing a 3.5-inch hard disk drive you must use a Universal
Adapter Bracket, 5.25 to 3.5-inch. You can obtain this bracket from a local
computer retailer or by contacting the Customer Support Center.
Figure 14. Retaining bracket
6. Install the drive into the drive bay until it snaps into position.
Figure 15. Installing the drive
7. Align the drive bay assembly with the two slots and rails on the sides of the
Note: When installing the Universal Adapter Bracket, if the retainer bracket is
not available, install the screws to secure the adapter bracket into the drive bay.
chassis and connect the new drive cable on the system board. See “Connecting
drives” on page 18.
Chapter 3. Installing options and replacing hardware 17
Page 26
Connecting drives
The steps to connect a drive are different depending on the type of drive you are
connecting. Use one of the following procedures for your drive connection.
Connecting a parallel ATA drive:
1. Locate the two-connector signal cable that comes with your computer or with
the new drive.
2. Locate the IDE connector on the system board. See “Locating parts on the
system board” on page 8.
3. Connect one end of the signal cable to the drive and the other to the IDE
connector on the system board.
4. Locate the extra four-wire power connector labelled P4 and connect it to the
drive.
Figure 16. Connecting a parallel ATA drive
Connecting a serial ATA drive: A serial optical or hard disk drive can be
connected to any available SATA connector.
1. Locate the signal cable that comes with the new drive.
2. Locate the available SATA connector on the system board. See “Locating parts
on the system board” on page 8.
3. Connect one end of the signal cable to the drive and the other to the available
SATA connector on the system board.
4. Locate one of the extra five-wire power connectors and connect it to the drive.
Figure 17. Connecting a serial ATA drive
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to Chapter 4, “Completing the parts
replacement,” on page 33.
18 Hardware Installation and Replacement Guide
Page 27
Installing a diskette drive in bay 3
To install a diskette drive in bay 3, do the following:
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Access the system board. See “Accessing system board components and drives”
3. Remove the metal shield from the diskette drive bay by using a flat-blade
4. Remove the plastic panel in the bezel by squeezing the plastic tabs that secure
5. Install a retainer bracket on the side of the diskette drive.
Figure 18. Retaining bracket
on page 10.
screwdriver to gently pry it loose.
the panel on the inside of the bezel.
6. Install the diskette drive into the bay from the front until it snaps into position.
Figure 19. Installing the diskette drive
7. Align the drive bay assembly with the two slots and rails on the sides of the
chassis and connect the flat cable to the new drive.
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to Chapter 4, “Completing the parts
replacement,” on page 33.
Chapter 3. Installing options and replacing hardware 19
Page 28
Replacing the battery
Your computer has a special type of memory that maintains the date, time, and
settings for built-in features, such as parallel-port assignments (configuration). A
battery keeps this information active when you turn off the computer.
The battery normally requires no charging or maintenance throughout its life;
however, no battery lasts forever. If the battery fails, the date, time, and
configuration information (including passwords) are lost. An error message is
displayed when you turn on the computer.
Refer to the "Lithium battery notice" in the Safety and Warranty Guide for
information about replacing and disposing of the battery.
To change the battery:
1. Turn off the computer and disconnect the power cord from the electrical outlet
and from the computer.
2. Remove the computer cover. See “Removing the cover” on page 9.
3. Yo u might have to access the system board components. See “Accessing system
board components and drives” on page 10.
4. Locate the battery. See Figure 3 on page 7.
5. Remove the old battery.
Figure 20. Battery removal
6. Install the new battery.
Figure 21. Battery installation
7. Replace the computer cover, and connect the cables. See Chapter 4,
8. Turn on the computer and all attached devices.
9. Use the Setup Utility program to set the date and time and any passwords. See
“Completing the parts replacement,” on page 33.
Note: When the computer is turned on for the first time after battery
replacement, an error message might be displayed. This is normal after
replacing the battery.
"Using the Setup Utility" in the User Guide.
20 Hardware Installation and Replacement Guide
Page 29
Replacing the hard disk drive
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace the hard disk drive.
Important
When you receive a new hard disk drive, you also receive a set of Product
Recovery discs. The set of Product Recovery discs will enable you to restore the
contents of the hard disk to the same state as when your computer was
originally shipped from the factory. For more information on recovering
factory-installed software, refer to “Recovering software” in your User Guide.
To replace the hard disk drive, do the following:
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Remove the drive bay assembly. See “Accessing system board components and
drives” on page 10.
3. Use the blue handle to pivot the hard disk drive and bracket upward, slide the
hard drive to the left until it is free of the retaining clips in the bottom of the
chassis, and then completely remove it from the chassis.
Figure 22. Removing the hard disk drive
4. Disconnect the signal and power cables from the rear of the hard disk drive.
Chapter 3. Installing options and replacing hardware 21
Page 30
5. Install the new drive into the blue bracket, flex the bracket, and align the pins
1 through 4on the bracket with the holes in the hard disk drive. Do not
touch the circuit board 5 on the bottom of the hard disk drive.
Figure 23. Aligning the pins with the holes in the hard disk drive
6. Connect the signal and power cables to the rear of the hard disk drive.
7. Position the hard disk drive and bracket so that it engages the retaining clips in
the bottom of the chassis when you slide the bracket to the right.
8. Slide the hard disk drive and bracket to the right until it snaps into position.
9. Go to Chapter 4, “Completing the parts replacement,” on page 33.
22 Hardware Installation and Replacement Guide
Page 31
Replacing the diskette drive
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace the diskette drive.
1. Remove the computer cover. See “Removing the cover” on page 9.
2. To access system board components, see“Accessing system board components
and drives” on page 10.
3. Release the diskette drive by pressing inward on the blue retainer at the side of
the drive.
4. Remove the failing diskette drive by sliding it out the front of the drive bay
assembly.
Figure 24. Removing the diskette drive
5. Remove the retainer bracket from the failing drive and install it on the new
drive.
Figure 25. Retaining bracket for diskette drive
6. Install the new diskette drive into the drive bay from the front until it snaps
into position.
Figure 26. Installing the new diskette drive
7. Go to Chapter 4, “Completing the parts replacement,” on page 33.
Chapter 3. Installing options and replacing hardware 23
Page 32
Replacing an optical drive
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace the optical drive.
1. Remove the computer cover. See “Removing the cover” on page 9.
2. To access system board components, see“Accessing system board components
and drives” on page 10.
3. Release the optical drive by pressing inward on the blue retainer at the side of
the drive.
4. Slide the optical drive being replaced out the front of the drive bay assembly.
Figure 27. Removing the optical drive
5. Remove the retainer bracket from the failing drive and install it on the new
drive.
Figure 28. Retaining bracket for optical drive
6. Install the new optical drive into the bay until it snaps into position.
Figure 29. Installing the new optical drive
7. Go to Chapter 4, “Completing the parts replacement,” on page 33.
24 Hardware Installation and Replacement Guide
Page 33
Replacing the heat sink and fan assembly
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace the heat sink and fan
assembly.
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Disconnect the microprocessor fan cable from the system board. See “Locating
parts on the system board” on page 8.
3. Remove the fan plenum from the heat sink and fan assembly. See “Locating
components” on page 7.
4. Remove the four screws 1 securing the heat sink and fan assembly to the
system board.
Figure 30. Removing the heat sink and fan assembly
Note: Yo u might have to gently twist the heat sink to free it from the
microprocessor.
5. Lift the heat sink and fan assembly off the system board.
Chapter 3. Installing options and replacing hardware 25
Page 34
6. Position the new heat sink on the plastic retention bracket so that the four
screws are aligned with the posts on the system board. Tighten the four
screws1to the heat sink and fan assembly to the system board.
Figure 31. Replacing the screws to the heat sink and fan assembly
7. Connect the microprocessor fan cable to the microprocessor fan connector on
the system board.
8. Go to Chapter 4, “Completing the parts replacement,” on page 33.
26 Hardware Installation and Replacement Guide
Page 35
Replacing the system fan assembly
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace the system fan assembly.
1. Remove the computer cover. See “Removing the cover” on page 9.
2. To access system board components, see“Accessing system board components
and drives” on page 10.
3. Disconnect the system fan cable from the system board. See “Locating parts
on the system board” on page 8.
4. Remove the hard disk drive. See “Replacing the hard disk drive” on page 21.
5. Remove the two screws securing the system fan assembly.
6. Remove the system fan assembly by pulling the bracket outward and lifting it
up from the system board to remove completely.
Figure 32. Removing the system fan assembly
7. Install the new system fan assembly and install the two screws that secure the
fan assembly.
8. Connect the system fan cable to the system fan connector on the system
board.
9. Replace the hard disk drive.
10. Go to Chapter 4, “Completing the parts replacement,” on page 33.
Chapter 3. Installing options and replacing hardware 27
Page 36
Replacing a memory module
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace a memory module.
Note: Your computer has support for two memory modules.
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Yo u might have to remove the drive bay assembly to access the memory
connectors. See“Accessing system board components and drives” on page 10.
3. Remove any parts that prevent access to the memory connectors.
4. Remove the memory module being replaced by opening the retaining clips.
Figure 33. Removing the memory module
5. Position the replacement memory module over the memory connector. Make
sure that the notch 1on the memory module aligns correctly with the
connector key2 on the system board. Push the memory module straight
down into the memory connector until the retaining clips close.
Figure 34. Installing the memory module
6. Go to Chapter 4, “Completing the parts replacement,” on page 33.
28 Hardware Installation and Replacement Guide
Page 37
Replacing a PCI adapter
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace a PCI adapter.
1. Remove the computer cover. See “Removing the cover” on page 9.
2. Open the adapter latch and remove the failing adapter.
Figure 35. Removing the adapter
3. Remove the new adapter from its static-protective package.
4. Install the new adapter into the appropriate connector on the system and close
the adapter latch.
Figure 36. Installing the new adapter
5. Go to Chapter 4, “Completing the parts replacement,” on page 33.
Chapter 3. Installing options and replacing hardware 29
Page 38
Replacing a keyboard
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace a keyboard.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Locate the keyboard connector.
Note: Your keyboard might be connected to a standard keyboard connector
1or a USB connector 2. Depending on where your keyboard is connected,
see “Locating connectors on the rear of your computer” on page 5 or “Locating
controls and connectors on the front of your computer” on page 4.
Figure 37. Keyboard connectors
4. Disconnect the failing keyboard cable from the computer.
5. Connect the new keyboard to the appropriate connector on the computer.
6. Go to Chapter 4, “Completing the parts replacement,” on page 33.
Replacing a mouse
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer. To
obtain copies of the Safety and Warranty Guide, go to
http://www.lenovo.com/support.
This section provides instructions on how to replace a mouse.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Locate the mouse connector.
30 Hardware Installation and Replacement Guide
Page 39
Figure 38. Mouse connectors
4. Disconnect the failing mouse cable from the computer.
5. Connect the new mouse to the appropriate connector on the computer.
6. Go to Chapter 4, “Completing the parts replacement,” on page 33.
Note: Your mouse might be connected to a standard mouse connector 1or a
USB connector 2 in the front or rear of your computer. See “Locating
connectors on the rear of your computer” on page 5 or “Locating controls and
connectors on the front of your computer” on page 4.
Chapter 3. Installing options and replacing hardware 31
Page 40
32 Hardware Installation and Replacement Guide
Page 41
Chapter 4. Completing the parts replacement
After working with parts, you need to replace the computer cover and reconnect
any cables, including telephone lines and power cords. Also, depending on the
part that was replaced, you might need to confirm the updated information in the
Setup Utility program.
This section provides instructions on how to complete the parts replacement.
1. Ensure that all components have been reassembled correctly and that no tools
or loose screws are left inside your computer.
2. Reposition any cables that might impede the replacement of the computer
cover.
Important
Correctly route all power supply cables to avoid interference with the
drive bay assembly. Keep cables clear of the hinges and sides of the
computer chassis.
3. If the drive bay assembly was removed, align it with the two slots and rails on
the sides of the chassis and reconnect the drive cables to the system board.
4. Slide the drive bay assembly towards the rear of the chassis until it snaps into
position.
5. Reinstall the front bezel if it was removed.
6. Position the computer cover on the chassis so that the rail guides on the sides
of the cover engage the rails and push the cover to the closed position until it
snaps into position. If your computer has screws to secure the computer cover,
install the screws.
Figure 39. Replacing the cover
7. Install any locking devices such as a padlock as necessary.
8. Reconnect the external cables and power cords to the computer. See “Locating
connectors on the rear of your computer” on page 5.
9. To update the configuration, see “Using the Setup Utility” in the User Guide that
was included with your computer.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 33
Page 42
Note: In most areas of the world, Lenovo requires the return of the defective CRU.
Information about this will come with the CRU or will come a few days after the
CRU arrives.
Obtaining device drivers
You can obtain device drivers for operating systems that are not preinstalled at
http://www.lenovo.com/support/ on the World Wide Web. Installation
instructions are provided in README files with the device-driver files.
34 Hardware Installation and Replacement Guide
Page 43
Chapter 5. Security features
To help prevent hardware theft and unauthorized access to your computer, several
security lock options are available. In addition to a physical lock, unauthorized use
of your computer can be prevented by a software lock that locks the keyboard
until a correct password is typed in.
Make sure that any security cables you install do not interfere with other computer
cables.
Integrated cable lock
With an integrated cable lock (sometimes referred to as the Kensington lock), you
can secure your computer to a desk, table, or other non-permanent fixture. The
cable lock attaches to a security slot at the rear of your computer and is operated
with a key. The cable lock also locks the buttons used to open the computer cover.
This is the same type of lock used with many laptop computers. You can order a
security cable directly from Lenovo. Go to http://www.lenovo.com/support/ and
search on Kensington.
Figure 40. Kensington lock location
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 35
Page 44
Padlock
Your computer is equipped with a padlock loop such that the cover cannot be
removed when a padlock is installed.
Figure 41. Padlock loop
Password protection
To deter unauthorized use of your computer, you can use the Setup Utility
program to set a password. When you turn on your computer you are prompted to
type the password to unlock the keyboard for normal use.
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to Chapter 4, “Completing the parts
replacement,” on page 33.
Erasing a lost or forgotten password (clearing CMOS)
This section applies to lost or forgotten passwords. For more information about
lost or forgotten passwords, go to the ThinkVantage® Productivity Center program.
To erase a forgotten password:
1. Remove the computer cover. See“Removing the cover” on page 9.
2. Yo u might have to access the system board components. See “Accessing system
board components and drives” on page 10.
36 Hardware Installation and Replacement Guide
Page 45
3. Locate the Clear CMOS/Recovery jumper on the system board. See “Locating
parts on the system board” on page 8.
4. Move the jumper from the standard position (pins 1 and 2) to the maintenance
or configure position (pins 2 and 3).
5. Replace the computer cover and connect the power cord. See Figure 39 on page
33.
6. Restart the computer, leave it on for approximately ten seconds. Turn off the
computer by holding the power switch for approximately five seconds. The
computer will turn off.
7. Repeat steps 1 through 3 on page 36.
8. Move the Clear CMOS/Recovery jumper back to the standard position (pins 1
and 2).
9. Replace the computer cover and connect the power cord. See Chapter 4,
“Completing the parts replacement,” on page 33.
Chapter 5. Security features 37
Page 46
38 Hardware Installation and Replacement Guide
Page 47
Appendix. Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any
Lenovo intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any other product, program,
or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO
PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
jurisdictions do not allow disclaimer of express or implied warranties in certain
transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.
The products described in this document are not intended for use in implantation
or other life support applications where malfunction may result in injury or death
to persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall
operate as an express or implied license or indemnity under the intellectual
property rights of Lenovo or third parties. All information contained in this
document was obtained in specific environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo We b sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those We b sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments may
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 39
Page 48
vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurements may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.
Television output notice
The following notice applies to models that have the factory-installed
television-output feature.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Trademarks
The following terms are trademarks of Lenovo in the United States, other
countries, or both:
Lenovo
The Lenovo logo
ThinkCentre
ThinkVantage
IBM is a trademark of the International Business Machines Corporation in the
United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
40 Hardware Installation and Replacement Guide
Page 49
Page 50
Part Number: 45C6431
Printed in USA
(1P) P/N: 45C6431
Loading...
