Lenovo 9220-HB1 Schematic

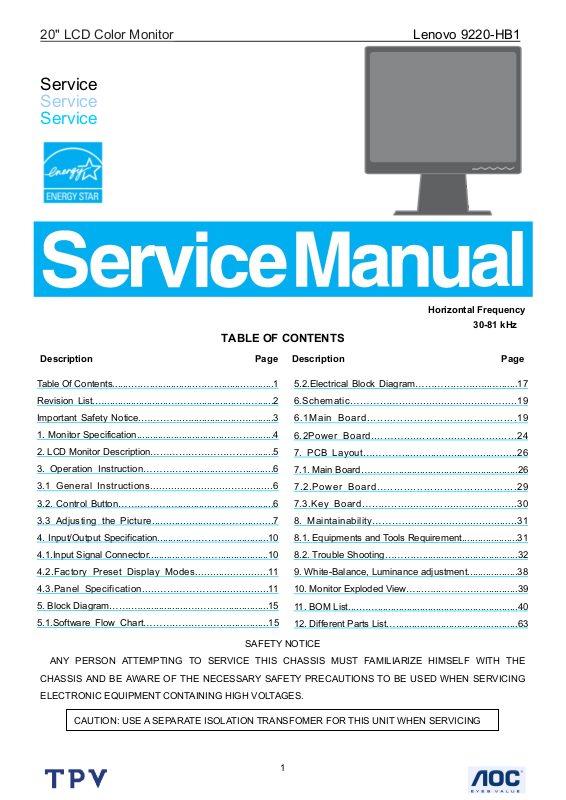

20" LCD Color Monitor Lenovo 9220-HB1
Service
Service
Service
Horizontal Frequency
TABLE OF CONTENTS
Description
Table Of Contents.......…….................……...........…........1
Revision List.…........................………................……......2
Important Safety Notice.………….…..................……......3
1. Monitor Specification.................................………........4
2. LCD Monitor Description…………………………….......5
3. Operation Instruction…………...............……...........6
3.1 General Instructions...........................…...........6
3.2. Control Button…………….…..............……...............6
3.3 Adjusting the Picture...........................…............7
4. Input/Output Specification............……………............10
4.1.Input Signal Connector............…………...................10
4.2.Factory Preset Display Modes.........................11
4.3.Panel Specification.....………………..................11
5. Block Diagram…….…..................…………................15
5.1.Software Flow Chart………………………....….......15
SAFETY NOTICE
Page Description Page
5.2.Electrical Block Diagram……………….…..….......17
6.Schematic……………...............................….....19
6.1Main Board.............................................19
6.2Power Board....……....................................24
7. PCB Layout…………........................................26
7.1. Main Board………….............................................26
7.2.Power Board….......................................29
7.3.Key Board……….........................................30
8. Maintainability……….......................................31
8.1. Equipments and Tools Requirement.....................31
8.2. Trouble Shooting…………....................................32
9. White-Balance, Luminance adjustment...................38
10. Monitor Exploded View…...…..……………............39
11. BOM List....…….....................................................40
12. Different Parts List…..............................................63
30-81 kHz
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
20" LCD Color Monitor Lenovo 9220-HB1
Revision List
Revision Date Revision History TPV Model
TA5SMUDBDUH9NP
A00 Oct.-12-06 First Version Release
A01 Nov.-13-06 Add new model TA5SMUDJDUH9NP
A02 Feb-08-07 Add new model in Item 12 TA5AMUDLDUH9NP
A02 May-14-07 Add new model in Item 12
TA5SMUDLDUH9NP
TA5SMUDKDUH9NP
TA5SMUDBDUH92P
TA5AMUDJDUH9NP
TA5AMUDMDUH9NP
TA5SMUDMDUH9NP
2
20" LCD Color Monitor Lenovo 9220-HB1
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
20" LCD Color Monitor Lenovo 9220-HB1
1. Monitor Specifications
Items Description
Driving system TFT Color LCD
Type SEC 20.1 PANEL
Size 510mm (20 ")
LCD Panel
Pixel pitch 0.255mm (H) x 0.255mm (V)
Viewable angle 178˚ (H) 178˚ (V) (R>10)
Response time (type) 16 ms
Sync. Type H/V TTL
15 Pin Analog
Input Signal
Input
24 Pin Digital
H-Frequency 30kHz – 81kHz
V-Frequency 56-86Hz
ON Mode <52W
Power Consumption
Display Color 16.7M colors (RGB 8-bit data )
Contrast Ratio 900:1
White Luminance 300cd/m
Max. Resolution 1600 x 1200 at 60 Hz
Plug & Play VESA DDC2BTM
Power Source 90-264VAC (100~240VAC+/-10%) 47~63Hz
Maximum Screen Size
Saving Mode < 2W (Analog), <2W (Digital)
OFF Mode < 1W at 100Vac & 240Vac
2
Horizontal : 408mm
Vertical: 306mm
Environmental
Considerations
Operating Temp: 10°C to 35°C
Storage Temp: -20°C to 60°C
Operating Humidity: 10% to 80%
4
20" LCD Color Monitor Lenovo 9220-HB1
(
2. LCD Monitor Description
The LCD MONITOR will contain a main board, power board and a key board which house the flat panel control logic,
brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
Power board
Include: adapter, inverter)
AC-IN
100V-240V
Monitor Block Diagram
CCFL Drive.
Flat Panel and
CCFL backlight
Main board
Key board
HOST Computer
RS232 Connector
For white balance
adjustment in factory
mode
Video signal, DDC
5
20" LCD Color Monitor Lenovo 9220-HB1
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The control buttons are located in the front of the monitor.
By changing these settings, the picture can be adjusted to your personal preferences.
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
-
3.2 Control Buttons
NO. Name Within OSD Without OSD
1
2
3
4
5
6.
Exit OSD or back to previous menu
/
/
/
1.Move the cursor to left
2.Adjust up when menu item selected
1.Move the cursor to right
2.Adjust down when menu item selected
Select Function or select Sub menu
Turn on/off Turn on/off
Indicator light
Select video signal (analog
and digital).
Auto configuration
Open the Brightness menu
Activate OSD main menu
6
20" LCD Color Monitor Lenovo 9220-HB1
3.3 Adjusting the Picture
Adjustment steps:
7
20" LCD Color Monitor Lenovo 9220-HB1
8
20" LCD Color Monitor Lenovo 9220-HB1
9
20" LCD Color Monitor Lenovo 9220-HB1
4. Input/Output Specification
4.1 Input Signal Connector
10
20" LCD Color Monitor Lenovo 9220-HB1
4.2 Factory Preset Display Modes
4.3 Panel Specification
4.3.1 Display Characteristics
11
20" LCD Color Monitor Lenovo 9220-HB1
4.3.2 Optical Characteristics
12
20" LCD Color Monitor Lenovo 9220-HB1
13
20" LCD Color Monitor Lenovo 9220-HB1
4.3.3 Parameter guide line for CCFL Inverter
TFT LCD Module:
Back Light Unit:
14
20" LCD Color Monitor Lenovo 9220-HB1
5. Block Diagram
5.1 Software Flow Chat
1
2
N
4
5
Y
6
7
Y
N
N
3
18
9
10
Y
N
N
12
Y
14
19
N
11
13
15
17
N
Y
N
Y
16
Y
15
20" LCD Color Monitor Lenovo 9220-HB1
1) MCU initialize.
2) Is the EPROM blank?
3) Program the EPROM by default values.
4) Get the PWM value of brightness from EPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EPROM.
Turn on the LED and set it to green color.
Scalar initializes.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are there any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappear.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
16
20" LCD Color Monitor Lenovo 9220-HB1
5.2 Electric Block Diagram
5.2.1 Main Board
Crystal
24.576MHZ
(X401)
LCD Interface
(CN407)
MCU
MTV416GMV
(U402)
Scalar MST9251A
(Include ADC, OSD)
(U401)
EEPROM
M24C16
(U403)
OSD Control
Interface
(CN403)
Crystal
14.318MHZ
(X402)
D-Sub
Connector
(CN101)
DVI-I
Connector
(CN102)
U303
EM6A9320BI
-5M
EEPROM
M24C02
(U101)
EEPROM
M24C02
(U102)
17
20" LCD Color Monitor Lenovo 9220-HB1
5.2.1 Power Board
AC input
EMI filte
Bridge
r
Rectifier
and Filter
Transformer
Rectifier
diode
Lamp
Start Circuit: R906、R907
PWM
Control IC
Output
Circuit
Feedback
Circuit
Transformer
Over
Voltage
Protect
MOSFET
PWM
Control IC
Feedback
Circuit
PWM
CN903
12V
ON/OFF
ON/OFF Control
DIM
18
20" LCD Color Monitor Lenovo 9220-HB1
6. Schematic
6.1 Main Board
+5V
R147 1K 1/16W
ZD112
UDZS5.6B
RX2- 5
RX2+ 5
RX1- 5
RX1+ 5
RX0- 5
RX0+ 5
RXC+ 5
RXC- 5
R164 100 1/16W
R165
100 1/16W
R184 NC
R185
NC
C124
0.1uF
1
2
D102
BAV99
3
L101 0 OHM
R108
75 1/16W
GND
R112
2.2K 1/16W
R461 100 1/16W
R159 100 1/16W
ZD116UDZS5.6B
GND
+5V
R149
10K 1/16W
R146
100K 1/16W
GND
C125
0.1uF
2
3
L102 0 OHM
R109
75 1/16W
GND
DVI Test Points are just SMTobservation points
on the traces with no stub
SCL_D
SDA_D
VGA_CAB 4
D101
BAV99
R460 100 1/16W
R111 100 1/16W
ZD115UDZS5.6B
R145
100 1/16W
DVI_SCL 5
DVI_SDA 5
SDA_D1 4
SCL_D1 4
1
D103
BAV99
R160
2.2K 1/16W
UDZS5.6B
GND
C111
220pF
C138
DVI_CAB 4
ZD110
C126
0.1uF
2
L103
3
R110
75 1/16W
GND
R113
2.2K 1/16W
GND
22pf
GND
DVI_5V
R167 NC
1
2
3
U105 SOT23
1
R161
2.2K 1/16W
R166
C119
1uF/25V
DVI_EDID
C142
NC
NC
5
4
0 OHM
C112
47pF
C139
470pf
0 1/16W
R458
0 1/16W
R459
U104
SCL_D
14
ZA
SDA_D
15
ZB
4
ZC
16
VCC
7
VEE
8
GND
DVI_EDID
U105
1
2
NC
R148 1K 1/16W
ZD113
UDZS5.6B
GND
R103 100 1/16W
R104 470 1/16W
R102 100 1/16W
R101 100 1/16W
R162 150 1/16W
R163 1K 1/16W
NC
12
0A
13
1A
2
0B
1
1B
5
0C
3
1C
6
INH
11
SA
10
SB
9
SC
C330
NC
53
+5V
R107 100 1/16W
R106 100 1/16W
R105 100 1/16W
D-HS1 5
D-VS1 5
DVI_EDID
R168
10K 1/16W
NC
R172
4
3
D
3
D
C1085pF
C1095pF
C1105pF
R114 150 1/16W
R115 1K 1/16W
Title
MST9251A
Size Document Number Rev
C
Date: Sheet
R170
NC
R169
10K 1/16W
EDID_WP
R171
0 1/16W
DVI_EDID
NC
R173
R174
NC
EDID_WP
R175
NC
+5V
1
G
2
VGA_SCL 4
Q104
S
2N7002
+5V
1
G
2
S
C103 0.047uF
C107 0.047uF
C104 0.001uF
C102 0.047uF
C106 0.047uF
C101 0.047uF
C105 0.047uF
AHS0 5
AVS0 5
VGA_SDA 4
Q103
2N7002
02. Graphics/Components in
U102
8
VCC
7
WP
6
SCL
M24C02WMN6
DDC_D
U103
8
VCC
7
WP
6
SCL
NC
C140
1
A0
2
A1
3
1uF/25V
A2
45
VSSSDA
1
A0
2
C141
A1
3
NC
A2
45
VSSSDA
DDC_A
BLUE0+ 5
BLUE0- 5
SOG0 5
GREEN0+ 5
GREEN0- 5
RED0+ 5
RED0- 5
D
of
26Tuesday, December 20, 2005
D114
BAV99
D_BLUE
D_GREEN
D_RED
Near the DVI Conn
DVI CONNECTOR
CN102
31
31
RXC+
RXC-
32
32
GND
DVI_CON
GND
EDID_WP
VGA_5V
1
U101
1
A0
2
A1
3
A2
4 5
VSS SDA
M24C02WMN6
GND
ANALOG DDC
0.1uF
C128
1
2
NC
D115
3
L105
R177
75 1/16W
GND
BAV99
RXD4
GND
C116
2
DVISCL
DVISDA
0.1uF
D108
3
UDZS5.6B
TXD4
ZD114UDZS5.6B
C121
1
2
BAV99
R124 100 1/16W
R125 100 1/16W
VGASCL
ZD107
GND
+5V
R152 470 1/16W
R153 100 1/16W
R154 100 1/16W
R155 100 1/16W
R156 100 1/16W
R157 100 1/16W
R158 100 1/16W
C115
C120
0.1uF
0.1uF
1
2
BAV99
RX2-IN
1
RX2RX2+
GND
RX4RX4+
SCL
SDA
RX1RX1+
GND
RX3RX3+
GND
RX0RX0+
GND
RX5RX5+
GND
RED
GRN
BLU
GND
D
3
VCC
WP
SCL
BAV99
RX2+IN
2
3
4
5
6
7
D_VS
8
VS
9
10
11
12
13
14
5V
DVI_HPD
15
16
HP
17
18
19
20
21
22
23
24
C1
D_RED
25
D_GREEN
C2
26
D_BLUE
C3
27
D_HS
C4
28
HS
C5
29
GND
ZD108 UDZS5.6B
+5V
G
1
2
WP_DDC
3
Q101
S
NC
+5V
2
D104
BAV70
VGA_EDID
C113
R123
1uF/25V
10K 1/16W
8
GND
7
6
EDID_WP
C130
2
1
NC
D116
BAV99
3
3
L106
0 OHM
R178
75 1/16W
GND
0 OHM
C129
2
0.1uF
GND
D106
3
GND
ZD109 UDZS5.6B
WP_DDC 4
R150
NC
R151
GND
0.1uF
1
R179
75 1/16W
1
2
D107
BAV99
3
DVISCL
DVISDA
RX1-IN
RX1+IN
DVI_5V
R136
10K 1/16W
HOT_PLUG
RX0-IN
RX0+IN
RXC+IN
RXC-IN
R122
10K 1/16W
R120 100 1/16W
R121 100 1/16W
0 1/16W
R180 NC
C127
1uF/25V
L107
0 OHM
RGB SIGNAL GNDs at 2-mm from respective
RGB series Capacitors
D109
VGASDA
C117
ZD111
ZD106
UDZS5.6B
R118
NC
R119
NC
0.1uF
2
D110
BAV99
3
UDZS5.6B
DVI_EDID
R126
10K 1/16W
C131 0.001uF
C132 0.047uF
C133 0.047uF
C134 0.047uF
C135 0.047uF
C136 0.047uF
C137 0.047uF
C122
1
2
BAV99
ZD102
NC
A-HS
GND
A-VS
0.1uF
1
3
GND
VGA_SCL_IN
VGA_SDA_IN
GND
0.1uF
D111
3
DVI_5V
1
R127
10K 1/16W
15
14
13
12
11
ZD103
NC
1
+5V
2
3
UDZS5.6B
ZD101
CN101
DB15
10
5
9
4
8
3
7
2
6
1
17 16
GND
RGB GND
Conn
GND
SOG 5
BLUE+ 5
BLUE- 5
GREEN+ 5
GREEN- 5
RED+ 5
RED- 5
BAV70
ZD104
C118
BAV99
D105
GND
UDZS5.6B
2
D112
VGA_5V
GND
狠
0.1uF
3
+5V 4,6
GND
A-BLUE
A-GREEN
A-RED
C123
0.1uF
1
2
1
D113
BAV99
3
R137 10 1/16W
R138 10 1/16W
R139 10 1/16W
R140 10 1/16W
R141 10 1/16W
R142 10 1/16W
R143 10 1/16W
R144 10 1/16W
+5V
NC
R181
R183
0 1/16W
GND
Near the VGA Conn
ZD105
UDZS5.6B
GND
D_HS
D_VS
GND
R182NC
ZD117NC
GND
19
20" LCD Color Monitor Lenovo 9220-HB1
+2.5V_DMQ
+2.5V_DMC
C302
0.1uF
C303
0.1uF
FSADDR[0..11]5
FSBKSEL05
FSBKSEL15
FSCLK-5
FSCLK+5
FSCKE5
/FSRAS5
/FSCAS5
/FSWE5
R305 100 1/16W
R306 100 1/16W
R307 100 1/16W
R308 100 1/16W
Near The
DDR-SDRAM IC
Stub as short as
possible.
FSVREF
C316
0.1uF
GND
+
C301
22uF/50V
GND
FSCLK+
R311
150 1/16W 1%
FSCLK-
Place this parallel termination close to
corresponding memory IC Pins
FSDQSU05
FSDQSU25
FSDQSU15
FSDQSU35
FSDQM05
FSDQM15
FSDQM0
FSDQM1
+2.5V_DMQ
R309
10K 1/16W
FSVREF
R310
10K 1/16W
GND
Near The DDR-SDRAM IC
C304
C305
0.1uF
0.1uF
FSADDR0
FSADDR1
FSADDR2
FSADDR3
FSADDR4
FSADDR5
FSADDR6
FSADDR7
FSADDR8
FSADDR9
FSADDR10
FSADDR11
FSBKSEL0
FSBKSEL1
FSCLKFSCLK+
FSCKE
/FSRAS
/FSCAS
/FSWE
R301 0 1/16W
R302 0 1/16W
R303 0 1/16W
R304 0 1/16W
C306
0.1uF
+2.5V_DMQ6
FSDQS3
FSDQS1
FSDQS2
FSDQS0
FSDQM11
FSDQM01
FSDQM00
FSDQM10
GND
C307
0.1uF
+2.5V_DMQ
U303
M4
A0
M5
A1
L5
A2
M6
A3
M7
A4
L8
A5
M8
A6
M9
A7
M10
A8/AP
L7
A9
K5
A10
L6
A11
M3
BA0
L4
BA1
L11
CK#
L10
CK
M11
CKE
M1
CS#
L1
RAS#
K1
CAS#
K2
WE#
A1
DQS0
G12
DQS1
G1
DQS2
A12
DQS3
A2
DM0
G11
DM1
G2
DM2
A11
DM3
B3
NC
B10
NC
G3
NC
G10
NC
K8
NC
K11
NC
K12
NC
L2
NC
L3
NC
L9
NC
L12
NC
M2
NC
EM6A9320BI-5M
C309
C308
0.1uF
B2B4B6B7B9
VDDQ
VDDQ
VDDQ
VSS
VSS
VSS
D4D6D7D9E5E6E7E8F5F6F7F8G5G6G7G8H5H6H7H8J5J6J7J8K4
C310
0.1uF
0.1uF
+2.5V_DMC6
B11D2D11E3E10F3F10H3H10J3J10
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VDDQ
VSS
GND
C311
0.1uF
+2.5V_DMC
VDDQ
VDDQ
VDDQ
VSS
VSS
VSS
C6C7D3
VDD
VSS
VSS
C312
0.1uF
D10K3K6K7K10
VDD
VDD
VDD
VSS
VSS
VSS
VDD
VSS
VDD
VSS
C313
0.1uF
FSVREF
M12
VDD
VDD
VSS
VSS
K9
VREF
VSS
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
C314
0.1uF
A6
B5
A5
A4
B1
C2
C1
D1
J12
J11
H12
H11
F12
F11
E12
E11
E2
E1
F2
F1
H2
H1
J1
J2
D12
C12
C11
B12
A9
A8
B8
A7
A3
A10
C3
C4
C5
C8
C9
C10
D5
D8
E4
E9
F4
F9
G4
G9
H4
H9
J4
J9
GND
C315
0.1uF
FSDATA0
FSDATA1
FSDATA2
FSDATA3
FSDATA4
FSDATA5
FSDATA6
FSDATA7
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31
FSDATA[0..31]
0
2
1
3
C318
0.1uF
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
C319
0.1uF
RN301
RN302
RN303
RN304
RN305
RN306
RN307
RN308
+
GND
C317
22uF/50V
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31
FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA0
FSDATA1
FSDATA2
FSDATA3
FSDATA4
FSDATA5
FSDATA6
FSDATA7
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
Near The DDR-SDRAM IC
C321
0.1uF
C322
0.1uF
FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8
FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31
C323
0.1uF
C324
0.1uF
FSDATAU[0..31] 5
36Tuesday, December 20, 2005
C325
0.1uF
C320
0.1uF
100 1/16W
1
FSDATAU24
2
FSDATAU25
3
FSDATAU26
FSDATAU27
4
100 1/16W
1
FSDATAU28
2
FSDATAU29
FSDATAU30
3
4
FSDATAU31
100 1/16W
FSDATAU8
1
FSDATAU9
2
FSDATAU10
3
FSDATAU11
4
100 1/16W
FSDATAU12
1
FSDATAU13
2
FSDATAU14
3
FSDATAU15
4
100 1/16W
FSDATAU0
1
FSDATAU1
2
FSDATAU2
3
FSDATAU3
4
100 1/16W
FSDATAU4
1
FSDATAU5
2
FSDATAU6
3
FSDATAU7
4
100 1/16W
1
FSDATAU16
2
FSDATAU17
FSDATAU18
3
4
FSDATAU19
100 1/16W
FSDATAU20
1
FSDATAU21
2
FSDATAU22
3
FSDATAU23
4
Title
MST9251A
Size Document Number Rev
B
03. Frame Memory
Date: Sheet of
D
20
Loading...
