Lenovo 90NC00A6UK User Manual

Lenovo Legion T5 28IMB05 90NC00A6UK

Product

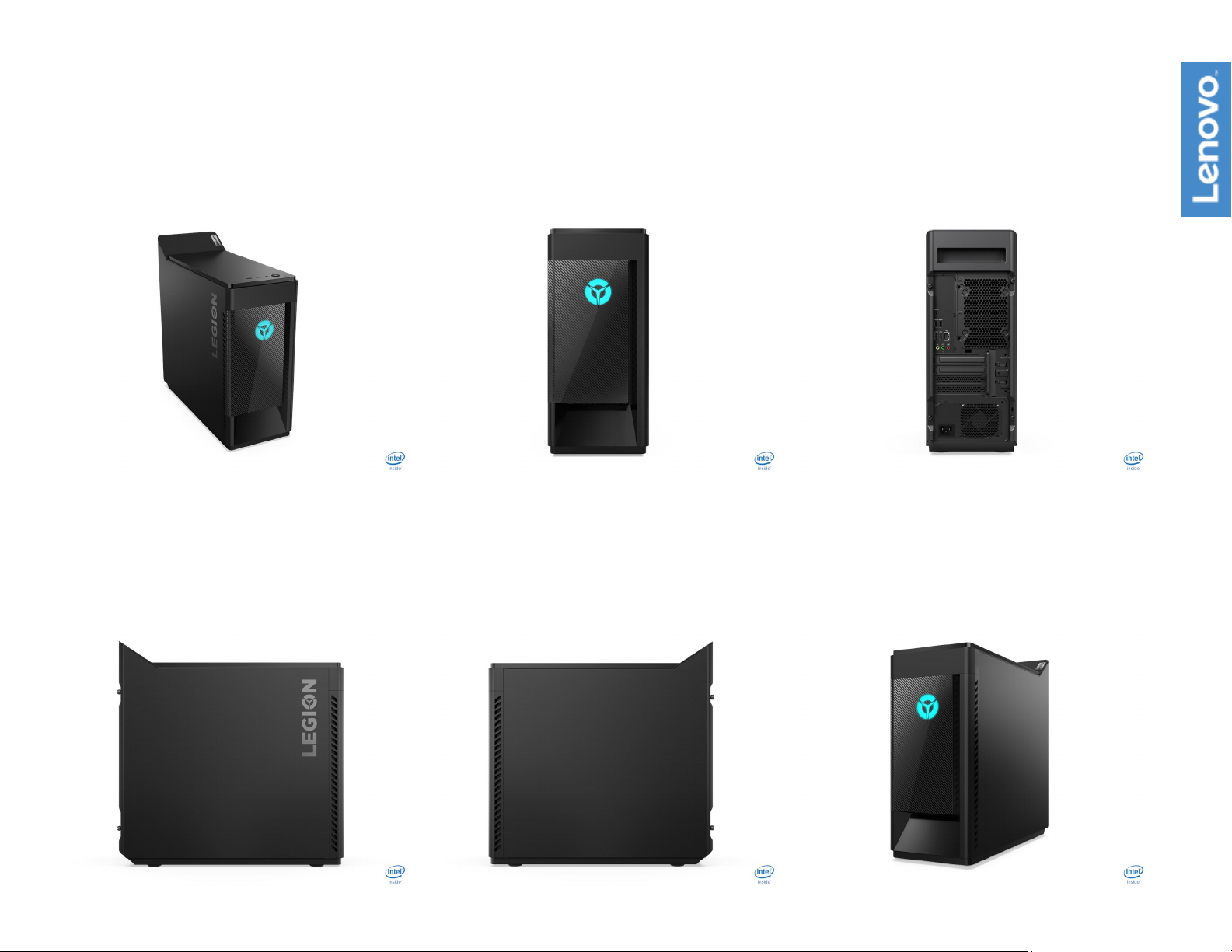

Lenovo Legion T5 28IMB05

Region

WE

Country/Region

UK Group

Machine Type

90NC

Processor

Intel Core i5-10400 (6C / 12T, 2.9 / 4.3GHz, 12MB)

Graphics

NVIDIA GeForce GTX 1660 SUPER 6GB GDDR6

Chipset

Intel B460

Memory

2x 8GB UDIMM DDR4-3200

Storage

512GB SSD M.2 2280 NVMe

Optane Memory

None

Optional Bay

None

Optical

None

Ethernet

Integrated 100/1000M

Media Reader

None

Carry Handle

Carry Handle

WLAN + Bluetooth

11ax, 2x2 + BT5.0

Color

Black

Keyboard

None

Mouse

None

System Fan

Front + Rear for Airflow

Chassis Cover

Transparent

Lighting

Internal ambinet lighting

Cooler

150W Airflow with RGB light

Power Supply

400W Energy Star

Additional Certificates

Energy Star 8.0

Operating System

Windows 10 Home 64, English

Bundled Software

None

Base Warranty

1-year, Depot

Bundled Service

None

EAN / UPC / JAN

195042516524

End of Support

2026-04-24

Announce Date

2020-04-29

WWW.LENOVO.COM

Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.

Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.

Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of
Product specifications Reference.

© Lenovo, 2020. All rights reserved.

Lenovo Legion T5 28IMB05 Platform Specifications

Product Specifications Reference (PSREF)

Processor

Memory 128GB max, DDR4-2933 or DDR4-3200

Storage

Optical (opt)
Onboard SATA
Media reader

Graphics

10th Gen Intel Core™ i5 / i7/ i9 Processor

Processor

Core i5-10400

Core i5-10400F 6 / 12 2.9 / 4.3 GHz 12 MB DDR4-2666 -

Core i7-10700

Core i7-10700F 8 / 16 2.9 / 4.8 GHz 16 MB DDR4-2933 ­Core i7-10700K 8 / 16 3.8 / 5.1 GHz 16 MB DDR4-2933 UHD 630

Core i9-10900 10 / 20 2.8 / 5.2 GHz 20 MB DDR4-2933 UHD 630
Core i9-10900F 10 / 20 2.8 / 5.2 GHz 20 MB DDR4-2933 ­Core i9-10900K 10 / 20 3.7 / 5.3 GHz 20 MB DDR4-2933 UHD 630

* Intel UHD Graphics 630 in processor is disabled

Cores /

Threads

6 / 12 2.9 / 4.3 GHz 12 MB DDR4-2666 UHD 630

8 / 16 2.9 / 4.8 GHz 16 MB DDR4-2933 UHD 630

Frequency

Base/MaxL3Cache

*

, four 288-pin DIMM sockets,

Memory Support

(Up to)

Processor
Graphics*

dual-channel capable

* Memory module is DDR4-2933 or DDR4-3200, but run at DDR4-2666 or DDR4-2933 due to
processor limitation

Some: Hard Drive / SATA 6.0Gb/s, 3.5", 7200 rpm
Some: M.2 Solid State Drive (SSD) / PCIe NVMe, PCIe 3.0 x4, 32Gb/s
Some: Intel Optane Memory H10 with Solid State Storage,

M.2 2280, PCIe NVMe 3.0 x 4
USB DVD Burner (DVD±RW), External, 9.0mm high
Four onboard SATA 6.0Gb/s connectors, RAID 0/1/5 support
None

Some: NVIDIA GeForce RTX™ 2080 SUPER, 8GB GDDR6, DirectX 12, VR ready,
one HDMI, three DisplayPort™;
Max resolution: 7680x4320 (DP)@60Hz
Some: NVIDIA GeForce RTX 2070 SUPER, 8GB GDDR6, DirectX 12, VR ready,
one HDMI, USB Type-C, three DP;
Max resolution: 7680x4320 (DP)@60Hz
Some: NVIDIA GeForce RTX 2070, 8GB GDDR6, DirectX 12, VR ready,
one HDMI, three DP;
Max resolution: 7680x4320 (DP)@60Hz
Some: NVIDIA GeForce RTX 2060, 6GB GDDR6, DirectX 12
one DVI, one HDMI, three DP;
Max resolution: 7680x4320 (DP)@60Hz
Some: NVIDIA GeForce GTX 1660 SUPER, 6GB GDDR6, DirectX 12,
one DVI, one HDMI, one DP;
Max resolution: 7680x4320 (DP)@60Hz
Some: NVIDIA GeForce GTX 1650 SUPER, 4GB GDDR6, DirectX 12,
one HDMI, two DP;
Max resolution: 7680x4320 (DP)@60Hz

Some: AMD Radeon™ RX 5700XT, 8GB GDDR6, DirectX 12,

one HDMI, three DP;
Max resolution: 7680x4320 (DP)@60Hz;
Some: AMD Radeon RX 5500, 4GB GDDR6, DirectX 12,
one HDMI, three DP;

Front ports*
Rear ports*

One headphone / microphone combo jack (3.5mm), two USB 3.2 Gen1
Two USB 2.0, two USB 3.2 Gen1, one USB 3.2 Type-C Gen1, one ethernet (RJ-45),

power connector
Rear audio ports
IEEE 1394

Audio support
WLAN (opt)

Three line-out (3.5mm)

None

* Depending on many factors, actual data transfer speed may be lower than theoretical speed

High Definition (HD) Audio, Realtek ALC887 / Dolby Atoms Audio

some: 11ax Wi-Fi + Bluetooth 5.0 combo adapter, M.2 card, 2x2

some: 11ac Wi-Fi + Bluetooth 5.0 combo adapter, M.2 card, 2x2

Bluetooth™ (opt)
Ethernet
Modem

Bluetooth 5.0 wireless, integrated in Wi-Fi + Bluetooth combo adapter

One gigabit ethernet port

None

Security features Power-on password, administrator password, Firmware TPM2.0

Keyboard

Mouse

some: Lenovo Calliope Keyboard (USB connector), black

some: Lenovo Gaming Keyboard (USB connector), black

some: Lenovo Calliope Mouse (USB connector), black

some: Lenovo Gaming Mouse (USB connector), black

Mechanical

●

Tower (28L), phantom black, metal case with metal cover or transparent cover

●

(WxDxH) with bezel: 7.26" x 17.94" x 17.99"; 184.5mm x 455.8mm x 457mm

●

Approx 30.86 lb (14 kg), weight may vary by configuration

●

Optional front system fan, rear system fan for airflow or liquid

●

65W Air-Cooler, 95W Air-Cooler, 150W Air-Cooler or 150W Liquid-Cooler

●

Front panel light, optional ARGB cooler light and ARGB system fan light

Bay 1: 3.5", external, HDD bay

Bay 2: 3.5", external, HDD bay
Slot 1: PCIe 3.0 x16
Slot 2: PCIe 3.0 x4
Slot 3: PCIe 3.0 x1
Slot 4: PCIe 3.0 x1
M.2 card slots: one for WLAN, two for SSD / Optane

Power supply Some: 350 watts, 85% PSU

Some: 400 watts, 90% PSU
Some: 650 watts, 90% PSU

Limited warranty 1-year or 2-year, depot repair service / service upgrades available
Preload Preloaded operating system

Some: Windows
Some: Windows 10 Pro 64



10 Home 64

Preloaded applications (only some listed)

● Microsoft Office

● Lenovo Vantage

● Lenovo Nerve Center

● McAfee LiveSafe™

● Cyberlink PowerDVD (DVD±RW)

● Cyberlink Power2GO (DVD±RW)

Environment

ENERGY STAR 8.0; ErP Lot 3; RoHS-compliant (RoHS 2.0)

Max resolution: 7680x4320 (DP)@60Hz;

Chipset

Note: The specifications above may not be available in all regions and might change by regions Lenovo, November 2020

Intel B460 platform
