Page 1
Lenovo recommends Windows® XP Professional.

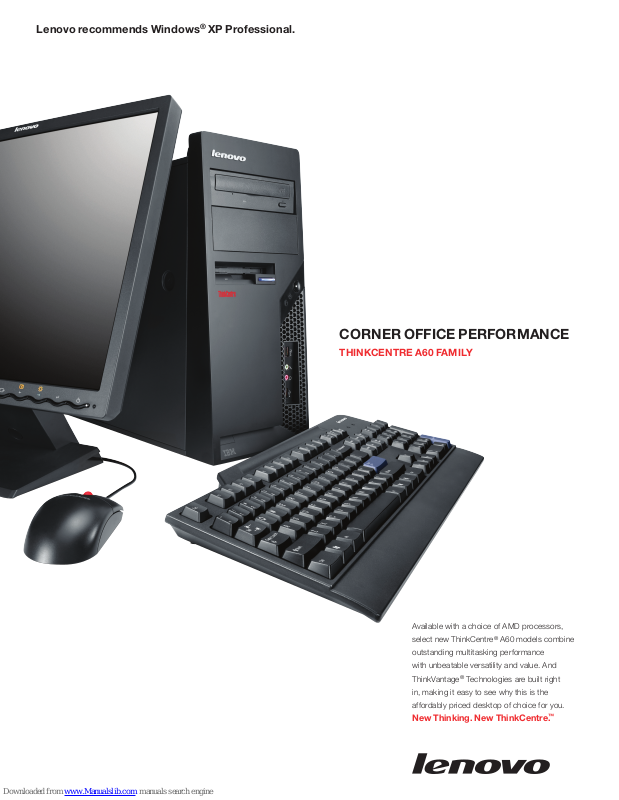

CORNER OFFICE PERFORMANCE
THINKCENTRE A60 FAMILY
Available with a choice of AMD processors,
select new ThinkCentre® A60 models combine
outstanding multitasking performance
with unbeatable versatility and value. And
ThinkVantage® Technologies are built right
in, making it easy to see why this is the
affordably priced desktop of choice for you.
New Thinking. New ThinkCentre.
™
Page 2
Lenovo recommends Windows® XP Professional.
Lenovo recommends Windows® XP Professional.
EVEN ON A CUBICLE BUDGET
Behold the power of affordability.
A choice of processor technologies—including the high-octane AMD Athlon™ X2 Dual-Core and
the cost-effective AMD Sempron™—complemented by the NVIDIA® chipset, make the ThinkCentre
A60 an affordable desktop powerhouse. These systems are easy to ser vice and durable too—with
toolless, steel chassis. With an equally impressive array of warranty options1, you’re covered by
international service2 when and where you need it. Plus, TopSeller™ models have been designed
and priced with small and medium businesses in mind. ThinkCentre A60 is a product of Lenovo,
a new global company incorporating the former IBM PC Division. Our mission is to bring more
innovation to more people so they can do more amazing things. Find out more at lenovo.com
ThinkCentre A60 family specifications
A60 Small Desktop Machine Type:
9266, 9384
Proce ssor
AMD Athlon™ 64 X2 Dual-Core or
AMD Athlon 64 or
AMD Sempron
Preloaded operati ng system
Genuine Windows® XP Professional or
Genuine Windows XP Home Edition
Vide o graphics
NVIDIA® GF 6100
16x PCI Express Graphics Slot
Core chipset
NVIDIA C51g
Memory4/max capacit y
DDR2 667MHz (PC2-5300 ) or
DDR2 533MHz (PC2-4200 )/4.0GB
Hard disk drive
40GB,6 80GB, 160GB, 250GB or
500GB (7200rpm) Serial ATA
Optical drive (select models)
CD-ROM, DVD-ROM, CD-RW, CD-RW/DVD-ROM
Combo or DVD Recordable
Audio
Soundmax Cadenza (AD1986A), line in, line out,
microphone ports; internal speaker (sele ct models) ;
external speakers (select models)
Secu rit y features
Client Secur ity Solution (standard)
Preferred Pro USB Fingerprint Keyboard
(select models)
Connectivit y (integrated)
Broadcom Gigabit
Expansion
4 slots x 3 bays
Dimensio ns
108x331x412mm (4.3x13.0x16.2")
Port s
6 USB 2.0 (2 front-access), 2 serial (second via cable),
1 parallel, PS/2® mouse/keyboard, VGA
Keyboard (varies by model)
Preferred Pro USB Full-size Keyboard7, Preferred Pro
USB Fingerprint Keyboard, Preferred Pro PS/2 Full-size
Keyboard, Enhanced Performance USB Keyboard,
Enhanced Performance Wireless Keyboard, USB
Keyboard with UltraNav®, USB Travel Keyboard with
UltraNav, PS/2 Water-Resistant Keyboard
Mouse (varies by model )
USB Optical Wheel Mouse, PS/2 2-Button Mouse, PS/2
Mechanical Wheel Mouse, ScrollPoint® Optical Mouse
Visit thinkcentre.com for more information and
details by model.
A60 Tower Machine Type:
8700, 8991, 9269, 9631
Proce ssor
AMD Athlon 64 X2 Dual-Core or
AMD Athlon 64 or
3
5
AMD Sempron
Preloaded operati ng system
Genuine Windows XP Professional or
Genuine Windows XP Home Edition
Vide o graphics
NVIDIA GF 6100
16x PCI Express Graphics Slot
Core chipset
NVIDIA C51g
Memory/max capacit y
DDR2 667MHz (PC2-5300 ) or
DDR2 533MHz (PC2-4200 )/4.0GB
Hard disk drive
40GB, 80GB, 160GB, 250GB or
500GB (7200rpm) Serial ATA
Optical drive (select models)
CD-ROM, DVD-ROM, CD-RW, CD-RW/DVD-ROM
Combo or DVD Recordable
Audio
SoundMax Cadenza (AD1986A); line in, line out,
microphone ports; internal speaker (sele ct models) ;
external speakers (select models)
Secu rit y features
Client Secur ity Solution (standard)
Preferred Pro USB Fingerprint Keyboard
(select models)
Connectivit y (integrated)
Broadcom Gigabit
Expansion
4 slots x 4 bays
Dimensio ns
402x175x440mm (15.8x6.9x17.3")
Port s
6 USB 2.0 (2 front-access), 2 serial (second via cable),
1 parallel, PS/2 mouse/keyboard, VGA
Keyboard (varies by model)
Preferred Pro USB Full Size Keyboard Preferred Pro
USB Fingerprint Keyboard, Preferred Pro PS/2 Full Size
Keyboard, Enhanced Per formance USB Keyboard,
Enhanced Performance Wireless Keyboard and USB
Keyboard with UltraNav, USB Travel Keyboard with
UltraNav, PS /2 Water-Resistant Keyboard
Mouse (varies by model )
USB Optical Wheel Mouse, PS/2 2-Button Mouse, PS/2
Mechanical Wheel Mouse, ScrollPoint Optical Mouse
Visit thinkcentre.com for more information and
details by model.
Page 3
Lenovo recommends Windows® XP Professional.
Help users help themselves.
ThinkVantage Technologies are integrated into every ThinkCentre A60 system to help reduce
the burden on your help desk. These unique tools, including ThinkVantage Productivity Center,
ThinkVantage Client Security Solution, and ThinkVantage Rescue and Recovery™, make managing
systems, security, and recovering from system crashes, quick and easy.
Just shor t of omniscient
The help you need is always standing by—around the clock and around the world1. Award-winning
ThinkCentre service and support provided by IBM.
ThinkCentre A60 family software
Preloaded operati ng systems
Genuine Windows XP Professional or
Genuine Windows XP Home Edition
Supp orted operating systems
Genuine Windows XP Professional,
Genuine Windows XP Home Edition,
Genuine Windows 2000 Professional
Included software
(preloaded )
Adobe Reader
Diskeeper Lite
Google: Google Toolbar, Google Desktop,
Picasa from Google
Multimedia Center for Think Offerings, including:
– InterVideo WinDVD (DVD, DVD/CD-RW &
DVD-RW models)
– InterVideo WinDVD Creator (DVD-RW models)
– Sonic RecordNow (DVD/CD-RW &
DVD-RW models)
PC-Doctor
Symantec Client Security
(with 90 days of virus definitions)
ThinkVantage® Fingerprint Software
(select models)
ThinkVantage Productivity Center
with Away Manager
ThinkVantage Rescue and Recovery
ThinkVantage System Update
(downloadable)
ThinkVantage System Migration Assistant
(license–CD not included )
IBM Lotus® SmartSuite® Millennium
IBM Lotus Notes® stand-alone client
Certified operating systems
For a listing of completed Linux certifications,
visit lenovo.com /think/ linux
For important warranty information, see page 4.
8
3
™
™
Take productivity to the next level.
ThinkVision® L171p
flat panel monitor
(9417HB2) offers tilt,
swivel and pivot (graphic
card-dependent) as well
as height adjustment.
ThinkVision USB
Soundbar (40Y7616)
brings stereo sound
to your monitor.9
Preferred PRO USB
Fingerprint Keyboard
(73P4730) puts password
security at your fingertips.
Page 4
Lenovo recommends Windows® XP Professional.
1.866.426.3079
lenovo.com
© 2006 Lenovo. Produc ed in the U.S. A., 09- 06. A ll rig hts reserved. Ava ilab ility: All of fers subject to availab ilit y. Lenovo r eser ves th e right to alter product of feri ngs and spe cification s at any
time without notice. Lenovo is not respo nsibl e for p hotographic or ty pogra phic e rrors. Warr ant y inf orma tion: Fo r a co py of ap plica ble product warra nties, write to: Warranty Inform ation, P.O. Box
12195, RTP, NC 27709, Attn : Dept. ZPYA/B676. Lenovo makes no rep resentation or war ranty regarding t hird-party produ cts or ser vices. Foot note s: [1] Lim ited warr ant y: Support un relate d to
warranty is sues may be subje ct to ad dition al ch arges. [2 ] Intern atio nal w arra nty ser vic e: is avail able for most mode ls in a ny cou ntry in whi ch thi s product is sold a nd ser vic ed. Servic e delivery
method s and parts availability var y by c ountr y, may be diff erent from th at in t he cou ntry of purc hase a nd are subje ct to c hange witho ut noti ce. Fee s and restriction s may a pply i n some count ries.
[3 ] Del iver ed wi th : Wind ows XP Professiona l and a recove ry p arti tion o n the h ard disk dri ve. [4 ] Memory: Maximum mem ory varies depe nding on model an d may re quire repla cemen t of standard
memor y with optio nal m axim um mem ory modul e. For m odels with 4GB ma ximum memory, acce ssible mem ory will be less than 4 GB depending on t he syste m configur ation. For PCs witho ut a
separ ate vid eo card, memory s uppor ts both syste m and v ideo. Acces sible system memor y is up to 128MB less t han th e amou nt stated, dep ending on v ideo mode. [ 5] Max imum capa cit y: m ay
requir e the replac ement of a standard component with th e larg est suppor ted component availabl e. [6 ] Ha rd disk d rive : GB =1 bill ion by tes. Ac cess ible c apaci ty is less ; up to 4GB is service p arti tion.
[7] Full- size keybo ard : As defin ed by ISO/I EC 15412. [8] I ncluded softwar e: m ay dif fer f rom it s retai l vers ion ( if any ) and may not inclu de use r manu als o r all p rogram func tionality. Li cense
agreements m ay app ly. Cer tain I BM® and T hinkCentre logo p roducts: are not ma nufac tured, warranted or suppo rted by IBM o r Lenovo. IBM a nd Lenovo logos an d trade marks used under license.
Contac t Lenovo for d etail s. [9 ] Compati ble with : ThinkVis ion L151, L151p, L171, L171p, L192p and L201p monitor mo dels. The fo llow ing a re t rade mark s of L enovo : Len ovo, the Lenovo logo,
PS/2, R escue and R ecover y, ScrollPoint, System Migration A ssist ant, Th inkCe ntre, T hinkVa ntage, Think Visio n and UltraN av. IBM, L otus, Lot us Note s and Lotus Sm artS uite a re trad emark s of IB M
and ar e used under lice nse. Ath lon an d Sempron ar e trade marks of Adv anced Micro Devic es, In c. Micr osoft® and W indows are re gister ed trademar ks of Microsoft Co rpora tion. N VIDIA is a re gister ed
tradem ark of NVIDI A Cor porati on in t he Uni ted States an d/or other countr ies. L inux is a re gistered trad emark of Linus Torva lds. O ther c ompany, product and s ervice na mes ma y be tradema rks or
serv ice marks of other s.
Visit leno vo.com /safecom put ing p eriod icall y for t he late st informati on on safe an d eff ective computing.
DTD02266-USEN -01
