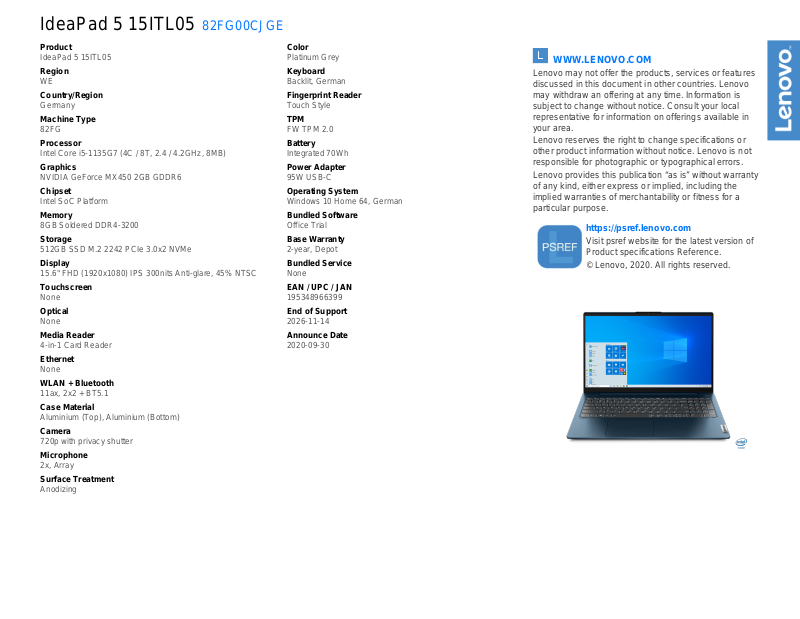

Lenovo 82FG00CJGE Technical data

IdeaPad 5 15ITL05 82FG00CJGE

Product

IdeaPad 5 15ITL05

Region

WE

Country/Region

Germany

Machine Type

82FG

Processor

Intel Core i5-1135G7 (4C / 8T, 2.4 / 4.2GHz, 8MB)

Graphics

NVIDIA GeForce MX450 2GB GDDR6

Chipset

Intel SoC Platform

Memory

8GB Soldered DDR4-3200

Storage

512GB SSD M.2 2242 PCIe 3.0x2 NVMe

Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 45% NTSC

Touchscreen

None

Optical

None

Media Reader

4-in-1 Card Reader

Ethernet

None

WLAN + Bluetooth

11ax, 2x2 + BT5.1

Case Material

Aluminium (Top), Aluminium (Bottom)

Camera

720p with privacy shutter

Microphone

2x, Array

Surface Treatment

Anodizing

Color

Platinum Grey

Keyboard

Backlit, German

Fingerprint Reader

Touch Style

TPM

FW TPM 2.0

Battery

Integrated 70Wh

Power Adapter

95W USB-C

Operating System

Windows 10 Home 64, German

Bundled Software

Office Trial

Base Warranty

2-year, Depot

Bundled Service

None

EAN / UPC / JAN

195348966399

End of Support

2026-11-14

Announce Date

2020-09-30

WWW.LENOVO.COM

Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.

Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.

Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of
Product specifications Reference.

© Lenovo, 2020. All rights reserved.

IdeaPad 5 15ITL05 Platform Specifications

Threads

4 8



Core i3 / i5 / i7 Processor

# of

Base

TN

IPS

Max Turbo
Frequency

Anti-glare

Frequency

2.4 GHz 4.2 GHz 8MB

(In Plane Switching)

Cache Memory Types

DDR4-3200

Bright-

ness

250 nits

300 nits

Aspect

Ratio

Intel UHD Graphics

16:9

14.04" x 9.18" x 0.67"; 356.67mm x 233.13mm x 16.9mm

14.04" x 9.18" x 0.7"; 356.67mm x 233.13mm x 17.9mm

Processor 11th Generation Intel

Processor
Number

i3-1115G4 2 4 3.0 GHz 4.1 GHz 6MB
i5-1135G7
i7-1165G7 2.8 GHz 4.7 GHz 12MB

# of

Cores

Graphics Intel UHD Graphics or Intel Iris Xe Graphics in processor only, or

Intel UHD Graphics or Intel IrisXe Graphics in processor and
NVIDIA GeForceMX450 2GB GDDR6 memory;
supports external digital monitor via HDMI or USB-C;
supports three independent displays;
Max resolution: 3840x2160@30Hz (HDMI); 3840x2160@30Hz (USB-C)

Chipset
Memory

Intel SoC (System on Chip) platform
4GB, 8GB, 12GB or 16GB / 3200MHz DDR4, soldered to systemboard, no sockets,
dual-channel capable (8GB, 12GB, 16GB only)

Display

One of the following, configurable by model:

Size Resolution Type Surface

15.6" FHD (1920x1080)

Multi-touch(opt) On-cell touch, supports 10-finger gesture
Storage

Up to 2 drives (one HDD and one M.2 SSD):

● HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high

● M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2

● M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4

Optical (opt)

External DVD burner, 9.5mm high

Ethernet None
WLAN +

Bluetooth

Dimensions

One of the following, configurable by model:



● 802.11ac 2x2 Wi-Fi + Bluetooth 5.1, M.2 Card

● 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 Card

Aluminum bottom model:
Plastic bottom model:

Weight
Case color
Case material

Note: The specifications above may not be available in all regions and might change by region.

Starting at

3.66 lb / 1.66 kg

Abyss blue, graphite grey, light teal or platinum grey

Display cover: Aluminium
Bottom:

PC/ABS plastic or Aluminium

Processor

Graphics



Xe

Intel Iris

Graphics

Color Gamut

45% NTSC

45% NTSC

100% sRGB

Product Specifications Reference (PSREF)

Media reader
Ports

4-in-1 media reader (MMC, SD, SDHC, SDXC)
Two USB 3.2 Gen 1 (one Always on),
one USB 3.2 Type-C Gen 1 (with the function of PD 3.0 and DP 1.4),
HDMI 1.4b, 4-in-1 media reader (MMC, SD, SDHC, SDXC),
round AC power adapter jack (only available on plastic bottom models),
headphone / microphone combo jack

* Depending on many factors, actual data transfer speed may be lower than theoretical speed

Camera
Audio support

HD720p(1.0MP), with privacy shutter, fixed focus, with dual array microphone
HD Audio, Dolby Audio, stereo speakers, 2W x 2,
dual array microphone, headphone / microphone combo jack

Keyboard
Touchpad

Security
Security chip
Fingerprint reader

6-row, multimedia Fn keys, numeric keypad, optional LED backlight
Buttonless Mylar surface multi-touch touchpad

Power-on password, hard-disk password, administrator password
Firmware TPM 2.0 integrated in chipset
Optional: Touch style fingerprint reader on power button

Battery Integrated Li-Polymer 45Wh, 57Wh or 70Wh battery

Battery Support Rapid charge (charge up to 80% in 1hr)

45Wh with 65W or 95W AC dapter
57Wh with 65W or 95W AC dapter
70Wh with 95W AC adapter

Max battery life MobileMark

* Battery life varies significantly with hardware configurations, settings, usage, & other factors



2014: 9 hr (45Wh), 11 hr (57Wh) or 15 hr (70Wh)

AC adapter 45W / 65W round tip or 65W / 95W USB-C AC adapter
Preload (optional) Preloaded operating system

● Windows 10 Home 64

● Windows 10 Home in S mode

● Windows 10 Pro 64

Limited warranty

One of the following, configurable by model:

• 1-year depot repair service

• 1-year depot with 2-year system board repair service

• 2-year/1-yr battery depot repair service

Environment ENERGY STAR



8.0; ErP lot3; RoHS-compliant

September 2020

Lenovo
