Lenovo 82A200A4GE User Manual
Yoga Slim 7 14ARE05 82A200A4GE
Product
Yoga Slim 7 14ARE05
Region
WE
Country/Region
Germany
Machine Type
82A2
Processor
AMD Ryzen 7 4700U (8C / 8T, 2.0 / 4.1GHz, 4MB L2 / 8MB L3)
Graphics
Integrated AMD Radeon Graphics
Chipset
AMD SoC Platform
Memory
8GB Soldered LPDDR4X-4266
Storage
512GB SSD M.2 2280 PCIe NVMe
Display
14" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB
Touchscreen
None
Pen
None
Optical
None
Media Reader
MicroSD Card Reader
Ethernet
None
WLAN + Bluetooth
11ax, 2x2 + BT5.0
WWAN
None
Bundled Accessories
None
Case Material
Aluminium (Top), Aluminium (Bottom)
Camera
720p + IR + ToF
Microphone
2x, Array
Surface Treatment
Anodizing Sandblasting
Color
Slate Grey
Keyboard
Backlit, German
Fingerprint Reader
None
NFC
None
TPM
FW TPM 2.0
Battery
Integrated 60.7Wh
Power Adapter
65W USB-C Slim
Operating System
Windows 10 Home 64, German
Bundled Software
Office Trial
Base Warranty
2-year, Depot
Bundled Service
None
EAN / UPC / JAN
195235787847
End of Support
2026-04-20
Announce Date
2020-02-28
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product specifications Reference.
© Lenovo, 2020. All rights reserved.

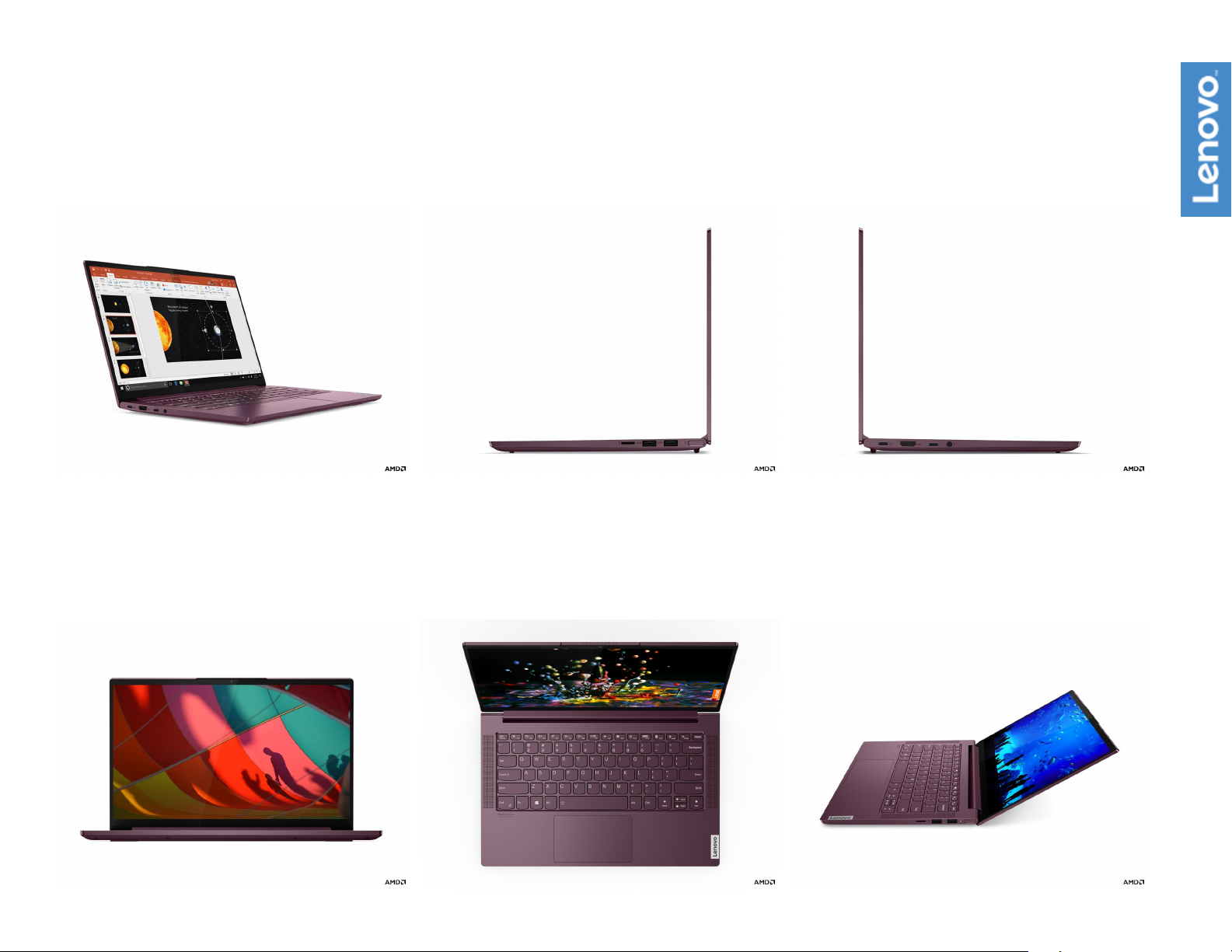

Yoga Slim 7 14ARE05 Platform Specifications
Processor AMD Ryzen™ Mobile Processors with Radeon™ Graphics
Processor
Number
Ryzen 5
4500U
Ryzen 5
4600U
Ryzen 7
4700U
Ryzen 7
4800U
# of
Cores
6
8
# of
Threads
12 2.1 GHz
16 1.8 GHz 4.2 GHz
Base
Frequency
6 2.3 GHz
8 2.0 GHz 4.1 GHz
Max Turbo
Frequency
4.0 GHz
Cache Memory Types
3MB L2 /
8MB L3
LPDDR4X-4266
4MB L2 /
8MB L3
Processor
Graphics
AMD
Radeon
Graphics
Graphics AMD Radeon Graphics in processor;
supports external digital monitor via HDMI or USB Type-C;
supports three independent displays;
Max resolution: 4096x2160 @48-60Hz (HDMI); 5120x2880 @60Hz (Type-C)
Chipset
Memory
AMD SoC (System on Chip) platform
8GB or 16GB / 4266MHz LPDDR4x, dual-channel capable,
soldered to systemboard, no sockets
Display
Multi-touch
Storage
14.0" (356mm) FHD (1920x1080), Anti-glare or Glossy, WVA, 300 nits,
16:9 aspect ratio, 100% sRGB gamut, Dolby
None
One of the following, configurable by model:
Vision
● M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 4
● M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
Optical
None
Ethernet None
802.11
WLAN
Bluetooth
Dimensions
Weight
Case color
Case material
Note: The specifications above may not be available in all regions and might change by region. Lenovo
ax, 2x2, Wi-Fi + Bluetooth 5.0, M.2 Card
Bluetooth 5.0 wireless, integrated in
Models W D X
Bezel
320.6mm / 12.62inch 208.18mm / 8.19inch
Glass 14.9mm / 0.58inch
Bezel:
Glass:
1.33 kg / 2.93 lb
1.40 kg / 3.08 lb
Wi-Fi + Bluetooth combo adapter
15.1mm / 0.59inch
Orchid and Slate Grey
Display cover: Aluminium
Bottom: Aluminium
Media reader
Ports
MicroSD
One USB 3.2 Type-C Gen 2
(with the function of Power Delivery 3.0, DisplayPort 1.4 and data transfer),
one USB Type-C (with the function of Power Delivery 3.0 only),
two USB 3.2 Type-A Gen 1 (one with Always On), one HDMI 2.0b,
3.5mm (0.14inch) stereo audio / microphone combo jack (CTIA)
Monitor cable
Bundled Accy
Camera
Audio support
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
None
None
IR & HD720p camera with ToF sensor, fixed focus
HD Audio, branded stereo speakers with Dolby Atmos certification, 2W x 2 /
dual array microphone, supports WoV (Wake-on-Voice),
3.5mm (0.14inch) stereo audio / microphone combo jack (CTIA)
Keyboard
Touchpad
Security
Security chip
Fingerprint reader
6-row, multimedia Fn keys, LED backlight
Buttonless glass surface multi-touch touchpad
Power-on password, administrator password, user password
Firmware TPM 2.0 integrated in chipset
Optional: Touch style fingerprint reader on power button
Light sensor Ambient light sensor
Battery
Max battery life
AC adapter
Preload
Integrated Li-Polymer 60.7Wh battery
MobileMark
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
65W USB Type-C or 65W Slim USB Type-C AC adapter
Preloaded operating system:
• Windows 10 Home 64
• Windows 10 Pro 64
Limited warranty
One of the following, configurable by model:
• 1-year depot repair service
• 1-year depot with 2-year system board service
• 2-year/1-yr battery depot repair service
Environment
EPEAT
card
2014: Up to 17.5hrs
Silver; ENERGY STAR 8.0; ErP Lot3; NRCan Testing; RoHS-compliant
Product Specifications Reference (PSREF)
September 2020
