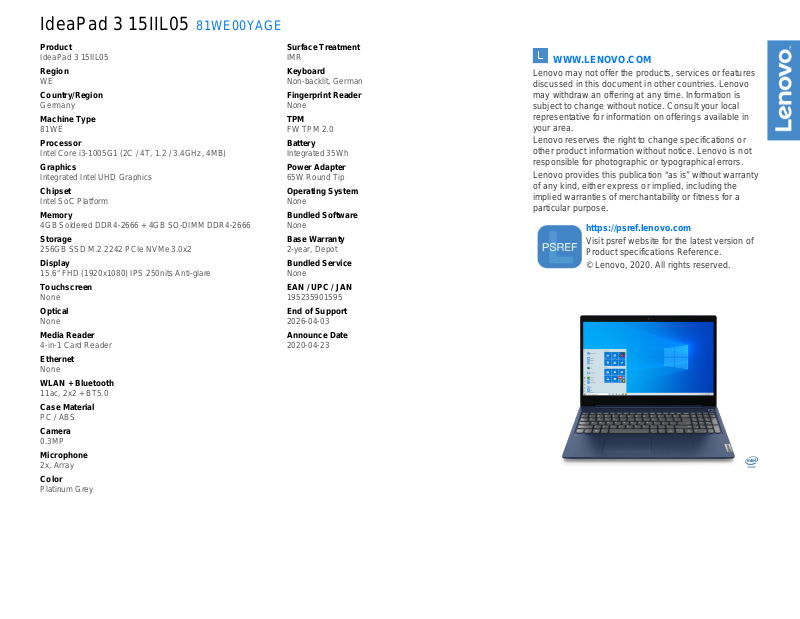

Lenovo 81WE00YAGE User Manual
IdeaPad 3 15IIL05 81WE00YAGE
Product
IdeaPad 3 15IIL05
Region
WE
Country/Region
Germany
Machine Type
81WE
Processor
Intel Core i3-1005G1 (2C / 4T, 1.2 / 3.4GHz, 4MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
4GB Soldered DDR4-2666 + 4GB SO-DIMM DDR4-2666
Storage
256GB SSD M.2 2242 PCIe NVMe 3.0x2
Display
15.6" FHD (1920x1080) IPS 250nits Anti-glare
Touchscreen
None
Optical
None
Media Reader
4-in-1 Card Reader
Ethernet
None
WLAN + Bluetooth
11ac, 2x2 + BT5.0
Case Material
PC / ABS
Camera
0.3MP
Microphone
2x, Array
Color
Platinum Grey
Surface Treatment
IMR
Keyboard
Non-backlit, German
Fingerprint Reader
None
TPM
FW TPM 2.0
Battery
Integrated 35Wh
Power Adapter
65W Round Tip
Operating System
None
Bundled Software
None
Base Warranty
2-year, Depot
Bundled Service
None
EAN / UPC / JAN
195235901595
End of Support
2026-04-03
Announce Date
2020-04-23
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product specifications Reference.
© Lenovo, 2020. All rights reserved.
IdeaPad 3 15IIL05 Platform Specifications
Processor 10th Generation Intel
Processor
Number
i3-1005G1 2 4 1.2 GHz 3.4 GHz 4MB
i5-1035G1
i5-1035G4 1.1 GHz 3.7 GHz
i7-1065G7 1.3 GHz 3.9 GHz 8MB
Graphics Intel UHD Graphics or Intel Iris Plus Graphics in processor only, or;
Intel UHD Graphics or Intel Iris Plus Graphics in processor and
NVIDIA GeForce MX330, 2GB GDDR5 memory;
supports external digital monitor via HDMI;
supports dual independent display;
Max resolution: 1920x1080@60Hz (HDMI)
Chipset
Memory
Intel SoC (System on Chip) platform
12GB max offering / 2666MHz DDR4, dual-channel capable,
4GB memory soldered to systemboard, one DDR4 SO-DIMM socket
Display
One of the following, configurable by model:
● 15.6" (396mm) HD (1366x768), anti-glare, LED backlight, 220 nits,
16:9 aspect ratio
● 15.6" (396mm) FHD (1920x1080), anti-glare, LED backlight, 220 nits,
16:9 aspect ratio
● 15.6" (396mm) FHD (1920x1080), WVA, anti-glare, LED backlight, 250 nits,
16:9 aspect ratio
Multi-touch(opt)
Storage
On-cell touch, support 10-finger gesture
Up to 2 drives (one HDD and one M.2 SSD):
● HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high
● M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
● M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
● Intel Optane Memory H10 with Solid State Storage, M.2 2280,
PCIe NVMe 3.0 x 4
Optical(opt)
External DVD burner, 9.5mm high
Ethernet None
WLAN +
Bluetooth
One of the following, configurable by model:
● 802.11ac 2x2 Wi-Fi + Bluetooth 5.0, M.2 Card
● 802.11ax 2x2 Wi-Fi + Bluetooth 5.0, M.2 Card
Dimensions
Weight
Case color
WxDxH: 14.26" x 9.98" x 0.78"; 362.2mm x 253.4mm x 19.9mm
Starting at 4.08 lb / 1.85 kg
Abyss blue IMR, almond IMR, cherry red IMR, platinum grey IMR or
business black texture
Case material
Note: The specifications above may not be available in all regions and might change by region.
PC/ABS plastic
Core i3 / i5 / i7 Processor
# of
Cores
4 8
# of
Threads
Base
Frequency
1.0 GHz 3.6 GHz
Max Turbo
Frequency
Cache Memory Types
DDR4-2666
6MB
Processor
Graphics
Intel UHD
Graphics
Intel Iris
Graphics
Media reader
Ports
4-in-1 media reader (MMC, SD, SDHC, SDXC)
One USB 2.0, two USB 3.2 Gen 1, HDMI 1.4b,
4-in-1 media reader (MMC, SD, SDHC, SDXC), AC power adapter jack,
headphone / microphone combo jack
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Plus
Camera
Audio support
0.3MP or HD720p, with privacy shutter, fixed focus,
integrated dual array microphone
* HD720p camera for NA only
HD Audio, Dolby Audio, stereo speakers, 1.5W x 2,
dual array microphone, headphone / microphone combo jack
Keyboard
Touchpad
Security
Security chip
Fingerprint reader
Battery
Max battery life
MobileMark 2014)
(
6-row, multimedia Fn keys, numeric keypad
Buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password
Firmware TPM 2.0 integrated in chipset
Optional: Touch style fingerprint reader on power button
Integrated Li-Polymer 35Wh or 45Wh battery,
45Wh battery supports rapid charge (charge up to 80% in 1hr)
Max battery life Integrated Graphics Discrete Graphics
35Wh 7.3 hr 6.6 hr
45Wh 9.3 hr 8.5 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
AC adapter 65W round tip AC adapter
Preload(opt) Preloaded operating system
● Windows 10 Home 64
● Windows 10 Home in S mode
● Windows 10 Pro 64
Preloaded applications (only some listed)
● Microsoft Office Home and Student 2019
● Microsoft Office Home and Business 2019
● Microsoft Office Trial (with 30-day license)
● Microsoft Office Professional 2019
● Microsoft Office Personal 2019
● Microsoft Office 365 Home
● Microsoft Office 365 Personal
Limited warranty
One of the following, configurable by model:
• 1-year depot repair service
• 1-year depot with 2-year system board repair service
• 2-year/1-yr battery depot repair service
Environment ErP lot3; RoHS-compliant
Product Specifications Reference (PSREF)
Lenovo
August 2020
