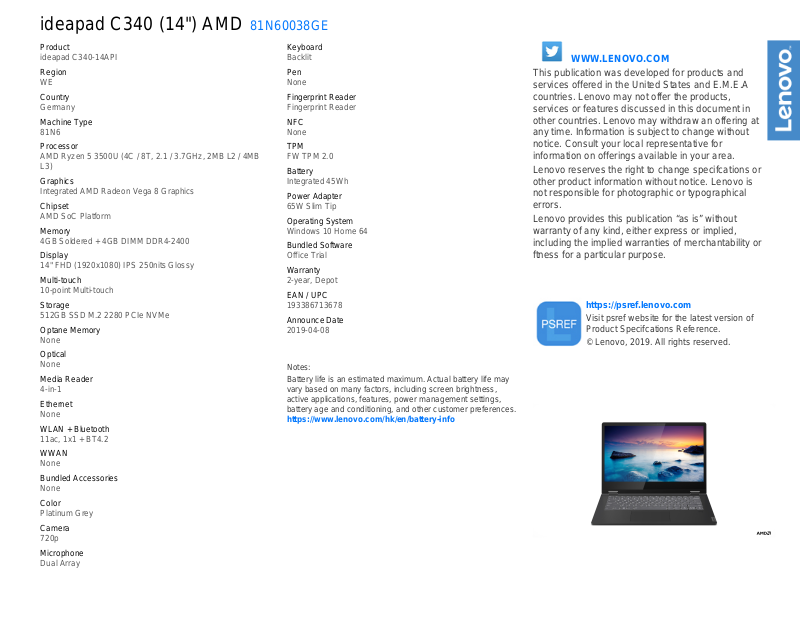

Lenovo 81N60038GE Technical data
ideapad C340 (14") AMD 81N60038GE
Product
ideapad C340-14API
Region
WE
Country
Germany
Machine Type
81N6
Processor
AMD Ryzen 5 3500U (4C / 8T, 2.1 / 3.7GHz, 2MB L2 / 4MB
L3)
Graphics
Integrated AMD Radeon Vega 8 Graphics
Chipset
AMD SoC Platform
Memory
4GB Soldered + 4GB DIMM DDR4-2400
Display
14" FHD (1920x1080) IPS 250nits Glossy
Multi-touch
10-point Multi-touch
Storage
512GB SSD M.2 2280 PCIe NVMe
Optane Memory
None
Optical
None
Media Reader
4-in-1
Ethernet
None
WLAN + Bluetooth
11ac, 1x1 + BT4.2
WWAN
None
Bundled Accessories
None
Color
Platinum Grey
Camera
720p
Microphone
Dual Array
Keyboard
Backlit
Pen
None
Fingerprint Reader
Fingerprint Reader
NFC
None
TPM
FW TPM 2.0
Battery
Integrated 45Wh
Power Adapter
65W Slim Tip
Operating System
Windows 10 Home 64
Bundled Software
Office Trial
Warranty
2-year, Depot
EAN / UPC
193386713678
Announce Date
2019-04-08
Notes:
Battery life is an estimated maximum. Actual battery life may
vary based on many factors, including screen brightness,
active applications, features, power management settings,
battery age and conditioning, and other customer preferences.
https://www.lenovo.com/hk/en/battery-info
WWW.LENOVO.COM
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.
Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
ideapad C340 (14'') AMD Platform Specications - 14API
Product Specications Reference (PSREF)
Processor
AMD Ryzen Mobile Processors with Radeon Vega Graphics
Processor
Number
Althon 300U
Ryzen 3
3200U
Ryzen 5
3500U
Ryzen 7
3700U
# of
Cores
2 4
4 8
# of
Threads
Base
Frequency
2.4 GHz 3.3 GHz
2.6 GHz 3.5 GHz
2.1 GHz 3.7 GHz
2.3 GHz 4.0 GHz
Max Turbo
Frequency
Cache Memory Types
1MB L2 /
4MB L3
2MB L2 /
4MB L3
DDR4-2400
Graphics AMD Radeon Vega 3, Vega 8 or RX Vega 10 Graphics in processor only,
supports external digital monitor via HDMI;
supports dual independent display;
Max resolution: 1920x1080@60Hz (HDMI)
Chipset
Memory
AMD SoC (System on Chip) platform
8GB max offering / 2400MHz DDR4,
Optional: 4GB memory soldered to systemboard, one DDR4 SO-DIMM socket
* System clocks down for processors with lower memory controller
Display
One of the following, congurable by model:
● 14.0" (356mm) HD (1366x768), glossy, LED backlight,
220 nits, 16:9 aspect ratio
● 14.0" (356mm) FHD (1920x1080), glossy, LED backlight,
220 nits, 16:9 aspect ratio
● 14.0" (356mm) FHD (1920x1080), IPS, glossy, LED backlight,
250 nits, 16:9 aspect ratio
Multi-touch
Multi-mode
Pen (optional)
Supports 10-nger gesture
4 modes: notebook, tablet, stand and tent; 360° hinge
Lenovo Active Pen 2, with replaceable battery or without battery
(battery need to be purchased separately for the models without battery)
Storage
One of the following, congurable by model:
Some: M.2 (2280) SSD / SATA 6.0Gb/s
(e.g. xxxGB SSD M.2 2280)
Some: M.2 (2242) SSD / PCIe NVMe, PCIe 3.0 x 2, 16Gb/s
(e.g. xxxGB SSD M.2 2242 PCIe NVMe)
Some: M.2 (2280) SSD / PCIe NVMe, PCIe 3.0 x 4, 32Gb/s
(e.g. xxxGB SSD M.2 2280 PCIe NVMe)
Optical
None
Ethernet None
WLAN
One of the following, congurable by model:
● 802.11ac 1x1 Wi-Fi + Bluetooth 4.2, M.2 Card
Bluetooth
Media reader
Ports
● 802.11ac 2x2 Wi-Fi + Bluetooth 4.2, M.2 Card
Bluetooth 4.2 wireless, integrated in
Wi-Fi + Bluetooth combo adapter
4-in-1 media reader (MMC, SD, SDHC, SDXC)
Two USB 3.1 Gen 1 (one Always On), one USB 3.1 Type-C Gen 1,
HDMI 1.4b, 4-in-1 media reader (MMC, SD, SDHC, SDXC), AC power adapter
jack, headphone / microphone combo jack
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Note: The specications above may not be available in all regions.
Proces-
sor
Graphics
AMD
Radeon
Vega 3
Graphics
AMD
Radeon
Vega 8
Graphics
AMD
Radeon
RX
Vega 10
Graphics
Dimensions
Weight
Case color
Case material
Camera
Audio support
WxDxH: 12.91" x 9.01" x 0.7"; 328mm x 229mm x 17.9mm
1.65 kg (3.64 lb)
Onyx black, platinum grey
Display cover:
Bottom:
PC +
GF
PC/ABS plastic
HD720p (1.0MP) with privacy shutter, xed focus
HD Audio, Dolby Audio, stereo speakers, 2W x 2,
dual array microphone, headphone / microphone combo jack
Keyboard
Touchpad
Security
Security chip
Fingerprint reader
Battery
Max battery life
AC adapter
6-row, multimedia Fn keys, optional LED backlight
Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password
Firmware TPM 2.0
Optional: touch style match on chip ngerprint reader on the palm rest
Integrated Li-ion 45Wh battery
MobileMark 2014: 10 hr
* Battery life varies signicantly with settings, usage, & other factors
65W slim tip AC adapter, supports rapid charge (1 hour 80%)
Preload Preloaded operating system
● Windows 10 Home 64
● Windows 10 Home S
Preloaded applications (only some listed)
● Microsoft Ofce Trial (with 30-day license)
● Microsoft Ofce 365 (with 1-year license)
Limited warranty
One of the following, congurable by model:
• 1-year depot repair service
• 2-year/1-yr battery depot repair service
Environment
ENERGY STAR 7.0; ErP lot3; RoHS-compliant
Lenovo
