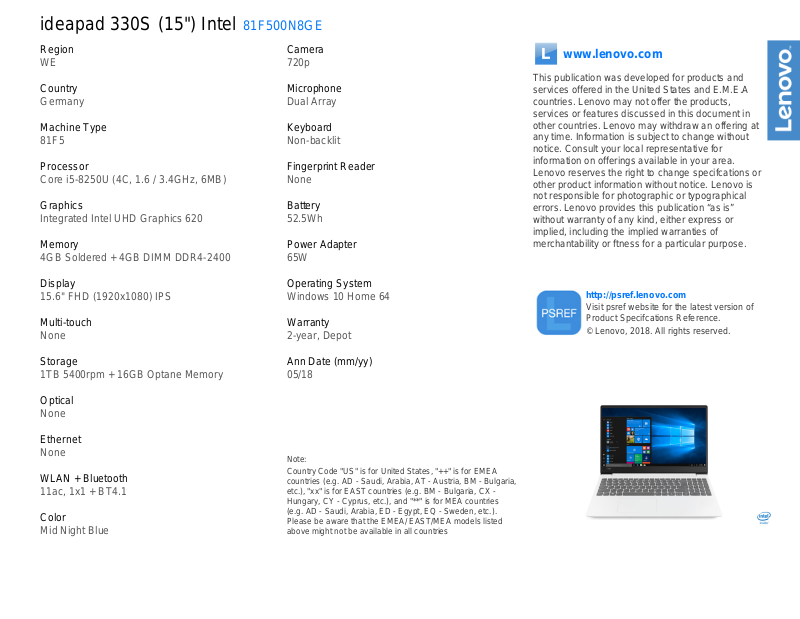

Lenovo 81F500N8GE Technical data
ideapad 330S (15") Intel 81F500N8GE
Region
WE
Country
Germany
Machine Type
81F5
Processor
Core i5-8250U (4C, 1.6 / 3.4GHz, 6MB)
Graphics
Integrated Intel UHD Graphics 620
Memory
4GB Soldered + 4GB DIMM DDR4-2400
Display
15.6" FHD (1920x1080) IPS
Multi-touch
None
Camera
720p
Microphone
Dual Array
Keyboard
Non-backlit
Fingerprint Reader
None
Battery
52.5Wh
Power Adapter
65W
Operating System
Windows 10 Home 64
Warranty
2-year, Depot
www.lenovo.com
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors. Lenovo provides this publication “as is”
without warranty of any kind, either express or
implied, including the implied warranties of
merchantability or ftness for a particular purpose.
http://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2018. All rights reserved.
Storage
1TB 5400rpm + 16GB Optane Memory
Optical
None
Ethernet
None
WLAN + Bluetooth
11ac, 1x1 + BT4.1
Color
Mid Night Blue
Ann Date (mm/yy)
05/18
Note:
Country Code "US" is for United States, "++" is for EMEA
countries (e.g. AD - Saudi, Arabia, AT - Austria, BM - Bulgaria,
etc.), "xx" is for EAST countries (e.g. BM - Bulgaria, CX Hungary, CY - Cyprus, etc.), and "**" is for MEA countries
(e.g. AD - Saudi, Arabia, ED - Egypt, EQ - Sweden, etc.).
Please be aware that the EMEA/ EAST/MEA models listed
above might not be available in all countries
ideapad 330S (15'') Intel Platform Specifications
Product Specifications Reference (PSREF)
Processor
Intel Pentium Processor, 7th Generation Intel Core i3 / i5 Processor, or
8th Generation Intel Core i3 / i5 / i7 Processor
Processor
Number
Pen 4415U
i3-7020U 2.3 GHz - 3MB
i5-7200U 2.5 GHz 3.1 GHz 3MB
i3-8130U 2.2 GHz 3.4 GHz 4MB
i5-8250U
i7-8550U 1.8 GHz 4.0 GHz 8MB
# of
Cores
2 4
4 8
# of
Threads
Base
Frequency
2.3 GHz - 2MB
1.6 GHz 3.4 GHz 6MB
Max Turbo
Frequency
Cache
Memory
Types
DDR4-2133
DDR4-2400
Processor
Graphics
Intel HD
Graphics 610
Intel HD
Graphics 620
Intel UHD
Graphics 620
Graphics Intel HD Graphics 610 / 620 or Intel UHD Graphics 620 in processor only, or
Intel HD Graphics 620 or Intel UHD Graphics 620 in processor and
AMD Radeon 535 (2GB GDDR5 memory), or
Intel HD Graphics 620 or Intel UHD Graphics 620 in processor and
AMD Radeon 540 (2GB or 4GB GDDR5 memory), or
Intel HD Graphics 620 or Intel UHD Graphics 620 in processor and
NVIDIA GeForce GTX 1050 (2GB or 4GB GDDR5 memory);
supports dual independent display;
Max resolution: 4096x2160@30Hz (HDMI)
Chipset
Memory
Intel SoC (System on Chip) platform
12GB max / 2133MHz or 2400MHz DDR4, dual-channel capable,
4GB soldered to systemboard, one DDR4 SO-DIMM socket
Display
Some: 15.6" (396mm) HD (1366x768), anti-glare, LED backlight,
220 nits, 16:9 aspect ratio
Some: 15.6" (396mm) FHD (1920x1080), anti-glare, LED backlight, IPS,
250 nits, 16:9 aspect ratio
Multi-touch
Storage
None
Some: HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high
Some: SSD / SATA 6.0Gb/s, 2.5" wide, 7mm high (e.g. xxxGB SSD)
Some: M.2 SSD / PCIe NVMe, PCIe 3.0 x 4, 32Gb/s
(e.g. xxxGB SSD M.2 PCIe NVMe)
Some: M.2 SSD / SATA 6.0Gb/s (e.g. xxxGB SSD M.2)
Some: 16GB Intel Optane memory, PCIe NVMe, PCIe 3.0 x 4, 32Gb/s, M.2
Optical (optional)
External DVD burner, 9.5mm high
Ethernet None
WLAN
Bluetooth
Media reader
Ports
11
ac, 1x1, Wi-Fi + Bluetooth combo adapter, M.2 Card
Bluetooth 4.1 wireless, integrated in
4-in-1 reader (MMC, SD, SDHC, SDXC)
Two USB 3.1 Gen 1 (one Always On), one USB 3.1 Type-C Gen 1,
HDMI 1.4b, headphone / microphone combo jack, security keyhole,
AC power adapter jack
Dimensions
Weight
Case color
Case material
WxDxH: 14.11" x 9.61" x 0.76"; 358.4mm x 244.1mm x 19.4mm
1.87 kg (4.12 lb)
Blizzard white, platinum grey, mid night blue, iron grey or rose pink
Display cover: aluminum
Bottom: PC/ABS plastic
Camera
Audio support
HD720p (1.0MP), fixed focus, with dual array microphone
HD Audio, stereo speakers with Dolby Audio Premium, 2W x 2 /
dual array microphone, headphone / microphone combo jack
Keyboard
Touchpad
Security
Security chip
Fingerprint reader
Battery
Max battery life
AC adapter
Preload
Limited warranty
6-row, multimedia Fn keys, numeric keypad, optional backlight
Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Firmware TPM 2.0
None
Integrated Li-ion 30Wh or 52.5Wh battery
MobileMark 2014: 6 hrs (30Wh) / 9 hr (52.5Wh)
45W, 65W or 90W slim tip AC adapter, support rapid charge
Windows 10 Home 64 or Windows 10 Pro 64
One of the following, configurable by model:
• 1-year depot repair service
• 2-year/1-yr battery depot repair service
Environment
ENERGY STAR 6.1; EPEAT Silver; RoHS-compliant
Wi-Fi + Bluetooth combo adapter
Lenovo
June 2018
