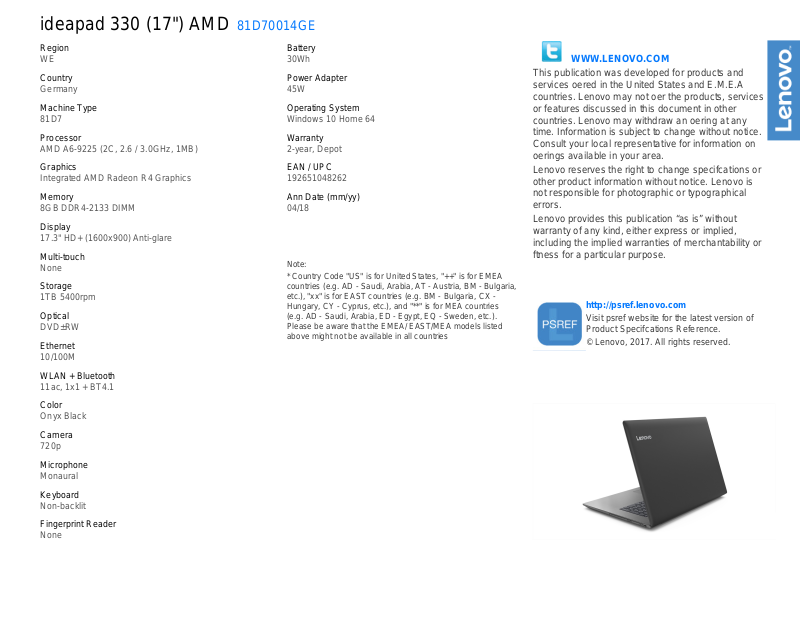

Lenovo 81D70014GE Technical data

ideapad 330 (17") AMD 81D70014GE

Region

WE

Country

Germany

Machine Type

81D7

Processor

AMD A6-9225 (2C, 2.6 / 3.0GHz, 1MB)

Graphics

Integrated AMD Radeon R4 Graphics

Memory

8GB DDR4-2133 DIMM

Display

17.3" HD+ (1600x900) Anti-glare

Multi-touch

None

Storage

1TB 5400rpm

Optical

DVD±RW

Ethernet

10/100M

Battery

30Wh

Power Adapter

45W

Operating System

Windows 10 Home 64

Warranty

2-year, Depot

EAN / UPC

192651048262

Ann Date (mm/yy)

04/18

Note:
* Country Code "US" is for United States, "++" is for EMEA

countries (e.g. AD - Saudi, Arabia, AT - Austria, BM - Bulgaria,
etc.), "xx" is for EAST countries (e.g. BM - Bulgaria, CX ­Hungary, CY - Cyprus, etc.), and "**" is for MEA countries
(e.g. AD - Saudi, Arabia, ED - Egypt, EQ - Sweden, etc.).
Please be aware that the EMEA/ EAST/MEA models listed
above might not be available in all countries

WWW.LENOVO.COM
This publication was developed for products and

services oered in the United States and E.M.E.A
countries. Lenovo may not oer the products, services
or features discussed in this document in other
countries. Lenovo may withdraw an oering at any
time. Information is subject to change without notice.
Consult your local representative for information on
oerings available in your area.

Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.

Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.

http://psref.lenovo.com

Visit psref website for the latest version of
Product Specifcations Reference.

© Lenovo, 2017. All rights reserved.

WLAN + Bluetooth

11ac, 1x1 + BT4.1

Color

Onyx Black

Camera

720p

Microphone

Monaural

Keyboard

Non-backlit

Fingerprint Reader

None

ideapad 330 (17'') AMD Platform Specifications

Product Specifications Reference (PSREF)

Processor AMD A-Series or E-Series APUs

Processor
Number

E2-9000

A4-9125 2.3 GHz 2.6 GHz

A6-9225 2.6 GHz 3.0 GHz

A9-9425 3.1 GHz 3.7 GHz

# of

Cores

2 2

# of

Threads

Base

Frequency

1.8 GHz 2.2 GHz

Max Turbo
Frequency

Cache

1MB

Memory

Types

DDR4-1866

DDR4-2133

Graphics AMD Radeon R2, R3, R4, or R5 Graphics in processor only, or

AMD Radeon R2, R3, R4, or R5 Graphics in processor and
AMD Radeon 530 (2GB GDDR5 memory);
supports dual independent display;
Max resolution: 1920x1080@60Hz (HDMI)

Chipset
Memory

Display

AMD SoC (System on Chip) platform
8GB max / 1866MHz or 2133MHz DDR4, one DDR4 SO-DIMM socket

+

Some: 17.3" (439mm) HD
200 nits, 16:9 aspect ratio

(1600x900), anti-glare, LED backlight,

Some: 17.3" (439mm) FHD (1920x1080), anti-glare, LED backlight, IPS,
300 nits, 16:9 aspect ratio, 72% gamut

Multi-touch
Storage

(optional)

Optical

None

Some: SSD / SATA 6.0Gb/s, 2.5" wide, 7mm high
Some: HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high

DVD burner, 9.0mm high, fixed, not removable, tray-in

Processor

Graphics

AMD Radeon

R2 Graphics

AMD Radeon

R3 Graphics

AMD Radeon

R4 Graphics

AMD Radeon

R5 Graphics

Ethernet 10/100M Ethernet connection

11

WLAN
Bluetooth

™

Dimensions
Weight
Case color
Case material

Media reader
Ports



ac, 1x1, Wi-Fi + Bluetooth combo adapter, M.2 Card

Bluetooth 4.1 wireless, integrated in
WxDxH: 16.46" x 11.52" x 0.98"; 418mm x 292.6mm x 24.9mm

2.8 kg (6.17 lb)
Onyx black or platinum grey
PC/ABS plastic

4-in-1 reader (MMC, SD, SDHC, SDXC)
One USB 3.1 Gen 1, one USB 2.0, HDMI 1.4b, Ethernet (RJ-45),
headphone / microphone combo jack, 4-in-1 media reader (MMC, SD, SDHC,
SDXC), security keyhole, AC power adapter jack

Camera
Audio support

Keyboard
Touchpad

Security
Security chip
Fingerprint reader

Battery
Max battery life
AC adapter

Preload Windows
Limited warranty

0.3MP or HD720p (1.0MP), fixed focus, with monaural microphone
HD Audio, stereo speakers with Dolby
monaural microphone, combo audio / microphone jack

6-row, multimedia Fn keys, numeric keypad
One-piece multi-touch touchpad

Power-on password, hard disk password, supervisor password, security keyhole
None
None

Integrated Li-ion 30Wh or 35Wh battery

MobileMark

45W or 65W slim tip AC adapter

One of the following, configurable by model:



2014: 6 hr



10 Home 64

• 1-year depot repair service

• 2-year/1-yr battery depot repair service

Environment EPEAT



Silver; ENERGY STAR 6.1; RoHS-compliant

Wi-Fi + Bluetooth combo adapter



Audio, 1.5W x 2 /

Lenovo

May 2018
