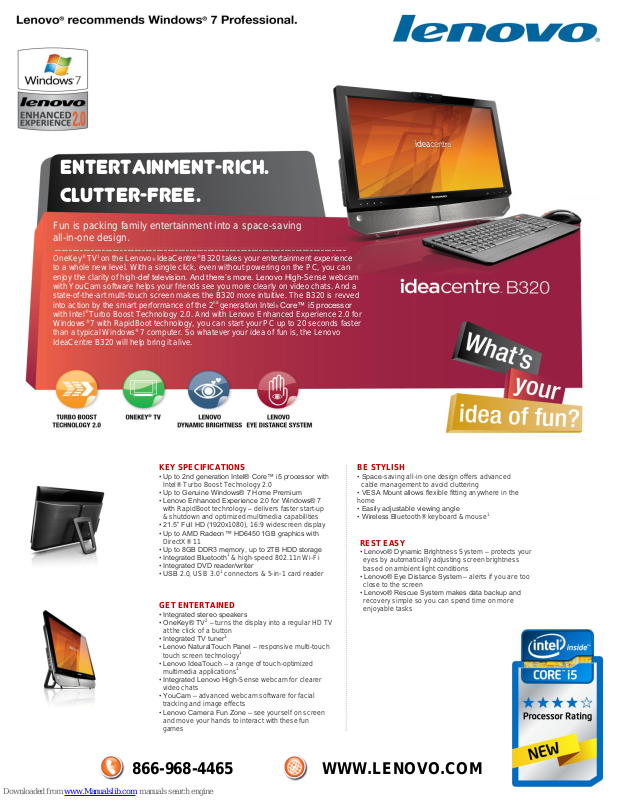

Page 1
Entertainment-rich.
Clutter-free.
Fun is packing family entertainment into a space-saving
all-in-one design.
________________________________________________________________________________
OneKey
®
TV
1
on the Lenovo® IdeaCentre
®
B320 takes your entertainment experience
to a whole new level. With a single click, even without powering on the PC, you can
enjoy the clarity of high-def television. And there’s more. Lenovo High-Sense webcam
with YouCam software helps your friends see you more clearly on video chats. And a
state-of-the-art multi-touch screen makes the B320 more intuitive. The B320 is revved
into action by the smart performance of the 2
nd
generation Intel® Core™ i5 processor
with Intel
®
Turbo Boost Technology 2.0. And with Lenovo Enhanced Experience 2.0 for
Windows
®
7 with RapidBoot technology, you can start your PC up to 20 seconds faster
than a typical Windows
®
7 computer. So whatever your idea of fun is, the Lenovo
IdeaCentre B320 will help bring it alive.
KEY SPECIFICATIONS
• Up to 2nd generation Intel® Core™ i5 processor with
Intel® Turbo Boost Technology 2.0
• Up to Genuine Windows® 7 Home Premium
• Lenovo Enhanced Experience 2.0 for Windows® 7
with RapidBoot technology – delivers faster start-up
& shutdown and optimized multimedia capabilities
• 21.5” Full HD (1920x1080), 16:9 widescreen display
• Up to AMD Radeon™ HD6450 1GB graphics with
DirectX® 11
• Up to 8GB DDR3 memory, up to 2TB HDD storage
• Integrated Bluetooth
1
& high-speed 802.11n Wi-Fi
• Integrated DVD reader/writer
• USB 2.0, USB 3.01 connectors & 5-in-1 card reader
GET ENTERTAINED
• Integrated stereo speakers
• OneKey® TV
2
– turns the display into a regular HD TV
at the click of a button
• Integrated TV tuner
3
• Lenovo NaturalTouch Panel – responsive multi-touch
touch screen technology1
• Lenovo IdeaTouch – a range of touch-optimized
multimedia applications1
• Integrated Lenovo High-Sense webcam for clearer
video chats
• YouCam – advanced webcam software for facial
tracking and image effects
• Lenovo Camera Fun Zone – see yourself on screen
and move your hands to interact with these fun
games
BE STYLISH
• Space-saving all-in-one design offers advanced
cable management to avoid cluttering
• VESA Mount allows flexible fitting anywhere in the
home
• Easily adjustable viewing angle
• Wireless Bluetooth® keyboard & mouse1
REST EASY
• Lenovo® Dynamic Brightness System – protects your
eyes by automatically adjusting screen brightness
based on ambient light conditions
• Lenovo® Eye Distance System – alerts if you are too
close to the screen
• Lenovo® Rescue System makes data backup and
recovery simple so you can spend time on more
enjoyable tasks
WWW.LENOVO.COM
866-968-4465
Page 2
Processor
2nd generation Intel® Core™ i7-2600S Processor with Intel Turbo Boost Technology* 2.0 (2.80GHz, 8MB Cache)
2nd generation Intel® Core™ i5-2500S Processor with Intel Turbo Boost Technology* 2.0 (2.70GHz, 6MB Cache)
2nd generation Intel® Core™ i5-2400S Processor with Intel Turbo Boost Technology* 2.0 (2.50GHz, 6MB Cache)
2nd generation Intel® Core™ i3-2120 Processor with Intel Turbo Boost Technology* 2.0 (3.30GHz, 3MB Cache)
2nd generation Intel® Core™ i3-2100 Processor with Intel Turbo Boost Technology* 2.0 (3.10GHz, 3MB Cache)
Operating System
Genuine Windows® 7 Home Premium
Display/Resolution
15.6’’ high-definition (1366*768), 16:9 widescreen
Video Graphics
AMD Radeon® HD6450 1GB
Intel® HD Graphics 2000
Memory
Up to 8GB DDR3 1333MHz memory
Hard Disk Drive
320GB/500GB/1TB/2TB 7200rpm
Optical Drive
Integrated DVD reader/writer drive
Sound
Integrated 5.0 speakers supporting SRS® Premium Surround Sound audio enhancement
Integrated
Communications
802.11bgn WiFi, 10/100/1000M LAN, Bluetooth
® (
optional)
Connectors
2x USB 2.0 (side), 4xUSB2.0 (rear, USB 3.0x1 optional), 5-in-1 card reader, mic, headphone, PS2, Lan, HWTV
in, TV in (optional),AV in (optional), B-Case Card in
Camera
0.3MP integrated web camera
Weight
22.11 lb (10.03 kg), (may vary by configuration)
Dimensions
534 x 394.5 (405.2) x 75.3(118.5) mm WxH(w/foot)xD (w/stand)
Included Software*
Lenovo® Rescue System 3.0, McAfee®, LVT 4.0, Lenovo Eye Distance System, Lenovo Dynamic Brightness
System, Power2Go 6.0, Live Tool Bar, WinDVD
®
10, YouCam, Microsoft® Office 2010
*Software may vary by region.
3-YEAR in-Home
warranty extension
• Award-winning support
• Peace of mind for 3 years
• Convenient in-home service
WWW.LENOVO.COM
866-968-4465
Lenovo makes every effort to ensure accuracy of all information but is not liable or responsible for any editorial, photographic or typographic errors. All images are for illustrative
purposes only. Lenovo product specifications: For full Lenovo product specifications visit www.lenovo.com Lenovo makes no representations or warranties regarding third-party
products or services. Trademarks: The following are trademarks or registered trademarks of Lenovo: Lenovo, the Lenovo logo and IdeaCentre. Microsoft, Windows and Life
without Walls are registered trademarks of Microsoft Corporation in the U.S. or other countries. Intel, the Intel Logo, Intel Inside, Intel Core, and Core Inside are trademarks of
Intel Corporation in the U.S. and other countries. For more information about the Intel processor feature rating, please refer to www.intel.com/go/rating Other company, product
and service names may be trademarks or service marks of others. ©2011 Lenovo. All rights reserved. 1. Optional feature 2. OneKey® TV is an optional feature, which is not
supported in all countries and configurations with OneKey® TV should be subject to local country import duties for TV sets. 3. TV tuner is optional and not available on
configurations with OneKey® TV.
Lenovo Wireless Keyboard
N5901
• Palm size 2.4G 10M wireless
keyboard and mouse combination
• USB interface, plug and use
• Switch on/off function
• Classic HTPC wireless controlling solution
Wireless mouse N30
• Match IdeaPad ID
• Ergonomic design, mini size
• 2.4G wireless mice, 1000DPI,
ultra-mini Nano dangle
Faster and optimized for multimedia
Lenovo Enhanced Experience 2.0 for
Windows
®
7 uses RapidBoot technology to
start your PC on average 20 seconds faster
than a typical Windows 7 computer. And with
HD graphics and enhanced digital audio for
immersive, crystal-clear sound, you’ll enjoy
thebest possible multimedia experience. Find
out more at www.lenovo.com/ee2
