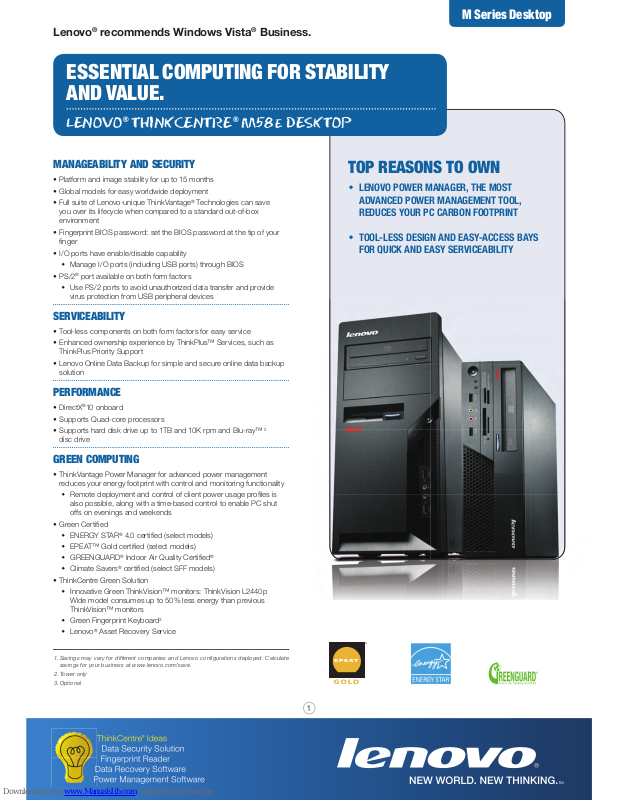

Page 1
1
Lenovo® recommends Windows Vista® Business.
M Series Desktop
MANAGEABILITY AND SECURITY
®
Technologies can save you over its lifecycle when compared to a standard out-of-box environment
Manage I/O ports (including USB ports) throug
h BIOS
®
port available on both form factors
Use PS/2 ports to avoid unauthorized data transfer and provide virus protection from USB peripheral devices
SERVICEABILITY
PERFORMANCE
®
10 onboard
2
disc drive
GREEN COMPUTING
Remote deployment and control of client power usage profiles is also possible, along with a time-based control to enable PC shut offs on evenings and weekends
Gr
een Certified•
ENERGY STAR
®
4.0 certified (select models) EPEAT™ Gold certified (select models) GREENGUARD
®
Indoor Air Quality Certified
®
Climate Savers
®
certified (select SFF models)
Innovative Green ThinkVision™ monitors: ThinkVision L2440p Wide model consumes up to 50% less energy than previous ThinkVision™ monitors
Green Fingerprint Keyboard
3
Lenovo
®
Asset Recovery Service
ESSENTIAL COMPUTING FOR STABILITY AND VALUE.
LENOVO® THINKCENTRE® M58e DESKTOP
TOP REASONS TO OWN
LENOVO POWER MANAGER, THE MOST ADVANCED POWER MANAGEMENT TOOL, REDUCES YOUR PC CARBON FOOTPRINT
TOOL-LESS DESIGN AND EASY-ACCESS BAYS FOR QUICK AND EASY SERVICEABILITY
Savings may vary for diff erent companies a nd Le novo configu ration s dep loyed. Calcu late 1. savings for you r busine ss at www.len ovo.com/s ave.
Tower only2.
Optional3.
Page 2
2
Lenovo® recommends Windows Vista® Business.
Lenovo’s leadership in thermals, acoustics and energy effi ciency are promoted through the ThinkCentre M58e desktop’s GREENGUARD certifi cation on both form factors and EPEAT Gold rating on select models. Added to these stand-out qualities is a full suite of our competitive ThinkVantage Technologies (TVTs), including Power Manager and Client Security Solution, offering truly manageable security. Just as impressive is the ThinkCentre’s low power consumption, ensuring that the ThinkCentre M58e delivers a low total cost of ownership (TCO).
Additionally, the ThinkCentre M58e ownership experience is enhanced by ThinkPlus Services, such as ThinkPlus Priority Support. ThinkPlus Services deliver the same reliable, secure solutions that are synonymous with the Think
®
brand. They are the industry’s highest quality services backing the highest quality products. Lenovo Online Data Backup, for example, is a more comprehensive solution over those offered by competitors. Hard Disk Drive Retention lets you keep your old drive under warranty and hold on to your data if your hard drive fails. ThinkPlus Warranty ser vice upgrades enhance the service levels provided under your hardware’s standard warranty and can provide additional years of hardware service once the standard warranty has expired. ThinkPlus Priority 4 offers a service level with even faster response time: on-site support in four hours or less, following phone-based troubleshooting. You can even turn your current PC trash into cash with a new set of Asset Recovery Services for take-back, data destruction, refurbishment and recycling.
ThinkCentre M58e desktops are engineered to meet your practical needs on performance, manageability and security. Equipped with the latest Intel
®
dual and quad-core processors, the ThinkCentre M58e supports a hard disk drive up to 1TB and 10K rpm, dual independent display through a DVI card, a PCIex16 slot, serial port, Blu-ray, DisplayPort graphic adapters and DirectX 10 graphics cards.
THE PLATFORM STABILITY YOU NEED AT A PRICE YOU WANT
ThinkCentre M58e offers image stability of up to 15 months to • accommodate long-term deployments while helping to reduce transition costs
ThinkCentre M58e offers several powerful ThinkVantage•
®
Technologies
for a smooth roll-out with large deployments ThinkCentre M58e gives you all the essential computing tools you need •
to grow your business at an attractive price through the elimination of unnecessary manageability and security features
ENERGY EFFICIENCY IS TOP-OF-MIND
Power Manager tool offers expanded power management compatibility • for new levels of energy efficiency
Improvements in the acoustics and thermal design also add energy • efficiency benefits
Select models of the ThinkCentre M58e meet • ENERGY STAR
®
5.0 criteria
MANAGEABILITY AND SECURITY ARE CRITICAL TO YOUR OPERATIONS
ThinkCentre M58e comes pre-loaded with a number of ThinkVantage • Technologies, displaying further evidence of Lenovo’s commitment to lowering IT lifecycle costs
ThinkCentre M58e comes equipped with a number of security features • including USB port disable capabilities and a PS/2 port to protect the PC from asset and data theft
Users can also purchase a Fingerprint Reader Keyboard • with included Password Manager software to keep unauthorized users from accessing data and make managing passwords easy
THE LATEST TECHNOLOGY IS A MUST
ThinkCentre M58e offers next-generation with the latest Intel•
®
Core™ 2 Quad processors at competitive acquisition costs. It also supports other latest technologies such as an optional Blu-ray™ optical drive
1
,
10k rpm Hard disk drive and onboard DirectX
®
10 graphics for
mission-critical users
SECURITY AND MANAGEABILITY IN A STABLE, COST-EFFECTIVE, ENERGY EFFICIENT DESIGN.
LENOVO® THINKCENTRE® M58e DESKTOP
Tower only1.
Page 3
3
Lenovo® recommends Windows Vista® Business.
THINKCENTRE® M58e DESKTOP SPECIFICATIONS AND SERVICES
Proce ssor
Intel
®
Core™2 Quad Proc essor Q9x50 (12MB L2, 1333 MHz FSB) Intel
®
Core™2 Quad Proc essor Q9x00 (6MB L 2, 1333 MHz FSB) Intel
®
Core™2 Quad Proc essor Q8x00 (4MB L2, 1333 MHz FSB) Intel
®
Core™2 Quad Proc essor Q6x00 (8MB L2, 1066 MHz FSB) Intel
®
Core™2 Duo Processor E8x00 (6MB L 2, 1333 MHz FSB) Intel
®
Core™2 Duo Processor E7x00 (3MB L 2, 1066 MHz FSB) Intel
®
Pentium® Dual-Core Processor E5x00 (2MB L2, 80 0 MHz FSB ) Intel
®
Pentium® Dual-Core Processor E2xx0 (1MB L2, 800 MHz FSB ) Intel
®
Celeron® Dual-Core Processor E1x00 (512KB L2, 800 MHz FSB ) Intel
®
Celeron® Processor 4x0 (512KB L2, 800 MHz FSB )
Preloaded Operati ng Sys tem
Genuine Windows Vista
®
Ultimate 32bit SP1
Genuine Windows Vista
®
Business 32bit SP1
Genuine Windows Vista
®
Business 64bit SP1
Genuine Windows Vista
®
Home Prem ium 32bit SP1
Genuine Windows Vista
®
Home Basic 32bit SP1
Genuine Windows Vista
®
Business Downgrade to
Genuine Windows
®
XP Professional
Genuine Windows Vista
®
Ultimate Downgrade to
Genuine Windows
®
XP Professional
Chipset
Intel
®
G41 Chipset
Machine Type
Tower:
7258, 7260, 7268, 7270, 7280, 7296, 7298, 7304, 7307, 7413, 7491, 7508
SFF:
7259, 7267, 7269, 7279, 7290, 7297, 7303, 730 6, 7408, 7487, 7506, 7514
Serial ATA Hard Drive
160GB, 250GB, 320GB, 500GB, 1TB/7200rpm and 150GB/10k rpm
Memory
512MB/1GB/2GB D DR2 667MHz /800 MHz
Optical Drive
DVD-ROM, DVD Recordable, Blu-ray™ Recorder (Tower only)
Integ rate d Communication s
Marvell 8057, 10M /100M/1000M Gigabit Ethernet
Port s
Tower/SFF:
(8) U
SB 2.0 (2 Front/4 Rear/2 Internal ), (2) PS/2, (2) Serial (1 standard, 1 optional), (1) Parallel, (2) Front audio ports: Headphone and Micro phone, (3) Rear audio ports : Line in, Line out and Microphon e, (1) VGA, (1) RJ-45
Slots
Tower:
(2) Full Height PCI slots, (1) Full Height PCI- e x1 slot, (1) Full Height PCI-e x16 slot
SFF:
(1) Low Profi le PCI slot, (1) Low Profi le PCI-e x16 slot
Bays
Tower:
Internal: (2) 3.5 inch, External : (2) 5.25 inch Half He ight, (1) 3.5 inch;
SFF:
Internal: (1) 3.5 inch, Ex
ternal : (1) 5.25 inch Half Height, (1) 3.5 inch
Slim – for me dia card reader
Power Supp ly
Tower:
280W standard (Man ual), 280W 80% Ef fi ciency (Auto-sensing), 450W 80% Ef fi ciency (Auto-sensing)
SFF:
280W standard (Auto-sensing ), 280W 85% Effi ciency (Auto-sensing)
Dimensions
Tower:
Height: 402 mm (15.8 in.) Width: 175 mm (6.9 in.) Depth: 440 mm (17.3 in.)
SFF:
Height: 99 m m (3.9 in.) Width: 317 mm (12.5 in.) Depth: 355 mm (14.0 in.)
Keyboa rd
Preferre d Pro Full Size Keyboard ( PS2) Preferre d P
ro Full Size Keyboard ( USB)
Preferre d Pro USB Fingerprint Keyboard
Graphic Card
Integ rate d:
Intel
®
GMA X4500 ( DX 10)
Discret e: Tower:
NVIDIA
®
GeForce G100 256MB DDR2 FH with VGA + DVI-I, ATI
®
Radeon® HD3470 256MB GDDR3 FH with VGA + DisplayPort, NVIDIA GeForce 9500GT 512MB GDDR3 FH with DVI + DisplayPort
SFF:
NVIDIA GeForce G100 256MB DDR2 LP with DVI-I ATI Radeon HD3470 256MB GDDR3 LP with VGA + DisplayPor t
Security
BIOS enable/disable of all USB ports Computrace support Chas
sis Intrusion Switch (select mode ls only)
Limit ed Warr anty
Up to 3 years
Soft ware Applica tion ( pre loaded in Vista)
ThinkVantage
®
Productivity Center
ThinkVantage Rescue and Recovery
™
ThinkVantage Client Security Solution ThinkVantage System Update ThinkVantage Fingerprint Software ThinkVantage Power Manager Microsof t
®
Window Live™ Portal
Microsof t
®
Offi ce Professional 2007 60-Day Trial Version Lenovo System Toolbox for Windows
®
and PC Doctor for WINPE Adobe
®
Acrobat Re ader
®
McAfee® VirusScan® Plus with 30 days of virus defi nitions Interv ideo
®
WinDVD
®
Roxio® Creator™ Business Edition
GO GREEN WITH THE THINKCENTRE M58e DESKTOP
The M58e is an EPEAT Gold certifi ed ThinkCentre for low energy use and minimal impact on the environment, exceeding the requirements of the world's most widely known eco labels. All form factors have select models that are also ENERGY STAR
®
4.0 certifi ed and GREENGUARD® Indoor Air Quality Certifi ed®. The M58e has ThinkVantage® Power Manager, the most advanced power management tool, providing power management control and monitoring. Lenovo's ThinkCentre M58e has improved thermals over its predecessor product, and combined with Lenovo's energy-saving ThinkVision
™
monitors and keyboards provides a low energy consumption solution.
Page 4
4
Lenovo® recommends Windows Vista® Business.
Lenovo USB Headse t (40Y8518)
For internet voice conversations, and multimedia applications
©20 09 Len ovo. Pro duced in Hong Kong. All rig hts r eser ved.
Availa bility: Of fers, prices , specifica tions and av ailabi lity may change without notice. L enovo is not respon sible for p hotographi c or ty pographi c error s.
Prici ng: D oes not includ e tax, shipping and h andling, or recycling f ees. Rese ller pr ices may vary.
Warrant y: For a copy of applic able war ranties, visit www.lenovo.com/hk/warrenty. Lenovo make s no representati on or warr anty reg arding th ird-par ty products or ser vices.
T
rade marks : Lenovo, the Le novo logo, ThinkC entre, T hinkVisi on, ThinkVa ntage, Thin kPlus and Rescu e and Re covery are trad emarks or regi stered tr ademar ks of Len ovo. © 200 9 Levovo. Al l rights reser ved.
Intel, Core, P entium and Celero n are trademarks or registere d trad emarks of Intel C orporation in the U.S. and ot her c ountrie s. Windo ws, Vi sta and DirectX are re gistere d trad emarks of Microsoft Corporation. PS/2 is a
r
egister ed tradem ark of IBM Cor poration. NVIDIA is a register ed tradem ark of NVIDIA Co rporation . ATI and Radeon ar e trademar ks or registered tradem arks of Advanced Micro D evices In c. Blu-ray is a tra demark of B lu-ray
Disc Ass ociatio n. Adobe an d Acrobat ar e registered t radema rks of Adobe Sys tems Inco rporated. W inDVD is a registere d tradema rk of Corel C orporation. ENERGY STAR is a reg istered tr ademar k of the U.S. Envir onmenta l
Protection
Agency. EP EAT is a t radema rk of the Green Electronic Coun cil. GRE ENGUARD an d Indoo r Air Quality Certified are reg istered tradema rks of Greengu ard Envi ronment al Institu te. Climate Savers is a re gistered
tradema rk of WWF. Other c ompany, product an d serv ice nam es may b e tradem arks, re gistered tradema rks or s ervic e marks of others.
Not all the techn ologies listed w ith the b ulb element m ay be avai lable on som
e/all product s showca sed in th is advertise ment.
Visit l enovo.co m/safe computi ng period ically for the l atest inf ormation o n safe an d effec tive com puting.
THINKCENTRE® M58e DESKTOP ACCESSORIES AND OPTIONS
Lenovo PC2-6400 800MHz DDR2 Additiona l Memory
Lowest-cost method to boost system performance (41U2977 ) 1GB PC2-6400 800MHz DDR2 SDRAM UDIMM (41U2978 ) 2GB PC2-6400 800MHz DDR2 SDRAM UDIMM
Lenovo ADD2 DVI-D Monitor Connection Adapter
Low-cost method to attach a second digital monitor while the first analog monitor is attached to the ThinkCentre's VGA por t (43 R1985) DisplayPort to Single-Link DVI-D Monitor Cable
www.len ovo.com/sup port /graphic cards
Kensington Twin Head Cable Lock
Help reduce theft, and increase physical asset
(45 K1620) Kensington Twin Head Cable Lock from Lenovo
www.len ovo.com/sup port /monitora ccessories
Lenovo 256MB ATI® Radeon® HD3470 DisplayPort™
Boost graphics perfo rmance (45 K1636) Lenovo 256MB ATI Radeon HD3470 DisplayPort +VGA Graphics Card
www.len ovo.com/s uppor t/graphi ccards
Lenovo USB Webcam (40Y8519 )
Expre ss yourself with true-to-life video and voice calls. Video confere nce with colleagues.
www.len ovo.com/sup port /monitora ccessories
Lenovo Fingerprint USB Keyboard (73P473 0)
Replace Windows
®
passwords with fast, secure
access using your f inger print
Lenovo ThinkV ision™ L1700p (9417-HE2 )
Productivity boost as an office professional or executive. Display more data, attach multiple monitors.
www.len ovo.com/s uppor t/monito raccessor ies www.len ovo.com/th inkvi sion
www.lenovo.com
800 938 838
THINK SAVINGS. THINK LENOVO.
For more informatio n go to : www.lenovo.com /acce ssories ; www.lenovo.com/a ccesso riesgu ide
