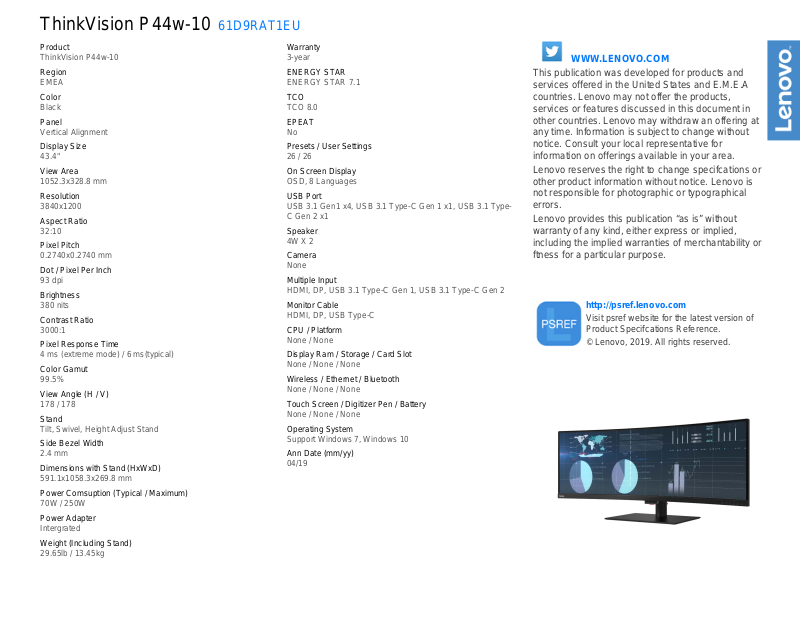

Lenovo 61D9RAT1EU, 61D9RAT1UK User Manual
ThinkVision P44w-10 61D9RAT1EU
Product
ThinkVision P44w-10
Region
EMEA
Color
Black
Panel
Vertical Alignment
Display Size
43.4"
View Area
1052.3x328.8 mm
Resolution
3840x1200
Aspect Ratio
32:10
Pixel Pitch
0.2740x0.2740 mm
Dot / Pixel Per Inch
93 dpi
Brightness
380 nits
Contrast Ratio
3000:1
Pixel Response Time
4 ms (extreme mode) / 6 ms(typical)
Color Gamut
99.5%
View Angle (H / V)
178 / 178
Stand
Tilt, Swivel, Height Adjust Stand
Side Bezel Width
2.4 mm
Dimensions with Stand (HxWxD)
591.1x1058.3x269.8 mm
Power Comsuption (Typical / Maximum)
70W / 250W
Power Adapter
Intergrated
Weight (Including Stand)
29.65lb / 13.45kg
Warranty
3-year
ENERGY STAR
ENERGY STAR 7.1
TCO
TCO 8.0
EPEAT
No
Presets / User Settings
26 / 26
On Screen Display
OSD, 8 Languages
USB Port
USB 3.1 Gen1 x4, USB 3.1 Type-C Gen 1 x1, USB 3.1 TypeC Gen 2 x1
Speaker
4W X 2
Camera
None
Multiple Input
HDMI, DP, USB 3.1 Type-C Gen 1, USB 3.1 Type-C Gen 2
Monitor Cable
HDMI, DP, USB Type-C
CPU / Platform
None / None
Display Ram / Storage / Card Slot
None / None / None
Wireless / Ethernet / Bluetooth
None / None / None
Touch Screen / Digitizer Pen / Battery
None / None / None
Operating System
Support Windows 7, Windows 10
Ann Date (mm/yy)
04/19
WWW.LENOVO.COM
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.
Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.
http://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
P44w Monitor
Oering a stunning visual experience, the ThinkVision P44w-10 allows you to be more
productive every day. The 43.4-inch large screen real estate and the wide viewing angle
make content creation and consumption exceptional. The versatile connectivity ports
expand your device capabilities by enabling easy connection to other peripherals.
Packed with advanced features, this monitor is your perfect canvas to amplify productivity.
Reimagine Creativity.
Redefine Productivity.
Curvature
1800R
Connectivity
2 x USB 3.1 Type-C
Refresh Rate
144Hz
Resolution
3840 x 1200 pixels
HDR
VESA Certified
DisplayHDR™ 400
The Canvas You Deserve
Additional Ports
HDMI 2.0
DP 1.4
Audio Out
Certification
TÜV Eye Comfort
Brightness
450 nits (peak)
380 nits (typical)
USB Ports
1 x USB 3.1 Type-C Gen2
1 x USB 3.1 Type-C Gen1
4 x USB 3.1
Panel Size
43.4 inches
Functionality
Lift, Tilt, Swivel
Aspect Ratio
32:10
Exceptional
Visual Experience
Superior
Connectivity
Enhanced User
Comfort
The ThinkVision P44w-10 oers a curved display, designed in a way that allows you
to enjoy the screen space of approximately two 24-inch 16:10 monitors on a single
43.4-inch 32:10 monitor. The picture-by-picture (PBP) and picture-in-picture (PIP)
functionality with KVM switch helps you manage up to two video inputs for seamless
multitasking and viewing content from up to two devices at ease. Moreover, the lift,
tilt, and swivel functionality allows you to position the monitor in a way that suits
your working style.
One is Better than Two
With two innovative USB 3.1 Type-C ports, you can connect up to two devices, transfer
data, video/audio, and manage up to 90W power for devices such as smartphones,
laptops, workstations, tablets, or desktops simultaneously. The one-push port-hub houses
two USB 3.1 ports and an audio jack to enable easy plug and play connectivity needs for
home, oce and entertainment alike. With the Smart Power function that intelligently
detects power consumption and eciently manages power supply, users can charge two
compatible devices simultaneously. Advanced ports such as DisplayPort 1.4 and HDMI 2.0
oer more connectivity options.
This anti-glare curved monitor with TÜV
Eye Comfort certification reduces eye-strain
and makes it easy for you to power through extended working hours. Moreover,
the 3840 x 1200 pixels resolution combined with VESA Certified Display HDR™ 400
picture clarity oers crisp visuals. The 144Hz refresh rate enables you to enjoy content
consumption without any lags*. With the multiple color spaces, pre-calibrated color
accuracy, and the ThinkColor software, content creation tasks are a breeze. The optional
Harman Kardon certified speaker along with the immersive display oers an integrated
audiovisual experience.
Experience Superior Connectivity
Display With a Perspective
Software
ThinkColor
+
32:10
VESA Certified DisplayHDR™ 400
USB Ports
Picture-by-picture (PBP) functionality
ThinkVision P44w-10
Specifications
DISPLAY
Panel Size
43.4 inches
Screen Dimensions (H x V)
1052.3 x 328.8mm
41.4 x 12.9 inches
Panel Type
VA NearEdgeless,
anti-glare
Curvature
1800R
Backlight
WLED
Aspect Ratio
32:10
Resolution
3840 x 1200
HDR
VESA Certified DisplayHDR™ 400
Pixel Pitch (H x V)
0.2740 x 0.2740mm
Viewing Angle (H x V)
178°/178°
Response Time (gray to gray)
4/6ms (extreme/typical)
Refresh Rate
Max. 144Hz
Contrast Ratio (typical)
3000:1
Dynamic Contrast Ratio (typical)
3M:1
Color Support (typical)
1.07B
Color Gamut
sRGB: 99.5%
BT.709: 99.5%
DCI-P3: 90%
Brightness
380 nits (typical)
450 nits (peak)
CONNECTIVITY
Video Input Signals
2 x HDMI 2.0
1 x DP1.4
1 x USB Type-C Gen1 (DP1.2 Alt Mode)
1 x USB Type-C Gen2 (DP1.4 Alt Mode)
1 x USB Type-C Gen2)
USB Downstream
4 x USB 3.1 Gen1 (1 BC)
Power
Internal
Power Consumption
Typical/Max: 70W/250W
Switch-o Mode: <0.5W
Sleep/O Mode: <0.5W
DIMENSIONS
Size Packed (D x H x W)
1219 x 500 x 376mm
47.99 x 19.68 x 14.80 inches
Size Unpacked w/stand
(D x H x W) (Lowest Position)
269.8 x 461.1 x 1058.3mm
10.62 x 18.15 x 41.67 inches
Size Unpacked w/stand
(D x H x W) (Highest
Position)
269.8 x 591.1 x 1058.3mm
10.62 x 23.27 x 41.67 inches
Size Unpacked w/o stand
(D x H x W) (Head Only)
137.2 x 366.1 x 1058.3mm
5.40 x 14.21 x 41.67 inches
Weight Packed
18.59kg/40.98lbs.
Weight Unpacked
13.45kg/29.65lbs.
Weight (Monitor Head Only)
9.35kg/20.61lbs.
SPECIAL FEATURES
Anti-Glare
Yes
PIP/PBP
Yes
Software
Yes (ThinkColor)
Speaker
Supports optional Harman
Kardon certified speaker
MECHANICAL
Tilt Angle (front/back)
-5°/22°
Cable Management
Yes
Bezel Color
Raven Black
Bezel Width (side)
2.4mm
Bezel Width (top/bottom)
2.4/25.6mm
WHAT’S IN THE BOX
Monitor with stand
1 x Power cable
1 x HDMI cable
1 x DP cable
1 x USB Type-C Gen2 cable
1 x USB Type-C to Type-A cable
Quick setup guide
CERTIFICATIONS
ENERGY STAR® Rating
7.1
CCC
Yes
RoHS
Yes
ULE
Gold
TCO
8.0
Windows Certification
Windows 7, Windows 10
China Energy Eciency
Standard
Tier 2
Ambient Operating
Temperature
0°C to 45°C
TÜV Eye Comfort
Yes
Video Cable Length
1.5m for USB Type-C Gen2
1.8m for others
Audio Out
Yes (3.5mm)
USB Hub
Yes
USB Upstream
2 x USB 3.1 (1 x USB Type-C Gen1,
*with FreeSync sup port graphic cards
© 2019 Le novo. All rights re serve d. Depending on many f actor s such as th e processing capability of peripheral dev ices, f ile att ributes, and other factors
related to system configuration and operating environm ents , the act ual transfer rate using th e vario us USB co nnec tors on this device will vary and is typically
slower th an the data rates as d efined by the respective USB specific ations: - 5 Gbit /s for USB 3 .1 Gen1 ; 10 Gbit/s for USB 3.1 Ge n2 & 20 Gb it/s for US B 3.2.
These p roduc ts are available w hile supplies l ast. Pr ices shown are subject to change without notice. For any questions concerning price, please contact you r
Lenovo Account Exe cutive. Lenovo is not respon sible fo r photog raphic or typ ograp hic errors. War ranty : For a copy of applicable warranties, wr ite to: Warranty
Information , 500 Park Offices D rive, RTP, NC 27709, At tn: Dept. ZPYA/B 600 . Lenovo ma kes no rep resent ation or warranty rega rding third-p arty produc ts or
services. Trademarks: Lenovo, the Lenovo logo, Rescue and Recovery, ThinkPad, ThinkCentre, ThinkStation, ThinkVantage, and ThinkVision are trademarks or
registe red trademarks of Len ovo. Micro soft, Windows , and Vi sta are re gistere d trademark s of Microsoft Co rporation. Intel, th e Intel logo, Intel Insid e, Intel Core,
and Core Inside are trad emarks of Intel C orporation in the U.S. and /or other co untrie s. Oth er comp any, produ ct, and service names may be tradema rks
or ser vice marks of others.
Swivel Angle (left/right)
±30°
Lift (Max. range)
Yes (130mm)
VESA Mount Capability
Yes (100 x 100mm)
Kensington™ Lock Slot
Yes
www.lenovo.com
