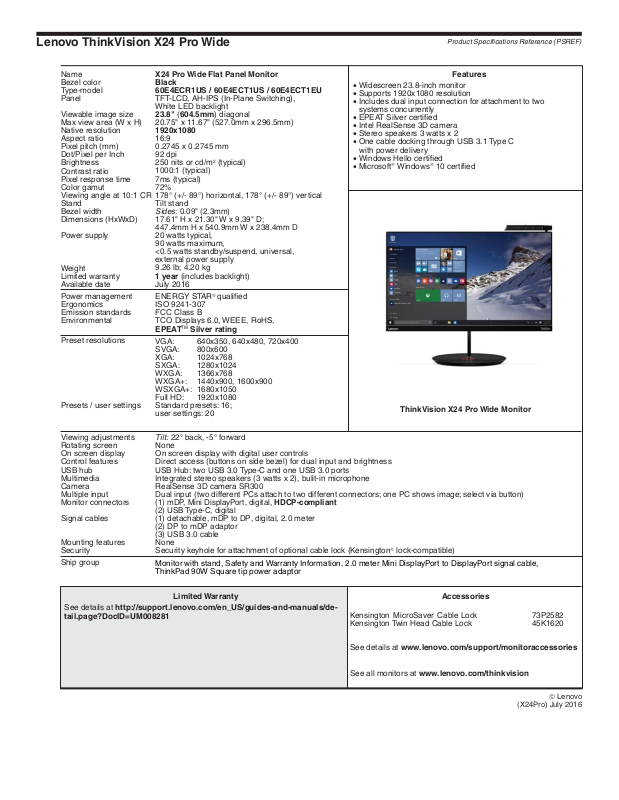

Lenovo ThinkVision X24 Pro Wide
Product Specifi cations Reference (PSREF)
Name
Bezel color
Type-model
Panel
Viewable image size
Max view area (W x H)
Native resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty
Available date
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
X24 Pro Wide Flat Panel Monitor
Black
60E4ECR1US / 60E4ECT1US / 60E4ECT1EU
TFT-LCD, AH-IPS (In-Plane Switching),
White LED backlight
23.8" (604.5mm) diagonal
20.75" x 11.67" (527.0mm x 296.5mm)
1920x1080
16:9
0.2745 x 0.2745 mm
92 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
7ms (typical)
72%
178° (+/- 89°) horizontal, 178° (+/- 89°) vertical
Tilt stand
Sides: 0.09" (2.3mm)
17.61" H x 21.30" W x 9.39" D;
447.4mm H x 540.9mm W x 238.4mm D
20 watts typical,
90 watts maximum,
<0.5 watts standby/suspend, universal,
external power supply
9.26 lb; 4.20 kg
1 year (includes backlight)
July 2016
ENERGY STAR® qualifi ed
ISO 9241-307
FCC Class B
TCO Displays 6.0, WEEE, RoHS,
TM
EPEAT
Silver rating
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768
SXGA: 1280x1024
WXGA: 1366x768
WXGA+: 1440x900, 1600x900
WSXGA+: 1680x1050
Full HD: 1920x1080
Standard presets: 16;
user settings: 20
Features
• Widescreen 23.8-inch monitor
• Supports 1920x1080 resolution
• Includes dual input connection for attachment to two
systems concurrently
• EPEAT Silver certifi ed
• Intel RealSense 3D camera
• Stereo speakers 3 watts x 2
• One cable docking through USB 3.1 Type C
with power delivery
• Windows Hello certifi ed
• Microsoft® Windows® 10 certifi ed
ThinkVision X24 Pro Wide Monitor
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Multimedia
Camera
Multiple input
Monitor connectors
Signal cables
Tilt: 22° back, -5° forward
None
On screen display with digital user controls
Direct access (buttons on side bezel) for dual input and brightness
USB Hub: two USB 3.0 Type-C and one USB 3.0 ports
Integrated stereo speakers (3 watts x 2), bulit-in microphone
RealSense 3D camera SR300
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) mDP, Mini DisplayPort, digital, HDCP-compliant
(2)
USB Type-C, digital
(1) detachable,
mDP to DP
, digital, 2.0 meter
(2) DP to mDP adaptor
Mounting features
Security
Ship group
(3) USB 3.0 cable
None
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor with stand, Safety and Warranty Information, 2.0 meter Mini DisplayPort to DisplayPort signal cable,
ThinkPad 90W Square tip power adaptor
Limited Warranty
See details at http://support.lenovo.com/en_US/guides-and-manuals/detail.page?DocID=UM008281
Accessories
Kensington MicroSaver Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
© Lenovo
(X24Pro) July 2016
Model 60E4ECT1EU
Product ThinkVision X24 Pro
Region EMEA
Color Black
Panel AH-IPS
Display Size 23.8"
View Area 527.0x296.5 mm
Resolution 1920x1080
Aspect Ratio 16:9
Pixel Pitch 0.2745x0.2745 mm
Dot / Pixel Per Inch 92 dpi
Brightness 250 nits
Contrast Ratio 1000:1
Pixel Response Time 7 ms
Color Gamut 72%
View Angle (H / V) 178 / 178
Stand Tilt Stand
Side Bezel Width 2.3 mm
Dimensions with Stand (HxWxD) 447.4x540.9x238.4 mm
Power Comsuption (Typical / Maximum) 20W / 90W
Power Adapter External
Weight (Including Stand) 9.26lb / 4.20kg
Warranty 1-year
ENERGY STAR ENERGY STAR 7.0
TCO TCO 6.0
EPEAT Silver
Presets / User Settings 16 / 20
On Screen Display OSD, 8 Languages
USB Port USB 3.0x1 + USB 3.0 Type-Cx2
Speaker Stereo 3Wx2
Camera 3D Camera, SR300
Multiple Input USB Type-C, mDP
Monitor Cable mDP to DP, DP to mDP Adaptor
CPU / Platform None / None
Display Ram / Storage / Card Slot None / None / None
Wireless / Ethernet / Bluetooth None / None / None
Touch Screen / Digitizer Pen / Battery None / None / None
Operating System Support Windows 10
Ann Date (mm/yy) 08/16
