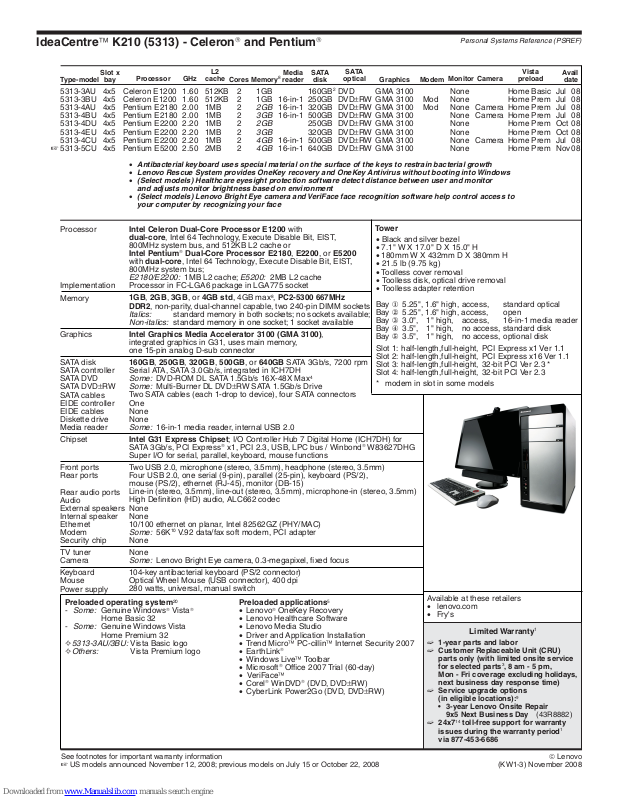

Lenovo 30191DU, 40411DU, 5316XF8, IdeaCentre K210, 5313 Specifications

IdeaCentre™ K210 (5313) - Celeron® and Pentium

®

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

Media

8

reader

SATA

disk

SATA

optical

Graphics

Modem

Monitor

Camera

Vista

preload

5313-3AU 4x5 Celeron E1200 1.60 512KB 2 1GB 160GB2 DVD GMA 3100 None Home Basic Jul 08 5313-3BU 4x5 Celeron E1200 1.60 512KB 2 1GB 16-in-1 250GB DVD±RW GMA 3100 Mod None Home Prem Jul 08 5313-4AU 4x5 Pentium E2180 2.00 1MB 2 2GB 16-in-1 320GB DVD±RW GMA 3100 Mod None Camera Home Prem Jul 08 5313-4BU 4x5 Pentium E2180 2.00 1MB 2 3GB 16-in-1 500GB DVD±RW GMA 3100 None Camera Home Prem Jul 08 5313-4DU 4x5 Pentium E2200 2.20 1MB 2 2GB 250GB DVD±RW GMA 3100 None Home Prem Oct 08 5313-4EU 4x5 Pentium E2200 2.20 1MB 2 3GB 320GB DVD±RW GMA 3100 None Home Prem Oct 08 5313-4CU 4x5 Pentium E2200 2.20 1MB 2 4GB 16-in-1 500GB DVD±RW GMA 3100 None Camera Home Prem Jul 08

☞

5313-5CU 4x5 Pentium E5200 2.50 2MB 2 4GB 16-in-1 640GB DVD±RW GMA 3100 None Home Prem Nov 08

• Antibacterial keyboard uses special material on the surface of the keys to restrain bacterial growth

• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

• (Select models) Healthcare eyesight protection software detect distance between user and monitor

and adjusts monitor brightness based on environment

• (Select models) Lenovo Bright Eye camera and VeriFace face recognition software help control access to your computer by recognizing your face

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables EIDE controller EIDE cables Diskette drive Media reader

Chipset

Intel Celeron Dual-Core Processor E1200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 512KB L2 cache or Intel Pentium

®

Dual-Core Processor E2180, E2200, or E5200

with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus; E2180/E2200: 1MB L2 cache; E5200: 2MB L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB, 2GB, 3GB, or 4GB std, 4GB max8, DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets

PC2-5300 667MHz

Italics: standard memory in both sockets; no sockets available; Non-italics: standard memory in one socket; 1 socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory, one 15-pin analog D-sub connector

160GB, 250GB, 320GB, 500GB, or 640GB SATA 3Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH7DH Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max

4

Some: Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors One None None Some: 16-in-1 media reader, internal USB 2.0

Intel G31 Express Chipset; I/O Controller Hub 7 Digital Home (ICH7DH) for SATA 3Gb/s, PCI Express® x1, PCI 2.3, USB, LPC bus / Winbond® W83627DHG

Tower

• Black and silver bezel

• 7.1" W X 17.0" D X 15.0" H

• 180mm W X 432mm D X 380mm H

• 21.5 lb (9.75 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x1 Ver 1.1 Slot 2: half-length, full-height, PCI Express x16 Ver 1.1 Slot 3: half-length, full-height, 32-bit PCI Ver 2.3 * Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

* modem in slot in some models

Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Rear audio ports Audio External speakers Internal speaker Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

Preloaded operating system

- Some: Genuine Windows® Vista Home Basic 32

- Some: Genuine Windows Vista Home Premium 32

✧ 5313-3AU/3BU: Vista Basic logo ✧ Others: Vista Premium logo

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, one serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, ALC662 codec None None 10/100 ethernet on planar, Intel 82562GZ (PHY/MAC) Some: 56K

10

V.92 data/fax soft modem, PCI adapter

None

None Some: Lenovo Bright Eye camera, 0.3-megapixel, ﬁ xed focus

104-key antibacterial keyboard (PS/2 connector) Optical Wheel Mouse (USB connector), 400 dpi 280 watts, universal, manual switch

20

®

Preloaded applications5

• Lenovo® OneKey Recovery

• Lenovo Healthcare Software

• Lenovo Media Studio

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet Security 2007

• EarthLink®

• Windows Live™ Toolbar

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

• VeriFace™

• Corel® WinDVD® (DVD, DVD±RW)

• CyberLink Power2Go (DVD, DVD±RW)

Available at these retailers

• lenovo.com

• Fry's

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

Avail

date

1

See footnotes for important warranty information ☞ US models announced November 12, 2008; previous models on July 15 or October 22, 2008

(KW1-3) November 2008

IdeaCentre™ K210 (5313)

Personal Systems Reference (PSREF)

Type-model

☞

5313-1FU 4x5 Core 2 Duo E7200 2.53 3MB 2 4GB 16-in-1 640GB2 DVD ±RW GMA 3100 None None Home Prem Oct 08

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

Media

reader

SATA

disk

SATA

optical

Graphics

Modem

Monitor

Cam-

era

Vista

preload

5313-2BU 4x5 Core 2 Quad Q6600 2.40 8MB 4 4GB 16-in-1 500GB DVD±RW GMA 3100 None None Cam Home Prem Jul 08 5313-2CU 4x5 Core 2 Quad Q6600 2.40 8MB 4 4GB 16-in-1 500GB Blu-ray 9300 GE None None Home Prem Jul 08

☞

5313-2FU 4x5 Core 2 Quad Q6600 2.40 8MB 4 4GB 16-in-1 1TB Blu-ray 9300 GE None None Home Prem Oct 08

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA Blu-ray™

SATA cables EIDE controller EIDE cables Diskette drive Media reader

Chipset

• Antibacterial keyboard uses special material on the surface of the keys to restrain bacterial growth

• Lenovo

• (Select models) Healthcare eyesight protection software detect distance between user and monitor

and adjusts monitor brightness based on environment

• (Select models) Lenovo Bright Eye camera and VeriFace face recognition software help control access to your computer by recognizing your face

Intel

Intel 64 Technology, Execute Disable Bit, EIST, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q6600 with quad-core (dual-core on dual-die), Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, 1066MHz system bus, and 8MB L2 cache Processor in FC-LGA6 package in LGA775 socket

4GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets

Italics: standard memory in both sockets; no sockets available

Some: Intel Graphics Media Accelerator 3100 (GMA 3100),

integrated graphics in G31, uses main memory, one 15-pin analog D-sub connector Some: NVIDIA® GeForce® 9300 GE, PCI Express® x16, 256MB memory, DirectX® 10, TurboCache, PureVideo™ HD technology, S-video out, VGA connector, DVI-I connector, HDCP-compliant

500GB, 640GB, or 1TB, SATA 3.0Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH7DH

Some: Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Some: Blu-ray Disc reader (no Blu-ray media burning), BD-ROM,

supports HD-DVD playback, DVD and CD recordable Two SATA cables (each 1-drop to device), four SATA connectors One None None 16-in-1 media reader, internal USB 2.0

Intel G31 Express Chipset; I/O Controller Hub 7 Digital Home (ICH7DH) for SATA 3Gb/s, PCI Express® x1, PCI 2.3, USB, LPC bus / Winbond® W83627DHG

®

Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

®

Core 2 Duo™ Processor E7200 with dual-core,

Tower

• Black and silver bezel

• 7.1" W X 17.0" D X 15.0" H

• 180mm W X 432mm D X 380mm H

• 21.5 lb (9.75 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

PC2-5300 667MHz DDR2,

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x1 Ver 1.1 Slot 2: half-length, full-height, PCI Express x16 Ver 1.1** Slot 3: half-length, full-height, 32-bit PCI Ver 2.3 Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

** used in some models

Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Rear audio ports Audio External speakers Internal speaker Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

Preloaded operating system

- Genuine Windows® Vista Home Premium 32 ✧ Vista Premium logo

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, one serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (DB-15, DVI-I in some models) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, ALC662 codec None None 10/100 ethernet on planar, Intel 82562GZ (PHY/MAC) None None

None Some: Lenovo Bright Eye camera, 0.3-megapixel, ﬁ xed focus

104-key anti-bacterial keyboard (PS/2 connector) Optical Wheel Mouse (USB connector), 400 dpi 280 watts, universal, manual switch

20

®

Preloaded applications5

• Lenovo® OneKey Recovery

• Lenovo Healthcare Software

• Lenovo Media Studio

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet Security 2007

• EarthLink®

• Windows Live™ Toolbar

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

• VeriFace™

• Corel® WinDVD® (DVD±RW, Blu-ray)

• CyberLink Power2Go (DVD±RW, Blu-ray)

Available at these retailers

• lenovo.com

• Fry's

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

Avail

date

1

See footnotes for important warranty information ☞ US models announced October 22, 2008; previous models on July 15, 2008

(KW1-4) February 2009

IdeaCentre™ K220 (5358)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

Media

8

reader

SATA

disk

SATA

optical

Graphics

Monitor

Camera

802.11

wireless

Vista

preload

Vista

logo

Avail

date

5358-4AU 4x5 E2220 2.40 1MB 2 2GB 16-in-1 250GB2 Blu-ray GMA 4500 None None Prem 64 Basic Jan 09 5358-4BU 4x5 E2220 2.40 1MB 2 4GB 16-in-1 640GB Blu-ray GMA 4500 None None Prem 64 Basic Jan 09 5358-1FU 4x5 E5200 2.50 2MB 2 4GB 16-in-1 500GB DVD±RW GMA 4500 None None Prem 64 Basic Jan 09 5358-1BU 4x5 E5200 2.50 2MB 2 4GB 16-in-1 640GB DVD±RW 9300 GE None None 11b/g Prem 64 Prem Jan 09 5358-2CU 4x5 Q8200 2.33 4MB 4 4GB 16-in-1 640GB DVD±RW 9300 GE None None Prem 64 Prem Jan 09 5358-2DU 4x5 Q8200 2.33 4MB 4 4GB 16-in-1 1TB Blu-ray 9300 GE None None 11b/g Prem 64 Prem Jan 09

• Antibacterial keyboard uses special material on the surface of the keys to restrain bacterial growth

• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA Blu-ray™

SATA cables EIDE controller Diskette drive Media reader

Chipset

®

Intel

Pentium® Dual-Core Processor E2220 or E5200

with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus; E2220: 1MB L2 cache; E5200: 2MB L2 cache or Intel Core™ 2 Quad Processor Q8200 with quad-core (dual-core on dual-die), Intel 64 Technology, Execute Disable Bit, EIST, 1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 package in LGA775 socket

2GB or 4GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, two 240-pin DIMM sockets

Italics: standard memory in both sockets; no sockets available; Non-italics: standard memory in one socket; 1 socket available

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),

integrated graphics in G43, uses main memory, DirectX® 10, one 15-pin analog VGA DB-15 connector Some: NVIDIA® GeForce® 9300 GE, PCI Express® x16, 512MB memory, DirectX® 10, TurboCache, PureVideo™ HD technology, S-video out for TV-out, VGA DB-15 connector, DVI-I connector, HDCP-compliant

250GB, 500GB, 640GB or 1TB SATA 3Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH10

Some: Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Some: Blu-ray Disc reader (no Blu-ray media burning), BD-ROM,

DVD and CD recordable Two SATA cables (each 1-drop to device), four SATA connectors None None 16-in-1 media reader, internal USB 2.0

Intel G43 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 [ICH10] (SATA 3.0Gb/s, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus),

Tower

• Black bezel

• 7.1" W X 17.0" D X 15.0" H

• 180mm W X 432mm D X 380mm H

• 21.5 lb (9.75 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x16 Ver 2.0 ** Slot 2: half-length, full-height, PCI Express x1 Ver 2.0 * Slot 3: half-length, full-height, 32-bit PCI Ver 2.3 Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

* Wireless adapter in slot in some models ** used in some models

SMSC® SCH5147-NW Super I/O

Front ports Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, one serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),

1BU/2CU/2DU: monitor (VGA DB-15, DVI-I), S-Video out; Others: monitor (VGA DB-15)

Rear audio ports Audio External speakers Internal speaker Wireless Ethernet Modem Security chip

TV tuner Camera

Keyboard Mouse Power supply

Preloaded operating system

- Genuine Windows® Vista Home Premium 64

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, ALC662 codec None None Some: 11b/g wireless4, Broadcom BCM4312, PCIe x1 adapter 10/100 ethernet on planar, Realtek® RTL8102E None None

None None

104-key antibacterial keyboard (PS/2 connector) Optical Wheel Mouse (USB connector), 400 dpi 280 watts, universal, manual switch

20

®

Preloaded applications5

• Lenovo® OneKey Recovery

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet Security 2008

• Windows Live™ Toolbar

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD±RW, Blu-ray)

• CyberLink Power2Go (DVD±RW, Blu-ray)

Available at these retailers

• lenovo.com

• Fry's

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

1

See footnotes for important warranty information US models announced January 13, 2009

(KW2-2) March 2009

IdeaCentre™ K230

Part

Slot x

number

57093697 4x5 E2220 2.40 1MB 2 5GB (2, 2, 1) 16-in-1 500GB2 DVD ±RW GMA 3100 None None None Prem 64 Jan 09

☞

57093706 4x5 E5200 2.50 2MB 2 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 None None None Prem 64 Mar 09 57093729 4x5 E7300 2.66 3MB 2 8GB (2, 2, 2, 2) 16-in-1 1TB DVD±RW GMA 3100 None None None Prem 64 Jan 09

☞

57094418 4x5 Q8200 2.33 4MB 4 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 None None None Prem 64 Mar 09

☞

57093719 4x5 Q8200 2.33 4MB 4 8GB (2, 2, 2, 2) 16-in-1 1TB DVD±RW GMA 3100 None None None Prem 64 Mar 09

bay

Processor

GHz

L2

cache

Cores

Memory

DIMM

8

capacity

Media

reader

SATA

disk

SATA

optical

Graphics

Personal Systems Reference (PSREF)

Remote

TV

tuner

control

Cam-

era

Vista

preload

Avail

date

• Antibacterial keyboard uses special material on the surface of the keys to restrain bacterial growth

• Lenovo

®

Intel

Processor

Pentium® Processor E2220 or E5200

with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus; E2220: 1MB L2 cache; E5200: 2MB L2 cache or Intel Core 2 Duo™ Processor E7300 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core (dual-core on dual-die), Intel 64 Technology, Execute Disable Bit, EIST, 1333MHz system bus, and 4MB L2 cache

Implementation

Memory

Graphics

Processor in FC-LGA6 package in LGA775 socket

4GB, 6GB, or 8GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G33, uses main memory, one 15-pin analog VGA DB-15 connector

SATA disk SATA controller S ATA DV D ±RW SATA cables EIDE controller Diskette drive Media reader

Chipset

500GB , 640GB, or 1TB, SATA 3.0Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH9DH Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None 16-in-1 media reader, internal USB 2.0

Intel G33 Express Chipset (PCI Express® x16), I/O Controller Hub 9 Digital Home [ICH9DH] (SATA 3.0Gb/s support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Rear audio ports

Audio External speakers Internal speaker Ethernet Wireless Modem Security chip

TV tuner Remote control Camera

Keyboard Mouse Power supply

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, one serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm), SPDIF-out High Deﬁ nition (HD) audio, ADI1988 codec None None Gigabit ethernet on planar, Intel 82256DC None None None

None None None

104-key anti-bacterial keyboard (PS/2 connector) Optical Wheel Mouse (USB connector), 400 dpi 280 watts, universal, manual switch

Preloaded operating system

- Genuine Windows® Vista Home Premium 64 ✧ Vista Basic logo

®

Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

Tower

• Black bezel

• 7.1" W X 17.0" D X 15.0" H

• 180mm W X 432mm D X 380mm H

• 21.5 lb (9.75 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical

PC2-5300 667MHz DDR2,

Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x16 Ver 1.1 Slot 2: half-length, full-height, PCI Express x1 Ver 1.1 Slot 3: half-length, full-height, PCI Express x1 Ver 1.1 Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

Available at these retailers

• TigerDirect

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

20

®

Preloaded applications5

• Lenovo® OneKey Recovery

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet Security 2007

• Windows Live™ Toolbar

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD±RW)

• CyberLink Power2Go (DVD±RW)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

1

See footnotes for important warranty information

☞ US models announced March 17, 2009; previous models on February 24, 2009

(KW3-1) March 2009

IdeaCentre™ K230 (5359)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

DIMM

8

capacity

Media

reader

SATA

disk

SATA

optical

Graphics

TV

tuner

Remote

control

802.11

wireless

Vista

preload

5359-1BU 4x5 E2220 2.40 1MB 2 5GB (2, 2, 1) 16-in-1 500GB2 DVD ±RW GMA 3100 Prem 64 Jan 09 5359-2EU 4x5 E5200 2.50 2MB 2 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Jan 09 5359-2BU 4x5 E5200 2.50 2MB 2 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Jan 09 5359-3EU 4x5 E7300 2.66 3MB 2 6GB (2, 2, 2) 16-in-1 1TB DVD±RW GMA 3100 11b/g Prem 64 Jan 09 5359-3AU 4x5 E7400 2.80 3MB 2 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Jan 09 5359-4CU 4x5 Q8200 2.33 4MB 4 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Jan 09 5359-4DU 4x5 Q8200 2.33 4MB 4 8GB (2, 2, 2, 2) 16-in-1 1TB DVD±RW 9300 GE 11b/g Prem 64 Jan 09 5359-4GU 4x5 Q8200 2.33 4MB 4 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Feb 09

☞

5359-5AU 4x5 Q9400 2.66 6MB 4 8GB (2, 2, 2, 2) 16-in-1 1TB Blu-ray 9300 GE TV Remote 11b/g Prem 64 Jan 09

• Antibacterial keyboard uses special material on the surface of the keys to restrain bacterial growth

• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA Blu-ray™

SATA cables EIDE controller Diskette drive Media reader

Chipset

®

Intel

Pentium® Processor E2220 or E5200

with dual-core, 800MHz system bus; E2220: 1MB L2 cache; E5200: 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 or E7400 with dual-core 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8200 or Q9400 with quad-core (dual-core on dual-die), 1333MHz system bus; Q8200: 4MB L2 cache; Q9400: 6MB L2 cache Processor in FC-LGA6 package in LGA775 socket

4GB, 5GB, 6GB, or 8GB std, 8GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, four 240-pin DIMM sockets

Some: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G33, uses main memory, one 15-pin analog VGA DB-15 connector Some: NVIDIA® GeForce® 9300 GE, PCI Express® x16, 512MB memory, DirectX® 10, TurboCache, PureVideo™ HD technology, S-video out for TV-out, VGA DB-15 connector, DVI-I connector, HDCP-compliant

500GB, 640GB, or 1TB SATA 3Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH9DH

Some: Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Some: Blu-ray Disc reader (no Blu-ray media burning), BD-ROM,

DVD and CD recordable Two SATA cables (each 1-drop to device), four SATA connectors None None 16-in-1 media reader, internal USB 2.0

Intel G33 Express Chipset (PCI Express® x16), I/O Controller Hub 9 Digital Home [ICH9DH] (SATA 3.0Gb/s, PCI Express x1, ethernet MAC, PCI 2.3, USB,

Tower

• Black color bezel

• 7.1" W X 17.0" D X 15.0" H

• 180mm W X 432mm D X 380mm H

• 21.5 lb (9.75 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x16 Ver 1.1 ** Slot 2: half-length, full-height, PCI Express x1 Ver 1.1 * Slot 3: half-length, full-height, PCI Express x1 Ver 1.1 * Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

* Wireless adapter or TV tuner in slot in some models ** used in some models

LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, one serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),

4DU/5AU: monitor (VGA DB-15, DVI-I), S-Video out; Others: monitor (VGA DB-15)

Rear audio ports

Audio External speakers Internal speaker Ethernet Wireless Modem Security chip

TV tuner

Remote control Camera

Keyboard Mouse Power supply

Preloaded operating system

- Genuine Windows® Vista Home Premium 64

✧ 5359-4DU/5AU: Vista Premium logo ✧ Others: Vista Basic logo

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm), SPDIF-out High Deﬁ nition (HD) audio, ADI1988 codec None None Gigabit ethernet on planar, Intel 82256GC Some: 11b/g wireless4, Broadcom® BCM4312, PCIe x1 adapter None None

Some: Hybrid tuner, support analog (NTSC) and digital ( ATSC) signal , Hauppauge WinTV-HVR-1250,PCIe x 1 Some: Philips® Vista MCE remote control (40-button), IR receiver via USB None

104-key antibacterial keyboard (PS/2 connector) Optical Wheel Mouse (USB connector), 400 dpi 280 watts, universal, manual switch

20

®

Preloaded applications5

• Lenovo® OneKey Recovery

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet Security 2008

• Windows Live™ Toolbar

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD±RW, Blu-ray)

• CyberLink Power2Go (DVD±RW, Blu-ray)

Available at these retailers

• lenovo.com

• Fry's

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

Avail

date

1

See footnotes for important warranty information

☞ US model announced February 24, 2009; previous models on January 13, 2009

(KW3-2) March 2009

IdeaCentre™ K230 (5359) - August 2009

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

DIMM

8

capacity

Media

reader

SATA

disk

SATA

optical

Graphics

TV

tuner

Remote

control

802.11

wireless

Vista

preload

Avail

date

5359-2HU 4x5 E5200 2.50 2MB 2 6GB (2, 2, 2) 16-in-1 500GB2 DVD ±RW GMA 3100 Prem 64 Aug 09 5359-3NU 4x5 E7500 2.93 3MB 2 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 11b/g Prem 64 Aug 09 5359-3JU 4x5 E7500 2.93 3MB 2 6GB (2, 2, 2) 16-in-1 500GB DVD±RW GMA 3100 Prem 64 Aug 09 5359-3LU 4x5 E7500 2.93 3MB 2 8GB (2, 2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Aug 09 5359-4PU 4x5 Q8200 2.33 4MB 4 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 TV Remote 11b/g Prem 64 Aug 09 5359-4GU 4x5 Q8200 2.33 4MB 4 6GB (2, 2, 2) 16-in-1 640GB DVD±RW GMA 3100 Prem 64 Aug 09 5359-4QU 4x5 Q8200 2.33 4MB 4 8GB (2, 2, 2, 2) 16-in-1 1TB DVD±RW 9300 GE 11b/g Prem 64 Aug 09

• Antibacterial keyboard uses special material on the surface of the keys to restrain bacterial growth

• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without booting into Windows

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA cables EIDE controller Diskette drive Media reader

Chipset

®

Intel

Pentium® Processor E5200 with dual-core,

800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7500 with dual-core 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core (dual-core on dual-die), 1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 package in LGA775 socket

6GB or 8GB std, 8GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, four 240-pin DIMM sockets

Some: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G33, uses main memory, one 15-pin analog VGA DB-15 connector Some: NVIDIA® GeForce® 9300 GE, PCI Express® x16, 512MB memory, DirectX® 10, TurboCache, PureVideo™ HD technology, S-video out for TV-out, VGA DB-15 connector, DVI-I connector, HDCP-compliant

500GB, 640GB, or 1TB SATA 3Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH9DH Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None 16-in-1 media reader, internal USB 2.0

Intel G33 Express Chipset (PCI Express® x16), I/O Controller Hub 9 Digital Home [ICH9DH] (SATA 3.0Gb/s, PCI Express x1, ethernet MAC, PCI 2.3, USB,

Tower

• Black color bezel

• 7.1" W X 17.0" D X 15.0" H

• 180mm W X 432mm D X 380mm H

• 21.5 lb (9.75 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x16 Ver 1.1 ** Slot 2: half-length, full-height, PCI Express x1 Ver 1.1 * Slot 3: half-length, full-height, PCI Express x1 Ver 1.1 * Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

* Wireless adapter or TV tuner in slot in some models ** used in some models

LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, one serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),

4QU: monitor (VGA DB-15, DVI-I), S-Video out; Others: monitor (VGA DB-15)

Rear audio ports

Audio External speakers Internal speaker Ethernet Wireless Modem Security chip

TV tuner

Remote control Camera

Keyboard Mouse Power supply

Preloaded operating system

- Genuine Windows® Vista Home Premium 64

✧ 5359-4QU: Vista Premium logo ✧ Others: Vista Basic logo

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm), SPDIF-out High Deﬁ nition (HD) audio, ADI1988 codec None None Gigabit ethernet on planar, Intel 82256GC Some: 11b/g wireless4, Broadcom® BCM4312, PCIe x1 adapter None None

Some: Hybrid tuner, support analog (NTSC) and digital ( ATSC) signal , Hauppauge WinTV-HVR-1250,PCIe x 1 Some: Philips® Vista MCE remote control (40-button), IR receiver via USB None

104-key antibacterial keyboard (PS/2 connector) Optical Wheel Mouse (USB connector), 400 dpi 280 watts, universal, manual switch

20

®

Preloaded applications5

• Lenovo® OneKey Recovery

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet Security 2008

• Windows Live™ Toolbar

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD±RW)

• CyberLink Power2Go (DVD±RW)

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

1

See footnotes for important warranty information US models announced August 19, 2009

(KW3-3) August 2009

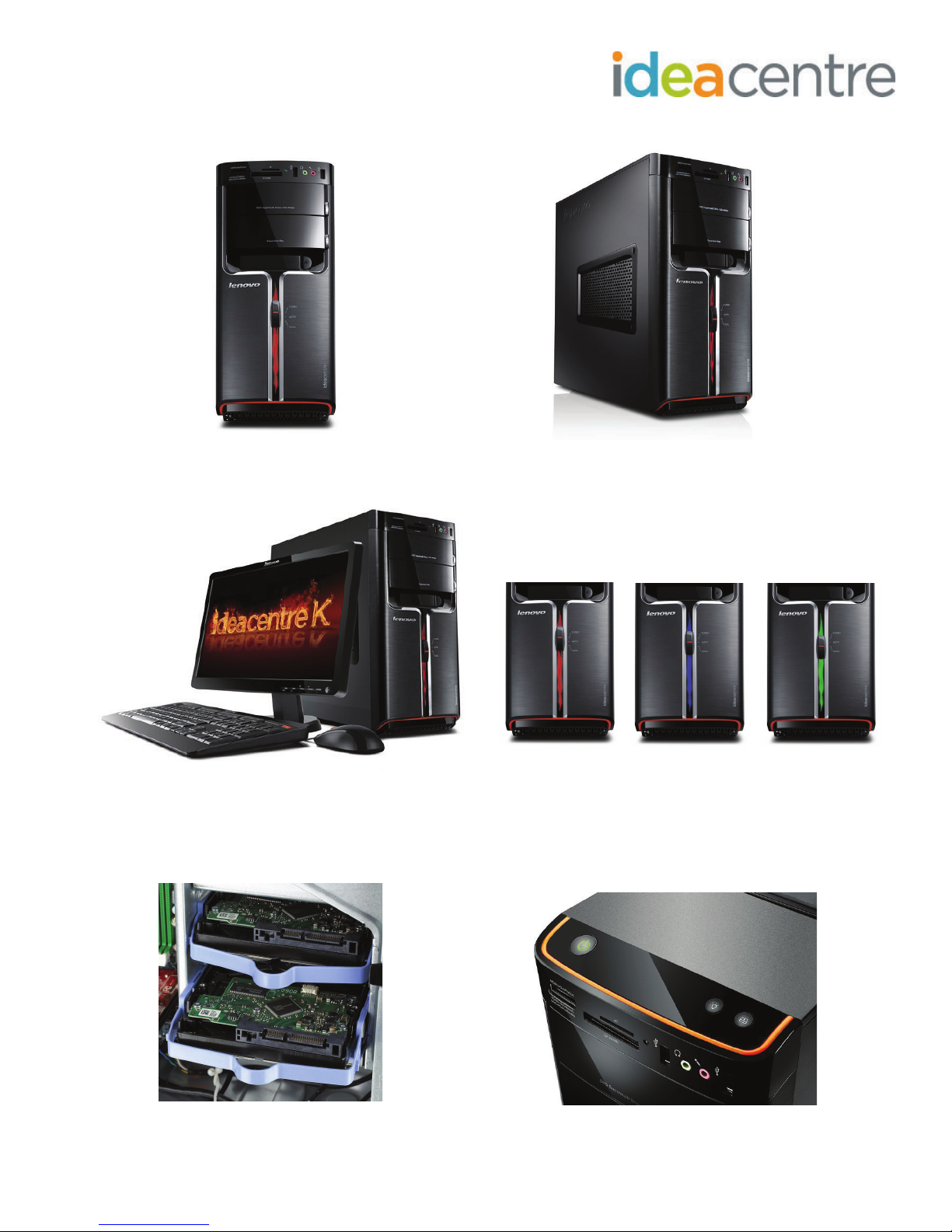

Lenovo IdeaCentre K300

(monitor not included)

Lenovo IdeaCentre K300

toolless disk drive removal

Lenovo IdeaCentre K300

Power control switch

Lenovo IdeaCentre K300

top button

IdeaCentre™ K300 (5316) - Windows 7

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

DIMM

capacity

Media reader

SATA

disk

SATA

optical

Graphics

TV

tuner

Remote

control

802.11

wireless

Win 7

preload

Avail

date

5316-1AU 4x5 Q8300 2.50 4MB 4 6GB (2, 2, 2) 16-in-1 640GB2 DVD ±RW GMA X4500 Prem 64 Oct 09 5316-1BU 4x5 Q8300 2.50 4MB 4 6GB (2, 2, 2) 16-in-1 640GB DVD±RW HD4350 TV Remote 11b/g11 Prem 64 Oct 09 5316-1GU 4x5 Q8300 2.50 4MB 4 6GB (2, 2, 2) 16-in-1 640GB Blu-ray HD4650 Prem 64 Oct 09 5316-1CU 4x5 Q8300 2.50 4MB 4 8GB (2, 2, 2, 2) 16-in-1 1TB DVD±RW HD4650 11b/g Prem 64 Oct 09 5316-2AU 4x5 E5300 2.60 2MB 2 3GB (1, 2) 16-in-1 320GB DVD±RW GMA X4500 Prem 64 Oct 09 5316-2CU 4x5 E7500 2.93 3MB 2 4GB (2, 2) 16-in-1 640GB DVD±RW GMA X4500 Prem 64 Oct 09 5316-1EU 4x5 Q8300 2.50 4MB 4 8GB (2, 2, 2, 2) 16-in-1 1TB DVD±RW HD4650 TV Remote Prem 64 Oct 09

• Power control switch on front to adjust power and energy for three modes (cool, auto, and turbo)

• Lenovo Rescue System provides OneKey recovery without booting into Windows

Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA Blu-ray™

SATA cables EIDE controller Diskette drive Media reader

Chipset

®

Intel

Pentium® Processor E5300 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB L2 cache or Intel Core 2 Duo™ Processor E7500 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8300 with quad-core (dual-core on dual-die), Intel 64 Technology, Execute Disable Bit, EIST, 1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 package in LGA775 socket

3GB, 4GB, 6GB, or 8GB std, 8GB max8, dual-channel capable, PC3-8500 1066MHz DDR3,

non-parity, four 240-pin DIMM sockets

Some: Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G43, uses main memory, DirectX® 10, one 15-pin analog VGA DB-15 connector Some: AT I™ Radeon™ HD 4350, PCI Express® x16, 512MB memory, DirectX® 10, ATI Avivo™ HD, VGA, DVI-I, HDCP-compliant Some: AT I™ Radeon™ HD 4650, PCI Express® x16, 1GB memory, DirectX® 10, ATI Avivo™ HD, VGA, HDMI, DisplayPort, HDCP-compliant

320GB, 640GB, or 1TB SATA 3Gb/s, 7200 rpm Serial ATA, SATA 3.0Gb/s, integrated in ICH10R, RAID 0 support

Some: Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Some: Blu-ray Disc reader (no Blu-ray media burning), BD-ROM,

DVD and CD recordable Two SATA cables (each 1-drop to device), ﬁ ve SATA connectors None None 16-in-1 media reader, internal USB 2.0

Intel G43 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 RAID [ICH10R] (SATA 3.0Gb/s with RAID 0 support, PCI Express x1, ethernet MAC,

Tower

• Black bezel

• 7.09" W X 17.32" D X 15.35" H

• 180mm W X 440mm D X 390mm H

• 24.6 lb (11.2 kg)

• Toolless cover removal

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, standard optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.0", 1" high, access, 16-in-1 media reader Bay ④ 3.5", 1" high, no access, standard disk Bay ⑤ 3.5", 1" high, no access, optional disk

Slot 1: half-length, full-height, PCI Express x16 Ver 2.0 ** Slot 2: half-length, full-height, PCI Express x1 Ver 2.0 * Slot 3: half-length, full-height, PCI Express x1 Ver 2.0 Slot 4: half-length, full-height, 32-bit PCI Ver 2.3

* Wireless adapter in slot in some models ** Graphics adapter in slot in some models

PCI 2.3, USB, LPC bus), SMSC® SCH5147-NW Super I/O

Front ports Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, one serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),

HD 4650 models: monitor (VGA DB-15, HDMI, DisplayPort) HD 4350 models: monitor (VGA DB-15, DVI-I) Others: monitor (VGA DB-15)

Rear audio ports Audio External speakers Internal speaker Wireless Ethernet Modem Security chip

TV tuner Remote control Camera

Keyboard Mouse Power supply

Preloaded operating system

- Genuine Windows® 7 Home Premium 64

Preloaded applications5 (only some listed)

• Lenovo® OneKey Recovery

• Driver and Application Installation

See footnotes for important warranty information US models announced October 22, 2009

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) audio, ALC662 codec None None Some: 11b/g wireless4, Broadcom BCM4312, PCIe x1 adapter 10/100 ethernet on planar, Realtek® RTL8102E None None

Some: Hybrid tuner, support analog (NTSC) and digital ( ATSC) signal ,,PCIe x 1 Some: Philips® Win7 MCE remote control (40-button), IR receiver via USB

None

Full-size keyboard (PS/2 connector), Fn keys, black Optical Wheel Mouse (USB connector), 1000 dpi, black 280 watts, universal, manual switch

20

• McAfee VirusScan

®

Plus

(30 days of virus deﬁ nitions)

• Lenovo Power Dial

• Lenovo Healthcare Software

• Corel® WinDVD® (Blu-ray)

• CyberLink Power2Go (DVD±RW, Blu-ray)

Limited Warranty1

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

14

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

3

, 8 am - 5 pm,

9

1

(TNA1-1) October 2009

IdeaCentre™ Accessories

Partial list of accessories supported on: IdeaCentre K210, K220, and K230

Storage and removable storage

USB 2.0 MyKey E10 Flash Drive 1GB 45J7701 ann 04/29/08 USB 2.0 MyKey E10 Flash Drive 2GB 45J7702 ann 04/29/08 USB 2.0 MyKey E10 Flash Drive 4GB 45J7703 ann 04/29/08 USB 2.0 MiniKey M10D1 Flash 2GB (gray) 45J7752 ann 05/20/08 USB 2.0 MiniKey M10D2 Flash 2GB (black) 45J7754 ann 05/20/08 USB 2.0 MiniKey M10E1 Flash 2GB (teal) 45J7756 ann 05/20/08 USB 2.0 MiniKey M10E2 Flash 2GB (pink) 45J7758 ann 05/20/08 USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08 USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08 USB 2.0 Essential Memory Key 32GB 45K1258 ann 10/28/08 USB 2.0 DataSlim E16 Portable HD 160GB 45J7700 ann 04/29/08 USB 2.0 Portable Secure 160GB Hard Disk 43R2018 ann 11/18/08 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ann 11/18/08 USB 2.0 Portable 500GB Hard Disk 45K1690 ann 05/26/09

Keyboard

Preferred Pro USB Keyboard 73P5220 ann 06/21/05 Enhanced Performance USB Keyboard 73P2620 ann 03/23/04 Ultraslim Wireless Keyboard and Mouse

52

Wireless via 2.4GHz technology using a micro-size USB receiver.

Mouse

Lenovo Laser Mouse (USB) 41U3074 ann 01/23/07 IdeaPad Mini Optical Mouse M10 (black) 47J7729 ann 06/17/08 IdeaPad Mini Optical Mouse M10A (black) 45J7730 ann 07/15/08 Lenovo Mini Optical Mouse M30 (black) 47J7735 ann 06/17/08 Lenovo Mini Optical Mouse M30 (white) 47J7736 ann 06/17/08 Lenovo Mini Optical Mouse M30 (red) 47J7737 ann 06/17/08 Lenovo Mini Optical Mouse M30 (blue) 47J7738 ann 06/17/08 Mini Wireless Laser Mouse N10 (black) 45J7731 ann 06/17/08 Mini Wireless Laser Mouse N10 (red) 45J7732 ann 06/17/08

Monitors

Lenovo® D185 Wide 18.5" Monitor 6318HB1 ann 01/27/09 Lenovo L215 Wide 21.5" Monitor 6325HB1 ann 01/27/09 Lenovo L215p Wide 21.5" Monitor 6325HC1 ann 01/27/09 ThinkVision® L174 17" Monitor 9227AE1 ann 04/15/08 ThinkVision L1700p 17" Monitor 9417HE2 ann 09/17/08 ThinkVision L1711p 17" Monitor 5047HB2 ann 10/20/09 ThinkVision L1900p 19" Monitor 4431HE1 ann 11/11/08 ThinkVision L1940p Wide 19" Monitor 4424HB6 ann 09/17/08 ThinkVision L1951p Wide 19" Monitor 2448HB6 ann 10/20/09 ThinkVision L2240p Wide 22" Monitor 4422HB6 ann 09/17/08 ThinkVision L2250p Wide 22" Monitor 2572HB6 ann 10/20/09 ThinkVision L2251p Wide 22" Monitor 2572HD6 ann 10/20/09 ThinkVision L2251x Wide 22" Monitor 2578HB6 ann 10/20/09 ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08 ThinkVision L2440x Wide 24" Monitor 4421HB2 ann 09/17/08

Monitor Accessories

46

ThinkVision USB Soundbar 40Y7616 ann 08/23/05 ThinkVision Soundbar 45K1263 ann 09/16/08 Kensington

®

MicroSaver® Cable Lock 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 Lenovo Easy Reach Monitor Stand 55Y9258 ann 09/22/09 Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected ThinkVision monitors.

More information at www.lenovo.com/support/monitoraccessories

Consumer monitors

Lenovo L195 Wide 19" LCD Monitor 4418HC1 ann 09/02/08 Lenovo L222 Wide 22" LCD Monitor 4432HF1 ann 09/02/08

Other accessories at www.lenovo.com/accessories

Accessories Guide pdf at

www.lenovo.com/accessoriesguide

52

57Y4700 ann 09/15/09

Personal Systems Reference (PSREF)

(O-IC) July 2009

Availability: All offers subject to avail-

ability. Lenovo reserves the right to alter product offerings and speciﬁ cations at any time, without notice. Lenovo is not responsible for photographic or typographic errors.

Warranty: For a copy of applicable

product warranties, write to: Warranty Information, P.O. Box 12195, RTP, NC, 27709, Attn: Dept ZPYA/B676. Lenovo makes no representation or warranty regarding third party products or services.

1

Limited warranty: Support unrelated to a warranty issue may be subject to additional charges.

2

Hard disk drive: GB = billion by tes, TB = trillion bytes. Accessible capacity is less; up to 4GB is service par tition.

3

Customer Replacement Units (CRUs)

are designed to be replaced by customers during the applicable warranty period. Lenovo will send a technician onsite to perform a repair if remote telephone diagnosis does not isolate the problem, if customer replaceable parts are unable to resolve the problem, or at the request of the customer. For a list of customer replaceable parts, contact Lenovo. Support unrelated to a warranty issue may be subject to additional charges.

5

Included software may differ from its

retail version (if available), and may not include user manuals or all program functionality. License agreements may apply.

8

Memory: For PCs without a separate

video card, memory supports both system and video. Accessible system memory is less than the amount stated, depending on video mode.

9

Service upgrade options: Service

period begins with the equipment date of purchase. Service must be purchased during the original limited product war-

rantyperiod. Service levels are response

time objectives and are not guarantees.

1 0

Modem speeds: Public network

download speeds are limited to 53Kbps. Upload speeds are limited to 48Kbps for V.92 modems. Actual speeds depend on many factors and are often less than the maximum possible. V.92 functions and speeds require compatible phone line

and server equipment. Check with your

telephone and ISP service providers for availability.

14

Response times may vary. May exclude

some holidays. Telephone support may be subject to additional charges.

20

Operating System: Level of support varies by operating system. Operating systems not preloaded on the system may not provide full feature functionality. Refer to lenovo.com/pc/support and enter your machine type and model number for more information.

This publication was developed for prod-

ucts and services offered in the United States. Lenovo may not offer the products, services or features discussed in this document in other countries. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area.

Lenovo reserves the right to change spec-

iﬁ cations and other product information at any time without prior notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions; therefore this disclaimer may not apply to you.

Trademarks: Lenovo, the Lenovo logo,

New World. New Thinking., Access Connections, Rescue and Recovery, ThinkVantage, and ThinkVision are trademarks of Lenovo. Microsoft, Windows, and Vista are registered trademarks of Microsoft Corporation. Intel, the Intel logo, Intel Inside logo, Intel Core and Core Inside are trademarks of Intel Corporation in the US and other countries. AMD, the AMD logo, AMD Athlon, AMD Sempron, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. PCI Express is a trademark of PCI-SIG. Other company, product, or service names may be trademarks or service marks of others.

Visit www.lenovo.com/safecomputing

periodically for the latest information on safe and effective computing.

Visit www.lenovo.com/psref

for the latest version of Personal Systems Reference.

2009.

Lenovo 1009 Think Place Morrisville, NC 27560 U.S. A .

October 2009 icbook.pdf
