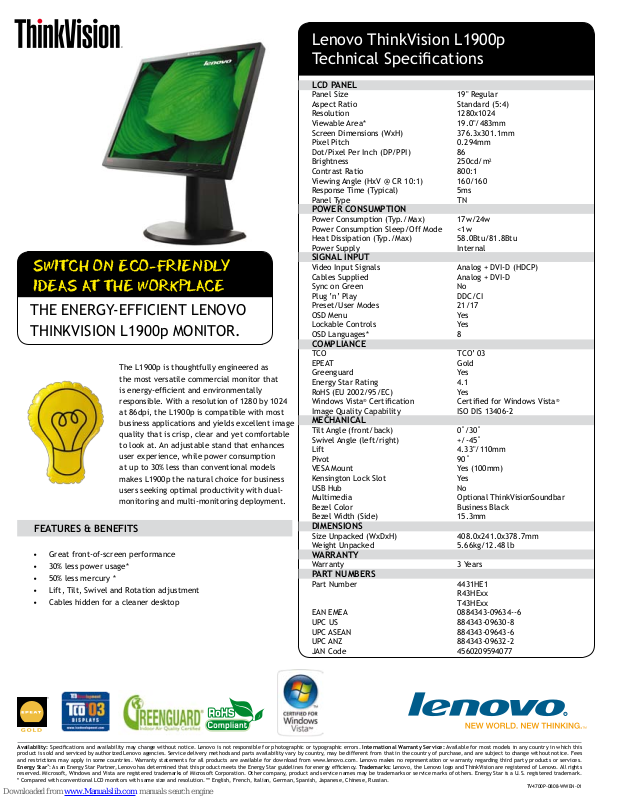

Lenovo 4431HE1, ThinkVision L1900p Technical Specifications

SWITCH ON ECO-FRIENDLY
IDEAS AT THE WORKPLACE

THE ENERGY-EFFICIENT LENOVO
THINKVISION L1900p MONITOR.

The L1900p is thoughtfully engineered as
the most versatile commercial monitor that
is energy-efcient and environmentally
responsible. With a resolution of 1280 by 1024
at 86dpi, the L1900p is compatible with most
business applications and yields excellent image
quality that is crisp, clear and yet comfortable
to look at. An adjustable stand that enhances
user experience, while power consumption
at up to 30% less than conventional models
makes L1900p the natural choice for business
users seeking optimal productivity with dual­monitoring and multi-monitoring deployment.

FEATURES & BENEFITS

• Great front-of-screen performance

• 30% less power usage*

• 50% less mercury *

• Lift, Tilt, Swivel and Rotation adjustment

• Cables hidden for a cleaner desktop

Lenovo ThinkVision L1900p

Technical Specications

LCD PANEL

Panel Size 19" Regular
Aspect Ratio Standard (5:4)
Resolution 1280x1024
Viewable Area* 19.0"/483mm
Screen Dimensions (WxH) 376.3x301.1mm
Pixel Pitch 0.294mm
Dot/Pixel Per Inch (DP/PPI) 86
Brightness 250cd/m
Contrast Ratio 800:1
Viewing Angle (HxV @ CR 10:1) 160/160
Response Time (Typical) 5ms
Panel Type TN

POWER CONSUMPTION

Power Consumption (Typ./Max) 17w/24w
Power Consumption Sleep/Off Mode <1w
Heat Dissipation (Typ./Max) 58.0Btu/81.8Btu
Power Supply Internal

SIGNAL INPUT

Video Input Signals Analog + DVI-D (HDCP)
Cables Supplied Analog + DVI-D
Sync on Green No
Plug ‘n’ Play DDC/CI
Preset/User Modes 21/17
OSD Menu Yes
Lockable Controls Yes
OSD Languages* 8

COMPLIANCE

TCO TCO’ 03
EPEAT Gold
Greenguard Yes
Energy Star Rating 4.1
RoHS (EU 2002/95/EC) Yes
Windows Vista
Image Quality Capability ISO DIS 13406-2

®

Certication Certied for Windows Vista

MECHANICAL

Tilt Angle (front/back) 0˚/30˚
Swivel Angle (left/right) +/-45˚
Lift 4.33"/110mm
Pivot 90˚
VESA Mount Yes (100mm)
Kensington Lock Slot Yes
USB Hub No
Multimedia Optional ThinkVisionSoundbar
Bezel Color Business Black
Bezel Width (Side) 15.3mm

DIMENSIONS

Size Unpacked (WxDxH) 408.0x241.0x378.7mm
Weight Unpacked 5.66kg/12.48 lb

WARRANTY

Warranty 3 Years

PART NUMBERS

Part Number 4431HE1
R43HExx
T43HExx
EAN EMEA 0884343-09634--6
UPC US 884343-09630-8
UPC ASEAN 884343-09643-6
UPC ANZ 884343-09632-2
JAN Code 4560209594077

2

®

Availability: Specications and availability may change without notice. Lenovo is not responsible for photographic or typographic errors. International Warranty Service: Available for most models in any country in which this
product is sold and serviced by authorized Lenovo agencies. Service delivery methods and parts availability vary by country, may be different from that in the country of purchase, and are subject to change without notice. Fees
and restrictions may apply in some countries. Warranty statements for all products are available for download from www.lenovo.com. Lenovo makes no representation or warranty regarding third party products or services.
Energy Star™: As an Energy Star Partner, Lenovo has determined that this product meets the Energy Star guidelines for energy efciency. Trademarks: Lenovo, the Lenovo logo and ThinkVision are registered of Lenovo. All rights
reserved. Microsoft, Windows and Vista are registered trademarks of Microsoft Corporation. Other company, product and service names may be trademarks or service marks of others. Energy Star is a U.S. registered trademark.
* Compared with conventional LCD monitors with same size and resolution. ** English, French, Italian, German, Spanish, Japanese, Chinese, Russian.

TV4700P-0808-WWEN-01
