Page 1

THINKCENTRE

Windows®. Life without Walls™.

Lenovo

recommends Windows 7.

M SERIES

ENHANCED

EXPERIENCE

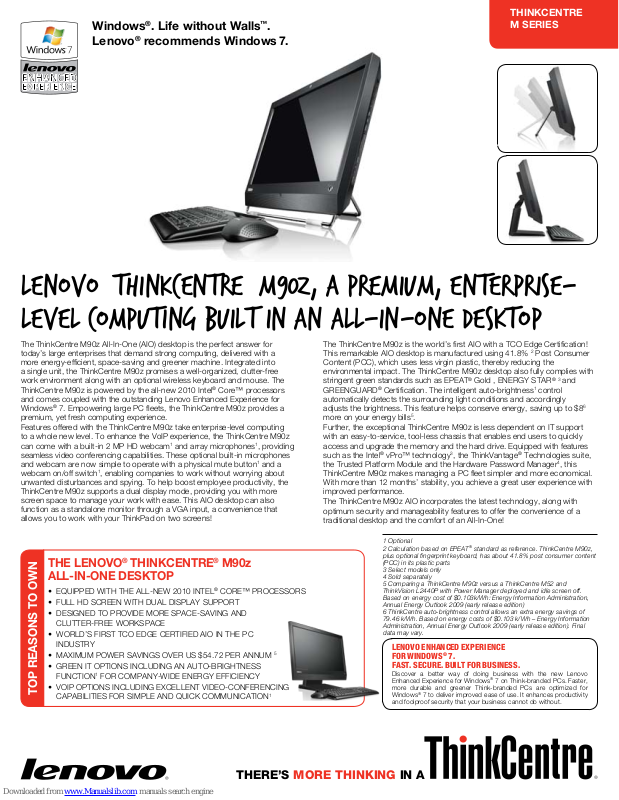

LEnovo® ThinkCentre® M90z, A PREMIUM, ENTERPRISELEVEL COMPUTING BUILT IN AN ALL-IN-ONE DESKTOP

The ThinkCentre M90z All-In-One (AIO) desktop is the perfect answer for today’s large enterprises that demand strong computing, delivered with a more energy-efﬁcient, space-saving and greener machine. Integrated into a single unit, the ThinkCentre M90z promises a well-organized, clutter-free work environment along with an optional wireless keyboard and mouse. The ThinkCentre M90z is powered by the all-new 2010 Intel® Core™ processors and comes coupled with the outstanding Lenovo Enhanced Experience for Windows® 7. Empowering large PC ﬂeets, the ThinkCentre M90z provides a premium, yet fresh computing experience.

Features offered with the ThinkCentre M90z take enterprise-level computing to a whole new level. To enhance the VoIP experience, the ThinkCentre M90z can come with a built-in 2 MP HD webcam seamless video conferencing capabilities. These optional built-in microphones and webcam are now simple to operate with a physical mute button1 and a webcam on/off switch1, enabling companies to work without worrying about unwanted disturbances and spying. To help boost employee productivity, the ThinkCentre M90z supports a dual display mode, providing you with more screen space to manage your work with ease. This AIO desktop can also function as a standalone monitor through a VGA input, a convenience that allows you to work with your ThinkPad on two screens!

and array microphones1, providing

THE LENOVO® THINKCENTRE® M90z ALL-IN-ONE DESKTOP

EQUIPPED WITH THE ALL-NEW 2010 INTEL• FULL HD SCREEN WITH DUAL DISPLAY SUPPORT• DESIGNED TO PROVIDE MORE SPACE-SAVING AND •

CLUTTER-FREE WORKSPACE WORLD’S FIRST TCO EDGE CERTIFIED AIO IN THE PC •

INDUSTRY MAXIMUM POWER SAVINGS OVER US $54.72 PER ANNUM • GREEN IT OPTIONS INCLUDING AN AUTO-BRIGHTNESS •

FUNCTION VOIP OPTIONS INCLUDING EXCELLENT VIDEO-CONFERENCING •

TOP REASONS TO OWN

CAPABILITIES FOR SIMPLE AND QUICK COMMUNICATION

FOR COMPANY-WIDE ENERGY EFFICIENCY

CORE™ PROCESSORS

The ThinkCentre M90z is the world’s ﬁrst AIO with a TCO Edge Certiﬁcation! This remarkable AIO desktop is manufactured using 41.8% Content (PCC), which uses less virgin plastic, thereby reducing the environmental impact. The ThinkCentre M90z desktop also fully complies with stringent green standards such as EPEAT® Gold , ENERGY STAR® 3 and GREENGUARD® Certiﬁcation. The intelligent auto-brightness1 control automatically detects the surrounding light conditions and accordingly adjusts the brightness. This feature helps conserve energy, saving up to $86 more on your energy bills5.

Further, the exceptional ThinkCentre M90z is less dependent on IT support with an easy-to-service, tool-less chassis that enables end users to quickly access and upgrade the memory and the hard drive. Equipped with features such as the Intel the Trusted Platform Module and the Hardware Password Manager4, this ThinkCentre M90z makes managing a PC ﬂeet simpler and more economical. With more than 12 months’ stability, you achieve a great user experience with improved performance.

The ThinkCentre M90z AIO incorporates the latest technology, along with optimum security and manageability features to offer the convenience of a traditional desktop and the comfort of an All-In-One!

vPro™ technology3, the ThinkVantage® Technologies suite,

1 Optional 2 Calculation based on EPEAT plus optional ﬁngerprint keyboard, has about 41.8% post consumer content (PCC) in its plastic parts 3 Select models only 4 Sold separately 5 Comparing a ThinkCentre M90z versus a ThinkCentre M52 and ThinkVision L2440P with Power Manager deployed and idle screen off. Based on energy cost of $0.103k/Wh: Energy Information Administration, Annual Energy Outlook 2009 (early release edition) 6 ThinkCentre auto-brightness control allows an extra energy savings of

79.46 k/Wh. Based on energy costs of $0.103 k/Wh – Energy Information Administration, Annual Energy Outlook 2009 (early release edition). Final data may vary.

Lenovo enhanced experience for WindoWs fast. secure. BuiLt for Business.

Discover a better way of doing business with the new Lenovo Enhanced Experience for Windows more durable and greener Think-branded PCs are optimized for

7 to deliver improved ease of use. It enhances productivity

Windows and foolproof security that your business cannot do without.

standard as reference. ThinkCentre M90z,

7 on Think-branded PCs. Faster,

Post Consumer

There’s more Thinking in a

Page 2

Windows®. Life without Walls™.

Lenovo

recommends Windows 7.

ENHANCED

EXPERIENCE

SUPERIOR END-USER EXPERIENCE

Full HD screen with dual display support• Space-saving and clutter-free design• Standalone display capable through VGA input• Simple Tap software for improved multi-touch capability• Height adjustable stand• Easy-to-carry handle• 2 MP HD webcam• Ease-of-use design – physical mute button• on/off switch

ENVIRONMENTALLY FRIENDLY FEATURES

First AIO PC with a TCO Edge Certiﬁcation• Signiﬁcant savings on power costs• Up to 41.8% post consumer content (PCC)• Reusable bag (TopSeller model)• Auto-brightness control•

EPEAT•

Gold4 and ENERGY STAR® 5.0

Lenovo exclusive GREENGUARD•

MANAGEABILITY AND SECURITY FEATURES

Intel•

vPro™ technology

ThinkVantage•

Technologies support Trusted Platform Module feature• Hardware Password Manager•

RELIABLE FEATURES

All new 2010 Intel• Quick servicing with an easy-access component layout•

1 Comparing a ThinkCentre M90z versus a ThinkCentre M52 and ThinkVision L2440P with Power Manager deployed and idle screen off. Based on energy cost of $0.103k/Wh: energy Information Administration, Annual Energy Outlook 2009 (early release edition)

2 Optional 3 Calculation based on EPEAT standard as reference. ThinkCentre M90z, plus optional

ﬁngerprint keyboard, has about 41.8% post consumer content (PCC) in its plastic parts 4 Select models only 5 Sold separately 6 ThinkCentre auto-brightness control allows an extra energy savings of 79.46 k/Wh.

Based on energy costs of $0.103 k/Wh – Energy Information Administration, Annual Energy Outlook 2009 (early release edition). Final data may vary.

and digital array microphones

– save over US $54.72 per year

– saving up to $8 more on your energy bills

capable

Core™ processors offering Turbo Boost Technology

Certiﬁcation

for microphone and webcam

THINKCENTRE M SERIES

SERVICE OFFERINGS

THINKPLUS® SUPPORT

Lenovo offers unequalled service excellence that lowers overall IT support costs and repair expenses.

Base Warranty Service: • Provides Lenovo standard award-winning service and support

ThinkPlus Warranty Extension and Upgrade:• Protects investment and increases productivity with the enhanced service-level upgrade and term extension

ThinkPlus Priority Support:• Provides technical support for the business – increases helpdesk productivity with 24 X 7 advanced-level technical support and service call-tracking tools

ThinkPlus Priority 4: • Offers enhanced on-site response within 4 hours for critical IT support needs

THINKPLUS® PROTECTION

Protects your data from the unexpected from the unexpected – saves money, reduces hassles and offers peace-of-mind.

Hard Disk Drive Retention (HDDR): • Allows you to retain your hard drive if it fails and thus protects data from falling into the wrong hands

THINKPLUS® ENTERPRISE SOLUTIONS

Offer peace-of-mind with Lenovo as a single-point-of-contact – manages infrastructure, consolidates contracts and streamlines the number of vendors.

Lenovo Imaging Services:• Provides security – the protection bundle includes Next Business Day (NBD) on-site service and ThinkPad Protection

Lenovo Asset Recovery Services: •

Recover value from old assets and help you dispose, data securely – turns old PC trash into cash

Program

No.

1 Warranty 3-year Onsite 4-year Onsite 55Y9580

2 Warranty 3-year Onsite 5-year Onsite 55Y9581

3 Warranty 3-year Onsite + 9x5x4 41C9192

4 Warranty 3-year Onsite + 24x7x4 41C9193

5 Warranty 3-year Onsite 4-year Onsite 9x5x4 41C9195

6 Warranty 3-year Onsite 4-year Onsite 24x7x4 41C9196

7 HDDR 3-year Onsite + 3-year HDDR 43R2157

8 HDDR 3-year Onsite 4-year Onsite + 4-year HDDR 43R8831

9 HDDR 3-year Onsite 5-year Onsite + 5-year HDDR 45J8404

10 PRI 3-year Onsite 3-year Priority Enterprise 45J9088

11 PRI 3-year Onsite

12 PRI 3-year Onsite

13 PRI 3-year Onsite 4-year Priority Enterprise 55Y3612

14 PRI 3-year Onsite 5-year Priority Enterprise 55Y3616

Base

Warranty

Upgrade Service

Description

4-year Priority

Enterprise + 4-year Onsite

5-year Priority

Enterprise + 5-year Onsite

US Part

Number

45J9089

45J9090

There’s more Thinking in a

Page 3

Windows®. Life without Walls™.

Lenovo

recommends Windows 7.

ENHANCED

EXPERIENCE

THE LENOVO® THINKCENTRE® M90z ALL-IN-ONE DESKTOP SPECIFICATIONS.

THINKCENTRE M SERIES

DESCRIPTION

Processors

Preloaded Operating Systems

Chipset

Form Factor

Machine Type

Serial ATA Hard Drive

Memory

Optical Drive

Integrated Communications

WiFi

Bluetooth

Ports

Slots

Bays

Display

Web Camera

Power Supply

Dimensions (HxWxD) mm

Keyboard

Mouse

Graphics Card

Security

Limited Warranty

Preloaded Software

M90z

Intel•® Core™ i5-6x0 1333MHz 4T/dual core/4M/73W/ Turbo LGA 1156 Intel•® Core™ i3-5x0 1333MHz 4T/dual core/4M/73W/ LGA 1156 Intel•® Pentium® G6950 1066MHz/dual core/3M/73W/ LGA 1156

Genuine Windows• Genuine Windows• Genuine Windows• Genuine Windows•

Intel•

Q57 chipset

7 Professional (32-bit)

7 Professional (64-bit)

7 Home Premium (32-bit)

7 Home Premium (64- bit)7

Genuine Windows• Genuine Windows• through downgrade rights from Genuine Windows Vista® Business or Genuine Windows® 7

All-in-One•

0800, 0852, 2471, 2557, 3091, 3265, 3373, 3429, 3650, 3678, 4285, 5205 and 5248•

160GB, 250GB, 320GB, 500GB 7200 RPM SATA• 1TB 7200 RPM SATA•

80 GB ﬂash solid state drive• 150 GB 10k PRM•

1GB/2GB 1333 MHz DDR3 SoDIMM• Up to 4GB memory•

Slim DVD-ROM• Slim DVD Recordable•

82578DM, 10M/100M/1000M Gigabit Ethernet

Intel•

Centrino® Wireless-N100 Intel•® Centrino® Ultimate-N6300

QMI 9WBM102QCE01Q•

(6) High speed USB 2.0 (2 side/4 rear)• (2) Side audio ports: headphone and microphone• (2) PS/2 ports•

(1) Serial•

Qcom QBT410UB-01•

(1) Integrated display port• (1) VGA-in• (1) RJ-45• (1) AC-in•

(1) Mini PCI-e x 1 slot• (1) Express card slot•

(1) Internal HDD Bay 3.5 inch• (1) Internal ODD Bay 5.25 inch•

Integrated 23-inch widescreen (16:9)•

2 mega pixel USB webcam with array microphones•

150 W 85 plus (auto-sensing)•

443 x 560 x 116 (with multi-touch, with frame stand)• 443 x 560 x 109 (without multi-touch, with frame stand)•

Lenovo•

Preferred Pro Full-size Keyboard

Preferred Pro Fingerprint Keyboard•

USB Optical Wheel Mouse• Lenovo•

443 x 560 x 250 (with lift stand)•

Lenovo• ThinkPad•

Intel•® GMA HD (integrated)

TPM 1.2 chip• USB individual disable/enable• Computrace•

support

Kensington slot• Chassis intrusion switch•

Up to 3 years•

Adobe•

Acrobat® Reader

Acrobat•

Flash® Player Skype™• PC-Doctor for WinPE• SUN™ JRE™•

Corel•

Burn SE Lenovo Edition

Corel•

DVD MovieFactory® 7 Lenovo Edition InterVideo WinDVD•

Microsoft•

Ofﬁce Professional 2007 (60-day trial version) Norton Internet Security 2009• ThinkVantage•

Rescue and Recovery

Ultraslim Wireless Keyboard

USB Keyboard with TrackPoint

Ultraslim Wireless Mouse

7 Home Basic (32-bit) XP Professional SP3 pre-installed

®2

ThinkVantage• ThinkVantage• (Web delivery only) ThinkVantage• ThinkVantage• Lenovo• ThinkVantage• (up to 3 years)

Product Recovery

ClientSecurity Solution

Password Manager

Power Manager

ThinkVantage® Toolbox

System Update

6 The ThinkCentre M90z supports both 1066 MHz and 1333 MHz DDR3 memory modules. For example: if you are using the 1333 MHz memory module(s) with a microprocessor that runs at 1066 MHz (such as the Intel

Pentium® G6950 microprocessor), your memory module(s) will operate at 1066 MHz. 7 For Hong Kong only 8 For special bid only

There’s more Thinking in a

Page 4

Windows®. Life without Walls™.

Lenovo

recommends Windows 7.

ENHANCED

EXPERIENCE

THE LENOVO® THINKCENTRE® M90z ALL-IN-ONE DESKTOP TOP OPTIONS

THINKCENTRE M90z HEIGHT ADJUSTABLE STAND (57Y4351)

LENOVO ULTRASLIM WIRELESS KEYBOARD AND MOUSE (57Y4700)

Reliable 2.4GHz Wireless resistant keyboard and mouse combination; contemporary, low proﬁle design

LENOVO FINGERPRINT USB KEYBOARD (73P4730)

Replace Windows passwords with fast, secure access using your ﬁngerprint

THINKPAD® USB KEYBOARD WITH TRACKPOINT® (55Y9003)

Save valuable deskspace; 30% narrower than a fullsize keyboard – measures 12.5-inches (315 mm) wide. Eliminates an external mouse with the integrated Trackpoint

www.lenovo.com/support/keyboards

Easily adjust the ThinkCentre system to help improve viewing comfort. Adjustments include: 110mm height adjustment and 30 degrees (25 back, 5 forward) tilt adjustment

www.lenovo.com/support/stands

THINKPAD IN-EAR HEADPHONES (57Y4488)

High-quality voice and audio performance in a comfortable, lightweight design with discreet hands-free inline microphone for clear communications

KENSINGTON SECURITY CABLE LOCK BY LENOVO (73P2582)

Help reduce theft, increase physical asset security

www.lenovo.com/support/security

THINKCENTRE M SERIES

PC3-10600 DDR3-1333 SODIMM LOW-HALOGEN MEMORY

Low-cost method to boost system performanc 1GB (55Y3709), 2GB (55Y3710), 4GB (55Y3711)

LENOVO USB-TO-DVI MONITOR ADAPTER (45K5296)

HD Resolution and multiple monitors, is just as simple USB connection away

www.lenovo.com/support/monitoraccessories

GEMPLUS 54MM EXPRESSCARD SMART CARD READER FROM LENOVO (41N3043)

Control access to databases, corporate computer networks

www.lenovo.com/support/security

LENOVO LASER MOUSE (41U3074)

High performance, fully programmable, superior comfort laser mouse

www.lenovo.com/support/mice

LENOVO DISPLAYPORT TO SINGLE-LINK DVI-D MONITOR CABLE (45J7915)

Attach existing DVI-D digital 1920 x 1200 resolution monitor to DisplayPort

www.lenovo.com/support/monitoraccessories

www.lenovo.com/think

©2010 Lenovo. All rights reserved. Availability: Offers, prices, specifications and availability may change without notice. Lenovo is not responsible for photographic or typographic errors. References herein to Lenovo products and services do not imply that Lenovo intends to make

them available in all countries. Warranty: For a copy of applicable warranties, write to: Warranty Information, Attn: Dept. ZPYA, Perimeter Park, 1009 ThinkPlace Building 3, Dept. ZPYA Morrisville, NC. 27560. Lenovo makes no representation or warranty regarding third-party products or services. Trademarks: Lenovo, the Lenovo logo, Rescue and Recovery, ThinkCentre, ThinkVantage, ThinkPad, TrackPoint, ThinkPlus are trademarks or registered trademarks of Lenovo. Intel,Intel Centrino, Intel Core, Core Inside, Pentium and Celeron are registered trademarks of Intel Corporation in the U.S. and other countries. Microsoft, Windows, and Life Without Walls are trademarks of Microsoft Corporation in the USA or other countries. Intel, Intel Logo, Intel Core are trademarks of Intel Corporation in the U.S. and other countries. Other company, product and service names may be trademarks or service marks of others. Visit lenovo.com/safecomputing periodically for the latest information on safe and effective computing.
