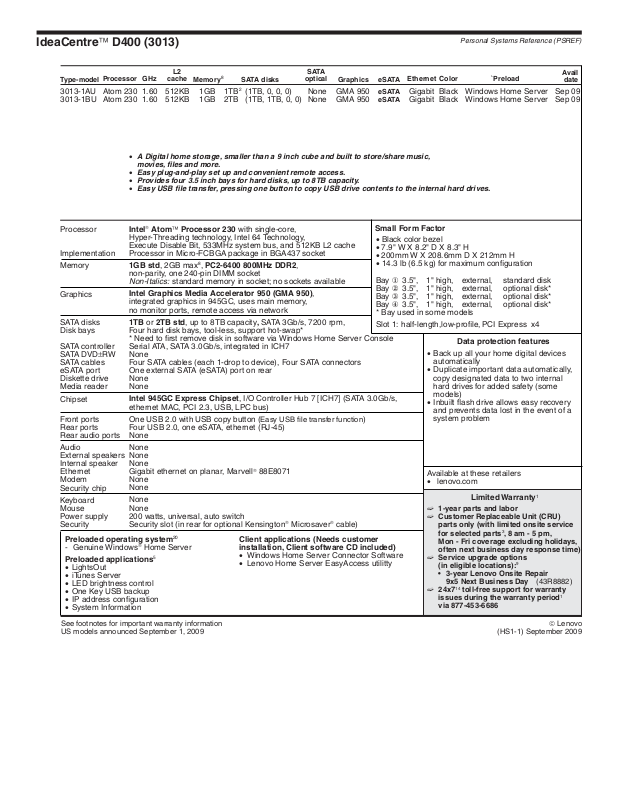

IdeaCentre™ D400 (3013)
Personal Systems Reference (PSREF)
Type-model
Processor
GHz
L2
cache
Memory
8
SATA disks
SATA
optical
Graphics
eS ATA
Ethernet
Color
`Preload
Avail
date
3013-1AU Atom 230 1.60 512KB 1GB 1TB2 (1TB, 0, 0, 0) None GMA 950 eS ATA Gigabit Black Windows Home Server Sep 09
3013-1BU Atom 230 1.60 512KB 1GB 2TB (1TB, 1TB, 0, 0) None GMA 950 e SATA Gigabit Black Windows Home Server Sep 09
• A Digital home storage, smaller than a 9 inch cube and built to store/share music,
movies, fi les and more.
• Easy plug-and-play set up and convenient remote access.
• Provides four 3.5 inch bays for hard disks, up to 8TB capacity.
• Easy USB fi le transfer, pressing one button to copy USB drive contents to the internal hard drives.
®
Atom™ Processor 230 with single-core,
Processor
Intel
Hyper-Threading technology, Intel 64 Technology,
Execute Disable Bit, 533MHz system bus, and 512KB L2 cache
Implementation
Memory
Processor in Micro-FCBGA package in BGA437 socket
1GB std, 2GB max8,
PC2-6400 800MHz DDR2,
non-parity, one 240-pin DIMM socket
Non-Italics: standard memory in socket; no sockets available
Graphics
Intel Graphics Media Accelerator 950 (GMA 950),
integrated graphics in 945GC, uses main memory,
no monitor ports, remote access via network
SATA disks
Disk bays
SATA controller
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
External speakers
Internal speaker
Ethernet
Modem
Security chip
Keyboard
Mouse
Power supply
Security
Preloaded operating system
- Genuine Windows® Home Server
1TB or 2TB std, up to 8TB capacity, SATA 3Gb/s, 7200 rpm,
Four hard disk bays, tool-less, support hot-swap*
* Need to fi rst remove disk in software via Windows Home Server Console
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
None
Four SATA cables (each 1-drop to device), Four SATA connectors
One external SATA (eSATA) port on rear
None
None
Intel 945GC Express Chipset, I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s,
ethernet MAC, PCI 2.3, USB, LPC bus)
One USB 2.0 with USB copy button (Easy USB fi le transfer function)
Four USB 2.0, one eSATA, ethernet (RJ-45)
None
None
None
None
Gigabit ethernet on planar, Marvell® 88E8071
None
None
None
None
200 watts, universal, auto switch
Security slot (in rear for optional Kensington® Microsaver® cable)
20
Preloaded applications5
• LightsOut
• iTunes Server
• LED brightness control
• One Key USB backup
• IP address confi guration
• System Information
See footnotes for important warranty information
US models announced September 1, 2009
Client applications (Needs customer
installation, Client software CD included)
• Windows Home Server Connector Software
• Lenovo Home Server EasyAccess utilitty
Small Form Factor
• Black color bezel
• 7.9" W X 8.2" D X 8.3" H
• 200mm W X 208.6mm D X 212mm H
• 14.3 lb (6.5 kg) for maximum confi guration
Bay ① 3.5", 1" high, external, standard disk
Bay ② 3.5", 1" high, external, optional disk*
Bay ③ 3.5", 1" high, external, optional disk*
Bay ④ 3.5", 1" high, external, optional disk*
* Bay used in some models
Slot 1: half-length, low-profi le, PCI Express x4
Data protection features
• Back up all your home digital devices
automatically
• Duplicate important data automatically,
copy designated data to two internal
hard drives for added safety (some
models)
• Inbuilt fl ash drive allows easy recovery
and prevents data lost in the event of a
system problem
Available at these retailers
• lenovo.com
Limited Warranty1
➫ 1-year parts and labor
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
often next business day response time)
➫ Service upgrade options
(in eligible locations):
• 3-year Lenovo Onsite Repair
9x5 Next Business Day (43R8882)
14
➫ 24x7
issues during the warranty period
via 877-453-6686
toll-free support for warranty
3
, 8 am - 5 pm,
9
(HS1-1) September 2009
1
© Lenovo
