Page 1

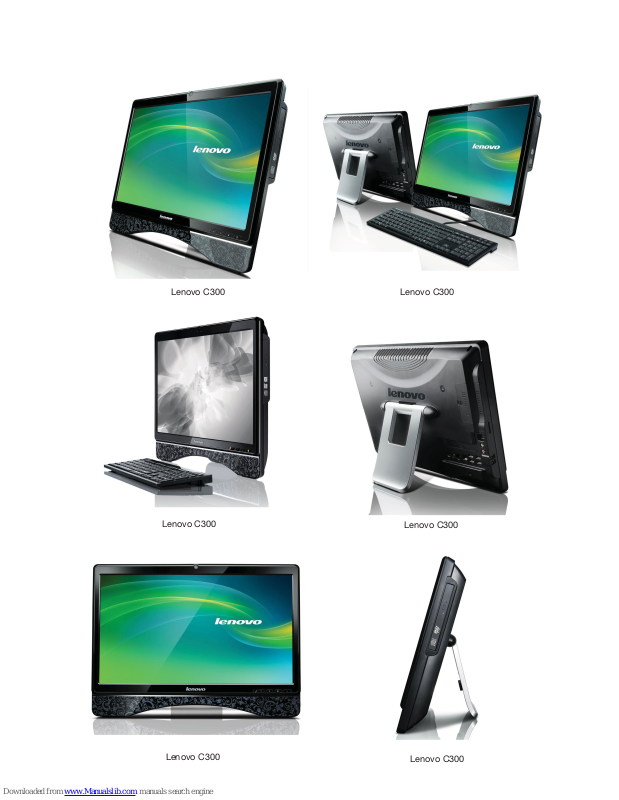

Lenovo C300Lenovo C300

Lenovo C300

Page 2

Lenovo® C300 (3012)

Personal Systems Reference (PSREF)

Type-model

GHz

Widescreen

displayMemory

Camera

(mega-

pixel)

Graphics

SATA

disk

optical

SATA

Mini PCIe

802.11

wireless

3012-1AU Atom 230 1.60 1GB 20" WXGA++ 1.3 GMA 160GB8 DVD ±RW 11b/g28 Black None PS/2 USB XP Home Jun 09 3012-1JU Atom 230 1.60 1GB 20" WXGA++ 1.3 GMA 160GB DVD±RW 11b/g Blac

☞

3012-1OU Atom 230 1.60 2GB 20" WXGA++ 1.3 GMA 320GB DVD±RW 11b/g Black None PS/2 USB Home Basic Sep 09

☞

3012-1EU Atom 230 1.60 3GB 20" WXGA++ 1.3 GMA 320GB DVD±RW 11b/g Black None PS/2 USB Home Basic Jun 09 3012-1RU Atom 230 1.60 3GB 20" WXGA++ 1.3 GMA 500GB DVD±RW 11b/g Black None PS/2 USB Prem 32 Sep 09

☞

3012-2DU Atom 330 1.60 4GB 20" WXGA++ 1.3 HD 4530 640GB DVD±RW 11b/g Black None PS/2 USB Prem 32 Jun 09

Blue-

Color

tooth

Mouse

KBDProcessor

Preload

k None PS/2 USB XP Home Sep 09

• All-In-One design with 20" 16:9 widescreen

• Lenovo® Rescue System provides OneKey recovery and OneKey Antivirus without

booting into Windows

• Advanced hinge design allows changing the screen angle with only one hand, and resting the screen angle at any intermediate position between 12° and 40°

Processor

Memory

S ATA D V D ±RW SATA disk

Widescreen display Camera Controls

Graphics

Intel® Atom™ processor 230 with single-core, Hyper-Threading technology, Intel 64 Technology, Execute Disable Bit, 533MHz system bus, and 512KB L2 cache or Intel Atom processor 330 with dual-core, Hyper-Threading technology, Intel 64 Technology, Execute Disable Bit, 533MHz system bus, and 1MB L2 cache

1GB, 3GB, or 4GB std / 4GB max7 / PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets;

Italics: standard memory in both sockets; no sockets available Non-italics: standard memory in one socket; one socket available

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

160GB, 320GB, 500GB, or 640GB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm 20" (508mm) WXGA++ (1600x900) TFT color, anti-glare, CCFL backlight, 300 nits,

16:9 aspect ratio, 1000:1 contrast ratio Camera on top of screen, 1.3-megapixel, ﬁ xed focus, with mono microphone Brightness up/down buttons, display on/off button, and power button

Some: Intel Graphics Media Accelerator 950 (GMA 950),

Preloaded operating system

- Some: Genuine Windows® XP Home Edition

- Some: Genuine Windows Vista Home Basic 32

- Some: Genuine Windows Vista Home Premium 32

Preloaded applications14

• Lenovo OneKey Recovery

• Driver and Application Installation

• Trend Micro™ PC-cillin™ Internet

Security 2008

• Windows Live™ Toolbar (Vista Models)

• Cyberlink Power2Go (DVD±RW)

• Corel® WinDVD

integrated graphics in 945GC, uses main memory Some: ATI ™ Mobility Radeon™ HD 4530, PCI Express® x16, 512MB memory, DirectX® 10, ATI Avivo™ HD

Chipset

Multicard reader

Por ts

Mini PCI Express

11b/g TV tuner Bluetooth™ Modem Ethernet Audio support

Security Keyboard

Mouse Remote control

Dimensions

Weight Chassis Stand

See footnotes for important warranty information ☞ US models announced September 10, 2009; previous models on June 24, 2009

Intel 945GC Express Chipset, I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, ethernet MAC, USB, LPC bus) 6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™, Secure Digital Card, Secure Digital Elite Pro Card, xD-Picture Card™) Rear: Four USB 2.0, ethernet (RJ-45), keyboard (PS/2), IEEE 1394 FireWire 400 (4-pin connector; 1394a-2000 standard) Left: Two USB 2.0

One Mini PCI Express slot 11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312 None None None 10/100 ethernet on planar, Intel 82562G High Deﬁ nition (HD) Audio, RealTek® ALC662 codec / two stereo speakers (2 watt) / microphone, microphone input jack (3.5 mm), headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard USB Optical Wheel Mouse None

(WxHxD): 19.05" x 14.12" x 3.28"; 484mm x 359mm x 83mm

13.8 lb (6.26 kg) Black color Fold-away stand (adjustable between 12° and 40°)

Available at these retailers

• lenovo.com

120-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(CRB1-1) September 2009

Avail

date

Page 3

Lenovo® C300 (3012) - Windows 7

Personal Systems Reference (PSREF)

Type-model

☞

3012-2VU Atom 330 1.60 2GB 20" WXGA++ 1.3M HD 4530 320GB8 DV D±RW None None 11b/g28 Black None Prem 32 Dec 09

GHz

Widescreen

displayMemory

Camera

(mega-

pixel)

Discrete

graphics

SATA

disk

SATA

optical

tunerProcessor

3012-2KU Atom 330 1.60 3GB 20" WXGA++ 1.3M HD 4530 500GB DVD±RW None None

Mini PCIe

Remote

control

802.11

wireless

11b/g Black None Prem 32 Nov 09

Color

Bluetooth

Win7

preload

• All-In-One design with 20" 16:9 widescreen

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Advanced hinge design allows changing the screen angle with only one hand, and

resting the screen angle at any intermediate position between 12° and 40°

Processor

Memory

S ATA D V D ±RW SATA disk

Widescreen display Camera Controls

Discrete Graphics

Intel® Atom™ processor 330 with dual-core, Hyper-Threading Technology, Intel 64 Technology, Execute Disable Bit, 533MHz system bus, and 1MB L2 cache

2GB or 3GB std / 4GB max7 / PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets;

Italics: standard memory in both sockets; no sockets available; Non-Italics: standard memory in one sockets; one sockets available

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

320GB or 500GB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm 20" (508mm) WXGA++ (1600x900) TFT color, anti-glare, CCFL backlight, 300 nits,

16:9 aspect ratio, 1000:1 contrast ratio Camera on top of screen, 1.3-megapixel, ﬁ xed focus, with mono microphone Brightness up/down buttons, display on/off buttons, and power button

ATI™ Mobility Radeon™ HD 4530, PCI Express® x16, 512MB memory,

Preloaded operating system

- Genuine Windows® 7 Home Premium 32

Preloaded applications14 (only some listed)

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus 2009

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Corel® WinDVD

DirectX® 10, ATI Avivo™ HD

Chipset

Multicard reader

Por ts

Mini PCI Express

11b/g TV tuner Bluetooth™ Modem Ethernet Audio support

Security Keyboard

Mouse Remote control

Dimensions

Weight Chassis Stand

See footnotes for important warranty information ☞ US model announced December 17, 2009; previous model on November 3, 2009

headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard USB Optical Wheel Mouse None

(WxHxD): 19.05" x 14.12" x 3.28"; 484mm x 359mm x 83mm

13.8 lb (6.26 kg) Black color Fold-away stand (adjustable between 12° and 40°)

120-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 3-year Lenovo Onsite Repair 9x5 Next Business Day (43R8882)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(CRB1-2) December 2009

Avail

date

Page 4

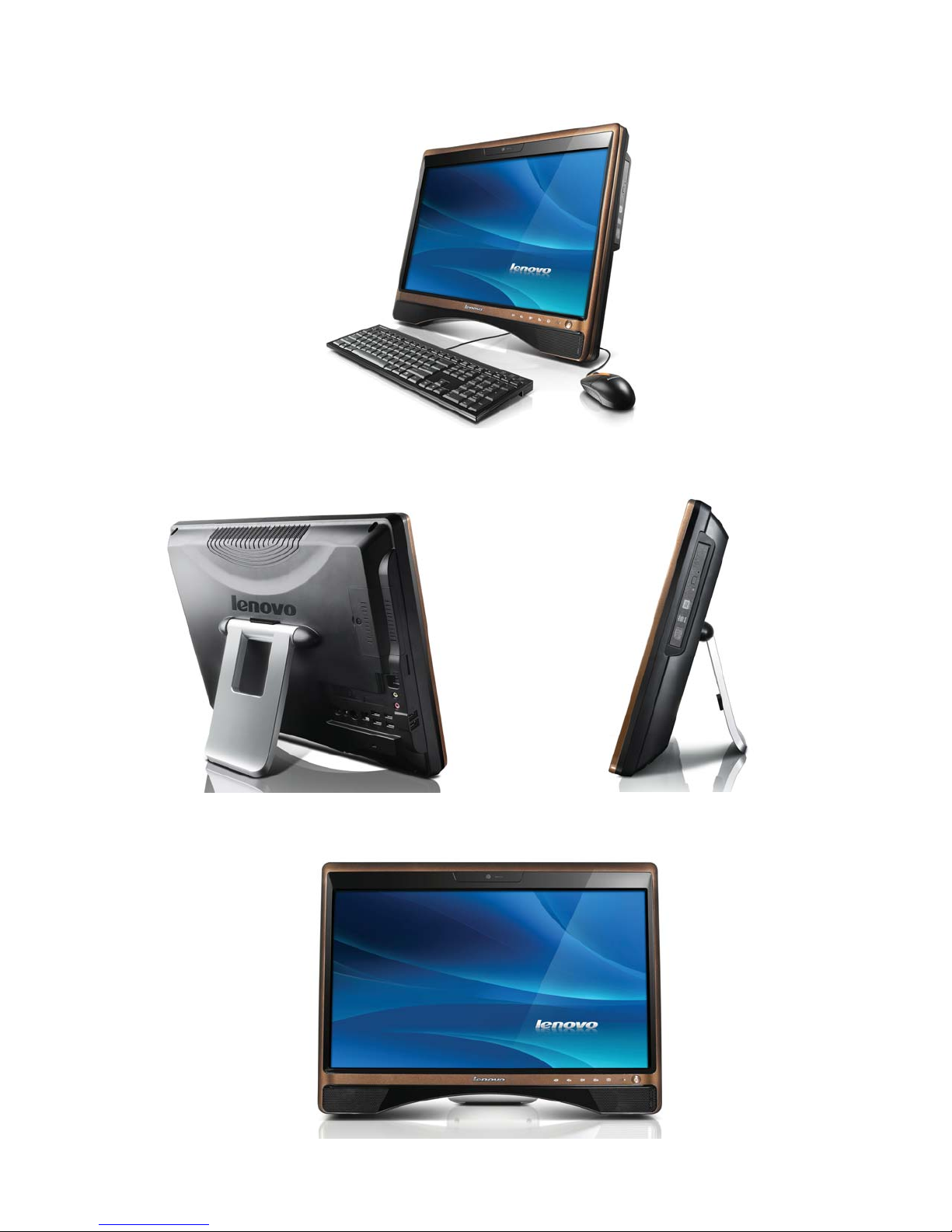

Lenovo C315

Page 5

Lenovo® C315 (4022) - Windows 7

Personal Systems Reference (PSREF)

Multi-

Touch

screen

Camera

(mega-

pixel)

Type-model

4022-1AU

Athlon II X2 250u

Wide-

GHz

screen

displayMemory

1.60 2GB 20" HD+ Multi 0.3M HD 4530 320GB

• All-In-One design with 20" 16:9 multi-touch screen

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Advanced hinge design allows changing the screen angle with only one hand, and

resting the screen angle at any intermediate position between 12° and 40°

Processor

AMD® Athlon™ II X2 Processor 250u with dual-core,

3200MHz HyperTransport™ Bus, AMD Virtualization™ (AMD-V™) technology, AMD64 technology, int DDR2 memory controller, and 2MB L2 cache (1MB per core)

Memory

2GB std / 4GB max7 / PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets; Non-Italics: standard memory in one sockets; one socket available

S ATA D V D ±RW SATA disk

Widescreen display Camera Controls

Discrete Graphics

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

320GB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm 20" (508mm) HD+ (1600x900) TFT color, anti-glare, CCFL backlight, 250 nits,

16:9 aspect ratio, 1000:1 contrast ratio, MultiTouch Camera on top of screen, 0.3-megapixel, ﬁ xed focus, with mono microphone Power button, touch-sensitive buttons for brightness +/-, volume +/-, and display on/off

ATI™ Mobility Radeon™ HD 4530, PCI Express® x16, 512MB memory, DirectX® 10, ATI Avivo™ HD

Chipset Multicard reader

Por ts

AMD 690M Chipset, SB600 south bridge 6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™, Secure Digital Card, Secure Digital Elite Pro Card, xD-Picture Card™) Rear: Four USB 2.0, ethernet (RJ-45), keyboard (PS/2), IEEE 1394 FireWire 400 (4-pin connector; 1394a-2000 standard) Side: Two USB 2.0

PCIe Mini Card

11b/g TV tuner Bluetooth™ Modem Ethernet Audio support

Two Mini PCI Express Mini Card slots 11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312 None None None 10/100 ethernet on planar, Broadcom® BCM5787 High Deﬁ nition (HD) Audio, RealTek® ALC262 codec / two stereo speakers (2 watt) / microphone, microphone input jack (3.5 mm),

Security Keyboard

Mouse Remote control

Dimensions

Weight Chassis Stand

See footnotes for important warranty information US model announced April 28, 2010

headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard, black USB Optical Wheel Mouse, black None

(WxHxD): 19.05" x 14.12" x 2.56"; 484mm x 359mm x 65mm

16.3 lb (7.4 kg) Front bezel: brown color; back bezel: black color Fold-away stand (adjustable between 12° and 40°)

Discrete graphics

SATA

disk

SATA

optical

DVD ±RW None None 11b/g

tunerProcessor

PCIe Mini

Remote

control

Card

802.11

Bluetooth

preload

None Prem 32 Apr 10

Preloaded operating system

Win7

Avail

- Genuine Windows® 7 Home Premium 32

Preloaded applications

listed)

(only some

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus 2009

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Lenovo IdeaTouch

− PowerCinema

− Lenovo VeriTouch

− AutoCollage Touch

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

120-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(BHM1-2) April 2010

date

Page 6

Lenovo® C315 (4022) - Windows 7 (Web models)

Personal Systems Reference (PSREF)

Wide-

Type-model

4022-1FU 4022-1GU Athlon II X2 250u 1.60 4GB 20" HD+ Multi 0.3M HD 4530 500GB DVD ±RW TV Remote 11b/g None Prem 64 Apr 10

Athlon II X2 250u

GHz

1.60 2GB 20" HD+ Multi 0.3M HD 4530 320GB

screen

displayMemory

Multi-

Touch

screen

Camera

(mega-

pixel)

Discrete graphics

SATA

disk

SATA

optical

DVD ±RW TV Remote 11b/g

tunerProcessor

Remote

control

PCIe Mini

Card

802.11

Bluetooth

Win7

preload

Avail

date

None Prem 32 Apr 10

• All-In-One design with 20" 16:9 multi-touch screen

• Lenovo® Rescue System provides OneKey recovery without booting into Windows

• Advanced hinge design allows changing the screen angle with only one hand, and

resting the screen angle at any intermediate position between 12° and 40°

Processor

AMD® Athlon™ II X2 Processor 250u with dual-core,

3200MHz HyperTransport™ Bus, AMD Virtualization™ (AMD-V™) technology, AMD64 technology, int DDR2 memory controller, and 2MB L2 cache (1MB per core)

Memory

2GB or 4GB std / 4GB max7 / PC2-5300 667MHz DDR2, non-parity, dual-channel capable, two 200-pin SO-DIMM sockets;

Italics: standard memory in both sockets; no sockets available; Non-Italics: standard memory in one sockets; one socket available

S ATA D V D ±RW SATA disk

Widescreen display Camera Controls

Discrete Graphics

DVD burner, dual-layer support, ﬁ xed, removable, 12.7mm, tray-in

320GB or 500GB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm 20" (508mm) HD+ (1600x900) TFT color, anti-glare, CCFL backlight, 250 nits,

ATI™ Mobility Radeon™ HD 4530, PCI Express® x16, 512MB memory, DirectX® 10, ATI Avivo™ HD

Chipset Multicard reader

Por ts

AMD 690M Chipset, SB600 south bridge 6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™, Secure Digital Card, Secure Digital Elite Pro Card, xD-Picture Card™) Rear: Four USB 2.0, ethernet (RJ-45), keyboard (PS/2), TV antenna connector, IEEE 1394 FireWire 400 (4-pin connector; 1394a-2000 standard) Side: Two USB 2.0

PCIe Mini Card

11b/g TV tuner

Bluetooth™ Modem Ethernet Audio support

Two Mini PCI Express Mini Card slots 11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312 AverMedia Hybrid TV MiniCard A317, PCIe Mini Card adapter, supports analog (NTSC) and digital ( ATSC) signal None None 10/100 ethernet on planar, Broadcom® BCM5787 High Deﬁ nition (HD) Audio, RealTek® ALC262 codec / two stereo speakers (2 watt) / microphone, microphone input jack (3.5 mm),

Security Keyboard

Mouse Remote control

Dimensions

Weight Chassis Stand

See footnotes for important warranty information US models announced April 28, 2010

headphone jack (3.5 mm) Power-on password, supervisor password, security lockhole

PS/2 full-size keyboard, black USB Optical Wheel Mouse, black Philips®Win7 MCE remote control (40-button)

(WxHxD): 19.05" x 14.12" x 2.56"; 484mm x 359mm x 65mm

16.3 lb (7.4 kg) Front bezel: brown color; back bezel: black color Fold-away stand (adjustable between 12° and 40°)

Preloaded operating system

- Some: Genuine Windows® 7 Home Premium 32

- Some: Genuine Windows 7 Home Premium 64

Preloaded applications

listed)

• Lenovo OneKey Recovery

• Driver and Application Installation

• McAfee® VirusScan® Plus 2009

(60 days of virus deﬁ nitions)

• Cyberlink Power2Go (DVD±RW)

• Lenovo IdeaTouch

− PowerCinema

− Lenovo VeriTouch

− AutoCollage Touch

• Windows Live Essential

• Microsoft® Ofﬁ ce 2007 Trial (60-day)

120-watt AC adapter RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts 8 am - 5 pm, Mon - Fri coverage excluding holidays, next business day response time) ➫ Service upgrade options (in eligible locations):

• 2-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1552)

• 3-year Lenovo In-Home Repair 9x5 Next Business Day (78Y1553)

➫ 24x7 issues during the warranty period via 877-453-6686

toll-free support for warranty

(BHM1-1) April 2010

(only some

Page 7

Lenovo® Essential Desktops - Lenovo CareSM Services

Partial list of Lenovo® Care Services22 for Lenovo Essential desktops

For more information see:

http://www.lenovo.com/services_warranty/us/en/index.html

Lenovo Care service upgrade options

Lenovo Essential C Series desktops with 1-year Onsite warranty

2-year Lenovo Onsite Repair 3-year Lenovo Onsite Repair

Lenovo Essential H Series desktops with 1-year Onsite warranty

2-year Lenovo Onsite Repair 3-year Lenovo Onsite Repair

warranty warranty

9x5 9x5

78Y1552 78Y1553

78Y1552 78Y1551

Personal Systems Reference (PSREF)

(S-VLD) March 2010

Page 8

Availability: All offers subject to

availability. Lenovo reserves the right to alter product offerings and speciﬁ cations at any time, without notice. Lenovo is not responsible for photographic or typographic errors.

Warranty: For a copy of applicable

product warranties, write to: Warranty Information, P.O. Box 12195, RTP, NC, 27709, Attn: Dept ZPYA/B676. Lenovo makes no representation or warranty regarding third party products or services.

Footnotes:

Power management, including Intel®

SpeedStep® Technology, reduces

processor speed when in battery mode.

Weight includes battery and standard optical drive; weight may vary due to vendor components, manufacturing process and options.

Thinness may vary at certain points on the system.

Wireless capability: Requires compatible wireless-enabled options sold separately.

Post-warranty annual maintenance agreement: Service begins at the end

of the base warranty or the end of any other applied warranty and maintenance option, whichever occurs last. Service delivery is not available the same day the maintenance agreement is purchased. Maintenance agreements must be purchased and the registration successfully completed prior to the service being available.

Public network download modem speeds are limited to 53Kbps. Upload

speeds are limited to 48Kbps for V.92 modems. Actual speeds depend on many factors and are often less than the maximum possible. V.92 functions and speeds require compatible phone line and server equipment. Check with your telephone and ISP service providers for availability.

Maximum memory capacity may require the replacement of standard component with largest supported

component available. On systems, even

though it is possible to physically install 4GB of memory, the actual amount of memory addressable by a 32-bit operating system will be limited to 3GB. This limitation does not exist with 64-bit operating systems.

Hard drive: GB = billion bytes,

TB = trillion bytes. Accessible capacity is

less; up to 4GB is service partition.

Service upgrade options: Service period begins with the equipment date of purchase. Service must be purchased during the original limited product warranty period. Service levels are response time objectives and are not guarantees.

Battery: These model numbers achieved the battery life based on MobileMark® 2007 during testing. Battery life (and recharge times) will vary based on many factors including screen brightness, applications, features, power management, battery conditioning, and other customer preferences.

Wireless: Based on IEEE 802.11a,

802.11b, and 802.11g respectively. An adapter with 11a/b, 11b/g, or 11a/b/g can communicate on either/any of these listed formats respectively, the actual connection will be based on the access point to which it connects.

Limited warranty: Support unrelated to a warranty issue may be subject to

additional charges.

Onsite Repair: If a machine is listed as having “On-site”, this means that on-site service is available for the replacement of parts for warranty repairs. Certain parts, referred to as Customer Replaceable Unit (“CRU”) parts, are easy to install and require little or no tools or technical knowledge. Some examples of CRU parts are mice, keyboards, hard disk drives, speakers, and memory. If your problem can be resolved with a CRU, the Support Center will offer to ship the part to you for you to install.

Included software may differ from its retail version (if available), and may not include user manuals or all program functionality. Software license agreements may apply.

Modem speeds: Public network download speeds are limited to 53Kbps. Upload speeds are limited to 48Kbps for V.92 modems. Actual speeds depend on many factors and are often less than the maximum possible. V.92 functions and speeds require compatible phone line

and server equipment. Check with your

telephone and ISP service providers for availability.

Response times may vary. May exclude

some holidays. Telephone support may be subject to additional charges.

International Warranty Service is available for most products in any country in which this product is sold and serviced. Service delivery methods and parts availability vary by country, may be different from that in the country of purchase, and are subject to change without notice. Fees and restrictions may apply in some countries.

Telephone support may be subject to additional charges, even during the limited warranty period. Response times may vary and may exclude some holidays.

Depot repair service: In the United

States call 1-877-453-6686. The customer may be asked certain diagnostic questions before a courier is sent. Your purchase includes this depot repair service, available in the U.S. during the limited warranty period.

Operating System: Level of support varies by operating system. Operating systems not preloaded on the system may not provide full feature functionality. Refer to lenovo.com/pc/support and enter your machine type and model number for more information.

For combination drives, maximum possible speeds only are given in the following order: CD write, CD rewrite, CD read, DVD read.

Lenovo Care Services: These services are available for machines normally used for business, professional, or trade purposes, rather than personal, family, or household purposes. Not all machine types and models are covered. Service period begins with the equipment date of purchase. Service must be purchased during the original limited product warranty period. Service levels are response time objectives and are not guarantees. If the machine problem turns out to be a Customer Replaceable Unit (CRU), a part can be express shipped to you for quick replacement. For notebooks requiring LCD or other component replacement, Lenovo may choose to perform service at the depot repair center. Calls must be received by 5 pm local time in order to qualify for Next Business Day service. P&L means parts and labor. P/U means pick-up. See terms and conditions for complete details and restrictions.

Page 9

Customer Replacement Units (CRUs)

are designed to be replaced by custom-

ers during the applicable warranty pe-

riod. Lenovo will send a technician onsite to perform a repair if remote telephone diagnosis does not isolate the problem, if customer replaceable parts are unable to resolve the problem, or at the request of the customer. For a list of customer replaceable parts, contact Lenovo. Sup-

port unrelated to a warranty issue may be subject to additional charges.

Wireless WAN Cards: Wireless data

service requires separate agreement with

Verizon Wireless. Verizon Wireless, not

Lenovo, is solely responsible for service.

Monthly and airtime charges may apply.

Service may not be available in all areas;

purchaser is responsible for verifying with

Verizon Wireless that service is available

for the intended location before the pur-

chase of the card. For complete details,

including service plans, additional re-

quired hardware or software, and service

coverage, visit www.verizonwireless.com.

The IEEE 802.11n speciﬁ cation

(MIMO) has been ﬁ nalized and is

currently in IEEE 802.11n-2009 release.

The maximum speed depends on the

access point device and the number of

integrated antenna used for connection.

An adapter with 11a/b, 11a/b/g, 11b/g/n, or

11a/b/g/n can communicate on any of its

supported formats.

This publication was developed for prod-

ucts and services offered in the United States. Lenovo may not offer the products, services or features discussed in this document in other countries. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area.

Lenovo reserves the right to change spec-

iﬁ cations and other product information at any time without prior notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions; therefore this disclaimer may not apply to you.

Trademarks: Lenovo, the Lenovo logo,

New World. New Thinking., Access Connections, Rescue and Recovery, ThinkVantage, and ThinkVision are trademarks of Lenovo. Microsoft, Windows, and Vista are registered trademarks of Microsoft Corporation. Intel, the Intel logo, Intel Inside logo, Intel Core and Core Inside are trademarks of Intel Corporation in the US and other countries. AMD, the AMD logo, AMD Athlon, AMD Sempron, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. PCI Express is a trademark of PCI-SIG. Other company, product, or service names may be trademarks or service marks of others.

Visit

www.lenovo.com/safecomputing

periodically for the latest information on safe and effective computing.

www.lenovo.com/psref

Visit

for the latest version of Personal Systems Reference.

Lenovo 1009 Think Place Morrisville, NC 27560 U.S. A.

April 2010 jbook.pdf
