Lenovo 30114MU, IdeaCentre A600, 3011 Specifications

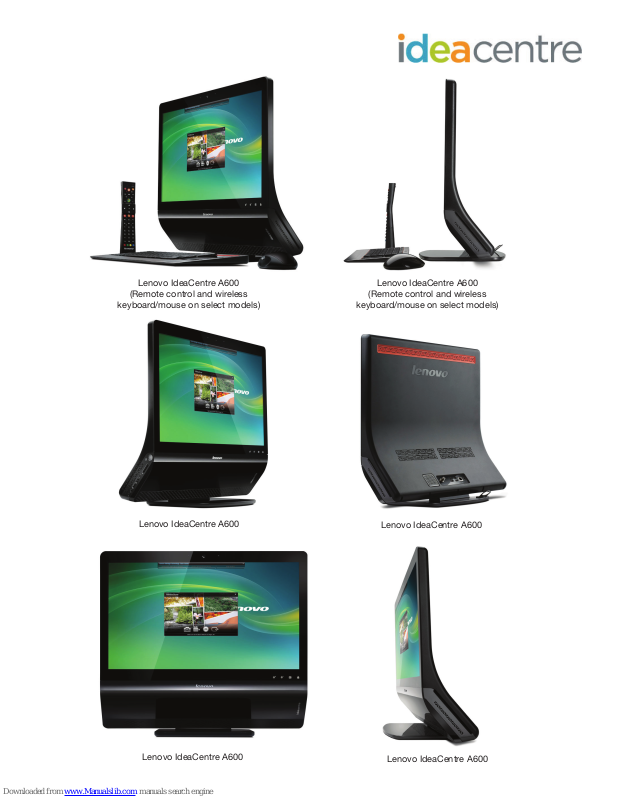

Lenovo IdeaCentre A600
(Remote control and wireless
keyboard/mouse on select models)
Lenovo IdeaCentre A600
(Remote control and wireless
keyboard/mouse on select models)
Lenovo IdeaCentre A600
Lenovo IdeaCentre A600
Lenovo IdeaCentre A600
Lenovo IdeaCentre A600
IdeaCentre™ A600 (3011)
Personal Systems Reference (PSREF)
Type-model
Processor
GHz
Widescreen
displayMemory
Camera
(mega-
pixel)
Graphics
SATA
disk
SATA
optical
Mini PCIe
802.11
wireless
TV
tuner
Remote
control
Microphone
Bluetooth
KBD/
Mouse
Vista
preload
3011-2AU T4200 2.00 2GB 21.5" WUXGA 1.3 GMA 320GB8 DVD ±RW 11b/g28 Mono USB Prem 64 Apr 09
3011-2BU T4200 2.00 3GB 21.5" WUXGA 1.3 GMA 500GB DVD±RW Intel 5100 Mono USB Prem 64 Apr 09
3011-2CU T4200 2.00 4GB 21.5" WUXGA 1.3 GMA 640GB DVD±RW Intel 5100 Mono USB Prem 64 Apr 09
3011-3AU T6400 2.00 3GB 21.5" WUXGA 1.3 GMA 640GB DVD±RW ✶ Intel 5100 Mono USB Prem 64 Apr 09
3011-3CU T6400 2.00 4GB 21.5" WUXGA 2.0 HD 3650 1TB DVD±RW ✶ Intel 5100 TV Remote Array Blue Wireless Prem 64 Apr 09
3011-4AU P7450 2.13 4GB 21.5" WUXGA 2.0 HD 3650 1TB BD player ✣ Intel 5100 Array Blue USB Prem 64 Apr 09
3011-4BU P7450 2.13 4GB 21.5" WUXGA 2.0 HD 3650 1TB BD player ✣ Intel 5100 TV 4-in-1 Array Blue Wireless Prem 64 Apr 09
3011-3DU T6400 2.00 3GB 21.5" WUXGA 1.3 GMA 500GB DVD±RW ✶ Intel 5100 Mono Wireless Prem 32 Apr 09
☞
3011-3HU T6400 2.00 4GB 21.5" WUXGA 2.0 HD 3650 640GB DVD±RW ✶ Intel 5100 TV 4-in-1 Array Blue Wireless Prem 64 Apr 09
☞
• All-In-One design with 21.5" Full HD 16:9 widescreen, glossy display
• (Seleted models) Integrated TV tuner
• (Seleted models) 4-in-1 remote control acts as a motion game controller (requires
game support), VOIP handset, Vista Media Center remote and air mouse
• Integrated camera and Lenovo's VeriFace face recognition software helps control
access to your notebook by recognizing your face
• Dolby® Home Theater™ premium audio system with two speakers and one subwoofer
• Lenovo Rescue System provides OneKey recovery and OneKey Antivirus without
booting into Windows
Processor
Memory
S ATA D V D ±RW
SATA Blu-ray™
SATA disk
Widescreen
display
Camera
Controls
Graphics
Intel® Pentium® processor T4200 with dual-core,
800MHz system bus, and 1MB L2 cache or
Intel Core™ 2 Duo processor T6400 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core 2 Duo processor P7450 with dual-core,
Intel HD Boost, 1066MHz system bus, and 3MB L2 cache
2GB, 3GB, or 4GB std / 4GB max7 / PC3-8500 1066MHz DDR3, non-parity,
dual-channel capable, two 204-pin SO-DIMM sockets;
Italics: standard memory in both sockets; no sockets available
Non-italics: standard memory in one socket; one socket available
Some: DVD burner, dual-layer support, fi xed, not removable, 12.7mm, slot-in
Some: Blu-ray Disc reader (no Blu-ray media burning), BD-ROM, no HD-DVD
playback, DVD recordable, not removable, 12.7mm high, slot-in
320GB, 500GB, 640GB, or 1TB, SATA 3.0Gb/s, 3.5" wide, 7200 rpm
21.5" (546.1mm) WUXGA (1920x1080) TFT color, VibrantView (glossy),
CCFL backlight, 300 nits, 16:9 aspect ratio, 1000:1 contrast ratio, frameless screen
Some: camera on top of screen, 1.3-megapixel, fi xed focus, with mono microphone
Some: camera on top of screen, 2.0-megapixel, fi xed focus,
with dual array microphone
Touch-sensitive buttons for brightness, display on/off, and optical disk drive eject
Some: Intel Graphics Media Accelerator 4500MHD (GMA 4500MHD),
Preloaded operating system
- Some: Genuine Windows® Vista
Home Premium 32
- Some: Genuine Windows Vista
Home Premium 64
✧ Vista Premium logo
Preloaded applications14
• Lenovo® OneKey Recovery
• Driver and Application Installation
• Lenovo Recovery Disk Maker
• Lenovo Healthcare Software
• VeriFace™
• Media Show
• Trend Micro™ PC-cillin™ Internet
Security 2008
• Windows Live™ Toolbar
• Microsoft® Offi ce 2007 Trial (60-day)
• Cyberlink Power2Go (DVD±RW,
BD player)
• Corel® WinDVD® (BD player)
20
integrated graphics in GM45, uses main memory, DirectX® 10
Some: ATI ™ Mobility Radeon™ HD 3650, PCI Express® x16, 512MB memory,
DirectX® 10, ATI Avivo™ HD
Chipset
Mobile Intel GM45 Express Chipset (Graphics Memory Controller Hub),
ICH9M I/O Controller Hub (SATA 3.0Gb/s, USB 2.0, PCI Express 1.1, PCI 2.3,
Multicard reader
Por ts
ethernet MAC)
6-in-1 reader (MultiMedia Card, Memory Stick, Memory Stick PRO™,
Secure Digital Card, Secure Digital Elite Pro Card, xD-Picture Card™)
Rear: Four USB 2.0, ethernet (RJ-45), TV antenna connector on some models;
Left: Two USB 2.0, IEEE 1394 FireWire 400 (4-pin connector; 1394a-2000 standard)
Mini PCI Express
Intel 5100
28
11b/g
TV tuner
Bluetooth™
Modem
Ethernet
Audio support
Security
Keyboard
Mouse
Remote control
Dimensions
2
Weight
Chassis
Stand
See footnotes for important warranty information
☞ US models announced April 22, 2009;
previous models on April 07, 2009
Tw o Mini PCI Express slots
28
Some:
11a/b/g/n wireless4,
Mini PCIe adapter, Intel WiFi Link 5100, 1x2 (Shirley Peak)
Some: 11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
Some: AverMedia® Hybrid tuner, support analog and digital signal,
Mini PCIe adapter
Some: Bluetooth 2.1 wireless + EDR, USB 2.0 interface via ICH9M, LED indicator
None
Gigabit ethernet on planar, Broadcom BCM5784
High Defi nition (HD) Audio, RealTek® ALC272 codec /
two speakers (3 watt) and subwoofer (8 watt), Dolby Home Theater Speaker System /
mono microphone or dual array microphone, microphone input jack (3.5 mm),
headphone jack (3.5 mm)
Power-on password, hard disk password, supervisor password
Some: Wireless RF 2.4 GHz keyboard with touch pad, 6-row, 84-key,
touch-sensitive multimedia keys and shortcut keys
Some: USB full-size keyboard with USB hub (two USB ports)
Some: Wireless RF 2.4 GHz Laser Wheel Mouse, 800/1600 dpi (user switchable)
Some: USB Optical Wheel Mouse
Some: Vista MCE remote control (40-button), via IR
Some: 4-in-1 remote control, via bluetooth, acts as motion game controller (requires
games* support), VOIP headset, Vista MCE remote control, and air mouse
* Motion games CD included in 4-in-1 remote control models (requires installation)
3
(WxHxD): 20.47" x 18.22" x 1.06" to 2.36"; 520mm x 463mm x 27 to 60mm
27.7 lb (12.6 kg)
Black color, ABS plastic
Tilt stand (15° back, 5° forward)
✶ Intel Centrino
®
processor technology
✣ Intel Centrino 2 processor technology
Available at these retailers
• lenovo.com
• Fry's
Some: 130-watt (GMA graphics) AC
adapter
Some: 150-watt (ATI graphics) AC
adapter
RoHS-compliant
Limited Warranty12
➫ 1-year parts and labor
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite
service for selected parts
8 am - 5 pm, Mon - Fri coverage
excluding holidays, next business
day response time)
➫ Service upgrade options
(in eligible locations):
• 3-year Lenovo Onsite Repair
9x5 Next Business Day (43R8882)
14
➫ 24x7
issues during the warranty period
via 877-453-6686
toll-free support for warranty
3
,
9
© Lenovo
(BL1-1) April 2009
