Lenovo 253, 243 User Manual

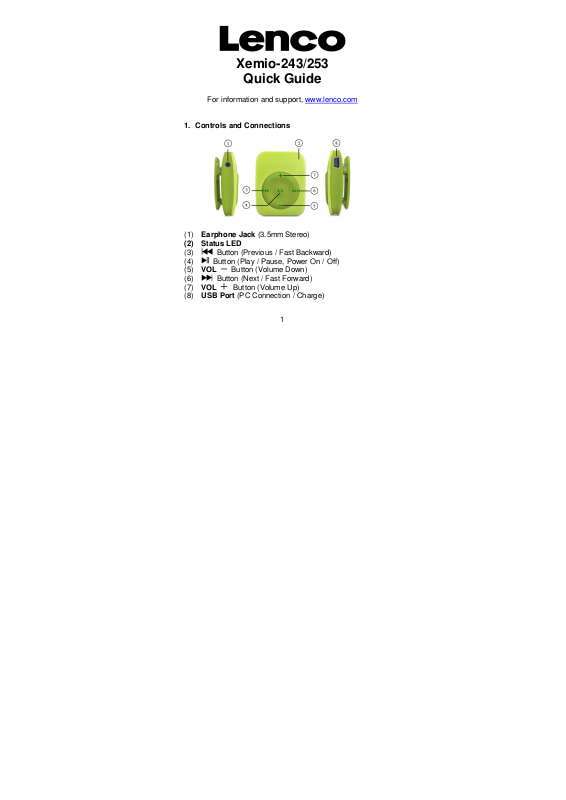

Xemio-243/253

Quick Guide

For information and support, www.lenco.com

1. Controls and Connections

(1) Earphone Jack (3.5mm Stereo)
(2) Status LED

(3) Button (Previous / Fast Backward)
(4) Button (Play / Pause, Power On / Off)
(5) VOL Button (Volume Down)
(6) Button (Next / Fast Forward)
(7) VOL Button (Volume Up)
(8) USB Port (PC Connection / Charge)

1

2. Charging the battery

• Make sure that the computer is turned on. Connect the
player to the computer by using the USB cable. Now
the computer will detect and install the driver
automatically. Once the installation is complete, the
player will be displayed in “My Computer” or for MAC
users on the desktop.

Note: For Windows 98/98SE the driver needs to be
installed first.

• Once connected to a computer the player will charge
automatically (computer needs to be turned on). After 2
hours the battery is fully charged. At same time, the
player is ready for media files upload / download with
your computer.

3. Downloading the User’s Manual

• For consider environment protection, the detailed User
Manual is stored on the player’s flash memory in a
folder named “User Manual”. To open it you need to
download it onto your computer, and then you can view
it on computer directly.

Note: To open the user manual the computer needs to
have a .pdf reader. You can download a .pdf reader for free
via http://get.adobe.com/reader/

2
