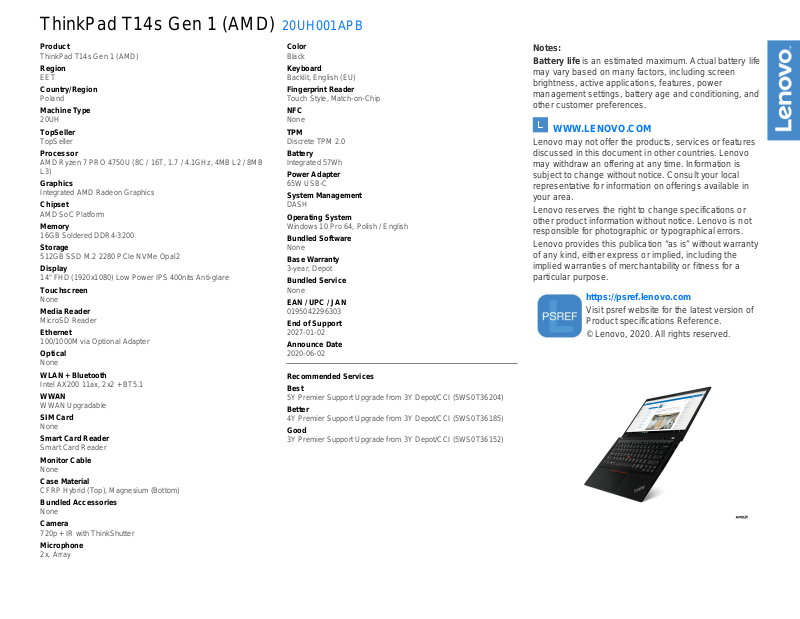

Lenovo 20UH001APB Technical data
ThinkPad T14s Gen 1 (AMD) 20UH001APB
Product
ThinkPad T14s Gen 1 (AMD)
Region
EET
Country/Region
Poland
Machine Type
20UH
TopSeller
TopSeller
Processor
AMD Ryzen 7 PRO 4750U (8C / 16T, 1.7 / 4.1GHz, 4MB L2 / 8MB
L3)
Graphics
Integrated AMD Radeon Graphics
Chipset
AMD SoC Platform
Memory
16GB Soldered DDR4-3200
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Display
14" FHD (1920x1080) Low Power IPS 400nits Anti-glare
Touchscreen
None
Media Reader
MicroSD Reader
Ethernet
100/1000M via Optional Adapter
Optical
None
WLAN + Bluetooth
Intel AX200 11ax, 2x2 + BT5.1
WWAN
WWAN Upgradable
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Case Material
CFRP Hybrid (Top), Magnesium (Bottom)
Bundled Accessories
None
Camera
720p + IR with ThinkShutter
Microphone
2x, Array
Color
Black
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 57Wh
Power Adapter
65W USB-C
System Management
DASH
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
3-year, Depot
Bundled Service
None
EAN / UPC / JAN
0195042296303
End of Support
2027-01-02
Announce Date
2020-06-02
Recommended Services
Best
5Y Premier Support Upgrade from 3Y Depot/CCI (5WS0T36204)
Better
4Y Premier Support Upgrade from 3Y Depot/CCI (5WS0T36185)
Good
3Y Premier Support Upgrade from 3Y Depot/CCI (5WS0T36152)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product specifications Reference.
© Lenovo, 2020. All rights reserved.

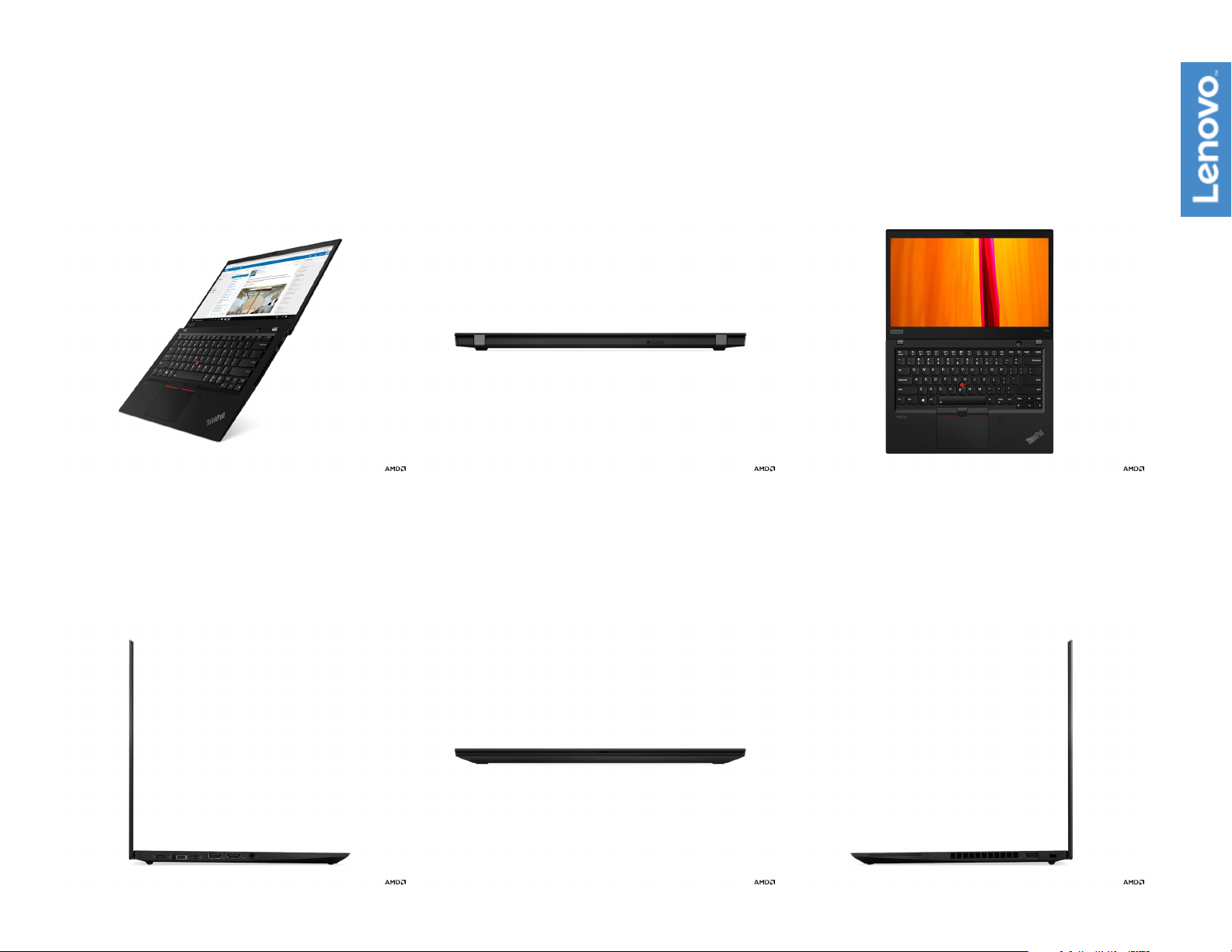

ThinkPad T14s Gen 1 (AMD) Platform Specifications
Product Specifications Reference (PSREF)
Processor AMD Ryzen
Processor
Number
Ryzen 5
PRO 4650U
Ryzen 7
PRO 4750U
PRO 4000 Series Mobile Processors
# of
# of
Cores
Threads
6 12 2.1 GHz 4.0 GHz
8 16 1.7 GHz 4.1 GHz
Base
Clock
Graphics AMD Radeon Graphics in processor;
supports up to 4 independent displays via native display and 3 external monitors;
supports external monitors via HDMI (up to 4K@60Hz) or
USB Type-C (up to 5K@60Hz)
Chipset
Memory
Display
Multi-touch (opt)
Storage
AMD SoC (System on Chip) platform
8GB, 16GB, or 32GB / 3200MHz DDR4 / soldered to systemboard, no sockets
Size Resolution Type Surface Touch Brightness
14.0" FHD (1920x1080) IPS Anti-glare - 250 nits 16:9 700:1 45% 170°
14.0" FHD (1920x1080) IPS Anti-glare
FHD (1920x1080)
14.0"
Low Power
FHD (1920x1080)
14.0"
ThinkPad Privacy
Guard
IPS Anti-glare - 400 nits 16:9 800:1 72% 170°
IPS Anti-glare
On-cell touch, supports 10-finger gesture
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
Optical
Ethernet Native Realtek
None
RTL8111EPV Gigabit Ethernet connection
via optional ThinkPad Ethernet Extension Adapter Gen 2
WLAN +
Bluetooth (opt)
WWAN (optional)
SIM card (opt)
Dimensions
Intel Wi-Fi 6 AX200,
* Intel WiFi 6 full features might be limited by country level restrictions
* BT5.1 is supported on Windows 10 version 2004 or above (limited to BT5.0 on earlier version)
Wi-Fi
2x2 802.11ax +
• Wireless WAN upgradable
• Integrated Mobile Broadband 4G LTE-A,
* For non-WWAN model, it means the model is NOT WWAN upgradable
Gemalto eSIM
WxDxH (FHD / FHD Touch / Privacy Guard):
12.95" x 8.90" x 0.66"; 329.0mm x 226.15mm x 16.7mm
WxDxH (FHD Low Power):
12.94" x 8.89" x 0.63"; 328.8mm x 225.8mm x 16.1mm
Weight
Case color
Case material
Models FHD / FHD Touch FHD Low Power FHD Privacy Guard
Weight 2.98 lb / 1.35 kg 2.81 lb / 1.27 kg 2.81 lb / 1.27 kg
Black
Display cover: CFRP Hybrid;
Max Boost
Clock
Multitouch
Multitouch
Cache
3MB L2 /
8MB L3
4MB L2 /
8MB L3
300 nits 16:9 700:1 45% 170°
500 nits 16:9 1000:1 72% 170°
DDR4-3200
Aspect
Ratio
Memory
Controller
Contrast
Ratio
Bluetooth 5.1
Fibocom L850-GL, M.2 card
Processor
Graphics
AMD Radeon
Graphics
Color
Gamut
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader
Two USB 3.2 Gen 1 (one Always On),
two USB 3.2 Type-C Gen 2 (w/ the function of Power Delivery and DisplayPort 1.4),
HDMI 2.0, Ethernet extension connector,
combo slot of nano-SIM card (WWAN models) and microSD card reader,
headphone / microphone combo jack, optional smart card reader,
side docking connector, security keyhole
Monitor cable
(optional)
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
• Lenovo HDMI to VGA Monitor Adapter
• Lenovo USB-C to VGA Adapter
• Lenovo USB-C to DisplayPort Adapter
Viewing
Angle
Bundled Accy
Camera
Audio support
Keyboard
UltraNav
Optional: ThinkPad Ethernet Extension Adapter Gen 2
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek
optional dual array far-field microphone, headphone / microphone combo jack
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls,
optional LED backlight
TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad
Security
Security chip
System Mgt
Fingerprint reader
NFC
Battery
Max battery life
AC adapter
Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0 TCG Certified
DASH Management
Optional: Touch style match on chip fingerprint reader on the palm rest
None
Integrated Li-Polymer 57Wh battery,
supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
MobileMark
MobileMark 2018: 13.6 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
• 45W USB-C AC adapter
• 65W USB-C AC adapter
• 65W USB-C slim AC adapter
Operating system Optional: Windows
Limited warranty
(optional)
• 1-year depot repair service
• 1-year depot with 2-year system
• 1-year limited onsite service
• 1-year + 2-year depot repair service
• 1-year + 2-year
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold; ENERGY STAR
ALC3287 codec / Dolby Audio speaker system, 1W x 2 /
2014: 15.9 hr
10 Home 64 or Windows 10 Pro 64
board
repair service
limited onsite
service
8.0; RoHS-compliant
Bottom: Magnesium
Note: The specifications above may not be available in all regions and might change by regions. Lenovo
August 2020
