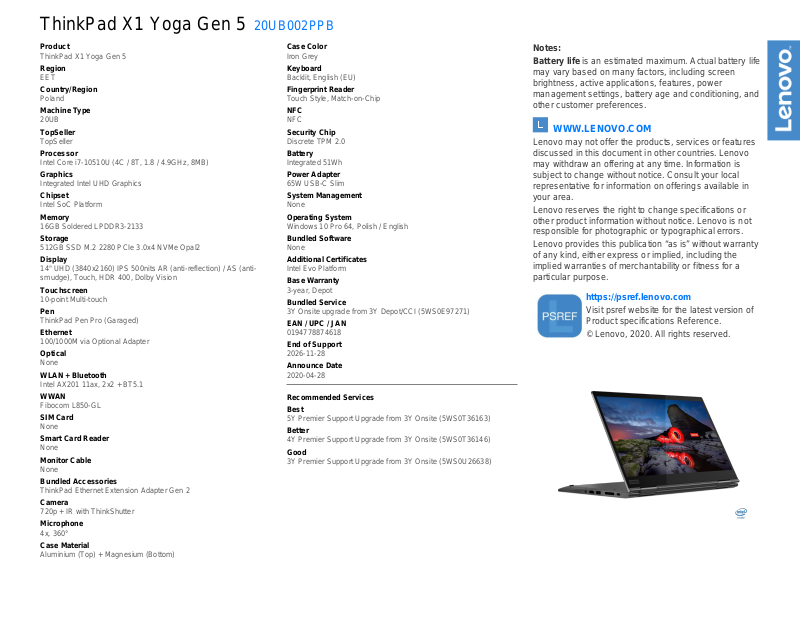

Lenovo 20UB002PPB Technical data
ThinkPad X1 Yoga Gen 5 20UB002PPB
Product
ThinkPad X1 Yoga Gen 5
Region
EET
Country/Region
Poland
Machine Type
20UB
TopSeller
TopSeller
Processor
Intel Core i7-10510U (4C / 8T, 1.8 / 4.9GHz, 8MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR3-2133
Storage
512GB SSD M.2 2280 PCIe 3.0x4 NVMe Opal2
Display
14" UHD (3840x2160) IPS 500nits AR (anti-reflection) / AS (antismudge), Touch, HDR 400, Dolby Vision
Touchscreen
10-point Multi-touch
Pen
ThinkPad Pen Pro (Garaged)
Ethernet
100/1000M via Optional Adapter
Optical
None
WLAN + Bluetooth
Intel AX201 11ax, 2x2 + BT5.1
WWAN
Fibocom L850-GL
SIM Card
None
Smart Card Reader
None
Monitor Cable
None
Bundled Accessories
ThinkPad Ethernet Extension Adapter Gen 2
Camera
720p + IR with ThinkShutter
Microphone
4x, 360°
Case Material
Aluminium (Top) + Magnesium (Bottom)
Case Color
Iron Grey
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
NFC
Security Chip
Discrete TPM 2.0
Battery
Integrated 51Wh
Power Adapter
65W USB-C Slim
System Management
None
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Additional Certificates
Intel Evo Platform
Base Warranty
3-year, Depot
Bundled Service
3Y Onsite upgrade from 3Y Depot/CCI (5WS0E97271)
EAN / UPC / JAN
0194778874618
End of Support
2026-11-28
Announce Date
2020-04-28
Recommended Services
Best
5Y Premier Support Upgrade from 3Y Onsite (5WS0T36163)
Better
4Y Premier Support Upgrade from 3Y Onsite (5WS0T36146)
Good
3Y Premier Support Upgrade from 3Y Onsite (5WS0U26638)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product specifications Reference.
© Lenovo, 2020. All rights reserved.
ThinkPad X1 Yoga Gen 5 Platform Specifications
Product Specifications Reference (PSREF)
Threads
4 8
Core i5 / i7 Processor
# of
Base
Frequency
1.6 GHz 4.2 GHz 6MB
Anti-reflection
IPS
Anti-smudge
Anti-reflection
IPS
Anti-smudge
Anti-reflection
Anti-smudge
Anti-reflection
IPS
Anti-smudge
Wi-Fi
2x2 802.11ax +
Max Turbo
Frequency
Cache Memory Types
LPDDR3-2133
Bright-
Aspect
Ratio
Contrast
Ratio
ness
400 nits 16:9 700:1 72% 170°
500 nits 16:9 1000:1 72% 170°
300 nits 16:9 1000:1 72% 170°
500 nits 16:9 1500:1
Processor
Graphics
Intel UHD
Graphics
Color
Gamut
90%
DCI-P3
Viewing
Angle
170°
Bluetooth 5.1
Fibocom L850-GL, M.2 card
Fibocom L860-GL, MIMO 2x2, M.2 card
Dimensions
WxDxH (Privacy Guard): 12.71" x 8.58" x 0.63"; 323mm x 218mm x 15.95mm
WxDxH (other model): 12.71" x 8.58" x 0.61"; 323mm x 218mm x 15.5mm
Weight
Privacy Guard model: starting at 3.24 lb / 1.47 kg;
Other model: starting at 2.99 lb / 1.36 kg
Case color
Case material
Iron Grey
Display cover: Aluminium;
Bottom: Magnesium
Smart card reader
Media reader
Ports
None
None
Two USB 3.2 Gen 1 (one Always On), two USB 3.2 Type-C Gen 2 / Thunderbolt 3
(with the function of Power Delivery and DisplayPort), HDMI 1.4b,
Ethernet extension connector, nano-SIM card slot (WWAN models),
headphone / microphone combo jack, side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
Bundled Accy
Camera (optional)
Optional: Lenovo HDMI to VGA Monitor Adapter
Optional: ThinkPad Ethernet Extension Adapter Gen 2
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
Audio support
HD Audio, USI 4551-513711-00 codec /
Dolby Atmos speaker system, 2W x 2, 0.8W x 2 /
four 360° far-field microphones, headphone / microphone combo jack
Keyboard
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls,
LED backlight
UltraNav
Security
Security chip
TrackPoint
Power-on password, hard disk password, supervisor password, security keyhole
• Firmware TPM 2.0 integrated in chipset
• Discrete TPM 2.0 TCG Certified
System Mgt (opt)
Fingerprint reader
NFC (optional)
Battery
Intel vPro Technology
Touch style match on chip fingerprint reader on the palm rest
Near Field Communication
Integrated Li-Polymer 51Wh battery,
supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Max battery life
AC adapter
MobileMark
MobileMark 2018: 13.0 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
• 45W USB-C AC adapter
• 65W USB-C AC adapter
• 65W USB-C slim AC adapter
Operating system • Windows
• Windows 10 Pro 64
Limited warranty
(optional)
• 1-year depot repair service
• 1-year depot with 2-year system
• 1-year limited onsite service
• 1-year + 2-year depot repair service
• 1-year + 2-year
• 3-year/1-yr battery depot repair service
pointing device and buttonless glass surface multi-touch touchpad
2014: 19.3 hr
10 Home 64
board
repair service
limited onsite
service
Processor 10th Generation Intel
Processor
Number
i5-10210U
i5-10310U 1.7 GHz 4.4 GHz 6MB
i7-10510U 1.8 GHz 4.9 GHz 8MB
i7-10610U 1.8 GHz 4.9 GHz 8MB
# of
Cores
Graphics Intel UHD Graphics in processor;
supports up to 3 independent displays via native display and two external monitors;
supports external monitors via HDMI (up to 4K@24Hz) or Thunderbolt (5K@60Hz)
Chipset
Memory
Display
Multi-touch
Hinge
Convert-mode
Pen
Storage
Intel SoC (System on Chip) platform
8GB or 16GB / 2133MHz LPDDR3 / soldered to systemboard, no sockets
Size Resolution Type Surface
FHD (1920x1080)
14.0"
Low Power
FHD (1920x1080)
14.0"
ThinkPad Privacy
Guard
14.0" WQHD (2560x1440) IPS
UHD (3840x2160)
14.0"
HDR 400,
Dolby Vision
* WQHD is NOT available in EMEA
Capacitive-type multi-touch, supports 10-finger gesture,
anti-reflection (AR) / anti-smudge (AS) coating
Yoga hinge, 360 degree
Laptop, tent, stand and tablet
ThinkPad Pen Pro, rechargeable active pen, on-board garage
• M.2 2280 SSD / PCIe NVMe 3.0 x 4
• Intel Optane Memory H10 with Solid State Storage,
M.2 2280, PCIe NVMe 3.0 x 4
Optical
None
Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro)
via optional ThinkPad Ethernet Extension Adapter Gen 2
WLAN +
Bluetooth
WWAN (optional)
SIM card (opt)
Intel Wi-Fi 6 AX201,
* Intel WiFi 6 full features might be limited by country level restrictions
* BT5.1 is supported on Windows 10 version 2004 or above (limited to BT5.0 on earlier version)
• Integrated Mobile Broadband 4G LTE-A,
• Integrated Mobile Broadband 4G LTE-A,
* For non-WWAN model, it means the model is NOT WWAN upgradable
• Gemalto eSIM
• Nano-SIM card, Lenovo Connect 4 month, 4G LTE
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold; ENERGY STAR
8.0; TCO Certified; RoHS-compliant;
Intel Evo Platform
Note: The specifications above may not be available in all regions and might change by regions. Lenovo
November 2020
