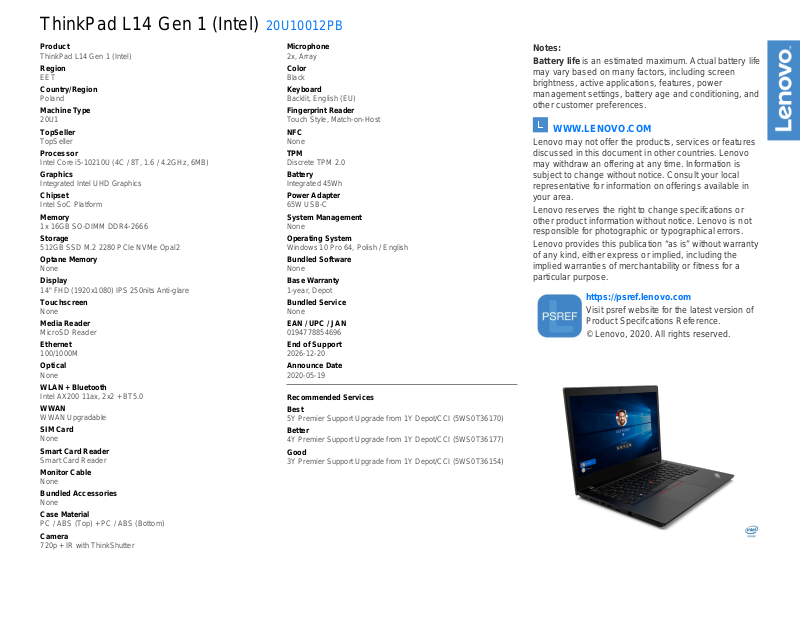

Lenovo 20U10012PB Technical data
ThinkPad L14 Gen 1 (Intel) 20U10012PB
Product
ThinkPad L14 Gen 1 (Intel)
Region
EET
Country/Region
Poland
Machine Type
20U1
TopSeller
TopSeller
Processor
Intel Core i5-10210U (4C / 8T, 1.6 / 4.2GHz, 6MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
1x 16GB SO-DIMM DDR4-2666
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Optane Memory
None
Display
14" FHD (1920x1080) IPS 250nits Anti-glare
Touchscreen
None
Media Reader
MicroSD Reader
Ethernet
100/1000M
Optical
None
WLAN + Bluetooth
Intel AX200 11ax, 2x2 + BT5.0
WWAN
WWAN Upgradable
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Bundled Accessories
None
Case Material
PC / ABS (Top) + PC / ABS (Bottom)
Camera
720p + IR with ThinkShutter
Microphone
2x, Array
Color
Black
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Host
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 45Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
1-year, Depot
Bundled Service
None
EAN / UPC / JAN
0194778854696
End of Support
2026-12-20
Announce Date
2020-05-19
Recommended Services
Best
5Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36170)
Better
4Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36177)
Good
3Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36154)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2020. All rights reserved.
ThinkPad L14 Gen 1 (Intel) Platform Specifications
Product Specifications Reference (PSREF)
Processor Intel
Graphics Intel UHD Graphics in processor only or
Chipset
Memory
Display
Multi-touch (opt)
Storage
Optical
Ethernet Non-vPro model: Intel Ethernet Connection I219-V (Jacksonville)
WLAN +
Bluetooth
(opt)
WWAN (optional)
SIM card (opt)
Pentium Gold Processor or
10th Generation Intel Core i3 / i5 / i7 Processor
Processor
Number
Pentium
Gold 6405U
i3-10110U 2 4 2.1 GHz 4.1 GHz 4MB
i5-10210U
i5-10310U 1.7 GHz 4.4 GHz 6MB
i7-10510U 1.8 GHz 4.9 GHz 8MB
i7-10610U 1.8 GHz 4.9 GHz 8MB
# of
Cores
# of
Threads
2 4 2.4 GHz - 2MB DDR4-2400
4 8
Base
Frequency
1.6 GHz 4.2 GHz 6MB
Max Turbo
Frequency
Cache Memory Types
DDR4-2666
Processor
Graphics
Intel UHD
Graphics
Intel UHD Graphics in processor and AMD Radeon 625, 2GB GDDR5 memory
(discrete models are NOT available in EMEA);
supports up to 3 independent displays via native display and two external monitors;
supports external monitors via HDMI (up to 4096x2160@24Hz) or
USB Type-C (up to 4096x2304@60Hz)
Intel SoC (System on Chip) platform
64GB max / 3200MHz DDR4, dual-channel capable, two DDR4 SO-DIMM sockets
* Installed memory is actually 3200MHz but run at 2400MHz or 2666MHz due to Intel limitation
Bright-
Aspect
Size Resolution Type Surface Touch
14.0" HD (1366x768) TN Anti-glare - 220 nits 16:9 400:1 45% 90°
14.0" FHD (1920x1080) IPS Anti-glare - 250 nits 16:9 700:1 45% 170°
14.0" FHD (1920x1080) IPS Anti-glare
ness
Multi-
300 nits 16:9 700:1 45% 170°
touch
Ratio
Contrast
Ratio
Color
Gamut
Viewing
Angle
On-cell touch, supports 10-finger gesture
Up to 2 drives (one HDD and one M.2 2242 SSD)
• HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high,
Active Protection System
(NOT available in EMEA)
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
• Intel Optane Memory H10 with Solid State Storage,
M.2 2280, PCIe NVMe 3.0 x 4
None
vPro model: Intel Ethernet Connection I219-LM (Jacksonville)
• Intel Wi-Fi 6 AX200,
* Intel AX201 card supports BT5.1 but is limited to BT5.0 by Windows OS
Wi-Fi
2x2 802.11ax +
Bluetooth 5.0
• Wireless WAN upgradable
• Integrated Mobile Broadband 4G LTE-A,
* For non-WWAN model, it means the model is NOT WWAN upgradable
Fibocom L850-GL, M.2 card
Gemalto eSIM Card
Dimensions
Aluminum (WxDxH): 13.03" x 9.25" x 0.75"; 331mm x 235mm x 19.1mm
PC/ABS (WxDxH): 13.03" x 9.25" x 0.80"; 331mm x 235mm x 20.4mm
Weight
Aluminum: starting at 3.83 lb / 1.73 kg
PC/ABS: starting at 3.56 lb / 1.61 kg
Case color
Case material
Black
Display cover: PC/ABS plastic or Aluminum (Aluminum is NOT available in EMEA);
Bottom: PC/ABS plastic
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader
Two USB 3.2 Gen 1 (one Always On),
one USB 3.2 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
one USB 3.2 Type-C Gen 2 (with the function of Power Delivery and DisplayPort),
HDMI 1.4b, Ethernet (RJ-45), nano-SIM card slot (WWAN models),
headphone / microphone combo jack, optional smart card reader,
microSD card reader, side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
(optional)
Bundled Accy
Camera (optional)
Audio support
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to VGA: Lenovo USB-C to VGA Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
None
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek ALC3287 codec /
stereo speakers, 2W x 2, Dolby Audio /
dual array microphone (optional for special bid model),
headphone / microphone combo jack
Keyboard
UltraNav
Security
Security chip
System Mgt (opt)
Fingerprint reader
(optional)
NFC (optional)
Battery
Max battery life
AC adapter
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls,
optional LED backlight
TrackPoint
pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Firmware TPM 2.0 integrated in chipset or discrete TPM 2.0 TCG Certified
Intel vPro Technology
• Touch style fingerprint reader on the palm rest, match on host
• Touch style fingerprint reader on the palm rest, match on chip (special bid only)
Near Field Communication
Integrated Li-Polymer 45Wh battery,
supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
MobileMark
MobileMark 2018: 7.95 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
2014: 12.3 hr
• 45W USB-C AC adapter (NOT available in EMEA)
• 65W USB-C AC adapter
Operating system Optional: Windows
Limited warranty
(optional)
• 1-year depot repair service
• 1-year depot with 2-year system
• 1-year limited onsite service
10 Home 64 or Windows 10 Pro 64
board repair service
• 1-year + 2-year depot repair service
• 1-year + 2-year onsite repair service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test Work in progress
Environment EPEAT Silver; ENERGY STAR
Note: The specifications above may not be available in all regions. Lenovo
8.0; TCO Certified; RoHS-compliant
June 2020
