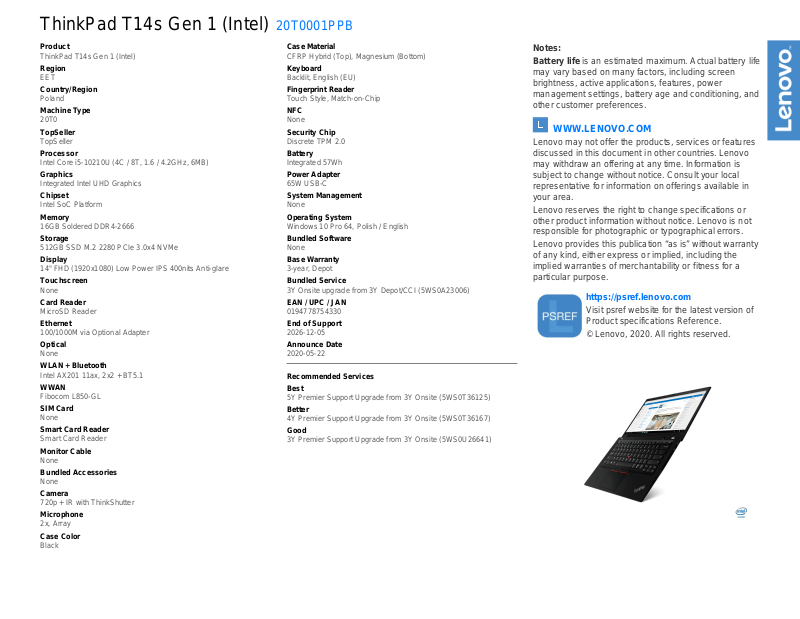

Lenovo 20T0001PPB Technical data
ThinkPad T14s Gen 1 (Intel) 20T0001PPB
Product
ThinkPad T14s Gen 1 (Intel)
Region
EET
Country/Region
Poland
Machine Type
20T0
TopSeller
TopSeller
Processor
Intel Core i5-10210U (4C / 8T, 1.6 / 4.2GHz, 6MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered DDR4-2666
Storage
512GB SSD M.2 2280 PCIe 3.0x4 NVMe
Display
14" FHD (1920x1080) Low Power IPS 400nits Anti-glare
Touchscreen
None
Card Reader
MicroSD Reader
Ethernet
100/1000M via Optional Adapter
Optical
None
WLAN + Bluetooth
Intel AX201 11ax, 2x2 + BT5.1
WWAN
Fibocom L850-GL
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Bundled Accessories
None
Camera
720p + IR with ThinkShutter
Microphone
2x, Array
Case Color
Black
Case Material
CFRP Hybrid (Top), Magnesium (Bottom)
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
None
Security Chip
Discrete TPM 2.0
Battery
Integrated 57Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
3-year, Depot
Bundled Service
3Y Onsite upgrade from 3Y Depot/CCI (5WS0A23006)
EAN / UPC / JAN
0194778754330
End of Support
2026-12-05
Announce Date
2020-05-22
Recommended Services
Best
5Y Premier Support Upgrade from 3Y Onsite (5WS0T36125)
Better
4Y Premier Support Upgrade from 3Y Onsite (5WS0T36167)
Good
3Y Premier Support Upgrade from 3Y Onsite (5WS0U26641)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product specifications Reference.
© Lenovo, 2020. All rights reserved.
ThinkPad T14s Gen 1 (Intel) Platform Specifications
Product Specifications Reference (PSREF)
Threads
4 8
Core i5 / i7 Processor
# of
Base
Frequency
1.6 GHz 4.2 GHz 6MB
IPS Anti-glare - 400 nits 16:9 800:1 72% 170°
IPS Anti-glare
IPS Glossy - 500 nits 16:9 1500:1
Wi-Fi
2x2 802.11ax +
Max Turbo
Frequency
Cache Memory Types
DDR4-2666
Bright-
Aspect
Ratio
Contrast
Ratio
ness
Multi-
300 nits 16:9 700:1 45% 170°
touch
Multi-
500 nits 16:9 1000:1 72% 170°
touch
Bluetooth 5.1
Fibocom L850-GL, M.2 card
Fibocom L860-GL, MIMO 2x2, M.2 card
Processor
Graphics
Intel UHD
Graphics
Color
Gamut
100%
DCI-P3
Dimensions
WxDxH (black with FHD / FHD Touch / Privacy Guard):
12.95" x 8.90" x 0.66"; 329.0mm x 226.15mm x 16.7mm
WxDxH (black with FHD Low Power / UHD):
12.94" x 8.89" x 0.63"; 328.8mm x 225.8mm x 16.1mm
WxDxH (silver): 12.96" x 8.92" x 0.68"; 329.15mm x 226.45mm x 17.2mm
Weight
Case color
Case material
Models
Weight 2.98 lb / 1.35 kg 2.81 lb / 1.27 kg 3.29 lb / 1.49 kg
Black or Silver
Display cover: CFRP Hybrid (black) or Aluminum (silver);
Bottom: Magnesium
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader
Two USB 3.2 Gen 1 (one Always On),
one USB 3.2 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
Viewing
Angle
one USB 3.2 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP),
HDMI 1.4b, Ethernet extension connector,
combo slot of nano-SIM card (WWAN models) and microSD card reader,
headphone / microphone combo jack, optional smart card reader,
side docking connector, security keyhole
Monitor cable
(optional)
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
• Lenovo HDMI to VGA Monitor Adapter
• Lenovo USB-C to VGA Adapter
• Lenovo USB-C to DisplayPort Adapter
Bundled Accy
Camera (optional)
170°
Audio support
Keyboard
Optional: ThinkPad Ethernet Extension Adapter Gen 2
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek
optional dual array far-field microphone, headphone / microphone combo jack
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls,
optional LED backlight
UltraNav
Security
Security chip
TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
• Firmware TPM 2.0 integrated in chipset
• Discrete TPM 2.0 TCG Certified
System Mgt (opt)
Fingerprint reader
NFC (optional)
Battery
Intel vPro Technology
Optional: Touch style match on chip fingerprint reader on the palm rest
Near Field Communication
Integrated Li-Polymer 57Wh battery,
supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Max battery life
AC adapter
MobileMark
MobileMark 2018: 14.28 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
• 45W USB-C AC adapter
• 65W USB-C AC adapter
• 65W USB-C slim AC adapter
Operating system Optional: Windows
Limited warranty
(optional)
• 1-year depot repair service
• 1-year depot with 2-year system
Black with FHD / FHD Touch
/ Privacy Guard
ALC3287 codec / Dolby Audio speaker system, 1W x 2 /
2014: 21 hr
10 Home 64 or Windows 10 Pro 64
board repair service
Black with FHD Low Power
/ UHD
Silver
Processor 10th Generation Intel
Processor
Number
i5-10210U
i5-10310U 1.7 GHz 4.4 GHz 6MB
i7-10510U 1.8 GHz 4.9 GHz 8MB
i7-10610U 1.8 GHz 4.9 GHz 8MB
# of
Cores
Graphics Intel UHD Graphics in processor;
supports up to 3 independent displays via native display and two external monitors;
supports external monitors via HDMI (up to 4096x2160@24Hz),
USB-C (up to 4096x2304@60Hz) or Thunderbolt (up to 4096x2304@60Hz)
Chipset
Memory
Display
Multi-touch (opt)
Storage
Intel SoC (System on Chip) platform
8GB, 16GB or 32GB / 2666MHz DDR4 / soldered to systemboard, no sockets
* Installed memory is actually 3200MHz but run at 2666MHz due to Intel limitation
Size Resolution Type Surface Touch
14.0" FHD (1920x1080) IPS Anti-glare - 250 nits 16:9 700:1 45% 170°
14.0" FHD (1920x1080) IPS Anti-glare
FHD (1920x1080)
14.0"
Low Power
FHD (1920x1080)
14.0"
ThinkPad Privacy
Guard
UHD (3840x2160)
HDR400,
14.0"
Dolby Vision
On-cell touch, supports 10-finger gesture
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
• Intel Optane Memory H10 with Solid State Storage,
M.2 2280, PCIe NVMe 3.0 x 4
Optical
None
Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro)
via optional ThinkPad Ethernet Extension Adapter Gen 2
WLAN +
Bluetooth
WWAN (optional)
Intel Wi-Fi 6 AX201,
* Intel WiFi 6 full features might be limited by country level restrictions
* BT5.1 is supported on Windows 10 version 2004 or above (limited to BT5.0 on earlier version)
• Wireless WAN upgradable
• Integrated Mobile Broadband 4G LTE-A,
• Integrated Mobile Broadband 4G LTE-A,
SIM card (opt)
* For non-WWAN model, it means the model is NOT WWAN upgradable
Gemalto eSIM
• 1-year limited onsite service
• 3-year/1-yr battery depot repair service
• 1-year + 2-year/1-yr battery
depot repair service
• 1-year + 2-year/1-yr battery limited onsite service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold; ENERGY STAR
Note: The specifications above may not be available in all regions and might change by regions. Lenovo
8.0; RoHS-compliant
August 2020
