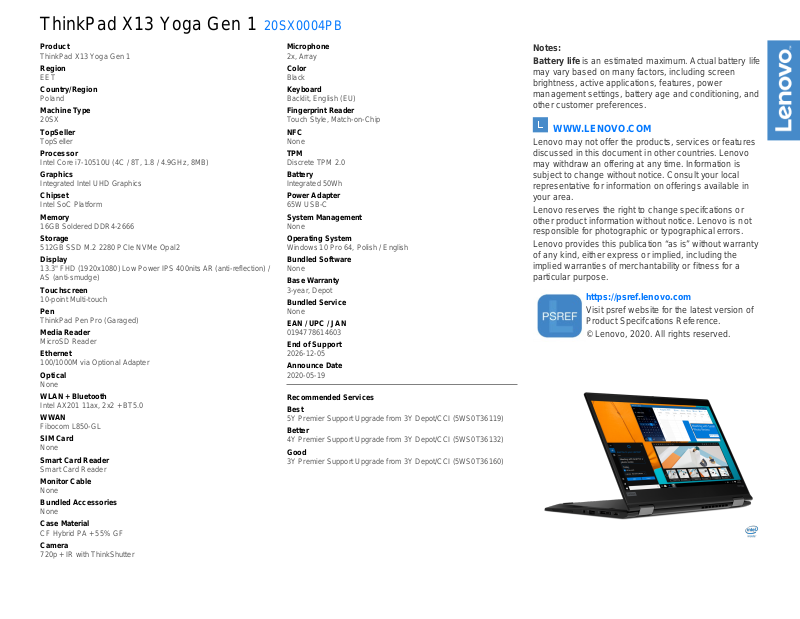

Lenovo 20SX0004PB Technical data
ThinkPad X13 Yoga Gen 1 20SX0004PB
Product
ThinkPad X13 Yoga Gen 1
Region
EET
Country/Region
Poland
Machine Type
20SX
TopSeller
TopSeller
Processor
Intel Core i7-10510U (4C / 8T, 1.8 / 4.9GHz, 8MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered DDR4-2666
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Display
13.3" FHD (1920x1080) Low Power IPS 400nits AR (anti-reflection) /
AS (anti-smudge)
Touchscreen
10-point Multi-touch
Pen
ThinkPad Pen Pro (Garaged)
Media Reader
MicroSD Reader
Ethernet
100/1000M via Optional Adapter
Optical
None
WLAN + Bluetooth
Intel AX201 11ax, 2x2 + BT5.0
WWAN
Fibocom L850-GL
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Bundled Accessories
None
Case Material
CF Hybrid PA + 55% GF
Camera
720p + IR with ThinkShutter
Microphone
2x, Array
Color
Black
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 50Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
3-year, Depot
Bundled Service
None
EAN / UPC / JAN
0194778614603
End of Support
2026-12-05
Announce Date
2020-05-19
Recommended Services
Best
5Y Premier Support Upgrade from 3Y Depot/CCI (5WS0T36119)
Better
4Y Premier Support Upgrade from 3Y Depot/CCI (5WS0T36132)
Good
3Y Premier Support Upgrade from 3Y Depot/CCI (5WS0T36160)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2020. All rights reserved.
ThinkPad X13 Yoga Gen 1 Platform Specifications
Product Specifications Reference (PSREF)
# of
Threads
4 8
6 12
Core i5 / i7 Processor
Base
Frequency
1.6 GHz 4.2 GHz 6MB
1.1 GHz 4.7 GHz 12MB
Anti-reflection
Anti-smudge
Anti-reflection
IPS
Anti-smudge
Anti-reflection
IPS
Anti-smudge
Anti-reflection
OLED
Anti-smudge
Wi-Fi
2x2 802.11ax +
Max Turbo
Frequency
Multitouch
Multitouch
Multitouch
Multitouch
Cache Memory Types
DDR4-2666
Bright-
Aspect
Ratio
Contrast
Ratio
ness
300 nits 16:9 800:1 72% 170°
400 nits 16:9 1500:1 72% 170°
500 nits 16:9 1000:1 72% 170°
400 nits 16:9 100000:1
Processor
Graphics
Intel UHD
Graphics
Color
Gamut
100%
DCI-P3
Viewing
Angle
170°
Bluetooth 5.0
Fibocom L850-GL, M.2 card
Fibocom L860-GL, MIMO 2x2, M.2 card
Dimensions
Weight
Case color
Case material
WxDxH: 12.22" x 8.62" x 0.63"; 310.4mm x 219mm x 15.95mm
Starting at 2.76 lb /1.25 kg
Black
Display cover: CF Hybrid PA + 55% GF
Bottom: CF Hybrid PA + 55% GF
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader, in the combo slot with nano-SIM card
Two USB 3.2 Gen 1 (one Always On),
one USB 3.2 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
one USB 3.2 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP),
HDMI 1.4b, Ethernet extension connector,
combo slot of nano-SIM card (WWAN models) and microSD card reader,
headphone / microphone combo jack, optional smart card reader,
side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
(optional)
• Lenovo HDMI to VGA Monitor Adapter
• Lenovo USB-C to VGA Adapter
• Lenovo USB-C to DisplayPort Adapter
Bundled Accy
Camera (optional)
Audio support
Optional: ThinkPad Ethernet Extension Adapter Gen 2
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek ALC3287 codec / Dolby Audio speaker system, 2W x 2 /
dual array far-field microphone, headphone / microphone combo jack
Keyboard
UltraNav
Security
Security chip
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls,
LED backlight
TrackPoint
pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
• Firmware TPM 2.0 integrated in chipset
• Discrete TPM 2.0 TCG Certified
System Mgt (opt)
Fingerprint reader
NFC (optional)
Battery
Max battery life
AC adapter
Intel vPro Technology
Touch style match on chip fingerprint reader on the palm rest
Near Field Communication
Integrated Li-ion 50Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
with 65W AC adapter
MobileMark
MobileMark 2018: 12.05 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
2014: 18.2 hr
• 45W USB-C AC adapter
• 65W USB-C AC adapter
• 65W USB-C slim AC adapter
Operating system Optional: Windows
Limited warranty
(optional)
• 1-year depot repair service
• 1-year depot with 2-year system
• 1-year limited onsite service
• 1-year + 2-year depot repair service
• 1-year + 2-year
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
10 Home 64 or Windows 10 Pro 64
board
repair service
limited onsite
service
Processor 10th Generation Intel
Processor
Number
i5-10210U
i5-10310U 1.7 GHz 4.4 GHz 6MB
i7-10510U 1.8 GHz 4.9 GHz 8MB
i7-10610U 1.8 GHz 4.9 GHz 8MB
i7-10710U
i7-10810U 1.1 GHz 4.9 GHz 12MB
# of
Cores
Graphics Intel UHD Graphics in processor;
supports up to 3 independent displays via native display and two external monitors;
supports external monitors via HDMI (up to 4096x2160@24Hz),
USB-C (up to 4096x2304@60Hz) or Thunderbolt (up to 4096x2304@60Hz)
Chipset
Memory
Display
Multi-touch
Hinge
Convert-mode
Pen
Storage
Intel SoC (System on Chip) platform
8GB or 16GB / 2666MHz DDR4 / soldered to systemboard, no sockets
* Installed memory is actually 3200MHz but run at 2666MHz due to Intel limitation
Size Resolution Type Surface Touch
13.3" FHD (1920x1080) IPS
FHD (1920x1080)
13.3"
Low Power
FHD (1920x1080)
13.3"
ThinkPad Privacy
Guard
UHD
13.3"
(3840x2160)
Capacitive-type multi-touch, supports 10-finger gesture, anti-reflection (AR),
AS (anti-smudge), could reduce the brightness by up to 10%
Yoga hinge, 360 degree
Laptop, tent, stand and tablet
ThinkPad Pen Pro, active pen for multi-touch display, on-board rechargeable
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
• Intel Optane Memory H10 with Solid State Storage,
M.2 2280, PCIe NVMe 3.0 x 4
Optical
None
Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro)
via optional ThinkPad Ethernet Extension Adapter Gen 2
WLAN +
Bluetooth
WWAN (optional)
SIM card (opt)
Intel Wi-Fi 6 AX201,
* Intel AX201 card supports BT5.1 but is limited to BT5.0 by Windows OS
(opt)
• Integrated Mobile Broadband 4G LTE-A,
• Integrated Mobile Broadband 4G LTE-A,
* For non-WWAN model, it means the model is NOT WWAN upgradable
Gemalto eSIM Card
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold; ENERGY STAR
Note: The specifications above may not be available in all regions. Lenovo
8.0; RoHS-compliant
June 2020
