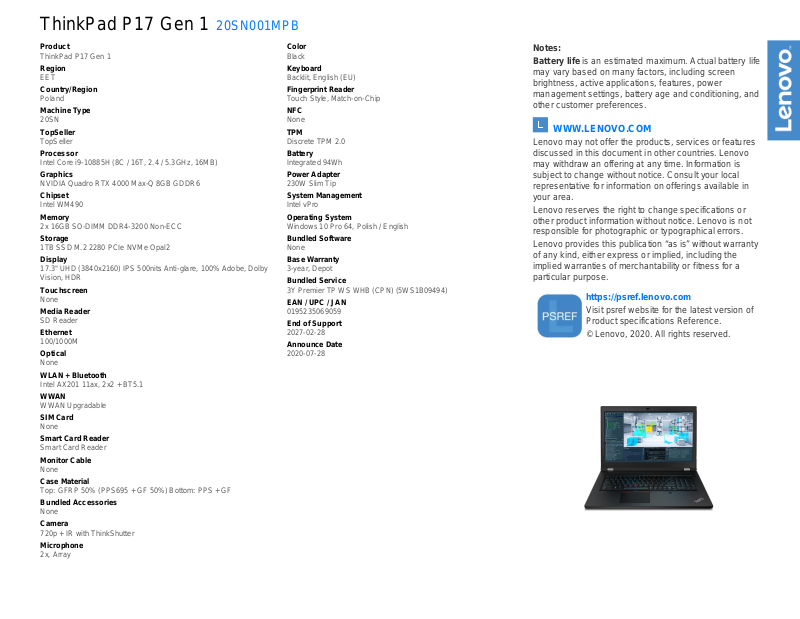

Lenovo 20SN001MPB Technical data

ThinkPad P17 Gen 1 20SN001MPB

Product

ThinkPad P17 Gen 1

Region

EET

Country/Region

Poland

Machine Type

20SN

TopSeller

Processor

Intel Core i9-10885H (8C / 16T, 2.4 / 5.3GHz, 16MB)

Graphics

NVIDIA Quadro RTX 4000 Max-Q 8GB GDDR6

Chipset

Intel WM490

Memory

2x 16GB SO-DIMM DDR4-3200 Non-ECC

Storage

1TB SSD M.2 2280 PCIe NVMe Opal2

Display

17.3" UHD (3840x2160) IPS 500nits Anti-glare, 100% Adobe, Dolby Vision, HDR

Touchscreen

None

Media Reader

SD Reader

Ethernet

100/1000M

Optical

None

WLAN + Bluetooth

Intel AX201 11ax, 2x2 + BT5.1

WWAN

WWAN Upgradable

SIM Card

None

Smart Card Reader

Monitor Cable

None

Case Material

Top: GFRP 50% (PPS695 + GF 50%) Bottom: PPS + GF

Bundled Accessories

None

Camera

720p + IR with ThinkShutter

Microphone

2x, Array

Color

Black

Keyboard

Backlit, English (EU)

Fingerprint Reader

Touch Style, Match-on-Chip

NFC

None

TPM

Discrete TPM 2.0

Battery

Integrated 94Wh

Power Adapter

230W Slim Tip

System Management

Intel vPro

Operating System

Windows 10 Pro 64, Polish / English

Bundled Software

None

Base Warranty

3-year, Depot

Bundled Service

3Y Premier TP WS WHB (CPN) (5WS1B09494)

EAN / UPC / JAN

0195235069059

End of Support

2027-02-28

Announce Date

2020-07-28

Notes: Battery life is an estimated maximum. Actual battery life

may vary based on many factors, including screen brightness, active applications, features, power management settings, battery age and conditioning, and other customer preferences.

WWW.LENOVO.COM

Lenovo may not offer the products, services or features discussed in this document in other countries. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area.

Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors.

Lenovo provides this publication “as is” without warranty of any kind, either express or implied, including the implied warranties of merchantability or fitness for a particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of Product specifications Reference.

ThinkPad P17 Gen 1 Platform Speciﬁcations

Product Speciﬁcations Reference (PSREF)

Supports one 10th Xeon W, Core i9, i7, or i5 processor as following:

# of

Base

Processor Number

Cores

Threads

Frequency

Max Turbo Frequency

Xeon W-10885M 8 16 2.4GHz 5.3GHz 16MB DDR4-2933

Xeon W-10855M 6 12 2.8GHz 5.1GHz 12MB DDR4-2933

Core i9-10980HK 8 16 2.4GHz 5.3GHz 16MB DDR4-2933

Processor

Core i9-10885H 8 16 2.4GHz 5.3GHz 16MB DDR4-2933

Core i7-10875H 8 16 2.3GHz 5.1GHz 16MB DDR4-2933

Core i7-10850H 6 12 2.7GHz 5.1GHz 12MB DDR4-2933

Core i7-10750H 6 12 2.6GHz 5.0GHz 12MB DDR4-2933

Core i5-10400H 4 8 2.6GHz 4.6GHz 8MB DDR4-2933

Chipset

Memory Type

Intel WM490 Chipset SO-DIMM. DDR4-3200 for non-ECC, DDR4-2933 for ECC. ECC and non-ECC

operate at DDR4-2933. 8GB/16GB/32GB available for both ECC and non-ECC Memory Sockets 4 DIMM sockets Memory Protection ECC on models with ECC DIMMs and Xeon processor Max Memory 128GB

Support one of the following discrete graphics:

• NVIDIA Quadro T1000, 4GB GDDR6 memory

Graphics

• NVIDIA Quadro T2000, 4GB GDDR6 memory

• NVIDIA Quadro RTX 3000, 6GB GDDR6 memory

• NVIDIA Quadro RTX 4000 with Max-Q Design, 8GB GDDR6 memory

• NVIDIA Quadro RTX 5000 with Max-Q Design, 16GB GDDR6 memory

Size Resolution Type Surface Touch Brightness

Display

Color Calibration Touchscreen Pen Storage

RAID

Optical

Ethernet

NFC

WLAN + Bluetooth

17.3" FHD (1920x1080) W VA Anti-glare - 300 nits 16:9 700:1

UHD (3840x2160)

17.3"

Dolby Vision,

HDR 400

WVA Anti-glare - 500 nits 16:9 1500:1

Factory Color Calibration on UHD panels

None

Up to two M.2 2280 SSD, PCIe NVMe, 256GB / 512GB / 1TB / 2TB each

RAID 0 / 1 support

None

One onboard GbE port via integrated gigabit ethernet, Intel i219LM for vPro models

or i219V for non-vPro models

None

Optional Intel Wi-Fi 6 AX201 on most models,

Wi-Fi

2x2 802.11ax +

Bluetooth 5.1 requires the latest version of Windows 10 (version 2004 or above)

One of the following, conﬁgurable by model:

WWAN

• No WWAN card and non upgradable

• Integrated Mobile Broadband Upgradable, No WWAN Card, WWAN Antenna Only

• Integrated Mobile Broadband 4G LTE-A, Fibocom L860-GL, MIMO 4x4, M.2 card

SIM card Optional Nano-SIM card slot

Cache

Aspect

Ratio

Memory

Types

Contrast

Ratio

Processor

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Intel UHD

Graphics

Color

Viewing

Gamut

Angle

72%

160°

NTSC

100%

178°

Adobe

Bluetooth 5.1.

Dimensions

Width: 415.44 mm (16.36 in). Depth: 280.81 mm (11.06 in).

Thickness: 25.11~ 33.25 mm (0.99 ~ 1.31 in) Weight Starting at 3.5 kg (7.7 lb, FHD) Case color Black

Case material

Display cover: GFRP 50% (PPS695 + GF 50%).

Bottom: PPS + GF

Media reader SD card reader

1x USB-C (USB 3.2 Gen 1, PD, DP), 2x Thunderbolt (USB-C form, Thunderbolt

Standard Ports

3, USB 3.2 Gen 2, PD, DP), 3x USB-A 3.2 Gen 1 (one Always-on), 1x HDMI

2.0, 1x headphone / microphone combo jack, 1x SD card reader,

1x security keyhole, 1x RJ-45

Optional Ports

One optional smart card reader on right, one optional Nano-SIM card slot on

left

Up to 5 displays with 4 external monitors plus system LCD screen. External

monitors supported via 1x USB-C, 2x Thunderbolt, and 1x HDMI. Monitor support

USB-C and HDMI support up to 4K@60Hz.

With Thunderbolt, one supports up to 5K@60Hz and one supports up to

4K@60Hz Monitor cable Optional HDMI to VGA, USB-C to DP, or USB-C to VGA adapters Bundled Accy None Camera Optional Hybrid IR camera with ThinkShutter camera privacy, ﬁxed focus

Audio chip Realtek ALC3286 codec

Speaker Stereo speakers, Dolby Atmossound system Microphone Optional dual array far-ﬁeld microphone

Keyboard

UltraNav

6-row, spill-resistant, LED backlight, numeric keypad, multimedia Fn keys with

Uniﬁed Communications controls

3-button TrackPointpointing device and 2-button Mylar surface multi-touch

touchpad Password Power-on password, hard disk password, supervisor password

Security chip Discrete TPM 2.0, TCG Certiﬁed, may be disabled in some regions System mgmt Optional Intel vPro Technology supported on vPro enable models Security locks

Security keyhole for optional Kensington lock Smart card reader Optional Fingerprint reader Touch style match on chip ﬁngerprint reader on the palm rest

Battery

Max battery life

Power Adapter

Integrated Li-Polymer 94Wh battery. Supports Rapid Charge (charge up to 80%

in 1hr) with 230W AC adapter

MobileMark 2014: 14.6 hr.

MobileMark 2018: 9.75 hr.

* Battery life varies signiﬁcantly with hardware conﬁgurations, settings, usage, & other factors

One of the following:

• 230W slim AC adapter

• 170W slim AC adapter

Supports one optional preloaded operating system as following:

Operating system

• Windows 10 Home 64

• Windows 10 Pro 64

• Windows 10 Pro 64 for Workstations

• Ubuntu Linux LTS

Optional warranty plans as following:

• 1-year depot repair service

• 3-year depot repair service

Base Warranty

• 1-year + 2-year depot repair service

• 1-year limited onsite service

• 3-year limited onsite service

• 1-year + 2-year limited onsite service

• 1-year depot with 2-year system board repair service

Mil-Spec test MIL-STD-810G military testing Environment EPEAT Gold. ENERGY STAR 8.0. RoHS-compliant

ISV certications Please visit www.thinkworkstations.com/isv-certiﬁcations/

Lenovo, July 2020
