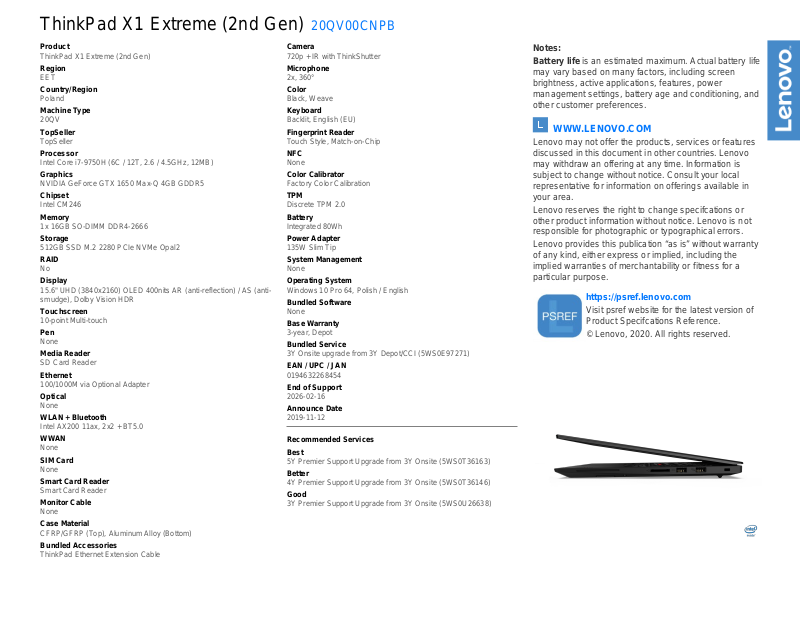

Lenovo 20QV00CNPB Technical data
ThinkPad X1 Extreme (2nd Gen) 20QV00CNPB
Product
ThinkPad X1 Extreme (2nd Gen)
Region
EET
Country/Region
Poland
Machine Type
20QV
TopSeller
TopSeller
Processor
Intel Core i7-9750H (6C / 12T, 2.6 / 4.5GHz, 12MB)
Graphics
NVIDIA GeForce GTX 1650 Max-Q 4GB GDDR5
Chipset
Intel CM246
Memory
1x 16GB SO-DIMM DDR4-2666
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
RAID
No
Display
15.6" UHD (3840x2160) OLED 400nits AR (anti-reflection) / AS (antismudge), Dolby Vision HDR
Touchscreen
10-point Multi-touch
Pen
None
Media Reader
SD Card Reader
Ethernet
100/1000M via Optional Adapter
Optical
None
WLAN + Bluetooth
Intel AX200 11ax, 2x2 + BT5.0
WWAN
None
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Case Material
CFRP/GFRP (Top), Aluminum Alloy (Bottom)
Bundled Accessories
ThinkPad Ethernet Extension Cable
Camera
720p + IR with ThinkShutter
Microphone
2x, 360°
Color
Black, Weave
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
None
Color Calibrator
Factory Color Calibration
TPM
Discrete TPM 2.0
Battery
Integrated 80Wh
Power Adapter
135W Slim Tip
System Management
None
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
3-year, Depot
Bundled Service
3Y Onsite upgrade from 3Y Depot/CCI (5WS0E97271)
EAN / UPC / JAN
0194632268454
End of Support
2026-02-16
Announce Date
2019-11-12
Recommended Services
Best
5Y Premier Support Upgrade from 3Y Onsite (5WS0T36163)
Better
4Y Premier Support Upgrade from 3Y Onsite (5WS0T36146)
Good
3Y Premier Support Upgrade from 3Y Onsite (5WS0U26638)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2020. All rights reserved.

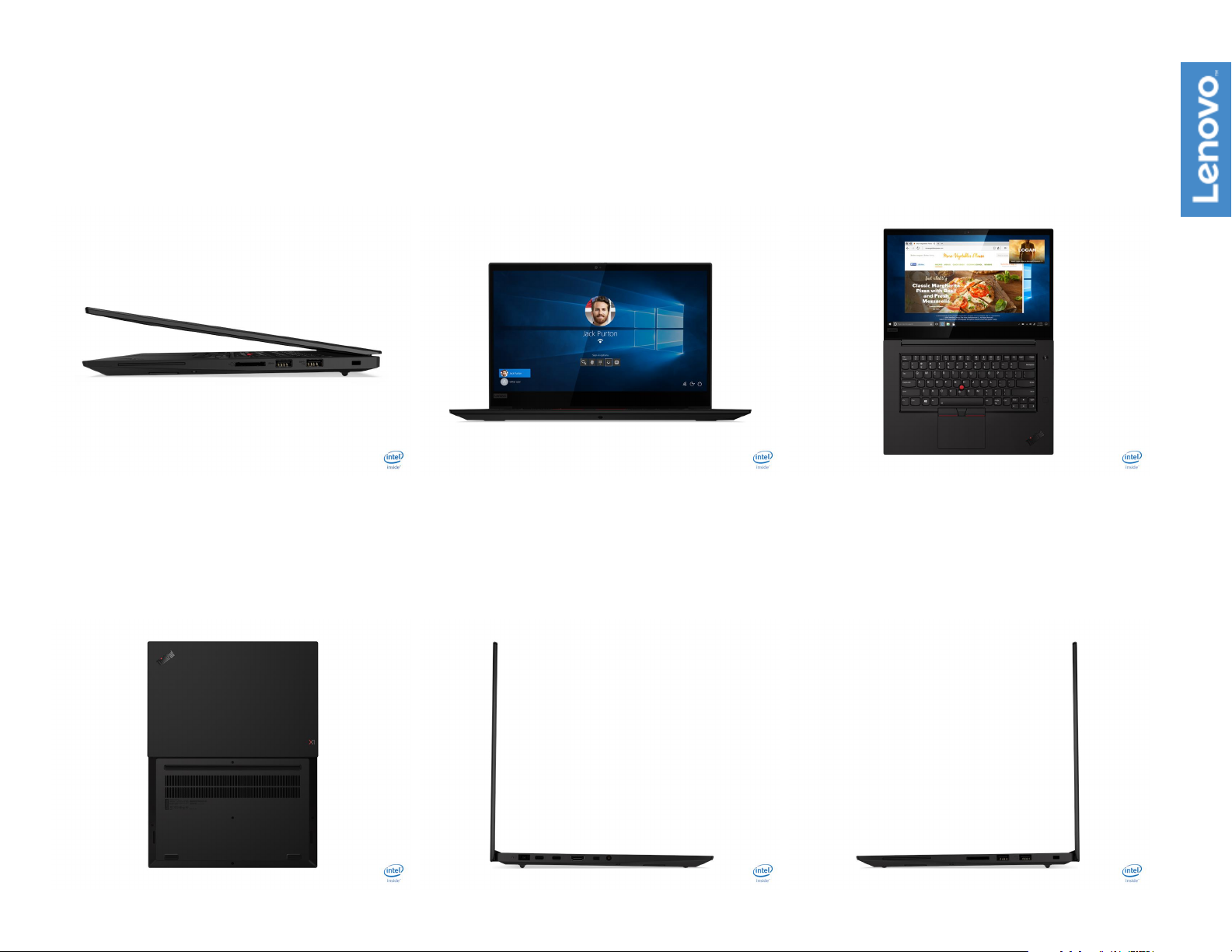

ThinkPad X1 Extreme (2nd Gen) Platform Specifications
Product Specifications Reference (PSREF)
Processor 9th Generation Intel
Processor
Number
i5-9300H 4 8 2.4 GHz 4.1 GHz 8MB
i5-9400H 4 8 2.5 GHz 4.3 GHz 8MB
i7-9750H 6 12 2.6 GHz 4.5 GHz 12MB
i7-9850H 6 12 2.6 GHz 4.6 GHz 12MB
i9-9880H 8 16 2.3 GHz 4.8 GHz 16MB
Cores
Graphics Intel UHD Graphics 630 in processor and
NVIDIA GeForce
supports external digital monitor via HDMI or Thunderbolt;
supports four independent displays;
Max resolution: 5K@60Hz (Thunderbolt); 4K@60Hz (HDMI)
Chipset
Memory
Display
Multi-touch (opt)
Pen (optional)
Storage
RAID (optional)
Optical
Mobile Intel CM246 Chipset
64GB max / 2666MHz DDR4, dual-channel capable, two DDR4 SO-DIMM sockets
Size Resolution Type Surface Brightness
15.6" FHD (1920x1080) IPS Anti-glare 300 nits 16:9 700:1
FHD (1920x1080)
15.6"
Dolby Vision HDR
UHD (3840x2160)
15.6"
Dolby Vision HDR
UHD (3840x2160)
15.6"
Dolby Vision HDR,
Multi-touch
Capacitive-type multi-touch, supports 10-finger gesture (UHD OLED only),
anti-reflection (AR), anti-smudge (AS) coating
Lenovo Pen Pro (special bid only)
Up to two M.2 SSD
M.2 2280 SSD / PCIe NVMe 3.0 x 4
RAID 0/1 support
None
Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro))
via bundled or optional ThinkPad Ethernet Extension Cable
WLAN (optional)
Bluetooth (opt)
WWAN
SIM card
Intel Wi-Fi 6 AX200,
Bluetooth 5.0 wireless, integrated in
None
None
Core i5 / i7 / i9 Processor
# of
# of
Threads
Base
Frequency
Max Turbo
Frequency
GTX 1650 Max-Q, 4GB GDDR5 memory;
IPS Anti-glare 500 nits 16:9 1200:1
IPS Anti-glare 500 nits 16:9 1200:1
Anti-
OLED
Wi-Fi
2x2 802.11ax +
reflection
smudge
Anti-
SDR 400nit,
HDR 500nit
(peak)
Bluetooth 5.0
Wi-Fi + Bluetooth combo adapter
Cache
Aspect
Ratio
Memory
Types
DDR4-2666
Contrast
Ratio
16:9 100000:1
Processor
Graphics
Intel UHD Graphics
630
Color
Viewing
Gamut
Angle
72%
72%
170°
170°
170°
170°
NTSC
NTSC
100%
Adobe
100%
DCI-P3
Dimensions
WxDxH (non-touch): 14.24" x 9.67" x 0.72"; 361.8mm x 245.7mm x 18.4mm
WxDxH (multi-touch): 14.24" x 9.67" x 0.74"; 361.8mm x 245.7mm x 18.7mm
Weight
Non-touch model: starting at 3.75 lb / 1.7 kg;
Multi-touch model: starting at 4.0 lb / 1.81 kg
Case color
Case material
Black paint (FHD model) or black weave (UHD model)
Display cover: CFRP/GFRP hybrid;
Bottom: Aluminum alloy
Smart card reader
Media reader
Ports
Optional: Smart card reader
SD Card reader (SD, SDHC, SDXC), supports UHS-II SD card
Two USB 3.1 Gen 1 (one Always On), two USB 3.1 Type-C Gen 2 / Thunderbolt 3
(with the function of Power Delivery and DisplayPort),
HDMI 2.0, Ethernet extension connector, headphone / microphone combo jack,
optional smart card reader, SD card reader, security keyhole, slim tip AC adapter
* Power Delivery only supports power-out for charging peripherals
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
(optional)
Bundled Accy
Camera (optional)
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to VGA: Lenovo USB-C to VGA Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
Optional: ThinkPad Ethernet Extension Cable
One of the following, configurable by model:
• HD720p camera with ThinkShutter camera privacy, fixed focus
Audio support
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Synaptic CX11880 codec /
stereo speakers, 2W x 2, Dolby Audio Premium /
optional dual 360° far-field microphone, headphone / microphone combo jack,
Dolby Atmos sound system
Keyboard
UltraNav
Security
Security chip
6-row, spill-resistant, multimedia Fn keys, LED backlight
TrackPoint
pointing device and buttonless glass surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Firmware TPM 2.0 integrated in chipset or discrete TPM 2.0 TCG Certified
(may be disabled in some region)
System Mgt (opt)
Fingerprint reader
Color calibration
NFC
Battery
Max battery life
AC adapter
Intel vPro Technology
Touch style match on chip fingerprint reader on the keyboard bezel
Optional: X-Rite Pantone factory color calibration (UHD model only)
None
Integrated Li-Polymer 80Wh battery,
supports Rapid Charge (charge up to 80% in 1hr)
MobileMark
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
2014: 14 hr
135W slim tip AC adapter
Operating system Optional: Windows
Limited warranty
• 1-year depot repair service
• 1-year depot with 2-year system
10 Home 64 or Windows 10 Pro 64
board
repair service
• 1-year limited onsite service
• 1-year + 2-year depot repair service
• 1-year + 2-year
limited onsite
service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold; ENERGY STAR
Note: The specifications above may not be available in all regions. Lenovo
7.1; TCO Certified; RoHS-compliant
June 2020
