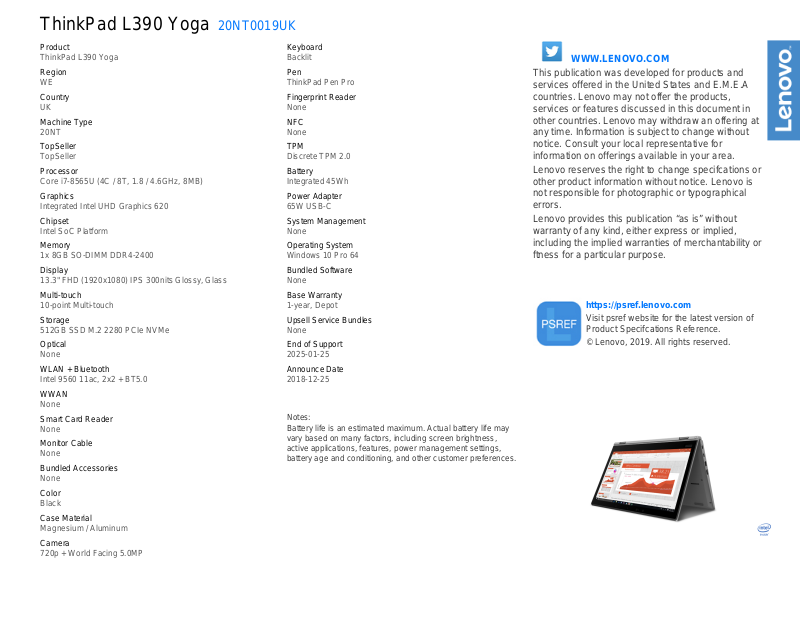

Lenovo 20NT0019UK Technical data
ThinkPad L390 Yoga 20NT0019UK
Product
ThinkPad L390 Yoga
Region
WE
Country
UK
Machine Type
20NT
TopSeller
TopSeller
Processor
Core i7-8565U (4C / 8T, 1.8 / 4.6GHz, 8MB)
Graphics
Integrated Intel UHD Graphics 620
Chipset
Intel SoC Platform
Memory
1x 8GB SO-DIMM DDR4-2400
Display
13.3" FHD (1920x1080) IPS 300nits Glossy, Glass
Multi-touch
10-point Multi-touch
Storage
512GB SSD M.2 2280 PCIe NVMe
Optical
None
WLAN + Bluetooth
Intel 9560 11ac, 2x2 + BT5.0
WWAN
None
Smart Card Reader
None
Monitor Cable
None
Bundled Accessories
None
Color
Black
Case Material
Magnesium / Aluminum
Camera
720p + World Facing 5.0MP
Keyboard
Backlit
Pen
ThinkPad Pen Pro
Fingerprint Reader
None
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 45Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64
Bundled Software
None
Base Warranty
1-year, Depot
Upsell Service Bundles
None
End of Support
2025-01-25
Announce Date
2018-12-25
Notes:
Battery life is an estimated maximum. Actual battery life may
vary based on many factors, including screen brightness,
active applications, features, power management settings,
battery age and conditioning, and other customer preferences.
WWW.LENOVO.COM
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.
Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
ThinkPad L390 Yoga Platform Specifications
# of
Core i3 / i5 / i7 Processor
# of
Threads
Base
Frequency
Wi-Fi
2x2 802.11ac +
Max Turbo
Frequency
Wi-Fi + Bluetooth combo adapter
Cache
Bluetooth
Memory
Types
DDR4-2400
5.0
, M.2
Intel UHD Graphics
card
Processor 8th Generation Intel
Processor
Number
i3-8145U 2 4 2.1 GHz 3.9 GHz 4MB
i5-8265U 4 8 1.6 GHz 3.9 GHz 6MB
i5-8365U 4 8 1.6 GHz 4.1 GHz 6MB
i7-8565U 4 8 1.8 GHz 4.6 GHz 8MB
Cores
Graphics Intel UHD Graphics 620 in processor;
supports external digital monitor via HDMI or USB Type-C;
supports three independent displays;
Max resolution: 4096x2304@60Hz (USB Type-C); 4096x2160@30Hz (HDMI)
Chipset
Memory
Display
Intel SoC (System on Chip) platform
32GB max / 2400MHz DDR4, dual-channel capable, two DDR4 SO-DIMM sockets
13.3" (338mm) FHD (1920x1080), glossy, LED backlight, IPS,
300 nits, 16:9 aspect ratio, 800:1 contrast ratio, 72% gamut, 170° viewing angle
Multi-touch
Hinge
Multi-mode
Pen (optional)
Storage
Capacitive-type multi-touch, AR (anti-reflection), supports 10-finger gesture
Yoga hinge, 360 degree
Notebook, stand, tent, tablet
ThinkPad Pen Pro, active pen for multi-touch display, on-board garage
One of the following, configurable by model:
• M.2 SSD / SATA 6.0Gb/s
• M.2 (2242) SSD / PCIe NVMe, PCIe 3.0 x 2
• M.2 (2280) SSD / PCIe NVMe, PCIe 3.0 x 4
• Intel Optane Memory H10 with Solid State Storage,
Optane Memory
Optical
Storage
M.2 2280, PCIe NVMe 3.0 x 4
Optional: Intel Optane Memory H10
None
One of the following, configurable by model:
• M.2 SSD / SATA 6.0Gb/s (e.g. xxxGB SSD M.2)
Optical
• M.2 SSD / PCIe NVMe, PCIe 3.0 x 4, 32Gb/s (e.g. xxxGB SSD M.2 PCIe NVMe)
None
Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro)
via optional ThinkPad Ethernet Extension Cable or
Lenovo USB-C to Ethernet Adapter
WLAN
Bluetooth
Intel Wireless-AC 9560,
Bluetooth 5.0 wireless, integrated in
WWAN None
Dimensions
Weight
Case color
Case material
WxDxH: 12.67" x 8.82" x 0.74"; 321.8mm x 224.2mm x 18.8mm
Starting at 3.44 lbs / 1.56 kg
Black or Silver
Display cover: Magnesium / Aluminum
Bottom: GFRP
Processor
Graphics
620
Smart card reader
Media reader
Ports
None
MicroSD card reader
Two USB 3.1 Gen 1 (one Always On),
two USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
HDMI 1.4b, Ethernet extension connector, headphone / microphone combo jack,
microSD card reader, security keyhole
Monitor cable
(optional)
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
USB-C to VGA: Lenovo USB-C to VGA Adapter
USB-C to VGA + Power Adapter: Lenovo USB-C to VGA plus Power Adapter
USB-C to HDMI: Lenovo USB-C to HDMI Adapter
USB-C to HDMI + Power Adapter: Lenovo USB-C to HDMI plus Power Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
Bundled
Accessories
(optional)
Camera
USB-C to RJ45: Lenovo USB-C to Ethernet Adapter
USB-C to USB-A: Lenovo USB-C to USB-A Adapter
USB-C to USB-C: Lenovo USB-C to USB-C Cable 2M
720p: HD720p resolution, low light sensitive, fixed focus
IR & 720p: IR camera and HD720p camera, fixed focus (black model only)
World facing: 5MP resolution, auto focus
(mutually exclusive with fingerprint reader)
Audio support
HD Audio, Realtek ALC3287 codec, Dolby Audio Premium / stereo speakers,
2W x 2 / dual array microphone, headphone / microphone combo jack
Keyboard
UltraNav
Security
Security chip
System Mgt (opt)
Fingerprint reader
6-row, spill-resistant, multimedia Fn keys, optional LED backlight
TrackPoint
pointing device and buttonless Mylar surface touchpad, multi-touch
Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0, TCG Certified
Intel vPro Technology
Optional: Touch style fingerprint reader on the palm rest
(mutually exclusive with World facing camera)
NFC (optional)
Battery
Max battery life
AC adapter
Preload Windows
Limited warranty
Near Field Communication
Integrated Li-Ion 45Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
with 65W USB Type-C AC adapter
MobileMark
* Battery life varies significantly with settings, usage, & other factors
2014: 12.17 hrs
45W or 65W USB Type-C AC adapter
10 Home 64 or Windows 10 Pro 64
One of the following, configurable by model:
• 1-year depot repair service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Silver; ENERGY STAR
Product Specifications Reference (PSREF)
7.1; RoHS-compliant
Lenovo
July 2019
