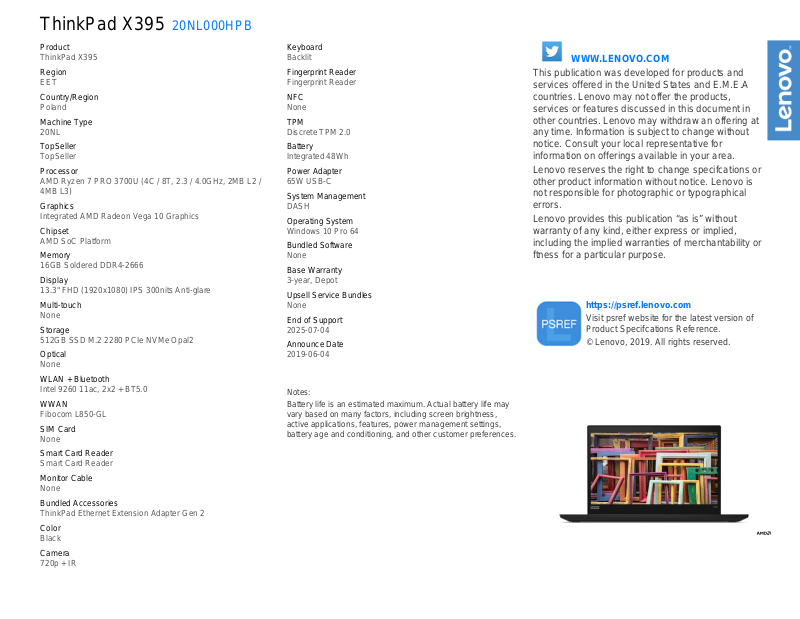

Lenovo 20NL000HPB Technical data
ThinkPad X395 20NL000HPB
Product
ThinkPad X395
Region
EET
Country/Region
Poland
Machine Type
20NL
TopSeller
TopSeller
Processor
AMD Ryzen 7 PRO 3700U (4C / 8T, 2.3 / 4.0GHz, 2MB L2 /
4MB L3)
Graphics
Integrated AMD Radeon Vega 10 Graphics
Chipset
AMD SoC Platform
Memory
16GB Soldered DDR4-2666
Display
13.3" FHD (1920x1080) IPS 300nits Anti-glare
Multi-touch
None
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Optical
None
WLAN + Bluetooth
Intel 9260 11ac, 2x2 + BT5.0
WWAN
Fibocom L850-GL
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Bundled Accessories
ThinkPad Ethernet Extension Adapter Gen 2
Color
Black
Camera
720p + IR
Keyboard
Backlit
Fingerprint Reader
Fingerprint Reader
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 48Wh
Power Adapter
65W USB-C
System Management
DASH
Operating System
Windows 10 Pro 64
Bundled Software
None
Base Warranty
3-year, Depot
Upsell Service Bundles
None
End of Support
2025-07-04
Announce Date
2019-06-04
Notes:
Battery life is an estimated maximum. Actual battery life may
vary based on many factors, including screen brightness,
active applications, features, power management settings,
battery age and conditioning, and other customer preferences.
WWW.LENOVO.COM
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.
Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
ThinkPad X395 Platform Specifications
Product Specifications Reference (PSREF)
Processor AMD Ryzen
Processor
Number
Ryzen 3
Pro 3300U
Ryzen 5
Pro 3500U
Ryzen 7
Pro 3700U
Graphics AMD Radeon Vega 6, Vega 8, or Vega 10 Graphics in processor;
supports external digital monitor via USB-C or HDMI;
supports three independent displays;
Max resolution: 4096x2304@60Hz (USB-C); 4096x2160@24Hz (HDMI)
Chipset
Memory
Display
Multi-touch (opt)
Storage
AMD SoC (System on Chip) platform
8GB or 16GB / 2400MHz DDR4 / soldered to systemboard, no sockets
* Installed memory is actually 2666MHz but run at 2400MHz due to AMD limitation
Size Resolution Type Surface Brightness
13.3" HD (1366x768) TN Anti-glare 250 nits 16:9 300:1 45% 90°
13.3" FHD (1920x1080) IPS Anti-glare 300 nits 16:9
13.3"
On-cell touch, supports 10-finger gesture (FHD only)
• M.2 2280 SSD / SATA 6.0Gb/s
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
Optical
None
Ethernet Native Realtek
via bundled or optional ThinkPad Ethernet Extension Adapter Gen 2
WLAN (optional)
Bluetooth
WWAN (optional)
Intel Wireless-AC 9260,
Bluetooth 5.0 wireless, integrated in
One of the following, configurable by model:
• Wireless WAN upgradable
• Integrated Mobile Broadband 4G LTE-A,
SIM card (opt)
* For non-WWAN model, it means the model is NOT WWAN upgradable
Nano-SIM card slot, optional Verizon LTE (US) SIM card
PRO Mobile Processors with Radeon Vega Graphics
# of
# of
Cores
Threads
4 4 2.1 GHz 3.5 GHz
4 8 2.1 GHz 3.7 GHz
4 8 2.3 GHz 4.0 GHz
FHD (1920x1080)
ThinkPad Privacy
Guard
RTL8153 Gigabit Ethernet connection
Base
Frequency
IPS Anti-glare 400 nits 16:9 1000:1 72% 178°
Wi-Fi
Max Turbo
Frequency
2x2 802.11ac +
Cache
2MB L2 /
4MB L3
2MB L2 /
4MB L3
2MB L2 /
4MB L3
Aspect
Ratio
Bluetooth 5.0
Wi-Fi + Bluetooth combo adapter
Fibocom L850-GL, M.2 card
Memory
Controller
DDR4-2400
Contrast
Ratio
800:1
(non-touch)
700:1
(multi-touch)
Processor
Graphics
Radeon Vega 6
Graphics
Radeon Vega 8
Graphics
Radeon Vega 10
Graphics
Color
Viewing
Gamut
Angle
72% 170°
Dimensions
Weight
Case color
Case material
WxDxH: 12.28" x 8.55" x 0.67"; 311.9mm x 217.2mm x 16.9mm
Models HD / FHD multi-touch FHD non-touch FHD Privacy Guard
Weight 2.91 lb / 1.32 kg 2.82 lb / 1.28 kg 3.01 lb / 1.37 kg
Black
Display cover: PPS/GF;
Bottom: Magnesium/Aluminum
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader, in the combo slot with nano-SIM card
One USB 3.1 Gen 1 (Always On), one USB 3.1 Gen 2,
two USB 3.1 Type-C Gen 2 (with the function of Power Delivery and DisplayPort),
HDMI 2.0, Ethernet extension connector,
combo slot of nano-SIM card (WWAN models) and microSD card reader,
headphone / microphone combo jack, optional smart card reader,
side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
(optional)
Bundled Accy
Camera (optional)
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to VGA: Lenovo USB-C to VGA Adapter
Optional: ThinkPad Ethernet Extension Adapter Gen 2
One of the following, configurable by model:
• HD720p camera with ThinkShutter camera privacy, fixed focus
Audio support
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek ALC3287 codec /
stereo speakers, 1W x 2, Dolby Audio Premium /
dual array far-field microphone, headphone / microphone combo jack
Keyboard
UltraNav
Security
Security chip
System Mgt
Fingerprint reader
NFC
Battery
6-row, spill-resistant, multimedia Fn keys, optional LED backlight
TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0, TCG Certified
DASH Management
Optional: Touch style match on chip fingerprint reader on the palm rest
None
Integrated Li-ion 48Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
with 65W USB Type-C AC adapter
Max battery life
AC adapter
MobileMark
* Battery life varies significantly with settings, usage, & other factors
45W or 65W USB Type-C AC adapter
Preload Windows
Limited warranty
One of the following, configurable by model:
• 1-year depot repair service
• 3-year/1-yr battery depot repair service
2014: 14.5 hr
10 Home 64 or Windows 10 Pro 64
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Silver; ENERGY STAR
Note: The specifications above may not be available in all regions. Lenovo
7.1; RoHS-compliant
July 2019
