Lenovo 20N6001JUK User Manual
T490, T590, P43s, and P53s
User Guide
Read this first
Before using this documentation and the product it supports, ensure that you read and understand the
following:
• Appendix A “Important safety information” on page 85
• Safety and Warranty Guide
• Setup Guide
Second Edition (June 2019)
© Copyright Lenovo 2019.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS35F-05925.
Contents
About this documentation . . . . . . . . iii
Chapter 1. Meet your computer. . . . . 1
Front . . . . . . . . . . . . . . . . . . . . 1
Base . . . . . . . . . . . . . . . . . . . . 2
Left . . . . . . . . . . . . . . . . . . . . 4
Right . . . . . . . . . . . . . . . . . . . . 6
Bottom . . . . . . . . . . . . . . . . . . . 7
Rear . . . . . . . . . . . . . . . . . . . . 8
Features and specifications . . . . . . . . . . . 9
Statement on USB transfer rate . . . . . . . 10
Chapter 2. Get started with your
computer . . . . . . . . . . . . . . . . 11
Get started with Windows 10 . . . . . . . . . 11
Windows account . . . . . . . . . . . . 11
Windows user interface . . . . . . . . . . 12
Windows label . . . . . . . . . . . . . 13
Connect to networks. . . . . . . . . . . . . 13
Connect to the wired Ethernet . . . . . . . 13
Connect to Wi-Fi networks. . . . . . . . . 13
Connect to a cellular network. . . . . . . . 13
Use Lenovo Vantage . . . . . . . . . . . . . 14
Use Lenovo Quick Clean (for selected models of
T490) . . . . . . . . . . . . . . . . . . . 15
Interact with your computer . . . . . . . . . . 15
Use the keyboard shortcuts . . . . . . . . 16
Use the TrackPoint pointing device . . . . . 18
Use the trackpad . . . . . . . . . . . . 19
Use the multi-touch screen . . . . . . . . 21
Using the Privacy Guard feature (for selected
models of T490) . . . . . . . . . . . . . 23
Use the Intelligent Cooling feature . . . . . . 24
Use multimedia . . . . . . . . . . . . . . . 24
Use audio . . . . . . . . . . . . . . . 24
Use the camera . . . . . . . . . . . . . 24
Connect to an external display . . . . . . . 25
Chapter 3. Explore your computer . . 27
Manage power . . . . . . . . . . . . . . . 27
Check the battery status . . . . . . . . . 27
Charge the computer . . . . . . . . . . . 27
Check the battery temperature . . . . . . . 28
Maximize the battery life . . . . . . . . . 28
Set power button behaviors . . . . . . . . 28
Set the power plan . . . . . . . . . . . . 28
Transfer data . . . . . . . . . . . . . . . . 29
Connect to a Bluetooth-enabled device. . . . 29
Set up a NFC connection . . . . . . . . . 29
Use a microSD card or smart card. . . . . . 30
Use RFID reader (for selected models of
T490) . . . . . . . . . . . . . . . . . 31
Airplane mode . . . . . . . . . . . . . . . 31
Chapter 4. Accessories . . . . . . . . 33
Purchase options . . . . . . . . . . . . . . 33
Docking station . . . . . . . . . . . . . . . 33
Front view . . . . . . . . . . . . . . . 34
Rear view . . . . . . . . . . . . . . . 35
Attach a docking station. . . . . . . . . . 36
Detach a docking station . . . . . . . . . 37
Connect multiple external displays . . . . . 38
Chapter 5. Secure your computer
and information . . . . . . . . . . . . 39
Lock the computer . . . . . . . . . . . . . 39
Use passwords . . . . . . . . . . . . . . . 39
Password types . . . . . . . . . . . . . 39
Set, change, and remove a password . . . . 41
Use Power Loss Protection function (for selected
models) . . . . . . . . . . . . . . . . . . 42
Use the fingerprint reader (for selected models) . . 42
Use face authentication (for selected models) . . . 43
Use firewalls and antivirus programs. . . . . . . 43
Chapter 6. Configure advanced
settings. . . . . . . . . . . . . . . . . 45
UEFI BIOS . . . . . . . . . . . . . . . . . 45
What is UEFI BIOS . . . . . . . . . . . . 45
Enter the UEFI BIOS menu . . . . . . . . . 45
Navigate in the UEFI BIOS interface . . . . . 45
Change the startup sequence . . . . . . . 45
Set the system date and time. . . . . . . . 46
Update UEFI BIOS . . . . . . . . . . . . 46
Recovery information . . . . . . . . . . . . 46
Restore system files and settings to an earlier
point . . . . . . . . . . . . . . . . . 46
Restore your files from a backup . . . . . . 46
Reset your computer . . . . . . . . . . . 46
Use advanced options . . . . . . . . . . 47
Windows automatic recovery. . . . . . . . 47
Create and use a recovery USB device . . . . 47
Install Windows 10 and drivers . . . . . . . . . 48
Chapter 7. CRU replacement . . . . . 51
© Copyright Lenovo 2019 i
What are CRUs . . . . . . . . . . . . . . . 51
Disable Fast Startup and the built-in battery. . . . 51
Replace a CRU . . . . . . . . . . . . . . . 52
Base cover assembly (for T490 and P43s
only) . . . . . . . . . . . . . . . . . 52
Base cover assembly (for T590 and P53s
only) . . . . . . . . . . . . . . . . . 54
Memory module (for selected models) . . . . 56
M.2 solid-state drive . . . . . . . . . . . 57
Coin-cell battery. . . . . . . . . . . . . 61
Wireless WAN card (for selected models) . . . 62
Keyboard . . . . . . . . . . . . . . . 66
Speaker assembly . . . . . . . . . . . . 72

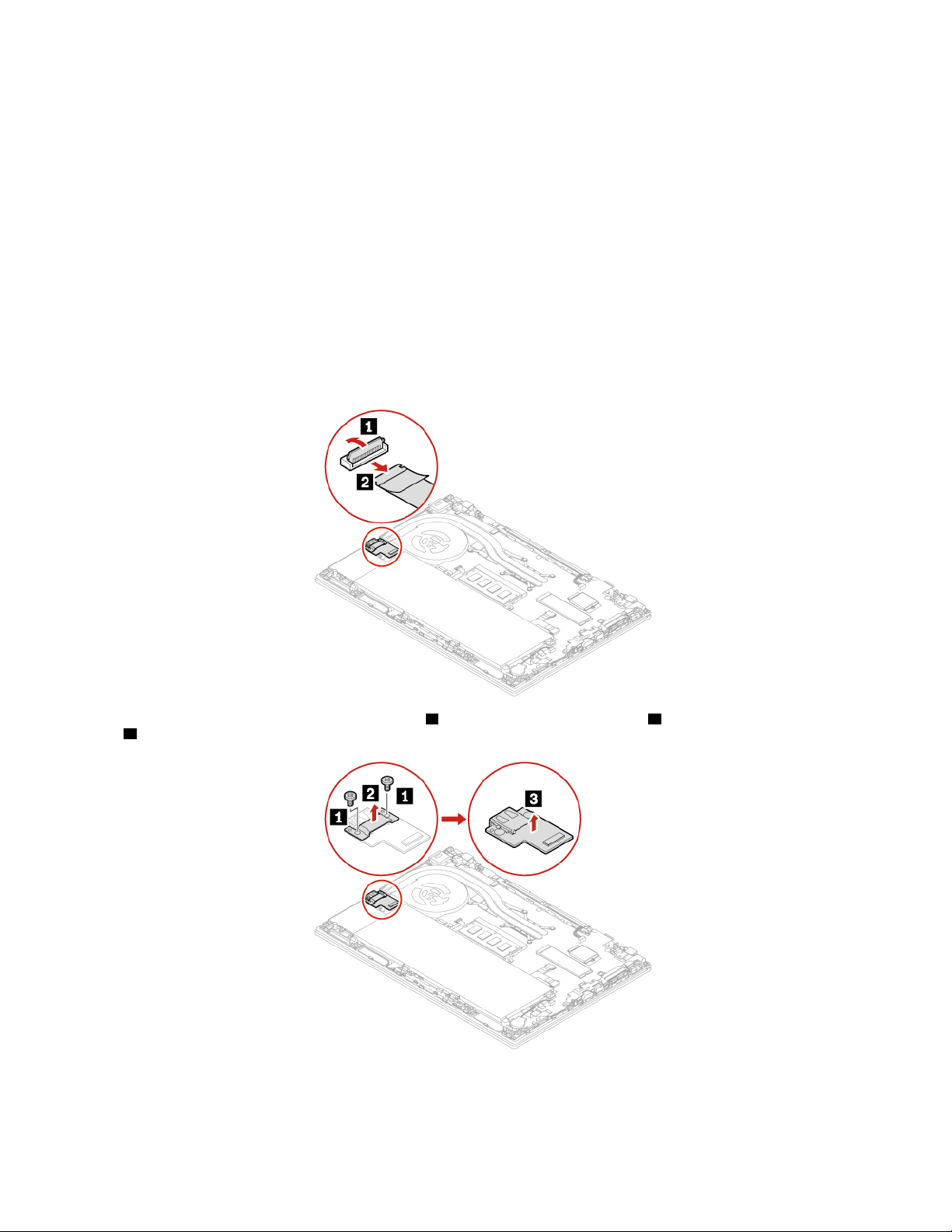

Always On USB 3.1 connector Gen 1 board . . 74
Call Lenovo . . . . . . . . . . . . . . . . 81
Before you contact Lenovo . . . . . . . . 81
Lenovo Customer Support Center . . . . . . 82
Purchase additional services. . . . . . . . . . 83
Appendix A. Important safety
information . . . . . . . . . . . . . . . 85
Appendix B. Accessibility and
ergonomic information . . . . . . . . 99
Appendix C. Supplemental
information about the Ubuntu operating
system . . . . . . . . . . . . . . . . . 103
Chapter 8. Help and support . . . . . 77
Frequently asked questions . . . . . . . . . . 77
Error messages . . . . . . . . . . . . . . . 78
Beep errors . . . . . . . . . . . . . . . . 79
Self-help resources . . . . . . . . . . . . . 80
Appendix D. Compliance
information . . . . . . . . . . . . . . . 105
Appendix E. Notices and
trademarks . . . . . . . . . . . . . . . 119
ii T490, T590, P43s, and P53s User Guide
About this documentation
• Illustrations in this documentation might look different from your product.
• Depending on the model, some optional accessories, features, and software programs might not be
available on your computer.
• Depending on the version of operating systems, some user interface instructions might not be applicable
to your computer.
• Documentation content is subject to change without notice. Lenovo makes constant improvements on the
documentation of your computer, including this User Guide. To get the latest documentation, go to
support.lenovo.com
• Microsoft
®
makes periodic feature changes to the Windows® operating system through Windows Update.
.
As a result, some information in this documentation might become outdated. Refer to Microsoft resources
for the latest information.
https://
© Copyright Lenovo 2019 iii
iv T490, T590, P43s, and P53s User Guide
Chapter 1. Meet your computer
Front
1. Infrared camera*
2. ThinkShutter*
3. Microphones Capture or record sound and voice.
4. Camera*
5. Multi-touch screen*
Log in to your computer with face authentication. See “Use face authentication
(for selected models)” on page 43.
Slide ThinkShutter to cover or uncover the camera lens. It is designed to protect
your privacy.
Take pictures or record videos by clicking Camera from the Start menu. The
indicator next to the camera is on when the camera is in use.
If you use other apps that support photographing, video chatting, and video
conference, the camera starts automatically when you enable the camerarequired feature from the app.
Enable you to use your computer with simple touch gestures. See “Use the multitouch screen” on page 21.
* for selected models
© Copyright Lenovo 2019 1
Base
P43s, T490 (20N2, 20N3, 20RX, 20RY)
T490 (20Q9, 20QH)
P53s, T590
2 T490, T590, P43s, and P53s User Guide
Press to turn on the computer or put the computer to sleep mode.
To turn off the computer, open the Start menu, click
Shut down.
The indicator in the power button shows the system status of your computer.
1. Power button
• Blinking for three times: The computer is initially connected to power.
• On: The computer is on.
• Off: The computer is off or in hibernation mode.
• Blinking rapidly: The computer is entering sleep or hibernation mode.
• Blinking slowly: The computer is in sleep mode.
2. Numeric keypad Quickly input numbers.
3. Fingerprint reader*
4. Trackpad
Log in to your computer with enrolled fingerprints. See “Use the fingerprint reader
(for selected models)” on page 42.
Perform finger touch and all the functions of a traditional mouse. See “Use the
trackpad” on page 19.
Your computer supports NFC (near field communication). You can share
5. NFC label*
information with another NFC-enabled device. See “Set up a NFC connection” on
page 29.
6. TrackPoint
7. Speakers
®
pointing device
Perform all the functions of a traditional mouse. See “Use the TrackPoint pointing
device” on page 18.
Enable you to experience high-quality sound.
Power, and then select
8. RFID label*
* for selected models
If your computer comes with an integrated dual-band RFID (Radio Frequency
Identification) reader, you will see an RFID label. See “Use RFID reader (for
selected models of T490)” on page 31.
Chapter 1. Meet your computer 3
Left
1. USB-C™ connector (USB 3.1
Gen 1)
2. Thunderbolt
(USB-C)
™
3 connector
• Charge your computer.
• Charge USB-C compatible devices with the output voltage and current of 5 V
and 1.5 A.
• Transfer data at USB 3.1 speed, up to 5 Gbps.
• Connect to an external display:
– USB-C to VGA: 1920 x 1200 pixels, 60 Hz
– USB-C to DP: 3840 x 2160 pixels, 60 Hz
• Connect to USB-C accessories to help expand your computer functionality. To
purchase USB-C accessories, go to
• Supply power to another computer using P-to-P (Peer to Peer) 2.0 charging
function. See “Use P-to-P 2.0 charging function” on page 27.
Note: When the battery power is below 10%, the connected USB-C accessories
might not work correctly.
• Charge your computer.
• Charge USB-C compatible devices with the output voltage and current of 5 V
and 1.5 A.
• Transfer data at Thunderbolt 3 speed, up to 20 Gbps.
• Connect to an external display:
– USB-C to VGA: 1920 x 1200 pixels, 60 Hz
– USB-C to DP: 3840 x 2160 pixels, 60 Hz
• Connect to USB-C accessories to help expand your computer functionality. To
purchase USB-C accessories, go to
• Supply power to another computer using P-to-P 2.0 charging function. See
“Use P-to-P 2.0 charging function” on page 27.
Note: When the battery power is below 10%, the connected USB-C accessories
might not work correctly.
https://www.lenovo.com/accessories.
https://www.lenovo.com/accessories.
4 T490, T590, P43s, and P53s User Guide
3. Docking-station connector Connect the computer to one of the following supported docks to extend the
computer capabilities:
• ThinkPad Basic Docking Station
• ThinkPad Pro Docking Station
• ThinkPad Ultra Docking Station
4. USB 3.1 connector Gen 1
5. HDMI™ connector
6. Audio connector
7. MicroSD card slot
* for selected models
Connect a USB-compatible device, such as a USB keyboard, USB mouse, USB
storage device, or USB printer.
Connect to a compatible digital audio device or video monitor, such as an HDTV.
Connect headphones or a headset with a 3.5-mm (0.14-inch) and 4-pole plug to
listen to the sound from the computer.
Note: The conventional microphone is not supported.
Insert a microSD card for data access or storage.
Chapter 1. Meet your computer 5
Right
1. Smart-card slot* Use smart cards for authentication, data storage, and application processing.
Within large organizations, you might also use smart cards for strong security
authentication of single sign-on (SSO). See “Use a microSD card or smart card”
on page 30.
2. Always On USB 3.1 connector
Gen 1
3. Ethernet connector
4. Security-lock slot
* for selected models
With the Always On USB feature enabled, the Always On USB 3.1 connector Gen
1 can charge a USB-compatible device when the computer is on, off, in sleep
mode, or in hibernation mode.
Notes:
• By default, Always On USB is enabled and Charge in Battery Mode is
disabled in UEFI BIOS.
• When the computer is off or in hibernation mode, and Charge in Battery Mode
is disabled in UEFI BIOS, ensure that you have connected the computer to ac
power.
To enable the Always On USB feature, do the following:
1. Enter the UEFI BIOS menu. See “Enter the UEFI BIOS menu” on page 45.
2. Click Config ➙ USB ➙ Always On USB to enable the Always On USB
feature.
Connect to a local area network (LAN). When the green indicator is on, the
computer is connected to a LAN. When the yellow indicator blinks, data is being
transmitted.
Lock your computer to a desk, table, or other fixtures through a compatible
security cable lock. See “Lock the computer” on page 39.
6
T490, T590, P43s, and P53s User Guide
Bottom
T490 and P43s
T590 and P53s
1. Docking-station hook holes Use the docking-station hook holes to secure a supported docking station.
2. Keyboard drainage hole Drain out liquid from your computer if you accidentally spill liquid on the keyboard.
If the computer stops responding and you cannot turn it off by pressing the power
button, reset your computer:
3. Emergency-reset hole
1. Disconnect your computer from ac power.
2. Insert a straightened paper clip into the hole to cut off power supply
temporarily.
3. Connect your computer to ac power and then turn on your computer.
Chapter 1. Meet your computer 7
Rear
1. Nano-SIM-card slot
2. System status indicator
Use the Nano Subscriber Identity Module (SIM) card to connect to a wirelessWAN network. See “Connect to a cellular network” on page 13.
The indicator in the ThinkPad logo on the computer lid shows the system status of
your computer.
• Blinking for three times: The computer is initially connected to power.
• On: The computer is on.
• Off: The computer is off or in hibernation mode.
• Blinking rapidly: The computer is entering sleep or hibernation mode.
• Blinking slowly: The computer is in sleep mode.
8 T490, T590, P43s, and P53s User Guide
Features and specifications
• T490 and P43s:
– Width: 329 mm (12.95 inches)
– Depth: 227 mm (8.93 inches)
Dimensions
– Thickness: 18.9 mm (0.74 inches)
• T590 and P53s:
– Width: 365.8 mm (14.4 inches)
– Depth: 248 mm (9.76 inches)
– Thickness: 19.95 mm (0.79 inches)
Maximum heat output
(depending on the model)
Power source (ac power
adapter)
Microprocessor
Memory
Storage device
Display
• 45 W (154 Btu/hr)
• 65 W (222 Btu/hr)
• Sine-wave input at 50 Hz to 60 Hz
• Input rating of the ac power adapter: 100 V to 240 V ac, 50 Hz to 60 Hz
To view the microprocessor information of your computer, right-click the Start
button and then click System.
• Double data rate 4 (DDR4) small outline dual in-line memory module (SODIMM)
*, up to 32 GB
• Double data rate 4 (DDR4) memory module soldered on the system board, up
to 16 GB
• M.2 solid-state drive*
• Hybrid solid-state drive* (with Intel
• Brightness control
• Color display with Thin Film Transistor (TFT) technology
• Color display with In-Plane Switching (IPS) or Twisted Nematic (TN)
technology*
• Privacy Guard feature*
• Display size:
– T490 and P43s: 355.6 mm (14 inches)
– T590 and P53s: 396.2 mm (15.6 inches)
• Display resolution:
– T490 and P43s: 1366 x 768 pixels, 1920 x 1080 pixels, or 2560 x 1440 pixels
– T590 and P53s: 1920 x 1080 pixels or 3840 x 2160 pixels
• Multi-touch technology*
• Intel Ultra High Definition (UHD) Graphics or discrete graphics
®
Optane™ memory)
Keyboard
• Function keys
• Numeric keypad (for T590 and P53s only)
• Six-row keyboard or six-row keyboard with backlight
• Trackpad
• TrackPoint pointing device
Chapter 1. Meet your computer 9
Connectors and slots
Security features
Wireless features
• Audio connector
• Docking-station connector
• Ethernet connector
• Two USB 3.1 connectors Gen 1 (including one Always On USB 3.1 connector
Gen 1)
• HDMI connector
• MicroSD card slot
• Nano-SIM-card tray*
• Smart-card slot*
• USB-C connector (USB 3.1 Gen 1)
• Thunderbolt 3 connector (USB-C)
• Face authentication*
• Fingerprint reader*
• Password
• RFID*
• Security-lock slot
• Trusted Platform Module (TPM)*
• ThinkShutter*
• Bluetooth
• Global Positioning System (GPS) satellite receiver (available on models with
wireless WAN)*
• Near field communication (NFC)*
• Wireless LAN
• Wireless WAN*
Others
• Camera*
• Microphones
* for selected models
Statement on USB transfer rate
Depending on many factors such as the processing capability of the host and peripheral devices, file
attributes, and other factors related to system configuration and operating environments, the actual transfer
rate using the various USB connectors on this device will vary and will be slower than the data rate listed
below for each corresponding device.
USB device Data rate (Gbit/s)
3.1 Gen 1
3.1 Gen 2
3.2 20
5
10
10 T490, T590, P43s, and P53s User Guide
Chapter 2. Get started with your computer
Get started with Windows 10
Learn the basics of Windows 10 and start working with it right away. For more information about Windows
10, see the Windows help information.
Windows account
To use the Windows operating system, a user account is required. It can either be a Windows user account
or a Microsoft account.
Windows user account
When you start Windows for the first time, you are prompted to create a Windows user account. This first
account you created is of the “Administrator” type. With an Administrator account, you can create additional
user accounts or change account types by doing the following:
1. Open the Start menu and select Settings ➙ Accounts ➙ Family & other users.
2. Follow the on-screen instructions.
Microsoft account
You can also log in to the Windows operating system with a Microsoft account.
To create a Microsoft account, go to the Microsoft sign-up page at
screen instructions.
With a Microsoft account, you can:
• Enjoy one-time signing in if you are using other Microsoft services, such as OneDrive, Skype, and Outlook.
com.
• Sync personalized settings across other Windows-based devices.
https://signup.live.com and follow the on-
© Copyright Lenovo 2019 11
Windows user interface
1. Account
2. Documents
3. Pictures
4. Settings
5. Power
6. Start button
7. Windows Search
8. Task View
9. Windows notification area
10. Battery status icon
11. Network icon
12. Action center
Change account settings, lock the computer, or sign out from the current account.
Open the Documents folder, a default folder to save your received files.
Open the Pictures folder, a default folder to save your received pictures.
Launch Settings.
Shut down, restart, or put the computer into sleep mode.
Open the Start menu.
Type what you are looking for in the search box and get search results from your
computer and the Web.
Display all opened apps and switch among them.
Display notifications and status of some features.
Display power status and change battery or power settings. When your computer
is not connected to ac power, the icon changes to
Connect to an available wireless network and display the network status. When
connected to a wired network, the icon changes to
Display the latest notifications from apps and provide quick access to some
features.
Open the Start menu
• Click the Start button.
• Press the Windows logo key on the keyboard.
.
.
Access Control Panel
• Open the Start menu and click Windows System ➙ Control Panel.
12
T490, T590, P43s, and P53s User Guide
• Use Windows Search.
Launch an app
• Open the Start menu and select the app you want to launch.
• Use Windows Search.
Windows label
Your computer might have a Windows 10 Genuine Microsoft label affixed to its cover depending on the
following factors:
• Your geographic location
• Edition of Windows 10 that is preinstalled
Go to
https://www.microsoft.com/en-us/howtotell/Hardware.aspx for illustrations of the various types of
Genuine Microsoft labels.
• In the People’s Republic of China, the Genuine Microsoft label is required on all computer models
preinstalled with any version of Windows 10.
• In other countries and regions, the Genuine Microsoft label is required only on computer models licensed
for Windows 10 Pro.
The absence of a Genuine Microsoft label does not indicate that the preinstalled Windows version is not
genuine. For details on how to tell whether your preinstalled Windows product is genuine, refer to the
information provided by Microsoft at
https://www.microsoft.com/en-us/howtotell/default.aspx.
There are no external, visual indicators of the Product ID or Windows version for which the computer is
licensed. Instead, the Product ID is recorded in the computer firmware. Whenever a Windows 10 product is
installed, the installation program checks the computer firmware for a valid, matching Product ID to complete
the activation.
In some cases, an earlier Windows version might be preinstalled under the terms of the Windows 10 Pro
license downgrade rights.
Connect to networks
Your computer helps you connect to the world through a wired or wireless network.
Connect to the wired Ethernet
Connect your computer to a local area network (LAN) through the Ethernet connector on your computer with
an Ethernet cable.
Note: If the computer is connected to a supported docking station or dock, use the Ethernet connector on
the docking station or dock instead of the one on the computer.
Connect to Wi-Fi networks
1. Click the network icon in the Windows notification area. A list of available wireless networks is displayed.
2. Select a network to connect to. Provide required information if needed.
Connect to a cellular network
If your computer has a wireless wide area network (WAN) card and a nano-SIM card installed, you can
connect to a cellular data network and get online using the cellular signal.
Chapter 2. Get started with your computer 13
Note: The cellular service is provided by authorized mobile service carriers in some countries or regions.
You must have a cellular plan from a service carrier to connect to the cellular network.
To establish a cellular connection:
1. Insert a straightened paper clip into the hole in the tray
computer. Install a nano-SIM card into the tray
hear a click
3 . If a nano-SIM card is installed, skip this step.
2 . Insert the tray into the nano-SIM-card slot until you
1 . The tray ejects. Then, slide the tray out of the
2. Click the network icon in the Windows notification area, and then select the cellular network icon from
the list.
3. Provide required information if needed.
Use Lenovo Vantage
The preinstalled Lenovo Vantage is a customized one-stop solution to help you maintain your computer with
automated updates and fixes, configure hardware settings, and get personalized support.
Access Lenovo Vantage
Open the Start menu and click Lenovo Vantage. You also can type Lenovo Vantage in the search box.
To download the latest version of Lenovo Vantage, go to Microsoft Store and search by the app name.
Key features
Lenovo Vantage makes periodic updates of the features to keep improving your experience with your
computer.
Note: The available features vary depending on the computer model.
• System Update
Download and install firmware and driver updates to keep your computer up-to-date. You can configure
the options to install updates automatically when available.
• Hardware Settings
Configure intelligent settings of the following hardware to make your computer smarter to use:
– Always On USB
– Battery
– Camera
– Computer display
14
T490, T590, P43s, and P53s User Guide
– Keyboard
– Microphone
– Speakers
– Trackpad
– TrackPoint
• Health & Support
Monitor your computer health and get personalized support of your computer. You can:
– Scan the computer hardware and diagnose hardware problems.
– Look up computer warranty status (online).
– Access User Guide.
– Read tips and tricks articles customized for your computer.
• Lenovo Wi-Fi Security
Protect your computer from malicious Wi-Fi networks.
Use Lenovo Quick Clean (for selected models of T490)
Depending on the models, your computer might support Lenovo Quick Clean feature. The preinstalled
Lenovo Quick Clean enables you to temporarily disable the keyboard, screen, trackpad, and TrackPoint
pointing device for cleaning.
Access Lenovo Quick Clean
To access Lenovo Quick Clean, do one of the following:
• Open the Start menu and click Lenovo Quick Clean.
• Type Lenovo Quick Clean in the search box.
• Press Fn and the right Shift key at the same time.
To download the latest version of Lenovo Quick Clean, go to Lenovo Support Web site.
Interact with your computer
Your computer provides you various ways to navigate the screen.
Chapter 2. Get started with your computer 15
Use the keyboard shortcuts
The special keys on the keyboard help you work more easily and effectively.
T490 and P43s
T590 and P53s
1. Numeric keypad
2. Windows logo key
3. Caps Lock key
4. F1–F12 function
keys
Input numbers quickly when the Numeric Lock indicator is on (for ThinkPad T590 and P53s
only).
Open the Start menu.
For information about using this key with other keys, see the Windows help information.
Switch the letter case between the upper case and lower case.
When the key indicator is on, you can type uppercase letters.
Invoke the special function printed as an icon on each key or standard function.
To choose whether to invoke the special function or standard function:
1. Go to Control Panel and view by Large icons or Small icons.
2. Click Keyboard or Lenovo - Keyboard Manager and select the option of your
preference.
16 T490, T590, P43s, and P53s User Guide
Switch the function of the F1–F12 keys between the standard function and special function
printed as an icon on each key.
When the Fn Lock indicator is on:
• Press F1-F12 to use the standard function.
• Press Fn+F1-F12 to use the special function.
When the Fn Lock indicator is off:
• Press Fn+F1-F12 to use the standard function.
• Press F1-F12 to use the special function.
Mute or unmute the speakers.
When the key indicator is on, the speakers are muted.
If you mute the speakers and turn off your computer, the speakers remain muted when you
turn on your computer.
Decrease the speaker volume.
Increase the speaker volume.
Mute or unmute the microphones.
When the key indicator is on, the microphones are muted.
Darken the computer display.
Brighten the computer display.
Manage external displays.
Enable or disable the built-in wireless features.
Open the Settings window.
Enable or disable the built-in Bluetooth features.
Open a keyboard setting page.
Invoke the function defined by yourself:
1. Open the Start menu and click Lenovo Vantage.
2. Click Hardware Settings and then click Input.
3. Locate the Keyboard: User-defined Key section and follow the on-screen instructions to
complete the setting.
On this setting page, you can also define different functions for the key combinations with
F12, such as Shift+F12, Alt+F12, or Ctrl+F12.
Open the calculator (for ThinkPad T590 and P53s only).
Put your computer to sleep mode (for ThinkPad T590 and P53s only).
Chapter 2. Get started with your computer 17
Open the Snipping Tool program.
Fn+Spacebar
Fn+B
Fn+K
Fn+P
Fn+S
Fn+4
Fn+D
Fn+Left arrow key Equal the Home key.
Fn+Right arrow key Equal the End key.
Switch between different keyboard backlight statuses if your computer supports keyboard
backlight.
Equal the Break key on a conventional external keyboard.
Equal the ScrLK or Scroll Lock key on a conventional external keyboard.
Equal the Pause key on a conventional external keyboard.
Equal the SysRq key on a conventional external keyboard.
Put the computer to sleep mode. To wake up the computer, press Fn or the power button.
If your computer supports the Privacy Guard feature, press Fn+D to enable or disable the
feature. For more information, see “Using the Privacy Guard feature (for selected models of
T490)” on page 23.
Use the TrackPoint pointing device
The TrackPoint pointing device enables you to perform all the functions of a traditional mouse, such as
pointing, clicking, and scrolling.
Use the TrackPoint pointing device
1. Pointing stick
Use your index finger or middle finger to apply pressure to the pointing-stick nonslip cap in any direction
parallel to the keyboard. The pointer on the screen moves accordingly but the pointing stick itself does not
move. The higher the pressure applied, the faster the pointer moves.
2. Left-click button
Press to select or open an item.
18
T490, T590, P43s, and P53s User Guide
3. Right-click button
Press to display a shortcut menu.
4. Middle button
Press and hold the dotted middle button while applying pressure to the pointing stick in the vertical or
horizontal direction. Then, you can scroll through the document, Web site, or apps.
Disable the TrackPoint pointing device
The TrackPoint pointing device is active by default. To disable the device:
1. Open the Start menu, and then click Settings ➙ Devices ➙ Mouse.
2. Follow the on-screen instructions to disable TrackPoint.
Replace the pointing-stick nonslip cap
Note: Ensure that the new cap has grooves
a .
Use the trackpad
The entire trackpad surface is sensitive to finger touch and movement. You can use the trackpad to perform
all the pointing, clicking, and scrolling functions of a traditional mouse.
Use the trackpad
Chapter 2. Get started with your computer 19
1. Left-click zone
Press to select or open an item.
You also can tap anywhere on the surface of the trackpad with one finger to perform the left-click action.
2. Right-click zone
Press to display a shortcut menu.
You also can tap anywhere on the surface of the trackpad with two fingers to perform the right-click action.
Use the touch gestures
Tap
Tap anywhere on the trackpad with one finger to select or open an
item.
Two-finger tap
Tap anywhere on the trackpad with two fingers to display a shortcut
menu.
Two-finger scroll
Put two fingers on the trackpad and move them in the vertical or
horizontal direction. This action enables you to scroll through the
document, Web site, or apps.
Two-finger zoom out
Put two fingers on the trackpad and move them closer together to
zoom out.
Two-finger zoom in
Put two fingers on the trackpad and move them farther apart to zoom
in.
20 T490, T590, P43s, and P53s User Guide
Swipe three fingers up
Put three fingers on the trackpad and move them up to open the task
view to see all your open windows.
Swipe three fingers down
Put three fingers on the trackpad and move them down to show the
desktop.
Notes:
• When using two or more fingers, ensure that you position your fingers slightly apart.
• Some gestures are not available if the last action was done from the TrackPoint pointing device.
• Some gestures are only available when you are using certain apps.
• If the trackpad surface is stained with oil, turn off the computer first. Then, gently wipe the trackpad
surface with a soft and lint-free cloth moistened with lukewarm water or computer cleaner.
For more gestures, see the help information of the pointing device.
Disable the trackpad
The trackpad is active by default. To disable the device:
1. Open the Start menu, and then click Settings ➙ Devices ➙ Touchpad.
2. In the Touchpad section, turn off the Touchpad control.
Use the multi-touch screen
If your computer display supports the multi-touch function, you can navigate the screen with simple touch
gestures.
Note: Some gestures might not be available depending on the app you use.
Tap once
• From the Start menu: Open an app or item.
• From the desktop: Select an app or item.
• In an open app: Perform an action such as Copy, Save, and
Delete, depending on the app.
Tap twice quickly
Open an app or item from the desktop.
Chapter 2. Get started with your computer 21
Tap and hold
Open a shortcut menu.
Slide
Scroll through items, such as lists, pages, and photos.
Drag an item to the location you want
Move an object.
Move two fingers closer together
Zoom out.
Move two fingers farther apart
Zoom in.
Swipe in from the right edge
Open the action center to see your notifications and quick actions.
22 T490, T590, P43s, and P53s User Guide
Swipe in from the left edge
View all your open windows in task view.
• Swipe downwards shortly from the top edge (for full-screened
app or when your computer is in the tablet mode)
Show a hidden title bar.
• Swipe in from the top edge to the bottom edge (when your
computer is in the tablet mode)
Close the current app.
Tips
• Turn off the computer before cleaning the multi-touch screen.
• Use a dry, soft, and lint-free cloth or a piece of absorbent cotton to remove fingerprints or dust from the
multi-touch screen. Do not apply solvents to the cloth.
• The multi-touch screen is a glass panel covered with a plastic film. Do not apply pressure or place any
metallic object on the screen, which might damage the touch panel or cause it to malfunction.
• Do not use fingernails, gloved fingers, or inanimate objects for input on the screen.
• Regularly calibrate the accuracy of the finger input to avoid a discrepancy.
Using the Privacy Guard feature (for selected models of T490)
Depending on the model, your computer might support the Privacy Guard feature.
The Privacy Guard feature prevents others from peeking at your screen to protect your privacy whenever
needed. When the feature is enabled, it darkens the screen and narrows the viewing angle, making the
screen content easily visible only to the people in front of the computer.
By default, the Privacy Guard feature is disabled. To enable or disable this feature, do one of the following:
• Press Fn+D.
• Press F12 (when the Fn Lock indicator is off) or Fn+F12 (when the Fn Lock indicator is on).
• Open the Start menu and then click Lenovo Vantage ➙ Hardware Settings ➙ Audio/Visual. Locate the
Privacy Guard section to turn on or turn off the switch.
Note: You will be prompted by the on-screen display every time the feature is enabled or disabled.
Automatic Privacy Guard feature for passwords
Note: The automatic Privacy Guard feature for passwords is not supported on computers with the Ubuntu
operating system.
The Privacy Guard feature is turned on automatically when you are required to input the password for a
password-protected object, such as an encrypted document or a Web site that needs password
authentication. To select this feature:
1. Open the Start menu and then click Lenovo Vantage ➙ Hardware Settings ➙ Audio/Visual.
Chapter 2. Get started with your computer 23
2. Locate the Privacy Guard section, and then select Enable this feature when typing passwords.
Tips on using the Privacy Guard feature
• To increase privacy level, press
environments.
• To decrease privacy level, press
environments.
• Your computer will remember the last used privacy level.
until the desired level is achieved. This is useful in darker
until the desired level is achieved. This is useful in brighter
Use the Intelligent Cooling feature
The Intelligent Cooling feature enables your computer to work in the following three modes:
• Quiet mode
• Balanced mode
• Performance mode
To select the preferred mode:
1. Click the battery status icon in the Windows notification area.
2. Move the slider to the left or right to select your preferred mode.
: Your computer works with the least fan noise.
: Your computer works with balanced performance and noise.
: Your computer works with the highest performance and normal noise.
on ac power on battery power
Use multimedia
Use your computer for business or entertainment with the built-in components (camera, speakers, and audio
features) or connected external devices (an external projector, monitor, and HDTV).
Use audio
To enhance your listening experience, connect speakers, headphones, or a headset with a 3.5-mm (0.14inch), 4-pole plug to the audio connector.
Adjust the speaker volume
Press
Change the sound settings
1. Go to Control Panel and view by category.
2. Click Hardware and Sound ➙ Sound.
3. Change the settings as you prefer.
to increase the speaker volume or press to decrease the speaker volume.
Use the camera
You can use the built-in camera to take photos or record videos. The indicator next to the camera turns on
when the camera is in use.
24
T490, T590, P43s, and P53s User Guide
Loading...
