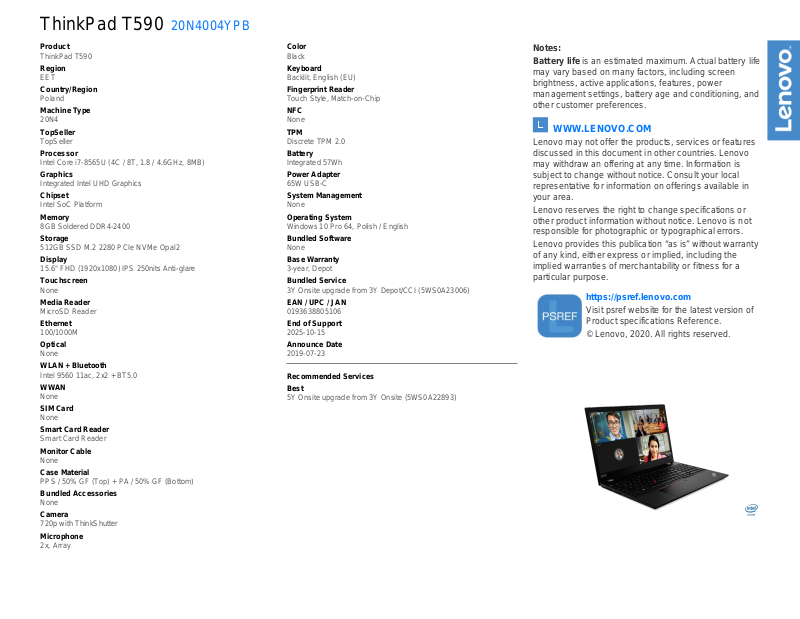

Lenovo 20N4004YPB Technical data
ThinkPad T590 20N4004YPB
Product
ThinkPad T590
Region
EET
Country/Region
Poland
Machine Type
20N4
TopSeller
TopSeller
Processor
Intel Core i7-8565U (4C / 8T, 1.8 / 4.6GHz, 8MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
8GB Soldered DDR4-2400
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Display
15.6" FHD (1920x1080) IPS 250nits Anti-glare
Touchscreen
None
Media Reader
MicroSD Reader
Ethernet
100/1000M
Optical
None
WLAN + Bluetooth
Intel 9560 11ac, 2x2 + BT5.0
WWAN
None
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Case Material
PPS / 50% GF (Top) + PA / 50% GF (Bottom)
Bundled Accessories
None
Camera
720p with ThinkShutter
Microphone
2x, Array
Color
Black
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 57Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
3-year, Depot
Bundled Service
3Y Onsite upgrade from 3Y Depot/CCI (5WS0A23006)
EAN / UPC / JAN
0193638805106
End of Support
2025-10-15
Announce Date
2019-07-23
Recommended Services
Best
5Y Onsite upgrade from 3Y Onsite (5WS0A22893)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product specifications Reference.
© Lenovo, 2020. All rights reserved.
ThinkPad T590 Platform Specifications
Product Specifications Reference (PSREF)
# of
4 8
Core i5 / i7 Processor
# of
Threads
Base
Frequency
1.6 GHz 3.9 GHz 6MB
WVA Anti-glare 500 nits 16:9 1200:1
Wi-Fi
Max Turbo
Frequency
2x2 802.11ac +
Cache
Aspect
Bluetooth 5.0
Wi-Fi + Bluetooth combo adapter
Fibocom L830-EB, M.2 card (EMEA only)
Fibocom L850-GL, M.2 card
Memory
Types
DDR4-2400 Intel UHD Graphics
Contrast
Ratio
Ratio
Processor
Graphics
Color
Gamut
100%
Adobe
Dimensions
Weight
Case color
Case material
WxDxH: 14.40" x 9.76" x 0.75"; 365.8mm x 248mm x 19.1mm
FHD model: 3.99 lb / 1.81 kg;
UHD model: 3.84 lb / 1.74 kg
Black
Display cover: PPS / 50% GF;
Bottom: PA / 50% GF
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader
Two USB 3.1 Gen 1 (one Always On),
one USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
one USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP),
HDMI 1.4b, Ethernet (RJ-45), nano-SIM card slot (WWAN models),
headphone / microphone combo jack, optional smart card reader,
microSD card reader, side docking connector, security keyhole
Monitor cable
(optional)
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to VGA: Lenovo USB-C to VGA Adapter (NOT available in EMEA)
USB-C to DP: Lenovo USB-C to DisplayPort Adapter (NOT available in EMEA)
Viewing
Angle
170°
Bundled Accy
Camera (optional)
Audio support
Keyboard
UltraNav
Security
Security chip
None
One of the following, configurable by model:
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek ALC3287 codec /
stereo speakers, 2W x 2, Dolby Audio Premium /
dual array far-field microphone (for special bid model, microphone is optional),
headphone / microphone combo jack
6-row, spill-resistant, multimedia Fn keys, numeric keypad, optional LED backlight
TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Firmware TPM 2.0 integrated in chipset or discrete TPM 2.0 TCG Certified
(may be disabled in some region)
System Mgt (opt)
Fingerprint reader
NFC (optional)
Battery
Intel vPro Technology
Optional: Touch style match on chip fingerprint reader on the palm rest
Near Field Communication
Integrated Li-Polymer 57Wh battery,
supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Max battery life
AC adapter
MobileMark
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
• 45W USB-C AC adapter
• 65W USB-C AC adapter
• 65W USB-C slim AC adapter
Operating system Optional: Windows
Limited warranty
• 1-year depot repair service
• 1-year depot with 2-year system
2014: 14.98 hr (9.5 hr for UHD model with discrete graphics)
10 Home 64 or Windows 10 Pro 64
board
repair service
Processor 8th Generation Intel
Processor
Number
i5-8265U
i5-8365U 1.6 GHz 4.1 GHz 6MB
i7-8565U 1.8 GHz 4.6 GHz 8MB
i7-8665U 1.9 GHz 4.8 GHz 8MB
Cores
Graphics Intel UHD Graphics in processor only or
Intel UHD Graphics in processor and
NVIDIA GeForce MX250, 2GB GDDR5 memory;
supports external digital monitor via HDMI or Thunderbolt;
supports three independent displays;
Max resolution: 4096x2304@60Hz (Thunderbolt); 4096x2160@24Hz (HDMI)
Chipset
Memory
Intel SoC (System on Chip) platform
40GB or 48GB max / 2400MHz DDR4, dual-channel capable,
8GB or 16GB memory soldered to systemboard, one DDR4 SO-DIMM socket
* Installed memory is actually 2666MHz but run at 2400MHz due to Intel limitation
Display
Multi-touch (opt)
Storage
Size Resolution Type Surface Brightness
15.6" FHD (1920x1080) WVA Anti-glare 250 nits 16:9 700:1 45% 170°
UHD (3840x2160)
15.6"
HDR, Dolby Vision
On-cell touch, supports 10-finger gesture (FHD only)
• M.2 2280 SSD / SATA 6.0Gb/s
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
• Intel Optane Memory H10 with Solid State Storage,
M.2 2280, PCIe NVMe 3.0 x 4
Optical
None
Ethernet Non-vPro model: Intel Ethernet Connection I219-V (Jacksonville)
vPro model: Intel Ethernet Connection I219-LM (Jacksonville)
(optional)
WLAN
Bluetooth
WWAN (optional)
Intel Wireless-AC 9560,
Bluetooth 5.0 wireless, integrated in
One of the following, configurable by model:
• Wireless WAN upgradable (special bid only in EMEA)
• Integrated Mobile Broadband 4G LTE,
• Integrated Mobile Broadband 4G LTE-A,
SIM card (opt)
* For non-WWAN model, it means the model is NOT WWAN upgradable
• Verizon LTE (US) SIM card
• Gemalto eSIM
• 1-year limited onsite service
• 1-year + 2-year depot repair service
• 1-year + 2-year
limited onsite
service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold; ENERGY STAR
Note: The specifications above may not be available in all regions and might change by regions. Lenovo
7.1; TCO Certified; RoHS-compliant
July 2020
