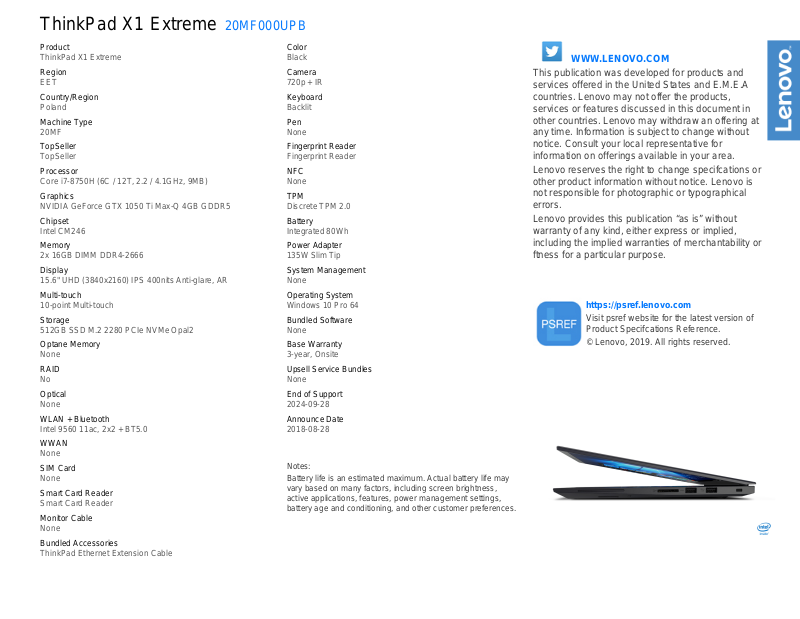

Lenovo 20MF000UPB Technical data

ThinkPad X1 Extreme 20MF000UPB

Product

ThinkPad X1 Extreme

Region

EET

Country/Region

Poland

Machine Type

20MF

TopSeller

TopSeller

Processor

Core i7-8750H (6C / 12T, 2.2 / 4.1GHz, 9MB)

Graphics

NVIDIA GeForce GTX 1050 Ti Max-Q 4GB GDDR5

Chipset

Intel CM246

Memory

2x 16GB DIMM DDR4-2666

Display

15.6" UHD (3840x2160) IPS 400nits Anti-glare, AR

Multi-touch

10-point Multi-touch

Storage

512GB SSD M.2 2280 PCIe NVMe Opal2

Optane Memory

None

RAID

No

Optical

None

WLAN + Bluetooth

Intel 9560 11ac, 2x2 + BT5.0

WWAN

None

SIM Card

None

Smart Card Reader

Smart Card Reader

Monitor Cable

None

Bundled Accessories

ThinkPad Ethernet Extension Cable

Color

Black

Camera

720p + IR

Keyboard

Backlit

Pen

None

Fingerprint Reader

Fingerprint Reader

NFC

None

TPM

Discrete TPM 2.0

Battery

Integrated 80Wh

Power Adapter

135W Slim Tip

System Management

None

Operating System

Windows 10 Pro 64

Bundled Software

None

Base Warranty

3-year, Onsite

Upsell Service Bundles

None

End of Support

2024-09-28

Announce Date

2018-08-28

Notes:
Battery life is an estimated maximum. Actual battery life may

vary based on many factors, including screen brightness,
active applications, features, power management settings,
battery age and conditioning, and other customer preferences.

WWW.LENOVO.COM
This publication was developed for products and

services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.

Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.

Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of
Product Specifcations Reference.

© Lenovo, 2019. All rights reserved.

ThinkPad X1 Extreme Platform Specifications

Product Specifications Reference (PSREF)

Processor 8th Generation Intel

Processor
Number

i5-8300H
i5-8400H 2.5 GHz 4.2 GHz
i7-8750H
i7-8850H 2.6 GHz 4.3 GHz

Cores

Graphics Intel UHD Graphics 630 in processor and

NVIDIA GeForce
supports external digital monitor via HDMI or Thunderbolt;
supports four independent displays;
Max resolution: 5120X2880@30Hz (Thunderbolt); 4096x2160@60Hz (HDMI)

Chipset
Memory

Display

Mobile Intel CM246 Chipset
64GB max / 2666MHz DDR4, dual-channel capable, two DDR4 SO-DIMM sockets

Some: 15.6" (396mm) FHD (1920x1080), anti-glare, LED backlight, IPS,
300 nits, 16:9 aspect ratio, 700:1 contrast ratio,
72% gamut, 170° viewing angle
Some: 15.6" (396mm) HDR 4K (3840x2160) with Dolby Vision, anti-glare,
LED backlight, IPS, 400 nits, 16:9 aspect ratio, 1200:1 contrast ratio,

100% gamut, 170° viewing angle, multi-touch, anti-reflection (AR)
Multi-touch (opt)
Pen

Storage

Capacitive-type multi-touch, supports 10-finger gesture (4K only)

Supports pen accessory, please see the accessory compatibility for details

Up to 2 drives (two M.2 SSD)

• M.2 SSD / SATA 6.0Gb/s (e.g. xxxGB SSD M.2)

• M.2 SSD / PCIe NVMe, PCIe 3.0 x 4, 32Gb/s (e.g. xxxGB SSD M.2 PCIe NVMe)
Optane memory
RAID (optional)
Optical

None
RAID 0/1 support
None

Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro))

via bundled or optional ThinkPad Ethernet Extension Cable

WLAN
Bluetooth

WWAN
SIM card

Dimensions

Weight

Intel Wireless-AC 9560,
Bluetooth 5.0 wireless, integrated in

None
None

WxDxH (non-touch): 14.24" x 9.67" x 0.72"; 361.8mm x 245.7mm x 18.4mm
WxDxH (multi-ouch): 14.24" x 9.67" x 0.74"; 361.8mm x 245.7mm x 18.7mm
Non-touch model: star ting at 3.76 lb (1.7 kg);



Core i5 / i7 Processor

# of

# of

Threads

4 8

6 12

Base

Frequency

2.3 GHz 4.0 GHz

2.2 GHz 4.1 GHz

Max Turbo
Frequency

GTX 1050 Ti Max-Q, 4GB GDDR5 memory;

Wi-Fi

2x2 802.11ac +

Bluetooth

Wi-Fi + Bluetooth combo adapter

Cache

8MB

9MB

Memory

Types

DDR4-2666

5.0

, M.2

Processor

Graphics

Intel UHD Graphics

630

card

Smart card reader
Media reader
Ports

Optional: Smart card reader
SD Card reader (SD, SDHC, SDXC), supports UHS-II SD card
Two USB 3.1 Gen 1 (one Always On),
two USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of Power Delivery
and DisplayPort), HDMI 2.0, Ethernet extension connector,
headphone / microphone combo jack, optional smart card reader,
SD card reader, security keyhole

* Power Delivery only supports power-out for charging peripherals

Monitor cable

(optional)

Bundled Accy

Camera (optional)

* Depending on many factors, actual data transfer speed may be lower than theoretical speed

HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
Optional: ThinkPad Ethernet Extension Cable

One of the following, configurable by model:

• HD720p camera with ThinkShutter camera privacy, fixed focus

Audio support

• IR camera and HD720p camera, fixed focus
HD Audio, Realtek ALC3286 codec /
stereo speakers, 2W x 2, Dolby Audio Premium / dual array microphone,
headphone / microphone combo jack, Dolby Atmos headphone

Keyboard
UltraNav

Security
Security chip
vPro (optional)
Fingerprint reader
Color calibration
NFC

Battery
Max battery life

(MobileMark 2014)

AC adapter
Preload Windows
Limited warranty

6-row, spill-resistant, multimedia Fn keys, LED backlight
TrackPoint pointing device and buttonless glass surface multi-touch touchpad

Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0, TCG Certified
Intel vPro Technology
Touch style match on chip fingerprint reader on the keyboard bezel
None
None

Integrated Li-ion 80Wh battery, supports Rapid Charge (charge up to 80% in 1hr)

Discrete mode: 9.5 hr; Hybrid mode: 14.9 hr

* Battery life varies significantly with settings, usage, & other factors

135W slim tip AC adapter



10 Home 64 or Windows 10 Pro 64

One of the following, configurable by model:

• 1-year depot repair service

• 3-year/1-yr battery depot repair service

• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold (US only); ENERGY STAR



7.0; RoHS-compliant

Multi-touch model: starting at 4.06 lb (1.8 kg)
Case color
Case material

Black

Display cover: CFRP/GFRP hybrid;

Bottom: Aluminum alloy

Note: The specifications above may not be available in all regions. Lenovo

July 2019
