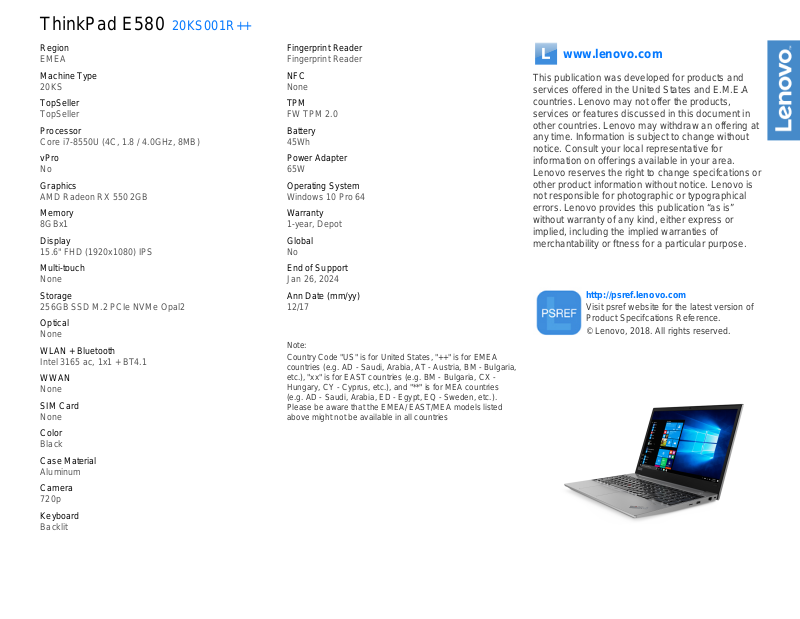

Lenovo 20KS001RPB Technical data

ThinkPad E580 20KS001R++

Region

EMEA

Machine Type

20KS

TopSeller

Processor

Core i7-8550U (4C, 1.8 / 4.0GHz, 8MB)

vPro

Graphics

AMD Radeon RX 550 2GB

Memory

8GBx1

Display

15.6" FHD (1920x1080) IPS

Multi-touch

None

Storage

256GB SSD M.2 PCIe NVMe Opal2

Optical

None

WLAN + Bluetooth

Intel 3165 ac, 1x1 + BT4.1

WWAN

None

SIM Card

None

Color

Black

Case Material

Aluminum

Camera

720p

Keyboard

Backlit

Fingerprint Reader

NFC

None

TPM

FW TPM 2.0

Battery

45Wh

Power Adapter

65W

Operating System

Windows 10 Pro 64

Warranty

1-year, Depot

Global

End of Support

Jan 26, 2024

Ann Date (mm/yy)

12/17

Note: Country Code "US" is for United States, "++" is for EMEA

countries (e.g. AD - Saudi, Arabia, AT - Austria, BM - Bulgaria, etc.), "xx" is for EAST countries (e.g. BM - Bulgaria, CX Hungary, CY - Cyprus, etc.), and "**" is for MEA countries (e.g. AD - Saudi, Arabia, ED - Egypt, EQ - Sweden, etc.). Please be aware that the EMEA/ EAST/MEA models listed above might not be available in all countries

www.lenovo.com

This publication was developed for products and services offered in the United States and E.M.E.A countries. Lenovo may not offer the products, services or features discussed in this document in other countries. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area. Lenovo reserves the right to change specifcations or other product information without notice. Lenovo is not responsible for photographic or typographical errors. Lenovo provides this publication “as is” without warranty of any kind, either express or implied, including the implied warranties of merchantability or ftness for a particular purpose.

http://psref.lenovo.com

Visit psref website for the latest version of Product Specifcations Reference.

ThinkPad E580 Platform Speciﬁ cations

Product Speciﬁ cations Reference (PSREF)

Processor

7th or 8th Generation Intel

Processor Number

i3-7130U i5-7200U 2.5 GHz 3.1 GHz 3MB

i3-8130U 2 4 2.2 GHz - 4MB DDR4-2400

i5-8250U i7-8550U 1.8 GHz 4.0 GHz 8MB

# of

Cores

Threads

Core™ i3 / i5 / i7 Processor

# of

Base Frequency

2.7 GHz - 3MB

1.6 GHz 3.4 GHz 6MB

Max Turbo Frequency

Cache

Memory

Controller

DDR4-2133

DDR4-2400

* i3-7130U is not available in EMEA

Graphics Intel HD Graphics in processor only, or

AMD Radeon RX 550 Graphics, 2GB DDR5 memory, digital monitor support via HDMI™ (supporting HDCP to output protected content); supports dual independent displays; Max resolution: 1920x1080 (HDMI)@60Hz

Memory 32GB max / 2400MHz DDR4, non-parity, dual-channel capable,

two 260-pin SO-DIMM sockets * System clocks down for processors with lower memory controller

Display

Some: 15.6" (396mm) HD (1366x768), anti-glare, LED backlight, 220 nits, 16:9 aspect ratio, 400:1 contrast ratio Some: 15.6" (396mm) FHD (1920x1080), anti-glare, LED backlight, IPS, 250 nits, 16:9 aspect ratio, 600:1 contrast ratio

Multi-touch Storage

None Up to 2 drives (one M.2 SSD and one HDD)

Some: M.2 SSD / PCIe NVMe Some: HDD / SATA 6.0Gb/s, 2.5" wide, removable,

upgradable,

Active Protection System

™

Some: Dummy HDD

Optical

None Ethernet Gigabit Ethernet Connection, Realtek R8111GUS WLAN

One of the following, conﬁ gurable by model:

• Intel Dual Band Wireless-AC 3165, 1x1, Wi-Fi + BT combo adapter,

Bluetooth™

WWAN SIM card

Smart Card Reader ExpressCard Dock Multicard Reader Por ts

• Realtek® RTL8822BE,

• Realtek

RTL8821CE,

Bluetooth 4.1 wireless, integrated in

None

Micro SD card reader

Two USB 3.1 (one Always On), one USB 2.0, HDMI 1.4b, Ethernet (RJ-45),

Wi-Fi

2x2 802.11ac + BT4.1

Wi-Fi

1x1 802.11ac + BT4.1

Wi-Fi + Bluetooth combo adapter

, M.2

card

One USB 3.1 Type-C Gen 2 (support data, video, and power delivery) Monitor cable

None

Processor

Graphics

Intel HD

Graphics 620

Intel UHD

Graphics 610

Intel UHD

Graphics 620

M.2

Card

Dimensions Weight Case color

Aluminum (WxDxH):

From 4.7 lb (2.1kg)

LCD Rear : Black or Silver

14.53" x 9.92" x 0.78" 369mm x 252mm x 19.95mm

Base Cover: Black or Silver

Case material

Camera Audio support

Top Cover:

Aluminum display cover HD720p resolution, ﬁ xed focus

HD Audio, Conexant® CX11852 codec, Dolby® Advanced Audio /

Black or Silver

stereo speakers, 2W x 2 / dual array microphone, combo audio / microphone jack

Keyboard

6-row, spill-resistant, multimedia Fn keys, numeric keypad,

optional LED backlight UltraNav™ ThinkLight™

Fingerprint reader NFC Security Security chip

TrackPoint® pointing device and multi-touch with 3+2 buttons click pad

None

Some: Touch style ﬁ ngerprint reader on the palm rest

None

Power-on password, hard disk password, supervisor password, security keyhole

fTPM2.0: Firmware TPM 2.0, integrated in chipset

dTPM2.0: Discrete TPM 2.0, TCG Certiﬁ ed

vPro Battery type

Battery life AC adapter

Some: Li-Polymer 3-cell (45Wh)

Some: 3-cell (45Wh): up to 13 hr

Some: 45-watt AC adapter (USB Type-C)

Some: 65-watt AC adapter (USB Type-C) Preload Some: Windows 10 Pro 64

Some: Windows 10 Home 64

• Lenovo Companion

• PC Manager

• Microsoft Ofﬁ ce preloaded;

purchase a product key to activate

• McAfee® Live Safe (30-day trial)

Limited warranty

1-year - depot repair service / service upgrades available

Mil-Spec test None

Environment

ENERGY STAR

; RoHS-compliant

Some: No operating system

Lenovo

December 2017
