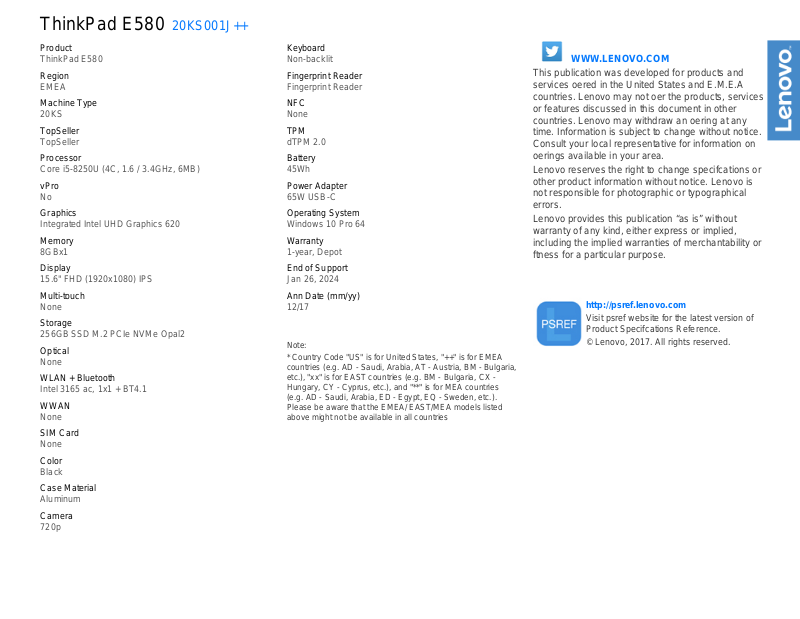

Lenovo 20KS001JPB Technical data

ThinkPad E580 20KS001J++

Product

ThinkPad E580

Region

EMEA

Machine Type

20KS

TopSeller

TopSeller

Processor

Core i5-8250U (4C, 1.6 / 3.4GHz, 6MB)

vPro

No

Graphics

Integrated Intel UHD Graphics 620

Memory

8GBx1

Display

15.6" FHD (1920x1080) IPS

Multi-touch

None

Storage

256GB SSD M.2 PCIe NVMe Opal2

Optical

None

WLAN + Bluetooth

Intel 3165 ac, 1x1 + BT4.1

WWAN

None

SIM Card

None

Color

Black

Case Material

Aluminum

Camera

720p

Keyboard

Non-backlit

Fingerprint Reader

Fingerprint Reader

NFC

None

TPM

dTPM 2.0

Battery

45Wh

Power Adapter

65W USB-C

Operating System

Windows 10 Pro 64

Warranty

1-year, Depot

End of Support

Jan 26, 2024

Ann Date (mm/yy)

12/17

Note:
* Country Code "US" is for United States, "++" is for EMEA

countries (e.g. AD - Saudi, Arabia, AT - Austria, BM - Bulgaria,
etc.), "xx" is for EAST countries (e.g. BM - Bulgaria, CX ­Hungary, CY - Cyprus, etc.), and "**" is for MEA countries
(e.g. AD - Saudi, Arabia, ED - Egypt, EQ - Sweden, etc.).
Please be aware that the EMEA/ EAST/MEA models listed
above might not be available in all countries

WWW.LENOVO.COM
This publication was developed for products and

services oered in the United States and E.M.E.A
countries. Lenovo may not oer the products, services
or features discussed in this document in other
countries. Lenovo may withdraw an oering at any
time. Information is subject to change without notice.
Consult your local representative for information on
oerings available in your area.

Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.

Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.

http://psref.lenovo.com

Visit psref website for the latest version of
Product Specifcations Reference.

© Lenovo, 2017. All rights reserved.

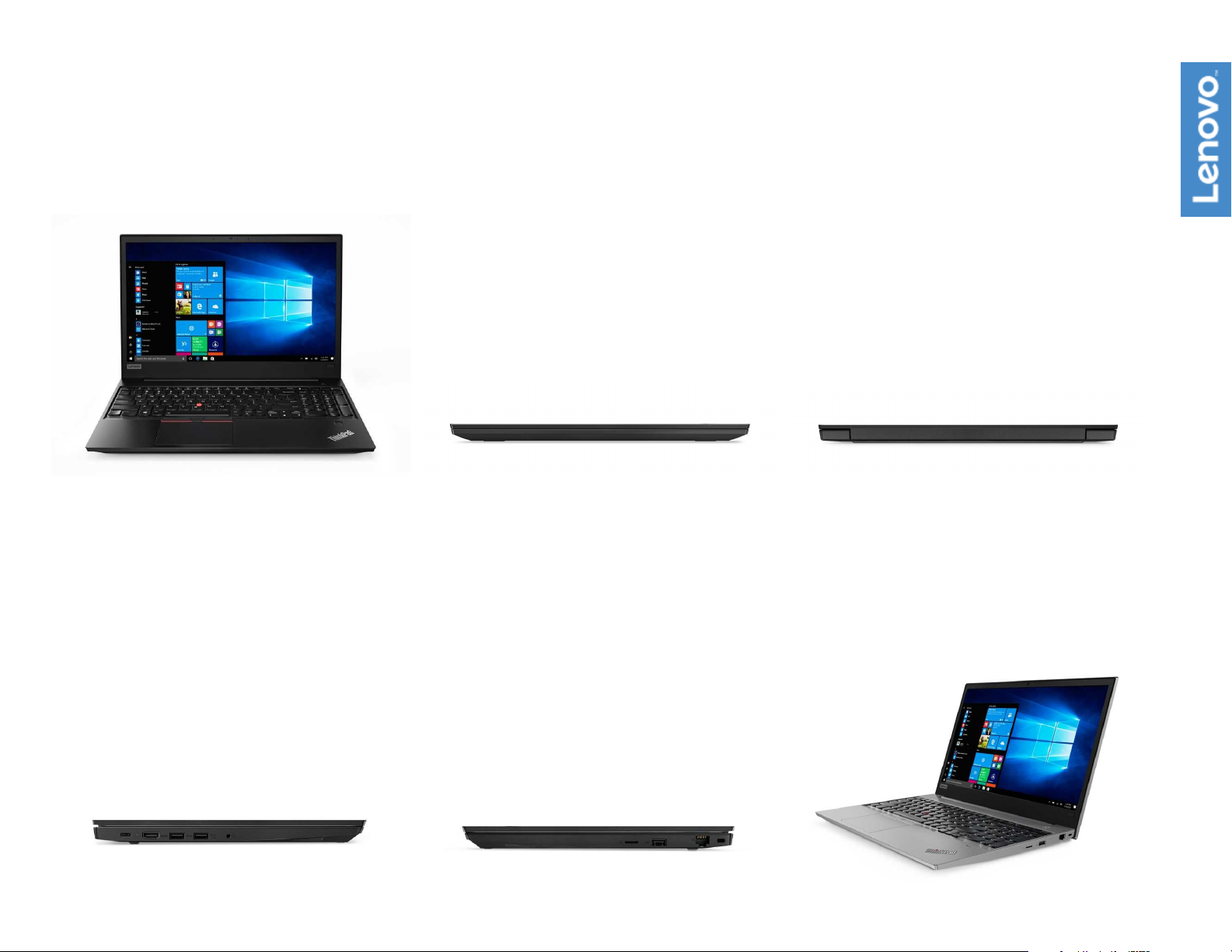

ThinkPad E580 Platform Specifications

Product Specifications Reference (PSREF)

# of

2 4

# of

4 8



Core i3 / i5 Processor

# of

Threads

# of

Threads

Base

Frequency

2.3 GHz

Base

Frequency

1.6 GHz 3.4 GHz 6MB



Max Turbo
Frequency

-

Max Turbo
Frequency

Cache

3MB

Cache

Memory

Types

DDR4-2133

Memory

Types

DDR4-2400

Processor

Graphics

Intel HD Graphics

620

Processor

Graphics

Intel UHD Graphics

620

Dimensions
Weight
Case color
Case material

WxDxH: 14.53" x 9.92" x 0.78"; 369mm x 252mm x 19.95mm
Starting at 4.7 lb / 2.1kg
Black or silver

Display cover: Aluminum;
Bottom: PC/ABS plastic

Smart card reader
Media reader
Ports

None
MicroSD card reader
Two USB 3.1 Gen 1 (one Always On), one USB 3.1 Type-C Gen 2, one USB 2.0,
HDMI 1.4b, Ethernet (RJ-45), headphone / microphone combo jack, microSD card
reader, security keyhole

Camera
Audio support

HD720p camera, fixed focus
HD Audio, Conexant
stereo speakers, 2W x 2, Dolby Advanced Audio /



CX11852 codec /

dual array microphone, headphone / microphone combo jack

Keyboard
UltraNav

Security
Security chip (opt)
vPro
Fingerprint reader
NFC

Battery

Max battery life

AC adapter
Preload (optional) Windows
Limited warranty

6-row, spill-resistant, multimedia Fn keys, numeric keypad, optional LED backlight
TrackPoint



pointing device and buttonless Mylar surface multi-touch touchpad

Power-on password, hard disk password, supervisor password, security keyhole
Firmware TPM 2.0 integrated in chipset or discrete TPM 2.0 TCG Certified
None
Optional: Touch style fingerprint reader on the palm rest
None

Integrated Li-ion 45Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
with 65W USB Type-C AC adapter

MobileMark

* Battery life varies significantly with settings, usage, & other factors



2014: 12.23 hr

45W or 65W USB Type-C AC adapter



10 Home 64 or Windows 10 Pro 64

1-year depot repair service

Mil-Spec test MIL-STD-810G military certification



Environment ENERGY STAR

6.1; RoHS-compliant

Processor 7th Generation Intel

(i3-7130U is NOT available in US and EMEA) or

Processor
Number

i3-7020U
i3-7130U 2.7 GHz - 3MB
i5-7200U 2.5 GHz 3.1 GHz 3MB

Cores

8th Generation Intel Core i3 / i5 / i7 Processor

Processor
Number

i3-8130U 2 4 2.2 GHz 3.4 GHz 4MB
i5-8250U
i7-8550U 1.8 GHz 4.0 GHz 8MB

Cores

Graphics Intel HD Graphics 620 or Intel UHD Graphics 620 in processor only or

Intel HD Graphics 620 or Intel UHD Graphics 620 in processor and
AMD Radeon RX 550 Graphics, 2GB DDR5 memory;
supports external digital monitor via HDMI or USB Type-C;
supports dual independent display;
Max resolution: 1920x1080 (HDMI)@60Hz

Chipset
Memory

Intel SoC (System on Chip) platform
32GB max / 2400MHz DDR4, dual-channel capable, two DDR4 SO-DIMM sockets
* System clocks down for processors with lower memory controller

Display

Some: 15.6" (396mm) HD (1366x768), anti-glare, LED backlight,
220 nits, 16:9 aspect ratio, 400:1 contrast ratio
Some: 15.6" (396mm) FHD (1920x1080), anti-glare, LED backlight, IPS,
250 nits, 16:9 aspect ratio, 600:1 contrast ratio

Multi-touch
Storage

Optical

None

Up to 2 drives (one M.2 SSD and one HDD)

Some: HDD / SATA 6.0Gb/s, 2.5" wide, removable, upgradable,

Active Protection System
Some: M.2 SSD / PCIe NVMe
None

Ethernet Gigabit Ethernet Connection, Realtek R8111GUS
WLAN +

Bluetooth

One of the following, configurable by model:

• Realtek RTL8821CE,

• Realtek

RTL8822BE,

Wi-Fi

1x1 802.11ac + Bluetooth 4.1

Wi-Fi

2x2 802.11ac + Bluetooth 4.1

, M.2

, M.2

• Intel Dual Band Wireless-AC 3165, 1x1, Wi-Fi + Bluetooth 4.1,

card

card

M.2

Card

* Intel 3165ac card supports BT4.2 but is limited to BT4.1 by Windows OS

WWAN
SIM card

Note: The specifications above may not be available in all regions. Lenovo

None
None

September 2018
