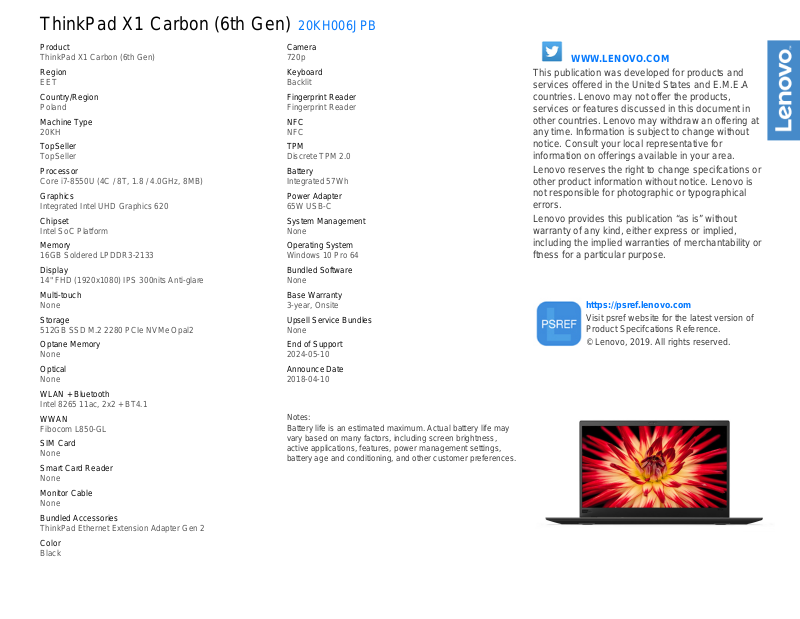

Lenovo 20KH006JPB Technical data
ThinkPad X1 Carbon (6th Gen) 20KH006JPB
Product
ThinkPad X1 Carbon (6th Gen)
Region
EET
Country/Region
Poland
Machine Type
20KH
TopSeller
TopSeller
Processor
Core i7-8550U (4C / 8T, 1.8 / 4.0GHz, 8MB)
Graphics
Integrated Intel UHD Graphics 620
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR3-2133
Display
14" FHD (1920x1080) IPS 300nits Anti-glare
Multi-touch
None
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Optane Memory
None
Optical
None
WLAN + Bluetooth
Intel 8265 11ac, 2x2 + BT4.1
WWAN
Fibocom L850-GL
SIM Card
None
Smart Card Reader
None
Monitor Cable
None
Bundled Accessories
ThinkPad Ethernet Extension Adapter Gen 2
Color
Black
Camera
720p
Keyboard
Backlit
Fingerprint Reader
Fingerprint Reader
NFC
NFC
TPM
Discrete TPM 2.0
Battery
Integrated 57Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64
Bundled Software
None
Base Warranty
3-year, Onsite
Upsell Service Bundles
None
End of Support
2024-05-10
Announce Date
2018-04-10
Notes:
Battery life is an estimated maximum. Actual battery life may
vary based on many factors, including screen brightness,
active applications, features, power management settings,
battery age and conditioning, and other customer preferences.
WWW.LENOVO.COM
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.
Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
ThinkPad X1 Carbon (6th Gen) Platform Specifications
Product Specifications Reference (PSREF)
# of
Core i5 Processor
# of
Threads
Base
Frequency
Max Turbo
Frequency
Cache Memory Types
Intel HD Graphics
Processor 7th Generation Intel
Processor
Number
i5-7300U 2 4 2.6 GHz 3.5 GHz 3MB LPDDR3-1866
Cores
or 8th Generation Intel Core i5 / i7 Processor
Processor
Number
i5-8250U
i5-8350U 1.7 GHz 3.6 GHz 6MB
i7-8550U 1.8 GHz 4.0 GHz 8MB
i7-8650U 1.9 GHz 4.2 GHz 8MB
# of
Cores
4 8
# of
Threads
Base
Frequency
1.6 GHz 3.4 GHz 6MB
Max Turbo
Frequency
Cache Memory Types
LPDDR3-2133
Intel UHD Graphics
Graphics Intel HD Graphics 620 or Intel UHD Graphics 620 in processor;
supports external digital monitor via HDMI or USB Type-C;
supports three independent displays;
Max resolution: 5120x2880@60Hz (USB Type-C); 4096x2160@30Hz (HDMI)
Chipset
Memory
Intel SoC (System on Chip) platform
8GB or 16GB / 2133MHz LPDDR3 / soldered to systemboard, no sockets
* System clocks down for processors with lower memory controller
Display
One of the following, configurable by model:
• 14.0" (355mm) FHD (1920x1080), anti-glare, LED backlight, IPS,
300 nits, 16:9 aspect ratio, 700:1 contrast ratio, 72% gamut, 170° viewing angle
• 14.0" (355mm) WQHD (2560x1440), anti-glare, LED backlight, IPS,
300 nits, 16:9 aspect ratio, 700:1 contrast ratio, 72% gamut, 170° viewing angle
• 14.0" (355mm) HDR WQHD (2560x1440) with Dolby Vision, glossy,
LED backlight, IPS, 500 nits,16:9 aspect ratio, 1500:1 contrast ratio, 100% gamut,
Multi-touch (opt)
Storage
170° viewing angle
On-cell touch, supports 10-finger gesture (FHD only)
One of the following, configurable by model:
• M.2 SSD / SATA 6.0Gb/s (e.g. xxxGB SSD M.2)
Optane memory
Optical
• M.2 SSD / PCIe NVMe, PCIe 3.0 x 4, 32Gb/s (e.g. xxxGB SSD M.2 PCIe NVMe)
None
None
Ethernet Native Intel Ethernet Connection I219-V (Non-vPro) or I219-LM (vPro)
via bundled or optional ThinkPad Ethernet Extension Adapter Gen 2
WLAN +
Bluetooth
WWAN (optional)
SIM card
(opt)
Intel Dual Band Wireless-AC 8265,
* Intel 8265ac card supports BT4.2 but is limited to BT4.1 by Windows OS
Integrated Mobile Broadband 4G LTE-A,
Intel XMM 7360 (Fibocom L850-GL), M.2 card
* For non-WWAN model, it means the model is NOT WWAN upgradable
Nano-SIM card slot, optional Verizon LTE (US) SIM card
Wi-Fi
2x2 802.11ac +
Bluetooth
4.1
Processor
Graphics
620
Processor
Graphics
620
, M.2
card
Dimensions
Weight
Case color
Case material
WxDxH: 12.74" x 8.55" x 0.63"; 323.5mm x 217.1mm x 15.95mm
Starting at 2.49 lb / 1.13 kg
Black or Silver (silver case is NOT available in EMEA)
Display cover: CFRP/GFRP hybrid;
Bottom: magnesium alloy / PPS hybrid
Smart card reader
Media reader
Ports
None
MicroSD card reader, supports UHS-II
Two USB 3.1 Gen 1 (one Always On), two USB 3.1 Type-C Gen 2 / Thunderbolt 3
(with the function of Power Delivery and DisplayPort), HDMI 1.4b,
Ethernet extension connector, nano-SIM card slot (WWAN models),
headphone / microphone combo jack, microSD card reader,
side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
(optional)
Bundled Accy
Camera (optional)
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
Optional: ThinkPad Ethernet Extension Adapter Gen 2
One of the following, configurable by model:
• HD720p camera with ThinkShutter camera privacy, fixed focus
Audio support
• IR camera and HD720p camera, fixed focus
HD Audio, Realtek ALC3286 codec /
stereo speakers, 1W x 2, Dolby Audio Premium / dual array microphone,
headphone / microphone combo jack, Dolby Atmos via headphones
Keyboard
UltraNav
Security
Security chip
vPro (optional)
Fingerprint reader
6-row, spill-resistant, multimedia Fn keys, LED backlight
TrackPoint
pointing device and buttonless Glass surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0, TCG Certified
Intel vPro Technology
Touch style match on chip fingerprint reader on the palm rest,
anti-spoofing technology
NFC (optional)
Battery
Max battery life
AC adapter
Preload Windows
Limited warranty
Near Field Communication
Integrated Li-ion 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
with 65W USB Type-C AC adapter
MobileMark
* Battery life varies significantly with settings, usage, & other factors
2014: 19.3 hr
45W or 65W USB Type-C AC adapter
10 Home 64 or Windows 10 Pro 64
One of the following, configurable by model:
• 1-year depot repair service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Gold (US only); ENERGY STAR
6.1; RoHS-compliant
Lenovo
