Page 1

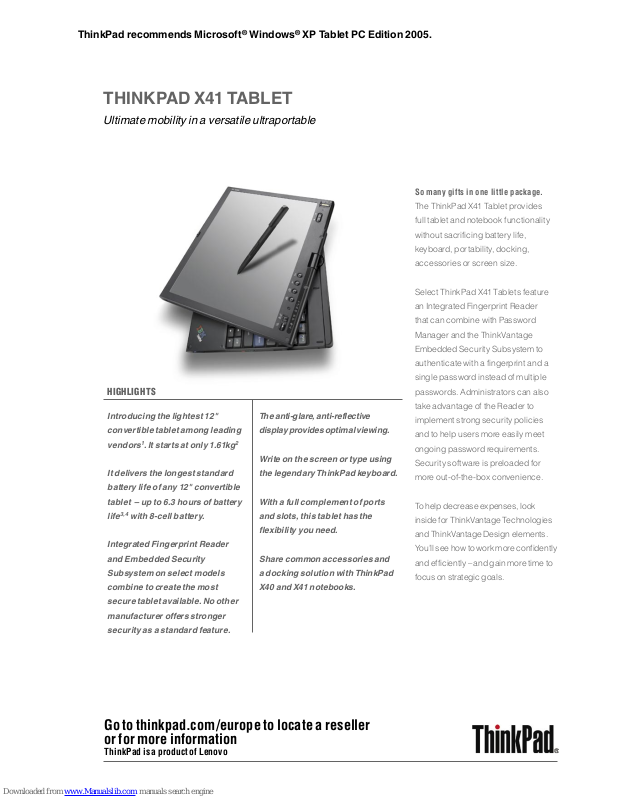

THINKPAD X41 TABLET
Ultimate mobility in a versatile ultraportable
So many gifts in one little package.
The ThinkPad X41 Tablet provides
full tablet and notebook functionality
without sacrificing battery life,
keyboard, portability, docking,
accessories or screen size.
Select ThinkPad X41 Tablets feature
an Integrated Fingerprint Reader
that can combine with Password
Manager and the ThinkVantage
Embedded Security Subsystem to
authenticate with a fingerprint and a
single password instead of multiple
passwords. Administrators can also
take advantage of the Reader to
implement strong security policies
and to help users more easily meet
ongoing password requirements.
Security software is preloaded for
more out-of-the-box convenience.
To help decrease expenses, look
inside for ThinkVantage Technologies
and ThinkVantage Design elements.
You’ll see how to work more confidently
and efficiently – and gain more time to
focus on strategic goals.
The anti-glare, anti-reflective
display provides optimal viewing.
Write on the screen or type using
the legendary ThinkPad keyboard.
With a full complement of ports
and slots, this tablet has the
flexibility you need.
Share common accessories and
a docking solution with ThinkPad
X40 and X41 notebooks.
Introducing the lightest 12"
convertible tablet among leading
vendors1. It starts at only 1.61kg
2
It delivers the longest standard
battery life of any 12" convertible
tablet – up to 6.3 hours of battery
life
3,4
with 8-cell battery.
Integrated Fingerprint Reader
and Embedded Security
Subsystem on select models
combine to create the most
secure tablet available. No other
manufacturer offers stronger
security as a standard feature.
ThinkPad recommends Microsoft® Windows® XP Tablet PC Edition 2005.
Go to thinkpad.com/europe to locate a reseller
or for more information
ThinkPad is a product of Lenovo
HIGHLIGHTS
Page 2
Deploy the most secure wireless
ultraportable tablets in the industry
with a bi-directional Integrated
Fingerprint Reader, the Embedded
Security Subsystem 2.0 and
built-in Wi-Fi wireless. They offer
built-in hardware and preloaded
software-based protection. No other
manufacturer offers stronger security
as a standard feature.
Suppor t your mobile workforce with
ThinkPad X41 Tablets and ThinkVantage
Access Connections software. It’s the
easiest way to switch between wired and
wireless networks.
Improve signal reception with the
ThinkVantage UltraConnect Antenna.
To maximise range, this antenna is built
into the display of ThinkPad X41 Tablets.
Plus, it supports multiple frequencies to
optimise coverage5.
Brace yourself. Like airbag technology,
the ThinkVantage Active Protection
System features built-in motion sensors.
When a fall is detected, the hard disk
drive temporarily parks itself. That
makes it less likely that data on your hard
disk drive will be lost because of some
bumps or drops.
Put online6 and on-system information
at your employees’ finger tips with the
Blue button. With the push of a button,
staff can gain answers to common IT
questions by themselves.
Type more comfortably and efficiently
with the full-size7 keyboard – a big
advantage on an ultraportable.
Give your help desk a break. Meet
ThinkVantage Rescue and Recovery
software. It’s preloaded on ThinkPad
X41 Tablets. With this enhanced, one-
button solution, staff can restore system
images themselves in the event of a
software crash – often without a call to
the help desk.
ThinkPad recommends
Microsoft® Windows® XP
Tablet PC Edition 2005.
ThinkPad X41 Tablet shown with
optional ThinkPad X4 Dock
THINKVANTAGE TECHNOLOGIES AND DESIGNS.
THE ULTIMATE SECURITY AT YOUR FINGERTIPS.
'The increased focus on system security for
regulatory purposes leads us to predict that
today’s PC password standards will no longer be
accepted in 2008,' according to the November
2004 Gartner Research Note, 'Treat Passwords
as Ineffective on PCs.' The report goes on to
recommend that organisations requiring strong
data protection should consider, among other
things, trusted platform module (TPM) – enabled
systems and, for systems subject to Sarbanes-
Oxley controls, tokens or biometrics.
Rely on award-winning Service
and Support. Choose a ThinkPad
X41 Tablet. With just a few clicks,
workers can enjoy a wealth of
on-system and online6 resources.
Plus, they’ll have support in more
than 160 countries8 worldwide,
from São Tomé to Sri Lanka.
SERVICE IN SÃO TOMÉ? SURE.
2
Page 3
INCREASE PERFORMANCE.
ThinkPad X4 Dock
73P45 3x
This provides flexible expansion, cable
management and key-lock security for
users of ThinkPad X40 Series notebook
or tablet systems. The modular bay
supports Ultrabay Slim options,
including the DVD-ROM, CD-RW/DVD-
ROM Combo, and Multiburner Plus
drives. Standard ports include 3-port
USB 2.0 hub as well as Gigabit Ethernet
(RJ-45), modem (RJ-11), serial, parallel,
PS/2 for mouse or keyboard, VGA for
monitor, and power connections.
ThinkPad X41 Tablet 4-
Cell Battery
Compute for up to 3.5
hours3 in either notebook
or tablet mode.
ThinkPad CD-RW/DVD-
ROM Combo II Ultrabay
Slim Drive
Get two drives in one
with this high-speed,
high-capacity read/write
storage solution.
ThinkPad X41
Tablet Sleeve
An adjustable hand-hold
on the back of the sleeve
allows you to comfortably
take notes on the go.
3
For important warranty information, see page 4.
ThinkPad X41 Tablet software
Preloaded operating systems
18
Microsoft Windows XP Tablet PC Edition 2005
Included software19 (preloaded)
Access Connections
Adobe Reader
Access Program
Client Security Soft ware
Fingerprint Reader Software
InterVideo VirtualDrive CD/DVD
Emulator
InterVideo WinDVD (requires
ThinkPad X4 Dock and optical drive)
RecordNow and DLA powered by
Sonic products (requires ThinkPad X4
Dock and optical drive)
Rescue and Recovery
Norton AntiVirus 2005 (with 90 days
of virus definitions)
PC-Doctor
ThinkPad Utilities
(downloadable) IBM Director Agent
Software Delivery Assistant
System Migration Assistant
(free trial) Alias Sketchbook Pro (English and
Japanese only)
Franklin Covey TabletPlanner
(English only)
Zinio Reader (English only)
(licence–CD not included ) Lotus Smar tSuite Lotus Notes Stand-alone Client
Certified operating systems
For a listing of completed Linux® certifications, visit:
lenovo.com/think/linux
ThinkPad X41 Tablet specifications
Machine types 1866, 1867, 1869
Processor9 (Processor speed,
Technology, Level 2 cache)
Intel® Centrino® Mobile Technology
Intel Pentium® M Processor LV 758 (1.5GHz, 90nm technology, 2MB L2 cache)
Preloaded operating system
10
Microsoft Windows XP Tablet PC Edition 2005
Display/resolution
12.1" Super-Wide Angle FFS XGA TFT (1024 x 768), 180 nit
Hard disk drive
11
20GB, 30GB, 40GB or 60GB 4200rpm
Memor y
12,13
(std/max)
256MB or 512MB/1536MB max PC2-4200 /533MHz (Runs at 400MHz) DDR2
Optical drive
8X Max14 DVD, DVD/CD-RW Combo or
DVD-RW/CD-RW (ThinkPad X4 Dock required, sold separately)
Video graphics
Up to 128MB of Intel Graphics Media Accelerator 900
Integrated communications
Modem
Gigabit Ethernet
Intel 802.11b/g
15
ThinkPad 11a/b/g or Intel 802.11a/ b/g
Bluetooth™
,16
Li-Ion batter y life
3
2.6 hours (4-cell) up to 6.3 hours (8-cell)
With optional
extended-life battery
5.0 hours (4-cell) up to 8.5 hours (8-cell)
Ports
2 USB 2.0 (1 Powered USB 2.0); Infrared; expansion bus (for optional ThinkPad
X4 Dock or ThinkPad X41 Series Extended Life Battery);
external display; AC adapter; RJ-11; RJ-45; audio: headphone/line-out,
external microphone
Slots
1 Type I or 1 Type II PC Card slot with USB ExpressCard support via adapter,
1 Secure Digital Card
Active Protection System
Yes
Embedded Security
Subsystem 2.0
Yes
Keyboard
Ergonomic keyboard (87 keys, 18.5mm vertical stroke and 18.2mm horizontal
key pitch) with palm rest, TrackPoint pointing device with 'Press-to-Select',
Internet Scroll Bar6, intuitive volume control and Blue button
Dimensions
1
274 mm x 242 mm x 29-32 mm (4-cell)
274 mm x 266 mm x 29-32 mm (8-cell)
Weight
2
1.61 kg (4-cell) or 1.84 kg (8-cell)
Expansion
Optional ThinkPad X4 Dock
Limited warranty
17
3-year or 1-year system/1-year battery
73P5167
73P3 288
30R4959
Page 4
Lenovo Technol ogy ( Unite d
Kingdom) Limited
Normandy House
PO Box 32
Bunnian Place
Basingstoke
RG21 7EJ
United Kingdom
ThinkPad is a pr oduct of Le novo.
© Lenovo copyright 2 005. All Rights Reserved.
Produced in the UK.
Availability: All offers subject to availability.
Lenovo reser ves the right to alter product
offerings and specifications at any time
without notice. Lenovo is not responsible for
photographic or typographic errors.
Warranty Information : For a copy of
applicable product warranties, write to:
Warranty Information, P.O. Box 12195, RTP,
NC 2770 9, Attn: Dept. UF2AB203. Lenovo
makes no representation or warranty regarding
third-par ty products or services.
Footnotes:
[1] Thinness: may vary at certain points on
the system. CNET.com results for the top five
vendors in first quar ter 20 05 tablet notebook
sales, as reported by IDC.
[2] Weight: includes battery and optional
travel bezel instead of standard optical drive
in Ultrabay bay, if applicable; weight may vary
due to vendor components, manufacturing
process and options. Based on manufacturer’s
published figures or CNET.com results for
the top 5 vendors in first quarter 20 05 tablet
notebook sales as reported by IDC.
[3] Battery: These model numbers achieved
Battery Rundown Time of at least the time
shown during testing. A description of the
testing is available at lenovo.com /pc/ ww/
thinkpad/batterylife. Batter y life (and recharge
times) will vary based on many factors
including screen brightness, applications,
features, power management, batter y
conditioning and other customer preferences.
[4] Supports only two batteries in use at one
time.
[5] Wireless capabilit y: requires compatible
wireless- enabled options, sold separately.
[6] Intern et access not included.
[7] Full-size keyboard: As defined by ISO /IEC
15412.
[8] Intern ational Warranty Service : available
for most models in any countr y in which this
product is sold and serviced. Service delivery
methods and parts availability vary by country,
may be dif ferent from that in the country of
purchase, and are subject to change without
notice. Fees and restrictions may apply in
some countries.
[9] Mobile Processors: Power management
reduces processor speed when in battery mode.
[10] Delivered with Microsoft Windows X P
preloaded and a Recover y Partition on the hard
disk drive.
[11] Hard drive: G B=billion bytes. Accessible
capacity is less; up to 4GB is service partition
[12] Memory: For PCs without a separate
video card, memory supports both system
and video. Accessible system memory is up to
64MB less than the amount stated, depending
on video mode.
[13] Maximum capacit y: may require the
replacement of standard component with
largest supported component available.
[14] CD /DVD drive speeds : List maximum
rates; rates are variable and are often less than
the maximum.
[15] Wir eless11a, 11b and 11g wireless: is
based on IEEE 802.11a, 802.11b and 8 02.11g,
respectively. An adapter with 11a/b,11 b/g or
11a/b/g can communicate on either/any or any
of these listed formats respectively; the actual
connection will be based on the access point to
which it connects.
[16] The Bluetooth wor d mark and logos: are
owned by the Bluetooth SIG, Inc. and any use
of such marks by Lenovo is under license.
[17] Limited warranty: Support unrelated
to a warrant y issue may be subject to
additional charges.
[18] Op erating system : Level of support
varies by operating system. Operating systems
not preloaded on the system may not provide
full feature functionality. Refer to lenovo.com/
pc/support and enter your machine type and
model number for more information.
[19] Included Software: may differ from its
retail version (if available) and may not include
user manuals or all program functionality.
Licence agreements may apply.
Certain IBM and ThinkPad logo products :
are not manufactured, warranted or supported
by IBM or Lenovo; IBM and Lenovo logos
and trademarks used under licence. Contact
Lenovo for details.
Energy Star : As an Energy Star Partner,
Lenovo has determined that this product
meets the Energy Star guidelines for
energy efficiency.
This publication was developed for products
and services offered in the United States.
Lenovo may not offer the products, services or
features discussed in this document in other
countries. Information is subject to change
without notice. Consult your local Lenovo
representative for information on offerings
available in your area.
The following are trademarks of Lenovo:
ThinkPad, ThinkVantage, TrackPoint, Ultrabay
and UltraC onnect. IBM the IBM logo, Lotus,
Lotus Notes and SmartSuite are registered
trademarks of IBM and are used under
licence. Linux is a trademark of Linus Torvalds
in the United States, other countries, or
both. Microsoft and Windows are registered
trademarks of Microsof t Corporation. Intel,
Intel Centrino, and Pentium are trademarks of
Intel Corporation. Other company, product and
service names may be trademarks or ser vice
marks of other companies.
Visit w ww.lenovo.com /safecomputing
periodically for the latest information on
safe and effective computing.
05- LEN-837 (05/ 05) LC
thinkpad.com/europe
ThinkPad is a product of Lenovo
Loading...
