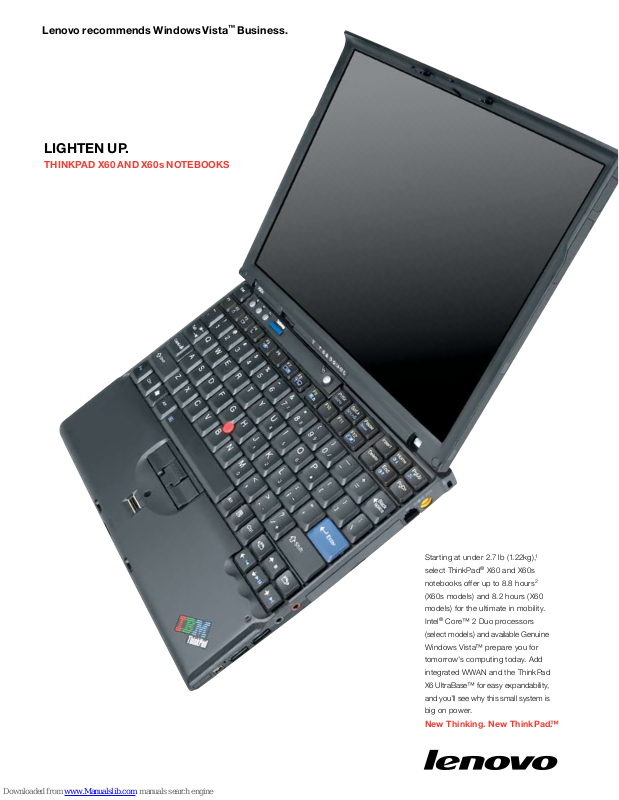

Page 1
Starting at under 2.7 lb (1.22kg),1
select ThinkPad® X60 and X60s
notebooks offer up to 8.8 hours2
(X60s models) and 8.2 hours (X60
models) for the ultimate in mobility.
Intel® Core™ 2 Duo processors
(select models) and available Genuine
Windows Vista™ prepare you for
tomorrow's computing today. Add
integrated WWAN and the ThinkPad
X6 UltraBase™ for easy expandability,
and you’ll see why this small system is
big on power.
New Thinking. New ThinkPad.™
LIGHTEN UP.
THINKPAD X60 AND X60s NOTEBOOKS
Lenovo recommends Windows Vista™ Business.
Page 2
Lenovo recommends Windows Vista™ Business.
Take on the world.
For those with global ambitions, these next-generation ultrapor tables pack long battery life and
more potent performance into a sleek, exceptionally lightweight design. Plus, you can connect
in more places as you travel. Select models feature WWAN technology, which enables you to connect
wirelessly to the Internet from within the participating providers’ coverage areas, making your ThinkPad
a portable hot spot.3 And although we can’t do much about the tight fit in business class or bumpy
cab rides, we do make ultraportable computing comfortable. Only ThinkPad ultraportables boast
the legendar y, full-size4 ThinkPad keyboard with the TrackPoint® pointing device and ThinkLight
®
keyboard light. ThinkPad X60 and X60s notebooks are products of Lenovo, a global company
uniting Lenovo and the former IBM PC Division.
ThinkPad X60 notebook specifications
ThinkPad X60 Machine types: 1706, 1707, 1708, 1709, 2509, 2510
THE WEIGHT OF THE WORLD: NOW EASIER TO BEAR.
Proce ssor
6
(speed, L2 cac he, FSB)
Intel® Core™ 2 Duo T7200 (2.0GHz, 4MB, 667MHz)
Intel Core 2 Duo T5600, (1.83GHz, 2MB, 667MHz)
Intel Core 2 Duo T5500 (1.66GHz, 2MB, 667MHz)
Intel® Core™ Duo T2500 (2.0GHz, 2MB, 667MHz)
Intel Core Duo T2400 (1.83GHz, 2MB, 667MHz)
Intel Core Duo T2300E (1.66GHz, 2MB, 667MHz)
Preloaded operati ng system
7
Genuine Windows Vista™ Business 32
Genuine Windows® XP Professional
Genuine Windows XP Home
Disp lay/resolut ion
12" XGA/1024x768
Hard disk drive
8
40, 60, 80, 100, 120GB 5400rpm or 100GB 7200rpm
Memory
Up to 2GB PC2–5300 /667MHz or up to 4GB PC2–
4200/533MHz
Optical drive
DVD-ROM, CD-RW/DVD Combo, or
Multi-Burner Plus DVD Dual Layer Recordable
(ThinkPad X6 UltraBase required )
Vide o graphics
Intel Graphics Media Accelerator 950 up to 128MB
Integrated communicat ions
Modem ; Gigabit Ethernet
ThinkPad 11a/b/g Il9 (select models )
ThinkPad 11a/b/g/n Wireless Mini-PCI Express
Adapter (select models)
Intel PRO/Wireless 3945ABG (select models)
Bluetooth
™,10
(select models )
Embedd ed WWAN (select models )
Li-Ion batter y life
2
Up to 4.1hr (4-cell cylindrical )
Up to 8.2hr (8-cell cylindrical)
With optional extended -life batter y
Up to 11.1hr (standard 8-cell high capacity battery
plus ThinkPad X60 Serie s Extended Life battery)
Port s
3 USB 2.0, 1394; Infrared; expansio n bus
(for optional Think Pad X6 UltraBase or ThinkPad X60
Series Extended Life Batter y); external display; AC
adapter; RJ-11, RJ-45; audio: headphone/
line-out, external microphone
Slots
1 Type I / II PC Card slot with 34mm Expre ssCard
via adapter, 1 Secure Digital card slot
ThinkVantage Active Prote ction System™ and
ThinkPad Shock-Mounted Hard Drive
Standard
ThinkVantage Client Securit y Solution
Standard
Integrated Fingerprin t Reader
Select models
Keyboa rd
Ergonomic keyboard with palm rest, TrackPoint
pointing device with “Press-to-Select,” Internet Scroll
Bar,11 intuitive volume, ThinkVantage button and
Windows keys
Dimensions
12
268mmx211mm x 20–35mm /10.5" x 8.3" x .80–1.39"
Travel weight
1
1.43kg/3.15 lb (4-cell cylindrical)
1.65kg/3.64 lb (8-cell cylindrical)
Port repl icator/dock support
Optional ThinkPad X6 UltraBase
Limited warranty
13
3yr or 1yr system/1yr battery
Supp ort ed operating syste ms
Genuine Windows Vista Business 32
Genuine Windows XP Professional
Genuine Windows XP Home
Genuine Windows 2000 Professiona l
Included softwar e14 (preloaded)
Adobe Reader; Diskeeper Lite; Google: Google
Toolbar, Goo gle Desktop, Picasa from Google;
Multimedia Center for Think Offerings, including :
InterVideo WinDVD (DVD, DVD/CD-RW & DVD-RW
models), InterVid eo WinDVD Creator (DVD-RW
models), Sonic RecordNow & DLA (DVD/CD-RW
& DVD-RW models); PC-Doctor; Symantec Client
Security (with 90 days of virus definitions); ThinkPad
Utilities (Power Manager and Presentation Director);
ThinkVantage Access Connections ; ThinkVantage
Fingerprint Soft ware, ThinkVantage Productivity
Center with Away Manager; ThinkVantage Rescue
and Recovery; ThinkVantage System Update
(downloadable)
ThinkVantage System Migration Assistant™
(license–CD not included)
IBM® Lotus® SmartSuite,®
IBM Lotus Notes® stand-alone client
Certifi ed operating systems
For a listing of completed Linux® certifications,
visit lenovo.com /linux
For important warranty information, see page 4.
Page 3
ThinkPad X6 UltraBase
(40Y8116) sports a host
of useful ports to simplif y
cable management. Plus, its
Ultrabay™ Slim drive bay
supports a variety of optical
drives.
ThinkPad X60 Series
Extended Life Bat ter y
(40Y7005) combines with
your system battery for up
to 11.8 hours2 of battery life for
select X60s models and 11.1
hours for select X60 models.
ThinkPad Carrying Case—
Leather Ultraportable15
(73P5186) helps you keep
it together in style.
Select models are
Microsoft Of fice ready
for the 2007 Microsoft
Office Business Suites.
Activation keys can be
purchased from Lenovo,
a Lenovo Solution Partner
or directly from Microsoft.
User, heal thyself.
ThinkVantage® Technologies are integrated into every ThinkPad X60 and X60s notebook to
help users help themselves—and reduce the burden on your help desk. These tools—including
ThinkVantage Access Connections™, ThinkVantage Client Security Solution and ThinkVantage
Rescue and Recovery™—make managing connectivity, security and even recovering from
system crashes, quick and easy.
Just shor t of omniscient.
The help you need is always standing by—around the clock and around the world5. ThinkPad
service and support continues to be available from IBM.
Proce ssor (spe ed, L2 cache, FSB)
Intel Core Duo L250 0 (1.83GHz, 2MB, 667MHz)
Intel Core Duo L2400 (1.66GHz, 2MB, 667MHz)
Intel® Core™ Solo U1300 (1.06GHz, 2MB, 533MHz)
Preloaded operati ng system
Genuine Windows Vista Business 32
Genuine Windows XP Professional
Genuine Windows XP Home
Disp lay/resolut ion
12.1" XGA or 12.1" UltraLight XGA (1024x768)
Hard disk drive
40, 60, 80, 100, 120GB 5400rpm or 60, 100GB
7200rpm
Memory
Up to 2GB PC2-5300/ 667MHz or up to 4GB PC24200/533MHz
Optical drive
DVD-ROM, CD-RW/DVD Combo, or Multi-Burn er
Plus DVD Dual Layer Recordable
(ThinkPad X6 UltraBase required )
Vide o graphics
Intel Graphics Media Accelerator 950 up to 128MB
Integrated communicat ions
Modem ; Gigabit Ethernet
ThinkPad 11a/b/g Il (select models)
ThinkPad 11a/b/g/n Wireless LAN Mini-PCI Expres s
Adapter (select models)
Intel PRO/Wireless 3945ABG (select models)
Bluetooth (select models )
Embedd ed WWAN (select models )
Li-Ion batter y life
Up to 3.4hr (4-cell prismatic)
Up to 4.4hr (4-cell cylindrical)
Up to 8.8hr (8-cell cylindrical)
With optional extended -life batter y
Up to 11.8hr (standard 8-cell high capacit y battery
plus ThinkPad X60 Serie s Extended Life battery)
Port s
3 USB 2.0, 1394; Infrared; expansion bus
(for optional ThinkPad X6 UltraBase or ThinkPad X60s
Series Extended Life Battery); external display; AC
adapter; RJ-11, RJ-45; audio: headphone/
line-out, external microphone
Slots
1 Type I / II PC Card slot with 34mm Expre ssCard
via adapter, 1 Secure Digital card slot
ThinkVantage Active Prote ction System and
ThinkPad Shock-Mounted Hard Drive
Standard
ThinkVantage Client Securit y Solution
Standard
Integrated Fingerprin t Reader
Select models
Keyboa rd
Ergonomic keyboard with palm rest, TrackPoint
pointing device with “Press-to-Select,” Internet Scroll
Bar, intuitive volume, ThinkVantage button and
Windows keys
Dimensions
268mm x 211mm x 20–28mm /10.5" x 8.3" x .80–1.11"
Travel weight
12.1" XGA: 1.33kg /2.93 lb (4-cell prismatic ),
1.38kg/3.04 lb (4-cell cylindr ical ),
1.33kg/2.93 lb (8-cell cylindrical )
12.1" UltraLight XGA: 1.24kg/2.73 lb (4-cell prismatic),
1.29kg/2.84 lb (4-cell cylindrical),
1.51kg/3.33 lb(8-cell cylindrical )
Port repl icator/dock support
Optional ThinkPad X6 UltraBase
Limited warranty
3yr or 1yr system/1yr battery
Supp ort ed operating syste ms
Genuine Windows Vista Business 32
Genuine Windows XP Professional
Genuine Windows XP Home
Genuine Windows 2000 Professiona l
Included softwar e (preloaded)
Adobe Reader; Diskeeper Lite; Multimedia
Center for Think Offerings including: InterVide o
WinDVD (DVD, DVD/CD-RW & DVD-RW models),
InterVideo WinDVD Creator (DVD-RW models),
Sonic RecordNow & DLA (DVD /CD-RW & DVD-RW
models); PC-Doctor; Symantec Client Security (with
90 days of virus definitions); ThinkPad Utilities (Power
Manager and Presentation Director); ThinkVantage
Access Connections; ThinkVantage Fingerprint
Software; ThinkVantage Productivity Center with
Away Manager; ThinkVantage Rescue and Recovery;
ThinkVantage System Update
(downloadable)
ThinkVantage System Migration Assistant
(license–CD not included)
IBM Lotus SmartSuite,
IBM Lotus Notes stand-alone client
Certifi ed operating systems
For a listing of completed Linux certif ications,
visit lenovo.com /linux
For important warranty information, see page 4.
ThinkPad X60s notebook specifications
ThinkPad X60s Machine types: 1702, 1703, 1704, 1705, 2507, 2508, 2533
Shif t your system into overdrive.
Lenovo recommends Windows Vista™ Business.
Page 4
1.866.426.1316
lenovo.com
© 2007 Lenovo. Produce d in the USA, 01-07. All rights reserved. Availab ility : All offers sub ject to availability. Lenovo res erves the right to alter product offe rings and s pecific ations at any tim e without
notice. Lenovo is not responsible fo r photographic or typog raphic errors. Warr anty Inf ormation: For a copy of applicable product warrantie s, write to: Warranty Informatio n, P.O. Box 12195, RTP, NC
27709, Attn: Dept. ZPYA/B 676. Lenovo makes no rep resentation or warrant y regarding third-part y products o r servi ces. Footn otes: [1] Weight : inc ludes bat tery and optional travel b ezel instead of
standard opti cal drive in Ultrabay dri ve, if applic able. Weight may vary due to ve ndor compo nents, manuf acturing pro cess and options. [2 ] Bat tery : These m odel numbe rs achieved B attery Rundown
Time of at le ast the time s hown d uring testin g. A des cripti on of t he test ing is availa ble at lenovo.co m/pc/ww/thi nkpad /bat tery life. B atter y life (and recha rge ti mes) will va ry b ased o n many factors
inclu ding screen bright ness, appli cation s, feat ures, p ower ma nagement, ba tter y cond ition ing an d other custom er pre ferenc es. [ 3] WWAN S erv ice P rovi ders : Coverage n ot avail able i n all areas.
Serv ice ava ilabl e via selec t ser vice provid ers an d is ava ilable in s elect metrop olita n markets. Se rvic e agre ement requir ed. Sp ecial credi t and te nure r estric tions and ad dition al ch arges may app ly
to inter nation al roa ming. A netwo rk con necti on, thi rd-par ty s oftw are, add ition al har dware, a nd/o r subs cripti on to a third-p art y ser vice may be requir ed for cert ain so lutio ns/a pplic ations. Additi onal
restri ctions appl y. Serv ice is subje ct to th e appl icable ser vice agree ment /terms from t he res pecti ve ser vice provid ers, th e cor respo nding rate pla n broc hure a nd cove rage maps. O ffer subje ct to
change. [ 4] Full -size key board : As defi ned by ISO/ IEC 15412. [5 ] Inte rnati onal war rant y serv ice: i s available fo r most model s in any countr y in whic h this product is sold and s ervice d. Service
delive ry m ethods and pa rts a vailab ilit y var y by co untry, ma y be di ffer ent fro m thos e in th e coun try of purch ase, an d are s ubjec t to cha nge without notice. Fees and re strict ions m ay appl y in s ome
countri es. [6 ] Mobile Proce ssors : Power manageme nt reduc es proce ssor speed wh en in bat tery m ode. [7 ] Operatin g syst em: L evel of su pport varies by operati ng system. Operati ng system s
not pre loade d on th e system may not provide ful l featu re fun ctiona lity. Re fer to l enovo.co m/pc /sup port and en ter you r mach ine ty pe an d mode l numb er for more information. [ 8] Hard dis k dri ve:
GB=1,000,0 00,00 0 byte s. Acc essib le ca pacit y is le ss; up to 4GB is se rvic e par titio n. [9 ] 11a, 11b, an d 11g wire less : are based on IEEE 802.11a, 802.11b, a nd 802.11g re spect ively. The IEEE
802.11n specific ation h as not been final ized a nd is c urrent ly in d raft relea se. Th e Lenovo and T hinkPa d 11a/b/g /n Wir eless LAN Mini- PCI Expres s Adapte rs are based on the Draf t Release, Version
1.0, of the IE EE 802.11n sp ecificatio n. An adapter with 11a/b, 11a/b/g , or 11a/b/g/n c an com munic ate on a ny of i ts supp orte d form ats; th e actu al con necti on wil l be ba sed on the ac cess point to
which it con nects. [10] The B luet ooth word m ark a nd logos : owne d by Bl uetooth SIG, In c. and any use of suc h marks by Le novo is under licen se. [11] Inter net ac ces s not i nclu ded . [12]
Thinn ess : may var y at ce rtain points on the syste m. [13] L imite d warr anty : Su pport unrelate d to a warr anty is sue may b e subje ct to additional c harges. [14] Inc lude d Sof tware: may d iffer from
its retai l versio n (if available ) and m ay not inc lude user manua ls or al l progra m functi onalit y. License agreeme nts may ap ply. [15] C ert ain IB M and T hinkP ad log o prod ucts : are n ot manufa ctured,
warrante d or supp orted by IBM or L enovo; IB M and Le novo logo s and trademarks used un der lic ense. Con tact Len ovo for det ails. Th e foll owing a re tr adema rks of Lenovo : Lenovo, t he Lenovo
logo, Acc ess Con nection s, Active Protection System, Re scue an d Recove ry, System M igratio n Assist ant, Thin kLight, ThinkPad, ThinkVan tage, TrackPoi nt, UltraB ase and Ultrabay. IBM, the IBM logo,
Lotus, Lotus Notes and SmartSuite are registered trademarks of IBM C orporation and are used u nder license. Intel and Intel Co re are trademarks of Intel Corpo ration. Microsoft®, Vista and Windows are
tradem arks o f Micro soft Corpo ration. Linu x is a t radema rk of Linus Torvalds . Othe r comp any, produ ct and ser vice n ames may be t radema rks o r ser vice m arks of other s.
Visit lenovo.c om/sa fecompu ting pe riodi call y for th e late st in forma tion o n safe and ef fect ive com puti ng.
TPD01581-USEN-02
Loading...
