Testomat 2000® Fe

Process Photometer for
Iron (Dissolved) 0 – 1.0 mg/l

Operating Instructions

Lenntech

Lenntech

[e-mail] Tel. [phone]
www.lenntech.com Fax. [phone]

[e-mail] Tel. [phone]
www.lenntech.com Fax. [phone]

Lenntech

Contents

2

Contents

Contents ............................................................................................... 2

Important safety information ............................................................. 4

Intended use ......................................................................................... 4

Qualification of the staff ........................................................................ 4

Warning notices in these instructions ................................................... 5

Further documents ................................................................................ 5

Pay particular attention to ..................................................................... 5

General instructions .............................................................................. 5

Installation ............................................................................................. 6

Operation .............................................................................................. 6

After switch-off and longer downtime .................................................... 6

Cleaning ................................................................................................ 6

De-installation ....................................................................................... 6

Disposal ................................................................................................ 6

Scope of delivery ................................................................................ 7

Performance specifications ............................................................... 7

Application instructions ..................................................................... 8

Installation ........................................................................................... 9

Operating Testomat 2000® Fe in the pressure range 0.3 to 1 bar ........ 9

Installing Testomat 2000® Fe ................................................................ 9

Connecting the water inlet and outlet ................................................. 10

Water inlet ........................................................................................... 10

Water outlet ......................................................................................... 10

Connecting the power supply and devices ......................................... 11

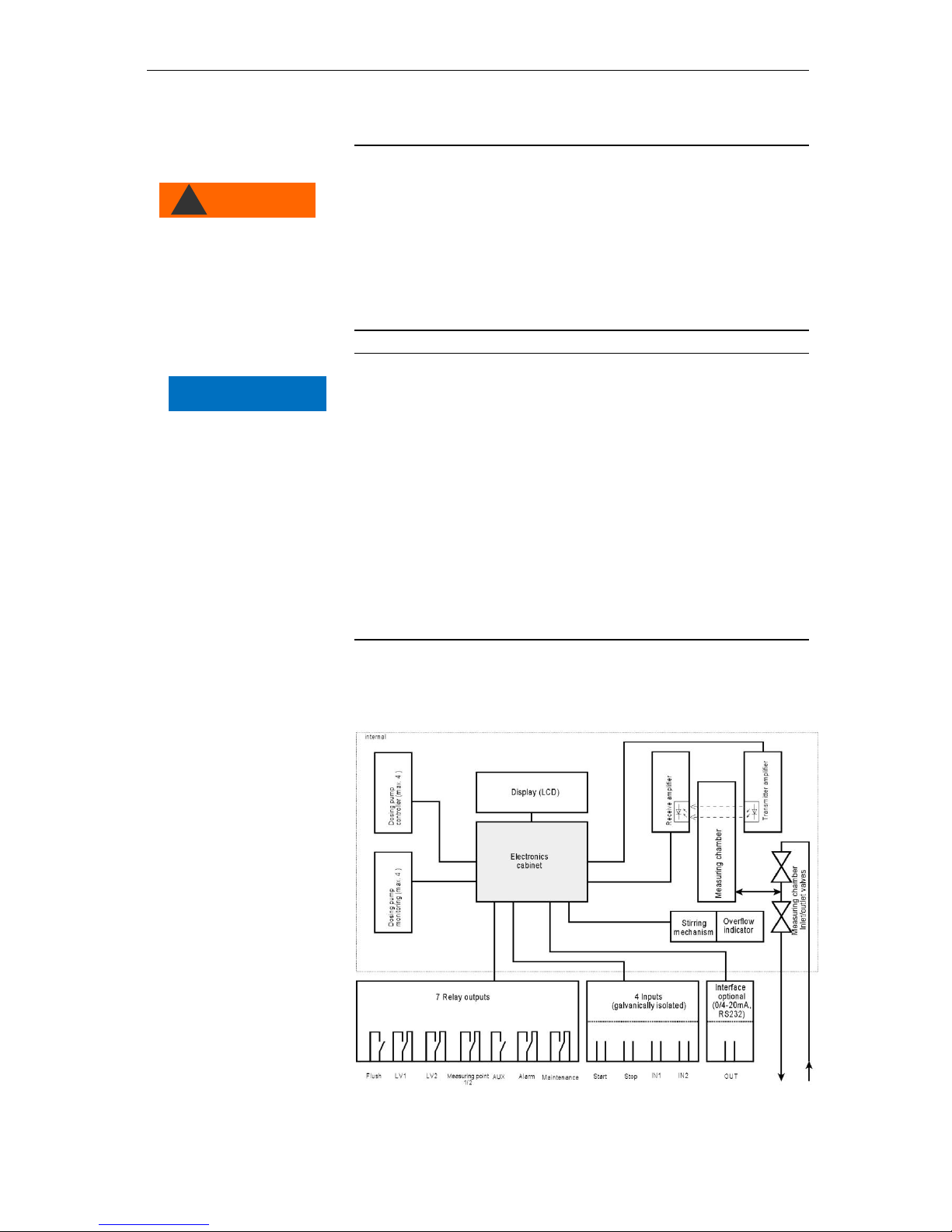

Block diagram Testomat 2000® Fe ..................................................... 11

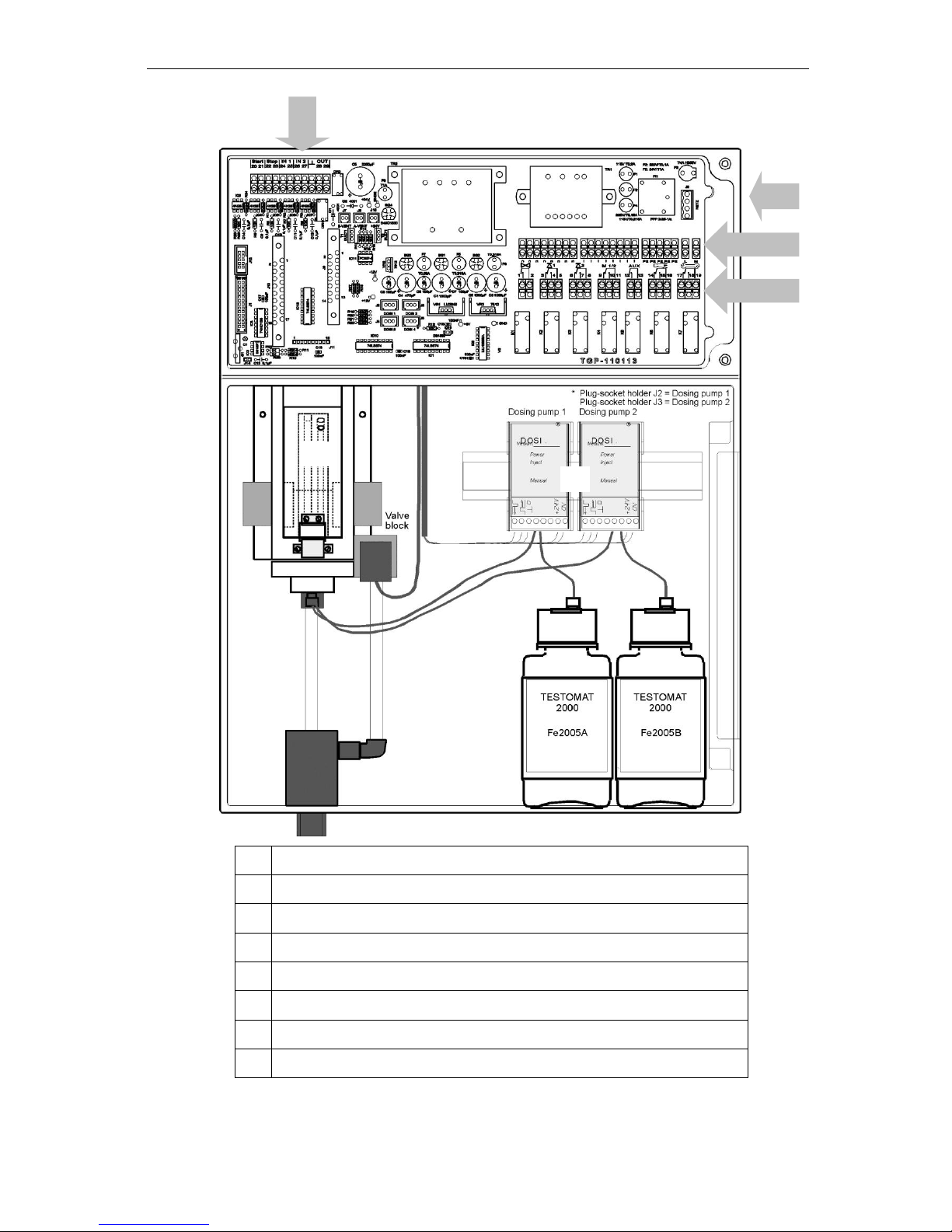

Internal design Testomat 2000® Fe .................................................... 12

Connecting the mains voltage............................................................. 13

Connecting the plant components ...................................................... 14

Connecting the inputs and outputs ..................................................... 15

Commissioning ................................................................................. 16

Inserting reagent bottles ..................................................................... 16

Filling the reagent ............................................................................... 16

Opening the water inlet ....................................................................... 16

Instrument settings and data input ...................................................... 17

Functions of the operating and display elements ......................... 17

Switching Testomat 2000® Fe on/off ................................................... 17

Display functions ................................................................................. 18

Operating elements and function keys ............................................... 19

Operating system ................................................................................ 20

Password protection and basic program ....................................... 21

Entering basic program data ............................................................... 21

Selecting the operating mode ............................................................. 21

Selecting the displayed unit ................................................................ 24

Entering further basic program data .............................................. 25

Internal flushing ................................................................................... 25

External flushing ................................................................................. 25

Interval pause ..................................................................................... 26

Limit value monitoring ......................................................................... 26

Hysteresis ........................................................................................... 27

Contents

3

Switch functions of the limit value outputs LV1 and LV2 .................... 28

Switch function 0, duration .................................................................. 28

Switch function 1, impulse .................................................................. 28

Switch function 2, interval ................................................................... 28

Switch function 3, two-point ................................................................ 28

Function IN1 ........................................................................................ 29

Water meter ........................................................................................ 29

Plant monitoring .................................................................................. 29

Alarm / Message ................................................................................. 30

Function AUX ...................................................................................... 30

Service II ............................................................................................. 31

Calibration ........................................................................................... 31

Resetting the operating time ............................................................... 33

Maintenance interval ........................................................................... 33

Water quantity RESET ....................................................................... 33

Plant control RESET .......................................................................... 33

Description of the signal inputs/outputs ........................................ 34

Interfaces (optional) ............................................................................ 35

Installing the interface cards SK910/RS910 ....................................... 35

Monitoring of one measuring point ..................................................... 36

Monitoring of two measuring points .................................................... 36

Calculating the output currents ........................................................... 37

Serial interface RS232 ........................................................................ 37

SD card data logger ............................................................................ 38

Description of the relay outputs ...................................................... 38

Flushing (external flush valve) ............................................................ 38

LV1 and LV2 limit value outputs ......................................................... 38

Measuring point 1 or 2 (measuring point switch-over) ........................ 39

AUX (programmable function output) ................................................. 39

Alarm (fault message output) .............................................................. 40

Maintenance (output for maintenance message) ............................... 40

Information menu "i" ........................................................................ 41

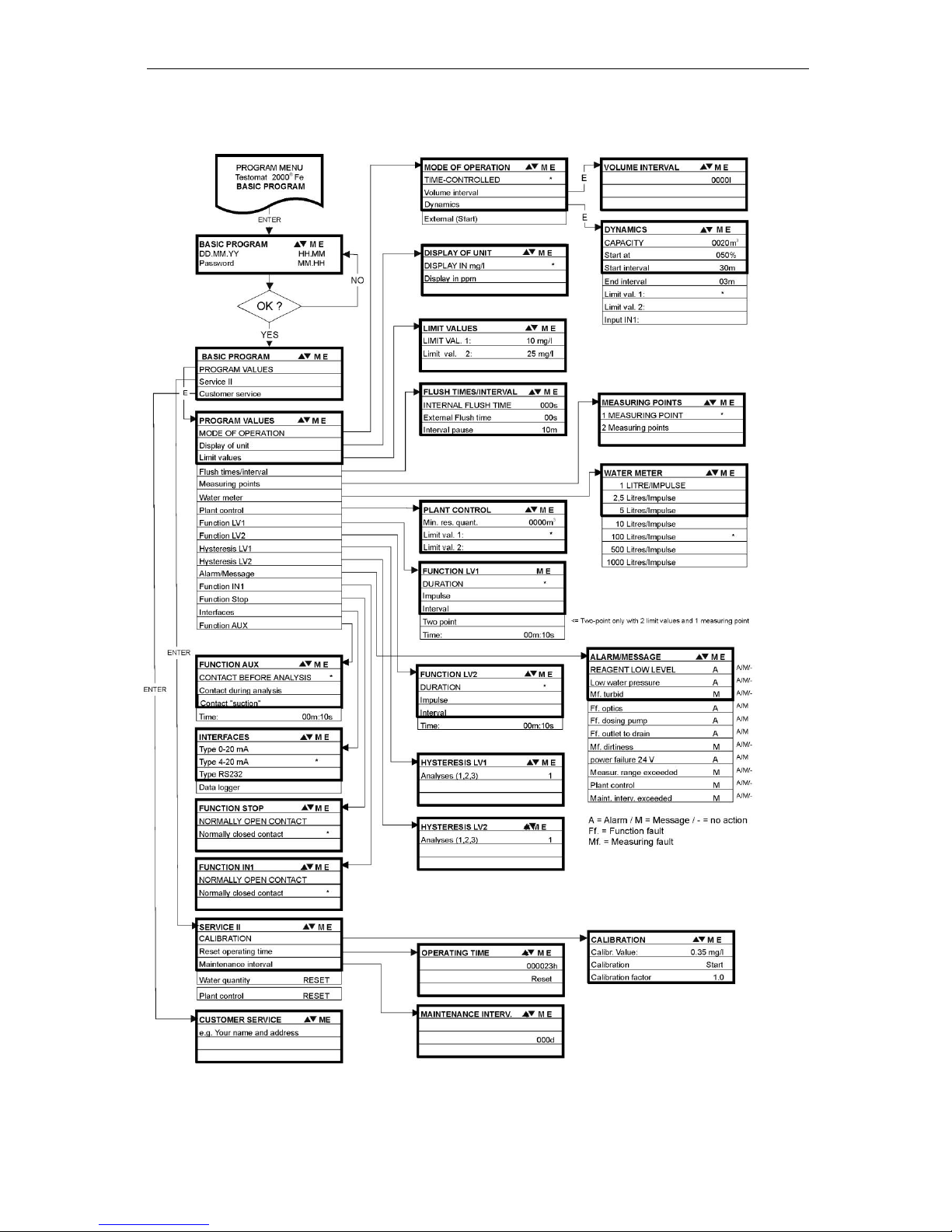

Program menu "M" ........................................................................... 42

Structure of the basic program ....................................................... 44

Error messages / Troubleshooting ................................................. 45

Further information .............................................................................. 46

Maintenance ...................................................................................... 47

Description of maintenance work ........................................................ 47

Service instructions ............................................................................. 48

Testomat 2000® Fe spare parts and accessories .......................... 49

Accessories ......................................................................................... 50

Reagents ............................................................................................. 50

Technical data ................................................................................... 51

Conformity Declaration ....................................................................... 52

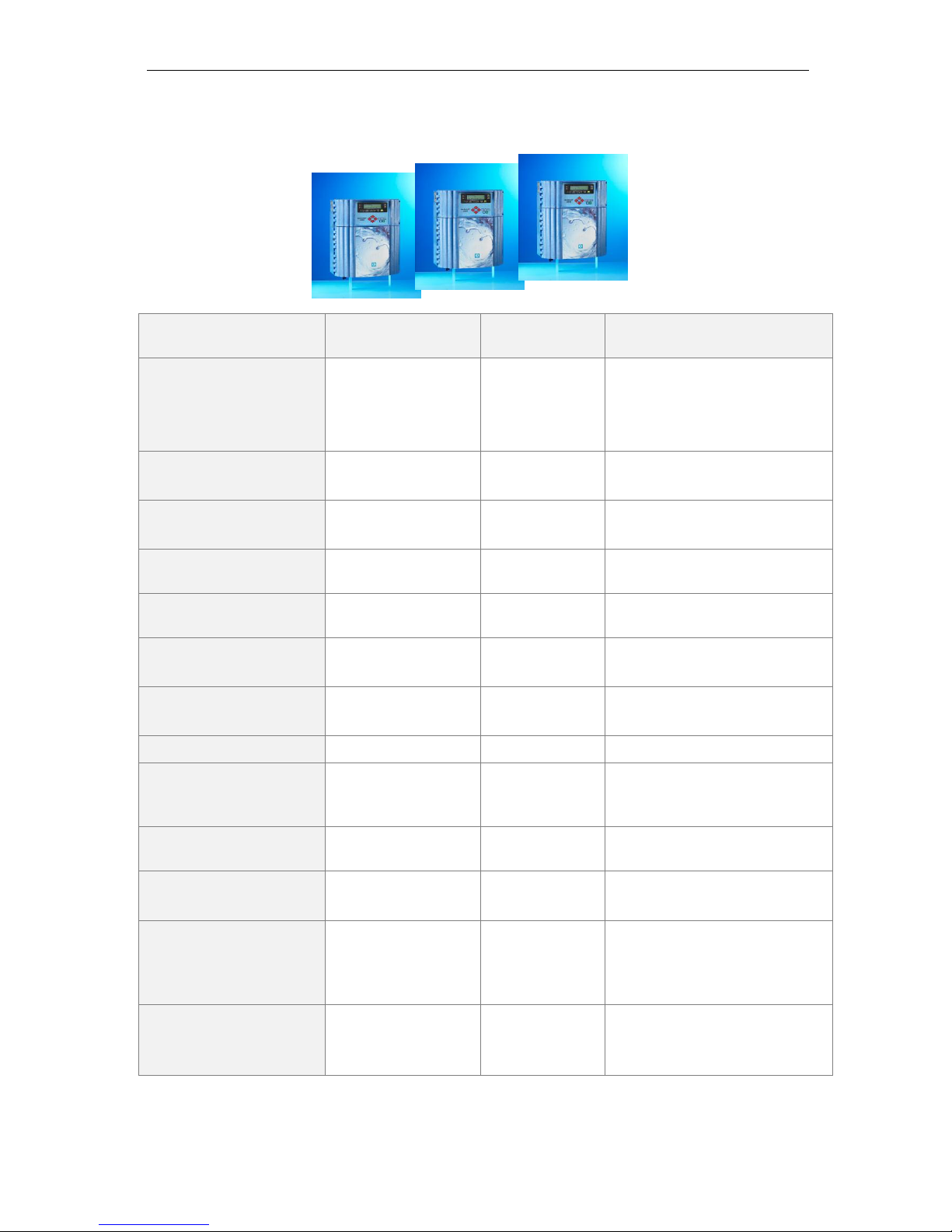

Product overview Testomat 2000® instruments ............................ 52

Check List Testomat 2000® ................................................................ 54

Important safety information

4

Important safety information

 Please read these operating instructions carefully and completely

prior to working with the instrument.

 Ensure that these operating instructions are always available for

all users.

 These operating instructions must always be passed on to the

new owner should Testomat 2000® Fe change hands.

Intended use

The process photometer Testomat 2000® Fe is a robust wet-chemical
online monitor for monitoring the dissolved iron content (II)+(III) from
0 to 1.0 mg/l using a colourimetric analysis principle.

Analysis is carried out by adding two reagents. The analysis result is
displayed after a reaction time of approx. 7 minutes (absolute meas­uring time without flushing times).

Applications include, e.g., the monitoring of de-ironing plants or the
monitoring of process or drinking-water flows.

Always adhere to the performance limits stated in the section entitled
“Technical data”.

 Always observe the requirements of the medium being measured.

To ensure correct and intended usage, always read and understand
these instructions, especially the section entitled “Important safety
information”, prior to use.

The instrument is not used as intended if

 it is used in areas not specified in these instructions,
 it is used in areas which do not correspond to the ones described

in these instructions.

Qualification of the staff

Assembly and commissioning require fundamental electrical and
process engineering knowledge as well as knowledge of the respec­tive technical terms. Assembly and commissioning should therefore
only be carried out by a specialist or by an authorised individual su­pervised by a specialist.

A specialist is someone who due to his/her technical training, know­how and experience as well as knowledge of relevant regulations can
assess assigned tasks, recognise potential hazards and ensure ap­propriate safety measures. A specialist should always adhere to the
relevant technical regulations.

 Always adhere to hazard warnings and safety tips when using

reagents, chemicals and cleaning agents. Please adhere to the
respective safety data sheet! Download the safety data sheets for
the supplied reagents at www.lenntech.com .

Important safety information

5

Warning notices in these instructions

The warning notices in these instructions warn the user about poten­tial dangers to individuals and property resulting from incorrect han­dling of the instrument. The warning notices are structured as follows:

Description of the type or source of danger

Description of the consequences resulting from non-observance

 Preventive measures. Always adhere to these preventive

measures.

“DANGER” indicates an immediate hazardous situation which, if not

avoided, will result in death or serious injury.

“WARNING” indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.
“CAUTION” indicates a potentially hazardous situation which, if not

avoided, could result in minor or moderate injuries or property dam­age.

“NOTE” indicates important information. If this information is not ob­served, it may result in an undesirable result or state.

Further documents

Testomat 2000® Fe is a plant component. Therefore, always observe
the maintenance manual of Testomat 2000® /Testomat ECO® and the
documentation of the plant manufacturer.

Pay particular attention to

General instructions

 Please adhere to health and safety regulations, electrical equip-

ment safety regulations, and environmental protection regulations
valid in the country of use and at the installation site.

 Adhere to national and local regulations during installation and

commissioning.

 Always protect the instrument against moisture and humidity. It

should never come into contact with condensation or splash water.

 Do not carry out any changes or actions at the instrument which

are not described in these instructions; failure to adhere to these
instructions will negatively affect any warranty claims that you
make thereafter.

SIGNAL WORD

DANGER

!

CAUTION

!

WARNING

!

WARNING

!

NOTE

Important safety information

6

Installation

 Always completely disconnect the relevant plant part before in-

stalling the instrument or connecting/disconnecting it to/from the
power supply. Secure the plant against reconnection.

 Only connect the instrument to the mains voltage specified on the

rating plate.

 Always observe technical data and ambient parameters.

 Testomat 2000® Fe requires an interference free and stable power

supply. If necessary, use a mains filter to protect Testomat 2000®
Fe against interference voltages caused, e.g., by solenoid valves
or large motors. Never lay connecting cables parallel to power ca­bles.

Operation

 Ensure that the maximum electrical load capacity of the relay out-

puts is never exceeded.

 Immediately switch off Testomat 2000® Fe and contact service

staff if malfunctioning occurs. The warranty will be void if you tam­per with or attempt to repair Testomat 2000® Fe. Repairs must be
carried out by authorised service staff.

After switch-off and longer downtime

 Ventilate the indicator leads as described in the start-up, because

longer downtimes (more than 6 hours) can cause the indicator in
the leads to retract.

 Do not switch off the appliance for longer periods (e.g. over the

weekend) via the start/stop output. The indicator can retract from
the leads. This results in measurement errors after the appliance is
switched on.

Cleaning

 Only use a dry, lint-free cloth for cleaning.

De-installation

 Prior to de-installing a defective instrument, always write down a

description of the error (failure effect). It is only possible to repair a
defective instrument (irrespective of the warranty period) if it has
been de-installed and returned to us with a description of the error.

 Please also inform us of the measured medium. Before you return

the instrument for repair work, remove the reagent bottles and en­sure that the measuring chamber has been flushed out and is
empty.

Disposal

 Dispose of the instrument in accordance with national regulations.

WARNING

!

NOTE

Scope of delivery

7

Scope of delivery

1x Testomat 2000® Fe
1x plastic bag with two screw caps with a hole and inserts for the

screw caps of the reagent bottles

1x operating instructions

Performance specifications

The process photometer Testomat 2000® Fe is used for automatically
monitoring the dissolved iron content (II)+(III) from 0 to 1.0 mg/l using
a colourimetric analysis principle. Analysis is carried out by adding
two reagents.

 Simple, menu-driven operating and programming via a plain text

display

 High measuring accuracy provided by a precise piston-dosing

pump

 Range I: 0 - 0.65 mg/l, resolution: 0.01 mg/l

Range II: 0.7 – 1.0 mg/l, resolution 0.1 mg/l

 Analysis initiation:

- Automatic interval operation
(interval pause can be set from 0-99 minutes)

- External control

- Dynamic (exhaustion-dependent interval operation)

- Quantity dependent via impulse water meter

 Two independent limit values with hysteresis (1, 2 or 3 bad anal-

yses) and settable switch functions

 Monitoring of two measuring points (change-over via external

solenoid valves)

 Internal error documentation
 Programmable service address
 Programmable maintenance interval for a maintenance request
 Extended operating periods due to 500 ml reagent storage bottle
 Optional

Interface card (0/4-20 mA or 0/2-10 V) or
Interface card RS232 (for a protocol printer)

Application instructions

8

Application instructions

 Wait at least 5 seconds before switching the instrument on and

then off again at the main switch.

 Trouble-free operation of Testomat 2000® Fe is only possible

when using Heyl Testomat 2000® reagents FE2005A and
FE2005B! Faults or problems resulting from the use of other rea­gents will not be accepted as a warranty or fair dealing claim.

 Larger quantities of heavy metal ions in the water influence the

colour reaction, especially copper above 0.01 mg/I and alumini­um above 0.1 mg/l. Measurement is possible in the pH range 4 –

10.5. The concentration of influencing contents can be deter­mined by using our colourimetric TESTOVAL® test kits.

 Only use Testomat 2000® Fe for its intended purpose.
 Careful handling of the instrument increases both its operational

reliability and service life! Therefore, carry out a visual inspection
at regular intervals as described below:

- Are the hose connections of the dosing pump free of leaks?

- Is there air inside the dosing hoses?

- Are all the water connections free of leaks?

- Are the doors of the instrument closed properly?

- Is the instrument heavily soiled?

- Are the measuring chamber and the drain duct/drain hose

clean?
 Trouble-free operation is only possible when maintenance is car-

ried out on a regular basis! For maintenance and service instruc-

tions, please refer to the section entitled “Maintenance” and the

"Maintenance manual of Testomat 2000®/Testomat ECO®".

 If problems occur, please refer to the section entitled "Error mes-

sages/Troubleshooting”.

Installation

9

Installation

Risks resulting from incorrect installation!

 Install Testomat 2000® Fe at a location where it is protected

against dripping or splash water, dust and aggressive substances
– e. g. in a switch cabinet or on a suitable wall.

 Only authorised technicians should carry out installation and

commissioning!

Information for trouble-free operation

 Install the instrument vertically and without mechanical stress.
 Install the instrument at a vibration-free site.

Operating Testomat 2000® Fe in the pressure
range 0.3 to 1 bar

Prior to installation, please check whether lower operating pressure is
required. The instrument is factory set for the operating range 1 to 8

bar. Remove the flow controller valve body to operate the instru­ment in the operating range 0.3 to 1 bar (e.g. when using a type R
aerator). This involves removing the retaining pin from the control-

ler / filter receiver . Subsequently use the metal bracket to remove
the controller plug from the borehole. Subsequently remove the
flow controller valve body and reinsert the controller plug and the

retaining pin.

Installing Testomat 2000® Fe

Select an installation site where the water inlet hose can be kept as
short as possible (max. 5 m).

 Please leave sufficient space on the left-hand side of the instru-

ment to open the door.

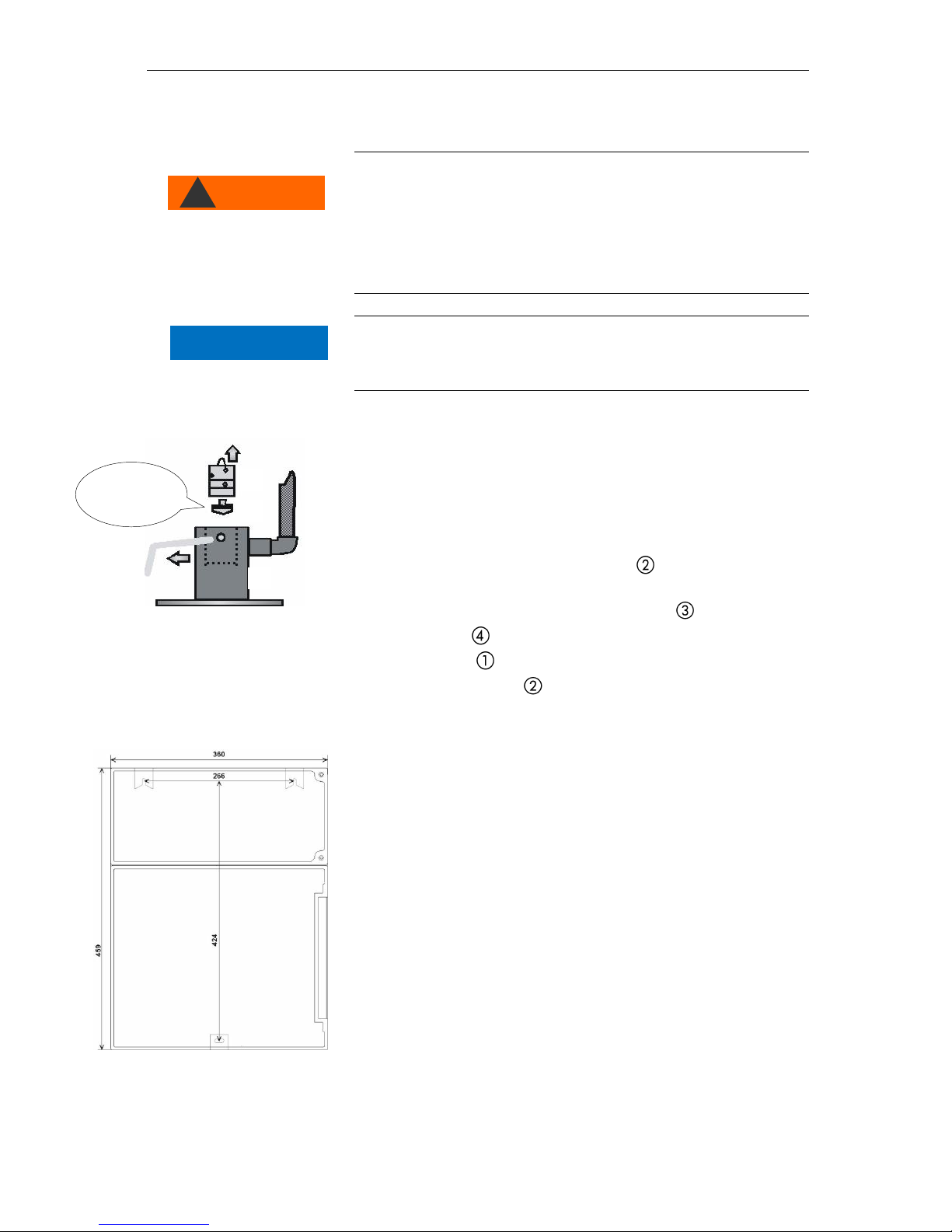

 Drill the mounting holes as shown in the drawing on the left.
 Use three screws to attach the instrument at a suitable position in

the switch cabinet or on a wall.

Remove for
pressure
range 0.3 to 1

4

3 2 1

WARNING

!

NOTE

Installation

10

Connecting the water inlet and outlet

Information for trouble-free operation

 The water pressure must be between 0.3 bar and 8 bar.
 Avoid strong pressure fluctuations.
 The measuring water temperature must be between 10°C and

40°C. Higher water temperatures can damage the parts which
come into contact with the water (e.g. filter housing, measuring
chamber)!

 For temperatures above 40°C, install the KCN type cooler in the

branch line of Testomat 2000® Fe.

Water inlet

Equip the sampling line to Testomat 2000® Fe with a manually oper­ated shut-off valve and keep it as short as possible (the max. length
of 5 metres should not be exceeded). The instrument is equipped
with a plug connector for opaque plastic hoses 6/4 x 1 (external di­ameter 6 mm/internal diameter 4 mm, wall thickness 1 mm) as stand­ard.

 Install the connection for the branch line of Testomat 2000® Fe

directly at the main water line .

 It is important that the branch line connection is laid vertically up-

wards in order to prevent dirt particles from entering the instru­ment from the main water line.

 Install a manually operated shut-off valve in the branch line to

Testomat 2000® Fe.

 Use an opaque plastic hose 6/4 x 1 (max. length 5 m) for the wa-

ter inlet .

 Flush the inlet to remove any dirt particles.

When operating within a pressure range of 0.3 to 1 bar or with a sup­ply via a booster pump, please remove the valve body from the con­troller and the filter housing. The pump should have a feeding capaci­ty of between 25 and 35 litres/hour and be resistant to the medium
being measured.

When using a cooler

 The hot water can cause burns and damage wetted parts of

Testomat 2000® Fe.

Water outlet

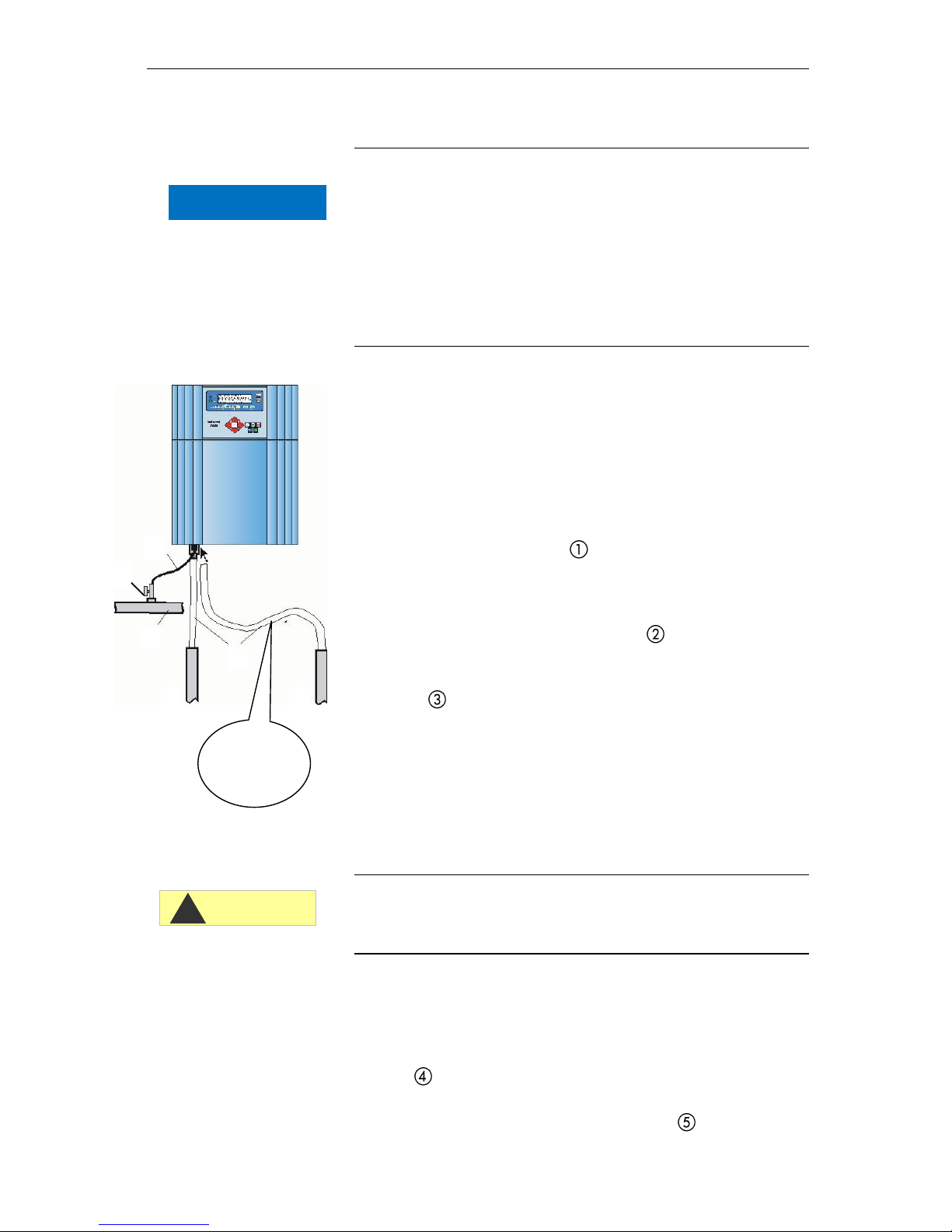

The feed water flows through the measuring chamber to the drain via
the outlet hose.

 Connect the outlet connection of Testomat 2000® Fe to an outlet

hose (internal diameter 12 mm).

 Lay this hose without backwater development and any syphon-

ing effect, e.g. via an open funnel, to the drain .







  

NO !!

"Sagging“

causes backwa-

ter!

CAUTION

!

NOTE

Installation

11

Connecting the power supply and devices

Risk of electric shocks during installation!

If the power supply is not disconnected prior to installation, it may
result in personal injuries, destruction of the product or damage to
plant parts.

 Always disconnect the relevant plant parts before installing Tes-

tomat 2000® Fe.

 Only use tested cables with sufficient cross-sections for the con-

nections.

Risk of damages caused by electromagnetic fields!

 If Testomat 2000® Fe or the connecting cables are installed paral-

lel to power cables or in close proximity to electromagnetic fields,
the instrument may be damaged or measurements may be incor­rect.

 Ensure that connecting cables are as short as possible.
 Always install connecting cables and power cables separately.
 Connect the instrument to the protective earth conductor (for

230/115 VAC).

 Protect Testomat 2000® Fe against interference voltages – e.g. via

a mains filter.

 Shield the instrument against strong electromagnetic fields.

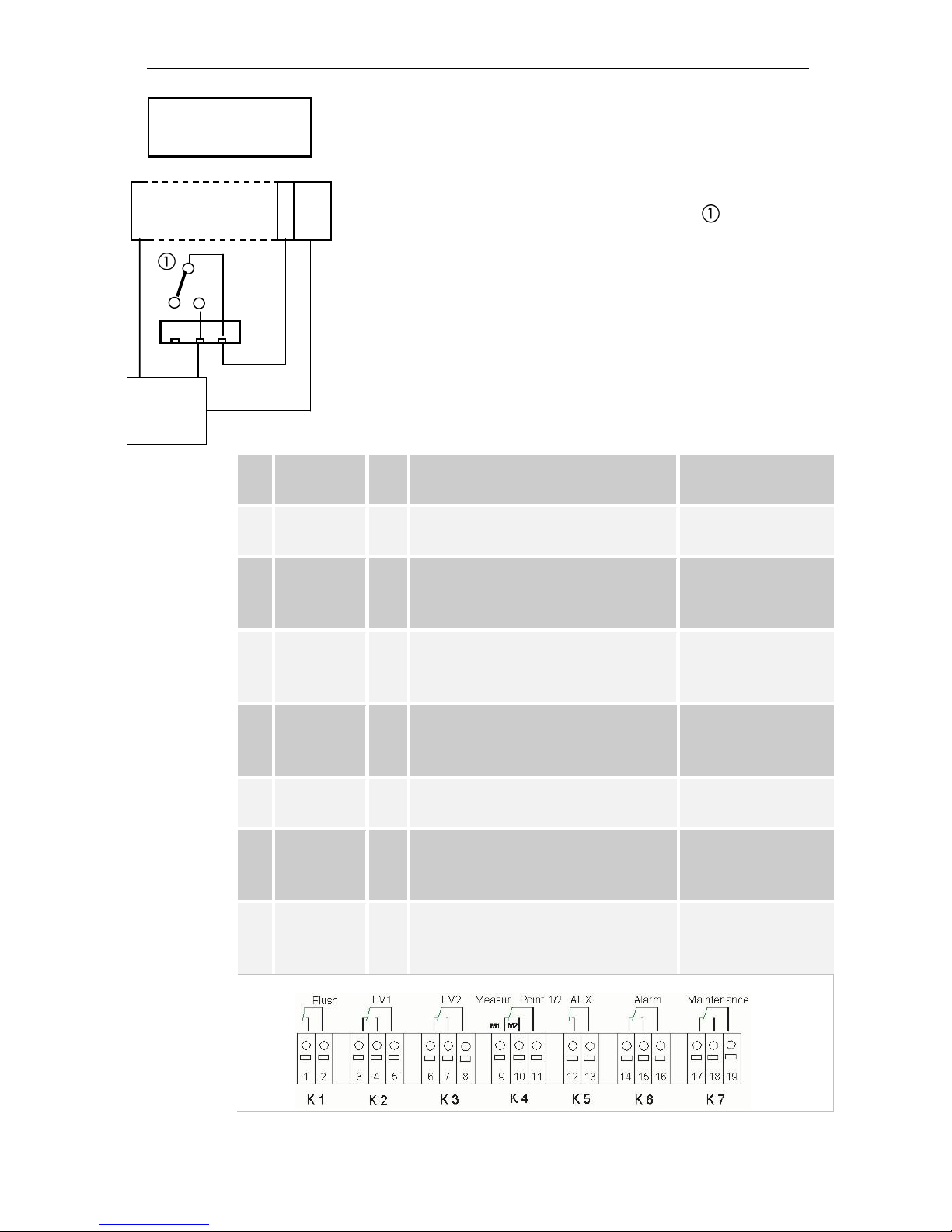

Block diagram Testomat 2000® Fe

Drawn relay positions: Instrument de-energised

WARNING

!

NOTE

Installation

12

Internal design Testomat 2000® Fe

1

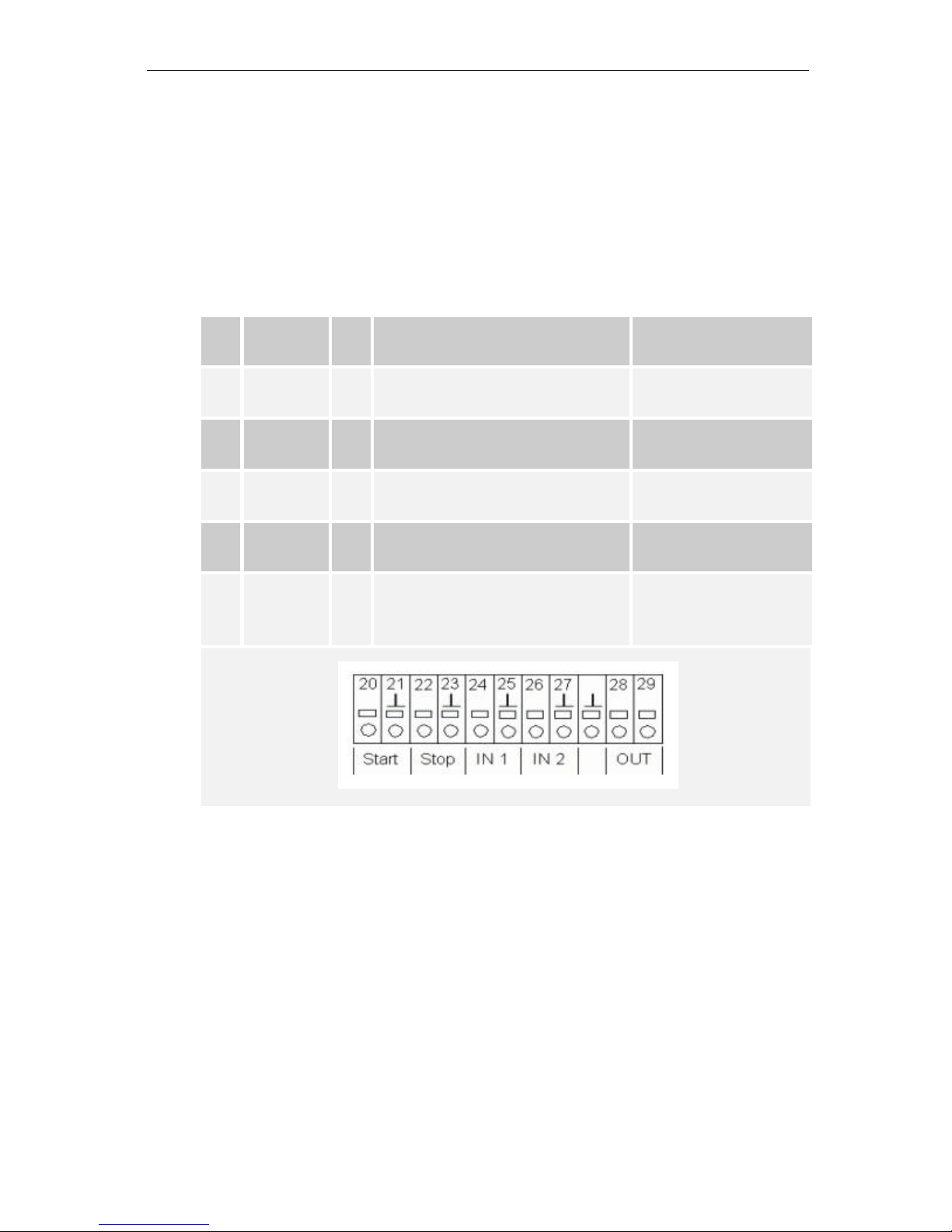

Terminal block for inputs Start, Stop, IN1, IN2, and output OUT

2

Mains switch

3

Terminal block for mains inputs and mains outputs

4

Terminal block relay outputs

5

Dosing pumps

6

Water connections, inlet and outlet

7

Flow controller

8

Measuring chamber

      



Installation

13

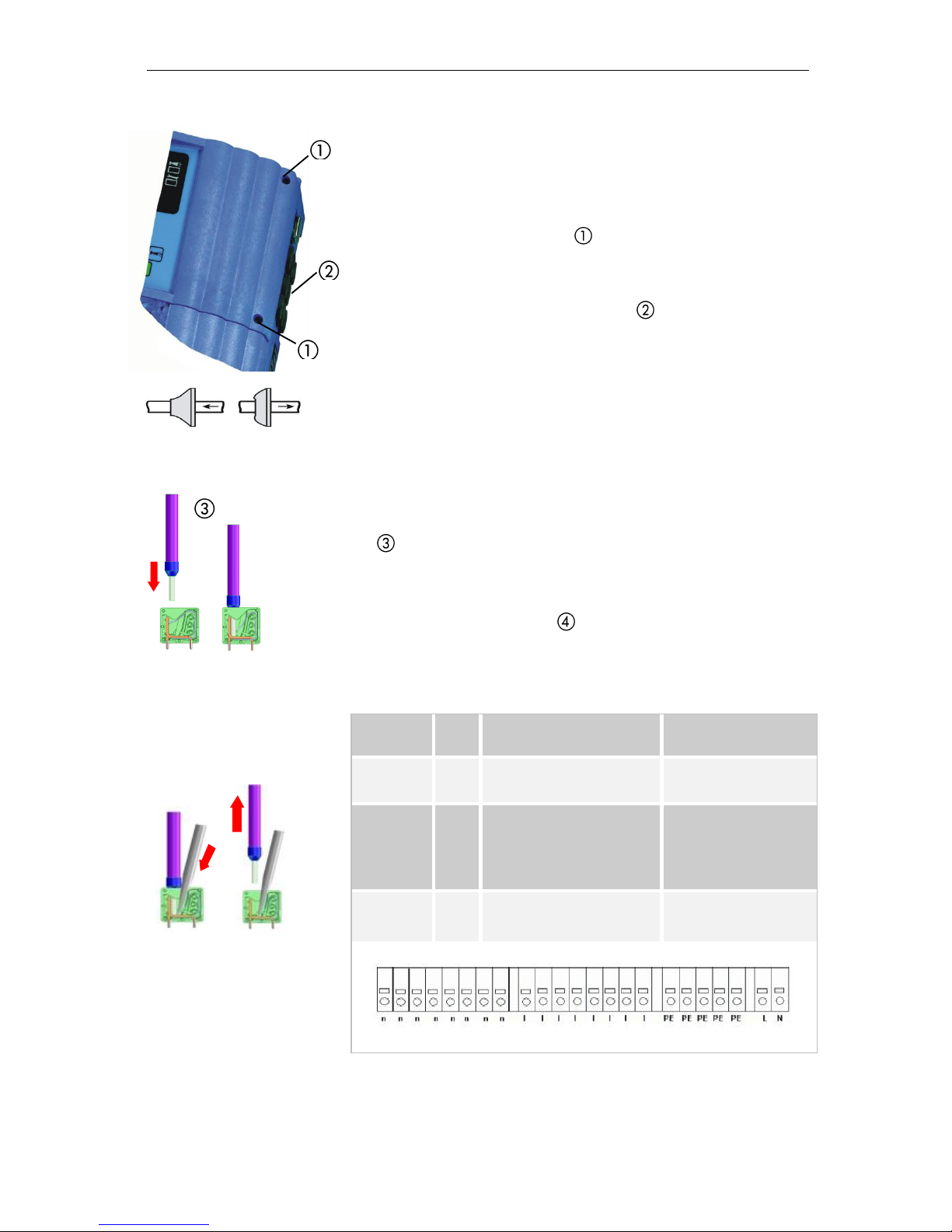

Connecting the mains voltage

Only connect the instrument to the specified mains voltage. Refer to
the rating plate for the appropriate mains voltage. Connect the cables
as follows:

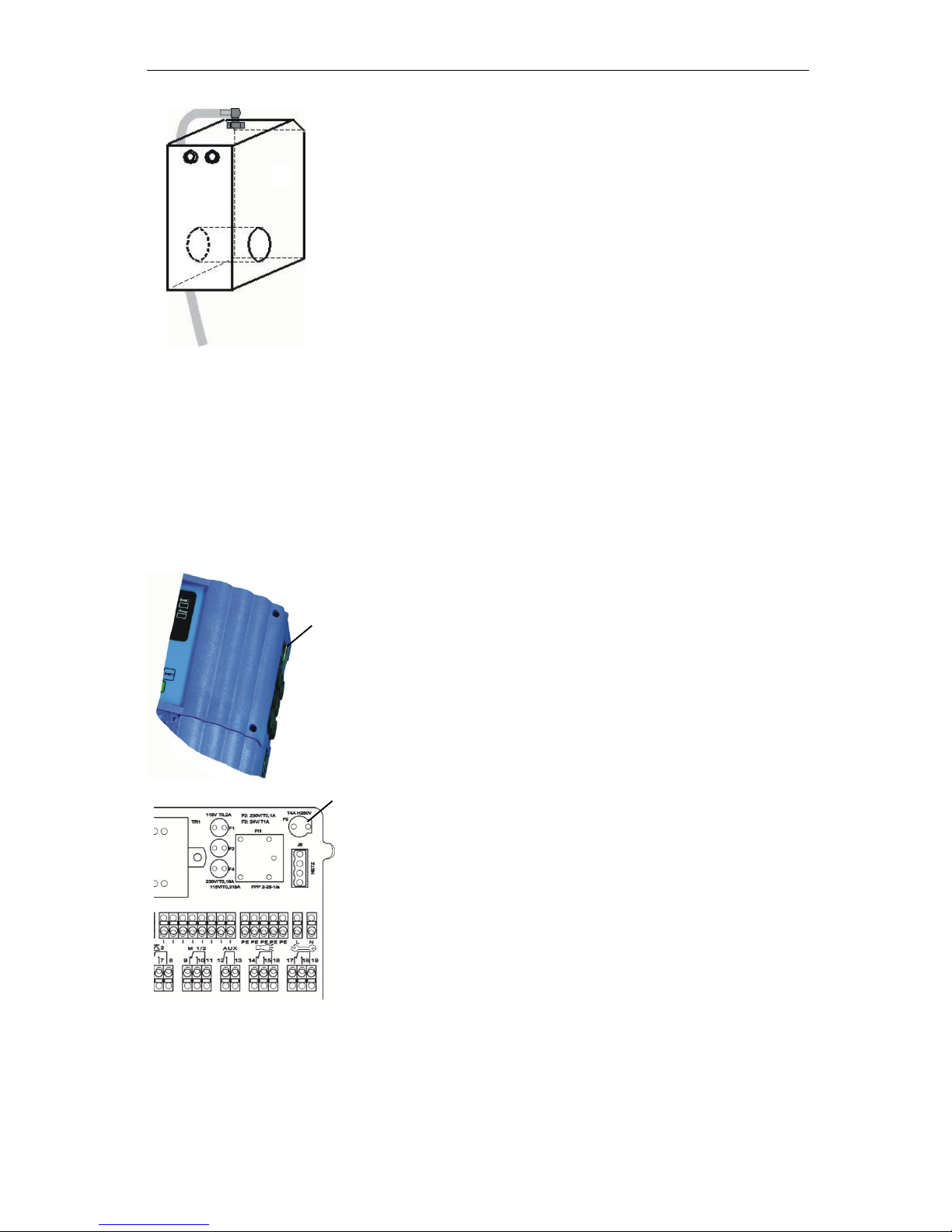

 Loosen both fastening screws and open the upper door. The

terminal box is now accessible.

 Pierce the required rubber cable glands with a screwdriver and

insert the cable through the bush into the terminal box (1).

 Subsequently pull back the cable until the bush has been turned

over (2).

 Connect the power supply to terminals PE,N,L or for 24 V instru-

ments to terminals U, V

 Connect the conductor to the terminal block as shown on the left

.

 Ensure that the leads are held securely in the terminals.

 Proceed as shown in figure to loosen the connection.

Terminals

Terminal
description

Type

Function

Comment

PE

IN

Protective earth conductor
(5x)

Only for mains
115/230 V !

N (U)

L (V)

IN

Mains, N=neutral conduc­tor (U=24 V)

Mains, L=phase (V=24
V)

Mains input
24 V / 115 V / 230 V

n

l

OUT

Neutral, switched (8x)
Phase, switched (8x)

Mains for consumers,
max. 4 A

Insert the conductor with
ferrule or the solid conductor
into the round cable input.

1

2

1. Insert a screwdriver into the

square opening without force in
order to open the terminal.

2. Once the terminal has been
opened, remove the conductor.



Installation

14

Connecting the plant components

 Connect the plant components to the output terminals of relays 1

to 19 (e.g. valves)

 If the plant components require mains voltage, connect the

switched mains voltage (l) to the common contact of the re-

spective relay (see the connection example for 230 VAC on the
left)

 Connect the neutral conductor of the plant component to one of

the terminals (n)

 For components with a protective earth conductor connection,

connect it to the PE connection

 Ensure that the leads are held securely in the terminals

No.

Terminal de-

scription

Typ
e

Function

Comment

1
2

Flushing

OUT

External flush valve

Volt-free relay output,
max. 240 VAC, 4 A

3
4 5 LV1

OUT

Limit value output 1 – Normally closed
Limit value output 1 – Normally open
Limit value output 1 – Common

Volt-free relay output,
max. 240 VAC, 4 A

6
7 8 LV2

OUT

Limit value output 2 – Normally closed
Limit value output 2 – Normally open
Limit value output 2 – Common

Volt-free relay output,
max. 240 VAC, 4 A

9
10
11

Measuring

point 1/2

OUT

Measuring point 1 – Normally closed
Measuring point 1 – Normally open
Measuring point switch-over - Common

Volt-free relay output,
max. 240 VAC, 4 A

12
13

AUX

OUT

Universal output

Volt-free relay output,
max. 240 VAC, 4 A

14
15
16

Alarm

OUT

Fault message output – Normally closed
Fault message output – Normally open
Fault message output – Common

Volt-free relay output,
max. 240 VAC, 4 A

17
18
19

Mainte-

nance

OUT

Maintenance message – Normally closed
Maintenance message – Normally open
Maintenance message – Common

Volt-free relay output,
max. 240 VAC, 4 A

Connection example

Limit value contact LV 1
switches mains voltage

n
l

3 4 5

e.g.

solenoid

valve

PE

Installation

15

Connecting the inputs and outputs

Testomat 2000® Fe has the following connections for control and
monitoring functions.

 Do not connect external voltage to these connections!
 Ensure that the leads are held securely in the terminals.
 Use the two fastening screws to close the upper door once instal-

lation has been completed.

For more information, please refer to the section entitled "Description
of the signal inputs/outputs".

No.

Terminal

description

Typ
e

Function

Comment

20
21

Start

IN

External analysis start
Common earth for inputs

Only for volt-free normally
open

22
23

Stop

IN

External analysis stop
Common earth for inputs

Only for volt-free normally
closed/normally open!

24
25

IN1

IN

Universal input 1
Common earth for inputs

Only for volt-free normally
closed/normally open!

26
27

IN2

IN

Universal input 2 (water meter)
Common earth for inputs

Only for volt-free normally
open

┴

28
29

OUT

OUT

Earth
0/4 - 20 mA galvanically separated

or serial interface RS232

Earth = ┴
28 = (+) or (TxD)
29 = (-) or (RxD)

Commissioning

16

Commissioning

Handling reagents

 Please adhere to the respective safety data sheet!
 Trouble-free operation of Testomat 2000® Fe is only possible

when using Heyl Testomat 2000® reagents FE2005A and
FE2005B!

 Caution: Observe correct allocation of the reagents A and B to

the dosing pumps: A = left, B = right!

Inserting reagent bottles

 Open the lower housing door by pulling on the right-hand side.
 Remove the cap from the reagent bottle.
 Remove the plastic bag from inside the lower housing door. The

plastic bag contains the screw cap with hole and the insert
for the screw cap.

 Connect the parts as shown on the left.
 Screw the hose connector of the intake hose hand-tight into

the insert .

 Place the insert with the screwed-in intake hose into the reagent

bottle.

 Now screw the screw cap with hole hand-tight onto the rea-

gent bottle .

Filling the reagent

 Switch the instrument on and press the "STANDBY" key.
 During operation, the pumps (DOSIClip) automatically extract

the reagents.

 To ensure that reagent is available for the initial analyses, the

intake hose and the transport hose must be filled with rea-

gent from the pump up to the measuring chamber.

 Press the "manual" key several times until the intake hose

and the transport hose are filled with reagent up to the measur­ing chamber.

 If necessary, manually tighten the hose connectors of the intake

and transport hose slightly in case of bubble formation.

Opening the water inlet

 Open the lower housing cover.
 Slowly open the manually operated shut-off valve to prevent the

measuring chamber overflowing. The flow regulator requires a few
seconds to function correctly.

 Make sure that the water conducting parts are not leaky.

CAUTION

!

NOTE

Functions of the operating and display elements

17

 If water sprays from the vent hole  of the measuring chamber

, reduce the amount of inlet water via the manually operated

shut-off valve. It should take 2 to 6 seconds to fill the measuring
chamber!

Instrument settings and data input

 Please read the following information before carrying out settings

and entering data for operating the instrument.

Functions of the operating and dis­play elements

The Testomat 2000® Fe display shows operating statuses and meas­ured values. The input keys for programming (cursor block) and the
function keys are located underneath the display.

Switching Testomat 2000® Fe on/off

(1) Mains switch

Use this switch to switch the instrument on or off.

(2) Instrument fuse (inside the instrument)

This fuse protects the instrument and the outputs against
overloads and short circuits.

1





(2)

Functions of the operating and display elements

18

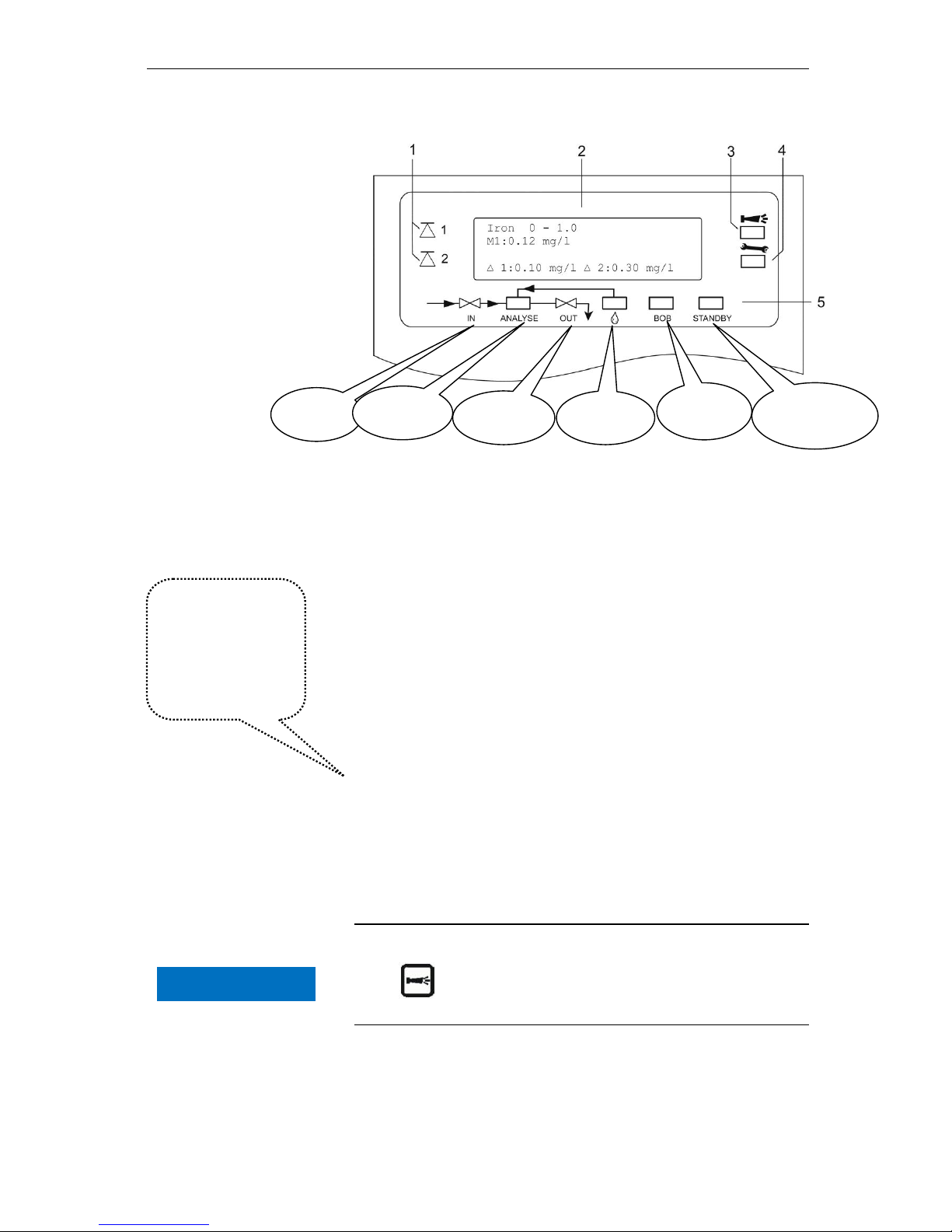

Display functions

1 Status of limit value displays (red/green)

The display 1 illuminates red if limit value 1 has been reached or
exceeded. The display 1 illuminates green if the value falls below the
limit value. The same principle applies to limit value 2 and display 2.

2 Text display (4 lines)

Displays the current analysis result as well as all important statuses
and programming data

2a = The current measured value for measuring point 1 (M1:) and 2

(M2:) is displayed in line 2 and 3.

Value exceeds the measuring range = ">" e.g. M1: > 1.0 mg/l

2b = The set limit values LV1 and LV2 are displayed in line 4.

3 Alarm (red)

Indicates malfunctioning/error message or warning message.

4 Maintenance message (yellow)

Indicates current maintenance requests

5 Status display of the active instrument components (line)

Six displays indicate the current instrument and analysis status

Cancelling error messages/warning messages

Press to acknowledge the message and, if necessary, elimi­nate the cause of the fault.

Inlet
valve

Analysis
running

Outlet
valve

Dosing
message

Analysis
stop valve

No
function

All error and
warning messages
are alternately
shown in line 1 of
the standard
display!

NOTE

Functions of the operating and display elements

19

Operating elements and function keys

If you wish to carry out settings or enter data, or if alterations are
necessary, press the "M" key to open the programming mode. Use
this key when in the menu to go to the higher order menu items or to
exit the programming mode. Please note: The basic program is
password protected!

Programming keys (cursor block)

Use the programming keys (cursor block) to navigate in the menu, to
select the desired functions and to enter necessary instrument and
plant specific data. Press the "ENTER" key to select the submenu
item and to confirm and accept the selection or data input.

Function keys

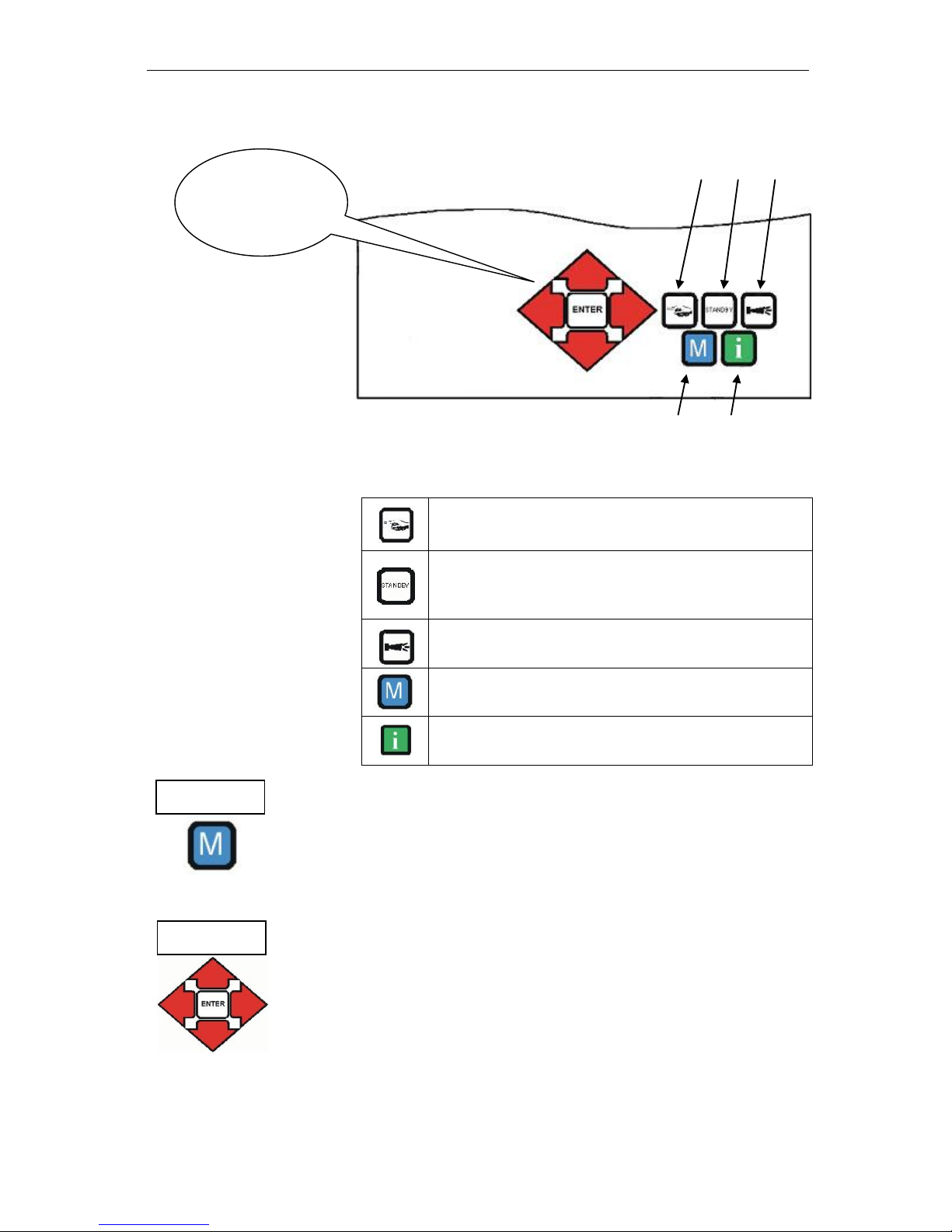

Manually start an analysis via the "Manual" key (1).

Set the instrument to standby mode via the "STANDBY"

key (2) (automatic analyses are not carried out: analysis
stop)

Acknowledge error and warning messages via the
"Horn" key (3).

Open the program menu for user-specific and instrument­specific settings via the "M" key (4).

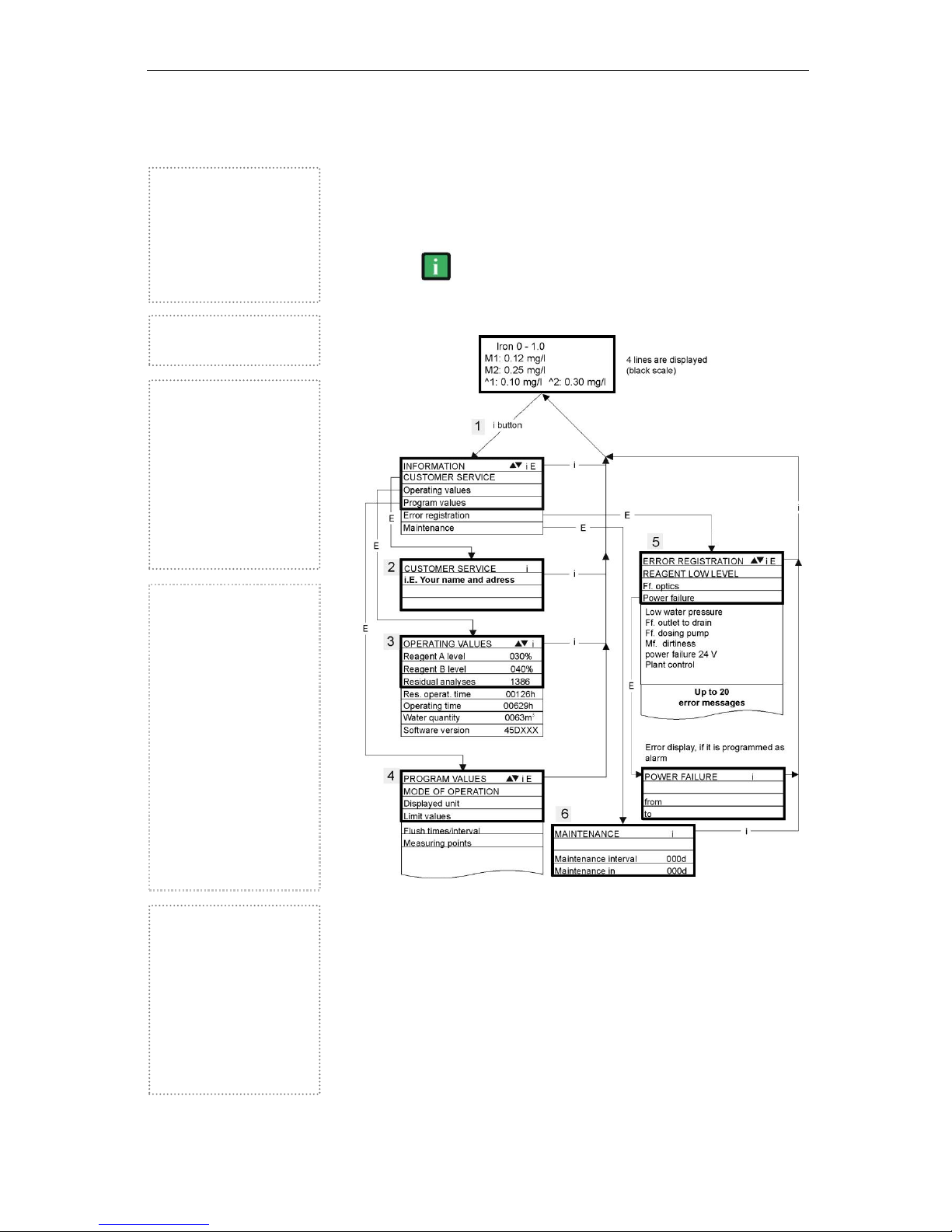

Retrieve all instrument information and settings via the

"i" key (5).

(M)enu key

1 2 3

4

5

Programming
keys
(cursor block)

Cursor block

Functions of the operating and display elements

20

Operating system

Instrument settings and data input

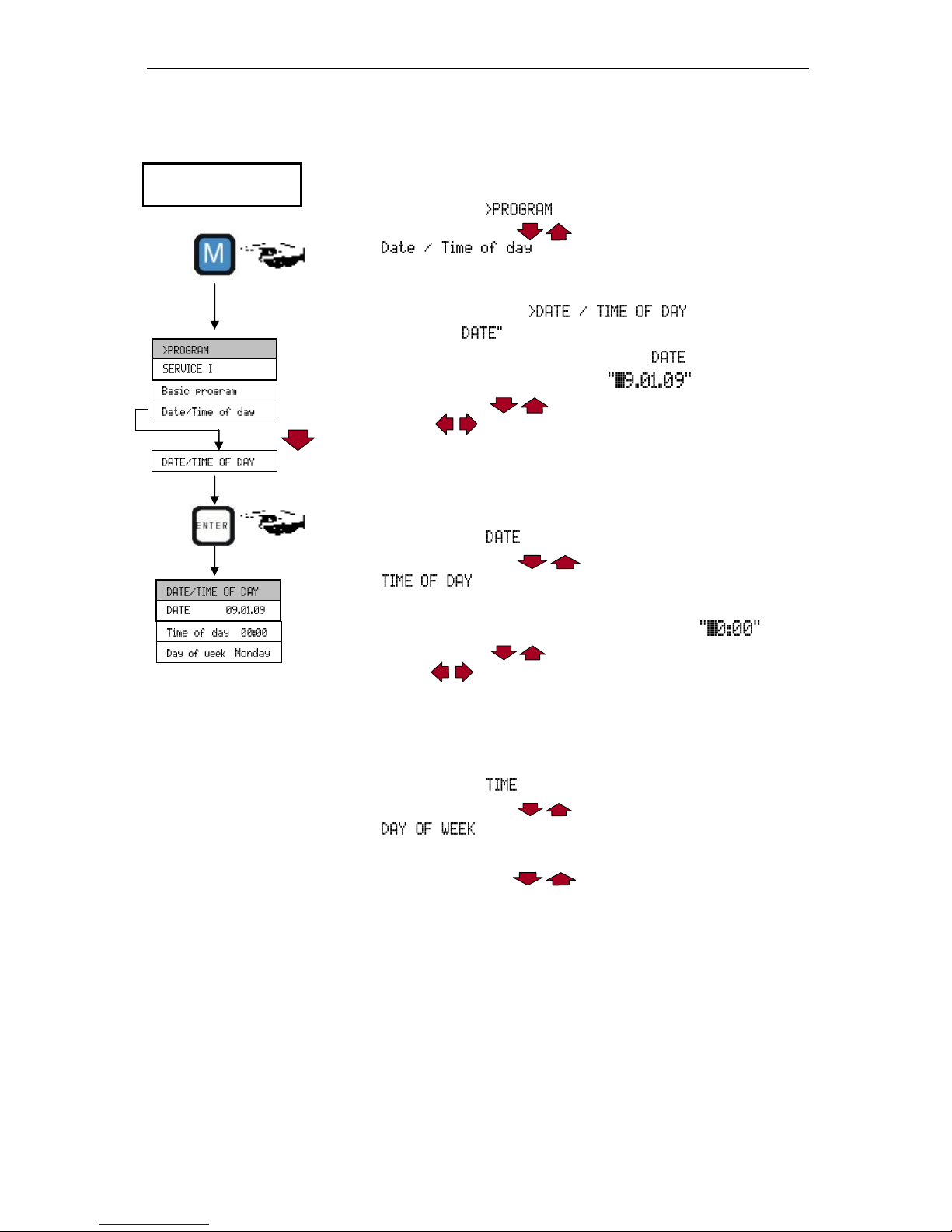

Date, time and weekday input

 Press the "M" key

The basic menu " " appears

 Use the cursor block to select the desired menu item

" "

The selection appears in CAPITAL LETTERS.

 Press "ENTER" to confirm your selection

The selected submenu " " appears.

The menu item " has already been selected (capital letters).

 Press "ENTER" to confirm the menu item " ".

The cursor flashes in the date field:
Use the cursor keys to select the desired number.

 Use the keys to move the cursor to the next input field.
 Repeat this input process until the year has been entered.

 Press "ENTER" to confirm the entry.

The date has now been entered.

Exit the menu item " " in order to set the time.

 Use the cursor block to select the desired menu item

" ".

 Press "ENTER" to confirm your selection.

The cursor flashes at the first position of the time:
Use the cursor keys to select the desired number.

 Use the keys to move the cursor to the next input field.
 Repeat this input process until the seconds have been entered.

 Press "ENTER" to confirm the entry.

The time has now been entered.

Exit the menu item " " to set the weekday.

 Use the cursor block to select the desired menu item

" ".

 Press "ENTER" to confirm your selection.
 Use the cursor block to select the current weekday.
 Press "ENTER" to confirm the entry.
 Press the "M" key twice to end programming.

The standard measured value display appears on the display

Testomat instrument

(display) in display mode

Password protection and basic program

21

Password protection and basic
program

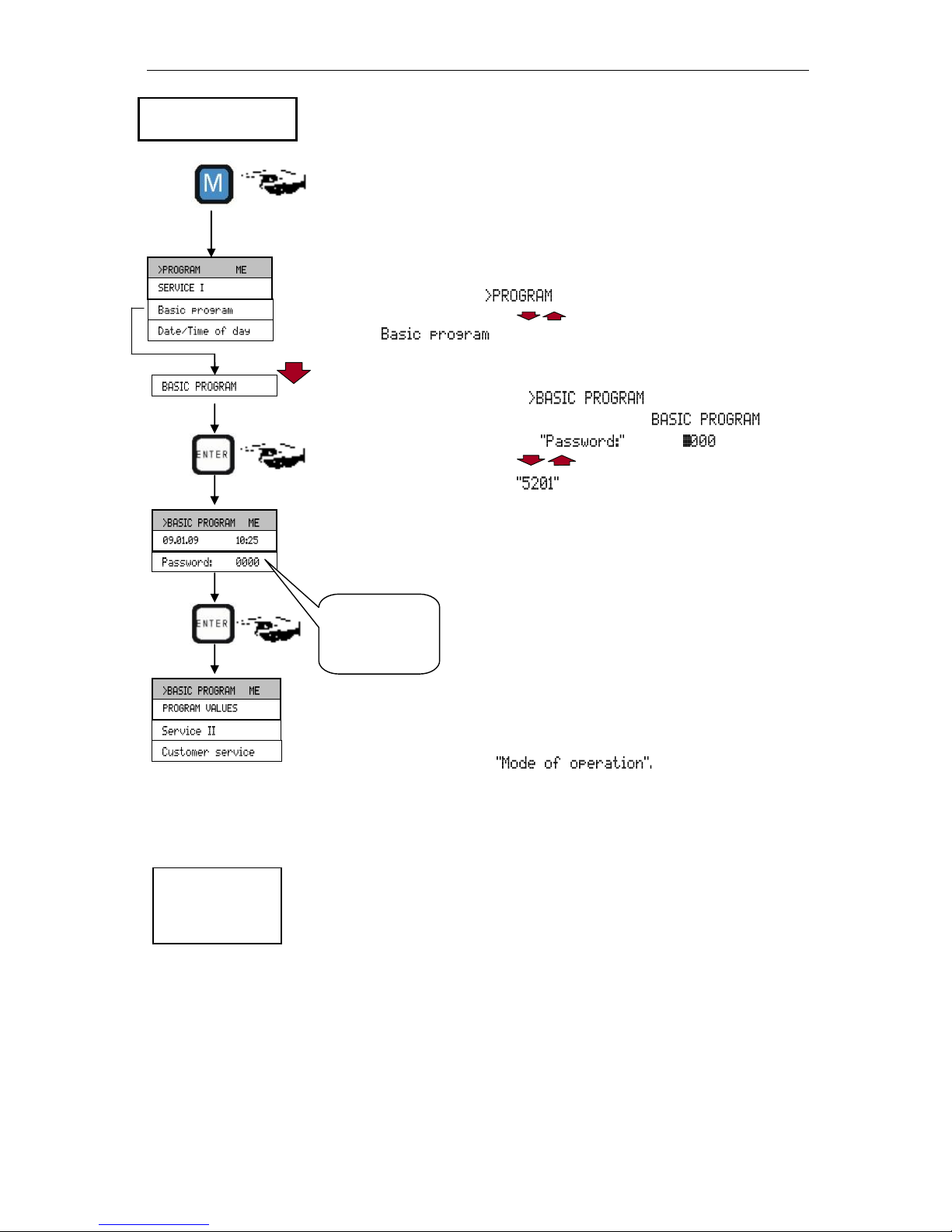

A four-digit password is required to enter data and to carry out set­tings in the basic program. The password is the current time of Tes­tomat 2000® Fe in reverse order.

Password entry

 Press the "M" key.

The basic menu " " appears.

 Use the cursor block to select the desired menu item

" ".

The selection appears in CAPITAL LETTERS.

 Press "ENTER" to confirm your selection.

The selected submenu " " appears.

 Press "ENTER" to confirm the menu item " ".

The cursor flashes in the field.

 Use the cursor keys to enter the

time in reverse order:

 Press "ENTER" to confirm the entry

The selection menu for the basic program appears. You can now
enter the plant specific data.

Entering basic program data

Selecting the operating mode

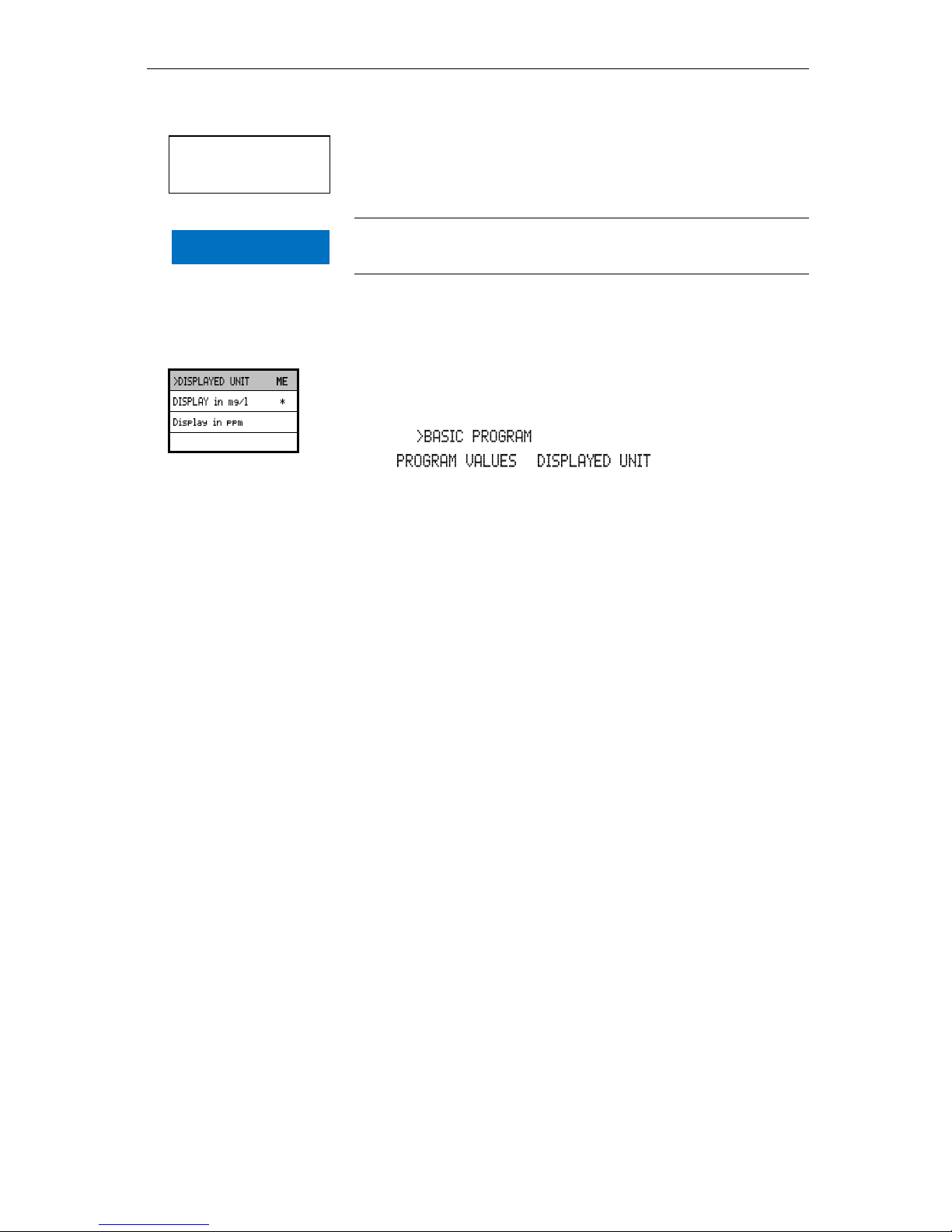

Under the menu item it is possible to select

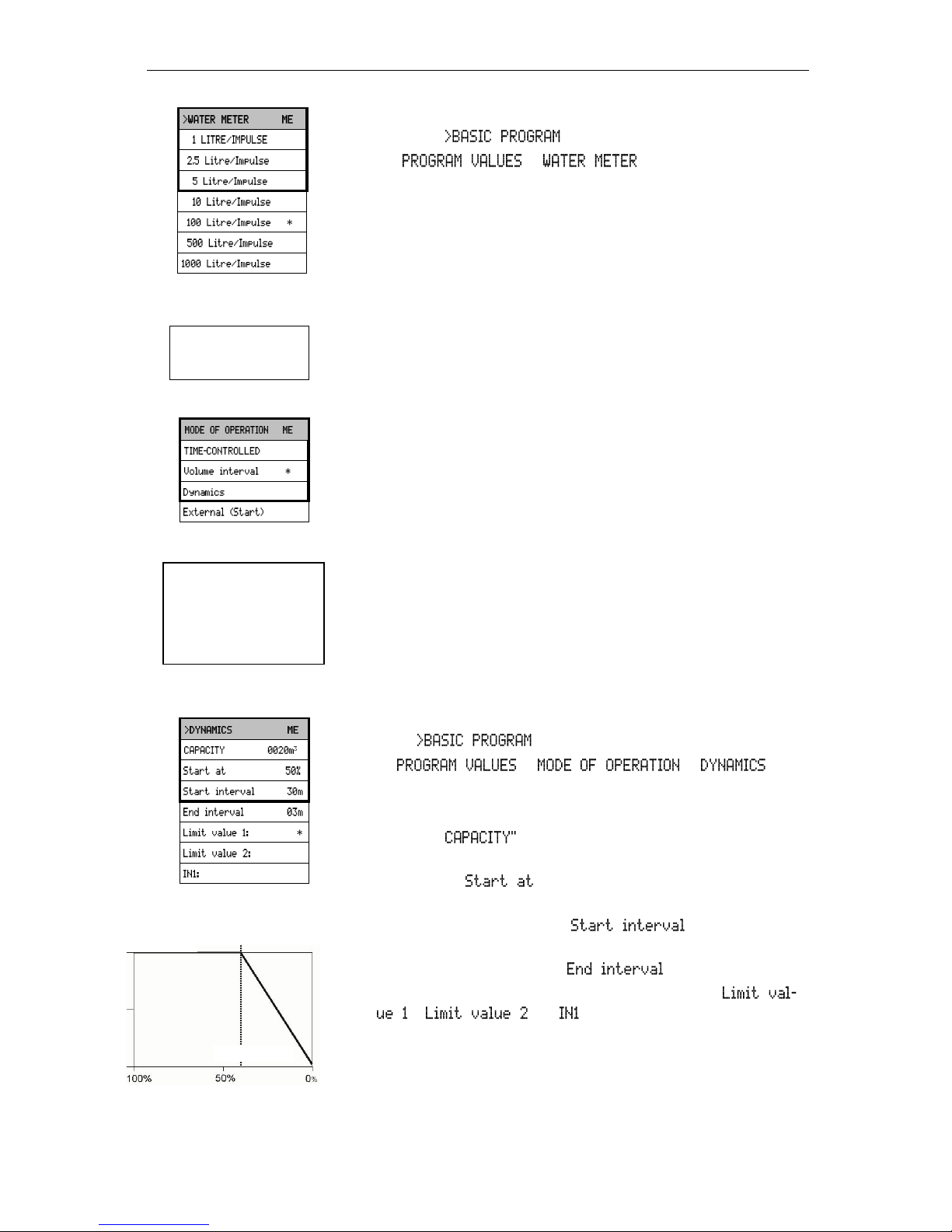

the type of analysis controller. Testomat 2000® Fe provides numer­ous selection options: Time control, quantity control via water meter,
dynamic analysis start and external analysis start.

Shortest interval = 0 minutes between analyses. Largest interval = 99
minutes.

The analysis interval (time between two analyses) is determined by
the duration of the supplementary program AUX, the set flush times
(internal and external), the programmed interval and the duration of
the analysis. The analysis duration depends directly on the meas­ured value.

▼▲▼▲▼▲

Please enter the
time in reverse
order:

=> 5201

Testomat instrument

(display) in display mode

Time controlled

Internal start via a

timer.

Password protection and basic program

22

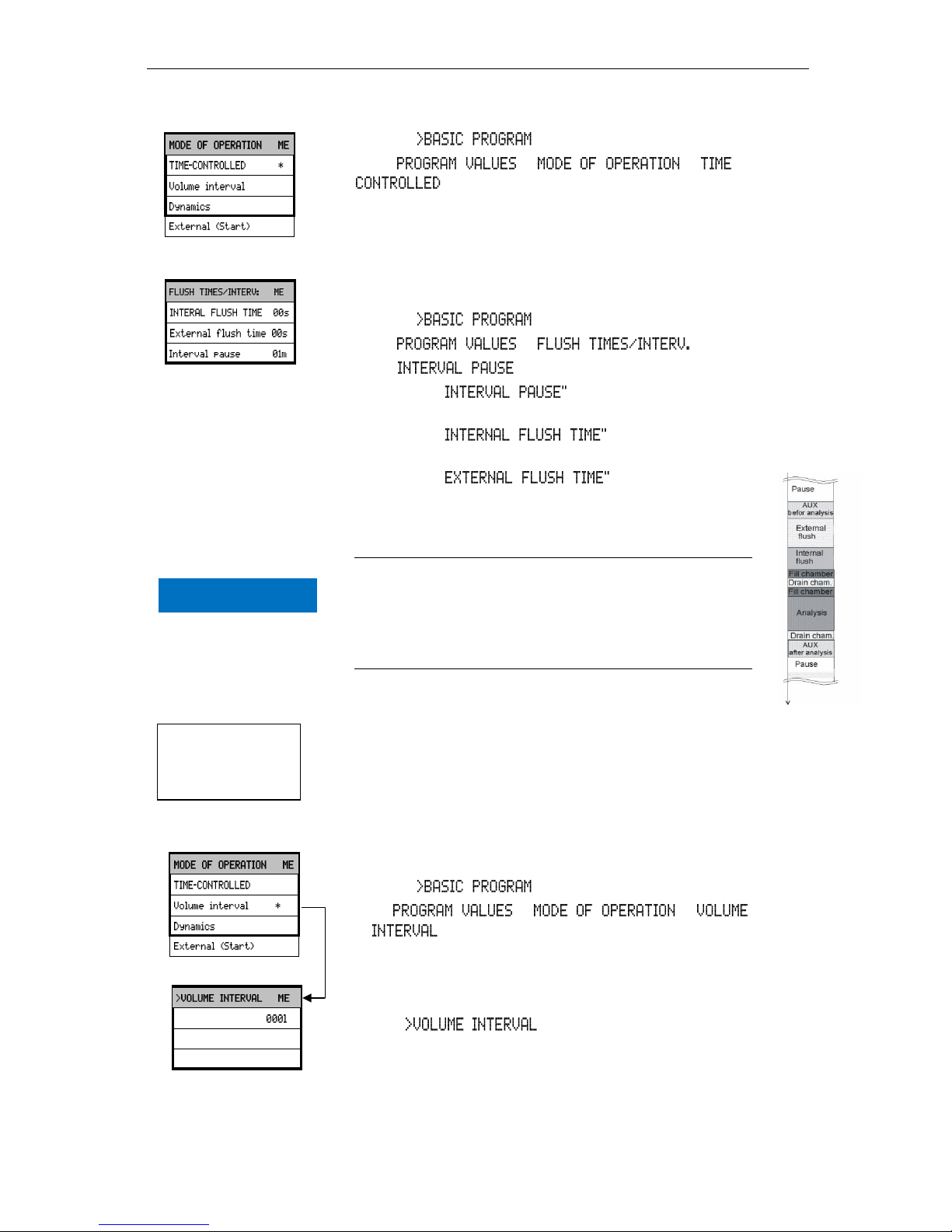

Selecting the time control

 In the menu, select

=> => =>

 Press "ENTER" to confirm the selection

(An asterisk " * " appears at the end of the line)

("TIME CONTROLLED" " * " is preset)

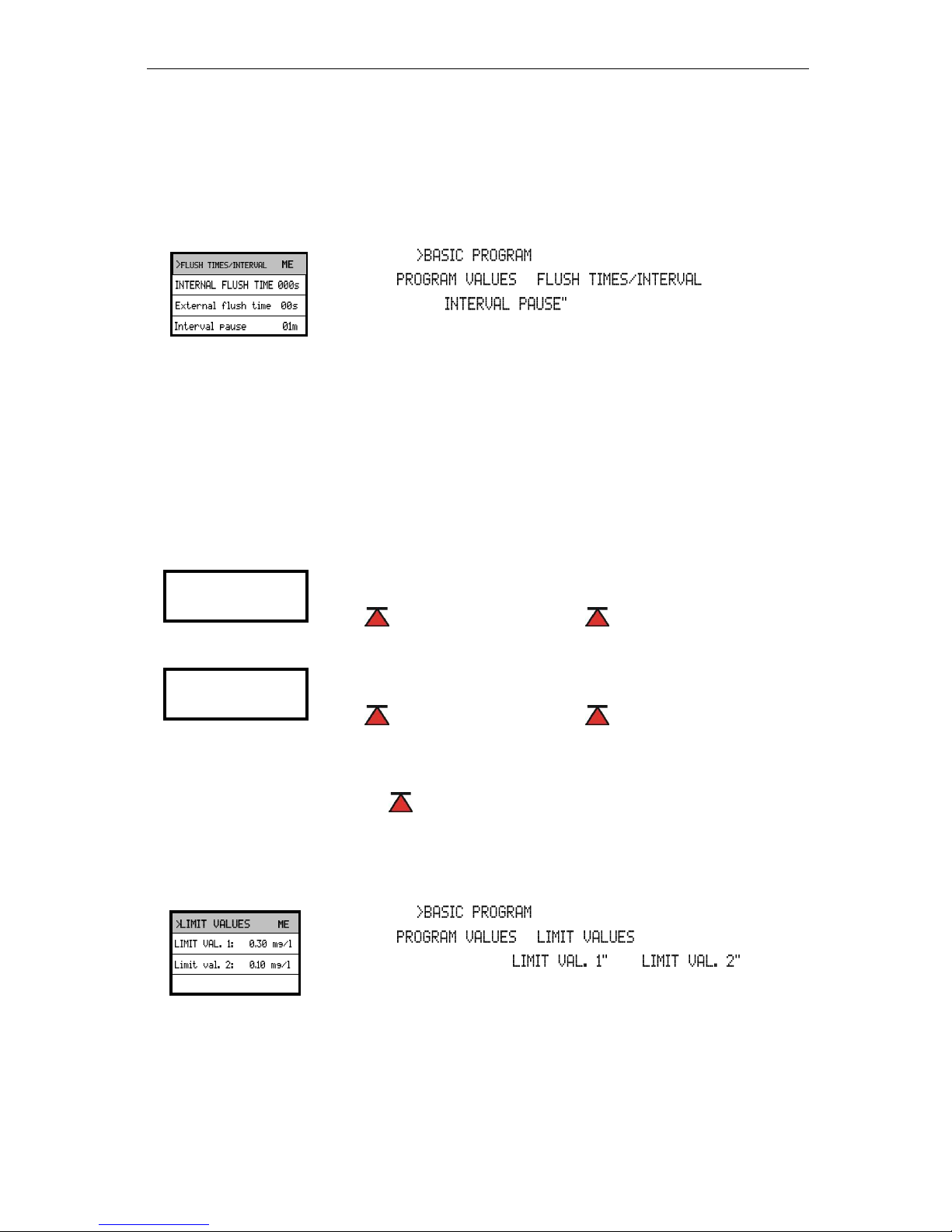

Enter the interval pause and the flush times

 In the menu, select

=> =>

=>

 Enter the " in minutes (m)

(1 minute is preset)

 Enter the " in seconds (s)

(00 seconds (s) is preset)

 Enter the " in seconds (s)

(00 seconds (s) is preset)

 Press "ENTER" to complete all the entries

Duration of the analysis interval

 The analysis interval is the addition of the "AUX be-

fore/after analysis", "Internal flush" and "External flush"
times and the measuring value dependent analysis dura­tion (see diagram on the left).

Minimum interval = 1 litre, maximum interval = 9999 litres. The analy­sis is carried out once the programmed water quantity has been
measured. The line and the measuring chamber are flushed prior to
the analysis (observe the programmed flush times).

Selecting the volume control

 In the menu, select

=> => =>

 Press "ENTER" to confirm the selection

(An asterisk " * " appears at the end of the line)

The menu appears

 Enter the respective flow rate in litres

Press "ENTER" to confirm the entry

Volume control

Start via water meter

▼▲

▼▲ ▼▲

▼▲

Analysis
interval

Sequence of
times

NOTE

Password protection and basic program

23

Selecting the type of water meter

 Select the menu

=> =>

 Select the water meter constant (litre/impulse)

(100 litres/impulse " * " is factory set)

 Press "ENTER" to confirm the selection

The analysis is carried out once the programmed water quantity has
been measured. An analysis is always started with higher priority
when the programmed interval time has been reached.

Selecting the quantity control/time priority

 The process is the same as for "Selecting the time control"
 The process is the same as for "Selecting the quantity control"
 Press "ENTER" to confirm all the entries

Dynamic analysis start: Depending on the exhaustion of the de­ironing plant, the interval period automatically decreases when the
residual capacity of the plant decreases. This involves the amount of
water used by the plant being determined. The start interval is reset
when limit value 1 or 2 is exceeded or via a signal at input IN1 (re­generation message from the process controller/filter controller)

Selecting dynamic start

 In the menu, select

=> => =>

 Press "ENTER" to confirm the selection

The menu on the left appears

 Enter the " of the plant in m3
 Enter the start of dynamic mode as a percentage (%) of the ca-

pacity under " "

 Enter the analysis interval in minutes (m) that is desired for the

start of dynamic mode under " "

 Enter the analysis interval in minutes (m) that is desired for the

end of dynamic mode under " "

 Select the type of reset to the start interval either via "

", " " or " "

 Press "ENTER" to confirm the entry

(An asterisk " * " appears at the end of the line)

▼▲

Dynamic

analysis start

Filter capacity dependent

control of the analysis interval

Volume control/

Time priority

▼▲

▼▲

Residual filter capacity (%)

Analysis interval time (min)

Start interval

Start at 40%

End interval >

Password protection and basic program

24

External analysis start

An external analysis start occurs via a contact at the start input.

The current analysis interval can be interrupted by triggering a con­tact at the stop input.

Selecting the displayed unit

It is possible to program the unit of the displayed value. mg/l and ppm
can be selected. All the following inputs and displays will be dis­played in the programmed unit.

 In the menu, select

=> =>

 Select the desired unit
 Press "ENTER" to confirm the selection

External

analysis start

▼▲

NOTE

Entering further basic program data

25

Entering further basic program data

For selecting and entering data for these functions, please proceed
as described under "Entering basic program data".

Internal flushing

To ensure that the analysed sample represents the current value, the
sampling line must be sufficiently flushed. If the plant has been out of
operation for a longer period or in case of long analysis intervals, we
recommend you to select a flushing time greater than 60 seconds.
Flushing starts by simultaneously opening the inlet and outlet valve of
Testomat 2000® Fe.

Duration of the analysis interval

 The analysis interval depends directly on the programmed flushing

time. If, e.g., a flushing time of 90 seconds has been set, the actu­al analysis interval cannot be less than 90 seconds.

 In the menu, select

=> =>

 Enter the " in seconds (s)
 Press "ENTER" to confirm the entry

Setting the internal flushing time

 For connections longer than 3 m and with an internal hose diame-

ter of 6 mm, a minimum internal flushing time of 10 seconds is re­quired to ensure that a valid sample is taken from the sampling
line. The required quantity of flush water for one-minute internal
flushing is 0.5 litres.

External flushing

If very short analysis intervals are required, or if a very long (several
metres) sampling line or a line with a large diameter is used, an ex­ternal flush valve should be installed upstream of Testomat 2000® Fe.
The external flush valve has to be connected to the "Flush” outlet. If
the unit is used for monitoring two measuring points, external flushing
prevents incorrect measurements caused by sample mixing. The
external flushing time for the valve depends, just as the flushing time
for unit flushing does, on the length and diameter of the supply line to
Testomat 2000® Fe.

 In the menu, select

=> =>

 Enter the " in seconds (s)
 Press "ENTER" to confirm the entry

▼▲

▼▲

NOTE

NOTE

Entering further basic program data

26

Interval pause

If the analysis is started via a timer, the interval between two anal­yses (plus flushing time) is determined by the interval pause. The
shortest interval can be 0 minutes. In this case, analyses are carried
out continuously. The longest interval is 99 minutes.

 In the menu, select

=> =>

 Enter the " in minutes (m)
 Press "ENTER" to confirm the entry

Limit value monitoring

It is possible to program the limit values on a continuous scale. The
limit value range depends on the programmed unit. Two limit value
outputs are available for monitoring. This ensures that two limit val­ues or two measuring points can be monitored. The functions of the
allocated relay outputs can be programmed independently of each
other.

If the unit is used for monitoring two limit values, the limit value out­puts are permanently allocated to these limit values!

1 LV1 = Limit value 1 2 LV2 = Limit value 2

If the unit is used for monitoring two measuring points, the limit value
outputs are permanently allocated to these measuring points!

1 LV1 = Measuring point 1 2 LV2 = Measuring point
2

If the limit value LV1 has been exceeded, the limit value control dis­play 1 lights up RED and the relay output LV1 reacts as pro­grammed in the switch function. If the limit value has not been ex­ceeded, the display lights up GREEN. The same applies for the limit
value LV2.

 In the menu, select

=> =>

 Enter the values for " or "
 Press "ENTER" to confirm the entry

Monitoring of two
limit values

Monitoring of two
measuring points

▼▲

Entering further basic program data

27

Hysteresis

The respective limit value output only switches after the first, second
or third bad analysis (suppression of the first or the second measured
value). This increases the reliability of the analysis evaluation, e.g.
after the measuring point has been switched over or if the sampling
line has not been flushed sufficiently. The hystereses of the two out­puts LV1 and LV2 can be set independently of each other.

A further analysis is carried out immediately after the limit value has
been exceeded for a hysteresis of "2". The respective output is only
switched after the limit value of this analysis has been exceeded for a
second time. With a hysteresis of "3", the respective output only
switches when the limit value of this analysis has been exceeded for
a third time. This setting is only reactivated once the value has fallen
below the limit value!

(The basic setting for LV1 and LV2 is "1")

 In the menu, select

=> =>

 Enter the number of analyses
 Press "ENTER" to confirm the entry

Suppression of

bad analyses

Entering further basic program data

28

Switch functions of the limit value outputs
LV1 and LV2

Switch function 0, duration

If the limit value LV1 or LV2 has been exceeded, the output relay LV1
or LV2 switches. If the measured value falls below the limit value
LV1 or LV2 without locking, the relevant relay drops out again.

Switch function 1, impulse

If the measured value exceeds the limit value LV1 or LV2, the rele­vant output switches for a settable time (t).

The respective output always remains switched for the set time, irre­spective of how long the limit value has been exceeded. A new im­pulse is only possible once the value has fallen below the limit value!

Switch function 2, interval

If the limit value has been exceeded, the respective output switches
at intervals with the settable time (t) = impulse or interval as long as
the limit value is exceeded. The switching on times and the intervals
are the same.

Switch function 3, two-point

If the upper limit value LV1 has been exceeded, the output relay LV1
switches. If the value falls below the lower limit value LV2, the output
relay LV1 drops out again. The output relay LV2 switches according
to the programmed switch function.

 In the menu, select

=> =>

 Select the duration, impulse, interval or two-point (only for LV1)
 Enter the time (only for switch function 1 and 2)
 Press "ENTER" to confirm the entry

The function 3 is only possible if different values are used for the limit
values LV1 and LV2 with just one measuring point. For example, LV1
= 0.30 mg/l and LV2 = 0.20 mg/l.

▼▲ ▼▲

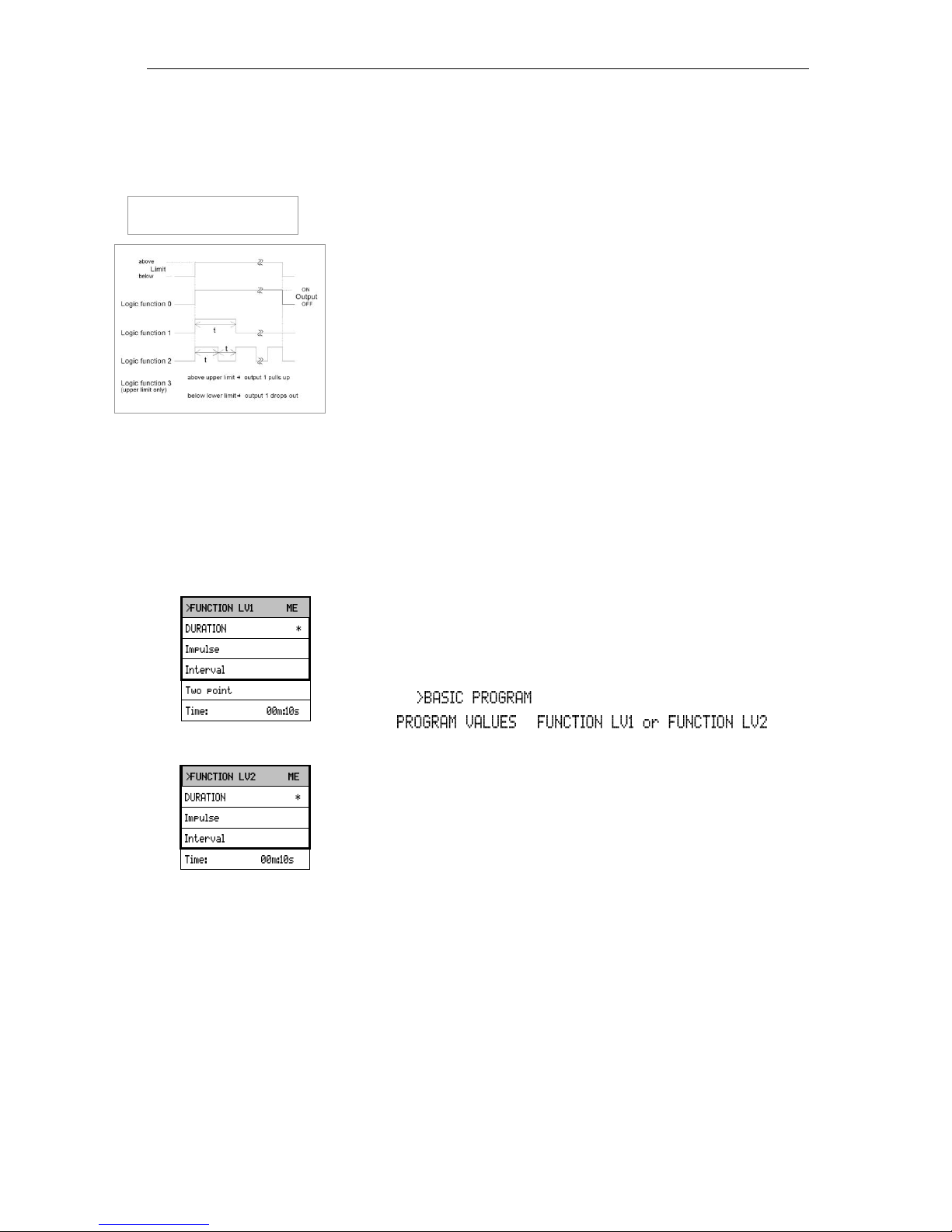

Schematic represetation

of logic functions

Entering further basic program data

29

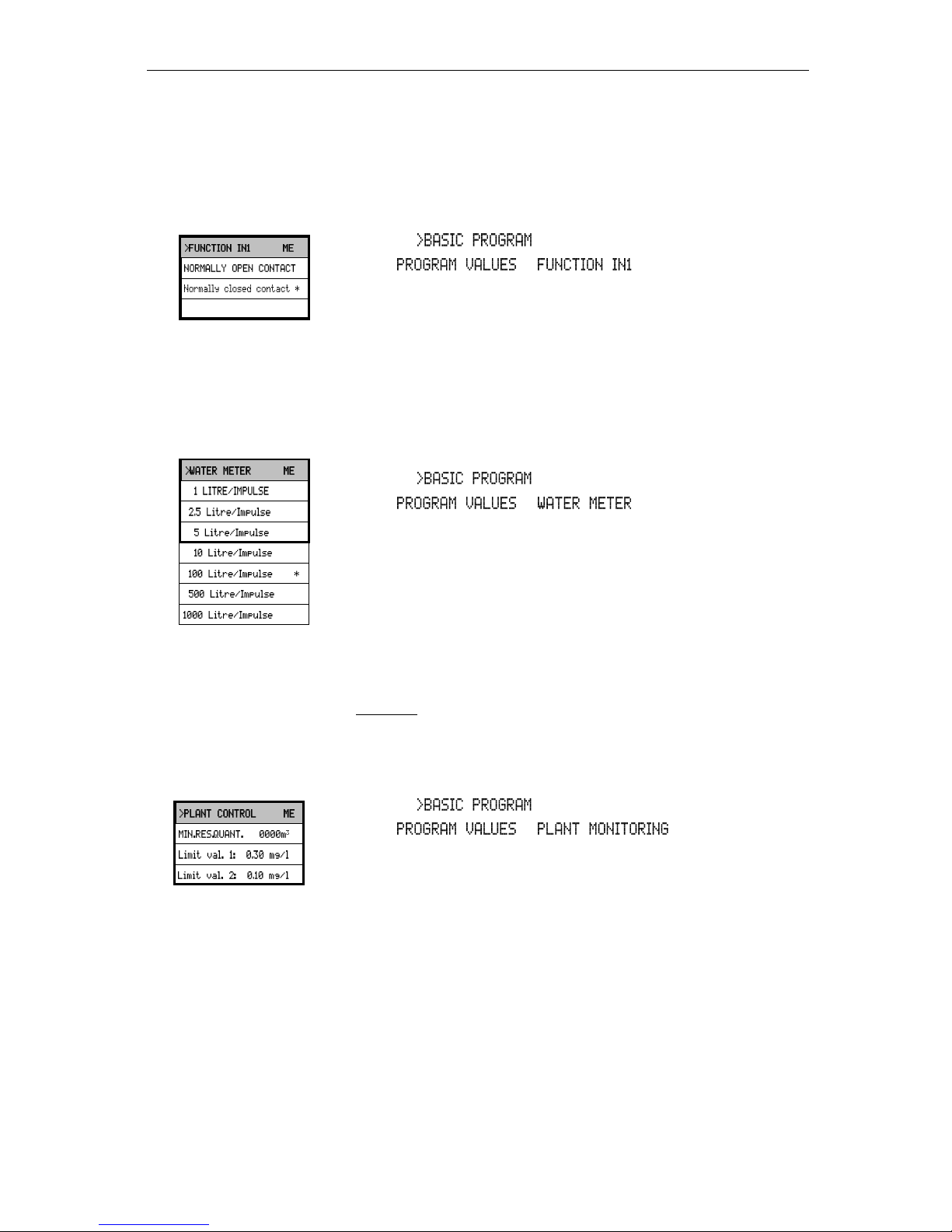

Function IN1

For dynamic analysis control or programmed plant monitoring, the
back flushing message from the controller of the de-ironing plant
must be connected to IN1 (volt-free contact required!). Program the
active status of IN1 according to the output function of the controller.

 In the menu, select

=> =>

 Select a normally closed or normally open contact
 Press "ENTER" to confirm the entry

Water meter

It is necessary to connect a water meter to input IN2 for quantity­dependent analysis start, for dynamic analysis control and for moni­toring the operation of the de-ironing plant (plant monitoring). Pro­gram the corresponding water meter rating.

 In the menu, select

=> =>

 Select the water meter rating
 Press "ENTER" to confirm the entry

Plant monitoring

In order to monitor the plant, it is possible to determine a specific
quantity of water at which the limit value should not be exceeded
(LV1 or LV2).

Example: A "GOOD" quantity of 50 m3 has been entered. If the quan­tity of water produced between two violations of the limit value is less
than the programmed quantity of water, either an alarm or a message
is triggered depending on the programming.

 In the menu, select

=> =>

 Enter the "GOOD" quantity in m3
 Press "ENTER" to confirm the entry

The flashing error display "Plant monitoring" appears.
The quantity of water for plant monitoring is reset after exceeding

LV1 or LV2, or via a signal at input IN1 (back flushing message from
the process controller), or manually in the SERVICE II menu via the
plant monitoring RESET.

Monitoring does not occur if 0 is entered for the quantity of water
(min. GOOD quantity).

▼▲

▼▲ ▼▲

Entering further basic program data

30

Alarm / Message

The instrument is equipped with an alarm relay output for signalling
faults. The events which mean a fault at the instrument or are intend­ed to trigger a message, can either trigger an alarm "A" (continuous
contact) or a message "M" (2-second impulse).

The faults are recorded and stored in the error history if the event has
been programmed as an alarm or message. For example, if a low
reagent level has not been programmed as an ALARM/MESSAGE, it
is not registered in the error history. Up to 20 error messages are
stored. A list of these errors can be opened in the information menu.
The information stored per event is the time (day, month, year and
hour) and the type of the error.

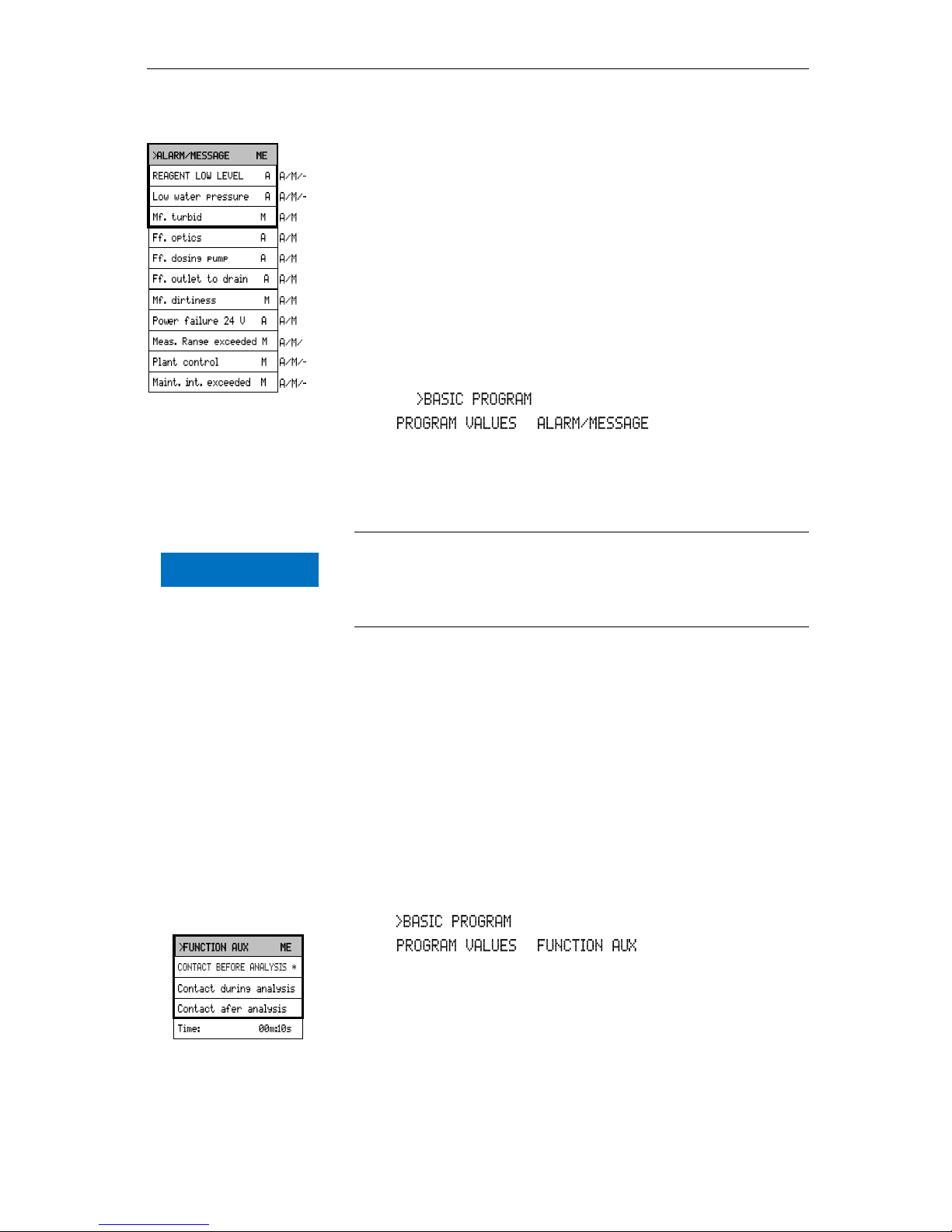

 In the menu, select

=> =>

 Select the type of monitoring A=alarm, M=message or - = no ac-

tion for the individual menu items

 Press "ENTER" to confirm the respective entry

Error messages

 All error messages are lost after a power failure!
 Certain instrument faults always trigger an alarm or a message

(switching off is not possible)!

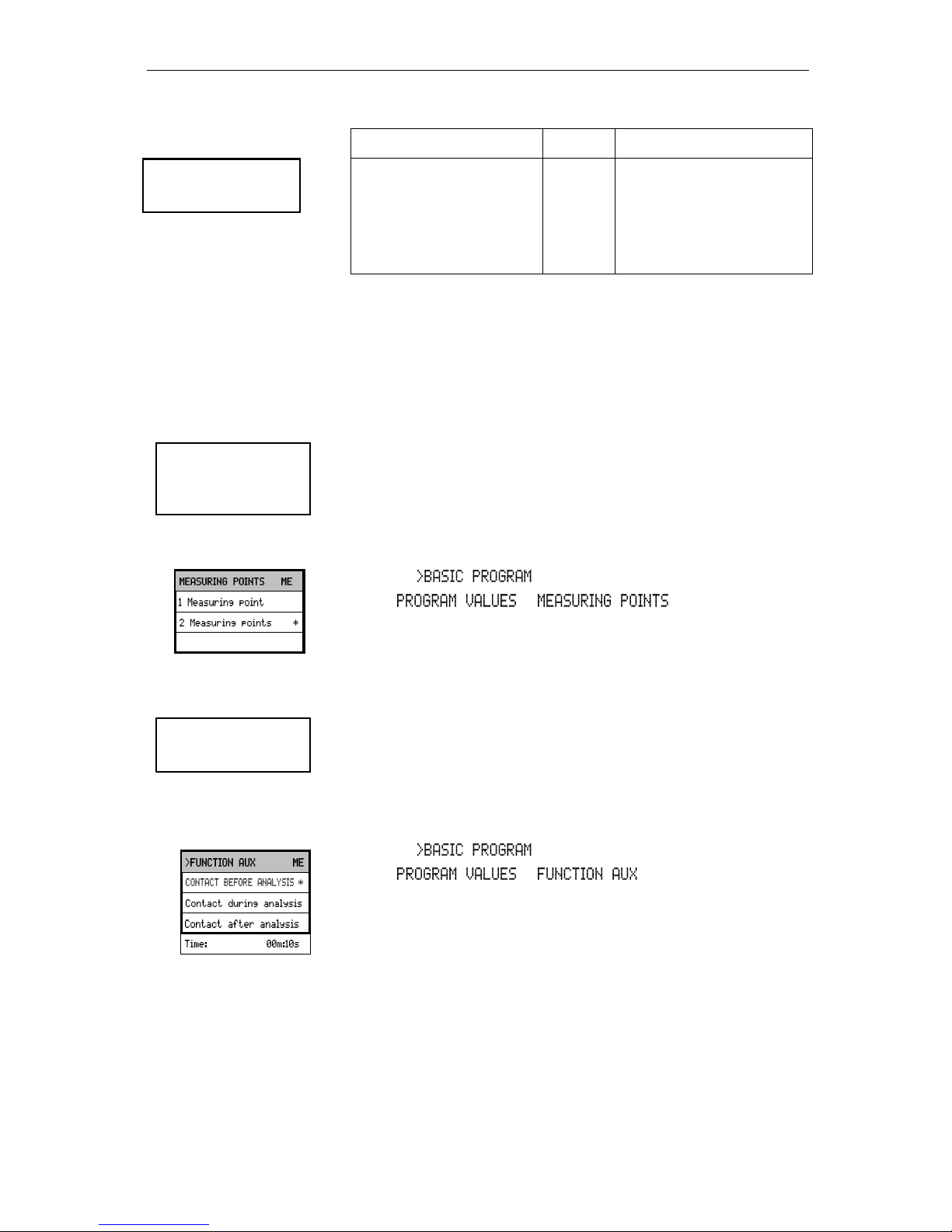

Function AUX

The AUX relay output can be programmed for the following control
functions:

- As a function output for the contact with programmable
duration prior to and/or during the analysis, or after an analysis.

For example, it is possible to control the cooling water inlet of an up­stream cooler via a solenoid valve. This ensures that the cooling wa­ter only flows when required, i.e. when an analysis is being carried
out.

In the menu, select
=> =>

 Select the program step at which the AUX contact is to be activat-

ed

 Enter the contact duration in minutes (m) and seconds (s) under

"Time"

 Press "ENTER" to confirm the entry

A=Alarm, M=Message

- = no action
Ff.=Function fault
Mf.=Measuring fault

▼▲

NOTE

▼▲

Entering further basic program data

31

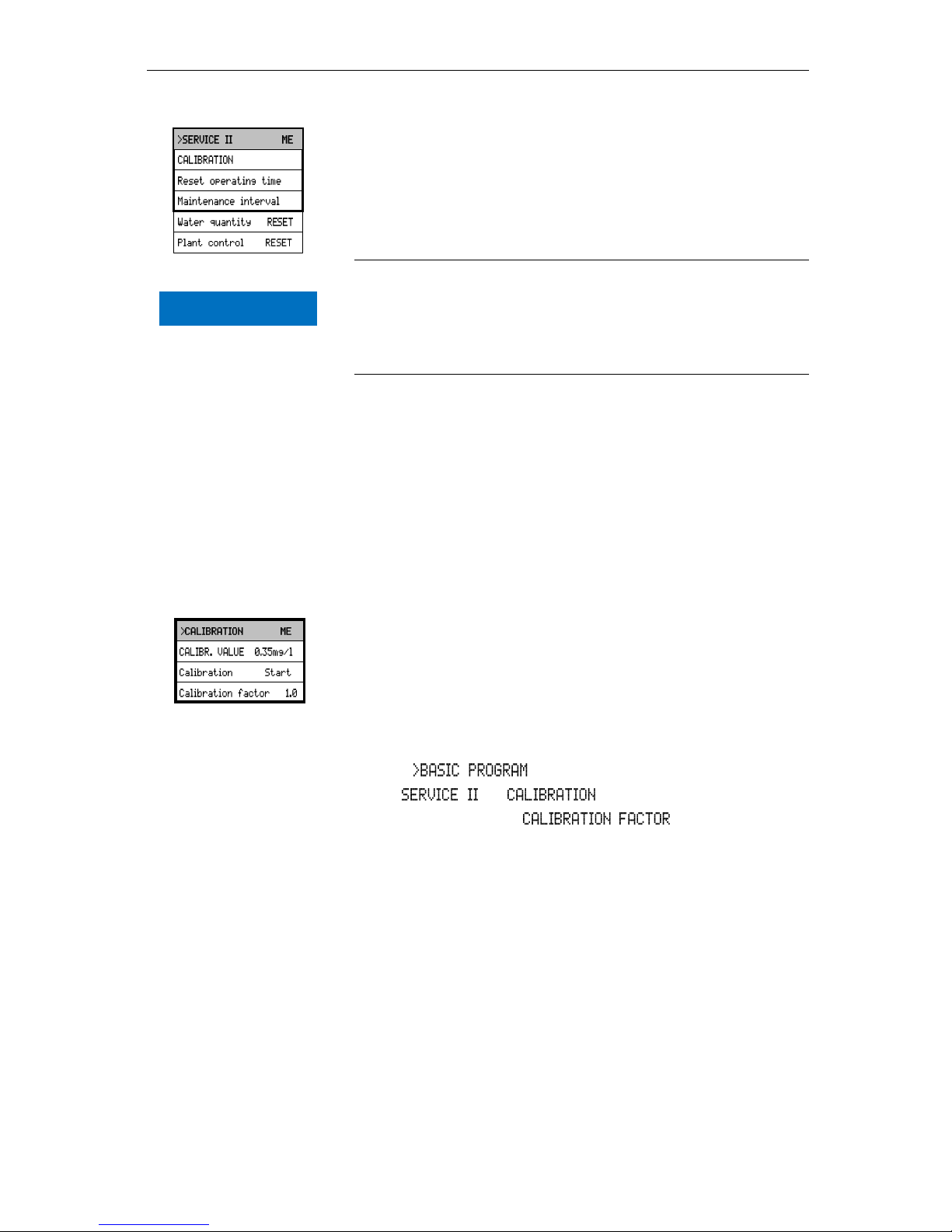

Service II

The service II menu contains various functions for monitoring the
operation of the instrument:

Programming the maintenance interval, processing (resetting) inter­nal data/settings, e.g. water quantity and plant monitoring.

Use of the Service II menu

The functions in the Service II menu directly influence the operation
and monitoring functions of the instrument!

 These tasks should only be carried out by trained and qualified

staff.

Calibration

Calibration can, e.g., be carried out to compensate for negative influ­ences caused by foreign ions. A standard solution or the value of the
sample water determined via a laboratory analysis is required for this.
You can either determine the correction factor and enter it directly or
carry out calibration with a standard solution. In the latter case, the
correction factor is calculated by the Testomat.

Input of the correction factor from 0.10 to 2.00

 Carry out a current measurement and make a note of the meas-

ured value

 At the same time, take a water sample and check the measured

value with a superior method

 Use the two values to determine the correction factor (laboratory

value divided by the measured value Testomat 2000® Fe)

 In the menu, select

=> =>

 Select the menu item " "
 Press "ENTER" to confirm the selection
 Enter the determined calibration factor
 Press "ENTER" to confirm the entry

▼▲

▼▲

NOTE

Entering further basic program data

32

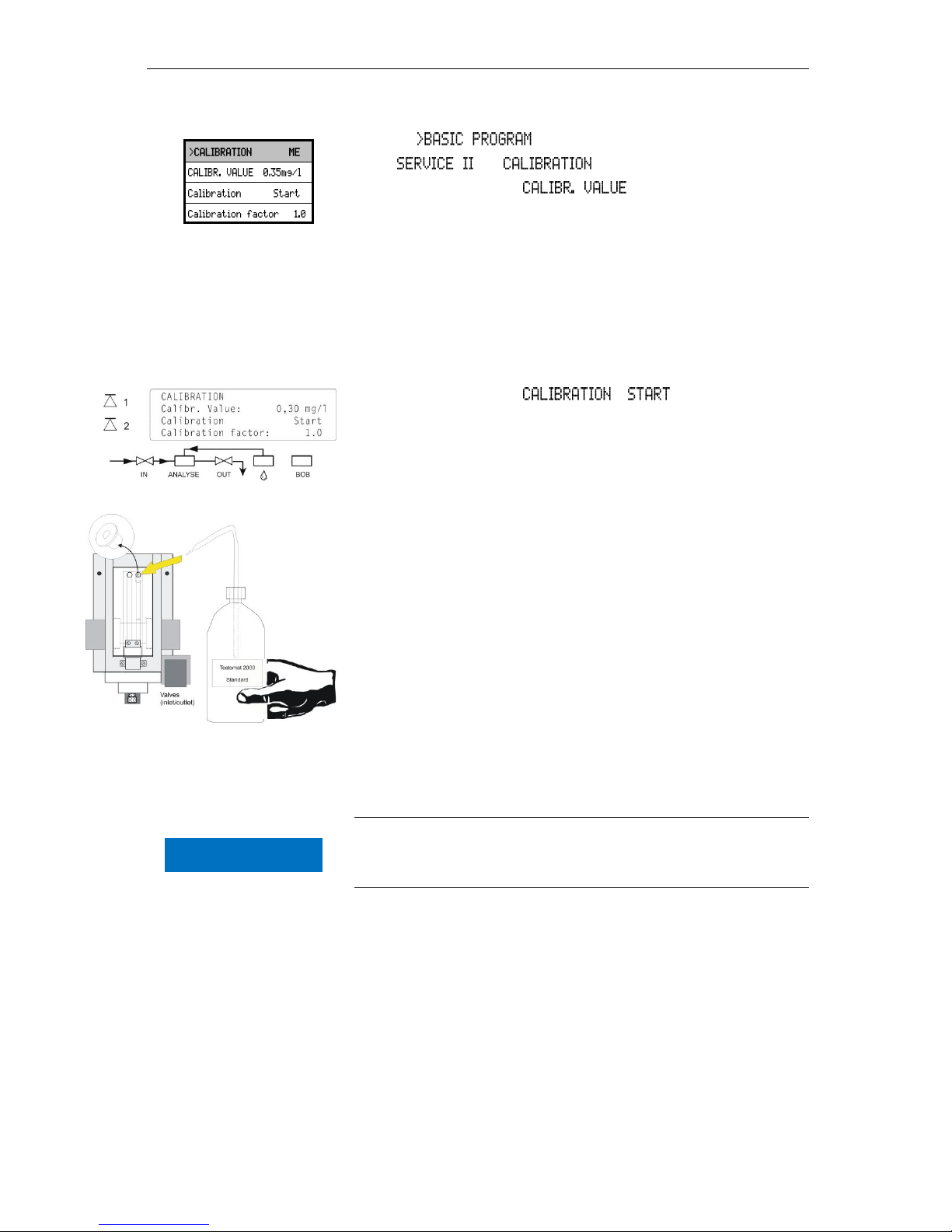

Calibrating with standard solution

 In the menu, select

=> =>

 Select the menu item " "
 Press "ENTER" to confirm the entry
 Enter the value of the standard solution
 Press "ENTER" to confirm the entry
 Stop the water supply to the instrument
 Remove the right-hand plug from the measuring chamber

(the measuring chamber is manually filled with the standard
solution through this borehole. Common laboratory spray bottles
can be used for this.)

 Select the menu item " "
 Press "ENTER" to confirm the selection

Testomat 2000® Fe starts with the analysis cycle. If a flushing time
has been programmed, do not fill the measuring chamber until the
output valve has closed (“OUT” LED extinguishes).

 When the "IN" LED lights up, fill the measuring chamber with the

standard solution until it overflows as long as the "IN" LED illumi-

nates.

The solution is then drained (flushing the measuring chamber).

 Once the output valve has closed ("OUT” LED extinguishes), refill

the measuring chamber with the standard solution until it over-

flows.

The filling level falls to the intended sample volume. The measured
value is determined and the correction value calculated. The factor is
shown on the display.

Using the calibration function

 If data is entered incorrectly or calibration is carried out incorrectly

with a standard solution, it will result in incorrect measured values!

If an error occurs during analysis, the error message "Calibration
terminated" appears; a (new) factor is not calculated.

▼▲

NOTE

Entering further basic program data

33

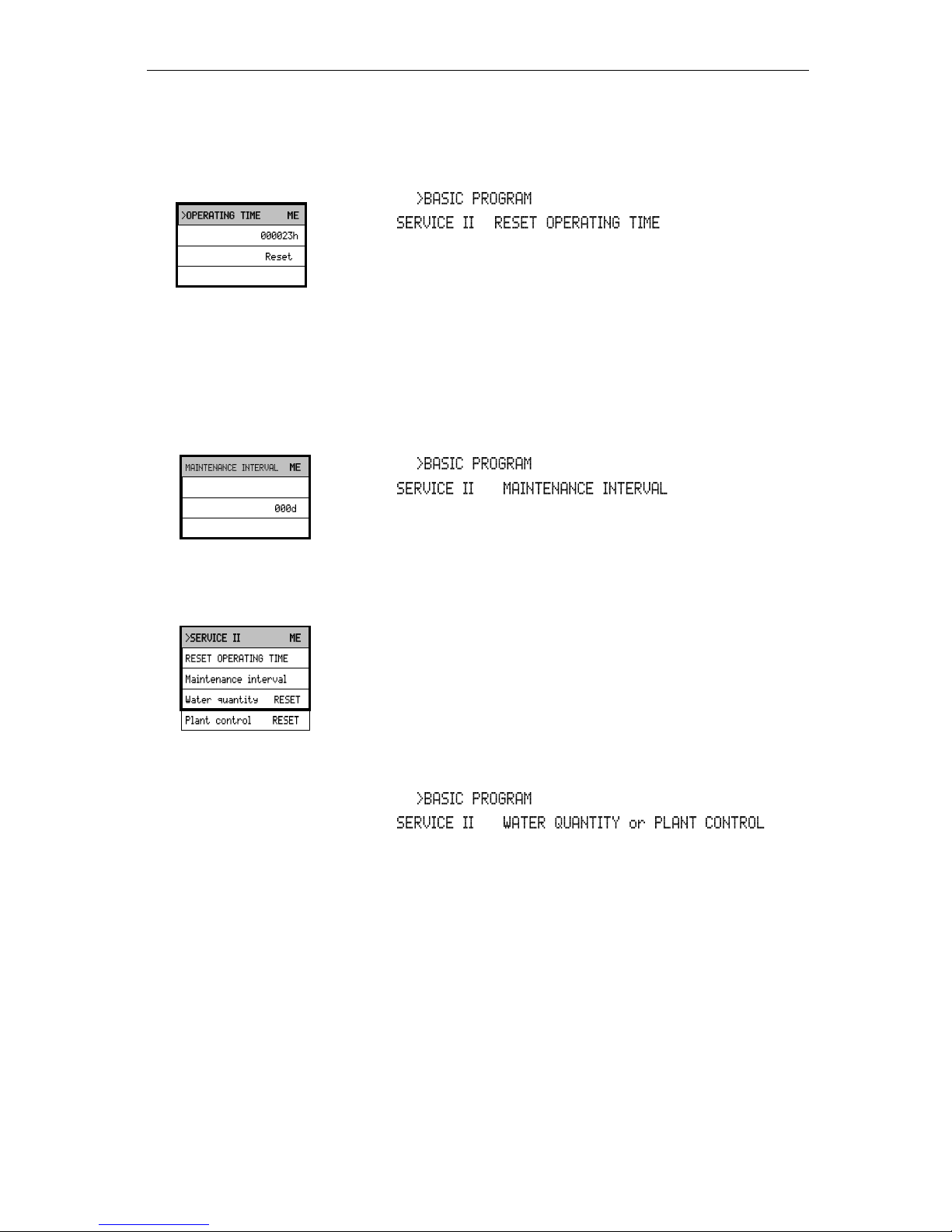

Resetting the operating time

After replacing a dosing pump or the measuring chamber holder, it is
possible to reset the current operating time to 0 hours:

 In the menu, select

=> =>

 Select "Reset" to reset the operating time
 Press "ENTER" to confirm the selection

The operating time "000000h" appears on the display

Maintenance interval

Observance of the maintenance intervals is monitored and displayed
by Testomat 2000® Fe. Program the desired maintenance interval in
days here. (0 days equals no maintenance interval)

 In the menu, select

=> =>

 Enter the maintenance interval in days (d)
 Press "ENTER" to confirm the entry

Water quantity RESET

Resets the currently stored water quantity. This has a direct effect on
the plant monitoring and the dynamic analysis control.

Plant control RESET

Plant monitoring is only re-activated when the limit value is exceeded
again.

 In the menu, select

=> =>

 Press "ENTER" to confirm the entry

▼▲

▼▲ ▼▲

Description of the signal inputs/outputs

34

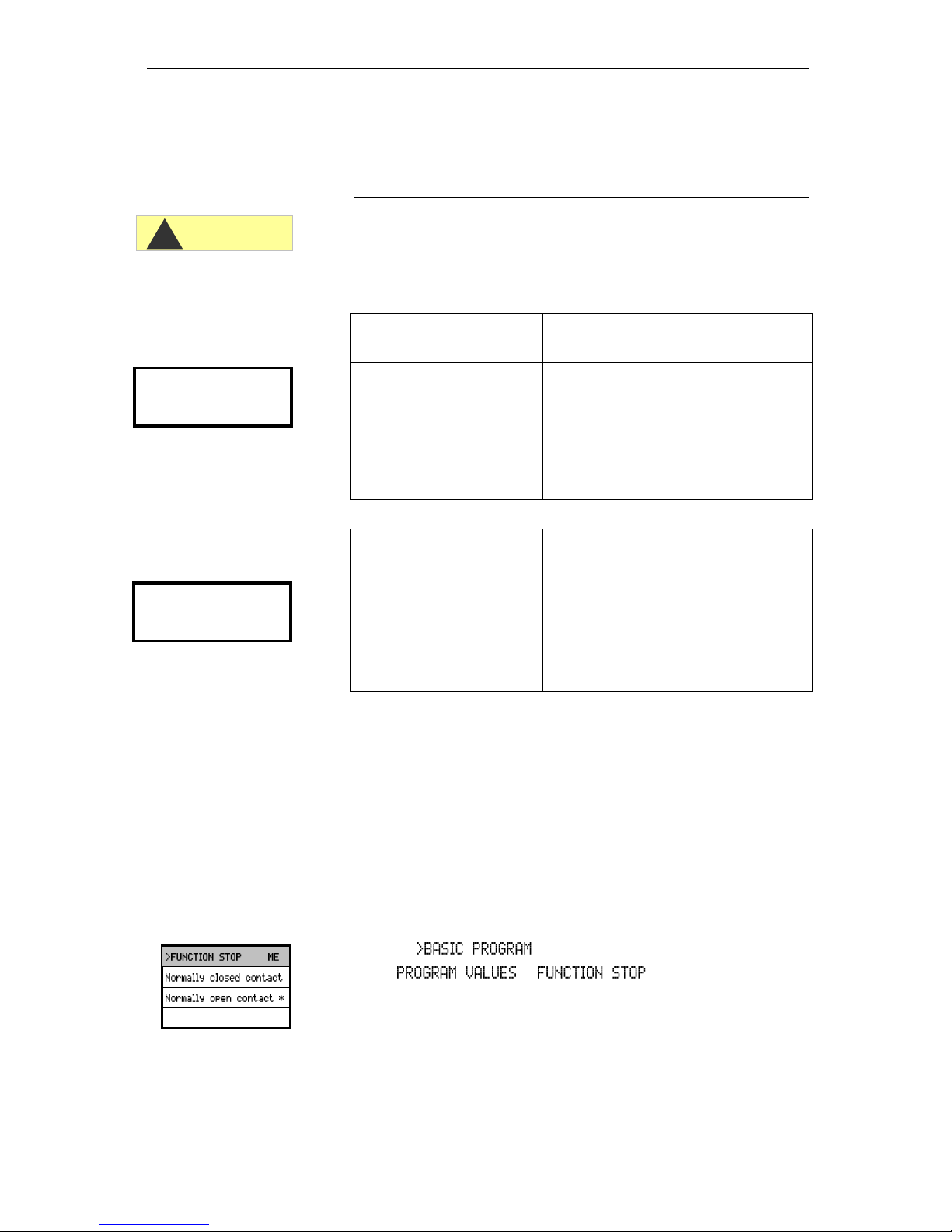

Description of the signal in­puts/outputs

Connecting the signal inputs

 Only connect the signal inputs "Start", "Stop", "IN1" and "IN2" with

volt-free contacts!
The connection of external voltages would damage the instrument!

Function

Test
time

Action

Start

External analysis
start (only normally open)

None

In the operating mode
EXTERNAL, an impulse
contact at the input starts an
individual analysis, while
with permanent contact one
analysis after the other is
run.

Function

Test
time

Action

Stop

External analysis stop (e.g.
via flow controller or pro­cess controller)

(normally closed or normal­ly open)

None

As long as the contact at the
input is 'open' or 'closed', no
analyses are carried out

An active Stop input prevents an analysis start, e.g. via a completed
interval. This can be necessary if
the plant does not supply water. A current analysis is stopped when
the input valve is opened (while the measuring chamber is being
flushed or filled). The water which has already entered the measuring
chamber remains there. If the measuring chamber is already full, the
analysis is executed. Manual start has priority over the Stop input, i.e.
if the Stop input is active, an analysis can be started manually or a
manually started analysis cannot be stopped by the stop signal. In
the operating mode “time-controlled”, the interval time continues
when the Stop input has been activated.

 In the menu, select

=> =>

 Select the type of contact
 Press "ENTER" to confirm the selection

CAUTION

!

Start

terminals 20,21

Stop

terminals 22,23

▼▲

Description of the signal inputs/outputs

35

Function

Test
time

Action

IN1

Message from the process
controller
(regeneration finished)
(normally closed or normally
open)

Fixed,
10
sec­onds

Plant monitoring start and
capacity reset to 100% with
dynamic

 In the menu, select

=> =>

 Select the type of contact
 Press "ENTER" to confirm the selection

Function

Test
time

Action

IN2

Water meter input
(normally open)

None

Quantity recording for anal­ysis start and plant monitor­ing

Function

Connection

Action

OUT

Programmable interface
0-20 mA or 4-20 mA

max. load
500 Ohms

Programmable

OR
Serial interface RS 232

Serial bus

(2-wire cable)

See description of inter­face card RS 910

(See Technical info “T2000 FE­RS232")

Refer to the section entitled "Interfaces" for a detailed description

Interfaces (optional)

Current interface 0/4-20 mA

Current interface load

 The maximum load of 500 Ohms should not be exceeded!

In case of possible faults and when using very long cables (approx.
20 m), a screened cable should be used, if possible.

Installing the interface cards SK910/RS910

Avoid static charges during installation!

Personnel responsible for installation must be appropriately trained
and qualified!

IN1

terminals 24,25

▼▲

IN2

terminals 26,27

OUT

terminals ┴, 28,29

Base circuit
board Testomat

WARNING

!

NOTE

Description of the signal inputs/outputs

36

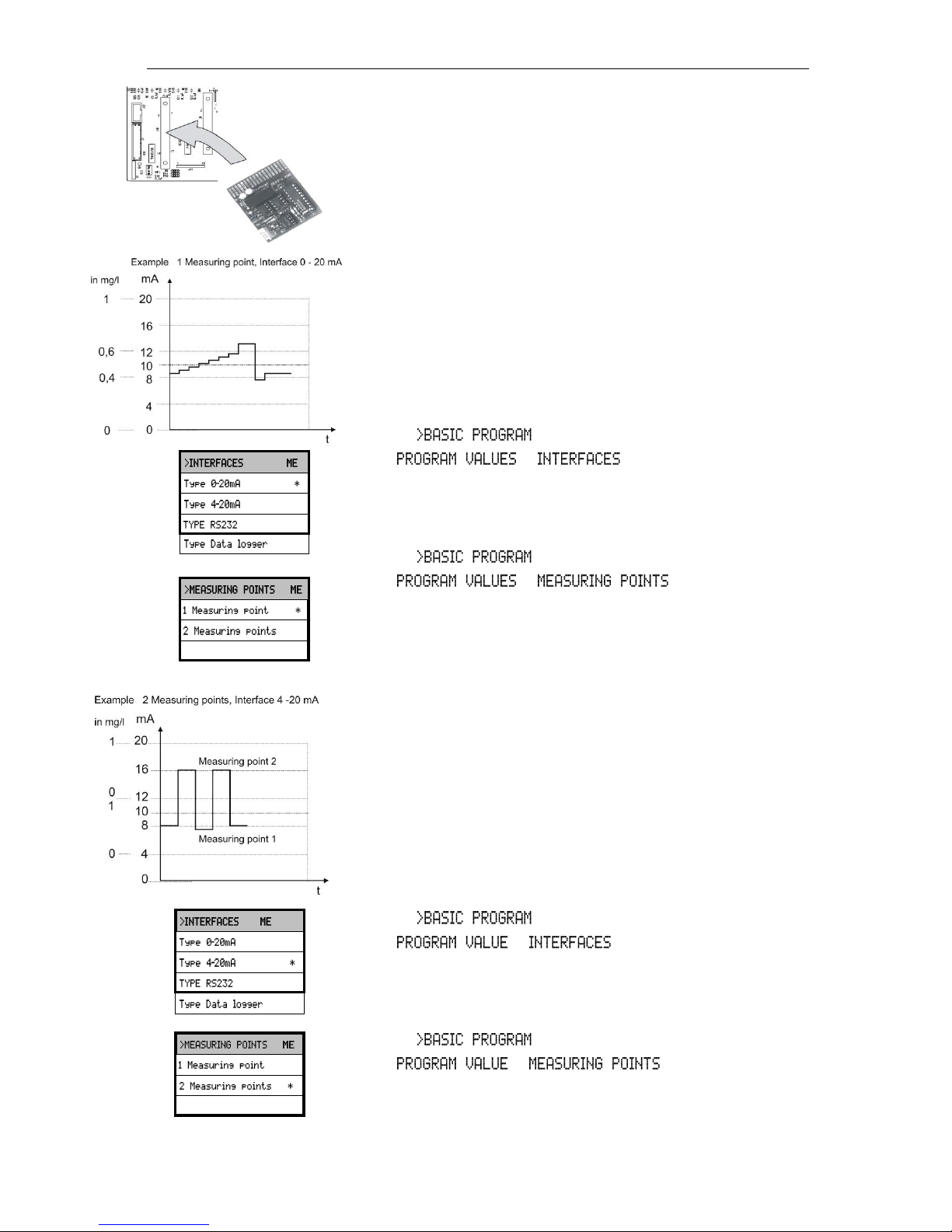

 Switch off the instrument.
 Insert the plug-in circuit board into the left-hand slot with the com-

ponent side on the left. (Contact no.1 is at the top)

 Switch on Testomat 2000®.
 Program the desired type of current (0/4-20mA) (for SK910).

Monitoring of one measuring point

A printer can be connected to record the analysis results. The instru­ment is equipped with a programmable current output for this pur­pose (optionally 0-20 mA or 4-20 mA).

The example on the left displays the current profile in the 0-20 mA
range for one measuring point.

 In the menu, select

=> =>

 Select the desired current range
 Press "ENTER" to confirm the selection

 In the menu, select

=> =>

 Select the desired configuration
 Press "ENTER" to confirm the selection

Monitoring of two measuring points

The example on the left displays the current profile for 4-20 mA and
the use of two measuring points.

Measuring point 1 and measuring point 2 are measured alternatively.
The measured value 1 is shown in display line 2 (M1:) and the meas-

ured value 2 in line 3 (M2:). The currently analysed measuring point
is indicated by an asterisk on the right.

The range of the current interface is divided. The range 4 – 12 mA is
available for the measured value from measuring point 1 and range
12 – 20 mA for the measured value from measuring point 2.

 In the menu, select

=> =>

 Select the desired current range
 Press "ENTER" to confirm the selection

 In the menu, select

=> =>

 Select the desired configuration
 Press "ENTER" to confirm the selection

▼▲ ▼▲

▼▲ ▼▲

Description of the signal inputs/outputs

37

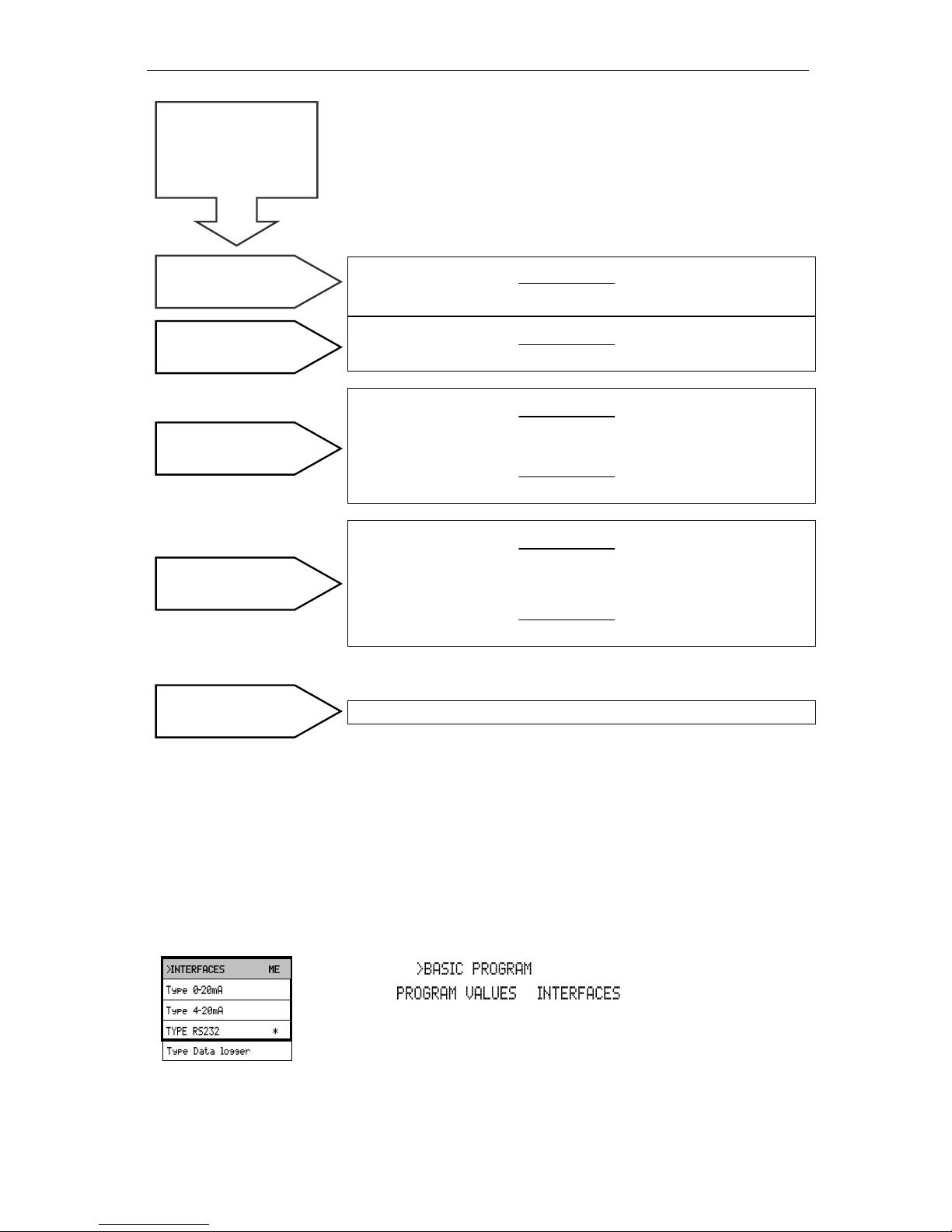

Calculating the output currents

The entire current range ( 0 – 20 mA or 4 – 20 mA ) is available for
one measuring point. The current range is divided for two measuring
points. The value of measuring point 1 is displayed in the lower half (
0 – 10 mA or 4 – 12 mA ), and the value of measuring point 2 is dis­played in the upper half ( 10 – 20 mA or 12 – 20 mA ).

Measured value
Current = x 20 mA
Maximum value

Measured value
Current = x 16 mA +4 mA
Maximum value

Measured value 1
Current 1 = x 10 mA
Maximum value

Measured value 2
Current 2 = x 10 mA +10 mA
Maximum value

Measured value 1
Current 1 = x 8 mA +4 mA
Maximum value

Measured value 2
Current 2 = x 8 mA + 12 mA
Maximum value

The current is set to 20 mA.

Measured value = Value displayed in the selected unit
Maximum value = Final value of the measuring range (1.0 mg/l)

Serial interface RS232

Testomat 2000® Fe can also be connected to a log printer via the
serial interface RS232 to enable the printout of measuring results and
error messages. Analyses can then be continuously logged. This
option is only possible in connection with the interface card RS232,
RS910 (Art. no. 270310).

 In the menu, select

=> =>

 Select the desired interface
 Press "ENTER" to confirm the selection

▼▲

1 measuring point

0 - 20 mA

1 measuring point

4 - 20 mA

Measuring range ex­ceeded (e.g. >1- 0 mg/l)

How is the current

calculated for a

specific measured

value?

2 measuring points

0 - 20 mA

2 measuring points

4 - 20 mA

Description of the relay outputs

38

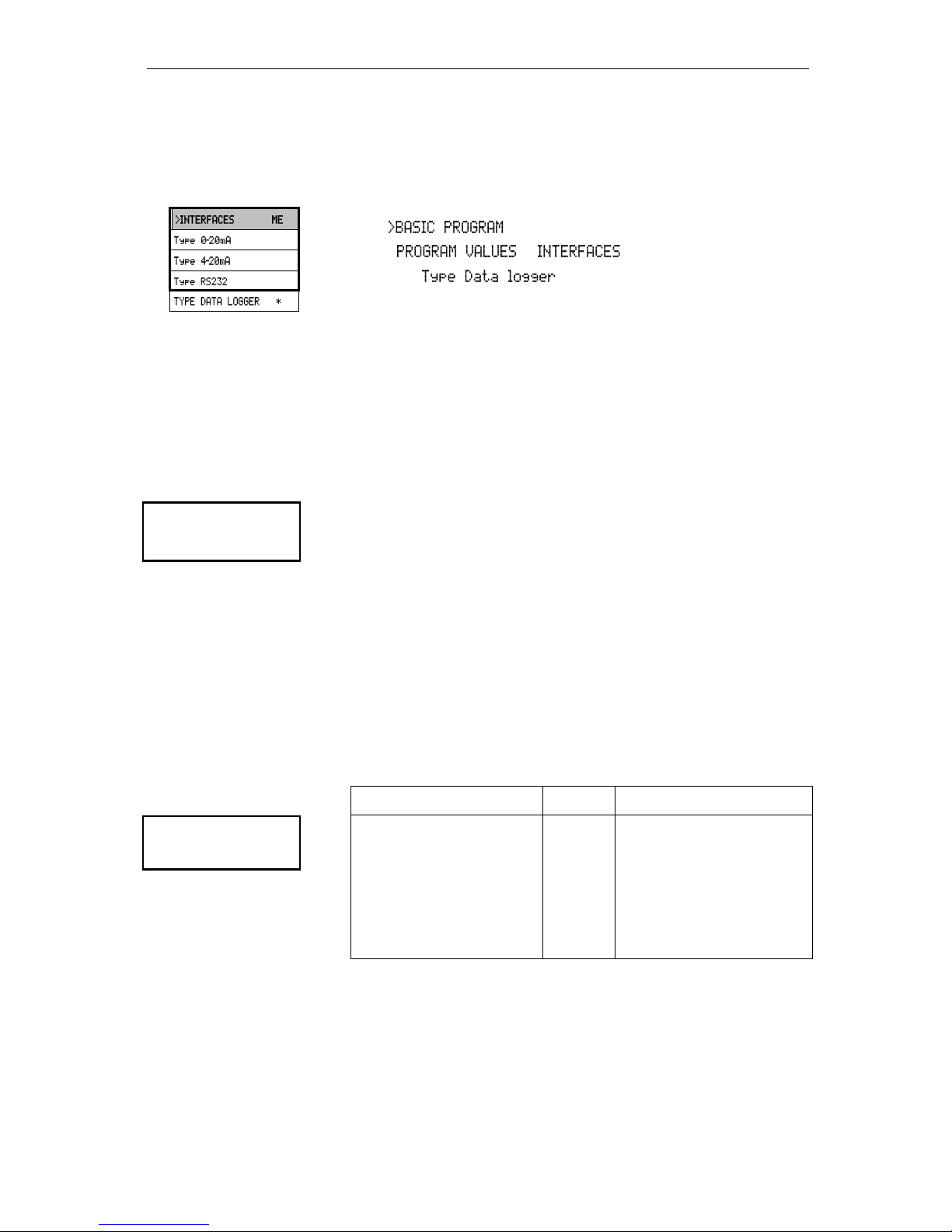

SD card data logger

With the SD card data logger (article number 100490), the measure­ments of the Testomat 2000® can be logged continuously.

To operate the data logger, please proceed as follows:

 In , select
=> =>

 Select " “.

 Press "ENTER" to confirm the selection

Description of the relay outputs

All relay outputs are neutral contacts. This ensures that all connection
options are available. The switching of mains voltage and external
voltage, and the direct switching of inputs, e.g. a process controller,
can be realised.

Flushing (external flush valve)

Immediately before each analysis, the external flush valve is opened
for the programmed period allowing the line up to Testomat 2000® Fe
to fill with measuring water. Please ensure that the programmed flush
time is sufficient.

Please refer to "Entering further basic program data"  "External
flush" for programming details

LV1 and LV2 limit value outputs

Two volt-free relay contacts are available to signal that a limit value
has been exceeded. The limit values, the hysteresis and the function
can be freely programmed for both contacts:

Function

Contact

Action

LV1

Relay switches if limit value
1

or measuring point 1
have been exceeded

Volt-free
change­over
contact

programmable:

- Continuous contact

- Impulse (1-99 seconds/minutes)

- Interval (1-99 seconds/minutes)

- Two-step controller (only for one
measuring point)

- Hysteresis (1st, 2nd or 3rd limit
value exceeded)

Flush valve

terminals 1,2

Limit value 1

terminals 3,4,5

▼▲

Description of the relay outputs

39

Function

Contact

Action

LV2

Relay switches if limit value
2

or measuring point 2
have been exceeded

Volt-free
change­over
contact

programmable:

- Continuous contact

- Impulse (1-99 seconds/minutes)

- Interval (1-99 seconds/minutes)

- Hysteresis (1st, 2nd or 3rd limit
value exceeded)

Please refer to the section entitled "Switch functions of the limit value
outputs LV1 and LV2" for a detailed description and programming!

Measuring point 1 or 2 (measuring point switch­over)

If the instrument is used for monitoring two measuring points, the
solenoid valves (individual valves or one 3/2-way control valve) of the
corresponding sampling line have to be connected to this output. The
terminals are strictly allocated to the measuring points.

Terminal 9 = Measuring point 1 , Terminal 10 = Measuring point 2

 In the menu, select

=> =>

 Select "2 measuring points"
 Press "ENTER" to confirm the selection

AUX (programmable function output)

The functioning of this volt-free relay output is programmable:

1. For reporting a current analysis and/or

2. For contact prior to an analysis, e.g. to operate a
cooler or

3. For contact after an analysis

 In the menu, select

=> =>

 Select the program step at which the AUX contact is to be activat-

ed

 Enter the contact duration in minutes (m) and seconds (s) under

"Time"

 Press "ENTER" to confirm the entry

Limit value 2

terminals 6,7,8

M. point
switch-over

terminals 9,10,11

▼▲

AUX

terminals 12,13

▼▲

Description of the relay outputs

40

Alarm (fault message output)

The "Alarm" output is a volt-free change-over relay contact. During
trouble-free operation, the contact between the terminals 15 – 16 is
closed and the one between terminals 14 – 16 is open. In case of a
voltage breakdown, the contact between the terminals 14 – 16 is
closed and the one between terminals 15 – 16 is open.

The instrument is equipped with a range of monitoring functions. You
can define the individual statuses as a fault and program the corre­sponding message either as a continuous contact (A) or as a mes­sage impulse (M).

Functions/Behaviour of the "Alarm" output:

- With a continuous contact, the "Alarm" output remains activated

(terminals 14 – 16 closed) as long as the fault persists.

- With a message impulse, the output is switched 'on' for 2 sec-

onds and then switched 'off' for 5 seconds.

- If several faults with differently programmed messages are sig-

nalled simultaneously, the output is switched to continuous con­tact.

- The red LED "Alarm" and the text on the display indicate a fault.

- The fault message signal at the "Alarm" output is deleted by con-

firming the fault via the "Horn" key.

- The error message can only be deleted if the fault has been elim-

inated.

- Exception: The maintenance date has been exceeded. This

message is confirmed in the M menu, see below (Maintenance).

- Each new fault is entered in the error history (also see "i menu").

- There is no additional alarm via the fault message output when

the limit value is exceeded!

Refer to "Error messages / Troubleshooting" for a description of the
error messages.

Maintenance (output for maintenance message)

The "Maintenance" output is a volt-free change-over contact. During
trouble-free operation without a programmed maintenance interval,
the contact between the terminals 17 – 19 is closed and the one be­tween terminals 18 – 19 is open.

The instrument is equipped with a range of monitoring functions and
a programmable maintenance interval. The respective maintenance
message is always a continuous contact.

A maintenance request is displayed via the yellow "Maintenance"
LED. The maintenance display can only be deleted once the status
has been corrected or after the maintenance request has been con­firmed.

Please refer to the section entitled "Password protection and basic
program" for further programming details.

Always fault message for:
Power failure

Low water level
Function fault optics
Function fault dosing
pump
Function fault drain outlet
Function fault failure 24V

Programmable fault
messages for:

Low reagent level
Measuring fault soiling
Measuring fault turbid
Plant monitoring
Measuring range exceed­ed
Maintenance exceeded

Alarm

terminals 14,15,16

The following faults
activate the "Alarm"
output and are displayed:

Maintenance

terminals 17,18,19

Activation of the
maintenance output for:

Low reagent level
Measuring chamber soiled
(measuring point soiling)
Maintenance date
reached

Information menu "i"

41

Information menu "i"

In the information menu, it is possible to request current settings and
statuses of the instrument, the error history, the date of the next
maintenance and the customer service address.

Call (1)

Use the key to open the information menu "i".

Request options: customer service, operating values, program val­ues, error history, maintenance

Please refer to the section entitled "Password protection and basic
program" for further programming and setting details for the individual
menu items.

Operating values (3)

Display of the current values.

Program values (4)

Use the arrow buttons to call
the menu item "Program val­ues". Press "ENTER" to open
the list of set values. The cur­rent setting of a parameter can
be requested via "ENTER"

An asterisk indicates the se­lected functions. (There are no
active lines)

Error history (5)

Use the "i" and "ENTER" keys
to open the error history. The
error history is a list of errors or
statuses which have occurred
during operation. The list is
deleted after a power failure
and a new list is started.

If no errors have occurred
since start-up, the last switch­on time of the unit is displayed,
e.g.:

POWER FAILURE
from 16.05.11 06:56
to 16.05.11 07:09

Maintenance (6)

Display of the next mainte­nance date and the pro­grammed maintenance interval.
It is possible to set the mainte­nance interval in the basic
program (password protected).
Refer to the section entitled
"Maintenance" for further de­tails on maintenance intervals.

Customer service (2)

Display of the customer service
address or, e.g., a service
hotline.
You can freely program these
lines in the basic program
(password protected).

Program menu "M"

42

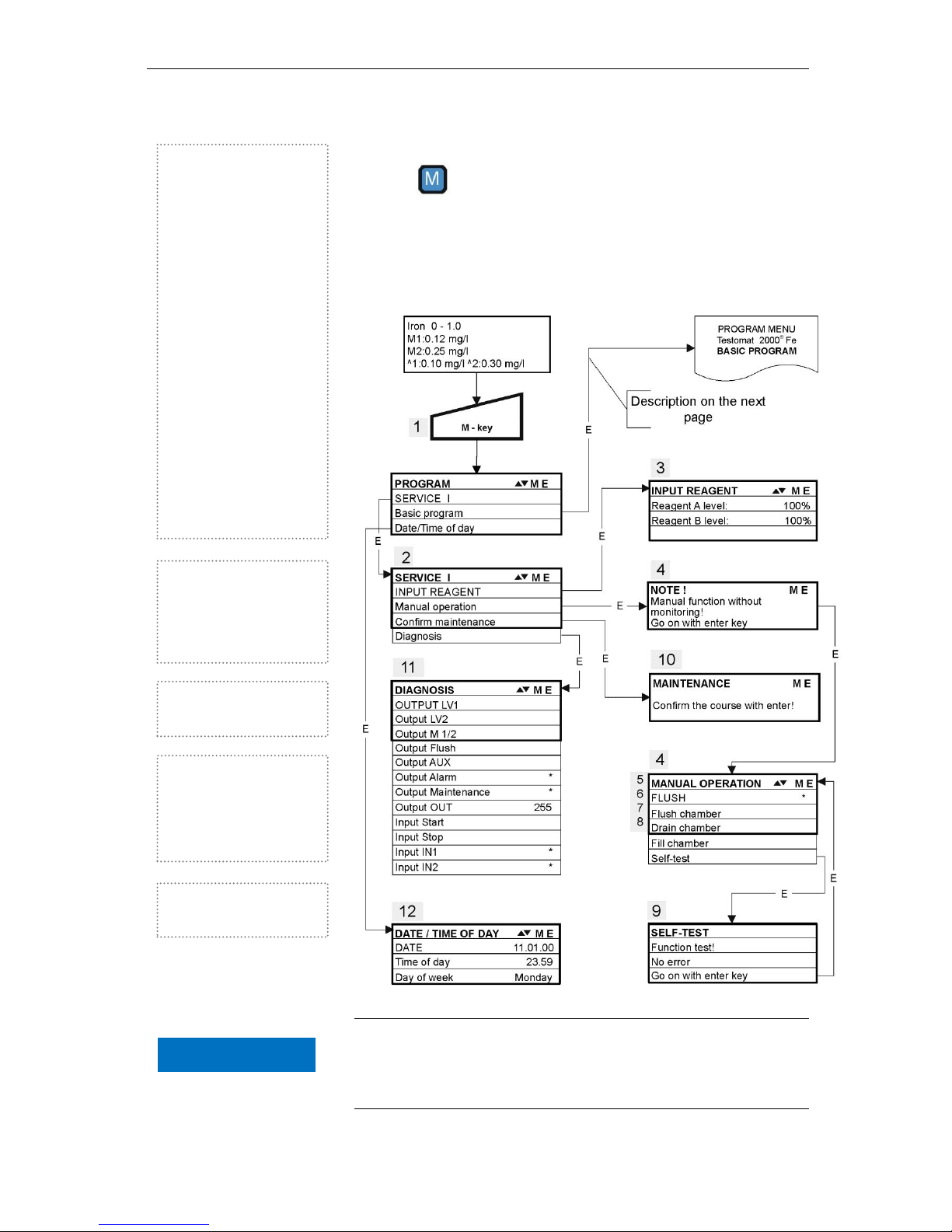

Program menu "M"

Call: (1)

Use the key to open the program menu "M".
It is possible to call up all the functions without password protection

except for the basic program.

Programming of: reagents, manual mode, flushing, flush chamber,
drain chamber, fill chamber, self-test, confirm maintenance, diagno­sis, date, time, basic program with password

Availability of functions

 All manual functions can only be selected during an analysis

pause. Analyses are not carried out during manual mode. All sig­nal inputs and outputs are locked.

Service I (2)

Input reagents (3)

Enter the new filling levels after
each refill or reagent bottle
change. Once you have select­ed the menu item for entering
the filling level "Reagent A
filling level (0 - 100%)" or "Re­agent B filling level (0 - 100%)"
via the "ENTER" key, the value
is preset to 100%. If you have
connected a full bottle, press
"ENTER" to confirm the value.
If the filling level of the bottle
differs, enter the corresponding
value.

Manual operation (4)

After confirming the information
message (4) via the "ENTER"
key, it is possible to select and
activate the desired function by
using the arrow keys and
pressing the "ENTER" key.
These functions are used for
checking the functions and for
commissioning.

Fill chamber (8)

Press the "ENTER" key to fill

the measuring chamber.

Flush (5)

Start the flushing of the sam­pling tube through the internal
valve by pressing "ENTER".
Press "ENTER" again to termi­nate this function.

Flush chamber (6)

Press the "ENTER" key to flush
the measuring chamber once.

Drain chamber (7)

Press the "ENTER" key to open
the outlet valve in order to drain
the water from the measuring
chamber. Press the "ENTER"
key again to cancel this func­tion.

NOTE

Program menu "M"

43

Self-test (9)

Press "ENTER" to start the functional test of Testomat 2000® Fe. The
program checks all relevant instrument functions and carries out an
analysis. A respective message is displayed if errors have occurred.

Press the "ENTER" key again to cancel this function and to return to
the "MANUAL OPERATION" menu.

Confirm maintenance (10)

After maintenance has been carried out, confirm it by pressing the
"ENTER" key and exit this item via the "M" key. The maintenance
interval is restarted.

Confirm a maintenance request due to an expired maintenance inter­val in the M menu. The displayed message is deleted and the
“maintenance” output reset.

Refer to the section entitled "Maintenance" for further details on
maintenance intervals.

Diagnosis (11)

It is possible to request the current statuses of the signal inputs and
outputs in a list. Active statuses are marked with an *. (see "Structure
of the basic program").

The current interface can be checked under "OUT output". Press the
"Enter" key to toggle between minimum and maximum current.
Change-over occurs between 000 and 200 at 0-20 mA!

Time/Date (12)

Set the time and date by selecting and activating the desired function
via the arrow keys and the "ENTER” key. Subsequently press the "M"
key again to save the setting and to return to the display function.

Refer to "Functions of the operating and display elements"  "Oper­ating system" for more details.

Basic program

This menu item can only be accessed after entering the password!
After entering the password and confirming it via the "ENTER" key, it

is possible to carry out basic programming of the instrument and to
select various service functions (e.g. calibration).

In the basic program, the following abbreviations are used in the re­spective menu items:

s = seconds; m = minutes; h = hours; d = days; l = litres

Call the factory de­fault setting:

Press the "M" and "i" key
and switch on Testomat
2000® Fe.

Caution: All previously
entered data is overwrit­ten!

The values and settings
of the basic default set­ting are described in the
"structure of the basic
program".

▼▲ ▼▲

Structure of the basic program

44

Structure of the basic program

Call the basic factory program by simultaneously pressing and holding down the "M" and "i"
keys while switching on the instrument. CAUTION, the last set of programming will be lost!

Error messages / Troubleshooting

45

Error messages / Troubleshooting

Displayed message / display
(flashes at selected display)

Instrument result functions

Description, possible caus­es

Remedies

Ff. POWER FAILURE 24 V

 CONFIRM WITH HORN KEY

- After programming:
Continuous alarm or message
impulses

- Standby

- Internal power failure of the

24 V supply

 Replace fuse F4 or F8

(The control lamp "Power"

of the dosing pump should
illuminate)

Ff. DOSING PUMP

 CONFIRM WITH HORN KEY

- After programming: Continu­ous alarm or message im­pulses

- Standby

- Dosing pump is defective

- No dosing message from

dosing pump

 Replace dosing pump
 Check cable to the dosing

pump for correct connec­tion

Mf. TURBID

 CONFIRM WITH HORN KEY

- After programming: Con­tinuous alarm or message
impulses or no message

- Continue measurements

- The water is too turbid /
soiled

MEASURING RANGE EXCEEDED

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses or
no message

- Continue measurements

- The measuring range has
been exceeded

LOW WATER LEVEL

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses or
no message

- Standby

- no water input although

LED "IN" lights up

- Inlet pressure too low

- Overflow detection does not
react

 Check water inlet
 Connector at the inlet

valve oxidised

 Clean filter strainer
 Replace valve block
 Remove pressure control-

ler valve body

 Replace fuse F6

Ff. OUTLET TO DRAIN

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses

- Standby

- Water remains in the meas­uring chamber although
LED "OUT" illuminates

 Check water outlet
 Connector at the outlet-

valve oxidised

 Replace valve block

REAGENT LOW

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses or
no message

- LED and output "maintenance"
on

- Continue measurements

- Minimum reagent quantity

not reached 50 ml (10%)

 Check reagent level and

refill, if necessary

 Enter the filling quantity!

Mf. SOILING

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses or
no message

- LED and output "mainte-

nance" on

- Continue measurements

- Sight-glass windows are
soiled

 Clean sight-glass win-

dows

Ff. OPTICS

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses

- Standby

- Plug-in circuit board defec-

tive

- Error at the optical compo­nent (transmitter or receiver
defective)

 Replace plug-in circuit

board

 Replace measuring

chamber holder

MAINTENANCE INTERVAL
EXCEEDED BY

XXX DAYS

 CONFIRM WITH HORN KEY

- After programming:

Continuous alarm or
message impulses or
no message

- LED and output "maintenance"
on

- Continue measurements

- Programmed maintenance
date reached or exceeded

 Carry out maintenance

and subsequently confirm
maintenance

Abbreviations: Ff.: = function fault, Mf. = Measuring fault

Error messages / Troubleshooting

46

Further information

Error

Possible causes

Remedies

Current interface functions incorrectly

- Incorrect measured value at the output or

no power supplied

 Replace fuse F7

 Replace the interface circuit board

Instrument is not functioning, even
though it is switched on
No display

- Fuse F9, F5 or F2 (240

V: F1) defective

- Power switch defective

- Ribbon cable at display circuit board or

base circuit board is loose

- Error at display or base circuit board

 Replace fuses
 Replace power switch
 Reconnect ribbon cable
 Replace display or base circuit board

Response of a protective circuit

After a protective circuit (fuse) has been tripped, attempt to eliminate
the cause of malfunctioning (e.g. replace a defective valve) before
reactivating the protective circuit. Frequent tripping is always due to
an error which, in certain circumstances, may also cause damage to
the instrument.

Malfunctioning/Repairing a defective instrument:
The repair of a defective instrument – irrespective of the warranty
period - is only possible after the instrument has been dismantled and
returned to us with a description of the error. Please also inform us of
the measured medium. Before you return the instrument for repair
work, remove the reagent bottles and ensure that the measuring
chamber has been flushed out and is empty.

Maintenance

47

Maintenance

Required maintenance measures

 Regular maintenance is necessary to ensure trouble-free opera-

tion of the instrument!

Please regularly carry out the maintenance work described in the
following section when

 the programmed maintenance date has been reached (display

"maintenance date exceeded")

 the instrument displays the following error messages:

"Mf. soiling" or "Low reagent level"

 the last maintenance was carried out max. 6 months ago

Cleaning measures

 Never use organic solvents to clean the measuring chamber or

other plastic parts!

 Please observe the safety regulations when handling cleaning

agents!

 If the measuring range of the instrument is exceeded over a long-

er period of time, a coloured film may form on the sight-glass win-

dows. Use alcohol to remove this sticky film.

Description of maintenance work

Please refer to the "Maintenance manual Testomat 2000®/Testomat
ECO

®"

for a detailed description of maintenance work. The measures

described here only provide a brief overview.

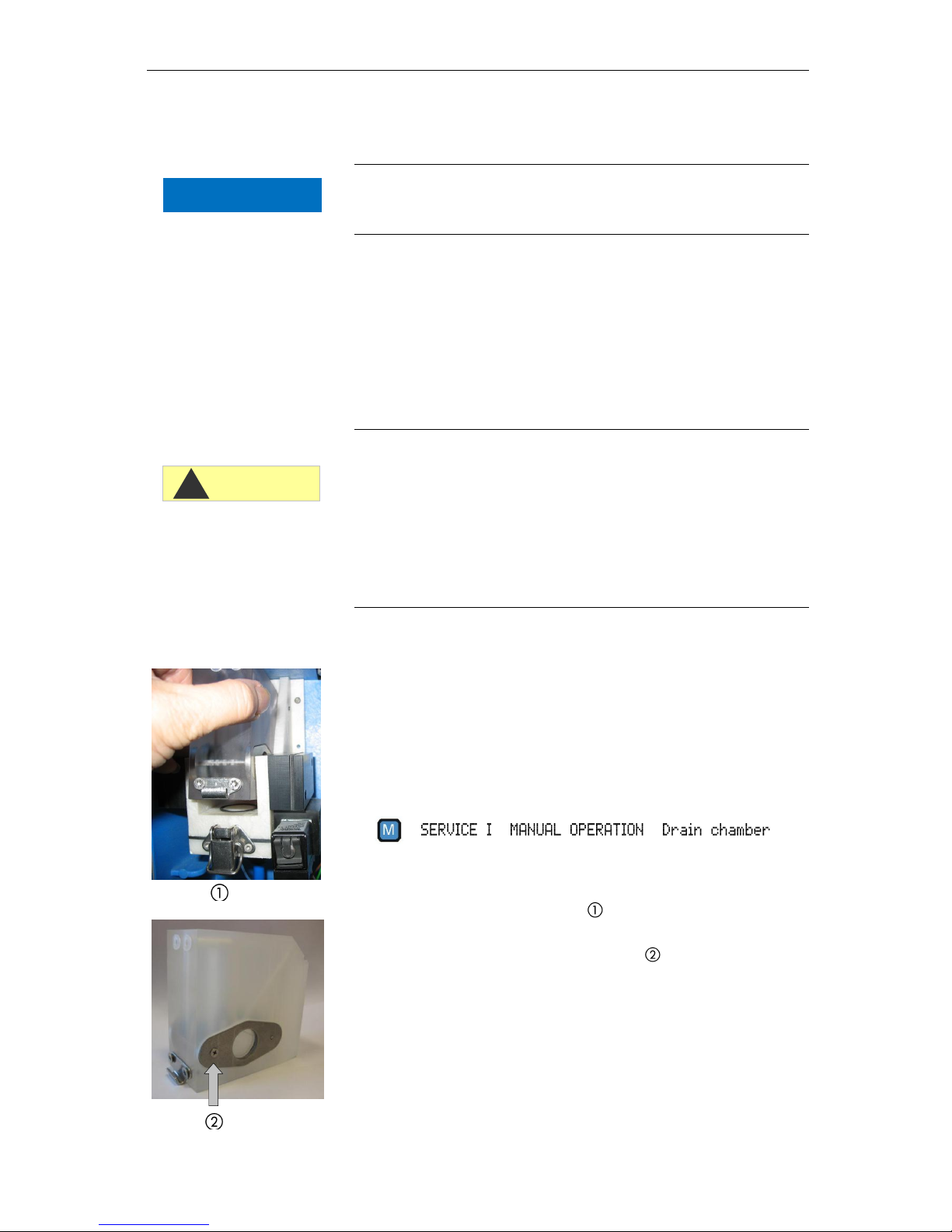

Cleaning the measuring chamber and sight-glass windows

 Switch off the instrument or press the "STANDBY" key. If required,

remove any water from the measuring chamber.
  

 Close the manually-operated valve of the branch line to Testomat

2000® Fe.

 Unhook the toggle type fastener , tilt the measuring chamber

upwards and remove it.

 Release both sight-glass window holders ; remove and clean

the sight-glass windows.

 Use alcohol to clean off the film on the sight-glass windows. If the

instrument has been used with hard water for a longer period of

time, a hard-to-remove film may have formed on the sight-glass

windows. If this is the case, clean the sight-glass windows as de-

scribed below for cleaning the measuring chamber.

CAUTION

!

NOTE

Maintenance

48

 The measuring chamber can be cleaned with a cleaning agent

suitable for decalcification and rust removal. Flush the measuring

chamber thoroughly after cleaning.

 After cleaning, re-insert the sight-glass windows and secure them

with the sight-glass window holders (do not forget the flat seals

and ensure correct fitting in the groove).

 Re-insert the measuring chamber and secure it using the toggle

type fastener.

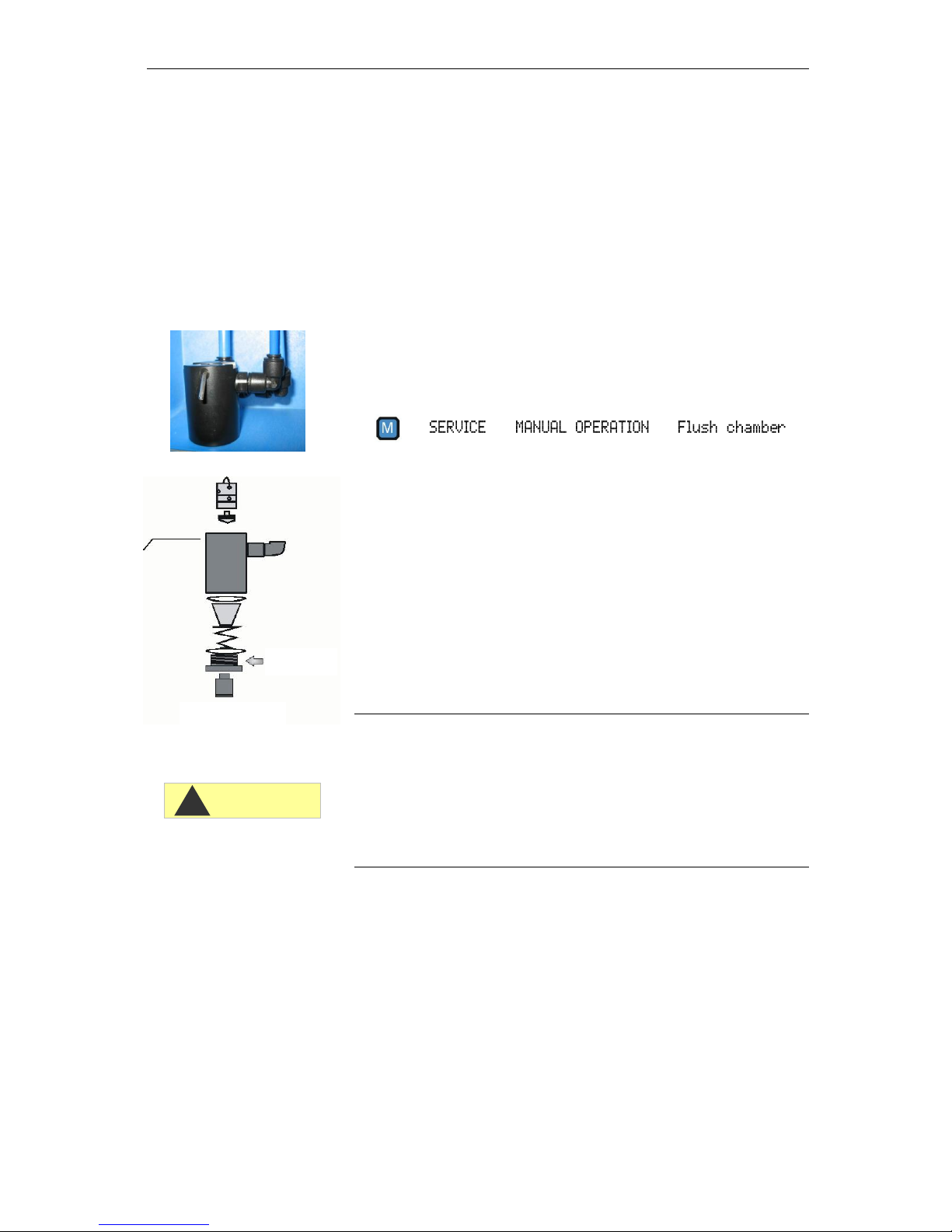

Cleaning the controller/filter housing

 Close the manually-operated valve of the branch line to Testomat

2000® Fe.

 Depressurise the lines of Testomat 2000® Fe via the function:

  

 Switch off the instrument and loosen the hose connections at the

filter housing.

 Unscrew the inlet connection using an open ended spanner (size

22) and remove the seal, spring and filter.

 Remove the retaining pin and extract the flow controller, subse-

quently remove the flow controller valve body.

 Clean the filter housing with water or alcohol; then reassemble the

unit.

 If required, replace the seals.
 Insert the filter strainer with the cone facing downwards!
 Re-attach the hose connections at the filter housing.

Important maintenance information

 Water leakage at sealed points can damage instrument parts!

Please check the instrument for leaks prior to the first analysis:

 Switch the instrument to "STANDBY"
 Manually fill the measuring chamber
 Manually dose the reagent ("Manual" key)
 Check the connections and seals for leaks

Service instructions

The surface of the instrument has not been treated. Therefore, avoid
any soiling caused by reagents, oil or grease. However, if the housing
becomes soiled, please clean the surface with isopropanol (never
use other solvents).

Zulaufanschluss
Inlet connector

Regler-/Filteraufnahme
Regulator/filter

CAUTION

!

Testomat 2000® Fe spare parts and accessories

49

Testomat 2000® Fe spare parts and
accessories

Art. no.

Pressure controller

40125

Controller / Filter receiver, complete

40120

Controller / Filter receiver

40129

Controller plug T2000, complete

11225

Flow controller valve body, complete

11230

Retaining pin 3x38 90°

11217

Inlet filter 19.5dx25

11218

Spring for inlet filter

40121

Inlet connector

40153

Plug in connector G 1/4" -6

40157

Angled plug-in connector G 1/8"

Measuring chamber

40173

Sight-glass window with seal, T2000

40170

Sight-glass window 30x3

40176

Sight-glass holder, countersink and
thread.

33253

Bolt M3x40, A2, DIN 965

40032

Latch fastener TL-17-201-52

11203

Plastic plug 5.3dx5 PE natural

40022

Measuring chamber T2000, complete

Measuring chamber holder

40371

Measuring chamber holder, DUO

40050

Magnetic stirrer, processed

40186

Plug-in connector 3/8" -10, processed

40018

Solenoid valve, 2/2-way

40181

Rear guide bar for measuring chamber
5 x 60

Dosing pump DOSIClip®

40201

Dosing pump, SP

40011

Suction hose, complete

40016

Pressure hose, complete

40040

Valve set

32046

Plastic cover CNH 45 N

Art. no.

Bottle connection/Suction device

40131

Screw cap with bottle insert T2000

40130

Screw cap GL32 - hole

40132

Bottle insert for screw cap with push-fit
suction tube

Unit spare parts list

31582

Fuse M4A

40294

Base circuit board T2000, complete
230 V

40092

Control circuit board T2000, complete

40091

Plug in circuit board driver/receiver SE­T2000 (6)

40190

Cable sleeve 5-7, grey

40191

Cable sleeve 7-10, grey

31713

Ribbon cable 10 pole with EMI filter
clamp

40096

Ribbon cable 26 pole with EMI filter
clamp

40060

Cable loom 2V for T2000

40062

Cable loom 2P for T2000

40200

Cable loom, complete with power
switch and cover

31596

Fuse, soldered T0.08A

31585

Fuse, soldered T0.315A

31595

Fuse, soldered T0.1A

31622

Fuse, soldered T0.16A

31592

Fuse, soldered T1.0A

Spare parts requirement for 2 - 3 years of

operation

40173

Sight-glass window with seal, T2000

11217

Inlet filter 19.5dx25

40124

Gasket set T2000

31585

Fuse, soldered T0.315A

31592

Fuse, soldered T1.0A

Testomat 2000® Fe spare parts and accessories

50

Accessories

Please refer to our delivery programme for an up-to-date overview of
available accessories.

*) retrofit kit for water inlet, Art. no. 040123

If fabric-reinforced pressure hoses (e.g. for existing installations) are
used, please replace the plug connector at the controller and filter
housing with a plug for the quick-release coupling (not included).

Reagents

Art. no.

Description

040123

Retrofit kit for water inlet T2000 *)

270305

Interface card 0/4-20 mA SK 910

270310

Interface card RS232 RS 910

270315

Interface card 0/2-10 V UK 910

100490

SD card data logger for Testomat 2000

270410

Booster pump

270337

Maintenance lab T2000 Heyl

Art. no.

Reagents

156250

FE2005A iron 0 – 1.0 mg/l (ppm), reagent A, 500ml

156251

FE2005B iron 0 – 1.0 mg/l (ppm), reagent B, 500ml

Technical data

51

Technical data

Power supply:

230 VAC, 115 VAC or 24 VAC ± 10%,
50 - 60 Hz
Fuse 230 V: T0.1A
Fuse 115 V: T0.2A
Fuse 24 V: T1.0A

Power consumption:

max. 30 VA, without external load

Protection class:

I

Degree of protection:

IP 65

Conformity:

EN 61000-6-2, EN 61000-6-4,
EN 61010-1

Ambient temperature:

10 - 45°C

Measuring range:

See section "Performance specifications"

Current interface:

0/4 - 20 mA, max. load 500 Ohms

Protocol printer:

See section "Accessories"

Dimensions:

W x H x D = 380 x 480 x 280 mm

Weight:

Approx. 10.5 kg

Others:

The instrument is non volatile

Mains water supply

Operating pressure:

1 to 8 bar / 1x105 to 8x105 Pa
or

0.3 to 1 bar / 0.3x105 to 1x105 Pa

(After removing the valve body 11225)

Water inlet:

Opaque pressure hose with an external
diameter of 6/4x1 mm

Water outlet:

Pressure hose with an internal diameter of
12 mm

Water temperature:

10 to 40°C

* When using Testomat 2000® at a pre-pressure of 0.3 bar, it must

be ensured that the flow rate through the measuring chamber is at
least 400 ml/min.

We reserve the right to make technical changes without notice in
the interest of constantly improving our products!
Our manuals are updated regularly. If you have an older version
(see version at the back of the manual) you will find the current
manual on our website www.lenntech.com on the download
page.

Product overview Testomat 2000® instruments

53

Product overview Testomat 2000® instruments

Model/Type

Measuring Parameter

Measuring
Range

Applications/Functions

Testomat 2000®

• Water hardness

• Carbonate hardness

• p-value

• minus-m-value

0.05-25 °dH
0,5-20 °dH
1-15 mmol/l

0.05-0.5 mmol/l

• Universal for water treatment

plants

• allowed for boiler houses

Testomat 2000® Antox

as
Testomat 2000®

as
Testomat 2000®

• dosing a reducing agent

Testomat 2000® CAL

as
Testomat 2000®

as
Testomat 2000®

• Automatic calibration function

Testomat 2000® CLF

• Free Chlorine

0-2.5 mg/l

• DPD-method for swimming pool
and drinking water control

Testomat 2000® CLT

• Total Chlorine

0-2.5 mg/l

• DPD-method for swimming pool
and drinking water control

Testomat 2000® CrVI

• Chromate

• Chrome-VI

0-2.0 mg/l
0-1.0 mg/l

• process control of waste water in

galvanic industry

Testomat 2000® Duo

as
Testomat 2000®

as
Testomat 2000®

• Controlling of two measuring

points

Testomat 2000

®

Fe

• Iron-II and Iron-III

0-1.0 mg/l

• De-Ironing plants

Testomat 2000

®

Polymer

• Polyacrylate

0-50 mg/l

• Monitoring of conditioning

agents in the cooling and
heating cycles

Testomat 2000

®

SO3

• Sulphite

0-20 mg/l

• Control of the Oxygen-binding by
Sulphite in boiler feed water

Testomat 2000

®

self clean

as
Testomat 2000®

as
Testomat 2000®

• Automatic cleaning of the measur­ing chamber

Testomat 2000 THCL®

• Total Chlorine

• Water hardness

0-2.5 mg/l

0.25-2.5 °dH

• DPD-method for swimming pool
and drinking water control

• combination system for hardness
and chlorine

Testomat 2000

®

V

• Water hardness

• Carbonate

hardness

1.0-25.0 °dH

1.0-20.0 °dH

• blending water

54

Check List Testomat 2000®

Dear customers and service technicians,
This check list cannot replace your expertise or extensive experience in fault resolution. It is intended to support fast and systematic error diagnosis
and error documentation. This list does not claim to be complete. We are therefore always grateful for any advice and information you may be able
to provide. General user instructions can be found on the rear of this check list.

The Instrument Manufacturer
Block 1 / Plant and instrument data

Testomat 2000®

Testomat® ECO

Plant type

Instrument type

Instrument no.

Indicator type

Software status

Pump no.

Block 2 / Error message and error history Please mark appropriately (X)

What does your instrument’s error history display?
(“i” and “Enter” key => operating instructions)

( Error history text )

Does an error message appear on the display?

For example, “Mf. analysis”, “Low water level”, etc.
(See operating instructions: “Error messages / Troubleshoot-
ing”)

Yes No

( Error message text )

Block 3 / Visual inspection and functional test Please mark appropriately (X) If applicable, values / comments

Is the instrument connected to the mains voltage specified on the rating plate?

Yes No

Does a message appear on the display?

Yes No

Does the instrument display a plausible measured value?
(possible manual measurement ___________ value)

Yes No

Measured value:
Are the measuring chamber and sight-glass windows clean?

Yes No

Are the measuring chamber and the water-carrying hoses free of leaks?

Yes No

Is the reagents’s expiry date still valid?
(See expiry date printed on the reagent bottle)

Yes No

Expiry date:

Is the water pressure within the specified range (400 ml/min)?
(See the type plate on the instrument)

Yes No

Plant pressure:

Does the drain hose prevent the risk of backwater?
(No “syphoning effect”!!)

Yes No

Is the drain hose free of blockages?
(Microorganisms caused by contamination, etc.)

Yes No

Does the set flushing time/quantity of flush water ensure that only freshwater
is measured?

Yes No

Flushing time:

Are the hoses at the dosing pump free from air bubbles?
(Operate the pump manually / Carry out a manual analysis)

Yes No

CARRYING OUT A (MANUAL) ANALYSIS

Does the water column rise evenly up to the overflow borehole when filling the
measuring chamber (5 mm below the upper edge of the measuring chamber)?
(If not: check the water pressure, water throughput/flow controller)

Yes No
Does the indicator pump dose correctly when starting an analysis?
(LED at the pump illuminates!)

Yes No

No. of dosing strokes:

Have the indicator and water been mixed properly in the measuring cham­ber after the dosing process?

Check the magnetic stirring bar! =>see maintenance manual “Adjust mode”

Yes No

PROGRAMMING DATA / OPERATING CONDITIONS

Have the limit values been set correctly? (Within the measuring
range/according to the performance limit of the plant?)

Yes No

Limit values:

Is the Testomat instrument always supplied with mains voltage – except
during maintenance work/emergency situations?

(Temporary shutdown only via the “Standby” key or the “Stop” input!)

Yes No

See the “General instructions for operat­ing Testomat 2000® and Testomat®

ECO”

Please refer to “Error messages / Troubleshooting” in the operating instructions for further information on error messages and possible causes

of faults.

Further functional tests (e.g. overflow detection and amplification setting => “Special function Adjust mode”) and service instructions can be found
in the maintenance manual.

After completing these checks, experience shows that it can be assumed that the checked functions (Block 3) are in effective working order if you
have answered all the questions with “Yes”. We recommend you to carry out these checks during each inspection or if faults occur.

55

Instrument settings

Caution!

Your settings may be deleted if repairs are carried out. Therefore, note down your instrument settings in the table below before
sending the instrument to our service team for repairs. Please enclose a copy of the table with the instrument. If you have noted
down the settings, they can be easily re-entered by your service staff once any repairs have been completed.

Menu

Setting

MODE OF OPERATION

Time-controlled

Volume interval

Dynamics

External (Start)

Dynamics

Capacity

Start at

Start interval

End interval

Limit val. 1

Limit val. 2

Input IN1

DISPLAY UNIT

Display in mg/l

Display in ppm

LIMIT VALUES

Limit val. 1:

Limit val. 2:

FLUSH TIMES/INTERVAL

Internal flush time

External flush time

Interval pause

MEASURING POINTS

1 Measuring point

2 Measuring points

TYPE OF WATER METER

1 Litre/Impulse

2,5 Litres/Impulse

5 Litres/Impulse

10 Litres/Impulse

100 Litres/Impulse

500 Litres/Impulse

1000 Litres/Impulse

PLANT CONTROL

Min. Res. Quant.

Limit val. 1:

Limit val. 2:

FUNCTION LV1

Duration

Impulse

Interval

Two point

Time:

FUNCTION LV2

Duration

Impulse

Interval

Time:

HYSTERESIS LV1

Analysis (1,2,3)

HYSTERESIS LV2

Analysis (1,2,3)

ALARM/MESSAGE

Reagent low level

Low water pressure

Mf. analysis

Ff. optics

Ff. dosing fault

Ff. dosing pump

Ff. outlet to drain

Mf. dirtiness

power failure 24 V

Mf. turbid

Plant control

Transfer error

Meas. range exceeded

Maint. int. exceeded

FUNCTION IN1

Normally open contact

Normally closed contact

FUNCTION STOP

Normally open contact

Normally closed contact

INTERFACES

Type 0-20 mA

Type 4-20 mA

Type RS232

FUNCTION AUX

Contact before analysis

Contact during analysis

Contact suction

Time

Calibration

Calibr. Value

Calibration

Calibration factor

OPERATING TIME

MAINTENANCE INTERV.

CUSTOMER SERVICE

56

Scan the code and
visit us on our website!

Lenntech

[e-mail] Tel. [phone]
www.lenntech.com Fax. [phone]

[e-mail] Tel. [phone]
www.lenntech.com Fax. [phone]

Lenntech
