SP700
USER MANUAL
english
ENGLISH .......................................................1
THANK YOU....................................................2
ABOUT YOUR JABRA SP700 ....................................2
WHAT YOUR SPEAKERPHONE DOES ............................3
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CHARGE YOUR SPEAKERPHONE................................4
TURNING YOUR SPEAKERPHONE ON AND OFF .................5
PAIRING WITH YOUR PHONE ...................................6
CONNECTING WITH YOUR PHONE..............................7

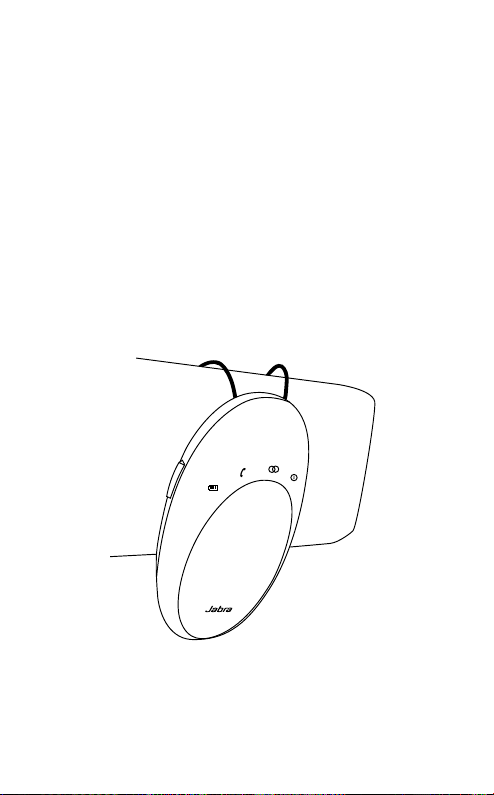

PLACE THE SPEAKERPHONE IN YOUR VEHICLE .................7
HOW TO .......................................................8
WHAT THE LIGHTS MEAN ......................................9
ADDITIONAL FEATURES.......................................10
TROUBLESHOOTING & FAQ ...................................13
NEED SUPPORT? ..............................................15
TAKING CARE OF YOUR SPEAKERPHONE ......................15
WARNING! ....................................................15
WARRANTY ...................................................17
GLOSSARY ....................................................20
english
JABRA S P700
1
Thank you
+
-
Thank you for purchasing the Jabra SP700 Bluetooth® Speakerphone. We hope you enjoy it! This instruction manual will get you
started and ready to make the most of your Speakerphone.
abouT your Jabra sP700
1 Microphone
2 Answer/End button
3 FM button
4 Volume up/volume down button
5 Charging port
6 Speaker
7 Battery status icon
8 Call status icon
9 Bluetooth status icon
10 FM transmitter status icon
3
8
6
english
7
2
1
9
10
4
5
JABRA S P700
2
WhaT your sPeakerPhone Does
Your Jabra SP700 lets you do all this:
- Answer calls
- End calls
- Reject calls*
- Voice dialing*
- Last number redial*
- Mute
- Transfer calls
- Night driving mode
- Adjust volume
- Transmit calls or mobile music to your car stereo via FM transmitter
Specifications
- Talk time up to 14 hours (using FM transmitter) / Standby time
up to 255 hours
- FM transmitter
- Voice announcements in 10 languages
- Noise reduction & Echo cancellation via DSP
- Weight 85 grams
- Operating range up to 10 meters (approximately 33 feet)
- Supported Bluetooth profiles: HFP, HSP, A2DP
- Bluetooth specification (see glossary) version 2.0.
- Internal rechargeable battery charged by provided car charger
or USB cable.
english
* Phone dependent
JABRA S P700
3
geTTing sTarTeD
The Jabra SP700 is easy to operate. You should follow three steps
before using your speakerphone
1. Charge your speakerphone
2. Turn your speakerphone on
3. Pair your speakerphone to your mobile phone
Instruction Duration of press
Tap Press briefly
Press Approximately 1 sec
Press and hold Approximately 5 sec
Charge your sPeakerPhone
Make sure that your speakerphone is fully charged for two hours
before you start using it. Use the USB cable to connect SP700 to
the car charger. Plug the car charger into your car’s power outlet.
The Battery Status Icon will light up red while charging. When
fully charged the Battery Status Icon will turn green. SP700 can be
charged outside your car by only using the USB cable.
english
Use only the chargers provided in the box - do not use chargers
from any other devices as this may damage your speakerphone.
JABRA S P700
4
Turning your sPeakerPhone on anD off
Normal mode
- Press Answer/End button for 2 seconds to turn your speaker
phone on
- Press Answer/End button for 4 seconds to turn your speakerphone off
Locking mode
To prevent accidental key presses that could turn your speakerphone on e.g. while carrying it in a bag, the speakerphone can be
turned into locking mode. Press simultaneously the Answer/End
button and FM button for 4 seconds while the speakerphone is
turned on. The speakerphone is now turned off and can only be
turned on again by pressing Answer/End button and FM button
simultaneously for 2 seconds.
Automatic power off
When disconnected from the mobile phone, the speakerphone
turns off automatically after 10 minutes.
english
JABRA S P700
5
Pairing WiTh your Phone
Speakerphones are connected to phones using a procedure called
‘pairing’. By following a few simple steps, a phone can be paired
with a speakerphone in a matter of minutes.
1. Put the Speakerphone in pairing mode
- When you turn on your Jabra SP700 for the first time, the
speakerphone will automatically start up on pairing mode – i.e.
it is discoverable by your phone. When the speakerphone is in
pairing mode you will hear the voice announcement “Pairing
Mode” and the Bluetooth Status Icon will flash constantly.
2. Set your Bluetooth phone to ‘discover’ the Jabra SP700
- Follow your phone’s instruction guide. First make sure that
Bluetooth is activated on your mobile phone. Then set your
phone to discover the speakerphone. This usually involves going to a ‘setup,’ ‘connect’ or ‘Bluetooth’ menu on your phone and
selecting the option to ‘discover’ or ‘add’ a Bluetooth device.*
3. Your phone will find the Jabra SP700
- Your phone will find the speakerphone under name “Jabra
SP700”. Your phone then asks if you want to pair with the
speakerphone. Accept by pressing ‘Yes’ or ‘OK’ on the phone
and confirm with the passkey or PIN = 0000 (4 zeros). Your
phone will confirm when pairing is complete.
In case of unsuccessful pairing, put the Jabra SP700 into pairing
mode manually:
- Make sure the speakerphone is off.
- Press and hold the answer/end button until you hear the voice
announcement “Pairing Mode” and the Bluetooth Status Icon
will flash constantly.
english
JABRA S P700
6
