Lennox NV35IN, NV40IN, NVCD35IN, NVCD40IN, NV45IN Care And Operation Instructions Manual

...

AVERTISSEMENT : Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incindie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

WARNING: If the information in these instructions is not followed exactly, a ﬁre or explosion may result, causing property damage, personal injury, or death.

WARNING /AVERTISSEMENT/AVISO

• HOT GLASS WILL CAUSE BURNS.

• DO NOT TOUCH GLASS UNTIL COOLED.

• NEVER ALLOW CHILDREN TO TOUCH GLASS.

• UNE SURFACE VITRÉE CHAUDE PEUT CAUSER DES BRÛLURES.

• LAISSER REFROIDIR LA SURFACE VITRÉE AVANT D'Y TOUCHER.

• NE PERMETTEZ JAMAIS À UN ENFANT DE TOUCHER LA SURFACE VITRÉE.

• EL VIDRIO CALIENTE CAUSARÁ QUEMADURAS.

• USTED DEBE NUNCA TOCAR EL VIDRIO CALIENTE.

• LOS NIÑOS DEBEN NUNCA TOCAR EL VIDRIO.

- Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire

department.

- Installation and service must be performed by a qualified installer, service agency or the gas supplier.

- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs ou liquides inﬂammables dans le voisinage de cet appareil ou de tout autre appareil.

- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucan interrupteur. Ne pas vous servir des

téléphones se trouvant dans le bâtiment où vous trouvez.

• Appelez immédiatement votre fournisseur de gaz depuis

un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz,

appelez le service des incindies.

- L’installation et l’entretien doivent être assurés par un installateur ou un service d’entretien qualiﬁé ou par le fournisseur de gaz.

CARE AND OPERATION INSTRUCTIONS

▪

See Page 2 For Details

▪

SAFETY

GUARD

PROTECTS AGAINST BURNS

ENVY and ENVY CD Direct-Vent Gas Fireplaces

P/N 506025-09 Rev. A 08/2013

This manual is one of a set of two supporting this product. Refer to P/N 506023-17 for Care and Operation Instructions.

Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 506223-75.

WHAT'S INSIDE

Table of Contents .................................... 2

Safety and Your Fireplace............................. 2

FREE Safety Guard Offer (Protects Against Burns) .......... 2

Important Safety Information .......................... 4

Attaching the Safety-in-Operation Warnings .............. 5

[EN FRANÇAIS] L’information de sûreté importante ...... 3–4

Apposition des mises en garde relatives à la sécurité d’utilisation 5

[EN ESPAÑOL] Información importante de seguridad ..... 3–4

Colocación de advertencias de seguridad en operación...... 5

Wait...

DON’T THROW IT AWAY!

This manual contains

important operating

and safety

information.

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

INSTALLATEUR : Laissez cette notice avec l'appareil. CONSOMMATEUR : Conservez cette notice pour consultation ultérieure.

MODELS

NV35IN

NVCD35IN

Report No. G100513653 PRT-001

NV40IN

NVCD40IN

NV45IN

NVCD45IN

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

THANK YOU FOR YOUR PURCHASE. WE APPRECIATE YOUR BUSINESS!

Please carefully read and follow all instructions in this manual. Pay special attention to all warnings and safety information. Following these safety, care, and operation instructions will help ensure many years of dependable and enjoyable service from your ﬁreplace.

Safety and

Your Fireplace

To help us keep you up-to-date on product information and offers, please take a few moments to register your product online at: www.lennoxhearthproducts.com (Owner Resources > Product Registration)

• FREE SAFETY GUARD OFFER •

The Lennox® Hearth Products safety guard protects

against severe burns and injuries by preventing direct

contact with the front glass surface of your ﬁreplace.

To receive your FREE SAFETY GUARD:

Visit www.lennoxhearthproducts.com

(Owner Resources > Safety First).

NOTE: Safety guards may not be available for

some older models no longer in production.

TABLE OF CONTENTS

Introduction ................................................6

Installation, Service, and Maintenance ..........................6

Operation of and Care for Your Appliance.........................8

Maintenance ..............................................11

Warranty..................................................15

Replacement Parts..........................................15

Product Reference Information ................................15

Wiring Diagram ............................................15

Accessory Components ......................................16

Lighting Instructions ........................................17

Maintenance Schedule ......................................19

Troubleshooting............................................20

Replacement Parts..........................................21

All parts of your Lennox

Hearth Products ﬁreplace

get EXTREMELY HOT!

 To prevent severe burns and injuries, do

not operate the ﬁreplace without the screen safety guard installed. Always reinstall the safety guard after service or cleaning, prior to operation.

 Follow the safety instructions below

and be sure everyone in your household understands this burn hazard:

• The surfaces on your ﬁreplace get EXTREMELY HOT!

• The glass on the front of the ﬁreplace reaches EXTREMELY HIGH temperatures and can cause severe burns if touched.

• Keep children away from an operating ﬁreplace. Closely supervise children in any room where a ﬁreplace is operating to prevent contact with glass.

• Keep clothing, furniture, gasoline, and other ﬂammable liquids away from the ﬁreplace.

• Even after the gas is turned off, ﬁreplace surfaces remain extremely hot.

 Be sure to attach the enclosed Safety-in-

Operation Warnings where you turn on your

ﬁreplace, to help remind everyone of the dangers associated with high temperatures (see page 5).

 Read Important Safety Information on

page 4.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

La sécurité et

votre foyer

Toutes les parties de votre foyer

Lennox Hearth Products deviennent

EXTRÊMEMENT CHAUDES !

 Pour éviter les brûlures et les blessures

graves, ne pas faire fonctionner le foyer sans le protecteur d’écran installé. Remettez toujours la garde de sécurité après le service ou le nettoyage, avant l’opération.

 Suivez les instructions de sécurité ci-dessous

et veillez à ce que tous les membres de votre famille soient conscients du danger de brûlure encouru :

• Les surfaces de votre foyer deviennent EXTRÊMEMENT CHAUDES !

Seguridad y

su chimenea

¡Todas las partes de la chimenea

Lennox Hearth Products se ponen

MUY CALIENTES!

 Para evitar quemaduras y lesiones graves,

no opere la chimenea sin el resguardo de pantalla instalado. Siempre vuelva a instalar el dispositivo de seguridad después de servicio o limpieza, antes de la operación.

 Siga las instrucciones de seguridad a

continuación y asegúrese de que todos en su hogar sepan acerca de este peligro de quemadura:

• ¡Las superﬁcies de la chimenea se ponen MUY CALIENTES!

• La vitre située à l'avant du foyer atteint des températures EXTRÊMEMENT ÉLEVÉES et peut causer de graves blessures en cas de contact.

• Tenez les enfants à l'écart du foyer lorsqu'il fonctionne. Surveillez attentivement les enfants dans les pièces où un foyer est utilisé aﬁn d'éviter qu'ils ne soient en contact avec la vitre.

• Tenez tous les vêtements, les meubles, l'essence et tout autre liquide inﬂammable à l'écart du foyer.

• Même après fermeture du gaz, les surfaces du foyer restent extrêmement chaudes.

 Veillez à coller les Étiquettes de mise en garde

relatives à la sécurité d'utilisation à l'endroit

où vous utilisez le foyer, pour rappeler à tous les utilisateurs les dangers liés aux températures élevées (voir page 5).

 Lisez la section Informations importantes

relatives à la sécurité, page 4.

• El vidrio delante de la chimenea alcanza temperaturas EXTREMADAMENTE ALTAS y puede causar quemaduras graves si se toca.

• Mantenga a los niños alejados de la chimenea en funcionamiento. Supervise en forma cercana a los niños en cualquier cuarto donde haya una chimenea funcionando para impedir el contacto con el vidrio.

• Mantenga la ropa, mobiliario, gasolina y otros líquidos inﬂamables alejados de la chimenea.

• Aún después de haber apagado el gas, las superﬁcies de la chimenea permanecen extremadamente calientes.

 Asegúrese de colocar las Etiquetas de

advertencia de seguridad de operación en

el lugar donde enciende la chimenea, para que todos recuerden los peligros asociados con las altas temperaturas (ver la página 5).

 Lea la Información importante de seguridad

en la página 4.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

IMPORTANT SAFETY INFORMATION

WARNING

Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass should be done by licensed or qualiﬁed service personnel.

Do not use this appliance if any part has been under water. Immediately call a qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Due to high temperatures, the appliance should be located out of trafﬁc and away from furniture and draperies.

Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition.

Clothing or other ﬂammable material should not be placed on or near the appliance.

Young children should be carefully

supervised when they are in the same room as the appliance. Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk individuals in the house. To restrict access to a ﬁreplace or stove, install an adjustable safety gate to keep toddlers, young children, and other at-risk individuals out of the room and away from hot surfaces.

Any safety screen or guard removed for servicing an appliance must be replaced prior to operating the appliance.

Installation and repair should be done by a qualiﬁed service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative that control compartments, burners, and circulating air passageways of the appliance be kept clean (Maintenance on Page 11).

L’information de sûreté importante

AVERTISSEMENT

Ne pas utiliser l’appareil si le panneau frontal en verre n’est pas en place, est craqué ou brisé. Conﬁez le remplacement du panneau à un technicien agréé

Ne pas utiliser cet appareil s’il a été plongé, même partiellement, dans l’eau. Appeler un technicien qualiﬁé pour inspecter l’appareil et remplacer toute partie du système de commande et toute commande qui a été plongée dans l’eau.

En raison des températures élevées, l’appareil devrait être installé dans un endroit où il y a peu de circulation et loin du mobilier et des tentures.

Les enfants et les adultes devraient être informés des dangers que posent les températures de surface élevées et se tenir à distance aﬁn d’éviter des brûlures ou que leurs vêtements ne s’enﬂamment.

On ne devrait pas placer de vêtements ni d’autres matières inﬂammables sur l’appareil ni à proximité.

Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trouvent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de sécurité ; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque d’avoir accès à la pièce et aux surfaces chaudes.

Tout écran ou protecteur retiré pour permettre l’entretien de l’appareil doit être remis en place avant de mettre l’appareil en marche.

L’installation et la réparation devrait être conﬁées à un technicien qualiﬁé. L’appareil devrait faire l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite. Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité importante de poussière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les conduits de circulation d’air de l’appareil soient tenus propres (Page 11).

Información importante de seguridad

ADVERTENCIA

No opere el artefacto con el frente de vidrio quitado, agrietado o roto. Un técnico de servicio licenciado o capacitado debe reemplazar el vidrio.

No use este artefacto si alguna de sus partes ha estado bajo agua. Llame de inmediato a un técnico de servicio caliﬁcado para que inspeccione el artefacto y reemplace cualquier parte del sistema de control y cualquier control de gas que haya estado bajo agua.

Debido a las altas temperaturas, el artefacto debe situarse fuera de las áreas de tráﬁco y lejos del mobiliario y cortinas.

Se debe alertar a los niños y adultos sobre los peligros de las altas temperaturas en la superﬁcie y que se mantengan alejados para evitar quemaduras o ignición de la ropa.

No debe colocarse ropa u otros materiales inﬂamables sobre y cerca del artefacto.

Se debe supervisar de cerca a los niños cuando estén en el mismo cuarto que el artefacto. Los niños pequeños, los jóvenes y otras personas pueden ser susceptibles a quemaduras por contacto accidental. Se recomienda instalar una barrera física si hay personas en riesgo en la casa. Para restringir el acceso a una chimenea o estufa, instale una puerta de seguridad ajustable para mantener a los niños pequeños, jóvenes y otras personas en riesgo fuera del cuarto y lejos de las superﬁcies calientes.

Cualquier malla o resguardo de seguridad quitado para dar servicio a un artefacto, debe reinstalarse antes de operar el artefacto.

Una persona de servicio competente debe realizar la instalación y reparación. Una persona de servicio profesional debe inspeccionar el artefacto antes de usar al menos una vez por año. Se puede requerir limpieza más frecuente debido a la pelusa excesiva del alfombrado, del material de cobijas, etc. Es imprescindible mantener limpios los compartimientos de control, los quemadores y los pasajes de circulación del aire del artefacto (Página 11).

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

ATTACH THE SAFETY-IN-OPERATION WARNINGS

NOTE: It is the installer’s responsibility to ensure these warnings are properly afﬁxed during installation. These warning labels are a critical step in informing

consumers of safe operation of this appliance.

Attaching Safety-inOperation Warnings

It is required that the set of safety instruction labels that have been furnished with the ﬁreplace be afﬁxed to the operation and control points of the ﬁreplace. A safety instruction label must be afﬁxed to the wall switch plate where the ﬁreplace is turned on and off (Figure A) and on the remote control handheld transmitter (Figure B). To properly complete the installation of this ﬁreplace, locate the multi-lingual adhesive labels provided with the Care and Operation Instructions and proceed as follows:

1. Locate the wall switch that controls the

ﬁreplace (verify the switch operates the ﬁreplace by turning it on and off). Clean the wall switch plate thoroughly to remove any dust and oils. Afﬁx the label to the surface of the plate of the wall switch that controls the ﬁreplace (Figure A). Choose the language primarily spoken in the home. If unknown, afﬁx the English language label.

2. Locate the remote control transmitter and

clean it thoroughly to remove any dust and oils. Afﬁx the label to the surface of handheld transmitter (Figure B). Choose the language primarily spoken in the home. If unknown, afﬁx the English language label.

3. If you are unable to locate the labels, please

call Lennox Hearth Products or your nearest Lennox Hearth Products dealer to receive additional safety instruction labels free of charge.

Cat. No. H8024 Replacement Label Kit Étiquettes de remplacement, n° cat. H8024 Juego de etiquetas de repuesto - Nº de cat. H8024

LENNOX HEARTH PRODUCTS 1-800-655-2008

NOTE: English is red text on clear label. French

and Spanish are white text on black label.

SAFETY LABEL DIAGRAMS DIAGRAMMES DES ÉTIQUETTES DE SÉCURITÉ DIAGRAMAS DE ETIQUETAS DE SEGURIDAD

Apposition des mises en garde relatives à la sécurité d’utilisation

Il est impératif que le jeu d’étiquettes de sécurité qui ont été fournies avec le foyer soient collées à côté des dispositifs de contrôle du foyer. Une étiquette de sécurité doit être collée sur la plaque du récepteur mural contrôlant l’allumage du foyer (Figure A) et sur le boîtier de la télécommande (Figure B). Pour achever l’installation correcte de ce foyer, procédez comme suit avec les étiquettes adhésives en langues étrangères fournies avec les instructions d’utilisation et d’entretien :

1. Repérez le récepteur mural qui contrôle le

foyer (vériﬁez que l’interrupteur contrôle le fonction -nement du foyer en le faisant basculer de Marche à Arrêt, et vice-versa). Nettoyez soigneusement la plaque du récepteur mural pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur la surface de la plaque du récepteur mural qui contrôle le foyer (Figure A). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire. En cas de doute, collez l’étiquette en anglais.

2. Repérez la télécommande et nettoyez-la

soigneuse ment pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur le boîtier de la télécommande (Figure B). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire. En cas de doute, collez l’étiquette en anglais.

3. Si vous ne trouvez pas les étiquettes, veuillez

appeler Lennox Hearth Products ou votre distribu teur Lennox Hearth Products local pour recevoir gratuitement des étiquettes supplémentaires.

LENNOX HEARTH PRODUCTS 1-800-655-2008

Remarqué : Le texte anglais est rouge sur un

support transparent. Le texte français et espagnol est blanc sur un support noir.

Colocación de advertencias de seguridad en operación

Se requiere que el juego de etiquetas de instrucciones de seguridad que se incluyeron con la chimenea se coloque en los puntos de operación y control de la misma. Se debe colocar una etiqueta de instrucciones de seguridad en la placa del interruptor de pared del receptor desde el cual se enciende y se apaga la chimenea (Figure A) y en el transmisor de control remoto (Figure B). Para completar correctamente la instalación de esta chimenea, encuentre las etiquetas adhesivas multilingües incluidas con las instrucciones de cuidado y operación y haga lo siguiente:

1. Identiﬁque el receptor de pared que

controla la chimenea (veriﬁque que el interruptor opera la chimenea encendiéndola y apagándola). Limpie bien la placa del receptor de pared para quitar el polvo y aceite. Pegue la etiqueta en la superﬁcie de la placa del receptor de pared que controla la chimenea (Figure A). Seleccione el idioma que más se habla en la casa. Si no sabe cuál es, use la etiqueta en inglés.

2. Identiﬁque el transmisor de control remoto

y límpielo bien para quitar el polvo y aceite. Pegue la etiqueta en la superﬁcie del transmisor (Figure B). Seleccione el idioma que más se habla en la casa. Si no sabe cuál es, use la etiqueta en inglés.

3. Si no puede encontrar las etiquetas,

sírvase llamar a Lennox Hearth Products o al distribuidor de Lennox Hearth Products más cercano para recibir etiquetas de instrucciones de seguridad adicionales gratuitas.

LENNOX HEARTH PRODUCTS 1-800-655-2008

Nota: La etiqueta en inglés es transparente con

texto rojo. Las etiquetas en francés y español son negras con texto blanco.

Figure A

Remote

Off

PRG

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Figure B

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

INTRODUCTION

The ﬁreplace models covered in this manual are direct-vent sealed combustion gas ﬁreplace heaters designed for residential application. These direct-vent appliances operate with the combustion chamber completely isolated from the indoor environment.

All air for combustion is brought in from the outside and exhaust gases are vented through the same direct-vent, co-axial (intake/exhaust) vent system.

Electronic appliances are designed to operate on natural or propane gas. An electronic intermittent pilot ignition system provides safe, efﬁcient operation. External electrical power is required to operate these units. In the event of a power outage, four (4) AA batteries provide backup power for appliance operation (excluding blower).

These appliances comply with National Safety Standards and are tested and listed by ETL/Intertek. (Report No. G100513653 PRT-001) to ANSI Z21.88 (in Canada, CSA-2.33), and CAN/CGA-2.17-M91 in both USA and Canada, as vented gas ﬁreplace heaters. These appliances are listed by ETL/ Intertek for installation in bedrooms and manufactured homes.

The installation must conform to local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54—latest edition (In Canada, the current CAN/CSA-B149.1 installation code). The appliance, when installed, must be electrically grounded and wired in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70—latest edition, or the Canadian Electrical Code, CSA C22.1—latest edition.

Provide adequate clearances around air openings and adequate accessibility clearance for service and proper operation. Never obstruct the front or back openings of the appliance. These appliances are designed to operate on natural or propane gas only. The use of other fuels or combination of fuels will degrade the performance of this system and may be dangerous. It is advisable to have an alternate primary heat source when installed in a dwelling.

These appliances must not be connected to a chimney or ﬂue serving a separate solid fuel burning appliance.

The vent termination is hot while in operation and for a period of time following the use of the ﬁreplace. To prevent contact with hot surfaces, we recommend the use of a termination guard. See Page 20 for ordering information.

These ﬁreplaces are designed as supplemental heaters. Therefore, it is advisable to have an alternate primary heat source when installed in a dwelling.

These appliances must not be connected to a chimney or ﬂue serving a separate

solid fuel burning appliance.

INSTALLATION, SERVICE, AND MAINTENANCE

NOTE: Improper installation, adjustment,

alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualiﬁed installer, service agency or the gas supplier.

Only trim kit(s) supplied by the manufacturer shall be used in the installation of this appliance. Draft relief openings must not be covered or blocked. These appliances must not be connected to a chimney or ﬂue serving a separate solid fuel burning appliance.

Any change to this appliance and/or its operating controls is dangerous. Improper installation or use of this appliance can cause serious injury or death from ﬁre, burns, explosion or carbon monoxide poisoning.

Early signs of carbon monoxide poisoning are similar to the ﬂu with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Turn off the gas supply to the appliance and have it serviced by a qualiﬁed professional, as it may not be operating correctly. Some people are more affected by carbon monoxide than others, including pregnant women, people with heart or lung disease or anemia, those under the inﬂuence of alcohol, and those at high altitudes.

Turn off gas and electrical power to the ﬁreplace and allow it to cool before cleaning or servicing the appliance.

WARRANTY

Failure to comply with the installation and operating instructions provided will result in an improperly installed and operating appliance, voiding its warranty.

Do not attempt to alter or modify the construction of the appliance or its components. Any modiﬁcation or alteration may void the warranty, certiﬁcation, and listings of this unit.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

OPERATION

WARNING

Do not operate the ﬁreplace if:

• The glass front is removed, cracked, or broken

• The surround trim assembly and screen are not installed

These ﬁreplaces are vented gas appliances. Do not burn wood or other material in these appliances.

This appliance is only for use with the type of gas indicated on rating plate. This appliance is not convertible for use with other gases, unless a certiﬁed kit is used.

These appliances are designed to operate on natural gas or propane gas only. The use of other fuels or combinations of fuels will degrade the performance of this system and may be dangerous.

Provide adequate clearances around air openings and adequate accessibility clearance for service and proper operation. Never obstruct the front openings of the appliance.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

BTU Input

Electronic models come standard with a remotely-modulated gas valve. Flame appearance and heat output cannot be controlled at the gas valve. The BTU Input for these appliances is shown in Table 1.

Table 1: Input Rate, Gas Valves

Models

NV35IN

NVCD35IN

NV40IN

NVCD40IN

NV45IN

NVCD45IN

Input Rate (BTU/HR)

Natural Gas Propane Gas

35,500 high

15,500 low

31,000 high

16,000 low

41,500 high

15,500 low

40,000 high

21,000 low

47,000 high

18,000 low

47,000 high

24,000 low

35,000 high

18,000 low

28,000 high

15,000 low

37,000 high

14,500 low

32,000 high

18,500 low

45,000 high

18,000 low

40,000 high

22,000 low

Gas Pressure

Table 2 and Table 3 show the appliance inlet and manifold gas pressure requirements.

Table 2: Inlet Gas Supply Pressure

Fuel Minimum Maximum

Natural Gas

Propane

4.5 in. WC (1.12 kPa)

11.0 in. WC (2.74 kPa)

Table 3: Manifold Gas Supply Pressure

Fuel Low High

Natural Gas

Propane

1.6 in. WC (0.40 kPa)

6.3 in. WC (1.57 kPa)

Test gauge connections are provided on the front of the electronic gas control valve (identiﬁed IN for the inlet and OUT for the manifold side). The control valves have a 3/8 in. (10 mm) NPT thread inlet and outlet side of the valve (Figure 1).

10.5 in. WC (2.61 kPa)

13.0 in. WC (3.23 kPa)

3.5 in. WC (0.87 kPa)

10.0 in. WC (2.49 kPa)

Figure 1: SIT Electronic Gas Valve

Green Wire

(from DFC wire

harness)

Inlet (IN) Test Port

Manifold (OUT)

Test Port

Orange Wire

(from DFC

wire

harness)

Main

Gas Inlet

3/8 in. NPT

Yellow Ground Wire (from DFC wire harness)

Hi/Lo Flame Control Knob

Propane tanks are at pressures that will cause damage to valve components. Verify that the tanks have step down regulators to reduce the pressure to safe levels.

The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).

The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

Oriﬁce Sizes—Sea Level to High Altitude

These appliances are tested and approved for installation at elevations of 0–4500 ft (0–1372 m) above sea level using the standard burner oriﬁce sizes (marked with an “*” in Table 4).

For elevations above 4500 ft, contact your gas supplier or qualiﬁed service technician.

Deration

At higher elevations, the amount of BTU fuel value delivered must be reduced by either:

• Using gas that has been derated by the gas company.

• Changing the burner oriﬁce to a smaller size as regulated by the local authorities having jurisdiction and by the (USA) National Fuel Gas Code NFPA 54/ANSI Z223.1—latest edition or, in Canada, the CAN/CSA-B149.1 codes— latest edition.

Table 4: Burner Oriﬁce Sizes, Elevation 0–4500 ft ( 0–1372 m)

Model

NV35IN

NVCD35IN

NV40IN

NVCD40IN

NV45IN

NVCD45IN

* Standard size installed at factory

• Catalog number

Natural Gas

drill size

Front

#49 (0.073 in.)*

Back

#43 (0.089 in.)*

Front

#42 (0.0935 in.)*

Back

#55 (0.052 in.)*

Front

#41 (0.096 in.)*

Back

#43 (0.089 in.)*

Front

#35 (0.11 in.)*

Back

#52 (0.0635 in.)*

Front

#40 (0.098 in.)*

Back

#40 (0.098 in.)*

Front

#32 (0.116 in.)*

Back

#49 (0.073 in.)*

Propane drill size

Front

#57 (0.043 in.)*

Back

#54 (0.055 in.)*

Front

#55 (0.052 in.)*

Back

#60 (0.040 in.)*

Front

#55 (0.052 in.)*

Back

#55 (0.052 in.)*

Front

#53 (0.0595 in.)*

Back

#65 (0.035 in.)*

Front

#54 (0.055 in.)*

Back

#54 (0.055 in.)*

Front

#51 (0.067 in.)*

Back

#62 (0.038 in.)*

Burn-in Period

During the ﬁrst few times this appliance is operated, there will be some odor due to the curing of the paint and burning off of lubricants used in the manufacturing process. Depending on usage, the burn-in period may take a few hours or a few days.

NOTE: Ventilate the house during the curing process. The resulting odor and haze may set off a smoke detector. Do not operate the blower during the burn-in period.

A white ﬁlm may develop on the glass front during the ﬁrst few ﬁres as part of the curing process. The glass should be kept clean during the ﬁrst two weeks of use to prevent the ﬁlm from baking on—making it very difﬁcult to remove (Cleaning the glass

door on Page 11)

NOTE: Flame breadth, height and width will

diminish 4% for every 1,000 feet of altitude.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

OPERATION OF AND CARE FOR YOUR APPLIANCE

WARNING

Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a ﬁreplace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.

AVERTISSEMENT

Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trouvent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de sécurité; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque d’avoir accès à la pièce et aux surfaces chaudes.

Gas Controls/Control Compartment Access

The gas control valve can be found on the bottom, left side of the ﬁrebox, behind the surround trim assembly (Figure 2).

Figure 2: Control Compartment

Gas Valve

Air Shutter Adjustment Lever

To perform maintenance or access the ﬁreplace controls, remove the surround trim assembly.

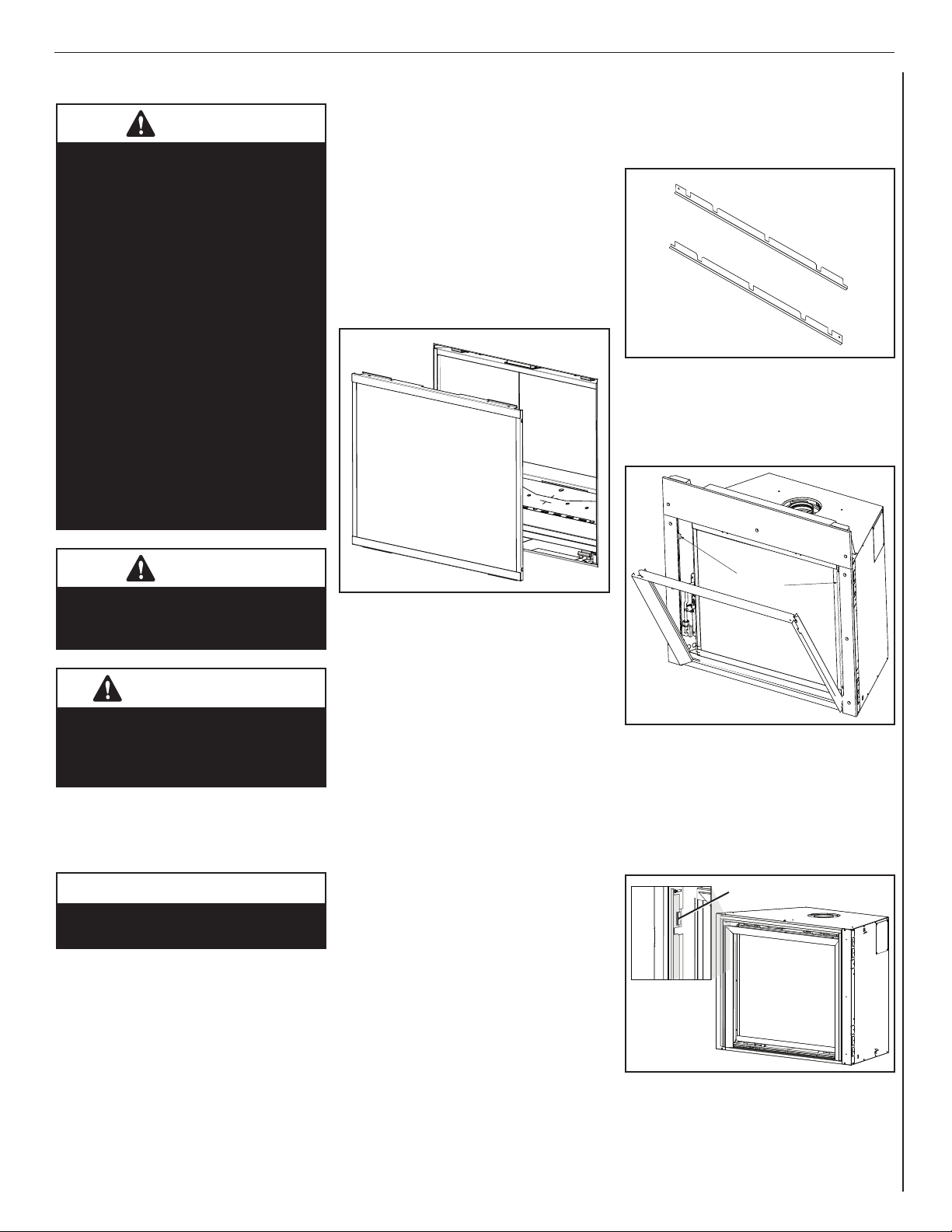

Removing the surround trim assembly

1. Remove the top louver.

2. Remove the left ﬁnish trim gap ﬁller

from between the ﬁnish trim and the surround trim assembly (Figure 3). Remove the right ﬁnish trim gap ﬁller. Retain the ﬁnish trim gap ﬁllers for later reinstallation.

Figure 3: Removing the Finish Trim

Gap Fillers

Finish Trim

Finish Trim Gap Filler

Surround Trim Assembly

3. Detach the surround trim assembly at

the top of the ﬁreplace and lift it 1 in. to disengage the side tabs (Figure 4).

Figure 4: Removing the Surround

Trim Assembly

Side Tabs

WARNING

Reinstall any barrier removed before operating the ﬁreplace.

4. Pull the surround trim assembly away

from the ﬁreplace exposing the front glass door.

5. Place the surround trim assembly in a

secure location to prevent damage to it until it is reinstalled.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Hot Fireplace Will Cause Severe Burns

Never Allow Children to Touch Glass or other Fire-

place Parts

WARNING

Remote Control System

WARNING

Fire hazard. Can cause severe injury or death. The receiver causes ignition of the appliance. The appliance can turn on suddenly. Keep away from the appliance burner when operating the remote system or activating manual bypass of the remote system.

CAUTION

Property damage hazard. Excessive heat can cause property damage. The appliance can stay lit for many hours. Turn off the appliance if it is not going to be attended for any length of time. Always place the transmitter where children can not reach it.

The remote and receiver allow you to command the functions of your ﬁreplace from the comfort of you chair and are conﬁgured to control the ON/OFF primary burner operation, six (6) ﬂame levels, and provide ON/OFF and smart thermostatic control.

The system controls fan speed through six (6) levels and has a constantly powered 110V/60Hz power outlet.

The receiver is powered by four (4) AA batteries. It accepts commands via radio frequency from the transmitter and does not require line-of-sight operation. The wall switch can be set to one of three (3) positions:

• ON (Manual Override),

• REMOTE (Remote Control), or

• OFF.

Initializing the remote control system for the ﬁrst time

1. Install the 4 AA batteries into the wall switch battery bay (behind the switch plate).

NOTE: Check the polarity (+/-) of the batteries and insert them into the battery bay as indicated on the battery cover.

2. Place the three-position slider switch in the REMOTE position (Figure 5).

Figure 5: Wall Switch

Three-position slider switch in REMOTE position

Remote

Off

PRG

3. Insert the end of a paper clip, or other similar object, into the hole marked PRG on the wall switch front cover. The receiver will beep three (3) times to indicate that it is ready to synchronize with a transmitter.

4. Install the three (3) AAA batteries in the transmitter battery bay, located on the base of the transmitter.

5. Push the ON button. The receiver will beep four (4) times to indicate that the transmitter’s command has been accepted and sets it to the particular code of that transmitter. The system is now initialized.

Temperature indicator display

1. With the system in the OFF position, press the THERMOSTAT key and the MODE key at the same time (Figure 6).

Figure 6: Transmitter (Remote Control)

LCD Display

ON/OFF Key

THERMOSTAT Key

2. Look at the LCD screen on the

transmitter to verify that a C or F is visible to the right of the room temperature display (Figure 7).

Figure 7: Remote Control Display—

Indicator Icons

Transmission

Thermostat

OFF/ON/SMART

Set Point

Temp./Level/State

Fan Control

Flame On

Child Safety Lock-Out

Low Battery Alarm

Maximum Level Indicatiors

Room Temperature

Light On

Turn ON the appliance

1. Press the ON/OFF key on

the transmitter.

2. The transmitter display will show all

active Icons on the screen. At the same time, the receiver will connect the thermopile to the gas valve millivolt coil and the appliance main burner will turn on. A single beep from the receiver will conﬁrm reception of the command.

Turn OFF the appliance

1. Press the ON/OFF key on

the transmitter.

2. The transmitter LCD display will only

show the room temperature and icon. The receiver will disconnect the gas valve and the appliance burner will turn OFF. A single beep from the receiver will conﬁrm reception of the command.

Remote ﬂame control

The system has six (6) ﬂame levels. With the system ON, and the ﬂame level at the maximum in the appliance, each press of the DOWN ARROW key will reduce the ﬂame height by one step until the ﬂame is turned OFF.

The UP ARROW key will increase the ﬂame height each time it is pressed. If the UP ARROW key is pressed while the system is ON but the ﬂame is OFF, the ﬂame will come ON in the high position. A single beep will conﬁrm reception of the command.

UP/DOWN

ARROW

Key

MODE Key

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Room thermostat— transmitter operation

The remote control can operate as a room thermostat.

1. Press the THERMOSTAT key.

2. The LCD display on the transmitter

will change to show that the room temperature is ON and the set temperature will be displayed.

3. To adjust the set temperature, press

the UP or DOWN ARROW keys until the desired set temperature is displayed on the LCD screen of the transmitter.

Smart thermostat— transmitter operation

The smart thermostat function adjusts the ﬂame height in accordance to the difference between the set point temperature and the actual room temperature. As the room temperature gets closer to the set point, the smart function will modulate the ﬂame down.

1. Press the THERMOSTAT key until the

word SMART appears to the right of the temperature bulb graphic.

2. To adjust the set temperature, press

the UP or DOWN ARROW keys until the desired temperature is displayed on the LCD screen of the transmitter.

Fan speed control

This appliance is equipped with a hot air circulating fan. The speed of the fan is controlled by the remote, and can be adjusted through six (6) speeds.

1. Press the MODE key to index to the fan

control icon.

2. Press the UP/DOWN ARROW keys to

turn ON, OFF, or adjust the fan speed. A single beep will conﬁrm reception of the command.

Key lock

This function will lock the keys to avoid unsupervised operation.

1. Press the MODE and UP keys at the same time.

2. To deactivate this function, press the MODE and UP keys at the same time.

Intermittent/standing pilot mode

This ﬁreplace can be switched from intermittent ignition to a standing pilot simply by toggling the switch located in the lower control compartment (Figure 2). To save energy, switch to intermittent mode. To have a standing pilot that will help startup in the winter by warming the ﬂue and the glass, switch to standing pilot.

The standing pilot mode is indicated by a pilot that comes ON and remains lit when the ﬁreplace is OFF.

Manual bypass of the remote control system

If the batteries of the wall switch or transmitter are low or depleted, the appliance can be turned on manually.

1. Set the three-position slider switch to the ON position.

2. This will bypass the remote control feature of the system and the appliance main burner will come on if the gas valve is in the ON position.

Low Battery Power Detection

The life span of the wall switch batteries depends on several factors:

• the quality of the batteries used,

• the number of appliance ignitions,

• the number of changes to the

thermostat set point,

• etc. If the wall switch batteries are low, the

reciever will emit two beeps when it receives an ON/OFF command from the transmitter. This is an alert for a low battery condition. When the batteries are replaced, the receiver will emit a the beep when the ON/OFF key is pressed (Initializing the

remote control system for the ﬁrst time).

NOTE: The fan can be controlled only

by the remote. Turning the ﬁreplace OFF with the wall-mounted, three-position slider switch will not turn OFF the fan. To turn OFF the fan, use the remote instead of or prior to shuting OFF the ﬁreplace at the wall.

Fan speed will be indicated by either an OFF, Level Bar, or HI shown in the Set Point/Temp/Level/State indicator area.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

MAINTENANCE

Refer to the Maintenance Schedule on Page 19 for maintenance tasks, procedures, frequency, and by whom the tasks should be performed. Always verify proper operation of the appliance after servicing.

WARNING

Turn OFF gas and electrical power to the ﬁreplace and allow it to cool before cleaning or servicing the appliance.

CAUTION

Wear gloves and safety glasses for protection while doing required maintenance.

Verify proper operation after servicing.

S’assurer que l’appareil fonctionne adéquatement une fois l’entretien terminé.

Always turn OFF gas before cleaning. Before relighting, refer to the lighting instructions in this manual. Instructions are also found on a pull-out panel located in the control compartment.

Inspecting the venting system

The appliance and venting system should be thoroughly inspected before initial use and at least annually by a qualiﬁed service technician. Inspection should include ensuring that exhaust or intake passages are unobstructed and vent components are properly assembled and not damaged. Homeowner must contact a qualiﬁed service technician at once if any abnormal condition is observed.

If the venting system is disassembled for any reason, a qualiﬁed service technician should follow vent installation instructions for proper reassembly and proper sealing of the venting system components. However, more frequent periodic inspections and cleanings should be performed by the homeowner.

Inspecting the ﬁreplace lamp

Use the remote control to conﬁrm the ﬁreplace lamp is operational. If the lightbulb is burned out, replace the lightbulb as detailed on Page 14.

Inspecting the burner ﬂame appearance

Ensure that the burner ﬂame resembles the ﬂame shown in Figure 18 and Figure 19. The Homeowner must contact a qualiﬁed service technician at once if any abnormal condition is observed.

Cleaning the glass door

CAUTION

Do not use abrasive cleaners on glass. Never clean the glass when it is hot.

Clean the glass door after the ﬁrst two weeks of operation (after the Burn-in Period), and then only when necessary and when the ﬁreplace is cool. Wipe the surface with a clean, dampened, soft cloth. Follow with a dry, soft towel as desired. Take care not to scratch the glass surface.

Periodically, remove any build-up caused from the following:

• During start-up, it is normal for condensation to form on the inside of the glass (this condensation and fog will usually disappear in a few minutes). The moisture can cause lint, dust and other airborne particles to cling to the glass surface.

• Initial curing of the high temperature paint and burning off of lubricants used in the manufacturing process may result in a ﬁlm on the glass.

• A white coating may form on the glass as a result of impurities and minerals in the fuel.

Clean the glass two or three times each heating season, depending on the circumstances present. The following cleaning solutions are approved for use:

• Non-ammonia based glass cleaner

• Gas ﬁreplace/stove glass cleaner

Inspecting the glass gasket

Visually inspect the gasket on the backside of the glass door. The gasket surface must be clean, free of irregularities, and seated ﬁrmly.

Cleaning the control compartment

Keep the control compartment clean by vacuuming or brushing it out at least twice a year. More frequent cleaning may be required due to excessive lint buildup caused by carpeting, bedding materials, etc.. It is important to keep the control compartment, burner, and air circulation passageways clean.

Touching up paint in small areas

The ﬁnish of the appliance is a high-quality powdercoat. Only use a factory-supplied powdercoat paint kit for any touch-ups. Paint is available at your local Lennox Hearth Products dealer. Never attempt to paint a hot ﬁreplace.

Do not attempt to repaint the appliance until the ﬁnish is completely cured (Burn-in Period on Page 7). If the surface becomes stained or marred, it may be lightly sanded and touched up with spray paint.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Cleaning the logs and burner

CAUTION

The ﬁber logs become very fragile after curing.

Carefully remove the logs. Vacuum out any foreign matter on the burner (e.g., lint, carbon, etc.). Ensure the burner ports are free of debris. Remove any carbon deposits from the underside of the logs using a vacuum cleaner, or a soft bristle brush (e.g., paint brush).

NOTE: Improper positioning of logs can create carbon build-up and will alter the performance of the appliance.

Replacing the logs

If the logs become damaged and need replacement, use only the proper replacement logs from manufacturer (Page 15).

Reinstalling the logs

Carefully follow the placement instructions (Page 12). All logs should ﬁt onto the corresponding pins and/or log stoppers. This will ensure a proper ﬂame and safe combustion.

Inspecting the wiring

Refer to the wiring diagram (Figure 20).

CAUTION

When servicing controls, label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

ATTENTION

Au moment de l’entretien des commandes, étiquetez tous les ﬁls avant de les débrancher. Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

Inspect and clean all wire connections. Ensure that there is no wire melting or damage.

The inspection should include:

• Terminals at the Valve

• OFF/ON Switch

• Remote Control, or Remote Wall

Switch Kit

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Installing the logs, decorative volcanic stone, and glowing embers

NOTE: Turn off all gas and electricity to the

appliance before installing volcanic stone, embers, and logs.

NOTE: The log set and ﬁre are artistically arranged to provide an asymmetrical ﬁre. The ﬁre does not burn in the left rear quarter of the log set.

Figure 8: Log Set

NOTE: Figure 8 is representative of all ﬁreplace models. Logs 5 and 6 may vary in appearance from those shown above.

1. Align the two holes in the bottom of Log 1 over the two tabs at the rear of the burner (Figure 9).

Figure 9: Placing Logs 1 and 2

2. Hold Log 1 in position while placing Log 2 on the burner and resting it against the alignment notch in Log 1 (Figure 9).

3. Place Log 3 in position with the base aligned in the burner surface (Figure 10).

Figure 10: Placing Log 3

6. Place Log 5 in position in the notches

on the upper right portions of Logs 1 and 3 (Figure 12).

Figure 12: Placing Logs 5 and 6

7. Place Log 6 in position in the notches

near the left ends of Logs 2 and 3 (Figure 12).

8. Install the volcanic stone in front of and

on the sides of the log set. Cover all of the exposed metal ﬂoor.

Table 5: Log Set

Log Number Description

1 Rear Log 2 Bottom Left Log 3 Bottom Right Log 4 Front Log

5 Top Right Log

6 Top Left Log

Catalog number for the entire set: 35 in. H8707 40 in. H8708 45 in. H8824

4. Insert the left end of Log 4 under Log 3 and position the right end of Log 4 in the notch on the top, right end of Log 3 (Figure 10).

Figure 11: Placing Log 4

5. Ensure all logs are properly positioned

on the surface of the burner and interlocked with each other (Figure 11).

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Installing and removing the glass door

WARNING

• Do not attempt to substitute the materials used on these doors, or replace cracked or broken glass.

• Handle this glass with extreme care! Glass is susceptible to damage—Do not scratch or handle roughly while reinstalling the glass door frame.

• The glass door of this appliance must only be replaced as a complete unit as provided by the manufacturer. Do not attempt to replace broken, cracked or chipped glass separately.

• Do not attempt to touch the front enclosure glass with your hands while the ﬁreplace is in use.

Installing the glass door

1. Retrieve the glass door. Visually inspect

the gasket on the backside. NOTE: The gasket surface must be

clean, free of irregularities, and seated ﬁrmly. Ensure it is properly located. Make sure the bead is not rolled into the channel at the top of the door, but remains ﬂat against the top of the glass.

2. Locate the four (4) spring-loaded

latches; two above and two below the ﬁreplace opening (Figure 13).

Figure 13: Glass Door

Latch

Installing the Surround Trim Assembly

1. Identify the left and right side ﬁnish trim

gap ﬁllers (Figure 14).

Figure 14: Finish Trim Gap Fillers

Right

Left

2. Install the surround trim assembly

by lowering it onto the appliance and pressing in to secure it (Figure 15).

Figure 15: Installing the Surround

Trim Assembly

WARNING

Do not operate appliance with the glass front removed, cracked, or broken.

AVERTISSEMENT

Ne pas utiliser l’appareil si le panneau frontal en verre n’est pas en place, est craqué, ou brisé.

Only doors certiﬁed with the appliance shall be used.

Seules des portes certiﬁées pour cet appareil doivent être utilisées.

CAUTION

DO NOT abuse glass door by striking or slamming shut.

NOTE: When installing the glass door,

ensure the spacing on both sides is even.

Latch

3. Carefully grip the door at the top and

bottom, and align it with the ﬁreplace opening. Lightly press against the door, to hold it in position.

4. Secure the two upper latches by pulling

each handle down and pressing in to hook it to the glass door.

5. Secure the two lower latches.

Side Tabs

3. Slide the left ﬁnish trim gap ﬁller

into the left gap between the ﬁnish trim and the surround trim assembly (Figure 16).

NOTE: Ensure the ﬁnish trim gap ﬁller slides into the spring clip, as shown.

Figure 16: Finished Installation

Spring Clip

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

4. Slide the right ﬁnish trim gap ﬁller

into the right gap between the ﬁnish trim and the surround trim assembly (Figure 16).

NOTE: Ensure the ﬁnish trim gap ﬁller slides into the spring clip, as shown.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Removing the glass door

1. Remove the top louver.

2. Remove the left and right side ﬁnish

trim gap ﬁllers (Figure 16).

3. Remove the surround trim assembly by

detaching it at the top of the ﬁreplace and lifting it 1 in. to disengage the side tabs, then pulling it away from the ﬁreplace exposing the front glass door (Figure 15).

4. Locate the four (4) spring-loaded

latches; two above and two below the enclosure (Figure 13).

5. Release the lower latches, by pulling

each handle out and down to unhook it from the glass door. Lightly press against the door, to hold it in position, while releasing the two upper latches.

6. Carefully grip the door at the top

and bottom, and remove it from the ﬁreplace. Place the door in a secure location where it will not be damaged.

Replacing the ﬁreplace lamp lightbulb

1. Remove the ﬁreplace glass door.

2. Locate the lamp inside the top, front of

the firebox.

3. Using a 5/16 in. nut driver, remove the

two (2) outside screws securing the lamp glass cover bracket. Carefully, remove the metal bracket, lamp glass cover, and gasket. Retain all items with the screws in a secure location for later reinstallation.

4. Unscrew the lightbulb cap and retain in

a secure location for later reinstallation.

5. Unscrew the lightbulb and discard.

6. Install the new lightbulb. NOTE: Use only 25 W, 572 °F (300 °C)

rated oven lightbulbs.

7. Reinstall the lightbulb cap.

8. Carefully, position the gasket, lamp

glass cover, and metal bracket into place and secure using the two (2) screws previously removed.

9. Reinstall the glass door.

Adjusting the Burner to Ensure Proper Flame Appearance

WARNING

• Air shutter adjustment should only be performed by a qualiﬁed professional service technician.

• Ensure front glass panel is in place and sealed during adjustment.

CAUTION

• Soot will be produced if the air shutter is closed too much. Any damage due to sooting, resulting from improperly setting the air shutter, is not covered under the warranty.

• The air shutter door and nearby appliance surfaces are hot. Exercise caution to avoid injury while adjusting ﬂame appearance.

Flame Appearance and Sooting

The ﬂame should be blue at the base, and yellow-orange in the body of the ﬂame.

When the appliance is ﬁrst lit, the entire ﬂame may be blue and will gradually turn yellow-orange during the ﬁrst 15 minutes of operation. If the ﬂame remains blue, or if the ﬂame is orange with evidence of sooting (black tip), the air shutter opening may need to be adjusted.

If the air shutter opening is closed too far, sooting may develop. Sooting is indicated by black puffs developing at the tips of very long orange ﬂames. Sooting results in black deposits forming on the logs, appliance inside surfaces, and on exterior surfaces adjacent to the vent termination.

Sooting is caused by incomplete combustion in the ﬂames and lack of combustion air entering the air shutter opening. To achieve a warm yellow-orange ﬂame with an orange body that does not soot, the shutter opening must be adjusted between these two extremes.

Air Shutter Adjustment Guidelines

• If there is smoke or soot present, ﬁrst check the log set positioning to ensure that the ﬂames are not impinging on any of the logs. If the log set is properly positioned and a sooting condition still exists, then the air shutter opening should be increased.

• The more offsets in the vent system, the larger the air shutter opening will need to be.

• An appliance operated with the air shutter opened too far, may have ﬂames that appear blue and transparent. These weak, blue and transparent ﬂames are termed anemic.

• Propane models may exhibit ﬂames which candle or appear stringy. If this is present and persists, adjust the air shutter to a more closed position, then operate the appliance for a few more minutes to ensure that the ﬂame normalizes and the ﬂames do not appear sooty.

The following chart is provided to aid you in achieving the correct air shutter adjustment for your installation.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Table 6: Air Shutter Adjustment Guidelines

Amount of

Primary Air

If air shutter

is closed

too far

If air shutter

is open

too far

Flame Color

Flame will be orange

Flame will

be blue

Air Shutter

Adjustment

Air shutter

gap should be

increased

Air shutter

gap should be

decreased

1. Remove the top louver and the

surround trim assembly.

2. Locate the air shutter adjustment rod

in the lower control compartment (Figure 17), and adjust it to the standard setting.

NOTE: Pull the rod out to close, and push the rod in to open the air shutter.

3. Light appliance (follow lighting

procedure on lighting label in control compartment or the Care and Operations Manual).

4. Allow the burner to operate for at

least 15 minutes while observing the ﬂame continuously to ensure that the proper ﬂame appearance has been achieved (Figure 18 and Figure 19). If the following conditions are present, adjust accordingly. If ﬂame appears weak or sooty, adjust the air shutter, incrementally, to a more open position until the proper ﬂame appearance is achieved. If ﬂame remains blue, adjust the air shutter, incrementally, to a more closed position until the proper ﬂame appearance is achieved.

5. When satisﬁed that the burner ﬂame

appearance is normal, reinstall the lower control compartment door then proceed to ﬁnish the installation.

Figure 17: Air Shutter Adjustment Rod

Air Shutter Adjustment Rod

Figure 18: Traditional Fireplaces

Flame Appearance

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Figure 19: Contemporary Fireplaces

Flame Appearance

Table 7: Main Burner Shutter Opening— Factory Setting

Models Natural Gas Propane

NV35 3/16 in. (4.8 mm) 7/16 in. (11.1 mm) NV40 3/16 in. (4.8 mm) 3/8 in. (9.5 mm) NV45 3/16 in. (4.8 mm) 3/8 in. (9.5 mm)

WARRANTY

This gas appliance is covered by a limited twenty (20) year warranty. A copy of the warranty accompanies this manual. Please read the warranty to be familiar with its coverage. Retain this manual for future reference.

REPLACEMENT PARTS

A complete parts list is found at the end of this manual. Use only parts supplied by the manufacturer. With proper care and maintenance, this appliance will provide many years of enjoyment. If you experience any problems, ﬁrst refer to the troubleshooting guide in this manual. If the problem persists, contact your Lennox Hearth Products dealer or distributor to order any replacement parts. Parts will be shipped at prevailing prices at the time of the order.

When ordering repair parts, always provide the following information:

• The model number of the appliance.

• The serial number of the appliance.

• The part number.

• The description of the part.

• The quantity required.

• The installation date of the appliance.

If you encounter any problems or have any questions concerning the installation or application of this system, please contact your dealer or distributor.

PRODUCT REFERENCE INFORMATION

Record the following important information about the ﬁreplace:

Fireplace

model number

Fireplace

serial number

Date on which

ﬁreplace

was Installed

Type of gas

ﬁreplace uses

Dealer name

When servicing controls, label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

Au moment de l’entretien des commandes, étiquetez tous les ﬁls avant de les débrancher. Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

Call Lennox Hearth Products for the phone number of your nearest Lennox Hearth Products dealer who will answer your questions or address your concerns.

WIRING DIAGRAM

The wiring diagram is provided for reference purposes only. This information is also provided on schematics attached directly to the appliance on a pullout panel located within the control compartment.

Figure 20: Wiring Diagram—Electronic Gas Valves

Schematic Representation Only

COLOR CODE:

B = BLACK

BB = BROWN W/BLACK STRIPE BG = BROWN W/GREEN STRIPE

BL = BLUE BR = BROWN G = GREEN GY = GRAY O = ORANGE R = RED W = WHITE Y = YELLOW

Models w/o pressure switch have these connectors plugged together

Air Pressure Switch

Power Vent Only

Optional Circulation

Blower

Main Wire

Harness

Optional Variable Light

Battery Holder w/Switch

ON/Remote/Off

ON/ Remote /OFF

Battery Holder Wire Harness

885 Valve

Split Flow

Reset Switch

“see instructions”

CAUTION

ATTENTION

IPI Pilot

Pilot Tube

Control Module

Fuse

Flame Sensor

Spark Electrode

Ground Y

Main Power Cord

LENNOX HEARTH PRODUCTS 1508 Elm Hill Pike, Suite 108 Nashville, TN 37210

www.LennoxHearthProducts.com 1-800-655-2008

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

ACCESSORY COMPONENTS Andiron Kits

For use with ENVY replaces only.

Table 8: Andiron Kits

Description

Classic H8736. AK-CLS-NV

Catalog Number

Model

Number

Touch-Up Paint Kit

Repair of minor scratches and discoloration of the appliance charcoal painted surfaces may be accomplished with the touch-up paint kit.

Façade Kits

These façade kits, available in three (3)

styles can be installed on ENVY/ENVY CD

ﬁreplaces to provide a distinctive ﬁnished appearance.

Table 10: Façade Kits

Santa Fe

Table 9: Touch-Up Paint Kit

Catalog No. Model No.

H8159 TSPK-B

Balustrade

Catalog Number

H8739 FAC-SF-BK-NV35 Facade, Sante Fe, Black H8740 FAC-BAL-BK-NV35 Facade, Balustrade, Black H8741 FAC-DECO-BK-NV35 Facade, Deco, Black H8715 FAC-SF-BK-NV40 Facade, Sante Fe, Black H8716 FAC-BAL-BK-NV40 Facade, Balustrade, Black H8717 FAC-DECO-BK-NV40 Facade, Deco, Black H8719 FAC-SF-BK-NV45 Facade, Sante Fe, Black H8720 FAC-BAL-BK-NV45 Facade, Balustrade, Black H8721 FAC-DECO-BK-NV45 Facade, Deco, Black

Model Number Description Model

Deco

NV35IN

NVCD35IN

NV40IN

NVCD40IN

NV45IN

NVCD45IN

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

LIGHTING INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

A. When lighting the appliance, follow these instructions exactly. B. BEFORE OPERATING smell all around the appliance area for

gas. Be sure to smell next to the ﬂoor because some gas is heavier than air and will settle on the ﬂoor.

WHAT TO DO IF YOU SMELL GAS

• Extinguish any open ﬂame.

• Open windows.

• Do not light any appliance.

• Do not touch any electrical switches.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone.

• If your gas supplier cannot be reached, call the

ﬁre department.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this page.

2. Turn remote wall switch to OFF or set wall thermostat to

lowest setting. If used, remove the batteries from the battery holder.

3. This appliance is equipped with an ignition device which

automatically lights the pilot. Do not try to light the pilot by hand.

4. Push the unit mounted ON/OFF switch to the OFF position.

Remote

Off

PRG

5. Allow sufﬁcient length of time (minimum 5 minutes) for any

gas in the combustion chamber to escape. If you still smell gas, STOP! Follow Step B in the safety information above on this page. If you do not smell gas, go to the next step.

C. Use only your hand to turn the gas control lever. Never use

tools. If the lever will not turn by hand, do not try to repair it, call a qualiﬁed service technician. Force or attempted repair may result in a ﬁre or an explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

6. Push the unit mounted ON/OFF switch back to the ON

position. The ON/OFF switch may include a wall switch if so equipped. Replace the batteries in the battery holder, if used. If the burner does not light or stay lit after several tries, turn the unit mounted ON/OFF switch to the OFF position and call your service technician or gas supplier.

NOTE: Sufﬁcient time must be allowed for air to escape from lines if the unit is being lit for the ﬁrst time.

7. Turn HI/LO burner control knob to desired setting and close

control door.

8. Set thermostat to desired setting, if applicable.

9. If the appliance will not operate, follow the instructions “To

Turn OFF Gas To Appliance” and call your service technician or gas supplier.

To Shut OFF

1. Turn OFF all electrical power to the appliance (remote

wall switch) or set the thermostat to the lowest setting, if applicable. Or remove batteries, if used.

TO TURN OFF GAS TO APPLIANCE

1. For complete shutdown, turn remote wall switch to OFF or set

the thermostat to the lowest setting, if applicable.

2. Turn the ON/OFF switch to OFF. If Step 1 is not applicable.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

3. Turn off all electric power to the appliance and remove

backup batteries if service is to be performed or for extended shutdown.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

POUR VOTRE SÉCURITÉ, LISEZ CES

INSTRUCTIONS AVANT L’ALLUMAGE

AVERTISSEMENT: SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU UNE EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.

A. Lorsque vous allumez l’appareil, suivez exactement ces

instructions.

B. AVANT L’ALLUMAGE: Assurez-vous que vous ne détectez

aucune odeur de gaz autour de l’apareil ainsi que près du sol; certains gaz, étant plus lourds que l’air, descendent au niveau du sol.

VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE ODEUR DE GAZ

• Éteignez toute ﬂamme visible.

• Ouvrez les fenêtres.

• N’allumez aucun appareil.

• Ne touchez à aucun commutateur électrique.

• Ne vous servez d’aucun téléphone dans votre édiﬁce.

• Appelez immédiatement votre compagnie de gaz en utilisant

le téléphone du voisin.

• S’il vous est impossible de contacter votre compagnie de gaz, appelez le service des incendies.

C. N’utilisez que votre main pour manipuler linterrupteur

ON/OFF de la valve à gaz. N’utilisez jamais d’outils. Si l’interrupteur ne bouge pas manuellement, n’essayez pas de le réparer. Communiquez immèdiatement avec un technicien de service qualiﬁé. Toute tentative pour forcer l’interrupteur ou le réparer, risquerait de provoquer un incendie ou une explosion.

D. Ne vous servez pas de cet appareil si l’un de ses éléments

a été immergé dans l’eau. Appelez immédiatement un technicien compétent pour faire inspecter l’appareil et remplacer toute pièce du système de réglage ou commande du gaz qui a été sous l’eau.

INSTRUCTIONS D’ALLUMAGE

1. ARRÊTEZ ! Lisez les consignes de sécurité au verso de cette

plaque.

2. Tournez l’interrupteur mural à la position d’arrêt OFF. Ouvrez la porte du compartiment de contrôle du bas.

3. Assurez-vous que la soupape d’arrêt de la canalisation principale est ouverte.

4. Tournez la manette de réglage du gaz à la position d’arrêt OFF.

Remote

Off

PRG

5. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous décelez une odeur de gaz ARRÊTEZ ! Retournez au point “B” des consignes de sécurité au verso de cette plaque. Si vous ne remarquez aucune odeur de gaz, passez à l’étape suivante.

POUR FERMER LE GAZ QUI ALIMENTE

L’APPAREIL

1. Pour une fermeture complète, tournez l’interrupteur mural à la

position d’arrêt OFF.

2. Ouvrez la porte du compartiment de contrôle du bas.

6. Tournez la manette de réglage du gaz jusqu’à la position de

marche ON. Ne la forcez pas.

7. Ouvrez le courant électrique (ON) qui alimente l’appareil

(interrupteur mural).

8. Fermez la porte du compartiment de contrôle du bas.

9. Au besoin, rebrancher l’apareil au courant électrique et

remettre l’interrupteur principal du brûleur à la position ON ou régler le thermostat à la température désirée.

10. Si l’appareil ne se met pas en marche, suivre les

instructions intitulées “Pour fermer le gaz qui alimente l’appareil” et appeler un technicien ou le fournisseur de gaz.

Pour Éteindre l’Appareil

1. Coupez tout le courant électrique qui alimente l’appareil

(interrupteur mural).

3. Tournez la manette de réglage du gaz à la position d’arrêt

OFF. Ne la forcez pas.

4. Fermez la soupape d’arrêt de la canalisation principale.

5. Fermez la porte du compartiment de contrôle du bas.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

MAINTENANCE SCHEDULE

See the tables below for detailed information about required maintenance, both regular and annual.

Table 11: Maintenance Performed Annually—Before the Burning Season

Maintenance Task Performed By Procedure

Inspecting/Cleaning Burner, Logs and Controls

Traditional Fireplaces Only: Check Flame Patterns and Flame Height

Contemporary Fireplaces Only: Check Flame Patterns and Flame Height

Inspecting/Cleaning Pilot and Burner Qualiﬁed Service Technician Remove any surface build-up on pilot and

Checking Vent System Qualiﬁed Service Technician Inspect the vent system at the top and at

Appliance Checkout Qualiﬁed Service Technician Perform the appropriate appliance checkout

Replacing Rockwool Ember Materials Homeowner/Qualiﬁed Services Technician Remove old ember materials and vacuum

Qualiﬁed Service Technician Inspect valve and ensure it is properly

operating. Check piping for leaks. Vacuum the control compartment, ﬁreplace logs and burner area.

Qualiﬁed Service Technician Verify the ﬂame pattern and height displayed

by the appliance (Figure 18). Flames must not impinge on the logs.

Qualiﬁed Service Technician Verify the ﬂame pattern and height displayed

by the appliance (Figure 19).

burner assembly. Wipe the pilot nozzles, ignitor/ﬂame rod and hood. Ensure the pilot ﬂame engulfs the ﬂame sensor as shown.

the base (within the ﬁrebox) for signs of blockage or obstruction. Look for any signs of dislocation of the vent components.

procedure detailed in this manual.

the rockwool placement area. Place new rockwool as described in this document.

Table 12: Maintenance Performed Periodically—After the Burning Season

Maintenance Task Performed By Procedure

Traditional Fireplaces Only: Cleaning Firebox Interior

Homeowner Carefully remove logs, rockwool and

decorative volcanic stone and vermiculite. Vacuum out interior of the ﬁrebox. Clean ﬁrebox walls and log grate. Replace logs, Rockwool and volcanic stone as detailed in this manual.

Contemporary Fireplaces Only: Cleaning Firebox Interior

Homeowner Carefully remove media. Vacuum out interior

of the ﬁrebox. Clean ﬁrebox walls and burner. Replace media as detailed in this manual.

Traditional Fireplaces Only: Check Flame Patterns and Flame Height

Homeowner Verify the ﬂame pattern and height displayed

by the appliance (Figure 18). Flames must not impinge on the logs.

Contemporary Fireplaces Only: Check Flame Patterns and Flame Height

Homeowner Verify the ﬂame pattern and height displayed

by the appliance (Figure 19).

Checking Vent System Homeowner Inspect the vent system at the top and at

the base (within the ﬁrebox) for signs of blockage or obstruction. Look for any signs of dislocation of the vent components.

Cleaning Front Glass Enclosure Panel Homeowner Clean as necessary following the directions

provided in this manual.

Do not touch or attempt to clean the glass while hot.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

TROUBLESHOOTING

Before troubleshooting, ensure that the appliance main line gas shut-off valve and the wall switch are in the ON position. The following troubleshoots the ﬁreplace only to an elementary level. For detailed remote and ignition system troubleshooting, refer to the instructions provided with the remote.

Detailed valve system troubleshooting should only be performed by a qualiﬁed service technician.

Table 13: Troubleshooting the ENVY/ENVY CD Fireplace

1. Nothing happens when the ﬁreplace is turned ON/OFF.

2. The main burner does not light and the igniter is sparking.

3. The main Burner comes on but then goes out.

4. Soot is present on the logs and glass.

a. Remote is not functioning properly. Check that the wall switch plate is set to REMOTE.

b. Gas is not reaching the ﬁreplace. Check the gas supply and gas shutoff valves. c. Unit is not receiving power. Check/replace backup batteries behind the wall plate.

a. Gas is not reaching the ﬁreplace. Check the gas supply and gas shutoff valves. b. Loose wires to the valve. Check control compartment for any obviously loose

c. Loose wires to ignition module. Check control compartment for any obviously loose

d. Air in the gas line. Purge gas line of air (call a service technician if

a. Gas is not reaching the ﬁreplace. Check the gas supply and gas shutoff valves. b. Loose wires to the valve or ignition

module.

c. Pilot ﬂame is not engulﬁng the sensor. Call a service technician. d. Obstructed vent system. Call a service technician. a. Excessive ﬂame impingement on the logs. b. Improper air shutter opening. Open the air shutter by pushing in the rod.

Operate the ﬁreplace from the wall plate switch. Replace remote and/or wall switch batteries.

Check building circuit breakers to ensure power is ON to the ﬁreplace.

wiring (call a service technician, if necessary).

required).

Check control compartment for any obviously loose wiring (call a service technician, if necessary).

Properly position the logs as detailed on Page 12.

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

REPLACEMENT PARTS

Table 14: Replacement Parts

ENVY/ ENVY CD

Description

1 Surround Trim Assembly H8734 1 H8713 1 H8735 1 2 Glass Door H9017 1 H9018 1 H9019 1 3 Literature Kit H9020 1 H9020 1 H9020 1 4 Remote Control Receiver Wall Switch Kit H8752 1 H8752 1 H8752 1 5 Touch-Up Paint 90L73 1 90L73 1 90L73 1 6 Blower Assembly H8736 1 H8736 1 H8736 1 7 Volcanic Stone 80L42 1 80L42 1 80L42 1

35 in. Catalog

Number

Qty

ENVY/ ENVY CD 40 in.

Catalog Number

Qty

ENVY/ ENVY CD 45 in.

Catalog Number

Contact a Lennox Hearth Products dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards.

Qty

WARNING

Failure to position the parts in accordance with these diagrams or failure to use only parts speciﬁcally approved with this appliance may result in property damage or personal injury.

AVERTISSEMENT

Risque de dommages ou de blessures si les pièces ne sont pas installées conformément à ces schémas et ou si des pièces autres que celles spéciﬁquement approuvées avec cet appareil sont utilisées.

Figure 21: Replacement Parts

Remote

Off

PRG

DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

LENNOX HEARTH PRODUCTS • SIGNATURE® SERIES DIRECT-VENT GAS FIREPLACES • ENVY/ENVY CD 35/40/45 • CARE AND OPERATIONS

Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles and products. Consult your local distributor for ﬁreplace code information.

LENNOX®, the LENNOX design, DAVE LENNOX, the image of DAVE LENNOX and other related LENNOX marks are registered or common law trademarks of Lennox Industries Inc. and are used with permission.

P/N 506025-09 Rev. A 08/2013
