LENNOX HEARTH PRODUCTS
INSTALLATION INSTRUCTIONS
AND HOMEOWNER'S MANUAL
MERIT PLUS SERIES
36" Electric Fireplace
P/N 775,172M REV. B 7/2004
®
Shown with Optional Trim
MODEL:
This manual will enable you to obtain a safe, effi cient and dependable
installation and operation of your electric fi replace. Please read and
understand these instructions before beginning your installation.
Do not alter or modify this fi replace or its components under any
circumstances. Any modifi cation or alteration of the fi replace system,
including but not limited to the fi replace and accessories, may void the
warranty, listings and approvals of this system and could result in an
unsafe and potentially dangerous installation.
IMPORTANT! IF OPTIONAL GLASS DOORS ARE PURCHASED, TO ASSURE
PROPER ALIGNMENT, INSTALL THIS FIREPLACE IN A SQUARE AND
PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES. THIS
APPLIANCE IS MOUNTED ON RUBBER FEET TO ENSURE ADEQUATE
AIR CIRCULATION BENEATH FIREPLACE. DO NOT BLOCK AIRFLOW
AT THE BOTTOM AIR INTAKES.
MPE-36R
INSTALLER: DO NOT DISCARD THIS MANUAL
PLEASE LEAVE FOR THE HOMEOWNER
FOR YOUR SAFETY
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
®
C
Report # 214173-1482763
US
1
CONGRATULATIONS!
In selecting this DAVE LENNOX Merit Plus electric fi replace, you have chosen the
fi nest and most dependable fi replace found anywhere. A beautiful and prestigious
addition to the fi nest homes. Welcome to a Family of hundreds of thousands of
satisfi ed LENNOX Fireplace Owners.
Please read and carefully follow all of the instructions found in this manual. Please pay
special attention to the safety instructions provided in this manual. The instructions
included here will assure that you have many years of dependable and enjoyable
service from your LENNOX product.
TABLE OF CONTENTS
Packaging List ...................................page 2
Introduction ......................................page 2
General Information ..........................page 3
Locating Fireplace .............................page 3
Tools/Supplies Required .................. page 3
Framing Specifi cations ..................... page 4
Fireplace Specifi cations .................... page 4
Clearances ....................................... page 5
Pre-installation ................................. page 5
Installation Steps ............................. page 5
Electrical Connections ...................... page 5
Final Finishing .................................. page 6
Break-In Period ................................ page 6
Control Panel Operation ................... page 6
Remote Control Operation ............... page 7
Maintenance ..................................... page 8
Wiring Diagrams .............................. page 10
Troubleshooting ............................... page 15
Replacement Parts ........................... page 16
Optional Accessories ........................ page 18
WARNING: IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY
RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
PACKAGING LIST
This assembled Electric Room Heater is
packaged with:
• One accessory package located in the
fi rebox, containing;
1. One Installation and Operation Manual.
2. One Warranty Certifi cate.
3. One Remote Control.
• Two spare Light Bulbs are located in a
recess on the back of the log assembly.
INTRODUCTION
This Electric Fireplace is designed for
residential applications to be framed in as
a zero clearance fi replace.
This appliance has been tested in accordance with UL 2021 and CSA C22.2 No.
46-M198 standards for fi xed and location
dedicated electric room heaters.
Installation must conform to local codes.
In the absence of local codes, electrical
wiring and grounding must comply with
the National Electrical Code ANSI/ NFPA
70 - latest edition. In Canada, the current CSA C22-1 Canadian Electrical Code
- latest edition.
IMPORTANT: BEFORE STARTING YOUR FIREPLACE INSTALLATION, READ THIS INSTALLATION AND OPERATION MANUAL VERY
CAREFULLY TO ENSURE YOU UNDERSTAND
IT COMPLETELY AND IN ENTIRETY. FAILURE
TO FOLLOW THESE INSTRUCTIONS MAY
RESULT IN A POSSIBLE ELECTRIC SHOCK,
FIRE HAZARD AND/OR INJURY OR PROPERTY
DAMAGE AND WILL VOID THE WARRANTY.
CAUTION: THIS APPLIANCE IS MOUNTED ON
RUBBER FEET. THE PURPOSE OF THESE FEET
IS TO ENSURE ADEQUATE AIR CIRCULATION
BENEATH THE FIREPLACE. DO NOT REMOVE
THESE FEET. DO NOT INSTALL THE FIREPLACE
DIRECTLY ONTO A CARPET, RUG, FURNITURE
OR SIMILAR SURFACES, WHICH COULD
HINDER OR BLOCK THE AIRFLOW.
TO PREVENT A POSSIBLE FIRE, DO NOT
BLOCK AIR INTAKES OR EXHAUSTS IN ANY
WAY. DO NOT USE NEAR SOFT SURFACES,
LIKE A PILLOW, WHERE OPENINGS MAY
BECOME BLOCKED.
THIS APPLIANCE MAY BECOME HOT WHEN
IN USE. TO AVOID BURNS, DO NOT LET
BARE SKIN TOUCH HOT SURFACES. KEEP
COMBUSTIBLE MATERIALS, SUCH AS FURNITURE, PILLOWS, BEDDING, PAPERS,
CLOTHES AND CURTAINS AT LEAST 3 FEET
(1 METER) FROM THE FRONT OF THIS
APPLIANCE.
CAUTION: EXTREME CAUTION IS NECESSARY
WHEN ANY HEATER IS USED BY OR NEAR
CHILDREN OR INVALIDS AND WHENEVER
THE HEATER IS LEFT OPERATING AND
UNATTENDED.
DO NOT OPERATE ANY HEATER WITH DAMAGED WIRING OR CONNECTORS, OR AFTER
THE APPLIANCE MALFUNCTIONS, OR IF
IT HAS BEEN DROPPED OR DAMAGED IN
ANY WAY.
ANY REPAIRS TO THIS FIREPLACE SHOULD
BE PERFORMED BY A QUALIFIED SERVICE
TECHNICIAN.
UNDER NO CIRCUMSTANCES SHOULD THIS
FIREPLACE BE MODIFIED. PARTS HAVING
TO BE REMOVED FOR SERVICING MUST
BE REPLACED PRIOR TO OPERATING THE
FIREPLACE AGAIN.
DO NOT USE THIS APPLIANCE OUTDOORS.
DO NOT EXPOSE Fireplace TO THE ELEMENTS
(SUCH AS RAIN, ETC.).
THIS APPLIANCE IS NOT INTENDED FOR
USE IN BATHROOMS, LAUNDRY AREAS
OR SIMILAR INDOOR LOCATIONS. NEVER
LOCATE THIS APPLIANCE WHERE IT COULD
FALL INTO A BATHTUB OR OTHER WATER
CONTAINER.
DO NOT RUN ELECTRICAL WIRING OR POWER
CORD (OPTIONAL) UNDER CARPETING. OR
COVER WITH THROW RUGS, RUNNERS OR
SIMILAR MATERIALS.
(FOR 120 V W/OPTIONAL POWER CORD)
AVOID THE USE OF AN EXTENSION CORD
BECAUSE THE EXTENSION CORD MAY OVERHEAT AND CAUSE A RISK OF FIRE. HOWEVER,
IF YOU HAVE TO USE AN EXTENSION CORD,
THE CORD SHALL BE NO. 14 AWG MINIMUM
SIZE AND RATED NOT LESS THAN 1800 WATTS,
15 AMPS. THE EXTENSION CORD MUST BE A
THREE WIRE CORD WITH GROUNDING TYPE
PLUG AND CORD CONNECTION.
2
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
THIS APPLIANCE HAS HOT AND ARCING
OR SPARKING PARTS INSIDE. DO NOT
USE IT IN AREAS WHERE GASOLINE, PAINT
OR FLAMMABLE LIQUIDS ARE USED OR
STORED.
THIS FIREPLACE SHOULD NOT BE USED
AS A DRYING RACK FOR CLOTHING, NOR
SHOULD CHRISTMAS STOCKINGS OR OTHER
DECORATIONS BE HUNG NEAR IT.
USE THIS APPLIANCE ONLY AS DESCRIBED
IN THIS MANUAL. ANY OTHER USE IS NOT
RECOMMENDED BY THE MANUFACTURER
AND MAY CAUSE A FIRE, ELECTRIC SHOCK
OR INJURY TO PERSONS.
IF APPLIANCE IS TO BE DISCONNECTED, TURN
OFF CONTROLS FIRST.
DO NOT INSERT OR ALLOW FOREIGN
OBJECTS TO ENTER ANY VENTILATION OR
EXHAUST OPENING, AS THIS MAY CAUSE
AN ELECTRIC SHOCK, FIRE, OR DAMAGE TO
THE APPLIANCE.
SAVE THESE INSTRUCTIONS.
GENERAL INFORMATION
Power Supply Wire Gage
Voltage
120 V
240 V
Wire Gage Fuse Rating
14 GA.
14 GA.
15 AMP
20 AMP
Wall Switch/Thermostat Wire Gage
Voltage
5 Volts 18 Gage
Table 1
Wire Gage
LOCATING YOUR MERIT PLUS ELECTRIC
FIREPLACE
Your new fi replace may be installed into existing
framing or built into a wall (see Figure 1), or
set in a freestanding mantel cabinet available
from your dealer (see page 17).
When choosing a location for your new fi replace, ensure that the general instructions are
followed. Also, for the best effect, install the
fi replace out of direct sunlight and away from
overhead lighting. See Figure 1.
TOOLS AND BUILDING SUPPLIES
NORMALLY REQUIRED
Tools:
Phillips Screwdriver
7/16" Socket Drive
Hammer
Saw And/or Saber Saw
Level
Measuring Tape
Plumb Line
Electric Drill And Bits
Pliers
Square
Gloves
Building Supplies:
Framing Materials
Wall Finishing Materials
Caulking Materials
(noncombustible)
IMPORTANT NOTE: This fi replace system
is not diffi cult to install. However, in the
interest of safety, it is recommended that
the installer be a qualifi ed or certifi ed
“tradesman” familiar with commonly
accepted fi replace installation and safety
techniques as well as prevailing local
codes.
Power Supply Wire Specifi cations
120 Volt, 60 Hz, 1600 Watts:
(ref. page 10)
Use two conductor, non-metallic sheath cable
with ground wire for the incoming power
supply. The wire used must conform to local
and national electrical codes for the specifi ed
power consumption rating. See Table 1.
240 Volt, 60 Hz, 3000 Watt:
(ref. page 11)
Use three conductor, non-metallic sheath
cable with ground wire for the incoming power
supply. The wire used must conform to local
and national electrical codes for the specifi ed
power consumption rating. See Table 1.

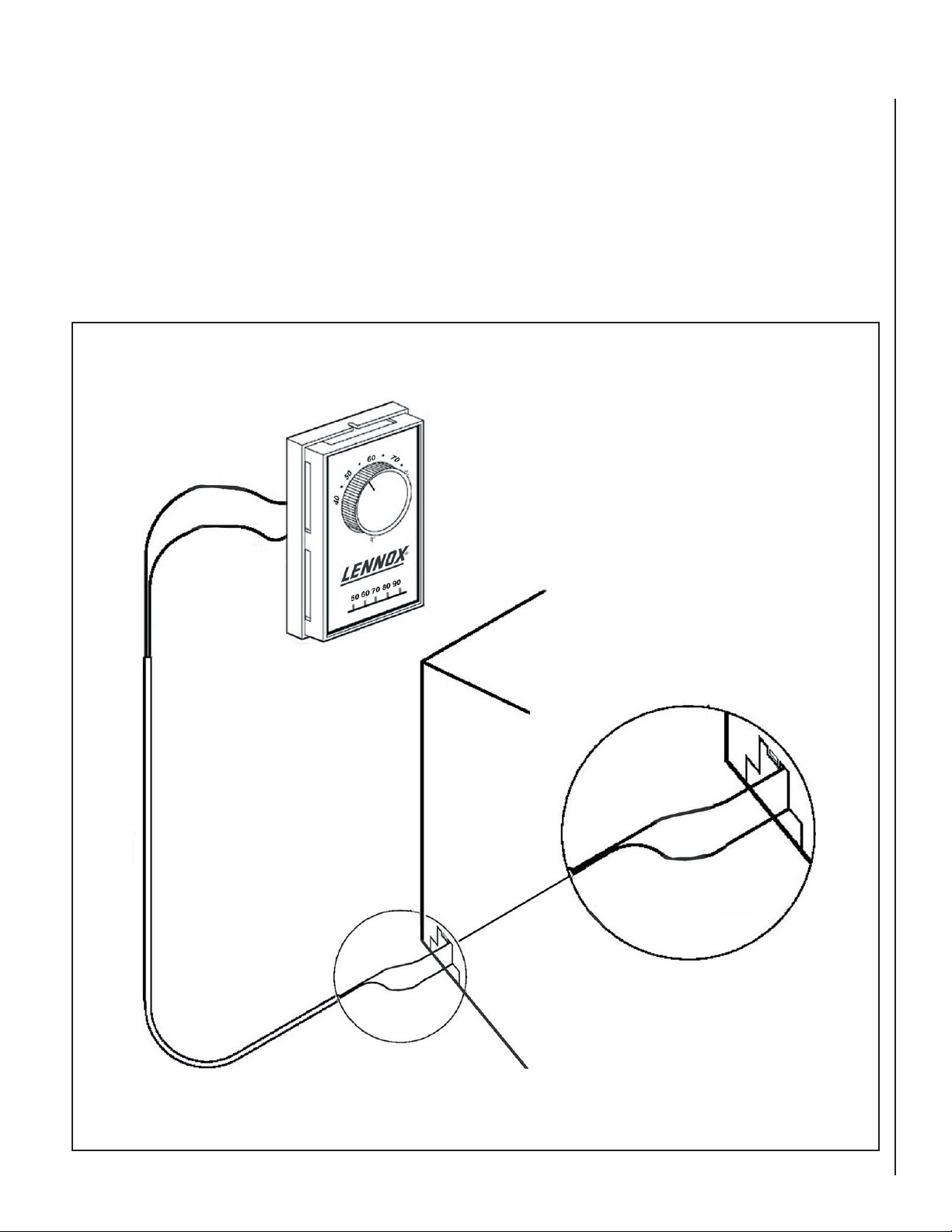

Wall Switch or Wall Thermostat Kits
(optional kits, see page 17)
Low voltage wire is provided for the wall switch
connection. The wires gage requirements are
shown on Table 1.
Top View Showing Approved
Room Locations of Fireplace
fi replace shown in gray.
Figure 1
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
3
FRAMING SPECIFICATIONS
26 1/2 "
(668 mm)
37 1/2 "
(945 mm)
Electrical
Junction
Box
Corner View
Note: Framing dimensions are calculated for a nailing fl ange depth of 1/2"
Figure 2
38 5/8 "
(981 mm)
52 3/4 "
(1339 mm)
38 3/4 "
(984 mm)
Front View
32 "
(812 mm)
4 "
(102 mm)
Electrical
Junction
Box
(left side)
15 1/8 "
(384 mm)
Side View
FIREPLACE SPECIFICATIONS
32 "
Left Side
Electrical Access
(812 mm)
13 3/4"
(350 mm)
5 1/8 "
(130 mm)
24 "
(610 mm)
Top View
37 5/8"
(954 mm)
Front View
36 "
(914 mm)
14 7/8"
(32 mm)
21 1/8 "
(537 mm)
27 1/2 "
(
700 mm
24 1/2"
(
622 mm
)
(134 mm)
)
5 1/4 "
Right Side
2 1/4 "
(55 mm)
29 3/4 "
(754 mm)
4
Figure 3
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
FIREPLACE SPECIFICATIONS
Cat. No. H1534
Model: MPE-36R
Description: Merit Plus Electric Fireplace,
36” Radiant
Shipping Weight: 90 lb.'s (41 KG)
Packaging:
44 ¾” x19 ½” x 34 ¼”
(1135 mm x 495 mm x 870 mm)
17.30 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
(240 Volt, 60 Hz.)
Rated Wattage - 3000 Watts
Amperage - 12.5 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
(240 V): 10,239 BTU/HR
MINIMUM CLEARANCES TO COMBUSTIBLES
WARNING: THIS APPLIANCE IS MOUNTED
ON RUBBER FEET TO ENSURE ADEQUATE
AIR CIRCULATION BENEATH FIREPLACE.
DO NOT BLOCK AIRFLOW AT THE BOTTOM
AIR INTAKES.
COLD CLIMATE INSTALLATION RECOMMENDATION: WHEN INSTALLING THIS
FIREPLACE AGAINST A NON-INSULATED
EXTERIOR WALL OR CHASE, IT IS
MANDATORY THAT THE OUTER WALLS
BE INSULATED TO CONFORM TO APPLICABLE INSULATION CODES.
WARNING! TO PREVENT CONTACT WITH
SAGGING OR LOOSE INSULATION, THE
APPLIANCE MUST NOT BE INSTALLED
AGAINST VAPOR BARRIERS OR EXPOSED
INSULATION. LOCALIZED OVERHEATING
COULD OCCUR AND A FIRE COUDLD
RESULT. INSULATION AND A VAPOR BARRIER SHOULD BE PLACED A MINIMUM
OF 2 INCHES FROM THE APPLIANCE.
6. Wire a dedicated, properly fused circuit with
an Amp rating for the appropriate voltage
(120 V - 15 Amps or 240 V - 20 Amps). A
dedicated circuit is required to prevent overloading a house circuit in cases of having
multiple appliances on the same circuit.
Use an outlet that is protected by a ground
fault circuit interrupter where required by
electrical code.
7. (If applicable) Make wall mount wall switch
or wall thermostat connections as outlined
on pages 11 & 12.
8. Place all connectors inside the fi replace and
replace the junction box cover, ensuring
that the cable clamp grips only the jacket
of service, and if applicable, wall switch or
thermostat lines.
9. Perform a function test. See Manual Control
Panel Operation on page 6 and Remote
Control Operation on page 7.
ELECTRICAL CONNECTIONS
Refer to the electrical diagrams on pages 10
to 14.
This appliance is a zero-clearance design and
is approved to be framed in with combustible
materials (up to the edge of the appliance).
A drywall lip at the top of the fi replace and 4
nailing fl anges on the sides of the appliance is
provided to facilitate installation.
Sides: 0 mm - 0 inches
Floor: 0 mm - 0 inches
Top: 0 mm - 0 inches
Table 2
Mantel Clearance: Combustible and Non-combustible mantels may be installed at any height
above the top of the face of fi replace.
Hearth Protection: A hearth is not mandatory,
but it is recommended for aesthetic purposes.
Secure the hearth extension to the floor
to prevent possible shifting. Do no block
the airfl ow beneath the appliance (read the
following WARNING).
PRE-INSTALLATION
Before You Start
Check appliance for any concealed damage.
DETAILED INSTALLATION STEPS
1. Complete the framing opening to the
dimensions specifi ed in Figure 2.
2. Ensure that there is a minimum of 8" of
service cable for connection to the junction
box on the fi replace. Remove the outer
jacket and strip the individual wires 1/2"
from the end.
3. Loosen the screw securing the junction box
cover and remove the cover.
4. Position the fi replace into the framed-in
opening. Attach fi replace to frame using
nailing fl anges provided.
5. Complete the wiring to the fi replace for the
appropriate voltage (120 V or 240 V), as
shown on pages 10 & 11. Wires L1, L2, N
& G are attached to the rear of the junction
box cable clamp for easy access.
WARNING: ELECTRICAL WIRING MUST
COMPLY WITH LOCAL BUILDING CODES
AND OTHER APPLICABLE REGULATIONS TO REDUCE THE RISK OF FIRE,
ELECTRICAL SHOCK AND INJURY TO
INDIVIDUALS.
ANY ELECTRICAL RE-WIRING OF THIS
APPLIANCE MUST BE DONE BY A QUALIFIED ELECTRICIAN.
DO NOT USE THIS FIREPLACE IF ANY
PART OF IT HAS BEEN UNDERWATER.
IMMEDIATELY CALL A QUALIFIED
SERVICE TECHNICIAN TO INSPECT THE
FIREPLACE AND REPLACE ANY PART OF
THE ELECTRICAL SYSTEM WHICH HAS
BEEN UNDER WATER.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
5
FINAL FINISHING
Materials such as brick and tile can be extended
down to the top of the fi replace. Do not extend
down, covering the outlet or glass enclosure
panel (optional kit).
MANUAL CONTROL PANEL OPERATION
(refer to Figures 5 & 6)
Once this appliance has been properly installed
and connected to the power supply as defi ned
in this manual, it is ready to operate.
MANUAL CONTROL PANEL
Main Power On/Off (rear most switch)
On
Off
There are a wide variety of “fi nished looks” for
these fi replaces, from formal wall decor with
elaborate mantels to rustic wood paneling or
warm brick facings.
Mantel Cabinet or Accent Trim Installations
An optional mantel cabinet kit or an accent trim
kit is available from your dealer (see page 18).
These options give the appliance an attractive
fi nished look.
Hearth
An aesthetically pleasing fi replace hearth can
be installed, if desired (see hearth protection
on page 5).
BREAK-IN PERIOD:
During the fi rst few initial uses of this heater,
there may be a release of a slight, harmless odor.
This odor is a normal occurrence caused by the
initial heating of the internal heating elements
and should not reoccur.
Note: Ensure the circuit breakers for the power
supply are turned on.
This appliance can be operated either from the
manual control panel (see Figures 4 & 5) or by
using the remote control, wall switch or wall
thermostat (optional kits).
The manual controls are located on the fi rebox
fl oor on the front left (see Figure 5). If an
optional glass enclosure is installed, it must
be removed to access.
Main Power ON/OFF Switch
When the main power switch is turned on,
power is supplied to the fi replace. This switch
must be on for all other switches to operate.
Heater ON/OFF Switch
When this switch is turned on, the heater will
emit heat in the temperature range selected (see
Figure 6; G, H & I). The fi replace can operate
with or without heat.
Flame / Ember On/Off Switch:
Turns lights on inside ember bed and fl ame
cylinder.
Heater On/Off (center switch)
On
Off
Flame / Ember On/Off (front most switch)
On
Figure 4
Figure 5
Off
Manual Control Switches
are located behind pull
screen on inside fl oor
• When using the main power on/off switch
inside the body, the power on/off switch
outside the body (optional wall switch kit)
must be in the OFF position.
• When using power on/off switch outside
the body (optional wall switch), the power
on/off switch inside the body must be in
the OFF position.
• When using the remote control, the power
on/off switch inside the body and the wall
switch (optional kit) must be on the OFF
position.
6
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
REMOTE CONTROL OPERATION:
REMOTE CONTROL
A
D
F
G
H
POWER
ON/OFF
DISPLAY
Dimmer
EMBERS
HEATER
TEMP. CONTROL
HIGH
MED.
FLAME
LOWER
ON/OFF
Brighter
ON/OFF
LOW
HIGHER
J
B
C
E
I
K
• When using the remote control, the power
on/off switch inside the body and the wall
switch (optional kit) must be on the OFF
position.
Figure 6
CAUTIONS
• DO NOT USE OLD BATTERIES WITH NEW
ONES.
• DO NOT USE BATTERIES OTHER THAT
THE TYPE SPECIFIED (2 EA. AA).
• ENSURE BATTERIES ARE CORRECTLY
INSTALLED IN REMOTE CONTROL.
The Merit Plus Electric Fireplace is provided
with an Infrared light Remote Control.
All functions of the fi replace can be controlled through the remote control. Note:
The Effective range of the remote control
is up to approximately 26 feet (8 meters).
The functions identifi ed on the remote (see
Figure 6) are as follows:
A. POWER BUTTON
Press once to turn on power to fi replace.
B. INDICATING LIGHT
Illuminates when signal is sent.
C. LIGHT BUTTON
On/off switch for fl ame and ember light.
D. LIGHT ADJUSTING BUTTON (DIM)
Reduces brightness of embers.
E. LIGHT ADJUSTING BUTTON (BRIGHTEN)
Increases brightness of embers.
F. HEATER ON/OFF
This button will turn the heater ON and OFF
independent of the main button.
G. TEMPERATURE ADJUSTMENT BUTTON
(HIGH)
Highest heat output, up to 86° F.
H. TEMPERATURE ADJUSTMENT BUTTON
(MED.)
Medium heat output, up to 75° F.
I. TEMPERATURE ADJUSTMENT BUTTON
(LOW)
Lowest heat output, up to 64° F.
J. FLAME ADJUSTING BUTTON (LOWER)
Reduces fl ame intensity.
K. FLAME ADJUSTING BUTTON (HIGHER)
Increases fl ame intensity.
Remote Control Operation Steps:
1. To control the electric fi replace by remote
control, the main power on/off switch should
be in the off position. This switch is located
on the front left fl oor of fi rebox (see Figures
4 & 5).
2. When operating the remote control, it must
be pointed at the logs inside the electric
fi replace and a beep must be heard each time
you press a function button. The beep lets
you know the remote control is operating the
function button you are pressing.
3. Remote On & Off Button - The button on the
top left (see A) is the on/off power button.
When pressing this button you will hear a
beep, this will activates the power to the
fi replace. You must then press the display
button (B) to activate the lights.
Note: If the fl ame does not come on immediately, adjust brightness and intensity (buttons
E & K).
4. To increase the brightness, press and release
the light brighten button (see E). Each time
you press this button you will hear a beep,
and the brightness will increase by a small
amount, until the maximum brightness
is achieved. To decrease the brightness,
press and release the light dimming button
(see D). Each time you press this button
you will hear a beep, and the brightness
will decrease by a small amount, until the
minimum brightness is achieved.
5. Heater Button, To activate the heater, press the
heater button (see F), then press HI (G),
MED (H), or LO (I). The heater is preset to
the following temperatures:
• HIGH will shut off when room reaches
approximately 86° F (30° C).
• MED. will shut off when room reaches
approximately 75° F (24° C).
• LO. (Low) will shut of when room reaches
approximately 64° F (18° C).
6. Flame Button - Press the Flame Adjusting
Buttons to achieve a higher or lower fl ame
intensity (see J & K).
7. To Increase Flame Brightness press and
release the (K) button. Each time you press
this button you will hear a beep and the
brightness of the fl ame will increase slightly,
until the maximum setting is reached. To
Decrease Flame Brightness press and
release the (J) button. Each time you press
this button you will hear a beep and the
brightness of the fl ame will decrease slightly,
until the minimum setting is reached.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
7

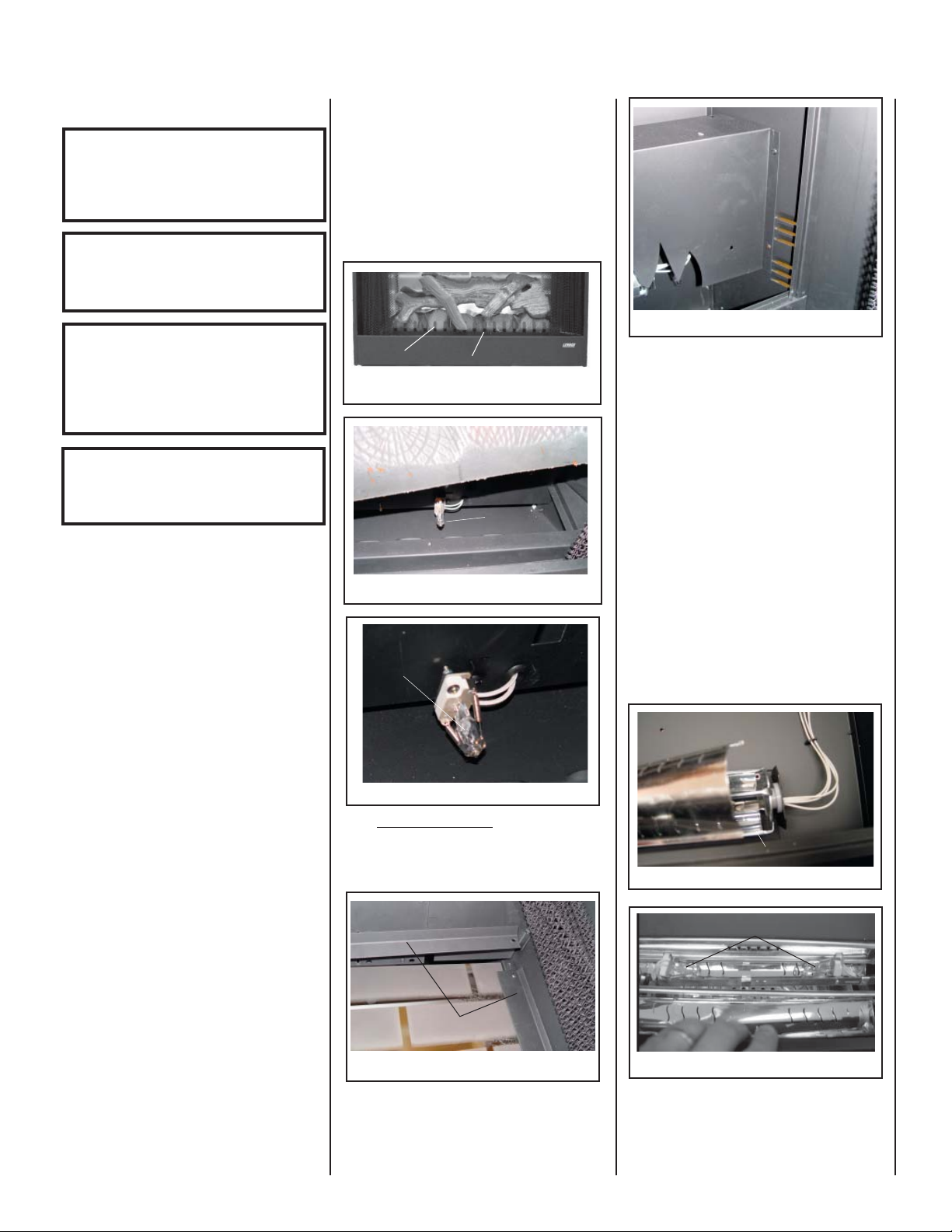

MAINTENANCE
Heater/blower Mounting Plate
Brick Panel
Heater/Blower Mounting Plate
Be Careful Not to
Damage Brick Panel
Handle
Remove screws indicated by arrows
Grate
This appliance has been designed to provide
many years of trouble-free service. The components that will need to be serviced have been
kept to a minimum. Periodic dusting of the
fi replace is all that should be required.
CAUTION: DISCONNECT POWER BEFORE
ATTEMPTING ANY MAINTENANCE OR
CLEANING TO REDUCE THE RISK OF
FIRE, ELECTRICAL SHOCK OR PERSONAL
INJURY.
WARNING: WHEN CLEANING THE Fireplace,
THE Fireplace MUST BE COOL.
CLEANING THE GLASS ENCLOSURE
PANEL (OPTIONAL KIT)
Over time the front glass panel may become
dirty or dusty. Dust can be removed by lightly
rubbing the glass surface with a clean, lint free
cloth or paper towel. To remove fi ngerprints
or other marks, use a damp cloth with a good
quality household glass cleaner. The front
glass panel should be completely dried with a
clean, lint free cloth or paper towel.
CAUTION: DO NOT USE ABRASIVE CLEANERS ON THE GLASS PANEL. DO NOT SPRAY
LIQUIDS DIRECTLY ONTO ANY SURFACE OF
THE Fireplace.
WARNING: AN AUTHORIZED SERVICE REPRESENTATIVE SHOULD PERFORM ANY
OTHER SERVICING.
CAUTION: HANDLE GLASS VERY CAREFULLY
TO PREVENT ACCIDENTAL BREAKAGE.
HEATER/BLOWER REPLACEMENT PROCEDURE
1. Turn off power to the fi replace.
2. Let the fi replace completely cool, if it has
been operating.
3. Open the steel curtains (remove glass panel
enclosure, if applicable).
4. OPTIONAL: To ensure that the brick panel
isn't accidentally scratched, you may wish
to remove it before proceeding:
Brick Panel Removal Procedure:
a. Remove the 2 screws on the front of the
grate. Remove Grate (see Figure 8).
b. Lift out Log / Ember assembly and set
aside. Caution: Be careful not to scratch
the fi nish.
c. Remove the top brick panel retaining
bracket (see Figure 15). Be very careful
to hold the bracket when removing the
2 screws to ensure the bracket doesn't
fall.
d. Remove the left and right side brick panel
retaining brackets (see Figure 15). Be
very careful to hold the bracket when
removing. Remove the bottom screw
fi rst to avoid the frame falling down after
both screws are removed.
TAKE CARE TO HOLD BRICK PANEL
IN PLACE TO PREVENT POSSIBLE
DAMAGE.
Suggestion: Slide the screens toward
the middle of the fi replace for easier
access to the screws on the sides.
Return the screens to the sides before
proceeding to instruction f.
e. Tip brick panel forward from the top,
just enough to clear screens. Carefully
remove brick panel from fi rebox and set
aside in a safe place.
5. Remove the screws which secure the heater
blower mounting plate using a phillips screwdriver as follows (see Figures 9 & 10):
a. While using one hand to hold the handle
of the heater/blower assembly (see
Figure 9), remove the 5 screws which
secure the mounting plate. Remove the
4 side screws fi rst (2 on each side).
Remove the middle screw that is on
the top of the handle last.
b. Slowly lower the heater/blower assembly
and let it rest on the 2 support chains
(1 on each side).
IMPORTANT NOTE: Label all wire
locations prior to disconnecting to
ensure that wires are reconnected in
the correct positions.
6. Replace the heater/blower as follows:
a. Replace the old heater/blower with the
new one. Note: when replacing the
heater/blower, ensure that all the wires
on the heater are correct, otherwise the
heater will not function properly.
b. Turn the power and heater switches on
and check for proper operation.
c. Turn off power to the fi replace.
d. Using one hand to hold the handle of the
heater/blower assembly, slowly push it
back up and line up the holes for the 5
screws. Install the 5 screws to secure
the new heater/blower assembly to the
mounting plate.
7. (If brick panel was removed) Reverse
instructions on step 4.
8. Reinstall glass panel enclosure, if applicable.
Grate
Figure 8
Heater/blower Mounting Plate
Handle
Brick Panel
Remove screws indicated by arrows
Figure 9
Heater/Blower Mounting Plate
Be Careful Not to
Damage Brick Panel
Figure 10
Blower / Heater
Figure 11
8
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Replacing Light Bulbs
Ember Bed
Bulb
Bulb
Brick panel Retaining brackets
Flame
Panel
Flame Cylinder Drum
Bulbs
Grate
Log/Ember Assembly
WARNING: THE FIREPLACE MUST BE
UNPLUGGED/DISCONNECTED FROM THE
POWER SUPPLY PRIOR TO ANY MAINTENANCE OR CLEANING IN ORDER TO REDUCE
THE RISK ELECTRIC SHOCK OR FIRE.
CAUTION: DO NOT EXCEED A 35 WATT BULB.
USE OF A HIGHER RATED BULB MAY RESULT
IN A FIRE, CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
ii. Lift off spring from bulb tips, then hold
socket and pull out to remove. Install
new bulbs into sockets by pressing them
in (while holding the socket), Install
retaining spring over each bulb tip.
iii. Plug in power cord or connect power to
appliance. Turn on power to test bulbs.
Disconnect power.
iv. Reverse steps 3 to 5.
Flame
Panel
WARNING: THE HALOGEN LIGHT BULBS IN
YOUR FIREPLACE CAN BECOME EXTREMELY
HOT. ALLOW AT LEAST 10 MINUTES
BETWEEN TURNING OFF THE FIREPLACE
AND REMOVING THE LIGHT BULBS TO AVOID
THE ACCIDENTAL BURNING OF THE SKIN.
CAUTION: DO NOT TOUCH THE BULBS, OILS
FROM YOUR SKIN WILL DAMAGE THEM
WHEN THEY HEAT UP. USE GLOVES OR
CLOTH WHEN HANDLING BULBS.
Bulb Replacement Procedure:
• 2 bulbs provide illumination for the ember
bed and 2 bulbs provide illumination for the
fl ame generation assembly (bulbs are rated at
35 Watts Max., Halogen, GX6.35).
• 2 spare bulbs are located in a recess on the
back of the log assembly.
1. Turn off power to the fi replace.
2. Let the fireplace cool, if it has been
operating.
3. (If optional glass panel enclosure is
installed) Remove glass panel per instructions provided in kit.
4. Remove the 2 screws on the front of the
grate (see Figure 12. Also see item #7 on
page 17). Remove Grate.
5. Lift out log/ember assembly by tilting forward and fi rmly pulling on back of ember
bed assembly. It should pop out from
track and lift out. Caution: Be careful not
to scratch the fi nish.
6. Remove spare bulbs from the recess on
the back of the log assembly.
Grate
Log/Ember Assembly
Figure 12
Ember Bed
Bulb
Figure 13
Bulb
Figure 14
b. Flame Cylinder Bulbs
i. Remove Brick panel, following proce-
dure on page 8 (see Brick panel Removal
Procedure).
Figure 16
iii. Locate fl ame cylinder drum (see Figure
17). Squeeze one half of drum cylinder
until its top edge clears the top drum
track. Remove the bottom edge of
the cylinder drum from the bottom
drum track. Once you have removed
one half of the drum cylinder, you
will have access to the 2 light bulbs (see
Figure 18). Note: do not exert exces-
sive pressure on the drum cylinder
as this may cause damage.
v. Lift off spring from bulb tips, then hold
socket and pull bulb out to remove.
Install new bulbs into sockets by
pressing them in (while holding the
socket), Install retaining spring over
each bulb tip.
7. Reinstall all components that were removed
(reverse steps 1-5).
Flame Cylinder Drum
Figure 17
Bulbs
Access bulbs as follows:
Use gloves or cloth when handling bulbs
to prevent oils from your skin damaging
bulbs when heated.
a. Ember Bed Bulbs -
i. With the ember bed removed, the 2
ember bed light bulbs will be visible
(see Figures 13 and 14).
Brick panel Retaining brackets
Figure 15
ii. using a phillips screwdriver, remove
the fl ame panel (see Figure 16).
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 18
9
WIRING DIAGRAM - 120 VOLT
Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to
the appliance on the left side.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER
AND DANGEROUS APPLIANCE OPERATION.
L1 = BLACK (POWER)
L2 = BLACK (POWER)
G = GREEN (GROUND)
N = WHITE (COMMON)
N1 = WHITE (COMMON)
N2 = WHITE (COMMON)
GROUND
MAIN POWER
HOME POWER
L
SUPPLY
120 V AC.
Outside Switches
Wall Switch
Wall Thermostat
(power on/off)
Control Panel
Heater On/Off
Control Panel
(power on/off)
Switch
GROUND
Light (L)
N
N2
N
L2
N1
L1
t104° C t90°C
Flame Motor (L)
Fan Motor (L)
Heater 2 (L)
Heater 1 (L)
L-M
L-FAN
L-R2
P-L
L-LIGHT
L-R1
Relay 2
Relay 1
REMOTE
P
SIP2
Remote Sensor
L-FLAME
K-P
SIP4
Circuit
Board
Temperature Sensor
N-FLAME
K-H
SIP3
SIP6
TEM.
Control Panel
Flame / Ember
On/Off Switch
N-FAN
POWER-N
N-M
N-LIGHT
SIP13
SIP11
T-P
SIP13
SIP7
P-TRA.
Transformer
Figure 19
SWITCH WIRING - 120 VOLT
HOME POWER SUPPLY
120 V AC.
Figure 20
10
L1
GROUND
N
120 V AC
YELLOW AND GREEN
120 V 1600W
See Power Supply Specifi cations on Page 3.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
WHITE
BLUE
BLUE
BLACK
ORANGE
N
N1
N2
L1
L2
GROUND
FIREPLACE WIRE
HARNESS
WIRING DIAGRAM - 240 VOLT
Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to
the appliance on the left side.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION.
L1 = BLACK (POWER)
L2 = BLACK (POWER)
G = GREEN (GROUND)
N = WHITE (COMMON)
N1 = WHITE (COMMON)
N2 = WHITE (COMMON)
MAIN POWER
HOME POWER
SUPPLY
240 V AC.
Figure 21
N
GROUND
L2
L1
N2
L2
N1
L1
Outside Switches
Wall Switch
Wall Thermostat
(power on/off)
Control Panel
Heater On/Off
Control Panel
(power on/off)
Switch
GROUND
P-L
Light (L)
N
t104° C t90°C
Flame Motor (L)
Fan Motor (L)
Heater 2 (L)
Heater 1 (L)
L-M
L-FAN
L-R2
L-R1
L-LIGHT
Relay 2
Relay 1
REMOTE
SIP2
Circuit
Board
Remote Sensor
L-FLAME
K-P
SIP4
Temperature Sensor
Control Panel
Flame / Ember
On/Off Switch
N-FLAME
SIP6
K-H
TEM.
SIP3
P-TRA.
N-FAN
POWER-N
N-M
N-LIGHT
SIP13
SIP11
T-P
SIP7
Transformer
SWITCH WIRING - 240 VOLT
HOME POWER SUPPLY
240 V AC.
120V (L1) + 120V (L2) = 240V
Figure 22
N
L1
L2
GROUND
WHITE
120 V AC.
120 V AC.
BLACK
ORANGE
BLUE
BLUE
YELLOW AND GREEN
240 V 3000W
See Power Supply Specifi cations on Page 3.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
N
L1
L2
N1
N2
GROUND
FIREPLACE WIRE
HARNESS
11
WALL THERMOSTAT & WALL SWITCH WIRING DIAGRAMS
(optional kits, see page 18)
5 V
OUTSIDE
POWER ON/OFF SWITCH
(OPTIONAL WALL SWITCH)
GROUND
GREEN
INSIDE
POWER ON/OFF SWITCH
(ON CONTROL PANEL)
RED
RED
• When using the main power on/off switch inside the body, the power on/off switch outside the body (optional wall switch kit) must be in
the OFF position.
• When using power on/off switch outside the body (optional wall switch), the power on/off switch inside the body must be in the OFF
position.
• When using the remote control (optional kit), the power on/off switch inside the body and the wall switch (optional kit) must be on the
OFF position.
Figure 23
12
5 V
A#D
GROUND
Figure 24
GREEN
INSIDE
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
BLACK
WHITE
OUTSIDE
WALL
THERMOSTAT
Ω
1K
POTENTIOMETER
Installing Wall Thermostat
(optional kit, see page 18)
Wire the wall thermostat prior to installing the fi replace.
WALL THERMOSTAT WIRING (24 VAC):
Install Wall Thermostat per instructions provided with kit and per the following information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Locate the the black and white wires and pull out the length needed to reach wall thermostat (15 feet max.).
4. Connect the wires to the wall thermostat as shown in Figure 25. Follow instructions provided with wall switch kit.
Wall Thermostat
Black
White
Figure 25
Left Side of
Fireplace
White
Black
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
White
5 V
Black
13
Power On/Off Wall Switch Installation
(optional kit, see page 18)
Wire the wall switch prior to installing the fi replace.
WALL SWITCH WIRING (24 VAC):
Install Wall Switch per instructions provided with kit and per the following information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Locate the 2 red wires and pull out the length needed to reach wall switch (15 feet max.).
4. Connect the red wires to the wall switch as shown in Figure 26. Follow instructions provided with wall switch kit.
Red
Red
Red
Red
Red
5V
Red
14
Figure 25
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
TROUBLESHOOTING
SYMPTOM
1. Fireplace turns off and
will not turn on.
2. Flame is fixed
(unmoving).
3. Dim or poorly visible
flame or log set and
ember is not glowing.
POSSIBLE
CAUSES
Fireplace has
overheated.
Wiring may be loose
or the flame motor
may be defective.
Light bulb(s) burnt out
or wiring is loose.
WHO PERFORMS
CORRECTIVE ACTION
CORRECTIVE ACTION
Homeowner The appliance is protected with a
safety device to prevent it from
overheating. If the fireplace should
overheat, a thermal switch will
disconnect power to the unit and
will not come back on without
being reset. Reset it by turning
the main power switch off and
waiting 5 minutes then turning it
back on.
Qualified Service Technician Inspect all wiring for loose
connections. If the wire
connections are good, replace the
flame motor.
Homeowner Inspect all wiring for loose
connections and repair or replace
if necessary. Inspect light bulbs
and replace if necessary.
4. Flame sputters. Flame motor is
defective.
5. Remote control does not
work.
6. Circuit breaker trips or
fuse blows when the unit
is turned on.
Low batteries.
Unit switch and/or
wall switch in “ON”
position.
Improper circuit
current rating.
Qualified Service Technician Replace flame motor.
Homeowner Replace AA batteries in remote
control. If problem persists, there
may have been a loss of power to
the unit as a possible result from a
power failure (i.e. breaker tripped).
Turn off main power on/off switch
(see Figure 4) and/or optional wall
switch (if applicable).
Qualified Service Technician Check the house circuit to ensure
it is on a dedicated circuit with
proper Amp. rating. If the circuit
breaker continues to trip (or blown
fuses), inspect wiring for a loose
connection or a dead short. Repair
or replace wiring and/or
connectors as necessary.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
15
REPLACEMENT PARTS
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
DESCRIPTION MPE-36R
Bulb Kit, (10 Each 35w Halogen)
Side Frames, 1 Left And 1 Right
Circuit Board And Remote Control Sensor
Nailing Flange Kit, (4 Each)
Glass Brick Panel
Glass Retaining Bracket Kit: Left, Right, & Top
Grate For Log Assembly
Blower, Heating Element, And Access Panel Assembly
Flame Cylinder Assembly
Flame Motor
Lennox Logo Kit (1 Each)
Log Assembly And Ember Bed
Panel, Bottom, Front
Panel, Flame Cover
Panel, Louver, Upper Front
Panel, Upper Frame Top
Electrical Outlet Cover Plate
Screen Set, Pull
Switch, Toggle (1 Each)
Transformer
Wire Harness
Remote Control, Electric, Rce
CAT. NO. QTY
H1623 1
H1624 1
H1625 1
H1626 1
H1627 1
H1628 1
H1629 1
H1630 1
H1631 1
H1632 1
12L15 1
H1634 1
H1635 1
H1636 1
H1637 1
H1638 1
H1639 1
H1640 1
H1641 1
H1642 1
H1643 1
H1644 1
16
Note: If touch-up paint is needed, use Rustoleum®, Painter’s Touch, Flat Black (part number 1976) available at most stores which sell
aerosol touch-up paint.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
REPLACEMENT PARTS COMPONENT DIAGRAMS
17
8
19
16
6
15
4
14
2
13
POWER
ON/OFF
DISPLAY
Dimmer
EMBERS
HEATER
TEMP. CONTROL
HIGH
MED.
FLAME
LOWER
ON/OFF
Brighter
ON/OFF
LOW
HIGHER
22
20
1
11
6
5
7
12
9
1
18
Front View
3
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
17
ACCESSORY COMPONENTS
Wall Thermostat
Trim Kit
The following items are available for use with
this appliance.
Wall Switch Kit
Cat. No. Model Description
85L87 FWSK Wall Switch Kit, White
Power Cord Kit, 3-Prong, 110V
If a power cord is preferred instead of hardwiring the power supply to the fi replace, this
optional power cord kit is available (110 Volt
installations only).
The wall thermostat kit provides temperature
control for optimum comfort.
Cat. No. Model Description
89L36 WTK Wall Thermostat Kit
Glass Enclosure Kit
These glass enclosure panels are a one-piece
panel, which have a bi-fold “look” as shown
below.
This kit contains trim panels used to fi nish the
gaps between the wallboard or optional mantel
and the fi replace, providing the appliance a
fi nished built-in look.
A
A = 41” (1041 mm)
E
B = 31 7/8” (810 mm)
C = 34 3/8” (872 mm)
D = 36” (914 mm)
E = 2 1/2" (64 mm)
D
B
Cat. No. Model Description
H1538 TK3-36BL 3-pc. Black Trim Kit, MPE-36R
H1539 TK3-36PB 3-pc. Brass Trim Kit, MPE-36R
H1540 TK3-36BS 3-pc. Stainless Trim Kit, MPE-36R
C
Mantel Kit
Decorative mantel surrounds are available to
provide a quick and beautiful "against the wall"
installation in any location without the need for
remodeling or construction.
~83”
Cat. No. Model Description
H1645 PCK Power Cord Kit, 3-Prong, 110V
The manufacturer reserves the right to make changes at any time, without notice, in design,
materials, specifi cations, prices and also to discontinue colors, styles and products.
Consult your local distributor for fi replace code information.
Cat. No. Model Description
H1535 GEP-36BL Glass Enclosure Panel, Black on Bronze
H1536 GEP-36PB Glass Enclosure Panel, Brass on Bronze
H1537 GEP-36BS Glass Enclosure Panel, Stainless on Bronze
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
65 7/8" (1660mm)
49 1/2"
(1256 mm)
Cat. No. Model Description
H1541 SK-36W White Mantel Kit, MPE-36R
H1542 SK-36O Oak Mantel Kit, MPE-36R
33 1/2"
(850 mm)
39 3/8"
(1000 mm)
61 7/8"
(1558 mm)
15 3/4"
(400 mm)
Printed in U.S.A. © LENNOX HEARTH PRODUCTS 2004
P/N 775,172M REV. B 7/2004
18
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
1110 West Taft Avenue
Orange, CA 92865
Loading...
