Lennox MPD-45, MPD-33, MPD-40, MPD-35 User Manual

INSTALLATION INSTRUCTIONS

DIRECT VENT

MPD-33/35/40/45 SERIES

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

In the Commonwealth of Massachusetts:

• Installation must be performed by a licensed plumber or gas fitter. See Table of Contents for location of additional Commonwealth of Massachusetts requirements.

WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

FOR YOUR SAFETY: What to do if you smell gas:

VENTED GAS FIREPLACE HEATERS - DIRECT VENT MODELS P/N 850,014M REV. R 06/2008

MODELS

sledoMtlovilliMsledoMcinortcelE

MNC8233-TDPMMNC5304-DPMENC8233-TDPMENC5304-DPM MPC8233-TDPMB-MNC5304-DPMEPC8233-TDPMEPC5304-DPM MNC8233-RDPMMPC5304-DPMENC8233-RDPMB-ENC5304-DPM MPC8233-RDPMMNC0454-DPMEPC8233-RDPMENC0454-DPM

MNC0353-DPMB-MNC0454-DPMENC0353-DPMEPC0454-DPM

B-MNC0353-DPMMPC0454-DPMEPC0353-DPMB-ENC0454DPM

MPC0353-DPMB-ENC0353-DPM

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE LES INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE BLESSURE OU LA MORT.

• DO NOT light any appliance.

• DO NOT touch any electrical switches.

• DO NOT use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow your gas suppliers instructions.

• If your gas supplier cannot be reached, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

A French manual is available upon request. Order Form Number 850,014CF.

Ce manuel d’installation est disponible en francais, simplement en faire la demande. Numéro de la pièce 850,014CF.

OTL Report No. 116-F-13-4

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser d'essence ni d'autre vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre appareil.

POUR VOTRE SÉCURITÉ: Que faire si vous sentez une odeur de gaz:

• Ne pas tenter d'allumer d'appareil.

• Ne touchez à aucun interrupteur. Ne pas vous servir des téléphones se trouvant dans le batiment où vous vous trouvez.

• Evacuez la piéce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service dos incendies.

L'installation et service doit être exécuté par un qualifié installeur, agence de service ou le fournisseur de gaz.

TABLE OF CONTENTS

Packaging........................................ page 2

Introduction..................................... page 2

General Information......................... page 2

Location .......................................... page 4

Appliance and Vent Clearances....... page 4

Vent Termination Clearances ........... page 5

Typical Installation Sequence .......... page 5

Detailed Installation Steps ............... page 6

Step 1. Framing ............................. page 6

Step 2. Routing Gas Line............... page 6

Fireplace Specifications ................... page 9

Step 3. Install the Venting System. page 9 Requirements for Commonwealth

of Massachusetts .......................... page 9

Vertical Termination Systems .......... page 11

Vent Section Length Chart............... page 11

Vertical Vent Tables and Figures...... page 11

Horizontal Termination System........ page 16

Horizontal Vent Tables and Figures . page 18

Venting Using Flexible Vent Pipe ..... page 21

Step 4. Field Wiring ....................... page 22

Step 5. Optional Blower Kit Wiring page 22

Step 6. Connecting Gas Line.......... page 23

Step 7. Installing Logs................... page 24

Step 8. Checking Unit Operation..... page 24

Step 9. Installing Glass Door ......... page 24

Step 10. Burner Adjustments........... page 25

Step 11. Hood Installation ............... page 25

Finishing Requirements................... page 25

Cold Climate Insulation.................... page 26

Installation Accessories................... page 27

Gas Conversion Kits.................. page 29

This installation manual will help you obtain a safe, efficient, dependable installation for your appliance and vent system.

Please read and understand these

instructions before beginning your

installation.

PACKAGING

The assembled vented gas fireplace heater is packaged with:

1 - one log set located in firebox area. 2 - one envelope containing the literature package which consists of the homeowner's manual, installation instructions, log set supplement and warranty; envelope is located in the control area. 3 - one vent restrictor to be applied as shown on page 10; restrictor is taped to the envelope. 4 - one hood located behind the top panel. 5 - one bag of decorative volcanic stone located in the control area. 6 - one bag of glowing embers located in the control area. 7 - one bag of vermiculite located in control area.

INTRODUCTION

These fireplaces are designed, tested and listed for operation and installation with, and only with,

Secure Vent™ Direct Vent System Components, Secure Flex™ Flexible Vent Components manu-

factured by Security Chimneys International and Z-Flex™ Model GA Venting Systems, listed to UL1777 and ULCS635 manufactured by Flexmaster Canada Limited. These approved vent system components are labeled for identification. DO NOT use any other manufacturer's vent components with these appliances.

Millivolt appliances are designed to operate on natural or propane gas. A millivolt gas control valve with piezo ignition system provides safe, efficient operation. External electrical power is required to operate the optional blower if installed in these units.

Electronic appliances are designed to operate on natural or propane gas. An electronic intermittent pilot ignition system provides safe, efficient operation. External electrical power is required to operate these units.

These appliances comply with National Safety Standards and are tested and listed by OmniTest Laboratories (Report No. 116-F-13-4) to ANSI Z21.88 (in Canada, CSA-2.33), and CAN/ CGA-2.17-M91 in both USA and Canada, as vented gas fireplace heaters.

Electrical wiring must comply with the National Electrical Code ANSI/ NFPA 70 - (latest edition). (In Canada, the current CSA C22-1 Canadian Electrical Code.)

DO NOT ATTEMPT TO ALTER OR MODIFY THE CONSTRUCTION OF THE APPLIANCE OR ITS COMPONENTS. ANY MODIFICATION OR ALTERATION MAY VOID THE WARRANTY, CERTIFICATION AND LISTINGS OF THIS UNIT.

GENERAL INFORMATION

Note: Installation and repair should be per-

formed by a qualified service person. The appliance should be inspected annually by a qualified professional service technician. More frequent inspections and cleanings may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that the control compartment, burners and circulating air passage ways of the appliance be kept clean.

S'assurer que le brùleur et le compartiment des commandes sont propres. Voir les instructions d'installation et d'utilisation qui accompagnent l'appareil.

Provide adequate clearances around air openings and adequate accessibility clearance for service and proper operation. Never obstruct the front openings of the appliance.

These appliances are designed to operate on natural or propane gas only.

TYPICAL INSTALLATION

Both millivolt and electronic versions of these appliances are listed by Omni-Test Laboratories for installation in bedrooms and mobile homes.

Installation must conform to local codes. In the absence of local codes, installation must comply with the current National Fuel Gas Code, ANSI Z223.1. (In Canada, the current CAN-1

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

B149 installation code.)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Figure 1

Millivolt Models -

Millivolt models come standard with the manually-modulated gas valve; flame appearance and heat output can be controlled at the gas valve.

Input of millivolt models is shown in the following table:

htiwsledoMtlovilliM

saGlarutaN

seireSledoM)H/UTB(etartupnI

8233-TDPM 8233-RDPM

0353-DPM000,02ot008,21 5304-DPM000,72ot005,81 0454-DPM000,92ot005,02

saGenaporP

seireSledoM)H/UTB(etartupnI

8233-TDPM 8233-RDPM

0353-DPM000,02ot002,51 5304-DPM000,72ot005,12 0454-DPM000,92ot005,22

evlaVsaGdetaludoM-yllaunaM

005,71ot007,11

htiwsledoMtlovilliM

evlaVsaGdetaludoM-yllaunaM

005,71ot000,41

Electronic Models -

Electronic models have a fixed rate gas valve. Input of electronic models is shown in the following table:

evlaVsaGetaR-dexiFhtiwsledoMcinortcelE

saGenaporPdnalarutaN

seireSledoM)H/UTB(etartupnI

8233-TDPM

8233-RDPM 0353-DPM000,02 5304-DPM000,72 0454-DPM000,92

005,71

All Models -

Maximum manifold pressure is 3.5 in. w.c. (0.87 kPa) for natural gas and 10 in. w.c. (2.49 kPa) for LP/Propane gas.

Installations at Altitudes of 0 to 4500 ft.Units are tested and approved for elevations of 0 to 4500 feet (0 to 1372 meters).

Installations at Altitudes above 4500 ft.For elevations above 4500 feet (1372 meters), install the unit according to the regulations of the local authorities having jurisdiction and, in the USA, the latest edition of the National Fuel Gas Code (ANSI Z223.1) or, in Canada, the latest edition of the CAN1-B149.1 and .2 codes.

Table 1

shows the units' gas orifice size for

the elevations indicated.

The millivolt appliances are manually controlled and feature a spark ignitor (piezo) that allows the appliance's pilot gas to be lit without the use of matches or batteries. This system provides continued service in the event of a power outage.

ledoM

seireS

.taN.porP

8233-TDPM

54#hcni840.0

8233-RDPM 0353-DPM44#55# 5304-DPM73#hcni260.0 0454-DPM63#25#

ezisecifirO

noitavelE

teeF

)sretem(

0054-0

)0731-0(

Table 1

Do not use these appliances if any part has been under water. Immediately call a qualified, professional service technician to inspect the appliance and to replace any parts of the control system and any gas control which have been under water.

Ne pas se servir de cet appareil s'il a été plongé dans l'eau, complètement ou en partie. Appeler un technicien qualifié pour inspecter l'appareil et remplacer toute partie du système de contrôle et toute commande qui ont été plongés dans l'eau.

Cet appareil peut être installé dans un maison préfabriquée (É.-U. seulement) ou mobile déjà installée à demeure si les réglements locaux le permettent.

Cet appareil doit être utilisé uniquement avec les types de gaz indiqués sur la plaque signalétique. Ne pas l'utiliser avec d'autres gaz sauf si un kit de conversion certifié est installé.

Test gage connections are provided on the front of the millivolt gas control valve (identified IN for the inlet and OUT for the manifold side). A 1/8" NPT test gage connection is provided at the inlet and outlet side of the electronic gas control valve.

Minimum inlet gas pressure to these appliances is 5.0 inches water column (1.24 kPa) for natural gas and 11 inches water column (2.74 kPa) for propane for the purpose of input adjustment.

Maximum inlet gas supply pressure to these appliances is 10.5 inches water column (2.61 kPa) for natural gas and 13.0 inches water column (3.23 kPa) for propane.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

These appliances must be isolated from the gas supply piping system (by closing their individual manual shut-off valve) during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).

These appliances and their individual shut-off valves must be disconnected from the gas supply piping system during any pressure testing of that system at pressures in excess of 1/2 psig (3.5 kPa).

These appliances must not be connected to a chimney or flue serving a separate solid fuel burning appliance.

These heater rated appliances are intended for use as supplemental heaters only.

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning are similar to the flu with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Turn off the gas supply to the appliance and have it serviced by a qualified professional, as it may not be operating correctly.

WARNING: FAILURE TO COMPLY WITH THE INSTALLATION AND OPERATING INSTRUCTIONS PROVIDED IN THIS DOCUMENT WILL RESULT IN AN IMPROPERLY INSTALLED AND OPERATING APPLIANCE, VOIDING ITS WARRANTY. ANY CHANGE TO THIS APPLIANCE AND/ OR ITS OPERATING CONTROLS IS DANGEROUS. IMPROPER INSTALLATION OR USE OF THIS APPLIANCE CAN CAUSE SERIOUS INJURY OR DEATH FROM FIRE, BURNS, EXPLOSION OR CARBON MONOXIDE POISONING.

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES. USE CAUTION AROUND THE APPLIANCE TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIALS ON OR NEAR THIS APPLIANCE.

AVERTISSEMENT: SURVEILLER LES ENFANTS. GARDER LES VÊTEMENTS, LES MEUBLES, L'ESSENCE OU AUTRES LIQUIDES À VAPEUR INFLAMMABLES À COTE DE L'APPAREIL.

REAR VENT

APPLICATION

TOP VENT

APPLICATION

TOP VENT

INSTALLATION

RECESSED

REAR VENT

APPLICATION

TOP VENT

APPLICATION

TOP VENT

APPLICATION

Figure 2

LOCATION

In selecting the location, the aesthetic and functional use of the appliance are primary concerns. However, vent system routing to the exterior and access to the fuel supply are also important. Due to high temperatures the

appliance should be located out of traffic and away from furniture and draperies.

Consideration should be given to traffic ways, furniture, draperies, etc., due to elevated surface temperatures (

Figure 2

). The location should also be free of electrical, plumbing or other heating/air conditioning ducting.

These direct vent appliances are uniquely suited for installations requiring a utility shelf positioned directly above the fireplace. Utility shelves like these are commonly used for locating television sets and decorative plants.

To provide for the lowest possible shelf surface use the alternate rear vent outlet with attached venting routed in a way to minimize obstructions to the use of the space above the appliance. Do not insulate the space between the

appliance and the area above it. See

The minimum height from the base of the appliance to the underside of combustible materials used to construct a utility shelf in this fashion is shown in the table in

Figure 3

The appliance should be mounted on a fully supported base extending the full width and depth of the unit. The appliance may be located on or near conventional construction materials. However, if installed on combustible materials, such as carpeting, vinyl tile, etc., a metal or wood barrier covering the entire bottom surface must be used.

APPLIANCE AND VENT CLEARANCES

The appliance is approved with zero clearance to combustible materials on all sides (as detailed in

Table 2 )

When the unit is installed with one side flush with a wall, the wall on the other side of the unit must not extend beyond the front edge of the unit. In addition, when the unit is recessed, the side walls surrounding the unit must not extend beyond the front edge of the unit. See

, with the following exception:

TOP VENT

APPLICATION

TOP VENT

APPLICATION

Figure 3

Figure 2

VERTICAL VENT (Rear Vent Application)

HORIZONTAL VENT (Rear Vent Application without a chase)

Typical Locations

.oNledoM

8233-TDPM 2/144)0311(4/164)5711(A/NA/N

8233-RDPM A/NA/N4/133)548(4/133)548(

0353-DPM 2/164)1811(4/184)6221(34/15)598(34/15)598( 5304-DPM

0454-DPM

Do not insulate the space between the

appliance and the

area above it.

Shelf Height

see table)

(

Shelf Above Fireplace With Rear Venting

2/115)8031(4/135)3531(4/104)2201(4/104)2201(

Figure 3

KCAB

SEDIS

SRECAPSPOT)mm0(.ni0

ROOLF)mm0(.ni0

mottoBmorF

ottinUfo

gnilieC

TNEV*)mm4.52(.ni1

TNORF)sretem9.0(.teeF3

Table 2

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

HORIZONTAL VENT (Rear Vent Application With a chase)

tneVeruceSxelFeruceStneVeruceSxelFeruceS

Shelf Above Fireplace With Top Venting

HORIZONTAL VENT (Top Vent Application)

woblEeergeD09enOhtiw-tneVpoTkcaBehttuOthgiartS-tneVraeR

Do not insulate the space between the

appliance and the

area above it.

Shelf Height

see table)

(

)mm(sehcnithgieHflehS

)mm31(.ni2/1

srecaps)mm0(.ni0

**)mm31(.ni2/1

srecaps)mm0(.ni0

*Note: 3 in. (75 mm) above any horizontal/ inclined vent component.

**Note: See page 5, step 1 for clearance requirements to the nailing flange located at each side of the unit and any screw heads adjacent to it.

)mm6261(.ni46

SECNARAELCECIVRES

VERTICAL VENT (Top Vent Application)

VENT TERMINATION CLEARANCES

These instructions should be used as a guideline and do not supersede local codes in any way. Install vent according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the current standards of CAN/CGA-B149.1 and B149.2 in Canada.

Vertical Vent Termination Clearances

Terminate single vent caps relative to building components according to

TERMINATION HEIGHTS FOR VENTS ABOVE

Horizontal Overhang

2 FT MIN.

Termination

Storm Collar Flashing

Concentric

Vent Pipe

FLAT OR SLOPED ROOFS

Vent

*H = MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHARGE OPENING OF VENT

Figure 4

2 FT MIN.

Lowest

Discharge

Opening

1 inch (25.4 mm) Minimum Clearance to Combustibles

Roof Pitch is X/12

hctiPfooR

Vertical

Wall

)teef(

21/6ottalF0.1

21/7ot21/6revO52.1 21/8ot21/7revO5.1 21/9ot21/8revO0.2

21/01ot21/9revO5.2

21/11ot21/01revO52.3

21/21ot21/11revO0.4

Figure 4

Terminate multiple vent terminations according to the installation codes listed on this

page.

Horizontal Vent Termination Clearances

Combustible Projection

2-1/2 inches or less in length

greater than inches in length

Ventilated

(457 mm)

Figure 5 -

Combustible Projection

2-1/2

Soffit

Unventilated

18"

(305 mm)

Soffit

(76 mm)

12"

Termination Kit

Side Elevation View

Horizontal Vent Termination Clearances

The horizontal vent termination must have a minimum of 3" (76 mm) clearance to any overhead combustible projection of 2-1/2" (64 mm) or less. See ing 2-1/2" (64 mm), see

Figure 5.

For projections exceed-

Figure 5

. All horizontal terminations may be located as close as 6" (152mm) to any (non-combustible and combustible) exterior sidewall. This distance may be decreased to 2" (51mm) for non-combustible exterior sidewalls only, if the SV4.5HT-2 termination is used. For additional vent location restrictions refer to

Figure 8 on page 7

TYPICAL INSTALLATION SEQUENCE

The typical sequence of installation follows, however, each installation is unique resulting in variations to those described. See the page numbers references in the following steps for detailed procedures.

Step 1. (page 6) Construct the appliance

framing. Position the appliance within the framing and secure with nailing brackets.

Step 2. (page 6) Route gas supply line to

appliance location.

All horizontal terminations

may be located as close

as 6” (152mm) to any (non-combustible and

combustible) exterior

sidewall. This distance

may be decreased to

2” (51mm) for noncombustible exterior sidewalls only, if the

SV4.5HT-2 termination

is used.

Termination Kit

Step 3. (page 9) Install the vent system and

exterior termination.

Step 4. (page 22) Field Wiring

a. Millivolt Appliances – Install the operating

control switch (not factory provided) and bring in electrical service line for forced air circulating blower (optional equipment).

b. Electronic Appliances – Field wire and

install operating control switch.

Step 5. (page 22) Install blower kit (optional

equipment).

Step 6. (page 23) Make connection to gas

supply.

Step 7. (page 24) Install the logs, decora-

tive volcanic stone and glowing embers.

Step 8. (page 24)Checkout appliance op-

eration.

Step 9. (page 24) Install glass door frame

assembly.

Step 10. (page 25) Adjust burner to ensure

proper flame appearance.

Step 11. (page 25) Install the hoods.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

DETAILED INSTALLATION STEPS

The appliance is shipped with all gas controls and components installed and pre-wired. Remove the shipping carton, exposing the front glass door. Remove the top panel. Remove

the cardboard from underneath the pressure relief plates. Press in simultaneously the left

and right side of the bottom hinged panel, to release it. Lower the bottom hinged panel. Open the two latches (located under the firebox floor) securing the glass door. Remove the door by tilting it outward at the bottom and lifting it up. Set the door aside protecting it from inadvertent damage.

See Figure 53 on

page 24.

Step 1. FRAMING

Frame these appliances as illustrated in

9 on page 8,

installed in a corner. See

unless the appliance is to be

Figure 10 on page 8

for corner framing installations. All framing details must allow for a minimum clearance to combustible framing members as shown in

Table 2

If the appliance is to be elevated above floor level, a solid continuous platform must be constructed.

Figure

The fireplace should be secured to the side framing members using the unit's nailing flanges - one top and bottom on each side of the fireplace front.

Figure 6.

See

Framing

Note: The nailing flanges, combustible members and screw heads located in areas directly adjacent to the nailing flanges, are EXEMPT from the 1/2” clearance to combustible requirements for the firebox outer wrapper. Combustible framing may be

direct contact with the nailing flanges and may

in be located closer than 1/2” from screw heads and the firebox wrapper in areas adjacent to the nailing flanges. Frame the opening to the exact dimensions specified in the framing details of this manual.

Use 8d nails or their equivalent.

Side

Left Side Front Corner of Fireplace Shown

(Right Side Requirements the Same)

Unit Being Secured By Its Nailing Flanges

To The Framing

Unit Nailing Flange

(No clearance to

combustible

framing is required)

Figure 6

Step 2. ROUTING GAS LINE

Route a 1/2" (13 mm) gas line along the inside of the right side framing as shown in

Figure 7

Gas lines must be routed, constructed and made of materials that are in strict accordance with local codes and regulations. All appliances are factory-equipped with a flexible gas line connector and 1/2 inch shutoff valve. (See

step 6 on page 23).

Right Side

Front Corner of

Fireplace Framing

(76 mm)

6-1/2"

(152 mm)

Figure 7

Headers may be in direct contact with the appliance top spacers but must not be supported by them or notched to fit around them. All construction above the appliance must be self supporting. DO NOT use the appliance for structural support.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

.sgnillewd

EXTERIOR HORIZONTAL VENT TERMINATION CLEARANCE REQUIREMENTS

See Item D in the Text Below.

Exterior Wall

*18”

Horizontal Termination

18”

Inside Corner

ytreporpcilbupno

NOTE: Local Codes Or Regulations May Require Different Clearances.

Center Line

of Termination

Ventilated Soffit

Detail D

= Air Supply Inlet

Inside

Corner Detail

Fixed

Closed

Window

Operable

Window

= Vent Termination

= Area where Termination is not Permitted

NOTE: Location Of The Vent Termination Must Not Interfere With Access To The Electrical Service.

= 9” in U.S.

= 12” in Canada

3 ft.

*noitallatsnInaidanaC**noitallatsnISU

.ynoclabro,kced,hcrop,adnarev,edargevobaecnaraelC=A *)mc03(sehcni21**)mc03(sehcni21

.denepoebyamtahtroodrowodniwotecnaraelC=B secnailpparof)mc51(sehcni6

wodniwdesolcyltnenamrepotecnaraelC=C otdednemmocer)mm503(sehcni21

noitasnednocwodniwtneverp

ehtevobadetacoltiffosdetalitnevotecnaraelclacitreV=D

)mm854(sehcni81)mm854(sehcni81

)mm854(sehcni81foecnatsidlatnozirohanihtiwnoitanimret

noitanimretehtfoenilretnecehtmorf

***tiffosdetalitnevnuotecnaraelC=E )mm503(sehcni21)mm503(sehcni21

renrocedistuootecnaraelC=F muminim)mc7.21(sehcni5muminim)mc7.21(sehcni5

renrocedisniotecnaraelC=G muminim)mc2.51(sehcni6muminim)mc2.51(sehcni6

evobadednetxeenilretnecfoedisnihcaeotecnaraelC=H

ylbmessarotaluger/retem

teltuotnevrotalugerecivresotecnaraelC=I *)mc19(teef3**)mc19(teef3

rognidliubottelniylppusrialacinahcemnonotecnaraelC=J

secnailpparof)mc51(sehcni6

ecnailpparehtoynaottelnirianoitsubmoceht

telniylppusrialacinahcemaotecnaraelC=K *)m38.1(teef6 teef01nihtiwfievoba)mc19(teef3

detacolyaweviddevaproklawedisdevapevobaecnaraelC=L

‡)m31.2(teef7‡)m31.2(teef7

ynoclabrokced,hcrop,adnarevrednuecnaraelC=M ‡*)mc03(sehcni21‡)mc03(sehcni21

)mumixaM(evoclAfohtpeD=N *)m38.1(teef6**)m38.1(teef6

)evoclA(noitanimreTotecnaraelC=O *)mm2.51(sehcni6**)mm2.51(sehcni6

)muminiM(evoclAfohtdiW=P *)mc19(teef3*)mc19(teef3

)evoclA(evobAelbitsubmoCotecnaraelC=Q *)mm754(sehcni81**)mm754(sehcni81

.edoCnoitallatsnIenaporPdnAsaGlanoitaN1.941B-ASCtnerrucehthtiwecnadroccanI*

.sedoCsaGleuFlanoitaN45APFN/1.322ZSISNAtnerucehthtiwecnadroccanI**

.muminim)mc67(sehcni03-lairetamtiffoslynivotderiuqerecnaraelC***

secnailpparof)mc51(sehcni6

)mc03(sehcni21,)Wk3(hutB000,01<

)Wk3(hutB000,01>secnailpparof

)mc32(sehcni9,)Wk3(hutB000,01<

dna)Wk3(hutB000,01>secnailpparof

)mc03(sehcni21,)Wk51(hutB000,05<

**)Wk51(hutB000,05>secnailpparof

otdednemmocer)mm922(sehcni9

noitasnednocwodniwtneverp

teef51fothgiehanihtiw)mc19(teef3

*ylbmessarotaluger/retemehtevoba

teef51fothgiehanihtiw)mc19(teef3

**ylbmessarotaluger/retemehtevoba

secnailpparof)mc51(sehcni6

)mc03(sehcni21,)Wk3(hutB000,01<

)Wk3(hutB000,01>secnailpparof

)mc32(sehcni9,)Wk3(hutB000,01<

dna)Wk3(hutB000,01>secnailpparof

)mc03(sehcni21,)Wk51(hutB000,05<

**)Wk51(hutB000,05>secnailpparof

**yllatnoziroh)m3(

htobsevresdnasgnillewdylimafelgnisowtneewtebdetacolsihcihwyawevirddevaproklawedisaevobayltceridetanimrettonllahstnevA‡

:roolfehthtaenebsedis2muminimanonepoyllufsiynoclabrokced,hcrop,adnarevfidettimrepylnO‡*

Figure 8

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

FIREPLACE FRAMING SPECIFICATIONS

FRAMING WITH SQUARE HORIZONTAL TERMINATION (SV4.5HT-2)

VENT FRAMING TOP VENT WITH ONE 90° ELBOW

VENT FRAMING REAR VENT WITH NO ELBOWS

Inches (mm)

Figure 9

Framing should be constructed

10-1/2

(

267

)

(178)

5-1/8

(130)

(178)

5-1/8

(130)

1/2

E is the required framing depth dimension when the

finish material (drywall) thickness is 1/2 in. (13mm).

of 2x4 or larger lumber.

12-1/8

(308)

12-1/8

(308)

Framing Dimensions

.oNledoMABCDE

.ni4/1334/133-----4/3738/721

8233-TDPM

mm548548-----959723

.ni4/1334/1338/591-----8/721

8233-RDPM

mm548548894-----723

.ni4/1534/15361/11124/39361

0353-DPM

mm5985981550101604

.ni4/1044/10461/11624/34461

5304-DPM

mm220122018767311604

.ni4/1544/10461/11624/34461

0454-DPM

mm941122018767311604

NoteVenting requirements for rear vent applications in corner installations -

- the horizontal vent length “a” to “b,” must not exceed 28 inches (711 mm) MPDT-3328 AND MPDR-3328 Models -

Dimensions A to F occur when one 45 degree elbow

is connected directly to the appliance collar.

MPD-3530, MPD-4035 and MPD-4540 Models Dimensions D and F occur when one 45 degree

elbow is connected directly to the appliance collar.

MPD and MPDR units

MPD and MPDT units

Inches

(millimeters)

.oNledoMABCDEF

.ni8/1332/18461/54361/3714/1425

8233-TDPM

8233-RDPM

mm1482321278734616721

.ni8/1532/1758/50461/3914/3828/16

0353-DPM

mm29816412301784037651

.ni8/10461/31623/113461/39161/11038/77

5304-DPM

mm910145511011784977002

.ni8/1548/36661/516461/39161/3334/39

0454-DPM

mm641168612911784348842

Back wall of chase/enclosure

(including any finishing materials)

7 (178)

Figure 10

Corner Framing with Square Termination (SV4.5HT-2)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

FIREPLACE SPECIFICATIONS

FRAMING

SPACERS

(Top and Sides

and Rear)

Top View

Front View

(Louvered Front Model Shown)

* *See Note 1

*CONCENTRIC FLUE

FLUE - 4-1/2 (114) COMBUSTION AIR - 7-1/2 (190)

* MPD models have a top and rear vent

MPDR models have only a rear vent MPDT models have only a top vent

* *Note 1 - Collars protrude one inch on MPDT-3328 and MPDR-3328 models.

NOTE - Eyebrow hood shown as positioned

3 (76)

PROVIDED JUNCTION BOX

in louvered front model.

GAS INLET (Either Side and bottom)

OPTIONAL ELECTRICAL

INLET KNOCKOUT,

REQUIRING A FIELD

(Either Side)

6 (152)

1-3/8 (35)

Right Side View

1/2 (13)

* * See Note 1

1-5/8 (42)

F**

**Rear vent models only

ELECTRICAL INLET 2-3/4 x 2 (70 x 51) COVER PLATE with KNOCKOUT)

.oNledoMABCDEF**GHJKLMN

.ni8/1338/103712/1728/1338/5912/1124/30161/316323/1183/2231

8233-TDPM

8233-RDPM

mm1485672349961488946453723716721207033 .ni8/1538/123912/1928/15361/11128/742161/72939361

0353-DPM

mm2986183849472981552366130226702267604

5304-DPM

.ni8/1048/173422/1438/10461/11628/792161/514939361 mm910134901667891018769579730226702267604

0454-DPM

.ni8/1048/173422/1938/15461/11628/74361/771939361 mm6411349016300164118766883440226702267604

Figure 11

Step 3. INSTALL THE VENT SYSTEM General Information

These fireplaces are designed, tested and listed for operation and installation with, and only with, Secure Vent™ Direct Vent System Components, Secure Flex™ Flexible Vent Components manufactured by Security Chimneys International and ZFLEX™ Model GA Venting Systems listed to UL1777 and ULCS635 manufactured by Flexmaster Canada Limited.

These approved vent system components are labeled for identification. DO NOT use any other manufacturer's vent components with these appliances. These fireplaces must be vented directly to the outside.

Massachusetts And New York City, NY Requirements

These appliances are approved for installation in the following USA locations listed in the following:

Massachusetts:

These fireplaces are approved for installation in the US state of Massachusetts if the following additional requirements are met-

• Installation and repair must be done by a plumber or gas fitter licensed in the Commonwealth of Massachusetts.

• The flexible gas line connector used shall not exceed 36 inches (92 centimeters) in length.

• The individual manual shut-off must be a Thandle type valve.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Massachusetts Horizontal Vent Requirements

In the Commonwealth of Massachusetts, horizontal terminations installed less than seven (7) feet above the finished grade must comply with the following additional requirements:

• A hard wired carbon monoxide detector with an alarm and battery back-up must be installed on the floor level where the gas fireplace is installed. The carbon monoxide detector must comply with NFPA 720, be ANSI/UL 2034 listed and be ISA certified.

• A metal or plastic identification plate must be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade and be directly in line with the horizontal termination. The sign must read, in print size no less than one-half (1/2) inch in size, GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.

New York City, NY:

These fireplaces are approved for installation in New York City in the US state of New York.

The vent system may not service multiple appliances, and must never be connected to a flue serving a solid fuel burning appliance. The vent pipe is tested to be run inside an enclosing wall (such as a chase). There is no requirement for inspection openings in the enclosing wall at any of the joints in the vent pipe.

Preparing the Appliance Vent Collar on MPD-3530/4035/4540 Series (Combined Top and Rear Vent) Models

Each of the unit's two vent collars are sealed with a cover plate and a seal plate and gasket. The cover, and seal plate and gasket must be removed from the vent collar being used. Refer to

Figure 13

Figure 12

for top vent usage and

for rear, and the following steps to

prepare the appropriate collar for use. From the vent collar being used, remove the four

screws securing the vent seal plate and gasket. Remove and discard the seal plate and gasket.

When the top vent collar is being used, from inside the firebox, loosen the two screws in the keyhole slots of the cover plate and remove the remaining two cover plate securing screws. Remove and discard the cover plate. Reinstall

and securely tighten all four screws. When the rear vent collar is being used, from

inside the firebox, remove the two screws securing the lintel to the rear wall of the firebox, then remove the lintel. Remove the four cover plate securing screws. Remove and discard the cover plate.

Reinstall and securely tighten all four cover plate screws. Re-secure the lintel to the rear wall of the firebox.

WARNING: FAILURE TO REINSTALL AND SECURELY TIGHTEN COVER PLATE SCREWS COULD RESULT IN LEAKAGE OF FLUE PRODUCTS INTO THE LIVING SPACE. VENT COVER PLATE AND VENT SEAL PLATE MUST REMAIN SECURELY INSTALLED ON UNUSED VENT COLLAR. FAILURE TO DO SO COULD RESULT IN LEAKAGE OF FLUE PRODUCTS INTO LIVING SPACE.

ON MPD-3530/4035/4540 SERIES MODELS

(COMBINED TOP AND REAR VENT UNITS)

TOP VENT SEAL & COVER PLATE REMOVAL

WHEN USING THE TOP VENT

(OUTSIDE UNIT)

CABINET TOP

FIREBOX TOP

VENT

COVER PLATE (INSIDE UNIT)

CROSS SECTION

GASKET

TOP VENT

VENT SEAL PLATE

SECURING SCREWS

COVER PLATE SECURING SCREWS

Figure 12

ON MPD-3530/4035/4540 SERIES MODELS

(COMBINED TOP AND REAR VENT UNITS)

REAR VENT SEAL & COVER PLATE REMOVAL

WHEN USING THE REAR VENT

COVER PLATE

SECURING SCREWS

LINTEL

SECURING

SCREWS

LINTEL

(INSIDE UNIT)

REAR VENT

CROSS SECTION

VENT SEAL PLATE

GASKET

SECURING SCREWS

CABINET BACK

(OUTSIDE UNIT)

Figure 13

Installation of Vent Restrictor

A vent restrictor may be needed with this appliance, install vent restrictor (provided) in the appliance top flue outlet as shown in

(MPDT-3328, MPD-3530, MPD-4035 and MPD-

4540)

or rear flue outlet as shown in

(MPD-3530, MPD-4035 and MPD-4540)

held in place by friction, only.

Figure 14

Figure 15

. It is

VENT RESTRICTOR INSTALLATION

(TOP VENT)

A vent restrictor may be needed when

vertically terminating the vent system above

the roof (when using the appliance top vent),

install vent restrictor in the top vent of the

fireplace outlet on MPD-3530/4035/4540

and MPDT-3328 series models.

If needed, install the restrictor orientated as

shown, either from inside or outside the unit,

in the inner fireplace collar.

RESTRICTOR

INNER

FIREPLACE

COLLAR

APPLIANCE TOP

VENT OUTLET

Figure 14

VENT RESTRICTOR INSTALLATION

A vent restrictor may be needed when

horzontally terminating the vent system from

the rear of the appliance (when using the

appliance rear vent), install vent restrictor in

the rear vent of the fireplace outlet on

MPD-3530/4035/4540 series models, in any

installation that has a vertical vent run in

excess of three feet (0.914 meters).

If needed, install the restrictor orientated as

shown, either from inside or outside the unit,

INNER FIREPLACE

COLLAR

(REAR VENT)

in the inner fireplace collar.

APPLIANCE REAR

VENT OUTLET

RESTRICTOR

Figure 15

Select Venting System - Horizontal or Vertical

With the appliance secured in framing, determine vent routing and identify the exterior termination location. The following sections describe vertical (roof) and horizontal (exterior wall) vent applications. Refer to the section relating to your installation. A list of

approved venting components is shown in the two tables on page 27 and the two tables on page 28.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

TRAHCHTGNELNOITCESTNEV

noitceSlanimoN )sehcni(htgneL

621426384

T O T A L

Q T Y

noitceSteN

)sehcni(htgneL

2/1-42/1-012/1-222/1-432/1-64

tneVfothgieHsnoitceStneVforebmuN

sehcnitf

44121100034

0515.21010034

5.451578.21110035

5.061573.31020035

5.271573.41000505

77157.41100506

38152.51010506

6815.51000044

5.091578.51100045

5.691573.61010045

5.502521.71011507

70252.71000606

5.112526.71100607

5.712521.81010607

5.922521.91001607

5.232573.91000055

73257.91100056

5.142521.02000707

6425.02100708 25212010708 46222001708 67232000808

97252.32000066

5.082573.32100809

5.382526.32100067

5.982521.42010067

5.103521.52001067

5.013578.52000909

5135.621009001

5.523521.72000077

0335.72100078 63382010078

54357.8200001001

5.943521.9210001011

27313000088

5.673573.13100089

5.973526.1300011011

5.814578.43000099

32452.531000901

56457.8300000101

VERTICAL TERMINATION SYSTEMS (ROOF)

Figure 16, and Figures 26 through 30 on pages 14 and 15

and their associated Vertical Vent Tables illustrate the various vertical venting configurations that are possible for use with these appliances. Secure Vent pipe applications are shown in these figures; Secure Flex pipe may also be used. A Vertical Vent Table summarizes each system’s minimum and maximum vertical and horizontal length values that can be used to design and install the vent components in a variety of applications.

Both these vertical vent systems terminate through the roof. The minimum vent height above the roof and/or adjacent walls is specified in ANSI Z223.1-(latest edition) (In Canada, the current CAN-1 B149 installation code) by major building codes. Always consult your local codes for specific requirements. A general guide to follow is the Gas Vent Rule (refer to

Figure 4

Vertical (Straight) Installation

Determine the number of straight vent sections required. 4-1/2" (114 mm), 10-1/2" (267 mm), 22-1/2" (572 mm), 34-1/2" (876 mm) and 461/2" (1181 mm) net section lengths are available. Plan the vent lengths so that a joint does not occur at the intersection of ceiling or roof joists. Refer to the Vent Section Length Chart.

Figure 16

SV4.5CGV-1

Termination

40' Max

(12.2 M)

on page 5).

SV4.5FA OR SV4.5FB Flashing AND SV4.5SC STORM COLLAR

1" (25.4 mm) Minimum Clearance to Combustibles

*SV4.5VF Firestop/Spacer

SV4.5L6/12/24/36/48 Vent Sections

*When using Secure Flex,

use Firestop/Spacer

SF4.5VF

lanimoN

htgneLnoitceS

621426384

)sehcni(

noitceSteN

2/1-42/1-012/1-222/1-432/1-64

)sehcni(htgneL

tneVfothgieHsnoitceStneVforebmuN

sehcnitf

5.4573.0100001

957.0200002

5.01578.0010001

5152.1110002

5.91526.1210003

1257.1020002

5.22578.1001001

5.52521.2120003

5.13526.2030003

5.43578.2000101

5.73521.3111003

5.34526.3021003

5457.3002002

5.64578.3000011

5.94521.4102003

1552.4100012

5.55526.4012003

7557.4001102

6652.5022004

5.76526.5003003

9657.5000202 27 6103004

5.37521.6100203

5.97526.6010203

1857.6000112

095.7021014

5.19526.7002013

3957.7000022 69 8101204

5.79521.8100023

2015.8200024

5.301526.8000303

801 9100304

4115.9020024

71157.9105006

5.811578.9110305

6215.01001304

5.031578.01101305

53152.11006006

8315.11000404

5.931526.11000033

5.241578.11100405

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

T O T A L

Q T Y

TRAHCHTGNELNOITCESTNEV

Vertical (Offset) Installation

1 inch (25.4 mm) minimum clearance to combustibles

Support Straps (Plumber’s tape)

8 feet (2.4 m)

Maximum

Blocking

Analyze the vent routing and determine the quantities of vent sections and number of elbows required. Refer to Vertical Vent Figures and Tables on page 14 and 15 to select the type of vertical installation desired. Vent sections are available in net lengths of 4-1/2" (114 mm), 101/2" (267 mm), 22-1/2" (572 mm), 34-1/2" (876 mm) and 46-1/2" (1181 mm). Refer to the Vent Section Length Chart on page 10 for an aid in selecting length combinations. Elbows are available in 90° and 45° configurations. Refer to

Figure 21 on page 13

for the SV4.5E45 and

SV4.5E90 elbow dimensional specifications. Where required, a telescopic vent section

(SV4.5LA) may be used to provide the installer with an option in installing in tight and confined spaces or where the vent run made up of fixed length pieces develops a joint in a undesirable location, or will not build up to the required length. The SV4.5LA Telescopic Vent Section has an effective length of from 1-1/2" (38 mm) to 7-1/2" (191 mm). The SV4.5LA is fitted with a locking inclined channel end (identical to a normal vent section component) and a plain end with 3 pilot holes. Slip the plain end over the locking channel end of a standard SV4.5 vent component the required distance and secure with three screws.

Maintain a minimum 1" (25 mm) clearance to combustible materials for all vertical elements. Clearances for all horizontal elements are 3" (76 mm) on top, 1" (25 mm) on sides and 1" (25 mm) on the bottom.

A. Frame ceiling opening - Use a plumb line

from the ceiling above the appliance to locate center of the vertical run. Cut and/or frame an opening, 10-1/2" x 10-1/2" (267mm x 267mm) inside dimensions, about this center mark

Figure 17

(

10-1/2” Min. (267 mm)

All of the appliances covered in this document are fitted with collars having locking inclined channels. The dimpled end of the vent components fit over the appliance collar to create the positive twist lock connection.

First Vent Component

Align the dimple (four places) with the opening of the locking incline channel on appliance collar. Twist vent component clockwise to engage and seal.

Dimple

Locking Incline Channel

Appliance collar

Vent / Appliance Collar

Connection

Figure 18

Arrow

Align the dimple (four places) of the upper vent section with the opening of the locking incline channel on the lower vent section. Twist vent component clockwise to engage and seal until arrow and dimple align.

Dimple

Locking Incline Channel

Connected

Vent Sections

Vent / Vent Section

Connection

Arrow

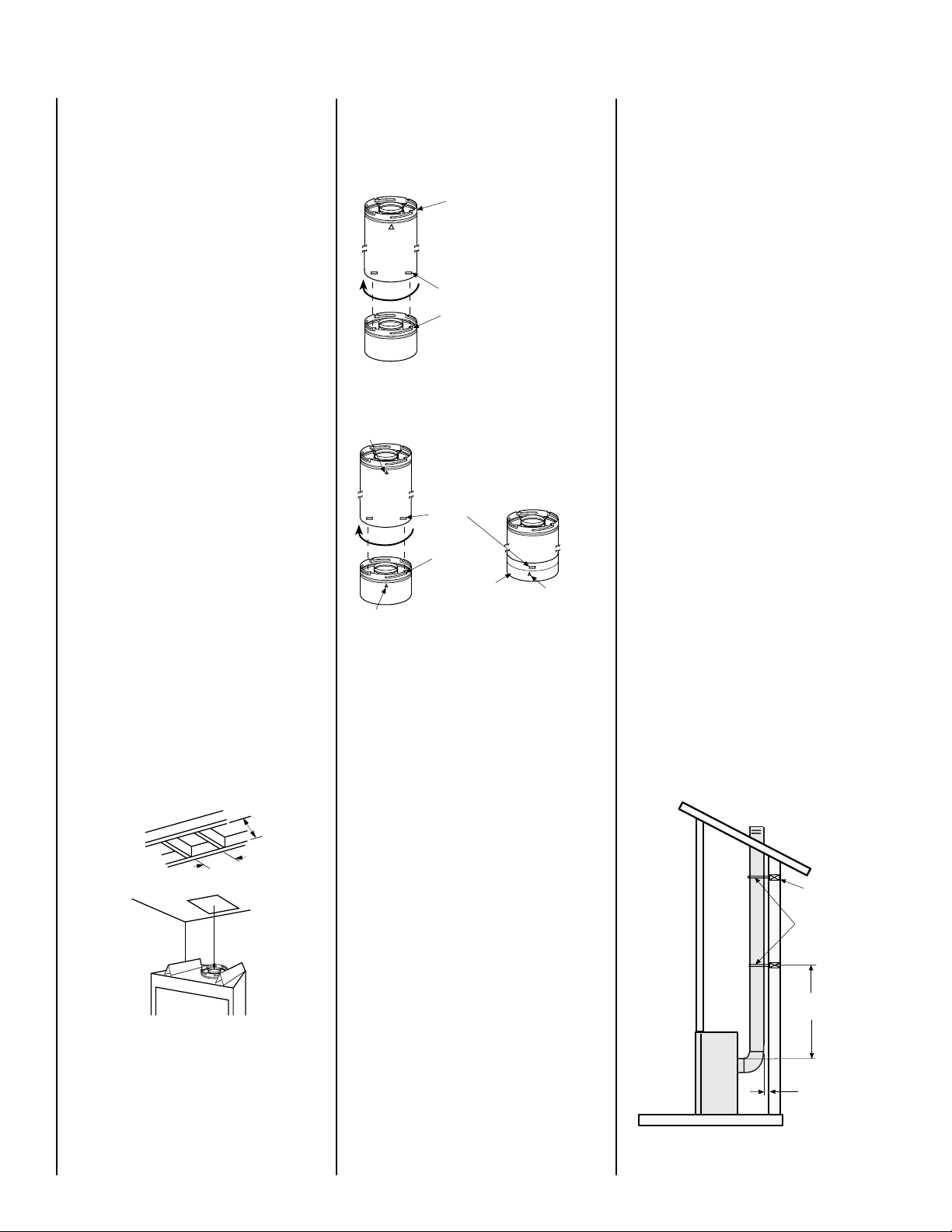

Figure 19

To attach a vent component to the appliance collar, align the dimpled end over the collar, adjusting the radial alignment until the four locking dimples are aligned with the inlet of the four inclined channels on the collar

to Figure 18 )

. Push the vent component against the collar until it fully engages, then twist the component clockwise, running the dimples down and along the incline channels until they seat at the end of the channels. The unitized design of the Secure Vent components will engage and seal both the inner and outer pipe without the need for sealant or screws. If desired, a #6 x 1/2" screw may be used at the joint, but is not required as the pipe will securely lock when twisted.

(refer

To add another vent component to a length of vent run, align the dimpled end over the inclined channel end of the previously installed section, adjusting the radial alignment until the four locking dimples are aligned with the inlets of the four incline channels of the previous section.

Push the vent component against the previous section until it fully engages, then twist the component clockwise running the dimples down and along the incline channels until they seat at the end of the channels. This seating position is

indicated by the alignment of the arrow and dimple as shown in

Figure 19.

D. Install firestop/spacer at ceiling - When

using Secure Vent, use SV4.5VF firestop/spacer at ceiling joists; when using Secure Flex, use SF4.5VF firestop/spacer. If there is living space above the ceiling level, the firestop/spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the firestop/ spacer must be installed on the top side of the joist. Route the vent sections through the framed opening and secure the firestop/spacer with 8d nails or other appropriate fasteners at each corner. Remember to maintain 1" (25 mm)

clearance to combustibles, framing members, and attic or ceiling insulation when running vertical chimney sections. Attic insulation shield (96K94) may be used to obtain the required clearances indicated here. See installation accessories table on page 27.

E. Support the vertical vent run sections -

Note - Proper venting support is very impor-

tant. The weight of the vent must not be supported by the firplace in any degree.

Support the vertical portion of the venting system every 8 feet (2.4m) above the fireplace vent outlet.

Figure 17

B. Attach vent components to appliance Secure Vent SV4.5 direct vent system compo-

nents are unitized concentric pipe components featuring positive twist lock connections (

see Figure 18

Note: An elbow may also be attached to the appliance collar. Attach in the same manner as you would a vent section.

C. Attach vent components to each other - Other vent sections may be added to the previously installed section in accordance with the requirements of the vertical vent figures and tables.

Figure 20

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

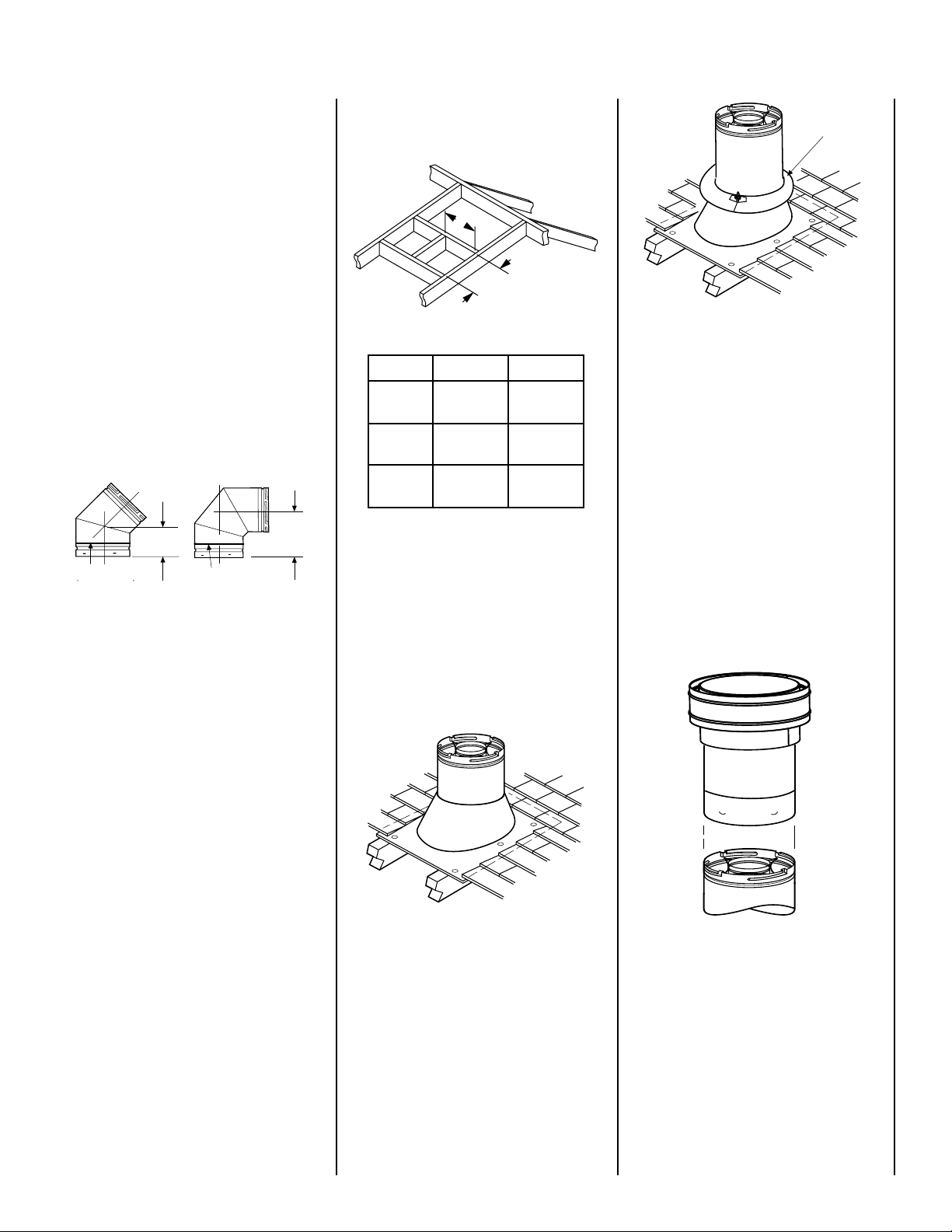

One method of support is by utilizing field

Storm Collar

provided support straps (conventional plumber's tape). Secure the plumber's tape to the framing members with nails or screws. Loop the tape around the vent, securing the ends of the tape to the framing. If desired, sheet metal screws #6 x 1/2" length may be used to secure the support straps to the vent pipe. Refer to

Figure 20.

H. Frame roof opening - Identify location for

vent at the roof. Cut and/or frame opening per Roof Framing Chart and

Figure 22

F. Change vent direction to horizontal/inclined run - At transition from or to a horizon-

tal/inclined run, install the SV4.5E45 and SV4.5E90 elbows in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element. Twist elbow sections in a

clockwise direction only so as to avoid the possiblity of unlocking any of the previously connected vent sections. See

4-13/16"

(122 mm)

Swivel Joint

(360

swivel)

SV4.5E45

(45° Elbow)

Swivel Joint

(360

swivel)

SV4.5E90

(90

Figure 21

8-1/8"

(206 mm)

Elbow)

Figure 21

G. Continue installation of horizontal/inclined sections - Continue with the installation of the

straight vent sections in horizontal/inclined run as described in Step C. Install support straps every 5 ft. (1.52 m) along horizontal/ inclined vent runs using conventional plumber’s tape.

very important that the horizontal/inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated plane, in a direction away from the fireplace of 1/4" rise per foot (20 mm per meter) which is

ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level. Use a carpenter’s level to measure from a constant surface and adjust the support straps as necessary.

It is important to maintain the required clearances to combustibles: 1" (25 mm) at all sides for all vertical runs; and 3" (76 mm) at the top, 1" (25 mm) at sides, and 1" (25 mm) at the bottom for all horizontal/inclined runs.

See page 16, Figure 31.

It is

Framing Dimensions for Roof

Pitch C D 0/12 10-1/2 in. 10-1/2 in.

(267 mm) (267 mm)

6/12 10-1/2 in. 12 in.

(267 mm) (305 mm)

12/12 10-1/2 in. 17-3/4 in.

(267 mm) (451 mm)

Figure 22

I. Install the roof flashing - Extend the vent

sections through the roof structure. Install the roof flashing over the vent section and position such that the vent column rises vertically (use carpenters level) (

Figure 23

). Nail along perimeter to secure flashing or adjust roofing to overlap the flashing edges at top and sides only and trim where necessary. Seal the top and both sides of the flashing with waterproof caulking.

Figure 23

J. Install the storm collar - Install the storm

collar, supplied with the flashing, over the vent/flashing joint. See storm collar screw. Slide collar down until it meets the top of the flashing. Tighten the adjusting screw. Apply non-combustible caulking or mastic around the circumference of the joint to provide a water tight seal.

Figure 24.

Loosen the

Figure 24

K. Install the vertical termination - The final

step involves installation of the SV4.5CGV-1 Vertical Termination. Extend the vent sections to the height as shown in the "Vertical vent termination section" on page 5. The SV4.5CGV-1 Vertical Termination

(Figure 25)

can be installed in the exact same fashion as any other Secure Vent section. Align the termination over the end of the previously installed section, adjusting the radial alignment until the four locking dimples of the termination are aligned with the inlets of the four incline channels of the last vent section. Push the termination down until it fully engages, then twist the termination clockwise running the dimples down and along the incline channels until they are seated at the end of the channels.

Figure 25

If the vent system extends more than 5' (1.5 m) above the roof flashing, stabilizers may be necessary. Additional screws may be used at section joints for added stability. Guide wires may be attached to the joint for additional support on multiple joint configurations.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

VERTICAL VENT FIGURES/TABLES

Note: Secure Vent (rigid vent pipe) is shown

in the figures; Secure Flex (flexible vent pipe) may also be used.

Note: It is very important that the horizontal/ inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated plane, in a direction away from the fireplace of 1/4" rise per foot (20 mm per

meter) which is ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level.

TABLE A

H Maximum V Minimum

(meters)

feet feet

(meters) 2 (0.610) 1 (0.305) 4 (1.219) 2 (0.610) 6 (1.829) 3 (0.914) 8 (2.438) 4 (1.219)

V + H = 40 feet (12.2 meters) Max.

H = 8 feet (2.4 meters) Max.

Ratio V to H ratio is 1:2

Ceiling Firestop/Spacer (SV4.5VF)

Note: SV4.5VF (Secure Vent), SF4.5VF (Secure

Flex) firestop/spacer must be used anytime vent pipe passes through a combustible floor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex)firestop/spacer must be used anytime vent pipe passes through a combustible wall.

Note: Two 45 degree elbows may be used in place of one 90 degree elbow. The same rise to run ratios, as shown in the venting figures for 90 elbows, must be followed if 45 degree elbows are used.

Note: An elbow is acceptable as 1 foot of vertical rise, except where an elbow is the only vertical component in the system. (See Figure 35 on page 18 ).

Ceiling

Firestop/Spacer

(SV4.5VF)

40 feet

(12.2 meters)

Maximum

Example: If 8 feet of (H) horizontal

vent run is needed, then 4 feet minimum (V) vertical vent will be required.

This table shows a 1 (V) to 2 (H) ratio. For every 1 foot of (V) vertical, you are allowed 2 feet of (H) horizontal run, up to a maximum horizontal run of 8 feet.

Figure 27

Rear Vent - ONE 90 DEGREE ELBOW

*Ceiling

Firestop/Spacer

(SV4.5VF)

**Wall

Firestop/Spacer

(SV4.5HF)

When using Secure Flex,

use Firestop/Spacer

SF4.5VF

TABLE B

H Maximum

(meters)

feet

(1.524)

(3.048)

(4.572)

(6.096)

V + V1+ H = 40 feet (12.2 m) Max.

H = 20 feet (6.096 meters) Max.

V Minimum

feet

Elbow Only 1 2 3 4

(meters)

(0.305) (0.610) (0.914) (1.219)

Example: If 20 feet of (H) horizontal

vent run is needed, then 4 feet mini-

mum of (V) vertical vent will be required.

Secure Flex, use

Firestop/Spacer

A Vent Restrictor, as shown in Figure 14 on Page 10, must be used in this application.

Figure 26

- Top Vent - STRAIGHT

When using

SF4.5VF

This table shows a 1 (V) to 5 (H)

*When using Secure Flex,

use Firestop/Spacer

SF4.5VF

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

ratio. For every 1 foot of (V) vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

An elbow is acceptable as 1 foot of vertical rise except where an elbow is the only vertical component in the

Figure 28

Top Vent - TWO 90 DEGREE ELBOWS

system. See Figure 35.

WARNING: UNDER NO CIRCUMSTANCES MAY SEPARATE SECTIONS

OF CONCENTRIC FLEXIBLE VENT PIPE BE JOINED TOGETHER.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

VERTICAL VENT FIGURES/TABLES

(continued)

TABLE C

Maximum H Maximum V Minimum

2 4 6 8

(meters)

(0.610) (1.219) (1.829) (2.438)

(meters)

feet feet feet

(1.524)

(3.048)

(4.572)

(6.096)

V + V1+ H + H1 = 40 feet (12.2 m) Max

H = 8 feet (2.438 meters) Max.

H + H1= 20 feet (6.096 meters) Max.

1 2 3 4

(meters)

(0.305) (0.610) (0.914) (1.219)

Example: If 20 feet of (H) horizontal vent run is needed, then

4 feet minimum of (V) vertical vent will be required. This table shows a 1 (V) to 5 (H) ratio. For every 1 foot of (V)

vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

Figure 29

- Rear Vent - THREE ELBOWS

*Ceiling

Firestop/Spacer

(SV4.5VF)

**Wall

Firestop/Spacer

(SV4.5HF)

*When using Secure Flex,

use Firestop/Spacer

SF4.5VF

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

*Ceiling

Firestop/Spacer

(SV4.5VF)

TABLE D

Maximum

H +

feet feet

5 10 15 20

(meters) (meters)

(1.524) Elbow Only (1.524) (3.048) (4.572) (6.096)

V Minimum

1 2 3 4

(0.305) (0.610) (0.914) (1.219)

H + H1 = 20 feet (6.096 m) Max.

+ H + H1 = 40 ft. (12.192 m) Max.

V + V

Example: If 20 feet of (H) horizontal vent run is needed, then 4 feet

minimum of (V) vertical vent will be required. This table shows a 1 (V) to 5 (H) ratio. For every 1 foot of (V) vertical,

you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

An elbow is acceptable as 1 foot of vertical rise except where an elbow is the only vertical component in the system. See Figure 35.

Figure 30 -

Top Vent - THREE ELBOWS

*Ceiling

SF4.5VF

SF4.5HF

Firestop/Spacer (SV4.5VF)

*When using Secure Flex,

use Firestop/Spacer

**When using Secure

Flex, use Firestop/Spacer

**Wall Firestop/Spacer (SV4.5HF)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

HORIZONTAL (OUTSIDE WALL) TERMINATION SYSTEM

Figure 31, and Figures 34 to 41 on pages 18, 19 and 20

and their associated Horizontal Vent Table illustrate the various horizontal venting configurations that are possible for use with these appliances. Secure Vent pipe applications are shown in these figures; Secure Flex pipe may also be used. A Horizontal Vent Table summarizes each system’s minimum and maximum vertical and horizontal length values that can be used to design and install the vent components in a variety of applications.

Both of these horizontal vent systems terminate through an outside wall. Building Codes limit or prohibit terminating in specific areas. Refer to

Figure 8

on page 7 for location guidelines.

Secure Vent SV4.5 direct vent system compo-

nents are unitized concentric pipe components featuring positive twist lock connection, (

Figure 18

on page 12). All of the appliances covered in this document are fitted with collars having locking inclined channels. The dimpled end of the vent components fit over the appliance collar to create the positive twist lock connection.

A. Plan the vent run - Analyze the vent routing and determine the types and quantities of sections required 4-1/2" (114 mm), 10-1/2" (267 mm), 22-1/2" (572 mm), 34-1/2" (876 mm) and 46-1/2" (1181 mm) net section lengths are available. Plan the vent lengths so that a joint does not occur at the intersection of ceiling or roof joists. Make allowances for elbows as indicated in

Maintain a minimum 1" (25 mm) clearance to combustibles on the vertical sections. Clearances for the horizontal runs are; 3" (76 mm) on top, 1" (25 mm) on sides, and 1" (25 mm) at the bottom.

B. Frame exterior wall opening -

Locate the center of the vent outlet on the exterior wall according to the dimensions shown in page 7. Cut and/or frame an opening, 10-1/2" x 12-1/8" (267 mm x 308mm) inside dimensions, about this center.

C. Frame ceiling opening - If the vertical route is to penetrate a ceiling, use plumb line to locate the center above the appliance. Cut and/or frame an opening, 10-1/2" x 10-1/2" (267 mm x 267 mm) inside dimensions, about this center (refer to

Figure 17

on page 12 ).

D. Attach vent components to appliance - To attach

a vent component to the appliance collar, align the dimpled end over the collar, adjusting the radial alignment until the four locking dimples are aligned with the inlets of the four incline channels on the collar (

refer to Figure 18

on page 12). Push the vent component against the collar until it fully engages, then twist the component clockwise, running the dimples down and along the incline channels until they seat at the end of the channels.

refer to

Figure 18

Figure 9

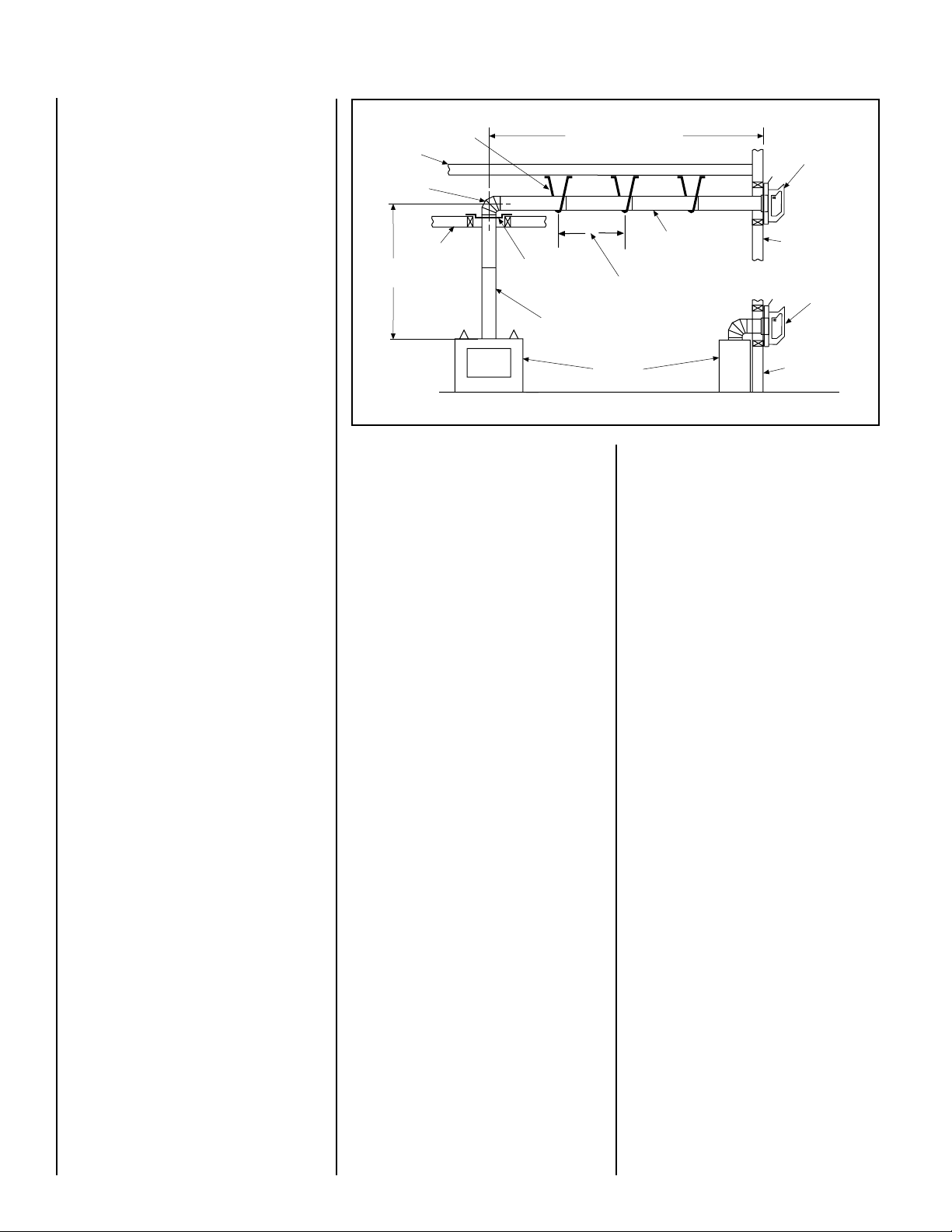

TYPICAL HORIZONTAL VENT INSTALLATION

Building

Support

Framing

SV4.5E90

Elbow

Vertical

Rise

Support

Brackets

Ceiling

Firestop/Spacer

Horizontal / Inclined Run

SV4.5L6/12/24/36/48

Vent Sections

Support Bracket Spacing Every 5 ft (1.52 m)

See Figure 20 on page 12 for vertical vent section support.

Fireplace

SV4.5HT-2 Termination

Exterior Wall

SV4.5HT-2 Termination

Exterior Wall

Figure 31

The unitized design of the Secure Vent components will engage and seal both the inner and outer pipe elements with the same procedure. Sealant and securing screws are not required.

Note: An elbow may also be attached to the appliance collar. Attach in the same manner as you would a vent section.

E. Attach vent components to each other -

Other vent sections may be added to the previously installed section in accordance with the requirements of the vent tables. To add another vent component to a length of vent run, align the

dimpled end of the component over the inclined channel end of the previously installed section, adjusting the radial alignment until the four locking dimples are aligned with the inlets of the four incline channels of the previous section. Push the vent component against the previous section until it fully engages, then twist the component clockwise running the dimples down and along the incline channels until they seat at the end of

the channels.This seating position is indicated by the alignment of the arrow and dimple as shown in

Figure 19 on page 12.

F. Install firestop/spacer at ceiling -

When using Secure Vent, use SV4.5VF firestop/spacer at ceiling joists; when using Secure Flex, use SF4.5VF firestop/spacer. If there is living space above the ceiling level, the firestop/ spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the firestop/ spacer must be installed on the top side of the joist.

Route the vent sections through the framed opening and secure the firestop/spacer with 8d nails or other appropriate fasteners at each corner.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Remember to maintain 1" (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation when running vertical chimney sections.

G. Support the vertical run sections See Section E on page 12. H. Change vent direction - At transition from

or to a horizontal/inclined run, install the SV4.5E45 and SV4.5E90 elbows in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element. Twist elbow

sections in a clockwise direction only so as to avoid the possiblity of unlocking any of the previously connected vent sections. See

ure 21 on page 13

Fig-

I. Continue installation of horizontal/inclined sections - Continue with the installation of the

straight vent sections in horizontal/inclined run as described in Step E. Install support straps every 5 ft. (1.52 m) along horizontal/ inclined vent runs using conventional plumber’s tape. See

Figure 31.

It is very important that

the horizontal/inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated plane, in a direction away from the fireplace of 1/4" rise per foot

(20 mm per meter) which is ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level.

J. Assemble vent run to exterior wall - If not

previously measured, locate the center of the vent at the exterior wall. Prepare an opening as described in Step B. Assemble the vent system to point where the terminus of the last section is located relative to the exterior surface to which the termination is to be attached as shown in

Figure 33 and Table 4 on page 18

If the terminus of the last section is not within this distance, use the telescopic vent section SV4.5LA, as the last vent section. For wall thicknesses greater than that shown in

, refer to

Table 4 on page 18

Figure

. This table lists the additional venting components needed (in addition to the termination and adapter) for a particular range of wall thicknesses.

K. Attach termination adapter - Attach the adapter (adapter - SV4.5RCH - provided with the termination) to the vent section or telescoping vent section), elbow or appliance collar as shown in

Figure 32

in the same manner

as any SV4.5 vent component (refer to Step E). L. Install Firestop/Spacer at exterior wall -

When using the square termination, install SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) Firestop/Spacer over the opening at the exterior side of the framing, long side up, with the 3 inch spacer clearance at the top as shown in

Figure 32

, and nail into place.

(The Firestop/Spacer may also be installed over the opening at the interior side of the framing.)

M. Install the desired termination -

1. Install the square termination (SV4.5HT-2)

- For the last step , from outside the exterior

wall, slide the collars of the termination onto the adapter (the outer over the outer and the inner inside the inner) until the termination seats against the exterior wall surface to which it will be attached. Orient the housing of the termination with the arrow pointed upwards. Secure the termination to the exterior wall. The hori-

zontal termination must not be recessed into the exterior wall or siding by more than the 1-

1/4" (32 mm) as shown in

Figure 33

SVHRK Snorkel Cap –The snorkel cap is de- signed to be fitted into a basement window box. The SVHRK cap is for use with flex vent pipe.

The vertical distance between the inlet and outlet of the cap is 28 in. (711 mm).

IMPORTANT: The vent termination is hot while in operation and for a period of time following use of the fireplace. To prevent contact with hot surfaces, we recommend the use of a Termination Guard. This can be purchased at your local dealer.

To help minimize water infiltration it is

recommended that the Firestop/Spacer

SV4.5RCH

6 to 48 inch Vent Section,

Telescopic vent section,

Elbow or Appliance Collar

12-1/8,"

(308 mm)

Adapter

5-1/8"

(130 mm)

(178)

(SV4.5HF) be installed on the exterior

Note: Centerline of Vent Piping is

NOT the Same as the Centerline of

side of the wall.

10-1/2"

(267mm)

the Framed Opening.

Base of Appliance

See Figure 9 on page 8

for Min. Distance to Base

of Appliance.

Figure 32

*Use silicone caulking to seal the top and sides of the termination, up to the underlayment, stucco, or masonry wall surface.

*Caulk

Stucco

Siding

Venting Connection and Exterior Wall Recessing of the

Interior Surface of

Finished Wall

Maximum Extent of Vent Run Sections Relative to Exterior Surface of Framing

Last Vent Section. Use Telescopic Vent Section (SV4.5LA), If Necessary

SV4.5HT-2

Square Termination

**For thicknesses greater than 10”, see Table 4.

Adapter

SV4.5RCH

Horizontal Square Termination (SV4.5HT-2).

Maximum wall thickness

10 in.(254 mm)**

Exterior Surface of Siding

Exterior Surface of

Framing

(152 to 235 mm)**

1-1/4" Maximum Recess of Square Termination into Exterior Finishing Material

Figure 33

Horizontal terminations have been designed to perform in a wide range of weather conditions. Our terminations meet or exceed industry standards.

When selecting the locations of your horizontal terminations, do not place the termination where water from eaves and adjoining rooflines may create a heavy flow of cascading water onto the termination cap. If the cap must be placed where the possibility of cascading water exists, it is the responsibility of the builder to direct the water away from the termination cap by using gutters or other means.

Take care to carefully follow the installation instructions for the termination, including the use of silicone caulking where required.

SV4.5 HT-2

Termination

(76 mm)

(25.4 mm)

6 in. to 9-1/4 in.

SV4.5HT-2

Square Termination

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

HORIZONTAL VENT FIGURES/TABLES

Note: Secure Vent components (rigid vent

pipe and terminal) are shown in the figures; Secure Flex components (flexible vent pipe and terminal) may also be used.

Note: Two 45 degree elbows may be used in place of one 90 degree elbow. The same rise to run ratios, as shown in the venting figures for 90 elbows,must be followed if 45 degree elbows are used.

meter) which is ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level.

Note: SV4.5VF (Secure Vent), SF4.5VF (Secure Flex) firestop/spacer must be used anytime vent

pipe passes through a combustible floor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) firestop/spacer must be used anytime vent pipe passes through a combustible wall.

Note: An elbow is acceptable as 1 foot of vertical rise, except where an elbow is the only vertical component in the system. (See Figure 35 ).

WARNING: UNDER NO CIRCUMSTANCES MAY SEPARATE SECTIONS OF CONCENTRIC FLEXIBLE VENT PIPE BE JOINED TOGETHER.

H = 28 in. (711 mm) Maximum.

*When using Secure Flex,

use Firestop/Spacer

SF4.5HF

7 in. (178 mm)

See

Table 4

as an aid in venting component selection for

a particular range of exterior wall thicknesses.

Figure 34

- Rear Vent - NO ELBOWS -

Square Horizontal Termination (SV4.5HT-2)

TABLE F

H Maximum V Minimum

feet

(meters)

(0.914)

feet

Elbow Only

(meters)

*Wall Firestop/Spacer

(SV4.5HF)

Square termination (SV4.5HT-2) shown.

4ELBAT

llaWroiretxEsuoiraVrofderiuqeRstnenopmoCgnitneV

)2-TH5.4VS(noitanimreTerauqSehTgnisUnehW,sessenkcihT

deriuqeRstnenopmoCgnitneV

ylnOtiKnoitanimreT

tnev.ni6dnatiKnoitanimreT

4/3-0141ot

)6L5.4VS(noitces

tnev.ni21dnatiKnoitanimreT

)21L5.4VS(noitces

cipocseleTdnatiKnoitanimreT

tnev.ni6dna)AL5.4VS(noitces

)6L5.4VS(noitces

Note: See Figure 33 for wall thickness range reductions when using SV4.5HT-2.

TABLE G

H Maximum

(meters)

feet feet

(1.524)

V Minimum

(meters)

1 (0.305) 10 (3.048) 2 (0.610) 15 (4.572) 3 (0.914) 20 (6.096) 4 (1.219)

V + H = 40 feet (12.2 m) Max.

H = 20 ft. (6.096 m) Max.

Example: If 20 feet of (H)

horizontal vent run is needed, then 4 feet minimum of (V) vertical vent will be required.

This table shows a 1 (V) to 5 (H) ratio. For every 1 foot of (V) vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

ssenkcihTllaWroiretxE

)mm(sehcni

4/1-9ot6

)532ot251(

)653ot372(

02ot4/3-61

)805ot624(

02ot4/3-11

)805ot992(

*When using Secure Flex,

use Firestop/Spacer

SF4.5HF

Table 4

See

as an aid in venting component selection for a

*Wall

Firestop/Spacer

(SV4.5HF)

particular range of exterior wall thicknesses.

Figure 35

Top Vent -

ONE 90 DEGREE ELBOW - ELBOW CONNECTION AT APPLIANCE

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

*When using Secure Flex,

use Firestop/Spacer

SF4.5VF

*When using Secure Flex,

use Firestop/Spacer

SF4.5HF

Square termination

*Wall Firestop/Spacer

(SV4.5HF)

Firestop/Spacer

*Ceiling

(SV4.5VF)

(SV4.5HT-2) shown.

Figure 36

Top Vent - ONE 90 DEGREE ELBOW -

ELBOW CONNECTION NOT DIRECTLY AT APPLIANCE

HORIZONTAL VENT FIGURES/TABLES (continued)

*Wall

Firestop/Spacer

(SV4.5HF)

**Ceiling

Firestop/Spacer

(SV4.5VF)

*When using

Secure Flex, use

Firestop/Spacer

SF4.5HF

**When using

Secure Flex, use

Firestop/Spacer

SF4.5VF

TABLE H

Maximum HMaximum

(meters)

feet

(1.524)

(3.048)

(4.572)

(6.096)

V + H + H1 = 40 feet (12.2 m) Max.

H = 8 feet (2.438 meters) Max.

H + H1= 20 feet (6.096 meters) Max.

(meters)

feet

2 (0.610) 1 (0.305) 4 (1.219) 2 (0.610) 6 (1.829) 3 (0.914) 8 (2.438) 4 (1.219)

V Minimum

(meters)

feet

Example: If 20 feet of (H) horizontal vent run is needed,

then 4 feet minimum of (V) vertical vent will be required. This table shows a 1 (V) to 5 (H) ratio. For every 1 foot of

(V) vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

See

Table 4 on page 18

as an aid in venting component

selection for a particular range of exterior wall thicknesses.

Figure 37

Rear Vent - TWO 90 DEGREE ELBOWS

*When using Secure Flex,

use Firestop/Spacer

SF4.5HF

**Note - When using

Secure Flex, use

Firestop/Spacer SF4.5VF

*Wall Firestop/Spacer

(SV4.5HF)

*Wall Firestop/Spacer

(SV4.5HF)

(Square termination SV4.5HT-2 shown.)

**Ceiling

Firestop/Spacer

(SV4.5VF)

TABLE J

+ H

Maximum

(meters)

feet

(0.914) Elbow Only

(1.524)

(3.048)

(4.572)

(6.096)

V +H+ H1 = 40 feet (12.2 m) Max.

+ H1 = 20 ft. (6.096 m) Max.

V Minimum

(meters)

feet

1 (0.305) 2 (0.610) 3 (0.914) 4 (1.219)

Example: If 20 feet of (H) horizontal vent run is needed, then 4 feet minimum of (V) vertical vent will be required.

This table shows a 1 (V) to 5 (H) ratio. For every 1 foot of (V) vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

An elbow is acceptable as 1 foot of vertical rise except where an elbow is the only vertical component in the system. See Figure 35.

See

Table 4 on page 18

Figure 38

Top Vent - TWO 90 DEGREE ELBOWS

as an aid in venting component selection for a particular range of exterior wall thicknesses.

(Square termination SV4.5HT-2 shown.)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

HORIZONTAL VENT FIGURES/TABLES (continued)

**Wall Firestop/Spacer

(SV4.5HF)

*When using Secure Flex,

use Firestop/Spacer

SF4.5VF

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

*Ceiling

Firestop/Spacer

(SV4.5VF)

TABLE K

+ H1+ H

feet feet feet

Maximum

(meters)

HMaximum

(meters)

V Minimum

(meters)

5 (1.524) 2 (0.610) 1 (0.305) 10 (3.048) 4 (1.219) 2 (0.610) 15

(4.572)

6 (1.829) 3 (0.914)

20 (6.096) 8 (2.438) 4 (1.219)

V + H + H1+ H2 = 40 feet (12.2 m) Max.

H = 8 feet (2.438 meters) Max.

H + H1+ H2= 20 feet (6.096 meters) Max.

Example: If 20 feet of (H) horizontal vent run is

needed, then 4 feet minimum of (V) vertical vent will be required.

This table shows a 1 (V) to 5 (H) ratio. For every 1 foot of (V) vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run

of 20 feet.

See

Table 4 on page 18

Figure 39

- Rear Vent - THREE 90 DEGREE ELBOWS

**Wall Firestop/Spacer

(SV4.5HF)

(Square termination SV4.5HT-2 shown.)

as an aid in venting component selection for a particular range of exterior wall thicknesses.

(Square termination SV4.5HT-2 shown.)

*When using Secure Flex,

use Firestop/Spacer

SF4.5VF

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

*Ceiling

Firestop/Spacer

(SV4.5VF)

Maximum

(meters)

feet

(1.524)

5 10 15 20

(3.048) (4.572) (6.096)

+ H1 = 20 feet (6.096 m) Max.

+ V +H+ H = 40 ft. (12.192 m) Max.

Example: If 20 feet of (H) horizontal vent

run is needed, then 4 feet minimum of (V) vertical vent will be required.

This table shows a 1 (V) to 5 (H) ratio. For

**Wall Firestop/Spacer

(SV4.5HF)

every 1 foot of (V) vertical, you are allowed 5 feet of (H) horizontal run, up to a maximum horizontal run of 20 feet.

TABLE L

V Minimum

(meters)

feet

Elbow Only

1 2 3 4

(0.305) (0.610) (0.914) (1.219)

See

Table 4 on page 18

as an aid in venting component selection for a particular range

of exterior wall thicknesses.

Figure 40

Top Vent - THREE 90 DEGREE ELBOWS

An elbow is acceptable as 1 foot of vertical rise except where an elbow is the only vertical component in the system. See Figure 35.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

VERTICAL OR HORIZONTAL VENTING USING

SECURE FLEX

KITS AND COMPONENTS

Secure Flex venting kits and components may

be used in any venting application where rigid Secure Vent (SV4.5) direct vent components can be used. All restrictions, clearances and allowances that pertain to the rigid piping apply to the flexible venting.

Secure Flex

kits may not be modified; also, under no circumstances may separate sections of flex pipe be joined together. Secure Flex kits may be added to the

end of a vent run made up of rigid Secure Vent (SV4.5) vent sections provided that doing so does not violate any of the venting length, height, routing, horizontal to vertical ratio requirements or clearance considerations detailed in this manual.

Secure Flex kits come with an included adapter that can be fitted to the appliance collar or the inclined channel end of the last Secure Vent (SV4.5) vent section in a rigid system in the exact same fashion as any other Secure Vent section. Align the dimpled end of the adapter over the previously installed section or appliance collar, adjusting the radial alignment until the four locking dimples of the adapter are aligned with the inlets of the four incline channels of the last vent section or collar. Push on the adapter until it fully engages, then twist the adapter clockwise running the dimples down and along the incline channels until they seat at the end of the channels.

Attach the flexible vent to the adapter as follows (see also

Figure 41)

A. Install the Inner Flex Pipe -

1. Install the small gear clamp loosely around

the inner flexible vent pipe, push it back out of the way.

2. Apply a bead of Mill-Pac Black (700

°F)

high temperature sealant - Catalog No. 10K81) to the inner adapter collar, approxi-

mately 1/2 inch from the end.

3. Pull and extend the inner flexible vent pipe.

4. Slide the inner flex pipe over the adapter

collar. Ensure the flexible vent pipe completely engages the adapter collar to a distance of 1³⁄₄ inch from the end, and that it is free from damage or tears.

5. Slide the gear clamp down and tighten it fully to secure the flexible vent to the adapter inner collar approximately ³⁄₄ inch from the end of the flex.

6. Install three screws 120 degrees apart through the flexible vent pipe and into the adapter collar just below the gear clamp to provide additional security to the connection.

NOTE: OUTER PIPE IS PULLED AWAY TO SHOW THE DETAIL OF THE INNER PIPE

Apply ONLY MIL-PAC BLACK HIGH TEMPERATURE SEALANT (Catalog No. 10K81) to the outside surface of both collars of the adapter (be especially careful to fill the grooves of the outer collar to be covered by the flexible pipe) and slide flexible pipe over inner and outer adapter collars.

1-3/4 in. (44 mm)

Flexible Pipe and

Adapter Outer Collar Overlap

Adapter

(SV4.5RF)

Attach Adapter to Appliance

Figure 41

Collar, or Secure Vent Sections

B. Install the Outer Flex Pipe -

1. Install the large gear clamp loosely around

the outer flexible vent pipe, push it back out of the way.

2. Apply a bead of Mill-Pac Black (700

°F) high

temperature sealant - Catalog No. 10K81) to the outer adapter collar; to the grooves of the collar which extend approximately 1 inch from the end and to the flat surface, approximately 13/8 inches from the end.

3. Pull and extend the outer flexible vent pipe.

4. Slide the outer flex pipe over the adapter

collar. Ensure the flexible vent pipe completely engages the adapter collar to a distance of 1³⁄₄ inches from the end, and that it is free from damage or tears.

5. Slide the gear clamp down and tighten it fully to secure the flexible vent to the adapter outer collar approximately 3/4 inch from the end of the flex.

6. Install three screws 120 degrees apart through the flexible vent pipe and into the adapter collar just below the gear clamp to provide additional security to the connection.

C. Route Flex Vent -

Ensure that the flex vent is properly routed to provide the required clearance. Do Not allow the flexible vent to bend in a radius tighter than 5" (127 mm). Refer to

Figure 42

. Support horizontal sections of flex with metal straps at 2 foot (0.61 m) intervals.

FLEX VENT

SECURING SCREW

(3 PLACES EQUIDISTANT

JUST BELOW GEAR CLAMP)

GEAR CLAMPS

1-3/4 in. (44 mm) Flexible Pipe and

Adapter Inner Collar Overlap

SECURING SCREW

(3 PLACES EQUIDISTANT

JUST BELOW GEAR CLAMP)

D. Install Firestop/Spacers at ceilings and walls -

When Secure Flex penetrates a wall or ceiling, a firestop/spacer is required: use the SF4.5 VF firestop/spacer for ceilings and the SF4.5 HF firestop/spacer for walls. See the appropriate sections and figures shown throughout the venting section for their installation requirments.

SF-12 or SF-18 Flexible Vent Section

5" (127 mm)

Radius Minimum

Figure 42

E. Attach Flex Vent to Termination Secure Flex components can be purchased

separately and attached to bulk lengths of Secure Flex flexible tubing cut to size at the job site. Secure the flexible vent to the Secure

Flex terminations in the same manner (see

Figure 41)

Note:

cure Flex Secure Vent

adapter for of

Secure Flex

different circumference than that used with the

Secure Vent

components have an extended length center tube for use in attaching the flexible vent.

as it was attached to the adapter.

Secure Flex

vent must be attached to

terminations only. DO NOT substitute

terminations or the

Secure Flex

components. The collars

Secure Vent

terminations and adapters have a

pipe. Additionally,

Secure Flex

Se-

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 4. FIELD WIRING

Refer to Section A for millivolt appliances and Section B for electronic appliances. The gas valve is set in place and pre-wired at the factory on both models.

A. SIT and Honeywell Millivolt Wiring

(See Figure 43)

1. Select any of the following optional con-

trols: appliance-mounted (rocker switch) or wall-mounted switch, thermostat, or one of the optional remote control kits. If appliancemounted ON/OFF control is selected mount it in the gas valve mounting bracket.

2. If wall-mounted ON/OFF control or thermostat is selected mount it in a convenient location on a wall near the fireplace.

3. Wire the control within the millivolt control circuit using the 15 feet of 2 conductor wire supplied with the unit . Caution: do not connect

the optional wall switch to a 120V power supply.

4. Alternatively, the appliance may be operated

without the use of the controls indicated in step 1, solely by manipulating the gas valve control knob. In order to use this method, twist the free ends of the two conductor wire (located inside the control compartment) together as shown in

Note: The supplied 15 feet of 2 conductor wire has one end of each conductor connected to the gas valve circuit and the other end of each conductor placed loose inside the control compartment.

SIT And Honeywell Millivolt Wiring Diagram

If any of the original wire as supplied must be replaced, it must be replaced with Type AWM105°C – 18 GA. wire.

*OPTIONAL ON/OFF SWITCH,

WALL SWITCH, THERMOSTAT

OR REMOTE CONTROL RECEIVER

*TWIST WIRES “A” AND “B” TOGETHER TO OPERATE UNIT

SOLELY BY MANIPULATING THE GAS VALVE CONTROL KNOB;

OR CONNECT WIRES TO OPTIONAL ON/OFF SWITCH OR WALL

SWITCH OR THERMOSTAT TO OPERATE UNIT.

–

Thermopile

Figure 43

B. Electronic Wiring

(See Figure 45 or 46)

–

Note: The electronic appliance must be con-

nected to the main power supply.

The junction box is located on the right side of the appliance. It contains a factory installed and wired outlet box (duplex receptacle). Also, an optional field-provided junction box with receptacle may be installed at the front of the control compartment on either side of the cabinet.

See Figure 44.

It will be held in place

by a conduit fitting and locknut (field-provided).

See Figure 11 on page 8

for Optional Electrical

Inlet Knockout Location

*Field-Provide

Junction Box

and Duplex

Receptacle

*Narrow (2-1/8 inch Wide)

J-Box Required

Optional J-Box/Outlet Box

(Left Side Shown)

Figure 44

1. Route a 3-wire 120Vac 60Hz 1ph power

supply to the appliance junction box.

2. If the factory-provided outlet/junction box at the right rear of the fireplace is being used, remove the outlet box from the junction box by removing two screws.

3. Connect the power supply wires (including the ground supply wire) as shown in

(If the field-provided J-box/outlet box is being used, all of the outlet box wiring must be field-provided.)

4. Locate and install a low voltage (24V) wallmounted switch or thermostat (both fieldprovided)in the desired location.

5. Connect the low voltage wire, located inside the control compartment, to the wallmounted switch or thermostat.

Note: The supplied 15 feet of 2 conductor wire has one end of each conductor connected to the gas valve circuit and the other end of each conductor placed loose inside the control compartment.

6. Insert the control circuit plug into the unswitched receptacle of the outlet box.

Figures 45 or 46.

Note: The gas valve-mounted ON/OFF switch is

shown in Figure 45 or 46. It is integral with the gas valve and should be set to the ON position.

Step 5. WIRING - OPTIONAL FORCED AIR BLOWER KIT

FBK-100, FBK-200 and FBK250 Kits

(See Figure 45 for FBK-100, FBK-200 and Figure 46 for FBK-250 wiring)

An electrical outlet box (receptacle) is factory provided for the installation of the FBK-100, FBK- 200 and FBK-250 forced air blower kits. (An optional field-provided outletbox/J-Box may also be used. Electrical power must be connected to either of these receptacles in order to operate these blowers. Install the blower kits according to the installation instructions provided with the kits.

IMPORTANT: Ground supply wire must be connected to the green wire attached to the outlet receptacle's green ground screw. See

Figure 45 or 46

. Failure to do so will result in a potential safety hazard. The appliance must be electrically grounded in accordance with local codes or, in the absence of local codes, the National Electrical Code, ANSI/NFPA 70(latest edition). (In Canada, the current CSA C22-1 Canadian Electrical Code.)

WARNING: ELECTRONIC MODELS OF THESE APPLIANCES ARE EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG UTILIZED IN CONNECTING THE ELECTRONIC COMPONENTS TO THE JUNCTION BOX IN THE LOWER COMPARTMENT. THIS GROUNDING PLUG PROVIDES PROTECTION AGAINST SHOCK HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO THE PROPERLY GROUNDED THREE-PRONG RECEPTACLE. DO NOT CUT OR REMOVE THE GROUNDING PRONG FROM THE PLUG.

Note: The tab connecting the receptacles of the outlet box must be broken in FBK-100 and FBK-200 blower kit applications.

Figure 43

7. After wiring is complete, mount the outlet

box to the J-Box.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Electronic Wiring Diagram (Honeywell)

Showing the Blower Wiring for the Optional

FBK-100 and FBK-200 Kits

1. If any of the original wire as supplied must be replaced,

1. it must be replaced with Type AWM 105°C – 18 GA. wire.

2. 120V, 60Hz – Less than 3 amps.

**ON/OFF Switch (Integral

with Gas Valve)

Gas Valve

BLOWER

OPTIONAL APPLIANCE-MOUNTED ON/OFF SWITCH

*Blower speed control switch is provided in FBK200 blower kit.

**Leave the ON/OFF switch, which is integral

with the gas valve, in the ON position.

PILOT

ASSEMBLY

IGNITER

Green

White

Neutral Side of Receptacle

Black

Ta b

Broken Red Hot

Side of Receptacle

Transf. 120 V.

24 V

OPT

Tab Intact

Green Ground Screw

OR OPTIONAL WALL SWITCH

OR OPTIONAL THERMOSTAT

OR OPTIONAL REMOTE RECEIVER

Factory Wired Field Wired

Schematic Representation Only

Junction Box

Optional

Accessory

Switch

lartueN

120 VAC - Black

Figure 45

Electronic Wiring Diagram (Honeywell)

Showing the Blower Wiring for the Optional

FBK-250 Kits

1. If any of the original wire as supplied must be replaced,

1. it must be replaced with Type AWM 105°C – 18 GA. wire.

2. 120V, 60Hz – Less than 3 amps.

*ON/OFF Switch (Integral

with Gas Valve)

Gas Valve

OPT

BLOWER

OPTIONAL APPLIANCE-MOUNTED ON/OFF SWITCH

OR OPTIONAL WALL SWITCH OR OPTIONAL THERMOSTAT

*Leave the ON/OFF switch, which is integral

with the gas valve, in the ON position.

PILOT

ASSEMBLY

IGNITER

Optional FBK-250

Module

Green

White

Black

Tab Intact

Neutral Side of Receptacle

Red Hot

Side of Receptacle

Green Ground Screw

OR OPTIONAL REMOTE RECEIVER

Factory Wired Field Wired

Schematic Representation Only

Ta b Broken

G 120 VAC - Black

Junction Box

Transf. 120 V.

24 V

lartueN

Optional

Accessory

Switch

Figure 46

Gas Valve

neerG-dnuor e

tihW

3/8" Nipple

3/8"

Union

3/8" Close Nipple

Figure 47 -

GAS CONNECTION

Step 6. CONNECTING GAS LINE

Make gas line connections. All codes require a shut-off valve mounted in the supply line.

ure 47

illustrates two methods for connecting the gas supply. The flex-line method is acceptable in the U.S., however, Canadian requirements vary depending on locality. Installation must be in compliance with local codes.

These appliances are equipped with a gas flex line for use (where permitted) in connecting the unit to the gas line. A gas flex line is provided to aid in attaching the direct vent appliance to the gas supply. The gas flex line can only be used where local codes permit. See for flex line description. The flex line is rated for both natural and propane gas. A manual shut off valve is also provided with the flex line.

neerG-dnuor e

tihW

Open the lower panel or louver assembly by

pushing in simultaneously the left and right

side of the panel or louver assembly.

Control Valve

OPENING CONTROL

Figure 48

The gas control valve is located in the lower control compartment. To access the valve open the lower control compartment door

(Figure 48)

COMPARTMENT DOOR

3/8" NPT x 3/8" Flare Fitting

3/8" Flex Tubing

3/8" Shut-Off Valve

Fig-

Figure 47

Lower Control Compartment Door

Gas Flex Line Connector

1/2" x 3/8" Flare

Shut-Off Valve

Gas

1/2" x 3/8"

Stub

Reducer

The millivolt control valve has a 3/8" (10 mm) NPT thread inlet port. The electronic control valve has a 1/2" (13 mm) NPT thread inlet port and is fitted with a 1/2" x 3/8" (13 mm x 10 mm) NPT fitting.

Secure all joints tightly using appropriate tools and sealing compounds (ensure propane resistant compounds are used in propane applications).

Turn on gas supply and test for gas leaks, using a gas leak test solution (also referred to as bubble leak solution).

Note: Using a soapy water solution (50% dish soap, 50% water) is an effective leak test solution but it is not recommended, because the soap residue that is left on the pipes/ fittings can result in corrosion over time. Never

use an open flame to check for leaks. A. Light the appliance (refer to the lighting

instructions label in the control compartment or in the Homeowner's Care and Operation Instructions).

B. Brush all joints and connections with the gas leak test solution to check for leaks. If bubbles are formed, or gas odor is detected, turn the gas control knob to the “OFF” position. Either tighten or refasten the leaking connection and retest as described above.

C. When the gas lines are tested and leak free, be sure to rinse off the leak testing solution.

D. When the gas lines are tested and leak free, observe the individual tongues of flame on the burner. Make sure all ports are open and producing flame evenly across the burner. If any ports are blocked, or partially blocked, clean out the ports.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 7. INSTALLING LOGS, VERMICULITE, DECORATIVE VOLCANIC STONE AND GLOWING EMBERS

The packaged logs are located within the firebox. The vermiculite, decorative volcanic stone and glowing embers are packaged separately in plastic bags located in the control area of the fireplace. Refer to the Log Set Place- ment Guide for detailed placement instructions for the logs, vermiculite, decorative volcanic stone and glowing embers.

Step 8. CHECKING APPLIANCE OPERATION

With gas line installed run initial system checkout before closing up the front of the unit. Follow the pilot lighting instructions provided in the Care and Operation Instructions. For piezo ignitor location see

Figure 49

(Honeywell

millivolt appliances only).

Note: Lighting Instructions are also found on the literature tag attached to the gas valve train.

When first lighting the appliance, it will take a few minutes for the line to purge itself of air. Once purging is complete, the pilot and burner will light and operate as indicated in the instruction manual. Subsequent lightings of the appliance will not require such purging. Inspect the pilot flame (remove logs, if necessary, handling carefully).

SIT Gas Valve

SIT and Honeywell Millivolt Appliance Checkout

The pilot flame should be steady, not lifting or floating. Flame should be blue in color with traces of orange at the outer edge. The top 3/8" (10 mm) at the pilot generator (thermopile) and the top 1/8" min (tip) of the quick drop out thermocouple should be engulfed in the pilot flame. The flame should project 1" (25 mm) beyond the hood at all three ports (

SIT, Figure 51 - Honeywell

SIT MILLIVOLT

Thermocouple

Pilot Nozzels

Hood Ignitor Rod

Thermopile

Figure 50 -

)

3/8" Min (9 mm)

Figure 50

Replace logs if removed for pilot inspection. To light the burner; turn “ON” the remote wall

switch and rotate the gas valve control knob counterclockwise to the “ON” position.

MILLIVOLT HONEYWELL

1/8" Min (3 mm)

Pilot

Nozzels

Thermocouple

Ignitor Rod

Hood

3/8" Min (9 mm)

ELECTRONIC

3/8 To 1/2 Inch

Proper Flame

Adjustment

Pilot Nozzle

(9 mm to 13 mm)

Ground Electrode

Flame Rod

Hot Surface

Igniter

Figure 52

Step 9. INSTALLING THE GLASS DOOR

Retrieve the glass door. Visually inspect the gasket on the backside of the frame. Gasket surface must be clean, free of irregularities and seated firmly. Position the door in front of the firebox opening with the bottom of the door held away from the fireplace the top flange of the door frame over the top of the firebox frame.

Let the bottom of the door frame swing gently in towards the fireplace ensuring that the gasket seats evenly as the door frame draws shut. Fasten the two latches located underneath the firebox floor to the door's vee-flange. Close both the latches securely.

Latch

(Figure 53 )

Top Flange Door Frame

. Hook

Glass Door

Honeywell Gas Valve

Piezo

Ignitor

Sit and Honeywell Millivolt Gas Valve

Showing Piezo Ignitor Location (Each Unit is

Equipped with Only One of these Gas Valves)

Figure 49

Thermopile

Figure 51

Electronic Appliance Checkout

To light the burner, turn ‘ON’ the optional remote wall switch and turn the gas control switch to the “ON” position. Ensure the ignitor lights the pilot. The pilot flame should engulf the flame rod as shown in

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Figure 52

Bottom Vee-flange Door Frame

Figure 53

- INSTALLING THE GLASS DOOR

Latch

Firebox Floor

WARNING: HANDLE THIS GLASS WITH EXTREME CARE! THE GLASS PANEL IS SUSCEPTIBLE TO DAMAGE — DO NOT SCRATCH WHILE HANDLING OR WHILE RE-INSTALLING THE GLASS DOOR FRAME.

WARNING: NEVER OPERATE THE APPLIANCE WITHOUT THE FRONT GLASS ENCLOSURE PANEL IN PLACE AND SECURE.

Step 10. BURNER ADJUSTMENTS Flame Appearance and sooting

Proper flame appearance is a matter of taste. Generally, most people prefer the warm glow of a yellow to orange flame. Appliances operated with air shutter openings that are too large will exhibit flames that are blue and transparent. These weak, blue and transparent flames are termed anemic. If the air shutter opening is too small sooting may develop.

Sooting is indicated by black puffs developing at the tips of very long orange flames. Sooting results in black deposits forming on the logs, appliance inside surfaces and on exterior surfaces adjacent to the vent termination. Sooting is caused by incomplete combustion in the flames and lack of combustion air entering the air shutter opening. To achieve a warm yellow to orange flame with an orange body that does not soot, the shutter opening must be adjusted between these two extremes.

No smoke or soot should be present. Reposition the logs if flames impinge on any of them. If the logs are properly positioned and sooting conditions exist, the air shutter opening on the main burner tube should be adjusted. Normally, the more offsets in the vent system, the greater the need for the air shutter to be opened further.

WARNING: AIR SHUTTER ADJUSTMENT SHOULD ONLY BE PERFORMED BY A QUALIFIED PROFESSIONAL SERVICE TECHNICIAN.

Burner Adjustment

CAUTION: THE ADJUSTMENT ROD AND NEARBY APPLIANCE SURFACES ARE HOT. EXERCISE CAUTION TO AVOID INJURY WHILE ADJUSTING FLAME APPEARANCE.

To adjust the flame, move the adjustment rod (located in the lower control area) up or down to increase or reduce the air shutter opening, respectively. Initially, always position the air

shutter to the factory setting (the minimum air opening position) as shown in This can be done by pulling the adjustment rod all the way down. Allow the burner to

operate for at least 15 minutes. Observe the flame continuously. If it appears weak or sooty as previously described, adjust the air shutter by pushing or pulling on the adjustment rod until the flame appearance is as desired.

Adjusting Set Screw

(Fully Open Position)

Burner Tube

Air Shutter

Adjustment Rod Down

(minimum air

opening position)

8233-TDPM

8233-RDPM

0353-DPM

5304-DPM

0454-DPM

saG

epyT

.taN23/1)8.O(

.porP61/3)67.4(

.taN23/1)8.O(

.porP61/3)67.4(

.taN23/1)8.O(

.porP61/3)67.4(

.taN8/1)2.3(

.porP2/1)31(

.taN8/1)2.3(

.porP2/1)31(

sledoM

Figure 54

Adjustment Rod Up

RIAYROTCAF

RETTUHS

GNITTES

)mm(sehcni

The adjustment rod and associated adjustable air shutter is patented technology. Flame adjustments can be made quickly and accurately to taste without the need of disassembling the appliance and waiting for 30 minutes after each adjustment.

Note: If the flame still appears anemic with the air shutter closed all the way against the stop (usually a result of lengthy vertical runs), turn the appliance off, turn the gas supply off, wait for the parts to cool, remove the glass

door and logs to access the air shutter. The shutter is prevented from actually closing all the way by an adjustment set screw (see Figure 54). Remove this screw using a 1/4 inch nut driver. Reinstall the logs and glass door, turn the gas back on and then restart the appliance. After 30 minutes, reobserve the flame. Adjust the air shutter as previously described.

When satisfied that the appliance operates properly, proceed to finish the installation. Leave the control knob in the ON position and the remote switch OFF. Close the lower control compartment door.

Step 11. HOOD INSTALLATION

All of these appliances must have hoods installed prior to operating.

On all clean face units, slide the hood into the slots on the lower edge of the radiant panel

(Figure 55 ).

On louvered face units, slide the hood into the slots on the lower edge of the cabinet top

(Figure 56 ).

FINISHING REQUIREMENTS Wall Details

Complete finished interior wall. To install the appliance facing flush with the finished wall, position framework to accommodate the thickness of the finished wall

Figure 56 ).

(see Figure 55, and

IMPORTANT: ENSURE THAT THE FRONT GLASS PANEL IS IN PLACE AND SEALED DURING ADJUSTMENT.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Combustible Finished Wall Materials

Combustible

material may touch the appliance top.

Combustible

materials not

allowed below

this point on

the face of the

appliance.

Hood must be installed as shown.

Clean Face Models

Figure 55

Combustible Finished Wall Materials

Combustible

material may touch the appliance top.

This Area Must Remain Clear of Combustible Materials

1" Min

(25 mm) Spacer

Top of Appliance

Radiant panel

Top of Door Frame

This Area Must Remain Clear of Combustible Materials

1" Min

(25 mm)

Spacer

COLD CLIMATE INSULATION

For cold climate installations, seal all cracks around your appliance with noncombustible material and wherever cold air could enter the room. It is especially important to insulate outside chase cavity between studs and under floor on which appliance rests, if floor is above ground level. Gas line holes and other openings should be caulked or stuffed with unfaced fiberglass insulation. In cold climates, if the fireplace is being installed on a cement slab, a sheet of plywood or other raised platform can be placed underneath to prevent conducting cold up into the room. It also helps to sheetrock inside surfaces and tape for maximum air tightness and caulk firestops.

MANTEL CLEARANCES

Inches (mm)

12 (305) MANTEL

10 (254) MANTEL

8 (203) MANTEL

(356)

(305)

(254)

(203)

(152)

NOTE - Hood shown as positioned in louvered front model. The hood position in the flush faced front model is lower than shown.

6 (152) MANTEL

(102)

4 (102) MANTEL

2 (51) MANTEL

TOP OF APPLIANCE

Combustible

materials not

allowed below

this point on

the face of the

appliance.

Hood must be installed as shown.

Louver Face Models

Top of Appliance

Louvers

Top of Door Frame

Figure 56

Combustible materials may project beyond the sides of the fireplace opening as long as they are kept within the shaded areas illustrated in

Figure 57

Combustible Materials Allowed In Shaded Area “Safe Zone”

12"

17"

Side Wall

14"

Top View Of

Fireplace

45°

Side Wall

8-1/4"

Min. Distance To Unprotected Side Wall

Min. Distance To Protected Side Wall

Figure 58

A hearth extension is not required with this appliance. If a hearth extension is used, do not block the lower control compartment door. Any hearth extension used is for appearance only and does not have to conform to standard hearth extension installation requirements.

Note: Combustible wall finish materials and/or surround materials must not be allowed to encroach the area defined by the appliance front face (black sheet metal). Never allow

combustible materials to be positioned in front of or overlapping the appliance front face.

See Figures 55 and 56.

Non-combustible materials, such as surrounds and other appliance trim, may be installed on the appliance front face with these exceptions: they must not cover any portion of the glass or louvers; they may cover any portion of the top radiant panel or the air gaps surrounding the top radiant panel up to the installed hood.

Vertical installation clearances to combustible mantels vary according to the depth of the mantel. See any height above the appliance opening; however, do not allow anything to hang below the hood.

Figure 58

. Mantels constructed of non-combustible materials may be installed at

Figure 57

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

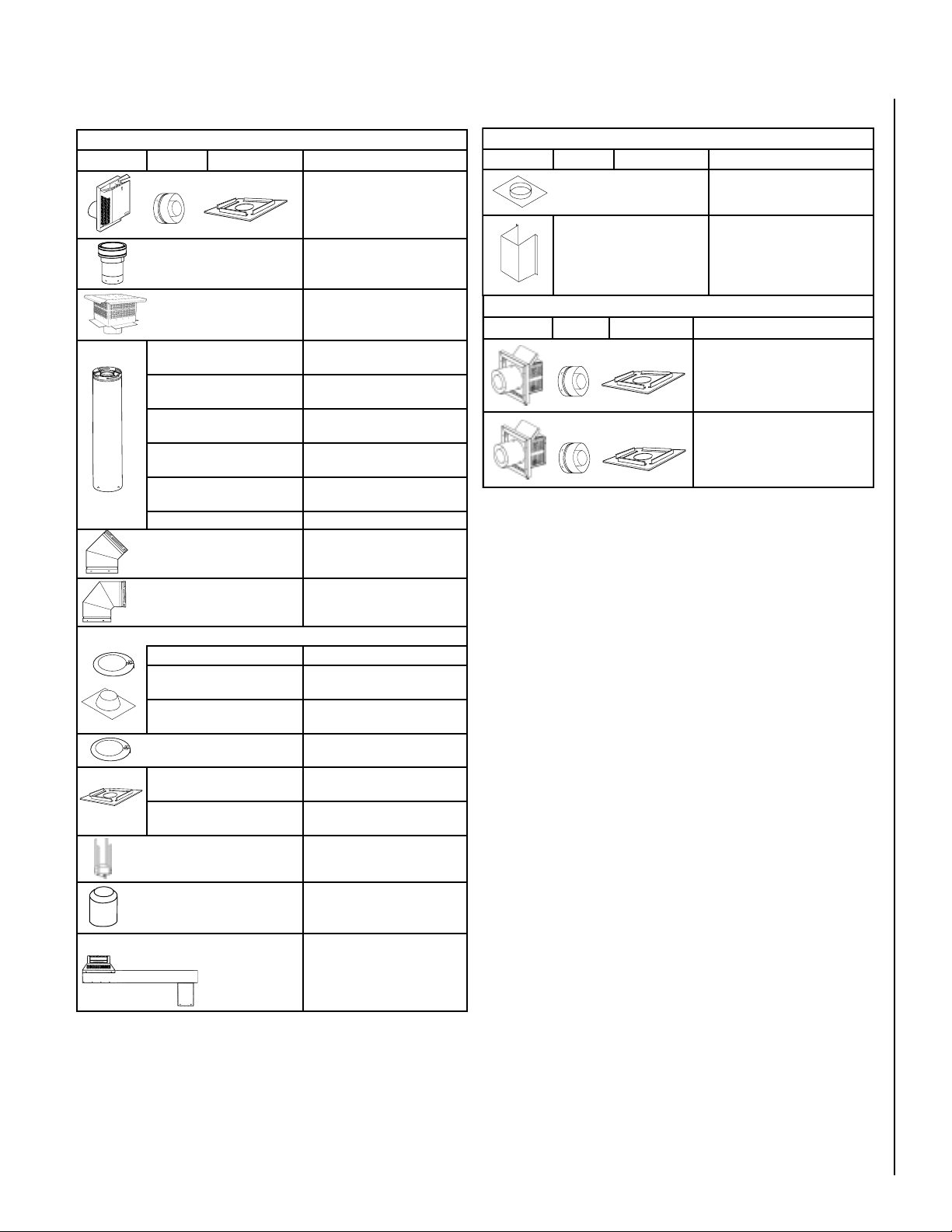

INSTALLATION ACCESSORIES

detsiL tneVeruceS stnenopmoC™

.oN.taC.oNledoMnoitpircseD

8691H2-TH5.4VSerauqSlatnoziroH

2512H1-VGC5.4VSnoitanimreTlacitreV

7864H 6174H 7174H

07L776L5.4VS 17L7721L5.4VS 27L7742L5.4VS 37L7763L5.4VS 47L7784L5.4VS

57L77AL5.4VSnoitceScipocseleT 67L7754E5.4VSwoblEeergeD54

77L7709E5.4VSwoblEeergeD09

STC5.4VS B-STC5.4VS CT-STC5.4VS

detsiL tneVeruceS stnenopmoC™

.oN.taC.oNledoMnoitpircseD

29K69PS5.4VSetalPtroppuS

htiwnoitanimreT

)08K69(recapS/potseriF

)16L47(retpadAdna

erauqS.mreTpoTesahC

.klB,.qS.mreTpoTesahC

noitanimreTattoCarreT

tneV)mm251(hcni6

noitceS

tneV)mm503(hcni21

noitceS

tneV)mm016(hcni42

noitceS

tneV)mm419(hcni63

noitceS

tneV)mm9121(hcni84

noitceS

20L785.4VS

SGH

detsiL tneVeruceS stnenopmoC™

.oN.taC.oNledoMnoitpircseD

01L49SSTH5.4VSerauqSllamSlatnoziroH

72L89LSSTH5.4VSgnoL-erauqSllamSlatnoziroH

drauGnoitanimreT

htiwnoitanimreT

dna)08K69(recapS/potseriF

)16L47(retpadA

htiwnoitanimreT

dna)08K69(recapS/potseriF

)16L47(retpadA

87L77F5.4VSgnihsalFfooRtalF 97L77AF5.4VS

08L77BF5.4VS 18L776CS5.4VSsralloCmrotS

6422HFH5.4VSkcaP01-recapS/potseriF 7422HFV5.4VSkcaP01-recapS/potseriF 39K69US5.4VSpartStroppuS

49K69ASR5.4VSdleihSnoitalusnIcittA

30L99 20L99

63KRH5.4VS 41KRH5.4VS

.rallocmrotsahtiwdegakcapemocsgnihsalfgniwollofehT

.tsujdA21/7ot21/1

gnihsalF

.tsujdA21/21ot21/7

gnihsalF

)xob/sralloc6(

)gnicaps1-1-3(latnoziroH

)gnicaps1-1-1(lacitreV

"63tiKresiRlatnoziroH "41tiKresiRlatnoziroH

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

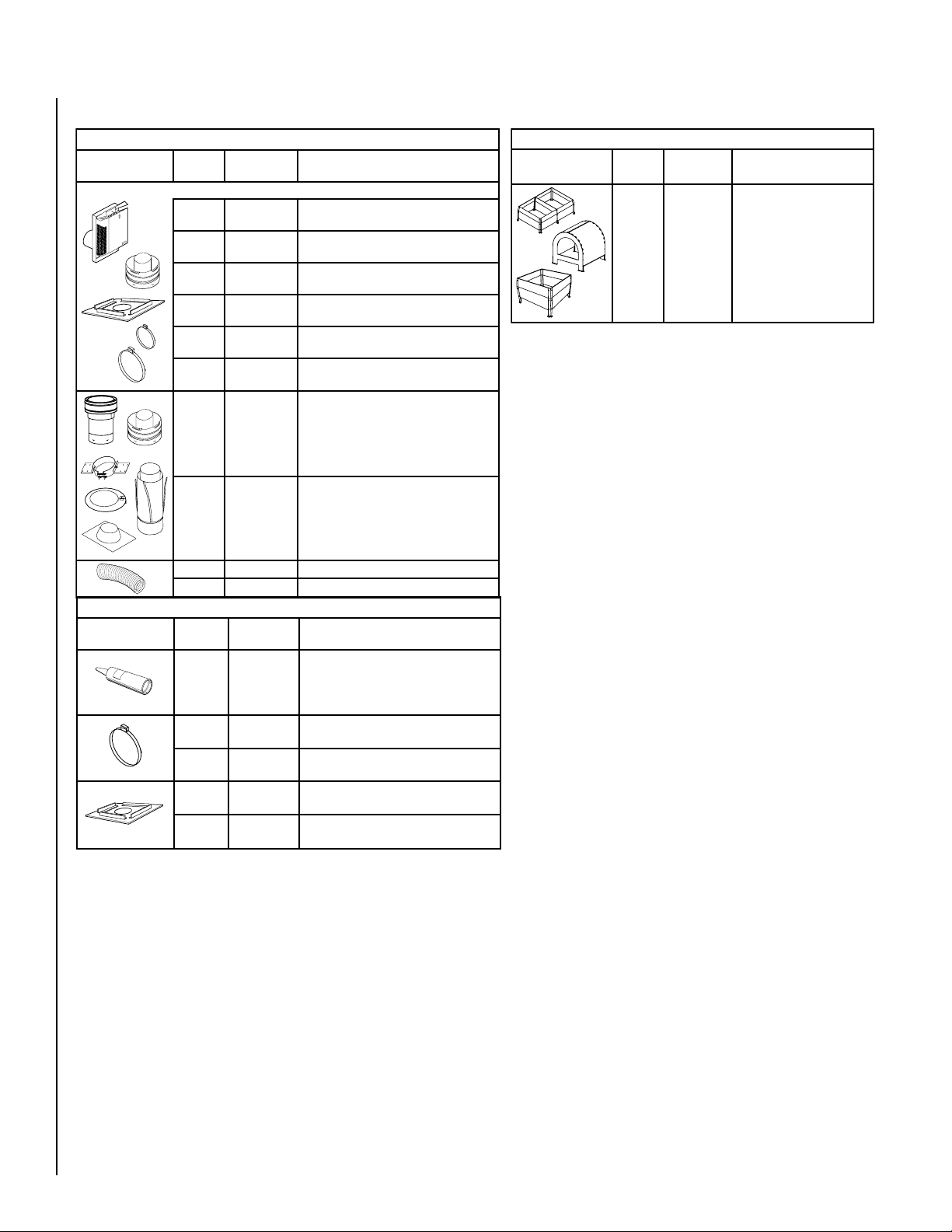

INSTALLATION ACCESSORIES CONTINUED

detsiL xelFeruceS stnenopmoC™

.taC

.oN

ledoM

.oN

9691H2-TH5.4FSnoitanimreTerauqSlatnoziroH 78L7721TIKFS.ni21htiw.mreTerauqSxelF 88L7781TIKFS.ni81htiw.mreTerauqSxelF 98L7742TIKFS.ni42htiw.mreTerauqSxelF

noitpircseD

.retpadaxelfdnaspmalcraeg,recaps/potserifedulcnistiknoitanimretesehT

xelFtuohtiw

xelFdesserpmoc*fomm503(

xelFdesserpmoc*fo)mm754( xelFdesserpmoc*fo)mm016(

detsiLstnenopmoC

.taC .oN

8891H

ledoM

.oN

33-ASTC

noitpircseD

,tiKduorhSpoTesahC

3x3poThcrA

5891H

33-OSTC

,tiKduorhSpoTesahC

3x3poTnepO

7891H

44-OSTC

,tiKduorhSpoTesahC

4x4poTnepO

6891H

64-OSTC

,tiKduorhSpoTesahC

6x4poTnepO

09L7763TIKFS.ni63htiw.mreTerauqSxelF

xelFdesserpmoc*fo)mm419(

19L7784TIKFS.ni84htiw.mreTerauqSxelF

xelFdesserpmoc*fo)mm9121(

47L6503TVFSottalf(xelFrof.nimreTlacitreV

noitces,retpadAxelFhtiw)21/6

ralloctroppusfoor,tnevdigirfo

dnagnihsalffoor,ylbmessa

.rallocmrots

57L6554TVFSot21/6(xelFrof.nimreTlacitreV

noitcesretpadAxelFhtiw)21/21

ralloctroppusfoor,tnevdigirfo

dnagnihsalffoor,ylbmessa

.rallocmrots

01L0681-FSxelFdesserpmoc*)m94.5(.tf81

30K8921-FSxelFdesserpmoc*)m66.3(.tf21

detsiL xelFeruceS stnenopmoC™

.taC

.oN

e S

18K01

04L98

ledoM

.oN

PMFS

noitpircseD

erutarepmeT-iHkcalBcaPliM

tnalaeS

21-PMFS

erutarepmeT-iHkcalBcaPliM

21kcaPkluB-tnalaeS

66L196-4CG-FSrof)mm411(.ni5.4pmalCraeG

)seceip6(xelF

76L196-7CG-FS)mm5.091(.ni5.7pmalCraeG

)seceip6(xelFrof

8422HFH5.4FSkcaP01-recapS/potseriF

)gnicaps1-1-3(latnoziroH

9422HFV5.4FSkcaP01-recapS/potseriF

)gnicaps1-1-1(lacitreV

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

GAS CONVERSION KITS

WARNING: THIS CONVERSION KIT SHALL BE INSTALLED BY A QUALIFIED SERVICE AGENCY IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS AND ALL APPLICABLE CODES AND REQUIREMENTS OF THE AUTHORIZED HAVING JURISDICTION. IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE, EXPLOSION OR PRODUCTION OF CARBON MONOXIDE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. THE INSTALLATION IS NOT PROPER AND COMPLETE UNTIL THE OPERATION OF THE CONVERTED APPLIANCE IS CHECKED AS SPECIFIED IN THE OWNER INSTRUCTIONS SUPPLIED WITH THE KIT. THE QUALIFIED SERVICE AGENCY PERFORMING THIS INSTALLATION ASSUMES RESPONSIBILITY

AVERTISSEMENT: CET ÉQUIPEMENT DE CONVERSION SERA INSTALLÉ PAR UNE AGENCE QUALIFIÉE DE SERVICE CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT ET TOUTES EXIGENCES ET CODES APPLICABLES DE L'AUTORISÉS AVOIR LA JURIDICTION. SI L'INFORMATION DANS CETTE INSTRUCTION N'EST PAS SUIVIE EXACTEMENT, UN FEU, EXPLOSION OU PRODUCTION DE PROTOXYDE DE CARBONE PEUT RÉSULTER LE DOMMAGES CAUSER DE PROPRIÉTÉ, PERTE OU BLESSURE PERSONNELLE DE VIE. L'AGENCE QUALIFIÉE DE SERVICE EST ESPONSABLE DE L'INSTALLATION PROPRE DE CET ÉQUIPMENT. L'INSTALLATION N'EST PAS PROPRE ET COMPLÉTE JUSQU'À L'OPÉRATION DE L'APPAREIL CONVERTI EST CHÉQUE SUIVANT LES CRITÈRES ÉTABLIS DANS LES INSTRUCTIONS DE PROPRIÉTAIRE PROVISIONNÉES AVEC L'ÉQUIPEMENT.

FOR THIS CONVERSION.

In Canada:

THE CONVERSION SHALL BE CARRIED OUT IN ACCORDANCE WITH THE REQUIREMENTS OF THE PROVINCIAL AUTHORITIES HAVING JURISDICTION AND IN ACCORDANCE WITH THE REQUIREMENTS OF THE CAN1-B149.1 AND .2 INSTALLATION CODE.

LA CONVERSION DEVRA ÊTRE EFFECTUÉE CONFORMÉMENT AUX RECOMMANDATIONS DES AUTORITÉS PROVINCIALES AYANT JURIDICTION ET CONFORMÉMENT AUX EXIGENCES DU CODE D'INSTALLATION CAN1-B149.1 ET.2.

Gas conversion kits are available to adapt your appliance from the use of one type of gas to the use of another. These kits contain all the necessary components needed to complete the task including labeling that must be affixed to ensure safe operation.

Kit part numbers are listed here and the following steps detail the conversion procedure.

Step 1. Turn off the gas supply to the appliance. Remove the front glass door/frame from the appliance. Access the control compartment. Step 2. Carefully remove the logs. Exercise care so as not to break the logs.

Step 3. Locate the screws securing the burner assembly to the appliance. Remove the burner assembly and retain the securing screws.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

stiK

sledoMepyTtinU.oNgolataC

8233-TDPM 8233-RDPM

tlovilliM15M62

0353-DPM tlovilliM25M62 5304-DPM tlovilliM35M62 0454-DPM tlovilliM45M62

8233-TDPM 8233-RDPM

cinortcelE95M62

0353-DPM cinortcelE06M62 5304-DPM cinortcelE16M62 0454-DPM cinortcelE26M62

stiK

sledoMepyTtinU.oNgolataC

8233-TDPM 8233-RDPM

tlovillim9002H

0353-DPM tlovillim1102H 5304-DPM tlovillim3102H 0454-DPM tlovillim5102H

-smetsySllewyenoHtlovilliM noisrevnoCsaGenaporPoTlarutaN

-smetsySllewyenoHtlovilliM

Pilot for SIT Millivolt Gas Valve

noisrevnoCsaGlarutaNoTenaporP

stiK

sledoMepyTtinU.oNgolataC

8233-TDPM

8233-RDPM

tlovilliM55M62

0353-DPM tlovilliM65M62 5304-DPM tlovilliM75M62 0454-DPM tlovilliM85M62

8233-TDPM

8233-RDPM

cinortcelE36M62

Pilot Orifice

Figure 60

0353-DPM cinortcelE46M62 5304-DPM cinortcelE56M62 0454-DPM cinortcelE66M62

-smetsySTIStlovilliM noisrevnoCsaGenaporPoTlarutaN

-smetsySTIStlovilliM noisrevnoCsaGlarutaNoTenaporP

stiK

sledoMepyTtinU.oNgolataC

8233-TDPM

8233-RDPM

tlovillim0102H

0353-DPM tlovillim2102H

b. Attach manometer to the manifold side

pressure test fitting and verify manifold pressure reads 3.5 inches water column (0.87 kPa) for natural gas, and 10.0 inches water column (2.49 kPa) for propane gas.

c. Refer to hood assembly to access the hexed pilot orifice. Remove and replace the orifice with the one provided with the kit.

Step 5. Millivolt Appliances -

Figure 60

Honeywell Systems

and remove the pilot

5304-DPM tlovillim4102H

0454-DPM tlovillim6102H

Convert the gas valve as follows

(

see

Figure 61 ):

Step 4. Millivolt Appliances - SIT Systems a. See

Figure 59

with the kit. Using a Torx T20, remove and discard the three pressure regulator mounting screws. Remove the pressure regulator, spring, poppet, diaphragm and bushing. Discard all removed components. Ensure the rubber gasket installed on the back of the replacement pressure regulator is properly positioned and install the new pressure regulator using the new screws supplied with the kit. Tighten screws to 25 In. lb. torque.

and the instructions provided

Pressure Regulator

Figure 59

SIT Millivolt Gas Valve

Remove These Components

Remove the plastic protecting cap. Remove the gas type setting screw by turning it counterclockwise. Obtain the replacement gas type setting screw from the kit and screw it into place (red for propane and blue for natural gas). Tighten the gas type setting screw by turning it clockwise. Replace the plastic protecting cap.

Honeywell Millivolt Gas Valve

Adjusting Knob

Regulator Cap

Conversion screw (blue natural gas; red LP/propane gas)

Figure 61

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

b. Attach manometer to the manifold side pressure test fitting and verify manifold pressure reads 3.5 inches water column (0.87 kPa) for natural gas, and 10.0 inches water column (2.49 kPa) for propane gas.

Convert the pilot orifice as follows (see

Figures 62, 63 and 64 ): Note - Use extra care not to engage the orifice

strip with the 7/16" open end wrench (contacting the orifice strip could cause strip distortion rendering the pilot inoperative). Also avoid wrench contact to any of the other pilot parts.

Use a 7/16" open end wrench and turn the pilot hex fitting counter-clockwise 1/4 turn. (See

Figure 62). Note - The orifice strip tab may be randomly

located on any side of the hex fitting.

d. Push the orifice strip tab all the way against the hex fitting to align the appropriate gas type orifice

(see Figures 63 and 64)

. The type of gas for which the pilot is set, is, the gas type shown on the tab.

e. Retighten, clockwise, the pilot hex fitting until the pilot hood aligns with the thermocouple and thermopile as indicated by the arrows shown in

Figure 62

Pilot for Honeywell Millivolt Gas Valve

(Loosening of Hex Fitting For Orifice Strip Tab Positioning)

Hood

7/16 in. Open End Wrench

Orifice Strip Tab

Take Care Not to Contact the Orifice Strip Tab

with the Hex Fitting Wrench - Distortion of the Tab

May Render the Pilot Inoperative.

Hood Alignment

Pilot for Honeywell Millivolt Gas Valve

Orifice Strip Tab Position Identification

For LP/Propane and Natural Gas

LP/Propane Gas Position -

1/16 in. Hole, LP and

Red Color shown on tab

Natural Gas Position -

NAT shown on tab

NAT

Figure 63

Figure 64

Top View of Hex Fitting and Orifice Strip Tab

Pilot for Honeywell Millivolt Gas Valve

Orifice Strip Tab Positioning

Pilot Hood Position After Loosening Hex Fitting 1/4 Turn

Orifice Strip Tab

Push Tab to Set

Gas Type Usage

Note - Orifice Strip Tab May Be Randomly Located On Any Side Of The Hex Fitting

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 6. Electronic Appliances -

Honeywell Systems

Figure 65

See

and the instructions provided with the kit. Remove the slotted cap screw, o-ring, pressure-regulating adjusting screw and spring. Retain all parts for possible later use. Install new components from the kit. Black cap and red spring for propane gas units. Silver cap and stainless steel spring for natural gas units. Before installing the cap, attach manometer to the manifold side pressure test fitting and adjust screw until pressure reads 3.5 inches water column (0.87 kPa) for natural gas, and 10.0 inches water column (2.49 kPa) for propane gas.

CONTROL

G N I

T E

Manifold Pressure Test Port

Slotted Cap

OFFION

Inlet Pressure Test Port

I S P

Adjusting Screw

Spring

Figure 65

See

Figure 66

and replace the pilot orifice as follows: Remove the ignitor assembly retainer clip, and carefully remove the ignitor assembly.

Exercise extreme care to prevent damage to or breakage of the ignitor assembly. Remove

the screw securing the pilot assembly to its mounting bracket. Back off the flare nut at the end of the pilot gas line to free the pilot assembly from the gas line. Remove the pilot orifice and replace it with the one provided with the conversion kit. Reinstall the pilot assembly by reversing the steps detailed here.

When reinstalling the ignitor assembly, use extreme care to prevent damage and breakage. Do not apply any leverage to the ignitor assembly while restoring the retainer clip to its original position.

All Models Step 8. Remove the burner orifice from the

manifold and replace it with the one provided with the kit. See the following table for orifice sizes for natural and propane mod-

. Figure 67

els

illustrated the orifice.

ledoM

seireS

.taN.porP

8233-TDPM

54#hcni840.0

8233-RDPM 0353-DPM44#55# 5304-DPM73#hcni260.0 0454-DPM63#25#

ezisecifirO

noitavelE

teeF

)sretem(

0054-0

)0731-0(

Figure 67

Step 9. Reassemble all removed components

by reversing the procedures outlined in the preceding steps. Use pipe joint compound or Teflon tape on all pipe fittings before installing (ensure propane resistant compounds are used in propane applications, do not use pipe joint compounds on flare fittings).

Step 10.Attach the conversion label provided in the conversion kit to the rating plate on the appliance.

Pilot Assembly

Pilot

Orifice

Ignitor Assembly

Retaining

Flare Nut

Clip

Note: If the ignitor is damaged, a replacement kit is available - order Catalog Number 87L54.

Figure 66

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.

Step 11. Turn on gas supply and test for gas leaks.

P/N 850,014M REV. R 06/2008

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
