INSTALLATION AND OPERATION MANUAL

Free-Standing

Pellet Stove

Save These Instructions

For Future Reference

P/N 775,196M, Rev. NC, 06/2008

Report No. 3105656MID

Pellet Stove

Model Montage™ 32FS

A French manual is available upon request. Order P/N 775,196CF.

Ce manuel d’installation est disponible en francais, simplement en faire la demande. Numéro de la pièce

775,196CF.

These appliances must be properly installed and operated in order to prevent the possibility

of a house re. Please read this entire manual before installation and use of this pellet

fuel-burning room heater. Failure to follow these instructions could result in property

damage, bodily injury or even death. Contact your local building or re ofcials

to obtain a permit and information on any installation requirements and

inspection requirements in your area.

WARNINGS

• Hot! Do not touch! The glass and surfaces of this appliance will be hot during operation and will retain heat for a while after shutting off the appliance. Severe burns may result.

• Carefully supervise children in the same room as appliance.

• Lennox™ pellet-burning appliances are designed for use as a supplemental heater. They are not intended for continuous use as a primary heat source.

IMPORTANT SAFETY AND WARNIING INFORMATION

READ THIS MANUAL IN ITS ENTIRETY AND UNDERSTAND THESE RULES TO FOLLOW FOR SAFETY

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult a qualiﬁed installer or service agency.

WARNING

Do not attempt to alter or modify the construction of the appliance or its components. Any modiﬁcation or alteration may void the warranty, certiﬁcation and listings of this unit.

1. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

2. Do not connect this appliance to air ducts or any air distribution system.

3. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.

4. Do not use class B venting intended for gas appliances as a chimney or connector pipe on a pellet-ﬁred appliance.

5. The minimum clearances must be maintained for all combustible surfaces and materials including; furniture, carpet, drapes, clothing, wood, papers, etc. Do not store combustibles within this clearance space (see Clearances on Page 5).

6. INSTALLATION DISCLAIMER - It is imperative that the exhaust venting system be installed correctly and sealed gas-tight (not allowing exhaust to leak). Follow the vent manufacturer's instructions for proper installation. Since Lennox Hearth Products has no control over the installation of your stove, Lennox Hearth Products grants no warranty, implied or stated for the installation or maintenance of your stove, and assumes no responsibility for any consequential damage(s).

7. Burning any kind of fuel consumes oxygen. If outside air is not ducted to the appliance, ensure that there is an adequate source of fresh air available to the room where the appliance is installed.

8. The appliance will not operate using natural draft, nor without a power source for the blower and fuel feeding systems.

9. Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter ﬂuid, or similar liquids to start or “freshen up” a ﬁre in this heater. Keep all such liquids well away from the heater while it is in use.

10. The authority having jurisdiction such as municipal building department, ﬁre department, ﬁre prevention bureau, etc. should be consulted before installation to determine the need to obtain a permit.

11. APPROVED FUEL: This appliance is designed speciﬁcally for use only with pelletized wood fuels only. This appliance is designed and approved for the burning of wood residue pellets with up to 3% ash content. This appliance is NOT approved to burn cardboard, nut hulls, cherry pits, corn, etc.

regardless if it is in pellet form. Failure to comply with this restriction will void all warranties and the safety listing of the stove. Consult with your Lennox Hearth Products dealer for more information on approved pellet fuels.

12. CONTINUOUS OPERATION: When operated correctly, this appliance cannot be overﬁred. Continuous operation at a maximum burn can, however, shorten the life of the electrical components (blowers, motors, and electronic controls), and is not recommended. Typical approved operation would include running at the low to mid range setting with occasional running on the maximum setting during the coldest periods of the winter. DO NOT OVER-FIRE THIS STOVE. Follow all instructions regarding the proper use of this stove.

13.CAUTION: NEVER PUT FINGERS NEAR AUGER. This appliance is equipped with a hopper lid switch, which is designed to stop the auger when the hopper lid is opened. NEVER DISCONNECT

OR BYPASSED THIS SWITCH FOR ANY REASON. Pellet fuel is fed

to the UltraGrate™ by a screw auger. This auger is driven by a high torque motor. The auger is capable of doing serious harm to ﬁngers. Keep pellets in the hopper at all times and keep ﬁngers away from auger. The auger can start and stop automatically at any time while the stove is running.

14. CAUTION: HOT WHILE IN OPERATION. An appliance hot enough to warm your home can severely burn anyone touching it. Keep children, clothing and furniture away. Contact may cause skin burns. Do not let children touch the appliance. Train them to stay a safe distance from the appliance.

15. FLY ASH BUILD-UP: For all wood pellet fuel-burning heaters, the combustion gases will contain small particles of ﬂy-ash. This will vary due to the ash content of the fuel being burned. Over time, the ﬂy-ash will collect in the exhaust venting system and restrict the ﬂow of the ﬂue gases. The exhaust venting system should be inspected regularly and cleaned as necessary.

16. SOOT FORMATION: Incomplete combustion, such as occurs during startup, shutdown, or incorrect operation of the room heater will lead to some soot formation which will collect in the exhaust venting system. A precautionary inspection on a regular basis is advisable to determine the necessity of cleaning. The exhaust venting system should be inspected regularly and cleaned as necessary.

17. DISPOSAL OF ASHES: Ashes should be placed in a metal container with a tight-ﬁtting lid. The closed container of ashes should be placed on a noncombustible ﬂoor or on the ground, well away from all combustible materials, pending ﬁnal disposal. If the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have been thoroughly cooled.

18. The instructions must be strictly adhered to. Do not use makeshift methods or compromise in the installation.

19. Do not abuse the door glass by striking, slamming or similar trauma. Do not operate the stove with the glass removed, cracked or broken.

20. SAVE THESE INSTRUCTIONS.

21. See the safety / listing label on the appliance hopper lid.

CONGRATULATIONS!

TESTING / LISTING

When you purchased your new pellet stove, you joined the ranks of thousands of individuals whose answer to their home heating needs, aesthetics, efﬁciency and our environment. We extend our continued support to help you achieve the maximum beneﬁt and enjoyment available from your new pellet stove.

It is our goal at Lennox Hearth Products to provide you, our valued customer, with an appliance that will ensure you years of trouble-free warmth and pleasure.

Thank you for selecting a Lennox® stove as the answer to your home heating needs.

TABLE OF CONTENTS

Important Safety Information . . . . . . . . . . . . . . . . . . . . Page 2

Packaging List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Testing / Listing, EPA . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Using this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

Planning Your Installation . . . . . . . . . . . . . . . . . . . . . . . Page 3

Selecting a Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

Floor Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4

Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5

Installation Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

Manufactured Home Installation . . . . . . . . . . . . . . . . . . Page 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

Venting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10

Care and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26

Component Deﬁnitions . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28

Replacement Parts List & Diagrams . . . . . . . . . . . . . . . Page 30

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 33

Safety / Listing Label . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 35

Product Reference Information Page 36

This installation and operation manual will help you obtain a safe, efﬁcient, dependable installation for your appliance and vent system.

PLEASE READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE BEGINNING YOUR INSTALLATION

Packaging List

The assembled pellet stove model Montage™ 32FS is packaged with an accessory package in the hopper and a grate scraper tool secured to the pallet:

One - Installation And Operation Manual One - Warranty One - Power Cord One - Grate Scraper Tool One - Wall Thermostat w/ 20 Foot Roll Of Wire One - 5/32" Allen Wrench One - Cleaning Brush

Listing: The listing laboratory is ITS (Intertek Testing Services) and the listing mark is Warnock Hersey. The report number is 3105656MID for model Montage 32FS pellet stove.

Testing: In accordance with the speciﬁcations and procedures

• Listed and tested to UL 1482/ULC S627 and ASTM E 1509 for solid fuel room heaters.

•

The safety/listing label is located on an inside hopper surface of the pellet stove. Please read this safety label carefully. It contains important information about installation and operation of this appliance.

•

This appliance is tested and listed for residential installation according to current national and local building codes as:

• A Free-Standing Room Heater

• A Manufactured Home Heater

EPA (Environmental Protection Agency)

Status: EPA Certiﬁed - This appliance has been tested to rigorous

emissions standards, and has been certiﬁed by the Environmental Protection Agency.

USING THIS MANUAL

Please read and carefully follow all of the instructions found in this manual. Please pay special attention to the safety instructions provided in this manual.

PRODUCT IS SUBJECT TO CHANGE WITHOUT NOTICE

PLANNING YOUR INSTALLATION

Questions To Ask Local Building Ofﬁcial

A correct installation is critical and imperative for reducing ﬁre hazards and perilous conditions that can arise when wood pellet burning appliances are improperly installed. The installer must follow all of the manufacturers’ instructions.

WARNING

Check all local building and safety codes before installation. The installation instructions and appropriate code requirements must be followed exactly and without compromise. Alterations to the stove are not allowed. Do not connect the stove to a chimney system serving another stove, appliance, or any air distribution duct. Failure to follow these instructions will void the manufacturers warranty.

The installation of this appliance must conform to local codes and applicable state and federal requirements. Familiarity with these requirements before installation is essential. Important considerations to discuss with local building ofﬁcials include:

Applicable codes (i.e. Uniform Mechanical Code, State or Regional

1. Codes).

Electrical codes:

In USA, NEC, ANSI/NFPA 70 – Latest Edition In Canada, CSA C22.1 – Latest Edition

Power Supply Requirements

These requirements must be met unless otherwise speciﬁed by state or local authorities.

Power Cord - The power cord must be plugged into a standard, 120

• Volt, 60 Hz grounded electrical outlet with proper ground and polarity. The power cord must be routed to avoid contact with any of the hot or sharp exterior surface areas of the stove. Power Supply - 575 Watts, and will peak up to 782 Watts during the

• 30 minute cycle when igniter is operating. Manufactured Home Installations - When installed into a manufactured

• home, the appliance must be electrically grounded to the steel chassis (see Page 7, Manufactured Home Requirements).

WARNING

Electrical grounding instructions: This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. Do not route power cord under or in front of appliance.

2. Local amendments

3. Is a permit required - cost. You may wish to contact your insurance company to ask if they require this.

4. If outside combustion air is required

5. Rooms where the installation is not allowed

Surge Protectors

A surge protector is recommended to ensure the stove’s electrical components are not damaged due to a surge in the electrical supply. Only high quality protectors should be used - cheap ones do not provide the protection needed.

Smoke Detectors

Since there are always several potential sources of ﬁre in any home, we recommend installing smoke detectors. If possible, install the smoke detector in a hallway adjacent to the room (to reduce the possibility of occasional false activation from the heat produced by these appliances). If your local code requires a smoke detector be installed within the same room, you must follow the requirements of your local code. Check with your local building department for requirements in your area.

Installation / Maintenance Standards

National Fire Protection Association – The primary NFPA standard that refers to installation and maintenance of pellet stoves and venting is NFPA 211 – Latest Edition: Chimneys, Fireplaces, Vents, and Solid Fuel appliances.

SELECTING A LOCATION

CAUTION

These appliances are very heavy. The use of a heavy duty escalara (stair step hand truck) is recommended for lifting the appliance.

NEGATIVE PRESSURE WARNING

This appliance is not designed to be operated in a negative pressure. Very airtight homes with large kitchen exhaust fans, or homes with furnace cold air returns located in close proximity to the stove may create negative pressure in the same room as the heating appliance. This can create dangerous condition, drawing combustion by-products into the home. Be sure your home has adequate makeup air to eliminate negative pressures caused by the above-mentioned sources. Outside air connected to the appliance probably will not resolve such a problem as the stove is not the source of negative pressure. Lennox Hearth Products accepts no liability for damages resulting from negative pressures described here.

Ventilation Requirements - Provide adequate air for combustion. The fresh air requirements of this appliance must be met within the space where it will be installed. Ventilation is essential when using a solid-fuel-burning heater. In well insulated and weather tight homes, it may inhibit the rate the exhaust ﬂows through the venting system (caused by a shortage of air in the home). The lack of air is caused by many common household appliances which exhaust air from the home (such as a furnace, heat pump, air conditioner, clothes dryer, exhaust fans, ﬁreplaces, and other fuel burning appliances). Also, the combustion process of this heater uses oxygen from inside the dwelling. If the available fresh air delivery in the dwelling is insufﬁcient to support the demands of these appliances, problems can result (i.e. excessive negative pressure will result in performance problems. To correct this problem it may help to open a window (preferably on the windward side of the house) or install an outside combustion air duct to the appliance.

FLOOR PROTECTION

This appliance requires noncombustible ﬂoor protection (the hearth pad or alternate ﬂoor protection material does not require a thermal rating).

A noncombustible ﬂoor protector must fully cover the area beneath the appliance and extend 6” to the front, 6” to the sides, and up to 6” from the back as illustrated in Figure 1.

If the ﬂoor protection is to be stone, tile, brick, etc., it must be mortared or grouted to form a continuous noncombustible surface. If a chimney connector extends horizontally over the ﬂoor, protection must also cover the ﬂoor under the connector and at least 2” (51 mm) to either side. See Clearances and Hearth Protection shown in Figure 1.

The design of your home and where you place your stove will determine its value as a source of heat. This type of appliance depends primarily on air circulation (convection) to disperse its heat, and therefore, a central location is often best. There are other practical considerations, which must be considered before a ﬁnal selection of locations is made.

• Existing Chimneys

• Pellet Fuel Storage

• Aesthetic Considerations

• Roof Design (rafter locations and roof pitch)

• Room Trafﬁc

• Proximity to Combustibles

• Electrical Wiring

Rear

Front

Rear Wall or Alcove

Up to * 6” (153 mm)

6”

(153 mm)

min.

Floor Protector

When installed at clearances less than 6”, the ﬂoor

*Note:

protection is only required to extend to the wall.

Top View

6” (153 mm) min.

Figure 1 - Floor Protection Requirements

CLEARANCES

6”

(153 mm)

min.

Figure 2

Combustible

Corner

Combustible

Standard residential or manufactured home installation. These appliances require the following minimum clearances to combustibles:

Minimum Clearances To Combustibles

Montage 32FS

A - Side wall to unit

B - Back wall to unit

C - Side wall to unit Corner 1” (25 mm) 1” (25 mm)

D - Max. Depth of Alcove

E - Flue to Wall 3” (77 mm) 3” (77 mm)

Horizontal Flue – Directly Through Wall

u 4” (102 mm) u 4” (102 mm)

2” (51 mm)

v 24” (610 mm) v 24” (610 mm)

Interior Vertical

Flue

9” (229 mm)

u Measured to fuel hopper lid in alcove. v Minimum Alcove Measurements - Height 48” (1220 mm) x Width 31”

(788 mm) x Maximum Depth 24” (610 mm)

Table 1 - Minimum Clearances To Combustibles

Combustible

Figure 3

IMPORTANT

•

Minimum clearances speciﬁed may not allow

for ease of operation and maintenance (please take this in to account when planning the instal lation). If installed to the minimum clearances, removal of the appliance may be necessary for servicing.

•

Recommended clearance zone from the front

of the appliance to combustibles is 4 feet mini mum.

•

Clearances to combustibles for the appliance

can only be reduced by means approved by the regulatory authority.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

INSTALLATION TIPS

Select Your Installation Type

GOOD INSTALLATION:

Horizontal Installation

(Direct Vent - Outside Wall)

No natural draft. Wind

pressures may affect operation

a: PL-Vent Pipe / Pellet Vent (w/stainless interliner) b: Stainless Steel ﬂex liner may be used inside existing ﬂue

REQUIRES 3”

DIAMETER STANDARD

PL-VENT / PELLET PIPE

With listed termination kit. If

installation requires in excess of

11’ of pipe, it is recommended a

4” diameter pipe be used.

BETTER INSTALLATION:

Vertical & Horizontal Installation

(Up and Out)

Some natural draft aids venting. Wind

pressures may still affect operation

VENTING TYPE

or chimney (woodstove replacement applications)

CAUTION: Do not use Type B-Vent Pipe

MANUFACTURED

HOME

Requires outside air for com-

bustion. Use a galvanized or stainless steel pipe for duct.

Minimum duct size 1-5/8” dia.

BEST INSTALLATION:

Vertical Installation

(Straight Up)

Natural draft improves operation and

negative effects from wind

CLEARANCES TO

COMBUSTIBLES

Ensure all clearances are main-

tained in accordance to instruc-

tions contained on product

safety label and in compliance

with pipe/venting requirements.

PLEASE REVIEW THIS ENTIRE

INSTALLATION AND OPERA-

TION MANUAL FOR ADDITIONAL

INSTRUCTIONS.

POWER SUPPLY

Must have proper polarity and be grounded.

Note: Use of an extension cord may adversely effect the performance of your unit.

Seal all

Venting Joints:

Use RTV

(high temp silicone)

MANUFACTURED HOME INSTALLATION

In addition to the standard installation instructions, the following instructions may be required by local, state or federal building codes:

• Installation should be in accordance with the Manufactured Home and Safety Standard (HUD), CFR 3280, Part 24.

• The stove must be permanently bolted to the ﬂoor using two or three 1/4" or 5/16" Ø x 5" lag screws as shown in Figures 4A, 4B, 5A and 5B.

• An outside air inlet must be provided for combustion and be unre stricted while unit is in use. Use a galvanized or stainless steel pipe for the duct (the outside air inlet on the stove is 1-5/8” diameter). The air intake on the exterior of the home should always be located substantially below the ﬂue termination. See Figures 4B and 15.

• Stove must be permanently electrically grounded to the steel chassis of the home using a 8 GA copper wire and a serrated or star washer (to penetrate paint or protective coating to ensure grounding). The location selected for ground attachment to the stove must be dedicated for this purpose. Grounding must comply with NFPA-70 standards, CSA C22.1 in Canada, as well as any local codes.

• See Pages 9 through 15 ments.

• WARNING: DO NOT INSTALL IN SLEEPING ROOM.

•

CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALLS, CEILING/ROOF MUST BE MAINTAINED.

for additional information on venting require-

Open front

Outside Air Inlet

Holes for lag screws when securing to manufactured home ﬂoor

Options:

1) Install one lag screw in the front center hole and one in the rear center hole.

2) Install one lag screw in the front center hole and two in the rear side holes.

glass door and remove ash pan to access front lag screw hole.

Bolt

Chassis

Floor

Figure 4A - Manufactured Home Installation

Bolt

Floor Protector

Figure 4B - Manufactured Home Installation

Manufactured Home Exhaust Vent Pipe Installation Guidelines

Use only “PL” pellet vent pipe listed to UL 641 and ULC S609. The pipe should extend at least 3 feet above the part of the roof through which it passes. The top of the pipe should be at least 2 feet above the highest required elevation of any part of the manufactured home within 10 feet of the pipe (see Page 12, Manufactured Home Chimney Height Require- ments).

If the exhaust vent exits the manufactured home at a location other than the roof, and exits at a point 7 feet or less above the ground level on which the manufactured home is position a guard or method of enclosing the pipe shall be provided at the point of exit for a height of up to 7 feet. The openings, if any, in this guard shall not allow a 3/4” rod to pass through. A 1/2” rod could pass through but should not be able to touch the pipe when inserted through the opening a distance of 4 inches.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

INSTALLATION

Removing Appliance From Pallet

1. After removing the packaging from the stove, lift the hopper lid, and remove all prepackaged items that were shipped in the hopper. Next, open the stove door and remove all prepackaged items.

2. With the stove door open, remove the ash drawer and set aside. Using a 7/16” socket or open end wrench, remove the front lag screw (see

Figure 5A

3. Using a 5/32" allen wrench remove the two screws in the rear pallet bracket (see Figure 5B). Using a 7/16” socket or open end wrench, remove the rear lag screw (see Figure 5B).

Pallet

SEE DETAIL C

SEE DETAIL B

Front Lag Screw (actual size)

Figure 5A - Front Lag Screw

Front Lag Screw

DETAIL B

Pallet

Rear Pallet Bracket

Rear Lag Screw Rear Lag Screw (actual size)

DETAIL C

Figure 5B - Rear Lag Screw and Pallet Bracket

Installation Check List

It is strongly recommended that you have an Lennox Hearth Products dealer install your stove. If you install your stove yourself, you should review your installation plan with an Lennox Hearth Products dealer.

Check list:

Check off each item as you proceed with the installation process.

q Read the ENTIRE stove installation section ﬁrst q Determine the appropriate measurements and locations for your

installation.

q Follow the installation directions in this manual. q Be sure to preﬁt all items before you install, fasten, or set up the

appliance permanently.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

Prior to lighting your appliance:

q Review the safety precautions section. q Review the pellet FUEL section. q Review and follow the Operating Instructions. q Plug power cord connector into corresponding connector on the back

of appliance (see Figures 7 and 8 showing connector locations).

After you have begun operation of your appliance:

q Review the routine cleaning / maintenance information. q Enjoy the warmth from your new Lennox Hearth Products pellet

stove!

Damper Location, Installation And Adjustment

A 24 volt wall thermostat and 20 feet of 18-gage thermostat wire is included in the accessory package. It is recommended that the thermostat and thermostat wire be installed by an Lennox Hearth Products dealer.

Thermostat wires and purple wires from wire harness will connect to these 2 terminals

Damper Air Control

Located behind the right side panel on model Montage 32FS.

Adjustment Procedure

Using a 1/4" nut driver or socket, loosen the damper setscrew (see

Figure 6

). Adjust in 1/4” increments until optimum combustion air ﬂow

is achieved. Retighten the damper setscrew.

For less air push in and for more air pull out.

Loosen Setscrew

Standard Setting

3/4" (19mm)

to Adjust Damper

Damper

Jumper

Remove jumper if Thermostat IS to be used Leave jumper on, if thermostat is NOT used

Route thermostat wires through this grommet

Figure 7 - Terminal Block

Installation Steps:

1. Unplug stove power cord from the wall outlet.

2. Locate the thermostat terminal block (see Figures 7 and 8).

3. Loosen the two terminal screws on the terminal block and remove the jumper.

4. Connect the two wires from your thermostat to the terminals (one per terminal). Ensure that the purple wires from the harness remain connected to the terminal block and tighten the terminal screws. Make sure the wires are ﬁrmly connected to the thermostat.

5. Plug in the stove and you are ready to operate with your thermostat!

Note: See Wiring Diagram on Page 27.

IMPORTANT

If the wall thermostat provided is not used, the jumper is required for the stove to operate.

Figure 6 - Damper Adjustment

IMPORTANT NOTE: Install the thermostat per the manufacturers instructions, provided with the thermostat. Failure to follow manufacturers instructions could result in a malfunction. Pay special attention to the thermostat location requirements. If the location requirements are not adhered to the appliance, erratic operation or failure may occur.

Do not mount the thermostat where it may be affected by:

• Radiant heat from the stove, ﬁreplaces, sun or other heat sources.

• Drafts or dead spots behind doors or in corners.

• Hot or cold air from ducts.

Thermostat Installation:

Note: Always Disconnect Power Before Performing The Thermostat Installation.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

Figure 8 - Terminal Block Location

VENTING REQUIREMENTS

It is recommended that only an Lennox Hearth Products dealer install your pellet stove. The speciﬁed installation requirements must be followed to ensure conformity with both the safety listing of the appliance and local building codes. All clearances, installation instructions and precautions speciﬁed by the vent manufacturer must be followed.

Selecting a Location

Review the appliance clearance requirements before installing the venting system (see Page 5). Position the appliance far enough away from walls to allow adequate room for servicing. Choose the appliance location with the least amount of interference with the house framing, plumbing, wiring, etc.

Preferred Vent Conﬁguration

For the best performance, we recommend a vent run design which runs vertically and terminates above the roof line. This design will allow natural draft to improve the ﬂow of ﬂue gases and will aid in combustion and stove performance.

Note: 30 feet maximum vertical vent allowed (6 inches minimum vertical).

Type of Pipe

This stove requires type “PL” vent pipe (pellet vent pipe, sometimes referred to as “L-Vent pellet vent”), listed to UL 641 or ULC S609. Connect the pellet vent pipe or the “tee” to the ﬂue collar using a minimum of three screws and seal as speciﬁed in “Pipe/Liner Joint Requirements” on this Page. Do not use class B gas chimney or single wall chimney

as a substitute. Size of Pipe

These pellet stoves are approved for use with the following vent sizes: 3” (75 mm) standard, or 4” (100 mm), see Page 13 - for determining correct size vent). When 4” pipe is used: for horizontal vent installations use a 3” (75 mm) to 4” (100 mm) adapter - available from vent manufacturer. For vertical installations use a 3” (75 mm) to 4” (100 mm) “tee” - available from vent manufacturer.

Offsets

In every installation, a single or double clean-out “tee” is recommended for every ninety-degree offset (this tee will help collect ash residue and will allow for routine cleaning without the need to disconnect sections of pipe).

Pipe Clearances/Requirements See pipe manufacturers instructions for installation of venting components

and clearances. Follow pipe manufacturers installation precautions for passing pipe through a combustible wall or ceiling (i.e. use an approved thimble).

Notes

• Offsets and horizontal runs accumulate ﬂy-ash and soot which reduces the exhaust ﬂow and performance of the stove.

• Total Offsets in venting system should not exceed 270° total in direc tion change.

• Maximum Vertical Vent - 30 feet (9.14 M)

• Horizontal Runs - The maximum total horizontal run must not exceed 10 feet (3.1 meters).

• Horizontal run of pipe requires 1/4” (7 mm) rise per foot.

• Pellet vent pipe requires 3” (75 mm) clearance from outside of pipe unless otherwise speciﬁed by vent manufacturer - all diameters: 3” (75 mm) and 4” (100 mm). A support bracket must be installed every 4 feet (1.2 m) of pellet vent pipe on the exterior wall of the house unless otherwise speciﬁed by vent manufacturer.

• It is not recommended to terminate exhaust vent on the prevailing wind side of the house.

• It is not recommended using a termination cap with a screen (ﬂy-ash can collect in a screen resulting in blockage).

Pipe/Liner Joint Requirements

Silicone sealant and 3 screws are required to secure the ﬁrst vent connection to the appliance ﬂue collar. Seal the remaining vent sections per the vent manufacturers instructions and secure all sections with 3 screws minimum per section. ALL horizontal joints must be sealed gas-tight (air tight, sealed connection). Use RTV high temperature silicone or Interam, if necessary, to provide a complete seal between vent sections.

Connection to Masonry Chimney through a Wall

Be sure to verify the construction of a masonry chimney, as it may have combustible framing.

Approved liner when relining Masonry or Factory-Built Fireplaces is 2100HT (degree F.) liner listed to UL 1777 or ULC S635.

Connection to an Existing Class A Chimney

A chimney adapter can be used to make the connection from 3” (75 mm) or 4” (100 mm) pellet vent pipe (listed to UL 641 or ULC S609) to existing UL chimney system. Verify with the pipe manufacturer that your pipe brands will interconnect.

Horizontal Vent Installations

On all horizontal vent installations (short, horizontal runs with no vertical pipe); care should be taken when choosing a location for terminating the vent. It is not recommended to directly vent the exhaust on the prevailing wind side of the house. It is recommended that when an appliance is vented directly through a wall, a minimum of 8 feet (2.5 m) of vertical pipe should be installed to create some natural draft. This will reduce the possibility of smoke or odor entering the dwelling during appliance shutdown or loss of power.

Vent Termination

Do not terminate vent in an enclosed or semi-enclosed area such as: carports, garage, attic, crawl space, under a deck, porch, narrow walkway, closely fenced area, or any location that can build up a concentration of fumes such as a stairwell, covered breezeway etc.

Vent surfaces can get hot enough to cause burns if touched. Adults should supervise children when they are in the area of a hot stove. Non-combustible shielding or guards may be required.

Termination Cap

The termination of the outside chimney of the pellet stove shall be located in accordance with the following:

A. Higher than 3 feet (.92 m) above any forced air inlet (air conditioner,

etc.) located within 10 feet (3 m).

B. Not less than 4 feet (1.2 m) below, 4 feet (1.2 m) horizontally from or

1 foot (3.1 m) above any gravity air inlet (door, window, etc.) which ﬂue gases could reenter the dwelling.

C. Not less than 2 feet (.6 m) from combustible materials such as an

adjacent buildings, fences, protruding parts of the structure, roof overhang, plants and shrubs, etc. and not less than 7 feet (2.1 m) above grade when located adjacent to the public sidewalks (access). The ﬁnal termination of the exhaust system must be conﬁgured so that ﬂue gases do not jeopardize the safety of people passing by, overheat

combustible portions of nearby structures or enter the dwelling.

D. Not less than 3 feet (.92 m) below an eave (maximum overhang of 3

feet (.92 m) or any construction that projects more than 2” (51 mm) from the plane of the wall.

E. The distance from the bottom of termination to grade is 12” (305 mm)

minimum. This is conditional upon plants and nature of grade surface: Be careful to choose a location for the vent termination which does not expose people or shrubs to high heat from the exhaust gases. The exhaust gases are not hot enough to ignite grass, plants and shrubs located in the vicinity of the termination although they should be a minimum of 3 feet (.92 m) away. The grade surface under the termination must not be a lawn.

F. Since sparks may escape from the exhaust pipe of any stove, use

caution when positioning the vent pipe. Refer to pipe manufacturer’s instructions when installing and terminating the exhaust. The vent pipe should be horizontal and never run the pipe in a downward direction (recommend a 1/4” [7 mm] rise per foot horizontal).

Vent Termination Locations

Vent Terminal Area Where Terminal Is Not Permitted

(From Eave)

Vertical Terminal

Fixed Closed

Able To Open

24”

(610mm)

Air Supply Inlet

24”

(610mm)

A = Clearance above grade, veranda, porch, deck, or bal-

cony (min. 12”/30cm)

B = Clearance to window or door that may be opened (min.

12”/30cm above - 48”/1.2m below and to the side)

C = Clearance to permanently closed window *(min.

D = Vertical clearance to ventilated sofﬁt located above

12”/30cm)

the terminal within a horizontal distance of *(min. 24”/60cm) from the centerline of the terminal (min.

22”/55cm) check with local code. E = Clearance to unventilated sofﬁt *(min. 12”/30cm) F = Clearance to outside corner *(min. 12”/30cm) G = Clearance to inside corner *(min. 12”/30cm) H = Not to be installed above a meter/regulator assembly

within *(min. 36”/90cm) horizontally from the center-

line of the regulator. J = Clearance to service regulator vent outlet *(min.

72”/1.8m) K = Clearance to non-mechanical air supply inlet to build

ing or the combustion air inlet to any other appliance

Figure 9

*(min. 48”/1.2m)

L = Clearance to a mechanical air supply inlet *(min.

120”/3.1m)

M = **Clearance above paved sidewalk or a paved driveway

located on public property *(min. 84”/2.1m)

N = ***Clearance under veranda, porch, deck, or balcony

(min. 12”/30cm)

Note:

* Local codes or regulations may require different clear

ances.

** A vent shall not terminate directly above a sidewalk or

paved driveway which is located between two single family dwellings and serves both dwellings.

*** Only permitted if veranda, porch, deck, or balcony is

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

fully open on a minimum of two sides beneath the ﬂoor.

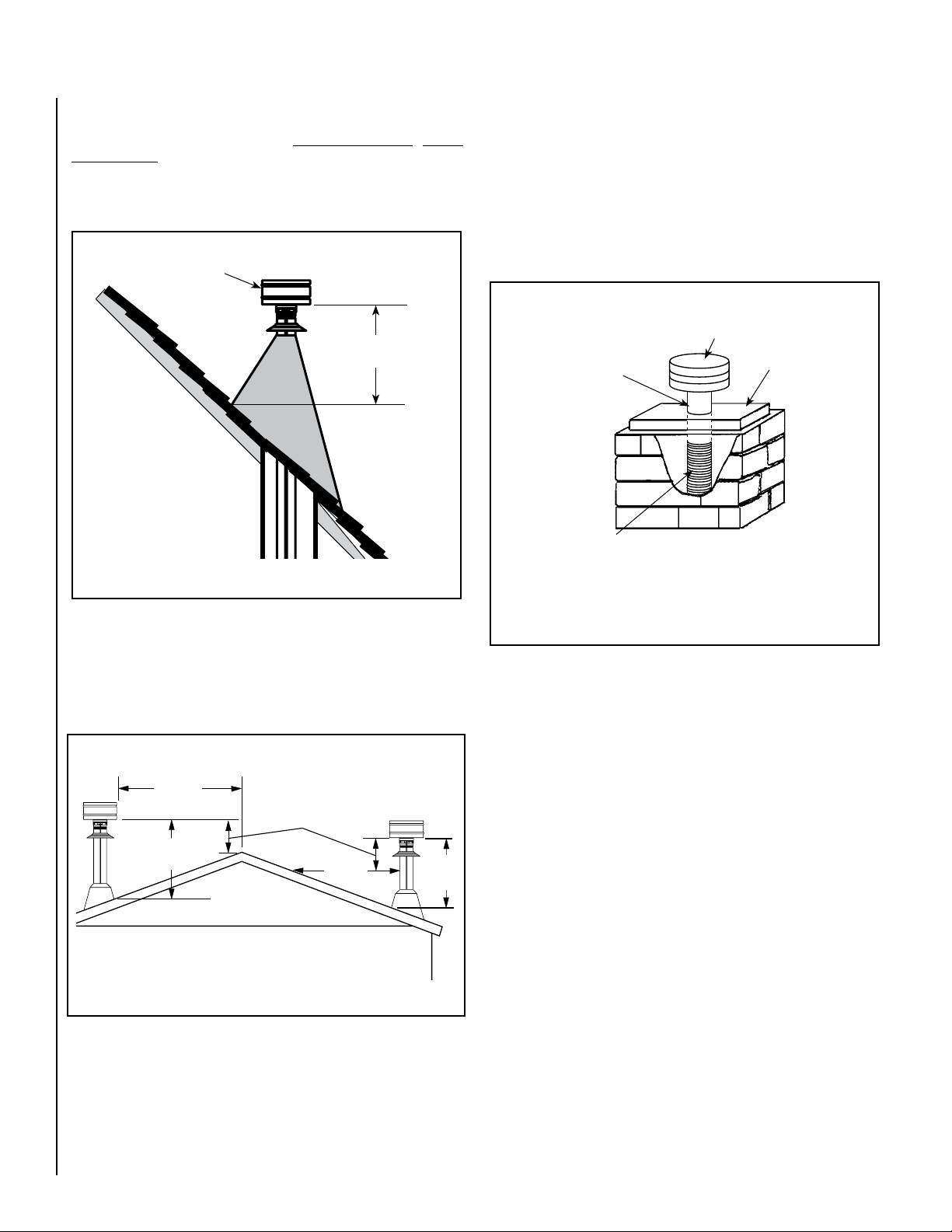

Chimney Height Requirements - Site Built Residential Home

Less than

10 Feet (3 m)

10 Feet

(3 m)

3 Feet (914 mm)

Minimum

2 Feet (610 mm) Min.

3 Feet

(914 mm)

Min.

m = meter mm = millimeter

The vent termination height required is - USA, 1-foot minimum; Canada 3-feet minimum above the roof penetration point as illustrated below (Ref. USA - National Standard, NFPA 211 and Canada National Standard CSA B365-01. Check with your local building ofﬁcial for additional requirements for your area.

Termination When Connected to Masonry Chimney or Existing Class A Chimney

A ﬂexible corrugated chimney liner has much greater resistance to the ﬂow of ﬂue gases than does a rigid liner. For this reason we recommend that a larger, 4” liner be used on vertical runs exceeding 15 feet or that rigid venting be used . See Figure 12.

Termination Cap Must Be Listed To UL 641 or ULC S609

USA 1 Foot Minimum CANADA 3 Feet Minimum

Termination height is measured above the highest point where it passes through the roof surface.

Figure 10 - Site Built Residential Home Chimney Height Requirements

Chimney Height Requirements - Manufactured Homes

The chimney must extend 3’ (.92m) above the level of roof penetration and a minimum of 2’ (.61m) higher than any roof surface within 10’ (3m) (see below). Check with your local building ofﬁcials for additional requirements for your area.

If a ﬂexible corrugated chimney liner is used, it must be fully extended to eliminate any sagging and to improve the exhaust ﬂow.

Listed Pellet Vent

1’ Section of PL Vent (listed to UL 641 or ULC S609)

3” or 4” liner (listed to UL 1777 or ULC S635)

Termination Cap

Chase Cover

Termination When Connected to Masonry Chimney or Existing Class A Chimney

Figure 12 - Existing Chimney Termination

Requires A Listed Termination Cap *

Top Of Flue Must Be 2’ Higher Than Any Part Of Roof Within 10’ Horizontal

Top Of Flue Must Be 3’ Higher Than Highest Point Of Roof Penetration

Figure 11 - Manufactured Home Chimney Height Requirements

To pass inspection in nearly any jurisdiction, the chimney must meet both safety and exhaust ﬂow requirements. The (3’ by) 2’ by 10’ rule applies to both masonry and factory-built chimneys

* Ref. NFPA 211, Vents installed with a listed cap shall terminate in accordance with the terms of the cap’s listings.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

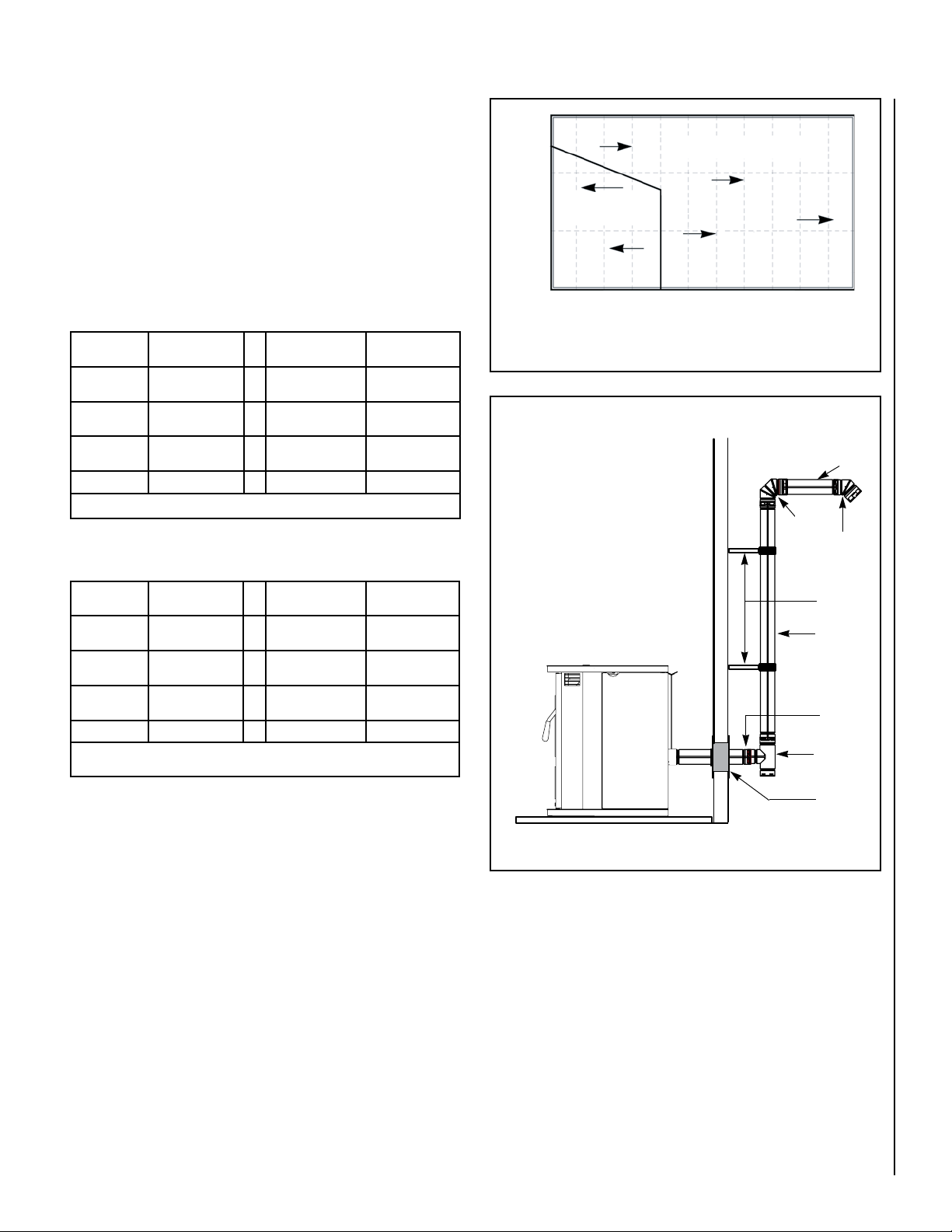

Determining Size Of Pipe To Install

To determine what diameter pipe to use in an installation (3” or 4”), ﬁrst ﬁnd the “equivalent pipe length” using the following guidelines, then plot this number and the altitude on the chart (Figure 13).

4 “ Diameter Only

Fill out the installation chart, and calculate your total equivalent pipe length. After you have the total equivalent pipe length, use the Pipe Selection Chart below to determine if your installation requires 3” or 4” exhaust pipe.

Installation Chart

Type of Pipe # of Elbows or

Feet of pipe

90° Elbows/ Tee (A & G)

45° Elbows (C)

Horizontal (B & F)

Vertical (E) x .5 Feet (.15 m)

Equivalent Feet Total Equivalent

Feet

x 5 Feet (1.5 m)

x 3 Feet (1 m)

x 1 Feet (.3 m)

Table 3

Sample Installation Chart

Type of Pipe # of Elbows or

90° Elbows/ Tee (A & G)

45° Elbows (C)

Horizontal (B & F)

Vertical (E) 8 x .5 Feet (.15 m) 4 (1.2 m)

Feet of pipe

2 x 5 Feet (1.5 m) 10 (3 m)

1 x 3 Feet (1 m) 3 (1 m)

3 x 1 Feet (.3 m) 3 (1 m)

Equivalent Feet Total Equivalent

Feet

3 or 4”

Diameter

Altitude x 1000 Feet

Equivalent Pipe Length (Feet)

Figure 13 - Pipe Selection Chart

NOTE:

All equivalent pipe styles

shown for model Montage 32FS.

A - 90 Degree Elbow B - 1’ Horizontal Pipe C - 45 Degree Elbow D - Standoff Braces E - 8’ Vertical Pipe F - 2’ Horizontal Pipe G - 90 Degree Tee H - Wall Thimble

Table 4 - Sample Chart for Figure 14

Figure 14 - See Sample Installation Chart

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

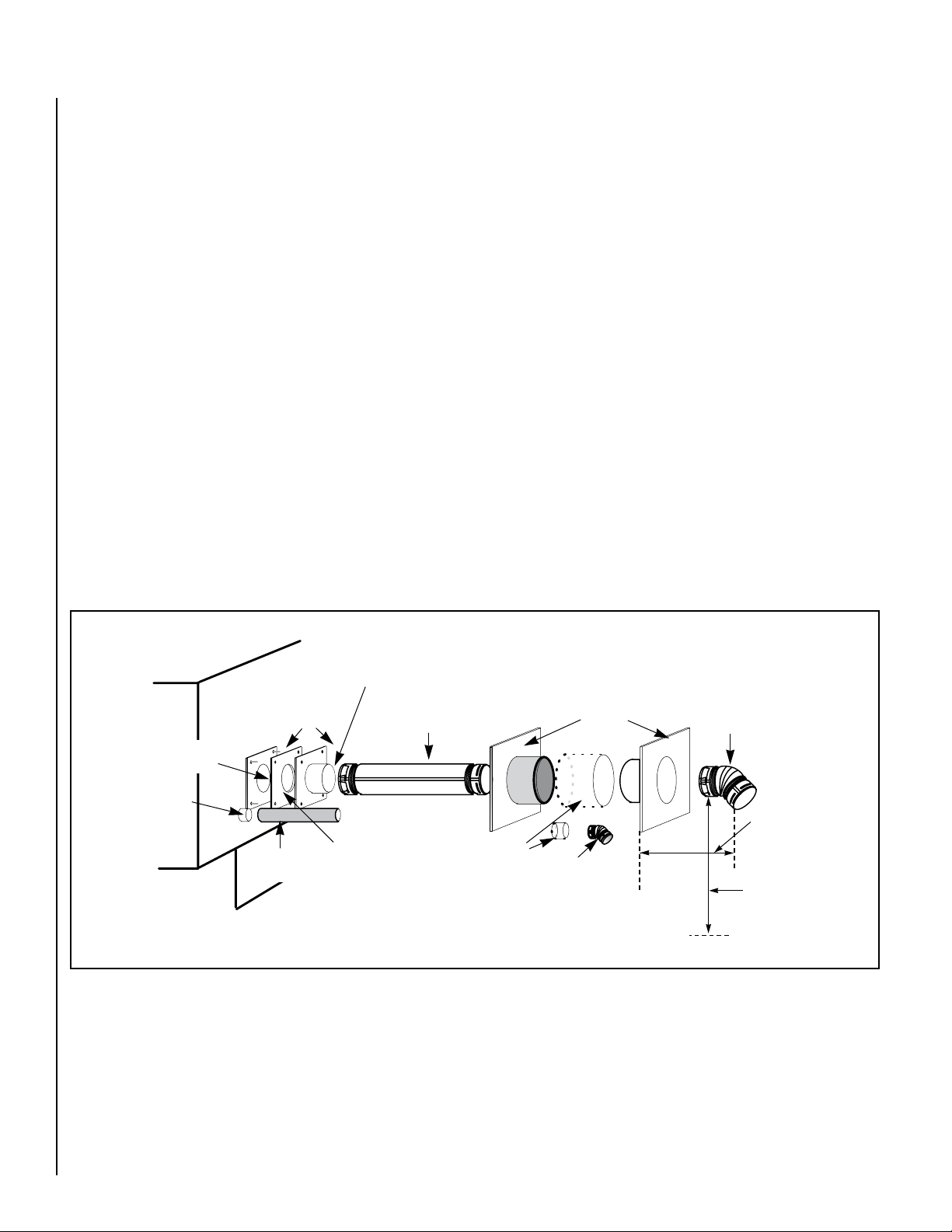

Exhaust Port

Quick

Disconnect

Straight “PL-vent”

Pipe

Combustion Air Inlet Collar

Metal Fresh Air Pipe

Lytherm Gasket

Wall

Thimble

45˚

Elbow

Holes through

the Wall for the

Thimble &

Fresh Air Pipe

Degree Elbow Joint for Fresh Air Pipe

12” (305 mm) Min. From Outer Wall

12”(305 mm) From Ground or Other Surface

Silicone sealant and 3 screws required on the first vent connection. Secure and seal the remaining vent sections per vent manufacturers instructions.

Standard Horizontal Vent Installation

Installing Montage™ 32FS

3. Push the stove with pipe attached towards the wall (the pipe will go through the wall thimble). Do not position the back of the stove closer than 2” (51 mm) from the wall (see Clearances, Page 5).

All PL Venting Components must be listed to UL 641 or ULC S609

1. Locate the proper position for the listed type “PL” wall thimble. Avoid cutting wall studs when installing your pipe. Use a saber saw or keyhole saw to cut the proper diameter hole through the wall to accommodate the wall thimble. Use extreme caution to avoid cutting into power lines within the wall of the home. The hole size will depend on the brand of pellet vent that you are using. Install the wall thimble in the hole.

2. ALL INTERLOCKING PIPE CONNECTIONS MUST BE SEALED GAS-

TIGHT AND SECURED TOGETHER PER VENT MANUFACTURERS INSTRUCTIONS.

Position the stove approximately 12” (305 mm) from the wall on the

ﬂoor pad. Push the “PL” pipe through the wall thimble. Squeeze a bead of high temperature silicone (RTV) sealer around the end of the machined portion of the 3” (76 mm) pipe connector on the back of the stove. Firmly push on a section of “PL” pipe until inner pipe liner pushes into the bead of RTV sealer.

4. Install listed type “PL” 45 degree elbow with rodent screen or cap on outside end of pipe. The rodent screen should be no less than 1/2” (13 mm) mesh and may clog with soot and ash if left unattended during the burn season.

5. If the installation includes a source of outside combustion air; cut a separate hole through the wall for the fresh air tube. This tube should be 1-5/8” (42 mm) minimum diameter, steel only. Connect outside air pipe to air inlet on stove. This tube must be terminated with a 45 degree elbow or hood.

Notes:

• Combustion air may also be drawn from a vented crawl space under the home.

• All joints for connector pipe are required to be fastened together per the vent manufacturers instructions. If vented horizontally, joints must be made gas-tight (air tight, sealed connection) in a manner as speciﬁed on this page (see instruction #2). INSTALL VENT AT CLEARANCES

SPECIFIED BY THE VENT MANUFACTURER.

• Greater back clearance will improve the ease of serviceability of the stove.

• The end of the exhaust pipe must extend a minimum of 12” (305 mm) from the outside of the building.

Back of Stove

Figure 15 - Horizontal Vent Installation

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

Standard Horizontal Installation Conﬁgurations Montage™ 32FS

3” (75 mm) Minimum clearance between wall and pipe. If you vent to the furthest wall, the vent pipe must maintain a 3” clearance parallel to the other wall.

1" Min.

Wall

Top View Illustration

1" Min.

Wall

Notes:

• It is not recommended to terminate exhaust vent on the prevailing wind side of the house.

Figure 16 - Montage 32FS, Corner Through the Wall

6” (152 mm) Minimum

2” (51 mm)

Minimum

Wall

Horizontal run of pipe requires

Note:

1/4” (7 mm) rise per foot.

Outdoors

45 Degree

Elbow

12” (305 mm) Minimum From Outer Wall

Hearth Pad / Floor Protection

Figure 17 - Montage 32FS, Parallel Through the Wall

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

12”(305 mm) From Ground or Other Surface

Standard Vertical Installation Conﬁgurations Model: Montage™ 32FS

This free-standing model may be connected to an existing ﬂue or by installing listed type “PL” vent pipe. If a liner is run all the way to the top of the existing chimney, the existing ﬂue should be sealed with a steel plate. Start a vertical run with a Tee at the back of the stove. Other options are illustrated below.

Preferred Installation – Vertical Vent Through the Roof

This venting conﬁguration allows for the best stove performance. The vertical pipe promotes natural draft and with the chimney inside the dwelling, the ﬂue gases stay warm, thus rising at a consistent rate.

Note: See Pages 10 and 11 for Vent Termination Requirements

Listed Rain Cap

Figure 18 - Exterior Vertical Vent

Listed Rain Cap

Wall Straps Required Every 4 Feet Minimum

Listed Rain Cap

Figure 20 -

Flashing

3”

Min.

Clean-Out

Tee

Vertical Vent Through the Roof

Listed Rain Cap

Optional Complete Liner and Listed Termination Cap

3” Min.

Figure 19 - Vertical Vent Into a Masonry Flue

Optional Clean-Out Access Door

Existing Chimney Pipe

Pipe Increaser

Extend Pipe to the Top if Existing Chimney is Corroded or Damaged

3”

Min.

Figure 21 - Interior Vertical Vent into an Existing Class A Chimney

CARE AND OPERATION

START

HEAT

OUTPUT

BLOWER

FEEDING

STOP

(-) (+)

COMBUSTION

AIR

PELLET

FEED

HEAR TH P RODUC TS

Simple Operating Instructions

1. Start

FIRST TIME USE

2. Preparation a] Check hopper and remove

any materials from hopper and auger

b] Check UltraGrate™ for proper

ﬁt (ensure UltraGrate is set securely in the base - see

Figure 29)

c] Check door gasket and door

latch to ensure tight seal (see Figure 33)

d] Connect power cord to

grounded power supply outlet

3. Priming the Auger

(Optional)

a] Fill hopper with pellets

Note: use quality grade pellet fuel

b] Push the "START" button

to turn on the blowers and auger motor

e] When pel lets beg in to

drop from feed tube into UltraGrate, push the "STOP" button to stop the auger

4. Stove is now ready for start-up

5. To Start Your Stove

a] Push the "START" button.

Note: Room air blower and exhaust blower start w/ line voltage for 10 seconds, then return to settings when last operated.

6. Pellets will drop into UltraGrate and stove will light in approximately 3 to 7 minutes

Does the Stove Light?

Yes

7. Set stove t o d esired

heat setting (heat output button). The new setting will not take effect until the switch receives adequate heat to activate.

8. After approx. 5 minutes

adjust damper if necessary to obtain a bright vibrant ﬂame.

Notes:

• If the damper is too far

inward the ﬂame will be lazy/sooty and the fuel will pile up in the UltraGrate (see Page 9).

• If the damper is too far

outward the ﬂame might be extinguished because of too much combustion air.

See Page 19 for further instructions on adjusting damper using thermostat vs manual modes.

Heat Output Button

Convection (room air) Blower Button

Start Button

Stop Button

7a. Follow the troubleshooting

section in this manual

Does the Stove Light?

Contact your Lennox Hearth Products dealer for further assistance

9. To Turn Off Pellet Stove

a] Push "STOP" button - stove

Yes

enters shut down mode

b] Combustion blower goes to

high and room air blower will operate at the panel setting until low temperature switch cools. Pellets stop feeding and the ﬁre goes out in approximately 15 minutes after the auger is shut off, the room air blower and exhaust blower will automatically shut off.

10. Thank you for purchasing a Lennox

Hearth Products Pellet Stove

END

START

HEAT

OUTPUT

BLOWER

FEEDING

STOP

(-) (+)

COMBUSTION

AIR

PELLET

FEED

HEART H PR ODUCT S

Control Board Operation

START BUTTON

The "START" Button turns on the pellet stove.

If the exhaust does not reach operating temperature within 30 minutes, the stove will automatically shut down. The pellet stove can be restarted by pushing the "START" Button again.

RESTART

AUGER ON (green LED) - The auger restarts and returns to delivering fuel to the UltraGrate™.

STOP BUTTON

Note: The "START" Button has to be activated to give power to the AUGER ON/OFF button.

The "STOP" button turns the pellet stove OFF. When the LED is green, the auger is ON.

SHUT DOWN (LED off) - Auger turns OFF and fuel delivery stops. The blowers will continue to operate until the stove has cooled sufﬁciently. Stove enters shut down mode.

HEAT OUTPUT BUTTON

When not using a wall thermostat, the "HEAT OUTPUT" button provides the ability to burn at ﬁve separate settings from low (#1) to high (#5). The "HEAT OUTPUT" button regulates the fuel feed setting and the combustion air supply simultaneously.

Each time the "HEAT OUTPUT" button is pressed the heat output will advance to a higher setting. When at the highest setting (#5), if the button is pressed again it will go back to the lowest setting. Settings can be changed at any time but will only take affect after the start-up cycle is complete.

CONVECTION (ROOM AIR) BLOWER BUTTON

The "BLOWER" button operates the convection blower. This will change the ﬂow of hot air into the room. Five settings are available from low (#1) to high (#5). When the "BLOWER" button is pressed, the green indicator light will scroll from low to high. When at the highest setting (#5), if the button is pressed again it will go back to the lowest setting.

When the "HEAT OUTPUT" button is on position #5, the lowest blower setting is #3. When the heat output button is on position #4, the lowest blower setting #2. This is a safety precaution to protect against overheating. Blower settings can be changed at any time, but will only take affect after the start-up cycle is complete.

Note: The control board has an internal memory which recalls the last setting prior to loss of power.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

Note: If the fuel feed trim or combustion air trim needs to be adjusted, contact your dealer or qualiﬁed technician to calibrate internal software. The trim controls should only be adjusted for the proper ﬂame if all other options did not achieve proper adjustment. It is recommended that the damper be used to ﬁne-tune your stove to your particular fuel and installation conﬁguration (see Damper Adjustment on Page 9 and Damper Adjustment Guidelines on Page 20).

Combustion Blower Trim

Heat Output Button

Convection (room air) Blower Button

Convection (room air) Blower LEDs

- Green (5 places)

m 5 - High m 4 - Med. High m 3 - Medium m 2 - Med. Low m 1 - Low

Figure 22 - Control Board

Start Button

Heat Output LEDs - Red (5 places)

Auger LED Green = On

Stop Button

4 Position Connector

Main Wire Harness Connector

P/N Label Location

To Thermostat Terminal

Convection Blower Speed Trim

Fuse

Figure 23 - Back Side of Control Board

Fuel Delivery Rate

The "HEAT OUTPUT" button manages the fuel delivery rate by controlling the amount of time the auger motor will run as follows:

Heat Output Setting

(#5) High =

(#4) Med.High =

(#3) Med.=

(#2) Med.Low =

(#1) Low =

Auger Motor OFF/ON Time (seconds)

1.6 / 0.6 3.8 Lb.'s /hr. 32,000 BTU/hr 15

1.8 / 0.6 3.0 Lb.'s /hr. 25,000 BTU/hr 18

1.9 / 0.6 2.5 Lb.'s /hr. 21,000 BTU/hr 22

2.9 / 0.6 2.0 Lb.'s /hr. 17,000 BTU/hr 31

3.8 / 0.6 1.5 Lb.’s hr. 13,000 BTU/hr 37

* Lb.’s Per Hour Fuel Delivery

w Approximate BTU Per Hour Fuel Delivery

Burn Time (hours)

Table 5 - Model Montage™ 32FS Note: Maximum hopper capacity is 55 lb.’s

* Feed rates are approximations only. Actual feed rate will vary depending on size, quality and length of

fuel used and variations in line voltage.

w Estimated heat input based on fuel value of 8400 BTU per lb. of fuel.

WARNINGS

Never empty pellets from the Burn-Pot into the hopper. Pellets that may appear to be cool may retain enough heat to ignite other pellets resulting in smoke or ﬁre damage.

DO NOT OVERFIRE THIS STOVE. This may cause serious damage to your stove and void your warranty. It also may create a ﬁre hazard in your home. IF ANY EXTERNAL PART OF THE UNIT BEGINS TO GLOW, YOU ARE OVERFIRING. Immediately press the “STOP” button on the control board.

Pre-lighting Instructions

General Operating Considerations

During an initial start-up, or in the case where the hopper has run out of fuel, it will be necessary to prime the auger feed system.

To prime the auger feed system:

1. Fill the hopper with recommended pellet fuel and plug the stove into the wall outlet.

2. Press the "START" button on the control board to start the fuel feed. Next, press the "HEAT OUTPUT" button to position #5 (maximum feed rate).

3. Look through the combustion chamber door and when you see the ﬁrst pellets dropping into the UltraGrate™, the auger is then fully primed. It will take 10 to 15 minutes to prime the auger.

4. Once the auger is primed, press the "STOP" button to turn off the auger (LED will go off).

Starting Your Pellet Stove

1. Make sure the auger is primed (see Pre-Lighting Instructions on this page), then simply push the "START" button on the control board to activate the Fastﬁre™ igniter.

While the pellets will ignite on any heat output setting, it is recommended that the "HEAT OUTPUT" button be set to position #3. Pellets will start feeding into the UltraGrate and should begin to ignite in approximately seven minutes. The Fastﬁre igniter will automatically shut off after ﬁfteen minutes (on hot starts igniter will shut off after seven minutes).

3. After the pellets are burning well, press the "HEAT OUTPUT" selector to the desired setting. Combustion air and the pellet fuel feed rate will adjust automatically as the "HEAT OUTPUT" button is pressed. The ﬂame should be bright yellow in color and there should be no evidence of soot formation at the top of the ﬂame. Press the "BLOWER" speed button to increase or decrease the blower speed to the desired level

4. If operating your stove with the wall thermostat, adjust the "HEAT OUTPUT" button to the desired demand mode (#1 through #5 on the "HEAT OUTPUT" button). Next, adjust the wall mounted thermostat to the desired room temperature and your stove will automatically switch between a demand mode and stand-by mode.

Notes:

Cold Start

is cold, voltage will bypass its normal circuit through the low limit thermal switch (for 25 to 35 minutes to allow adequate time for the low limit thermal switch to heat [140° F min.] which will close the circuit). The combustion and convection blowers will start at maximum speed. After approximately 10 seconds both blowers will default to settings they were at after the last shut down was completed (indicated by LED's #1 to #5). The Fastﬁre igniter will operate for approximately 15 minutes. The auger will turn continuously for a predetermined duration at the respective Heat Output Settings, followed by the normal operating mode.

- When the "START" button is pressed when the appliance

Proper Burn Characteristics: Your ﬂame should be bright yellow under normal operations. If your ﬂame becomes reddish/orange, your stove probably needs routine maintenance. Excessive amounts of ﬂy-ash buildup in the UltraGrate, clinkers in the UltraGrate, or leakage of air if the UltraGrate is not properly seated, will starve the ﬁre for air. (See Routine Maintenance for information on cleaning the stove). If the problem persists, review the troubleshooting section at the end of this manual.

Manual and Automatic Operation

Your pellet stove can be operated in either the manual or automatic mode. The manual mode is used when operating without a wall thermostat. The automatic mode is used when utilizing a wall thermostat. When utilizing the thermostat capability, the burn time can be extended dramatically depending on thermostat setting. Note: It is normal for some ash to build up on the

inner glass surface at the lower Heat Output settings.

Manual Operation

Pressing the "START" button will initiate the start-up cycle. The auger LED will be green to indicate the “on” status. The blower speeds and pellet feeds are ﬁxed during this time to provide appropriate ignition. The Fastﬁre igniter system will light the pellets fed to the UltraGrate, after about 3 minutes. After the start-up cycle, your stove will be in the run mode. At this point the stove will operate with the heat output ("HEAT OUTPUT" button) and blower settings ("BLOWER" button) selected. These settings can be selected either during or after the start-up cycle. Pressing the "STOP" button during the run mode will initiate the shut down cycle (feeding LED will go off). The pellets will stop feeding and the blowers will run at a ﬁxed speed for approximately 10 minutes. At this point your stove is safely shut down. The stove can be restarted by pressing the "START" button during the shut down cycle.

Automatic Operation

Your stove is capable of running in an automatic mode with the use of a wall thermostat.

For the wall thermostat to control the operation of the stove, set it to a temperature that will put it in the demand mode (calling for heat). The thermostat will establish either a demand mode or a stand-by mode. The thermostat should be set for the desired room temperature. If the room temperature drops below the level on the thermostat the stove will automatically begin the start-up cycle, as explained in the Manual Operation section.

Once the start-up cycle is completed the stove will operate at whatever heat and blower setting you have selected. For best operation under thermostat control, the medium or high settings are recommended. When the desired room temperature is reached the stove will automatically go into the shut down cycle. The pellet feed will stop and the blowers will continue for a controlled time allowing safe shut down of your stove. All lights will remain on when the thermostat is open. The "HEAT OUTPUT" and "BLOWER" settings can be changed at any time, but only take affect during the run mode. When the temperature in the room drops to the level set at the thermostat, the stove will again begin the start-up cycle and resume automatic operation in the demand mode.

Note:

If the "START" button is pressed while the thermostat is in the standby mode the stove will not restart until the thermostat closes (calling for heat).

Turning Off Your Stove

Press the "STOP" button to initiate the shut down cycle (auger LED will be red). The pellets will stop feeding and the blowers will continue to run on a timed cycle. The stove will shut down safely upon completion of the shut down cycle.

Shutdown Mode - When the thermostat opens (not calling for heat),

or the auger "STOP" button is pressed (feeding LED will be off), power to auger motor will be discontinued. The blowers will continue at the control board setting until the low limit thermal switch cools enough (below 120° F) to open. For safety, the blowers will continue to run for approximately 10 minutes before the unit shuts down.

Damper Operation

The damper assembly controls the amount of combustion air that is delivered to the ﬁrebox. With the damper adjusted all the way in, the airﬂow will be at its minimum. As the damper is moved outward, more air is delivered (see Damper Location and Adjustment on Page 9).

It will be necessary to monitor the appearance of the ﬂame during the ﬁrst 4-8 bags of pellets. If the ﬂame is smoky red or orange with evidence of soot at the top of the ﬂame, the damper will need to be adjusted to deliver more combustion air (see Damper Location and Adjustment on Page 9). If the ﬂame is “short” at the higher burn rates, or if the pellets are burning up in the UltraGrate™ before new pellets are fed into the ﬁre, the damper may need to be adjusted to deliver less combustion air.

After the damper is adjusted, re-evaluate the appearance of the ﬂame. It may be necessary to continue adjusting the damper in increments until proper combustion is achieved (the ﬂame should become yellow and begin to “dance”).

Once the damper has been properly set (and if the routine maintenance is performed as needed), the damper should not require re-adjustment unless you are changing from a premium grade pellet to a standard or high ash pellet, in which case the damper may need to be moved outward to help prevent the accumulation of ash in the UltraGrate.

Damper Adjustment Guideline

Lack of Combustion Air:

By opening the damper, this will increase combustion air delivery. Symptoms of insufﬁcient combustion air include; unburned fuel, lazy smoky or red / orange ﬂame, excessive ash or soot, excessive buildup on glass.

Contributing factors:

• High Altitude – Lack of oxygen

• Restrictive Venting (elbows, horizontal runs, cold external chimneys, etc.)

• Dirty / Poor Quality Fuel

• Lack of Maintenance

Note: Excessive amounts of ﬂy-ash built-up in the UltraGrate™, clinkers in the UltraGrate or leakage of air (if the grate is not properly seated) will starve the ﬁre for air. See Routine Maintenance, on Pages 21 through 24 for information on cleaning requirements.

Excessive Combustion Air: Adjusting the damper to a more closed position will reduce the combustion air delivery. Symptoms of excessive air include; fuel burns too quickly (results in smoking or smoldering pellets), white to yellow ﬂame, etc. If the damper is open too far, the burning pellets will lift off the grate and ﬂy up into the air much like popping corn does.

Note: Excessive combustion air reduces efﬁciency.

Contributing factor:

• Venting system providing excessive draft.

Correct Combustion Air / Proper Burn Characteristics:

When the damper is correctly set, the burning pellets should move (wiggle) around slightly and the ﬂame should be bright yellow.

Automatic Safety Features

Power Outage:

During a power outage, the stove will shut down safely. The stove will automatically restart when power is resumed. The solid state control board has an internal memory that will retain heat output and blower speed settings through voltage interruptions.

A small amount of smoke may leak from the top of the window glass, the hopper and from the combustion air intake, if the stove is vented

horizontally with no vertical pipe. This will not persist for more than 3 to 5 minutes and will not be a safety hazard. It may set off your smoke alarm.

Note: If the area in which you live is prone to frequent power outages, it is recommended that a minimum of 8 feet (2-1/2 meters) of vertical vent pipe be included in a free-standing installation to induce a natural draft in the event of a power failure.

Overheating:

High temperature thermal switches will automatically shut down the stove if it overheats. Allow up to 45 minutes cooling time before re-lighting. Keep enough convection air going through stove to keep it cooling properly (adjust convection [room air] blower speed to a higher setting), this will ensure long life of the stove. If the overheating continues, contact your Lennox Hearth Products dealer for more information.

FUEL

Fuel Speciﬁcations - Using the Ultragrate™ burn system, this appliance

has been designed to burn wood residue pellets only (with up to 3% ash content). Agricultural pellets (i.e. corn, alfalfa etc.) are not permitted to be burned in the stove. Dirty fuel will adversely affect the performance of the stove. The pellet fuel should meet P.F.I. (Pellet Fuel Institute) standards for standard grade or premium grade residential pellet fuel. If the pellet fuel meets these standards, it will be printed on the bag. Any questions regarding pellet fuel can be answered at the Pellet Fuels Institute (PFI), www.pelletheat.org.

Pellet Feed/Pellet Size - The pellet feed system is designed to handle a wide range of pellet sizes up to a maximum of 5/16” diameter. Different pellets may feed at considerably different rates. You may notice a difference in the burn if you change pellet fuel sizes. The longer the pellet, the slower it will feed and vice versa. If the stove will not stay burning at the minimum fuel feed setting, those particular pellets may not be feeding fast enough. If this happens, reduce the amount of combustion air by adjusting the damper. See Page 9 before adjusting the damper.

Wood pellets manufactured to the pellet fuels institute (P.F.I.) certiﬁcation standard are available in two grades, Standard and Premium. The primary difference between the two is the ash content of the pellets.

The P.F.I. speciﬁcation for standard grade & premium grade residential pellet fuel is as follows:

• CHLORIDES (Salt): Less than 300 p.p.m. rusting.

• BULK DENSITY: 40 lb. / Cu. Ft. minimum

• MOISTURE CONTENT: 8% maximum

• ASH CONTENT: < 3% maximum (standard grade) < 1% maximum (premium grade)

• FINES: 0.5% maximum through a 1/8” screen BTU CONTENT: There are a number of variations in pellet fuels that are

• not included in PFI standards. For example, BTU (heat value) content may range from just under 8,000 to almost 9,000 BTU, depending upon species and region of the country and other variables.

to avoid stove and vent

Clinkering - Silica (or sand) in the fuel, along with other impurities, can cause clinkering. A clinker is a hard mass of silica formed in the burning process. Clinkering is a function of the fuel, (not the stove), but adversely affects the performance of the stove by blocking off the air passages in the grate. Even P.F.I. approved pellet fuel may tend to clinker. A clinker can be removed from the UltraGrate™ and placed in the ash pan with the use of the grate scraper/ash pan tool furnished with your stove. See Routine Maintenance (on Pages 21 through 24) for more information on cleaning.

Ash - The frequency of removal of the ash and maintenance performed on the stove is directly proportional to the ash content of the fuel and the operation duration of your pellet stove. Low ash fuel may allow longer intervals between cleaning, however, a stove burning high ash fuel may need to be cleaned as often as everyday.

PLEASE NOTE

facturing of pellet fuel and will not be held responsible for poor stove performance or any damage caused by poor quality pellet fuels.

Note:

: Lennox Hearth Products has no control over the manu-

See Fuel Delivery Rate on Page 18 for burn times.

CAUTION

The use of unapproved, dirty, wet and / or high salt content fuel will void the warranty!

FUEL FEED RATES

Different brands of pellets will feed at varying rates due to their size and density (length and diameter). This may require a slight adjustment in the damper adjustment (see Page 9) or the fuel feed trim control to compensate (see Page 18).

ROUTINE MAINTENANCE

Cleaning

IMPORTANT

Unplug and Ensure Stove is Cold Before Performing Any Maintenance Work.

The following areas need to be inspected and cleaned during routine cleaning:

• Heat Exchange Tubes / Tube Scraper

• Bafﬂe Plates

• Proof of Fire Switch

• Window Wash

• Ash Clean-Out Ports

• Paint Touch-up

• UltraGrate (Burn Grate)

• Ash Slide Plate

• Ash Pan

• Exhaust Passages / Vent Pipe and Creosote Removal cian Only)

• Gaskets

• Cleaning Rear Stove Compartment

(Qualiﬁed Technician Only)

(Homeowner)

(Qualiﬁed Technician Only)

(Homeowner)

(Qualiﬁed Technician Only)

(Homeowner)

(Qualiﬁed Techni-

(Qualiﬁed Technician Only)

Heat Exchange Tubes

Tube Scraper - Using the hole in the handle of the Grate Scraper Tool

“grab” the scraper rod as shown in Figure 26. Using the Grate Scraper Tool, pull the rod up and out towards the opening of the ﬁrebox. Con tinue pulling until the Tube Scraper reaches the top of the ﬁrebox. Pull the tube scraper out, then repeat 2–3 times to remove ﬂy-ash from the heat exchange tubes.

It may be easier to clean the tubes if the heat exchanger bafﬂe plate is removed ﬁrst (located in the ﬁrebox below exchange tubes).

Bafﬂe Removal - The bafﬂe plate contains two keyhole slots (see Fig ures 24A and 24B), which allows the two retaining screws to remain in

place while removing the bafﬂe plate. To remove bafﬂe, loosen the two screws holding the bafﬂe in place (do not fully remove). Slide the bafﬂe plate to the left until the screw heads clear the open end of the key hole slots. Remove the bafﬂe plate diagonally through door opening. The tube scraper rod can now be pulled in a more horizontal manner, which allows the scraper to move more freely.

Note:

The bafﬂe plate should be removed at least once a year to allow

for a thorough cleaning.

DETAIL A

Front

Bafﬂe Plate

Back

Keyhole Slots

(2 places)

Figure 24B - Removing Bafﬂe Plate

Cleaning Behind Tube Scraper

WARNING

DO NOT USE BRUSH ON HOT STOVE

Clean between the heat exchange tubes using a cleaning brush as illustrated in Figure 25.

DETAIL A

Bafﬂe Screw

Brick Retaining Bracket

Bafﬂe

Plate

Brick Panel

With tube scraper rod pulled out 2 to 3 inches, insert brush behind tube scraper and remove ash build-up. Clean to the left and right side of heat exchanger, between tubes and the top of the ﬁrebox.

(Recommended Frequency of 2 weeks - 2 months)

Figure 25 - Clean Behind Tube Scraper

Figure 24A - Removing Bafﬂe Plate

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

(Recommended Frequency of 2 days – 2 weeks)

Figure 26 - Pulling Tube Scraper Rod

Proof of Fire Switch

This switch needs to be removed and cleaned after every 100 bags of fuel burned.

Cleaning Procedure:

UNPLUG STOVE!

2) Locate the switch behind the right side panel, mounted on the com bustion blower.

3) Using a ﬂat-head screwdriver, remove the 2 screws which secures the switch to the blower housing.

4) Using a dry cloth, wipe off any ﬂyash build-up on the sensor portion of the switch.

5) Reinstall switch. Ensure wires are properly connected to the switch and the connectors are not making contact with the blower housing. Close side panel.

Note: Failure to clean the proof of ﬁre switch when needed may result in nui sance shut-downs because the ﬂy-ash build-up insulates heat from reaching the switch.

(Recommended Frequency of 1 year or after every 100 bags of fuel used)

Ash Clean-out Ports

IMPORTANT NOTES:

• ENSURE APPLIANCE IS COLD BEFORE BEGINNING.

• FIREBRICK PANEL MUST BE INSTALLED BEFORE OPERATING UNIT.

• ASH CLEAN-OUT PORTS MUST BE CLEANED OUT AS PART OF ROUTINE MAINTENANCE.

Accessing Ash Clean-Out Ports

1) Open ﬁrebox door.

2) Remove Firebrick Panel (see Figure 24A

a. Remove the two ﬁrebrick retainer brackets using a 5/32" allen

wrench (located on the left and right side of the ﬁrebrick inside ﬁrebox). Loosen the screws (do not remove) until screw heads can be removed through the key hole slots in the brackets.

b. With the brick retainer brackets removed, lift ﬁrebrick panel up

and out.

3) Using an approved ash vacuum (a brush can also be used), remove the ash build-up.

4) Reinstall ﬁrebrick panel.

5) Close ﬁrebox door.

(Recommended Frequency of 1-2 months)

(ﬁrebox viewed from front with ﬁrebrick panel removed)

Window Wash

Using a small brush, sweep out all debris buildup from behind the window wash bracket as shown in Figure 27.

(Recommended Frequency of 1 year)

Figure 27 - Clean Behind Window Wash Bracket Using Brush

Vacuum Out Fly Ash Clean-Out Ports (indicated by arrows)

Figure 28 - Ash Clean-Out Ports

Soot and Flyash:

Formation and need for removal - The products of combustion will contain

small particles of ﬂyash. The ﬂyash will collect in the exhaust venting system and restrict the ﬂow of the ﬂue gases. Incomplete combustion, such as occurs during startup, shutdown, or incorrect operation of the room heater will lead to some soot formation which will collect in the exhaust venting system. The exhaust venting system should be inspected at least once every year to determine if cleaning is necessary.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

UltraGrate™ (Burn Grate)

Ash Pan

Inspect the UltraGrate periodically so that the air holes don't clog with ash or clinkers. The UltraGrate can easily be cleaned with the grate scraper tool, or it can be removed. It is very important to monitor the ash build up under the UltraGrate, as too much of ash will block combustion air from entering the grate, causing pellets to pile-up in the grate. The ash build-up under the grate is easily dumped into the ash pan by pulling out the ash slide weekly (see Ash Slide Plate, Figure 30).

(Recommended Frequency of 1 day – 2 weeks)

UltraGrate

The grate scraper tool ﬁts into this slot for easy removal

Figure 29 - Inspect UltraGrate and Clean if Necessary

Ash Slide Plate

Ash that accumulates around the grate can be “dropped” into the ash pan as follows:

1. Open the ﬁrebox door.

2. Pull open the ash release slide plate as shown in Figure 30.

3. Using a brush, sweep the ashes from the ﬁrebox through openings to the ash pan.

4. Close the ash slide plate, then close the ﬁrebox door.

IMPORTANT NOTE: Make sure to fully close the ash slide plate when complete. Failure to close the ash release slide plate completely may cause the fuel to burn poorly (due to reduced air ﬂow through the grate), which may then cause pellets to “pile up” in the grate. The ash slide must be fully closed for the ﬁrebox door to close.

(Recommended Frequency of 1 day – 2 weeks)

Sweep ashes into openings on sides

The ash pan will have to be emptied periodically, depending on amount of fuel consumed. The ash pan is located in the pedestal. See Figure 31.

Ash Pan

(Recommended Frequency

Figure 31 - Ash Pan

of 2 days – 2 weeks)

Creosote Removal

When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney ﬂue of a slow-burning ﬁre. As a result, creosote residue accumulates on the ﬂue lining.

When ignited this creosote makes an extremely hot ﬁre. The chimney connector and chimney should be inspected at least once every two months during the heating season to determine if a creosote buildup has occurred.

If creosote has accumulated it should be removed to reduce the risk of a chimney ﬁre.

Exhaust Passages And Vent Pipe

Inspect frequently and clean when necessary. Fly-Ash will accumulate at all bends in the exhaust system.

Note: Large amounts of ﬂy-ash build-up will create a lack of combustion air. Removing the clean-out tee cap on vertical installations will allow an inspection of the ash build-up in the clean-out tee and will help you to decide how frequently more extensive cleaning must be performed.

Ash Slide Plate

Figure 30 - Using the Ash Slide Plate

Rain Cap

Clean-Out Tee

Figure 32 - Clean Vent Components

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

(Minimum Frequency of 1-2 months)

Remove cover, then remove ash

Door Rope Gasket

Motor Lubrication

The condition of the rope gasket around the door and windows should be checked periodically and replaced or repaired if necessary. The door gasket does not need to be “tight” in all areas, since a small amount of leakage is not hazardous or detrimental to the performance of your stove.

Door Gasket

The blowers are permanently lubricated by the manufacturer. Do not apply oil to any part of the blower, doing so may cause damage.

Blower Cleaning

Clean the air holes on the motors of both the exhaust and room air blowers annually. Remove the exhaust blower from the exhaust duct and clean out the internal fan blades as part of your fall start-up.

Rear Stove Compartment

The rear stove compartment should be cleaned periodically (a minimum of once a year). DISCONNECT ELECTRICAL CORD PRIOR TO CLEANING STOVE. Any household dust, pet hair or sawdust should be vacuumed or wiped out of the rear compartment of the stove, room air blower, and combustion blower (paying special attention to vacuuming out the intakes of both blowers). The electrical components should be wiped clean.

Glass Cleaning

DO NOT CLEAN THE GLASS WHEN THE STOVE IS HOT. To clean glass, use a mild non-abrasive cleaner when cool. Glass cleaners that are designed for stove glass is recommended. Creosote builds up on glass quickly when ﬁre is burned at lowest settings. DO NOT use abrasive cleaners on glass. Periodically clean out the door air wash (a groove at the bottom of the door). This air wash directs air over the glass door to minimize soot buildup on the door.

Figure 33 - Checking Door Gasket

Opening Side Panels

The hinged side panels are held closed with magnets. To open, grab the upper portion of the side panel (at front of stove) and pull each panel outward (see Figure 34). The side panels will hinge open from the back.

After maintenance is complete, close the side panels.

Left

Side

Panel

Right

Side

Panel

Small Area Paint Touch-up

The stove body is painted with a quality high-temperature stove paint. Use only model TSPK-B Stove Paint, Catalog # 70K99. Do not touch-up your stove with any other paint.

Using one small piece of 320 grit sand paper and lightly sand the blemish so that the edges are “feathered” or smooth to the touch between the painted and bare surfaces. Do not let the sand paper gum up with paint, as this will cause scratches on the metal surface. If there are any scratches, use 600 grit sandpaper instead. Mask off surfaces you do not want painted. Paint lightly over the bare surface ﬁrst as this will act as an undercoat. Then paint over a larger area in smooth even strokes to blend.

Figure 34 - Opening Side Panels

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

SPECIFICATIONS - Montage™ 32FS

9-5/8”

245mm

28-11/16”

729mm

9-3/16” 233mm

24-11/16”

627mm

1-9/16”

40mm

11-1/4” 286mm

23-1/8” 507mm

2-15/16”

75mm

5-1/2”

140mm

11-1/4”

286mm

7”

178mm

22-1/2” 572mm

2”

51mm

Stove Back

Clean-Out

Tee

5-7/8"

Product Reference Information

Cat. No.

Model Ship.

Weight

H6839 Montage 32FS 285 lb. 22.06 cu. ft.

Flue Size 3” (76 mm) Rear

Floor Protection Front and Sides: 6”(152 mm) Requirements Back: Up to 6”(152 mm)

Ship.

Volume

Hopper Capacity 55 Lbs.

Burn time 15 - 37 hours

Fuse, Control Board 5 Amp, 250 volt, 3AG Fuse, Igniter 6 Amp, 125 volt

Heat Input 13,000 - 32,000 BTU/hr

(BTU’s per hour)

Emissions < 4.5 gr/hr (varies w/size and type of fuel) EPA Certiﬁed

Convection (room air) Blower 150 CFM; 1.5 Amps, 2175 rpm

Combustion Blower 95 CFM: 1.0 Amps, 3000 rpm

Auger Motor 1.25 RPM; 0.5 Amps

Standard Features Fastﬁre™ Self Igniter Wall Thermostat (wire included)

Notes:

• Dimensions shown are approximations only

.25(+/- 1/4”)

• Approved for Manufactured Home Installations.

• Optional Kits Available - Decorative trim kits, log

set, window screen and 4” Quick Disconnect kits.

• The burn grate is designed with advanced

UltraGrate™ technology.

Non-combustible ﬂoor protection is required

(see Floor Protection, Page 4). When installed at clearances less than 6”, the ﬂoor protector is only required to extend to the wall. Fuel delivery and burn times will vary depending on size and type of fuel used. Estimated heat input based on fuel value of 8400 BTU per lb. Fuses are rated as fast blow.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

COMPONENT DEFINITIONS

2-BLK

5-WHT

HOT GND

NEUT

GRN

CONV

BLOWER

3-BLK

AUGER

MOTOR

IGNITER FUSE

IGNITER

1-BLU

4-ORG

2-BLK

J P

COMB

BLOWER

THERMOSTAT

CONNECTOR

YEL

HI-LIMIT

AUTO-RESET

SWITCH N/C

HI-LIMIT

AUTO-RESET

SWITCHN/C

PRESSURE

SWITCH

N/C

HOPPER

LID SWITCH

N/C

HI-LIMIT MANUAL

RESETTABLE

SWITCHN/C

LO-LIMIT AUTO-RESET SWITCH N/O

ON COMBUSTION BLOWER HOUSING

NOTE: SWITCH CONDITIONS GIVEN AT ROOM TEMPERATURE, STOVE OFF

N/C = NORMALLY CLOSED N/O = NORMALLY OPEN

= FEMALE DISCONNECT = MALE DISCONNECT = STUD CONNECTION

POWER DISCONNECT

1-BLU

3-RED

1-BLU

P/N 537039-01 Rev. NC

MontageTM32FS

Wire Diagram

J = JACK P = PLUG

ON AUGER

TUBE

LEFT HOPPER

LID HINGE

AREA

INSIDE RIGHT

ACCESS DOOR

6-BRN

ABOVEROOM

AIR BLOWER

DIRECTLY

ABOVE

ASHPAN

2-BLK

IGN 08-2302

• Air Wash

A small slot in the door that allows room air to be pulled into the

ﬁrebox and pours over the inside surface of the door glass to inhibit the build up of soot.

• Auger

A motor powered screw device that transfers the fuel from the hopper

to the feed chute to deliver pellets to the UltraGrate™.

• Auger Motor

Drives the Auger. Motor speciﬁcations are: 0.5 Amp, 1.25 RPM

(revolutions per minute).

• Blower, Room Air (Convection)

The blower function is to transfer the heat from the appliance to heat

the room air.

• Blower, Exhaust (Combustion)

It has a radial impeller to deliver more air to the UltraGrate™. It pulls

air into the UltraGrate by creating a negative pressure. This is done by extracting the exhaust gases out of the ﬁrebox and pushing the exhaust downstream to the ﬂue exit.

• Thermal Switches, High Limit

There are three of these high-limit thermal switches on this model.

If a temperature reaches the high limit temperature, the reset switch will “trip” and stop the ﬂow of electricity to the auger motor. The thermal switches will not reset until they have cooled below low reset temperature).

- Auto Reset Thermal Snap Switch for Room Air Blower (L250- 30F, N/C*) – This switch will trip at 250° F and will automatically reset when it reaches a temperature of 220° F. This switch is located on the room air blower jacket and is designed to detect an overﬁre condition.

Auto Reset Thermal Snap Switch for Combustion Air Inlet (L250-30F, N/C*)

matically reset when it reaches a temperature of 220° F. This switch is designed to detect reversed ﬂow or excessive heat in the ashpan area. This switch is located on the ﬁrebox base behind the convection jacket, directly above the ashpan. This switch is most easily accessed by removing the ashpan

This switch will trip at 250° F and will auto-

Manual Reset Thermal Snap Switch for Feed Chute (L300-145F,

N/C*) This switch will trip at 300° F and will not be resettable until it reaches a temperature of 155° F. This switch is designed to detect if heat from the ﬁre is approaching a path toward the hopper. If this switch trips it must be manually reset. To reset, open left side access door (facing stove), locate switch on the side of the auger tube and press the red button in the center until it clicks into the reset position.

• Thermal Switch, Low Limit (Ceramic, F140-20F, N/O*) - This "proof

of ﬁre" switch will close at 140° F and will not open until it reaches a temperature of 120° F. This switch is located on the combustion blower (behind the right side panel). It is designed to shut down the stove (auger motor and both blowers) if it does not detect the heat of a ﬁre at the end of the initial startup period.

• Hopper Lid Switch

It is located on the left hinge area inside the hopper. It detects whether

the hopper lid is open and will turn off the auger motor if the hopper lid is not properly closed. When opening the hopper when refueling, do not allow the hopper lid to remain open too long or the ﬁre may extinguish. NEVER DISCONNECT OR BYPASS THIS SWITCH FOR

ANY REASON.

• Hopper

The hopper is where the pellets are stored.

• Heat Output Button

It controls power to the feed system - auger motor and combustion

blower. Use the heat output button to adjust to any of the ﬁve feed rate settings (which controls the burn rate).

• Pressure Switch

A safety device used to shut off the feed system (auger motor) if there

is too much back pressure in venting system. Some possible causes are as follows:

• The venting system is obstructed.

• High altitude or other misc. environmental conditions affecting exhaust ﬂow.

• Improper venting system.

The Pressure Switch is located inside the right access door right next

to the combustion blower.

• UltraGrate (Burn Grate) This is where combustion occurs and may be referred to as the “Burn

Grate”.

Figure 35 - WIRING DIAGRAM 120 V AC

* N/C = Normally Closed N/O = Normally Open

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

TROUBLESHOOTING

QUALIFIED TECHNICIANS ONLY

Unplug Appliance Before Performing Any Troubleshooting or Maintenance

PROBLEM CAUSE(S) SOLUTIONS

1. Fire burns with a lazy orange ﬂame. Pellets build up in the and there is excessive glass soot that is difﬁcult to remove (Ash and soot are a product of combustion with any wood products, so some build-up on the glass is normal).

2. Fire goes out or stove shuts down automatically A) Stove has run out of fuel.

3. Pellets will not feed. A) The hopper is empty.

• There is insufﬁcient combustion air.

• Fuel feed rate is too high.

B) Pellets are not feeding. C) The high limit temperature switch has

tripped.

D) There is too much combustion air for

the amount of fuel.

E) The proof of ﬁre switch is opening,

disconnecting power to the auger motor.

B) The auger motor or control board may

be defective. The pressure switch tap or hose may be blocked.

C) Back pressure in venting tripping

pressure switch. D) Thermostat is in stand-by mode. E) Thermostat wires disconnected. F) High limit thermal switch may have

been tripped. G) Self-aligning bearings in auger motor

may be misaligned. H) Fines or wet fuel in auger. I) Hopper lid is open. J) Hopper lid switch is faulty.

A1) Lack of maintenance (clean UltraGrate™, clean-out ports, exhaust ﬂow passages, venting system, combustion blower intake, etc.

• Remove any clinkers or ash from the bottom of the UltraGrate

that might be obstructing the primary air holes.

• Check that the heat exchange tubes are not coated with

ash.

• Clean internal exhaust ducts.

• Check gasket seal around the door. Use a thin strip of paper,

1 in. wide. Open the door and close it on the paper strip. A slight friction should be felt when the paper strip is pulled. Repeat this process at various locations around the door gasket. Replace the door gasket if necessary.

• Check for blockage in the air inlet tube or exhaust pipe. Clean

as Necessary.

• Inspect glass seal to ensure that it is in good condition and

is properly seated to the door.

A2) Fuel trim may need to be adjusted down for faster feeding fuels.

A3) Change to a better grade of fuel if necessary. Check that the damper has been opened enough for the amount of fuel fed.

A4) Have your Lennox Hearth Products dealer check your combustion blower for proper operation.

A5) The venting system design is too restrictive (call your Lennox Hearth Products Technician to evaluate how the installation can be corrected to satisfy the exhaust ﬂow requirements of the appliance). A6) Adjust the damper to increase combustion air ﬂow.

A) Reﬁll hopper. B) See (Pellets will not feed) this Page. C) Allow the appliance to cool for 1 hour, then re-light. If the stove

has been operating at a medium to high burn rate with the room air blower adjusted to low, there may not be enough air ﬂow to dissipate the heat. On higher feed rates, adjust the blower speed to a higher setting. If this problem persists (particularly at lower burn rates) then the high limit thermal switch may need to be replaced by your dealer.

D) Adjust the damper to reduce combustion air ﬂow. E) Clean proof of ﬁre switch (see maintenance section). If this does

not correct problem, check switch for proper operation. Replace if necessary.

A) Reﬁll hopper. B) Check to be sure that there is no blockage in the pressure tap or

hose. Have your Lennox Hearth Products dealer diagnose the problem and clean or replace any necessary parts.

C) If new installation check for excessive 90˚ bends, long horizontal runs or excessive vertical run of 3” pipe. Possibly change to 4” pipe. If older installation check for excessive ash accumulation in pipe or other obstructions. Clean out pipe.

D) Check to see if thermostat is set to low or if sun is shining directly on thermostat.

E) Reinstall wires.

F) Allow stove to cool. Increase room air blower setting. G) Gently tap the auger motor.

H) Clean out ﬁnes or wet fuel in auger and hopper. Use PFI certiﬁed fuel only and store bags in a dry location.

I) Close Hopper Lid. J) Replace hopper lid switch if determined to be faulty.

TROUBLESHOOTING

QUALIFIED TECHNICIANS ONLY

Unplug Appliance Before Performing Any Troubleshooting or Maintenance

PROBLEM CAUSE(S) SOLUTIONS

4. Blowers will not operate when the ON/OFF start button is depressed.

A) There is no power to the stove.

A) Check that the stove is plugged in to the wall outlet.

B) There is no power to the control board.

C) The low limit thermal switch has failed in the

closed position.

5. There is soot or ﬂy-ash in the house. A) The window is being cleaned when the stove is operating.

B) There is leakage at the joints between the

combustion blower, connection or exhaust pipe connections. This will be evidenced by dust on the impeller of the room air blower, and in the heat exchanger area.

C) The vacuum cleaner is leaking.

6. Stove will not light. A) The igniter element may have failed.

B) There is not enough pellets in the UltraGrate.

7. Fault A) The low limit thermal switch is not operating correctly (stuck in open position)

B1) Check if the house circuit breaker has tripped.

B2) Check the wire connections on the high limit thermal switch and control board.

C) Have your Lennox Hearth Products dealer replace the low limit thermal switch.

A) Turn down the room air blower or turn off stove before cleaning to prevent dispersion of ash and soot into the room.

B) Seal up any leaks in the exhaust system with room temperature vulcanizing high temperature silicone sealer (RTV).

C) DO NOT use a standard household vacuum or “shop vac” as the ﬁlters will leak the ﬁne particles of ash. Clean the stove with an approved ash vacuum ONLY.

A) Check igniter element fuse in rear stove compartment. Call your Lennox Hearth Products dealer. See Lighting Procedure Without Igniter, Page 20.

B) Prime the feed system (see Pre-lighting Instructions,

Page 19).

A) Have your Lennox Hearth Products dealer replace the low limit thermal switch.

B) Reﬁll hopper.

B) Stove has run out of fuel.

C) A disk has tripped / pressure switch.

8. Blowers run continuously A) Wire harness and/or control board has been damaged – unplug stove and contact dealer.

9. Blinking red lights on control board LED’s. A) Thermostat circuit in not closed A1) If a wall thermostat is not installed, a jumper

C) Blower intake, exhaust passages and/or venting system needs cleaning (follow routine and annual maintenance procedures).

A) Contact your local Lennox Hearth Products dealer.

is required between the 2 thermostat terminals (see Figures 7 and 8 on Page 9). If the jumper is missing contact your LHP dealer.

A2) The wall thermostat (if used) is defective or there is a break in the connections or thermostat wire.

REPLACEMENT PARTS LIST - MONTAGE™ 32FS

Contact an Authorized Lennox Hearth Products dealer to obtain any of these parts. Never use substitute materials. Use of nonapproved parts can result in poor performance and safety hazards.

DOOR PARTS

Item # Cat. No. Description

1 H7045 Door Assembly

2 H7046 Face Assembly 3 H7047 Door Handle Assembly 4 H7048 Hinge Plate Assembly 5 H7049 Latch Plate Assembly 6 H7313 Door Rope Kit, 4 ft. 7 12050506 Door Hinge Pin (2 per pkg.) 8 H7050 Lennox Logo Pewter Badge

FIREBOX PARTS

9 H7051 Heat Exchanger Bafﬂe Assembly 10 H7052 Ash Pan Assembly 11 H7053 Igniter Assembly 12 12158905 UltraGrate™ 13 17150009 Scraper Rod 49 H7054 Refractory Panel 14 H7055 Ash Clean-out Covers (Pair)

PANELS

15 H7056 Left Side Door Assembly 16 H7057 Right Corner Panel Assembly 17 H7058 Left Corner Panel Assembly 18 H7059 Right Side Door 19 H7060 Stove Back Cover 20 21

22 H7309 Convection Blower Assembly 12146109 23 H7310 Combustion Blower Assembly 12050011 24 H7312 Hopper Lid Switch Bracket (1 per pkg.) 36 H7063 Hopper Lid Switch (1 per pkg.) 25

28 12147705 High

37 H5887 Low Limit Auto Proof of Fire Snap Switch

H7061 Side Door Hinge Bracket H7062 Hinge, 3" (1 per pkg.)

ELECTRICAL

H7064 High Limit Manual Reverse Flow Snap Switch

H7065

Assembly, L300-145F N/C, (1 per pkg.) (on the side of the auger tube body, at top near feed chute)

High Limit Auto Reset Reverse Flow Snap Switch Assembly, L250-30F N/C, (on ﬁrebox base behind convection jacket & above the ash pan)

Limit Auto Snap Switch, L250-30F N/C,

per pkg.)

Assembly, F140-30F N/O, (1 per pkg.) 57601

(Instr. Form # 506033-07)

(1 per pkg.)

(on convection jacket)

Item # Cat. No. Description

27 12155907 Igniter Inline Holder with Fuse

16050001 Vacuum Switch

30 H5898 Vacuum Hose

31 H7066 Wiring Harness

33 H7067 Control Board

50 12051409 Control Panel Knob

34 12055908 Fuse, Control Board and Igniter, (12 per pkg.)

35 H5886 Auger Motor

38 16050205 Wall Thermostat

*** H3457 Wire, Thermostat

H3079 Power Cord

MISC.

40 H7068 Flue Outlet Tube Assembly

41 11756300 Auger Shaft Assembly

44 12051001 Auger Motor Bumper

45 12051100 Upper Shaft Bushing, Brass

46 H4958 Hopper Lid Handle

47 12055500 Scraper Tool

H5916

H7311 Auger End Plate

12041300 Auger Collar Assembly

Round Door Magnet

(5 per pkg.)

(12 per pkg.)

H7069

GASKETS

53 61050016 Flue Outlet Gasket

61050005 Combustion Blower Gasket

55 61057203 Convection Blower Gasket

56 H7074 Auger Tube End Cap Gasket

51 12050004

Cleaning Brush

(5 per pkg.)

H7071

H7073

H7070

H7072

REPLACEMENT PARTS LIST - MONTAGE 32FS

Includes 20 feet of thermostat wire

REPLACEMENT PARTS DIAGRAMS

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

OPTIONAL ACCESSORIES

Item # Cat. No. Model Description

Optional Accessories

1 H6840 MONT-32FS-CONT Contemporary Trim Accessory Kit, Brushed Nickel

2 H6841 MONT-32FS-ART Artisan Accessory Trim Kit, Matte Black

3 H6842 MONT-32FS-ARCH Arch Accessory Trim Kit, Matte Black

4 H6843 MONT-32FS-GOTH Gothic Cast Iron Accessory Kit, Black Paint

5 H0244 DLS-PM Log Set

6 70K99 TSPK-B Touch-up Paint, Black

7 14M81 QDPC-4 Quick Disconnect Pipe Connector, 4” *

* Converts from standard 3” outlet to 4”

Contemporary Accessory Kit,

Montage 32FS, Brushed Nickel

Form # 775,201M

Artisan Accessory Kit, Montage 32FS, Matte Black

Form # 775,201M

Arch Accessory Kit, Montage 32FS, Matte Black

Form # 775,201M

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

ACCESSORIES

Gothic Accessory Kit, Montage 32FS, Black Paint

Form # 775,201M

Form # 775,077M

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

SAFETY / LISTING LABEL

Combustible Wall Mur Combustible

Stove Poêle

Alcove

Stove Poêle

Combustible Wall Mur Combustible

Combustible Wall / Mur Combustible

Stove Poêle

Corner / Position En Coin

CERTIFIED FOR U.S. AND CANADA. LISTED ROOM HEATER FOR USE WITH PFI APPROVED PELLETIZED WOOD FUEL ONLY. FOR USE IN MANUFACTURED (MOBILE) HOMES.

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER’S INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. SEE LOCAL BUILDING CODE AND MANUFACTURER’S INSTRUCTIONS FOR PRECAUTIONS REQUIRED FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. THIS PELLET FIRED APPLIANCE HAS BEEN TESTED AND LISTED FOR USE IN MANUFACTURED HOMES IN ACCORDANCE WITH OREGON ADMINISTRATIVE RULES 814-23-900 THROUGH 814-23-909.

OPERATE ONLY WITH FIREBRICK IN PLACE. WARNING: OPERATE ONLY WITH VIEWING DOOR CLOSED. INSPECT FLUE FREQUENTLY TO PREVENT ACCUMULATION OF SOOT. THE HEATER AND FLUE MUST BE IN GOOD CONDITION. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIALS WELL AWAY FROM HEATER.

COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND 6” TO THE FRONT, SIDES AND REAR AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE MATERIAL.

USE 3” / 75MM OR 4” / 100MM TYPE “PL” LISTED PELLET VENT AND COMPLETE COMPONENTS.

Manufactured By / Fabriqué Par:

LENNOX HEARTH PRODUCTS

PO BOX 987

Auburn, WA 98071 USA

Report No./Numéro de Rapport: 3105656MID (Test Date OCT 2006 / Testé le OCT 2006)

Serial No. Numéro de série

Model / Modèle:

MONTAGE™ 32FS

Tested to/Testé selon: ASTM E-1509 / UL 1482 /

ULC S627

WH-

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS NE PAS ENLEVER CETTE ÉTIQUETTE DÉGAGEMENT MINIMUM POUR LES MATÉRIAUX COMBUSTIBLES

Freestanding Stove Installation / Installation Du Poêle Autonome Manufactured (Mobile) Home Or Residential Installation / Installation

Résidentielle Ou Dans Une Maison réfabriquée (Mobile)

Horizontal Flue Directly Through Wall Installation / Installation Du Conduit De Fumée À L’horizontale, Directement Dans Le Mur

Interior Vertical

- Flue Installation / Installation Intérieure Du Conduit De Fumée À La Verticale

Sidewall To Unit / Du Mur Latéral À L’appareil A Backwall To Unit Side / Du Mur Arrière À L’appareil B Wall To Unit Corner / Du Mur Au Coin De L’appareil C Alcove To Fuel Hopper / De L’alcôve À L’entonnoir Du

Bois De Chauffage D Max. Depth Of Alcove / Profondeur Max. De L’alcôve E Flue To Wall / Du Conduit De Fumée Au Mur F Front/rear/side To Floor Protection Outside Edge / De L’avant, L’arrière Et Les / Côtés Au Plancher Bord Extèrieur De Protection

4”/102 mm

2”/51 mm 1”/26 mm

4”/102 mm

24”/610 mm

3”/77 mm

6”/153 mm

4”/102 mm 9”/229 mm

1”/26 mm

4”/102 mm

24”/610 mm

3”/77 mm

6”/153 mm

Minimum Alcove Height / Hauteur De L’alcôve - 48”/1219 mm, Minimum Alcove Width / Largeur De L’alcôve - 31”/787 mm

Part No./ No. Pièce #580035-01 Rev. NC, 06/2008

Do Not Remove This Label / E Pas Enlever Ou Recouvrir Cette Étiquette Made In U.S.A. / Fabriqué Aux U.S.A.

IGN 08-2204

Date of Manufacture / Date De Fabrication

2008 2009 2010 JAN. FEB. MAR. APR MAY JUN JUL AUG SEP OCT NOV DEC JANV FEVR MARS AVR MAI JUIN JUIL AOÛT SEPT OCT NOV DEC

CAUTION:

HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN, CLOTHING, AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS. OPERATE THIS UNIT ONLY WITH THE FUEL HOPPER LID CLOSED. FAILURE TO DO SO MAY RESULT IN EMISSION OF PRODUCTS OF COMBUSTION FROM THE HOPPER UNDER CERTAIN CONDITIONS. DO NOT OVERFILL HOPPER.

ATTENTION:

L'APPAREIL EST CHAUD LORS DE L’OPÉRATION. NE PAS Y TOUCHER. TENIR LES ENFANTS, LES MATÉRIAUX COMBUSTIBLES, LES VÊTEMENTS ET LES MEUBLES ÉLOIGNÉS DE L’APPAREIL. RISQUE DE BRÛLURES CUTANÉES. VOIR LA PLAQUE SIGNALÉTIQUE ET LES DIRECTIVES. OPÉRER L’APPAREIL SEULEMENT SI LE COUVERCLE DE LA TRÉMIE DU COMBUSTIBLE EST FERMÉ. SOUS CERTAINES CONDITIONS, DES PRODUITS DE COMBUSTION POURRAIENT S’ÉCHAPPER SI LA TRÉMIE N’EST PAS FERMÉE. NE PAS SURCHARGER LA TRÉMIE.V

HOMOLOGUé POUR LES é-U. ET LE CANADA. RéPERTORIé COMME RADIATEUR INDéPENDANT. FONCTIONNE AU BOIS DE CHAUFFAGE GRANULé. AUSSI UTILISé DANS LES MAISONS PRéFABRIQUéES (MOBILES).

INSTALLER ET UTILISER L'APPAREIL EN CONFORMITé AVEC LES DIRECTIVES D'INSTALLATION DU FABRICANT ET DES AUTORITéS LOCALES EN BâTIMENT OU LE SERVICE DE PRéVENTION DES INCENDIES. COMMUNIQUER AVEC LES AUTORITéS COMPéTENTES LOCALES EN MATIèRE DE BâTIMENT ET D’INCENDIE POUR EN SAVOIR PLUS SUR LES RESTRICTIONS ET L’INSPECTION DE L’INSTALLATION DANS VOTRE RéGION. NE RACCORDER PAS CET APPA

REIL à UN CONDUIT DE FUMéE DESSERVANT UN AUTRE FOYER. CONSULTER LE CODE DU BâTIMENT DE VOTRE RéGION ET LES DIRECTIVES DUFABRICANT POUR CONNAîTRE LES MESURES DE PRéCAUTION à PRENDRE POUR PASSER UNE CHEMINéE DANS UN MUR OU UN PLAFOND. CET APPAREIL ALIMENTé AUX GRANULES A éTé MIS à L’éPREUVE ET RéPERTORIéPOUR UNE UTILISATION DANS LES MAISONS PRéFABRIQUéES CONFORMéMENT AUX RèGLEMENTS ADMINISTRATIFS 814-23-900 à 814-23-909 DE L’ORéGON.

FAIRE FONCTIONNER L’APPAREIL UNIQUEMENT EN PRéSENCE DE BRIQUES RéFRACTAIRES. AVERTISSEMENT : FAIRE FONCTIONNER SEULEMENT SI LA PORTE VITRéE EST FERMéE. NETTOYER L’éCHANGEUR DE CHALEUR ET LE CONDUIT DE FUMéE FRéQUEMMENT AFIN D’éVITER L’ACCUMULATION DE SUIE. L’APPAREILET LE CONDUIT DE FUMéE DOIVENT êTRE EN BON éTAT. GARDER LES MEUBLES ET AUTRES PRODUITS COMBUSTIBLES éLOIGNéS DE L’APPAREIL.

LES PLANCHERS DOIVENT êTRE PROTéGéS AVECDES MATéRIAUXNON COMBUSTIBLES, SOUS LE RADIATEUR, 6" à L’AVANT SUR LESCôTéS ET à L’ARRIèRE TEL QU’INDIQUé OU jUSQU’AUX MATéRIAUX NON COMBUSTIBLES PERMIS LES PLUS PRèS. UTILISER LES COMPOSANTS DE CHEMINéE DE TYPE "PL" DE 3 PO/75 MM OU DE 4 PO/100 MM.

ROUTINE MAINTENANCE REMINDER

FREQUENCY OF CLEANING AND MAINTENANCE OF YOUR STOVE DEPENDS ON THE ASH CONTENT OF THE PELLETS YOU BURN. CHECK THE FOLLOWING PARTS OF YOUR STOVE WEEKLY FOR THE FIRST MONTH TO DETERMINE THE FREQUENCY OF CLEANING. A. BURN GRATE B. HEAT EXCHANGER TUBES C. ASH PAN AND EXHAUST PIPE SEE YOUR MANUAL AND/OR DEALER FOR MORE INFORMATION. INPUT RATING RANGE: 1.5 TO 3.8 LBS./HOUR (NOMINAL) ELECTRICAL RATING: 60 HZ, 120 V, LESS THAN 10 AMP

RAPPEL D’ENTRETIEN PÉRIODIQUE

LA FRéQUENCE DE NETTOYAGE ET D’ENTRETIEN DE VOTRE POêLE DéPEND DE LA QUANTITé DE CENDRE DE GRANULES CONSOMMéES. VéRIFIER HEBDOMADAIREMENT LES PIèCES DE VOTRE POêLE SUIVANTES DURANT LE PREMIER MOIS POUR éTABLIR LA FRéQUENCE DE NETTOYAGE : A. GRILLE B. TUBES DE L’éCHANGEUR DE CHALEUR C. TRAPPES ET CONTENANT DE CENDRES POUR OBTENIR DE PLUS AMPLES RENSEIGNEMENTS, CONSULTER VOTRE GUIDE ET/OU VOTRE DéTAILLANT. CARACTéRISTIQUES éLECTRIQUES : 120 V, 60 HZ, MOINS DE 10 AMP; CONSOMMATION THERMIQUE : 1,5 à 3,8 LB/H MAX.

U.S. ENVIRONMENTAL PROTECTION AGENCY -

CERTIFIED to comply

with July 1990 particulate emission standards

ENVIRONMENTAL PROTECTION AGENCY DES ÉTATS-UNIS HOMOLOGUÉ

- Pour être conforme avec les normes d’ émission de particules, juillet 1990

Stove Poêle

Floor Protection / Protecteur Plancher

Note that your stove’s serial number is printed on the safety label, which is located near the inside of the hopper. Your stove’s serial number is preceded by a “WH-”(Example WH-0000000).

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

WARRANTY

Your pellet stove is covered by a limited warranty (provided with appliance). Please read the warranty to be familiar with its coverage.

Retain this manual. File it with your other documents for future reference.

PRODUCT REFERENCE INFORMATION

We recommend that you record the following important information about your ﬁreplace. Please contact your Lennox Hearth Products dealer for any questions or concerns. For the number of your nearest Lennox Hearth Products dealer, please call 1-800-9-LENNOX.

REPLACEMENT PARTS

See Page 30 through 31 for a complete replacement parts list. Use only parts supplied from the manufacturer.

Your Stove’s Model Number __________________________________________

Your Stove’s Serial Number ___________________________________________

Normally, all parts should be ordered through your Lennox Hearth Products distributor or dealer. Parts will be shipped at prevailing prices at time of order.

When ordering repair parts, always give the following information:

1. The model number of the appliance.

The serial number of the appliance.

3. The part number.

4. The description of the part.

5. The quantity required.

6. The installation date of the appliance.

If you encounter any problems or have any questions concerning the installation or application of this system, please contact your dealer.

LENNOX HEARTH PRODUCTS 1110 West Taft Avenue Orange, CA 92865 Visit us at www.Lennox.com

The Date On Which Your Stove Was Installed _____________________________

Your Dealer's Name _________________________________________________

Your Dealer's Phone Number __________________________________________

Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles and products. Consult your local distributor for ﬁreplace code information.

P/N 775,196M REV. NC 06/2008

1110 West Taft Avenue • Orange, CA 92865

Lennox Montage 32FS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
